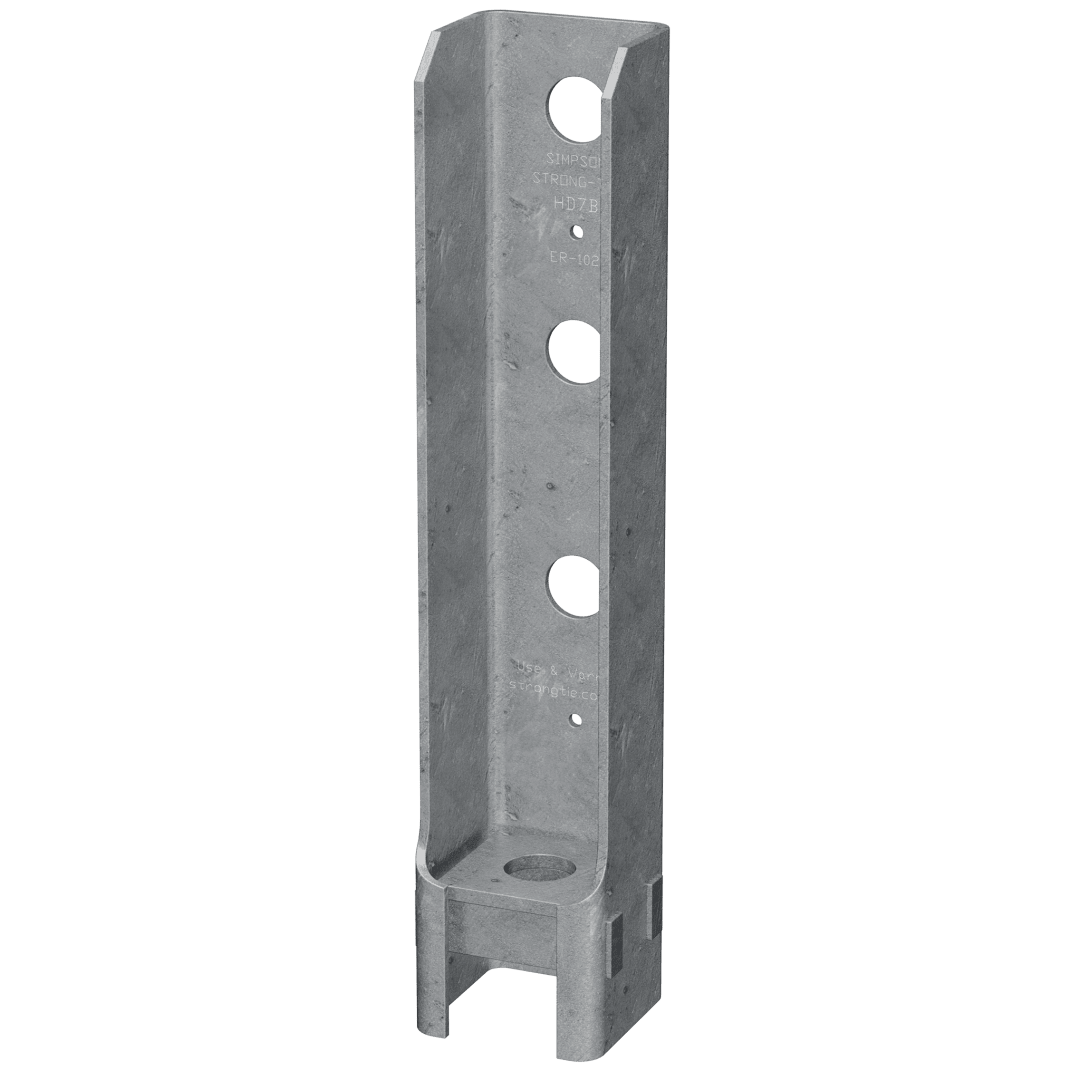

Simpson Strong-Tie HD7B HDB 12-3/8 in. Galvanized (G90) Bolted Holdown (Pack of 288)

HD7B

• Features

  • Installed after the placement of concrete and framing is in place
  • Can be installed directly on the sill plate or raised above it
  • Self-jigging, ensuring the code-required minimum of seven bolt diameters from the end of the post when installed flush with the sill plate
  • Feature a unique seat design which greatly minimizes deflection under load
  • Base made from 3/16-in. steel; body made from 10-gauge steel
  • Width: 2-1/2 in.
  • Height: 12-3/8 in.
  • Galvanized (G90) for corrosion resistance
