Cold-Formed Steel Connectors > Deflection Connectors > Clip

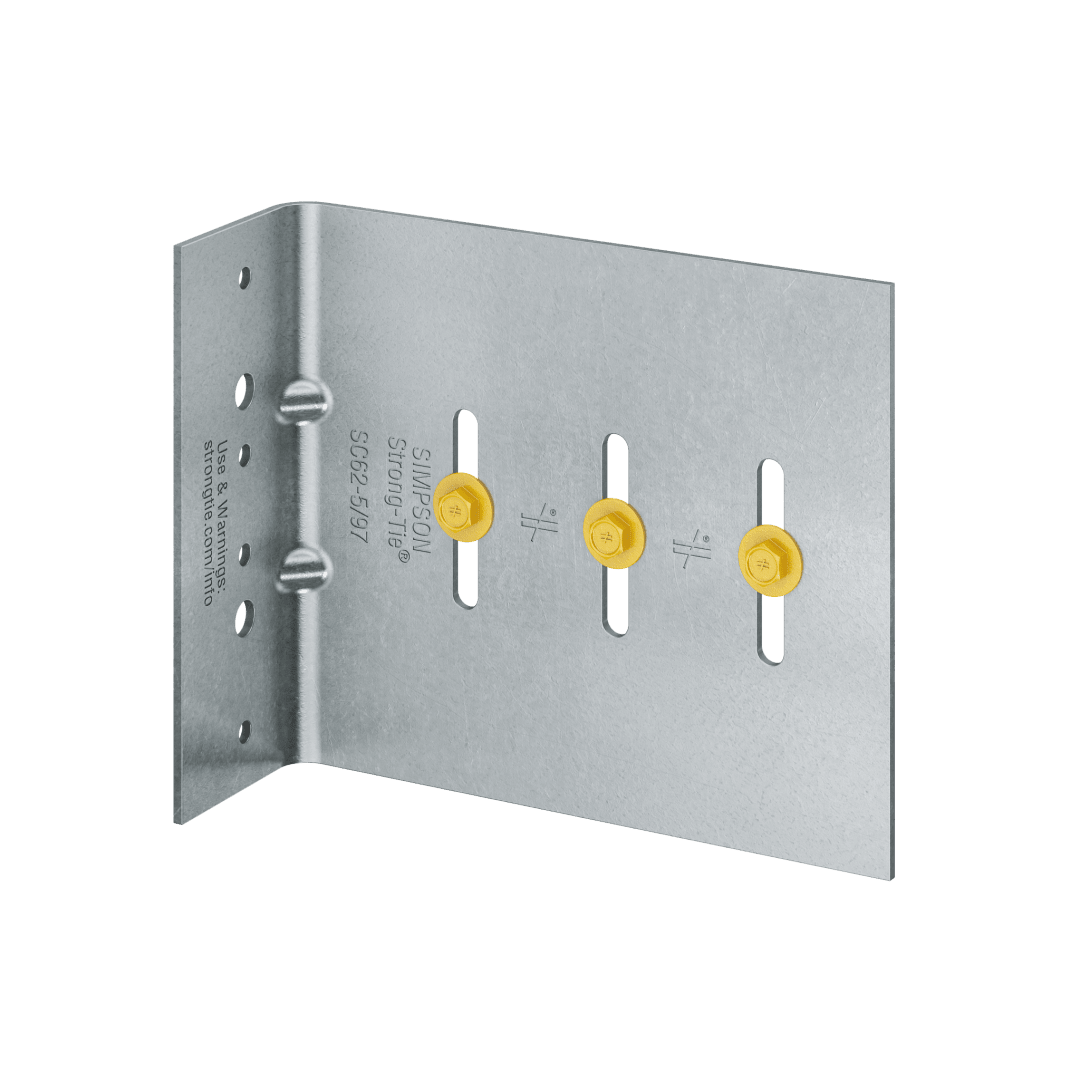

Simpson Strong-Tie SC62-5/97-KT25 SC 6 in. 12 ga. Bypass Framing Slide-Clip Connector w/ Screws (Qty-25) (Pack of 96)

SC62-5/97-KT25

• Features

  • Provides a full 3/4 in. of both upward and downward deflection
  • Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip
  • Prepunched large-diameter anchor holes accommodate 1/4 in. diameter concrete screws like the Simpson Strong-Tie Titen HD®
  • Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157 in. diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive® XL Large-Head Metal screw
  • Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly
  • 6 in. clip length, suitable for 6 in. stud; the maximum standoff distance is 1-1/2 in. for 6 in. studs
  • Made from 97 mil (12 ga.) steel; 50 ksi
  • Quantity: 25 connectors per package
