| Features and Benefits 1 | Fits 4” SCH 40 or DWV Tees |
|---|
| Features and Benefits 2 | Integral bypass protection screen |
|---|
| Features and Benefits 3 | Covered by US Patent Numbers 6,136,190; 6,331,247; 6,495,040 |
|---|
| Features and Benefits 4 | For use in single family homes with septic tanks |
|---|
| Features and Benefits 5 | Available with sanitary tee for jurisdictions that require a specific liquid penetration such as 25% – 45% into the liquid depth |
|---|
| Features and Benefits 6 | All materials are non-corrodible in the septic tank environment, sleeve is PVC, primary filter is polypropylene, and filter connection element is neoprene |
|---|
| Features and Benefits 7 | The WW1 filter is certified to NSF/ANSI Standard 46 |
|---|
| Features and Benefits 8 | Limited lifetime warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind |
|---|
| Highlight 1 | Rated for 1,500 gpd (5.7 m³/day) |
|---|
| Highlight 2 | 132 linear feet of 1/16” filtration |
|---|
| Highlight 3 | Easy to install and maintain |
|---|
| Woocom - Description | Our WW1 Effluent Filter helps prolong the life of any onsite septic system by filtering and retaining solids in the primary tank. Passive filtration of solids in a primary septic tank is an economic means of preventing harm to downstream components. The filter helps protect distribution boxes and drain fields that often follow the septic tank. Repairs of either can be quite costly, especially on smaller building lots.
Used in residential applications where the maximum flow is less than 1,500 gpd (5.7 m³/day), the WW1 effluent filter includes a patented bypass protection sleeve to keep solids in the septic tank, even during cleaning. This feature is often referred to as a filter-within-a-filter. The deep pleated filter design offers highly effective filtering to 1/16″ of an inch and keeps solids in the tank. The filter is available with a 4” sanitary tee for easy installation in new or existing septic tanks. The WW1 Effluent Filter is certified to NSF/ANSI Standard 46.
Peace of mind right-out-of-the box. |
|---|
| Woocom - Short description | The WW1 Filter fits inside any 4” sanitary tee and helps prolong the life of an onsite septic system by filtering solids which may cause harm to downstream components such as drain fields. Ideal for residential or light commercial applications with flows less than 1,500 gpd. The WW1 Effluent Filter screens solids to 1/16″ and is certified to NSF/ANSI Standard 46. |
|---|

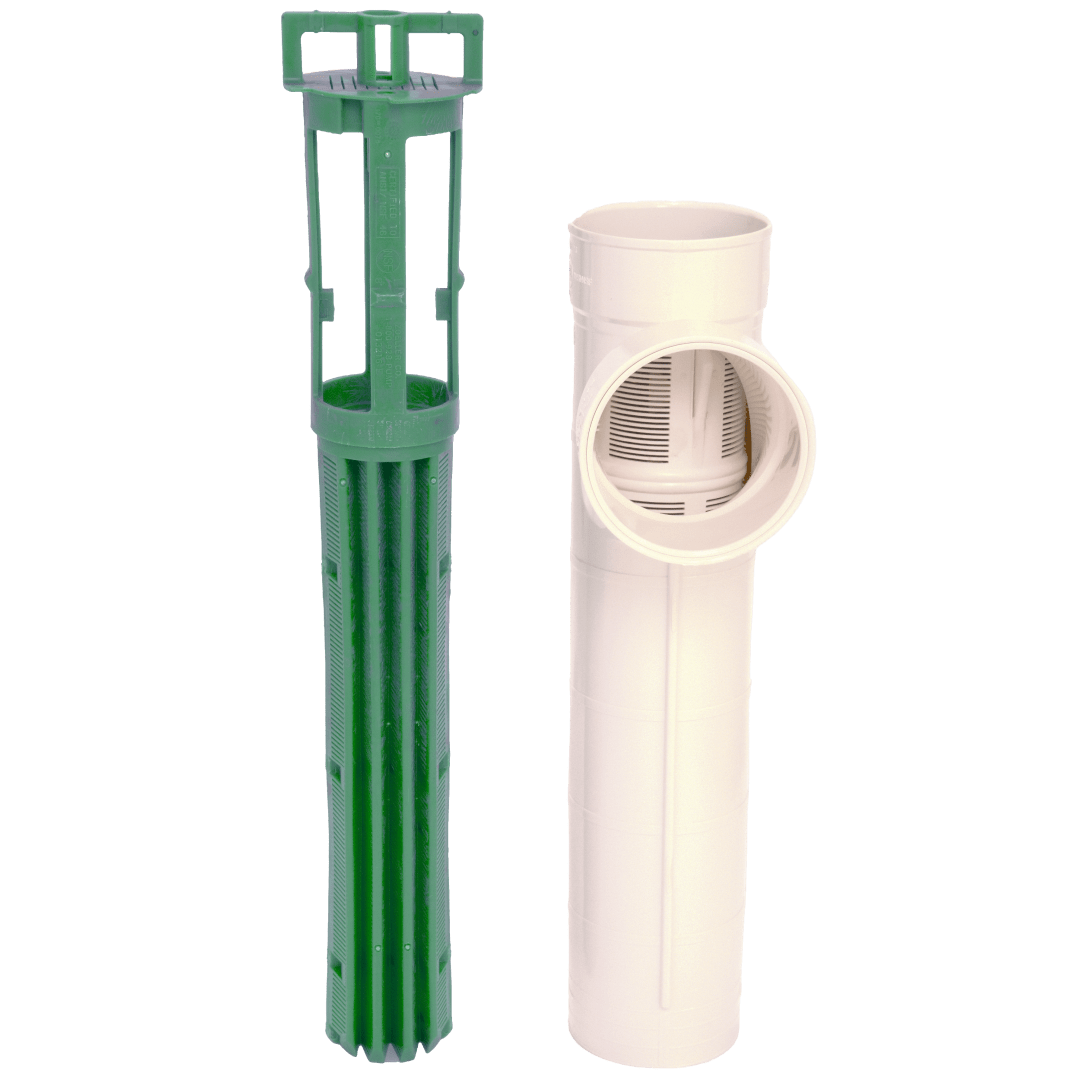

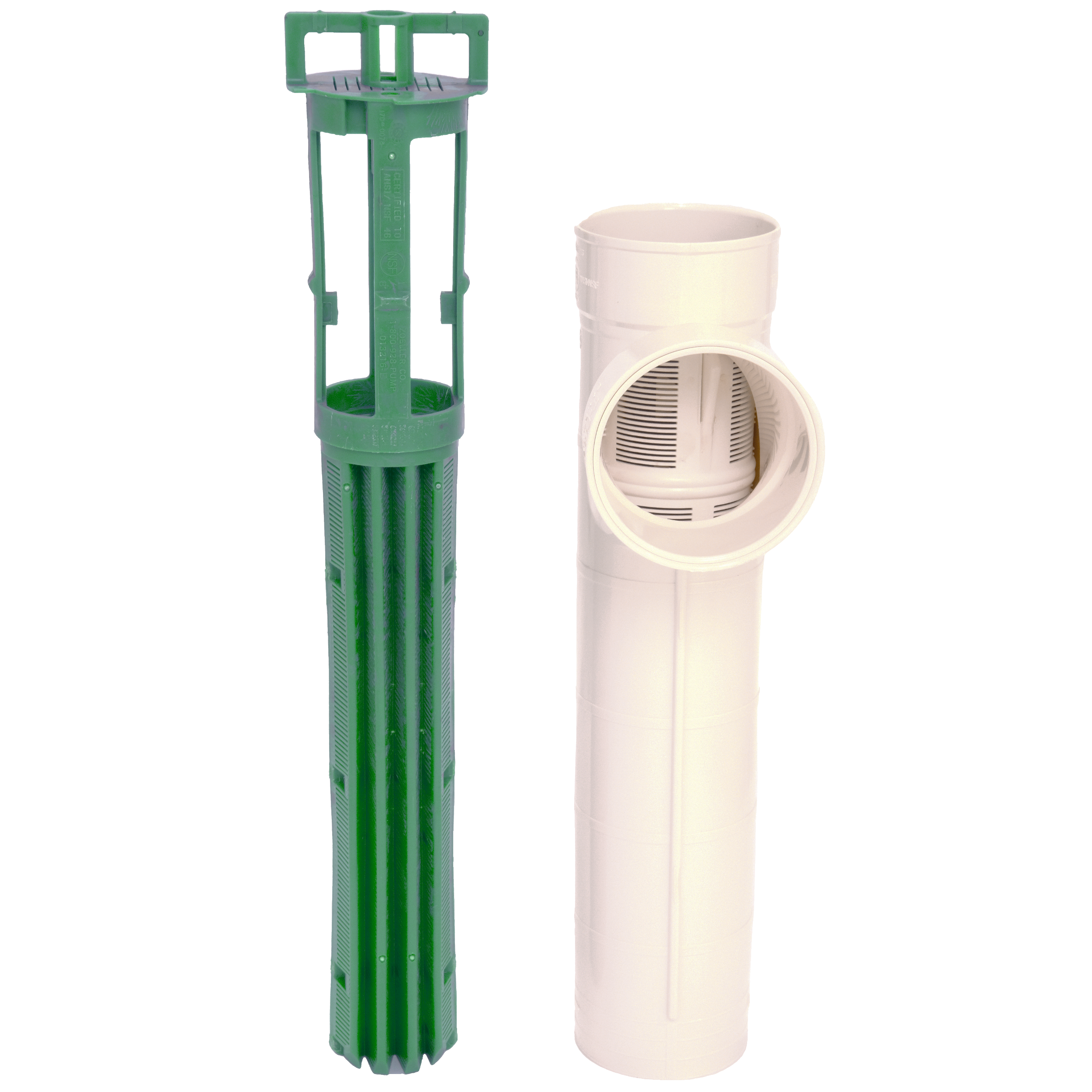

| Product Line Card Title | WW1 Residential Effluent Filter with Sanitary Tee |
|---|
| Product Line Card Subtitle | 170-0144 - Zoeller Pump Company |
|---|
