| Features and Benefits 1 | The seal pack includes (1) 1-1/4" seal, (1) 1-1/2" seal, (2) 2" seals, and (1) 4" pipe seal |
|---|
| Features and Benefits 2 | Pipe seals reduce odors from escaping into the room's atmosphere when properly installed |
|---|
| Features and Benefits 3 | Ready to install for economical and simple installation |
|---|
| Features and Benefits 4 | Inlet, vent, and discharge locations can be determined on the jobsite and installed with a hole saw |
|---|
| Features and Benefits 5 | One-piece, seam-free construction on all basins |
|---|
| Features and Benefits 6 | 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind |
|---|
| Highlight 1 | Fiberglass Basin with anti-floatation device (AFD) for use effluent or sewage lift station applications |
|---|
| Highlight 2 | Ideal for residential, commercial or municipal applications |
|---|
| Highlight 3 | Includes blank fiberglass cover and pipe seal pack |
|---|

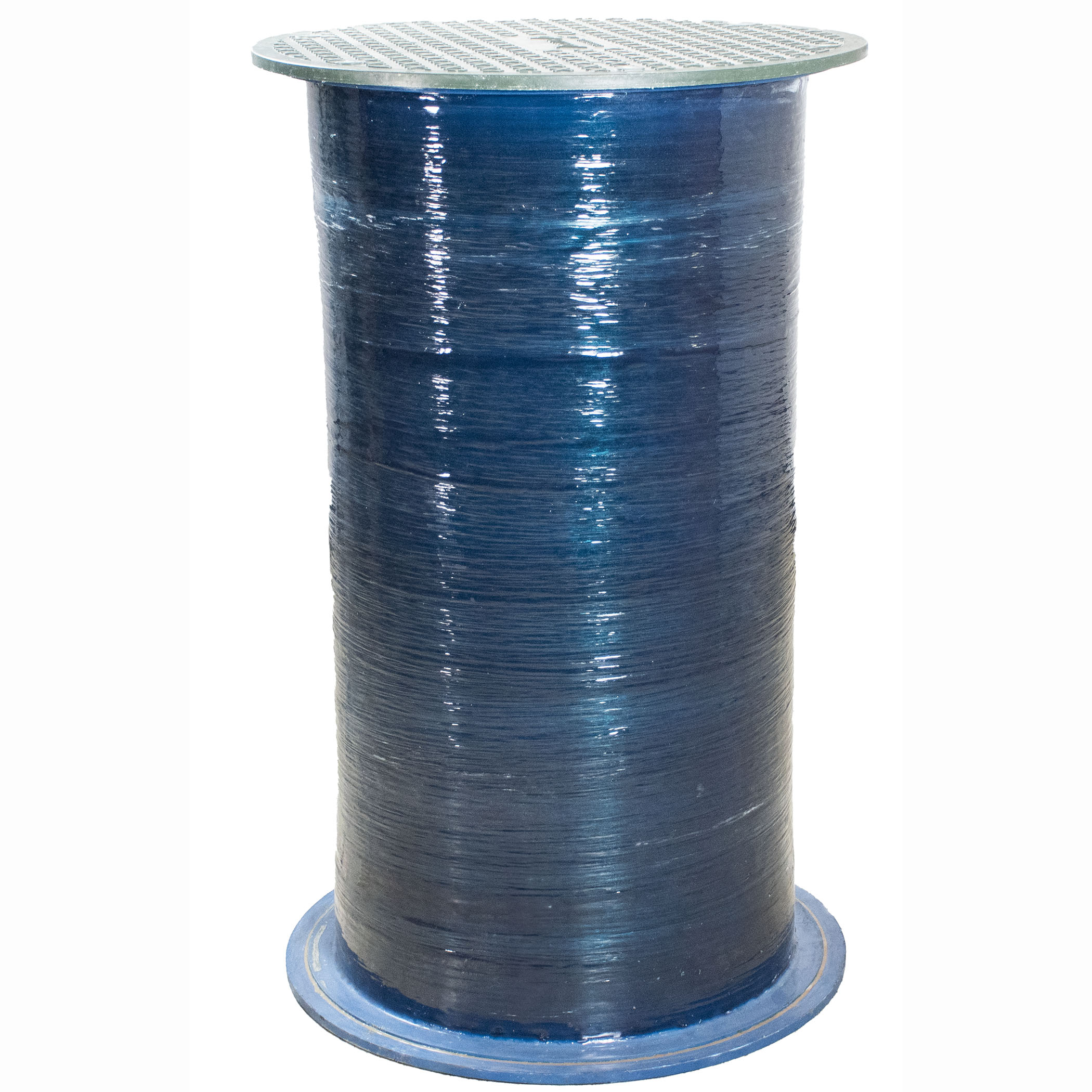

| Woocom - Description | Our 24" x 48" fiberglass basin is an essential component for a lift station. It is designed to be buried flush-to-grade. Fiberglass basins are normally used outdoors but can be used indoors. The lift station basin is commonly used to collect unwanted water.
The 24" x 48" basin comes with a solid fiberglass cover. The cover is rated for 300 pounds per square foot. Additionally, it holds up well in sunlight and the damage normally caused by UV light.
A hole saw can be used to drill holes for the inlet, discharge, and vent pipe connections. A pipe seal package is included with this basin. It includes (1) 1-1/4" seal, (1) 1-1/2" seal, (2) 2" seals, and (1) 4" pipe seal. The pipe seals prevent foul odors from escaping.
The anti-flotation device helps anchor the basin at the base. This is important feature in a high-water table. It prevents hydraulic pressure from lifting the basin out of the ground. |
|---|
| Woocom - Short description | Our 24" x 48" fiberglass basin with a fiberglass cover is an essential component for a lift station that collects and removes unwanted and water. This basin is often used to construct a complete lift station which often consists of one or two pumps, floats, and a control panel. Choose from our effluent, sewage, or grinder pumps and our Pivot Series control panels to build a complete lift station specific to your needs. |
|---|
| Product Line Card Title | Basin,F-S/24X48/Blnk Fg Cvr/AFD/P-Seals |
|---|
| Product Line Card Subtitle | 31-0866 - Zoeller Pump Company |
|---|
