| Features and Benefits 1 | Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating |
|---|
| Features and Benefits 2 | Nonautomatic pump that will require a piggyback float switch or control panel to control the pump's on / off level |
|---|
| Features and Benefits 3 | Corrosion resistant cast iron vortex impeller to allow free passage of 3/4" spherical solids which prevents clogging and increases reliability |
|---|
| Features and Benefits 4 | Stainless steel screws, handle, and hardware to prevent rust and corrosion |
|---|
| Features and Benefits 5 | Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments |
|---|
| Features and Benefits 6 | This pump model features a double seal, providing extra protection for the motor. If the lower seal were to fail, the upper seal provides a second line of defense preventing pump failure |
|---|
| Features and Benefits 7 | 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it |
|---|
| Features and Benefits 8 | Comes with a 1-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product |
|---|
| Highlight 1 | 230 V nonautomatic effluent pump for use in effluent lift station applications |
|---|
| Highlight 2 | 1-1/2 HP, oil-filled motor and cast iron motor housing for optimal heat dissipation |
|---|
| Highlight 3 | 100% Factory Tested |
|---|
| Woocom - Description | Our Model E4186 nonautomatic Effluent Pump is designed to remove effluent or ground water in septic or effluent applications. This pump model features a double seal, providing extra protection for the motor. If the lower seal were to fail, the upper seal provides a second line of defense preventing pump failure. The 1-1/2 HP E4186 is a time-tested and reliable effluent pump. The E4186 is a nonautomatic pump requiring a piggyback float switch or control panel for operation. Either option allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The pump's vortex impeller allows it to pass 3/4" spherical solids. The impeller's clearance in relation to the pump housing allows water and solids to pass freely through the pump. This combination of design features lessens the chance of clogging and downtime.
The Model 4186's motor housing, pump housing, and base are each constructed of cast iron. The pump's identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 4186 is able to withstand the most demanding sewage ejector applications. \n
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box. |
|---|
| Woocom - Short description | The 1-1/2 HP Model E4186 nonautomatic Effluent Pump is designed to remove grey water from effluent lift station applications. This corrosion resistant pump will provide the dependability expected from a Zoeller pump. This model features a double seal, providing extra protection for the motor. Backed by a 1-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box. |
|---|

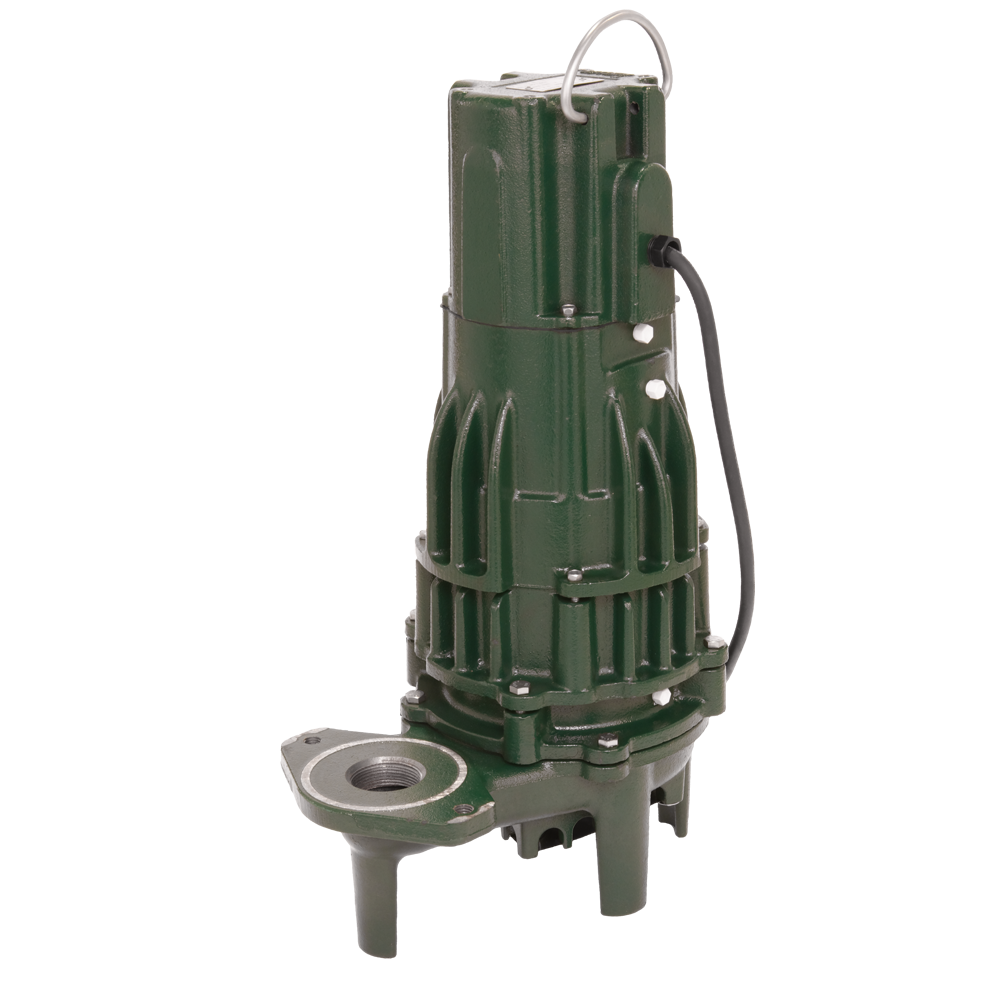

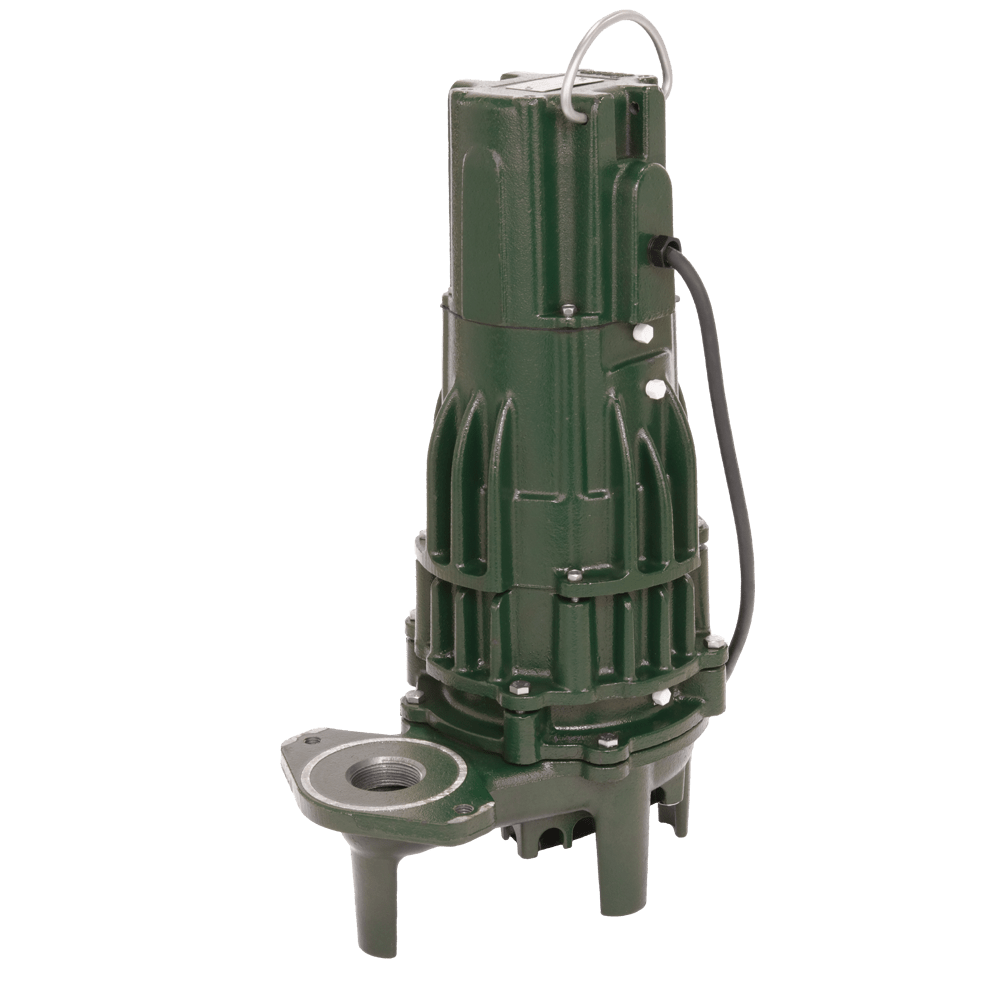

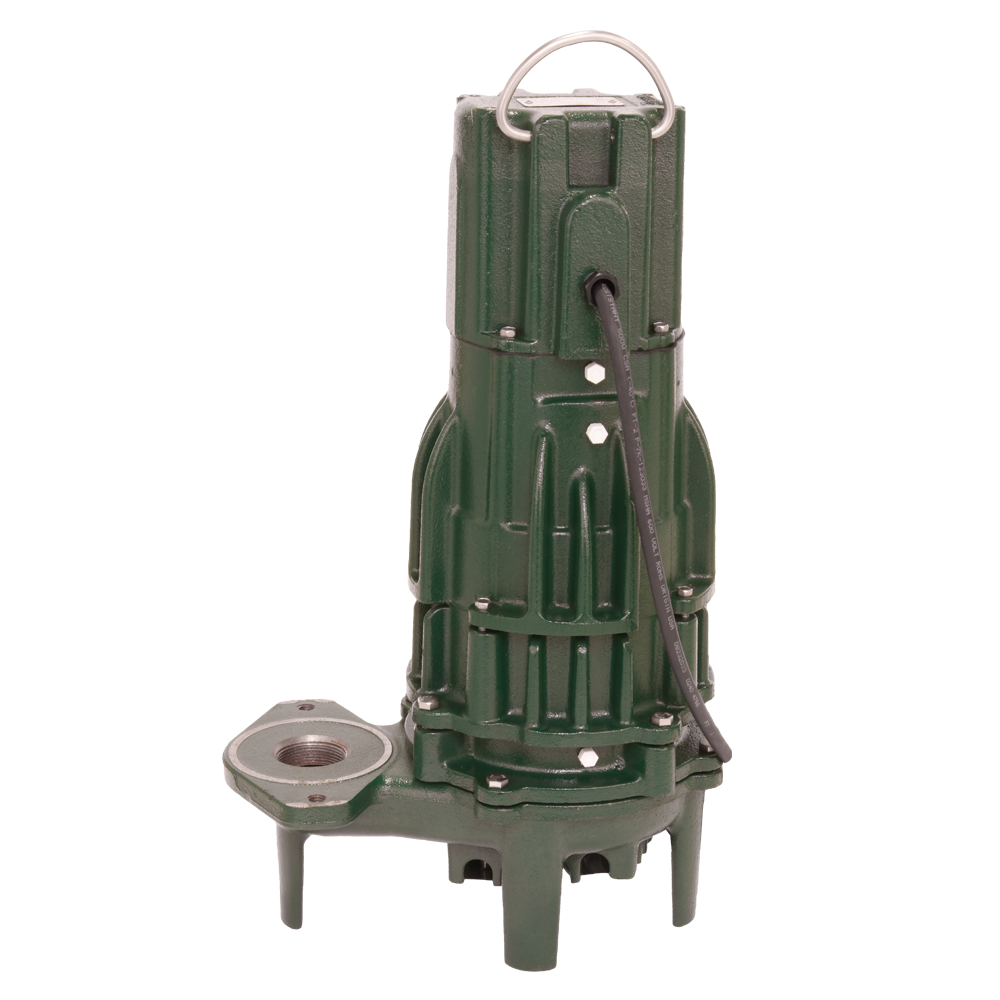

| Product Line Card Title | E4186 Nonautomatic Effluent Pump 1-1/2 HP, 230V, 1PH |
|---|
| Product Line Card Subtitle | 4186-0004 - Zoeller Pump Company |
|---|
