| Features and Benefits 1 | Recommended for pump models that draw 13 Amps or less of current |
|---|
| Features and Benefits 2 | Float is constructed of a durable PVC and polypropylene casing which allows it to withstand harsh wastewater environments |
|---|
| Features and Benefits 3 | Variable level float switch, for use in 18" minimum diameter basins |
|---|
| Features and Benefits 4 | Includes a mounting bracket and stainless steel clamp for mounting to a float tree or discharge pipe |
|---|
| Features and Benefits 5 | Designed for sump, effluent, sewage, and general dewatering applications |
|---|
| Features and Benefits 6 | The float can be easily isolated from a nonautomatic pump enabling you to easily troubleshoot an issue |
|---|
| Features and Benefits 7 | Maximum operating temperature is 140 °F (60 °C) |
|---|
| Features and Benefits 8 | Mechanically activated and does not contain mercury |
|---|
| Features and Benefits 9 | 2-year limited warranty giving you extra protection and more peace of mind that your pump is going to turn off and on as expected |
|---|
| Highlight 1 | Converts a nonautomatic pump into an automatic pump by plugging the float into a wall outlet and plugging the pump into the back of the float's plug (hence the name "piggyback") |
|---|
| Highlight 2 | Adjustable on and off point set in the field based on the depth of the pump tank or basin in which it is installed |
|---|
| Highlight 3 | A 230 V, 13 Amp normally open float with a 15' cord for pump down applications |
|---|
| Woocom - Description | Known as the "Switch Mate," the single piggyback variable level float switch (VLFS) allows you to convert a 230 V nonautomatic pump into an automatic pump. Additionally, the piggyback float switch allows you to adjust the on and off points within the tank. This is ideal for deeper basins and pump tanks. The piggyback float switch is constructed of PVC and polypropylene. The materials of construction ensure that the switch is able to withstand a harsh wastewater environment. The standard cord length is 15' which is more than enough for most basin or pump tank applications. It is also a normally open mechanical float, so it can be used to pump the level down in a pit or tank. This particular float can be paired with a wide range of our nonautomatic pump models of 13 Amps or less. |
|---|
| Woocom - Short description | The 15’ single piggyback variable level float switch allows you to adjust the on/off points on a nonautomatic pump rated for 230 V and 13 amps or less. The switch can be used in a variety of applications including sump, sewage, effluent, and grinder pumps. |
|---|

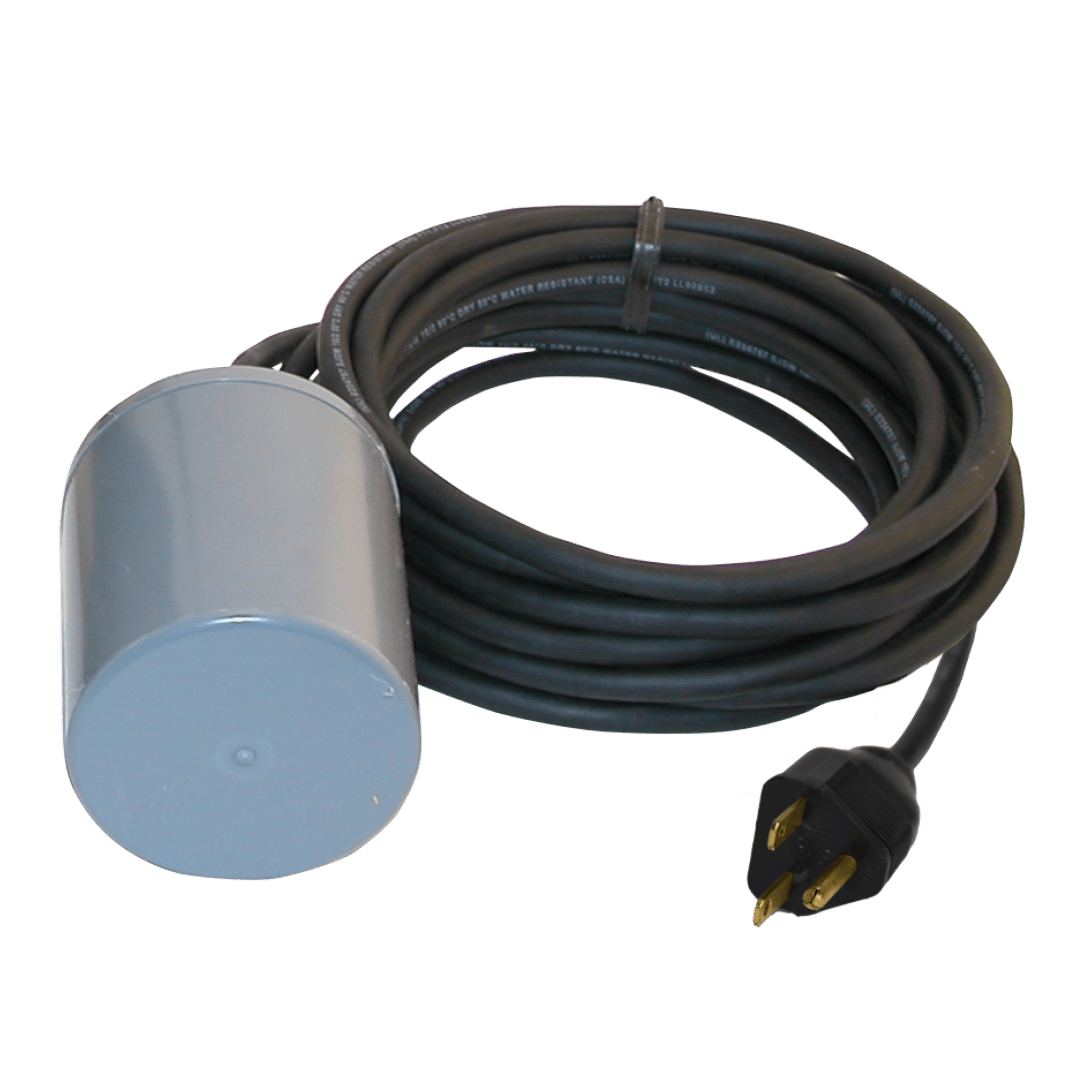

| Product Line Card Title | 15' 13 Amp, 230 V Single Piggyback Variable Level Float Switch 230V |
|---|
| Product Line Card Subtitle | 10-0035 - Zoeller Pump Company |
|---|
