| Features and Benefits 1 | Float is constructed of impact-resistant and non-corrodible PVC/polypropylene encasing. |
|---|
| Features and Benefits 2 | 18/2 Type SJOW CPE Cord-Standard |
|---|
| Features and Benefits 3 | Approximately 1/2" liquid level differential in switching action |
|---|
| Features and Benefits 4 | Normally open when hanging vertically above liquid level. Switch closes when it reaches a few degrees above the horizontal position. |
|---|
| Features and Benefits 5 | Standard mechanical variable level control switches are rated for 115/230V, 5 amps. |
|---|
| Highlight 1 | For use with control panels and alarms in non-potable water applications |
|---|
| Highlight 2 | Standard variable level switches rated for 115/230 V, 5 Amps |
|---|
| Highlight 3 | Standard switches include 18/2 Type SJOW CPE cord that is 15' in length |
|---|
| Woocom - Description | Our variable level control switch can be used to monitor liquid level conditions in pump tanks and lift stations. This particular float comes with a 15' cord. Intended for use with a control panel, the variable level control switch can be used to activate pumps or alarms. Some of the more common places the switch is used include pump chambers, dose tanks, sump pump basins, holding tanks, lift stations, and other non-potable water applications.
This variable level control switch is normally open when hanging vertically above the liquid level. The switch is engaged when the rising water level lifts it a few degrees above horizontal. This causes an internal circuit to close which activates a pump or alarm connected through the control panel.
The float is constructed of durable PVC and polypropylene. The materials of construction enable the switch to withstand the harsh wastewater environment.
This particular float can be paired with a wide range of our nonautomatic pump models and our Pivot Series Control Panels. |
|---|
| Woocom - Short description | The control float switch allows you to adjust the on/off points in the basin optimizing pump run time. The floats signal to the control panel to activate the nonautomatic pump based on the liquid level for a variety of pumping applications. The float switch cord is 15' in length. |
|---|

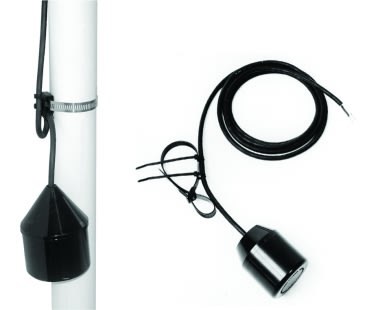

| Product Line Card Title | 15' Variable Level Control Switch with Clamp 115/230V |
|---|
| Product Line Card Subtitle | 10-0743 - Zoeller Pump Company |
|---|
