| Features and Benefits 1 | Our recommended pump models to use with the double piggyback float include - E Models 53, 55, 57, 59, 98, 137, 139, 140, 151, 152, 153, 264, 266, 267, 282, 803, 805, and 807 and I Models 137,139, 161, 163, 165, 185, 266, 267, 282, 284, 293, and 818 |
|---|
| Features and Benefits 2 | Float is constructed of a durable PVC and polypropylene casing which allows it to withstand harsh wastewater environments |
|---|
| Features and Benefits 3 | Variable level float switches for use in 18" minimum diameter basins |
|---|
| Features and Benefits 4 | Includes a mounting bracket and stainless steel clamp for mounting to a float tree or discharge pipe |
|---|
| Features and Benefits 5 | Designed for sump, effluent, sewage and general dewatering applications |
|---|
| Features and Benefits 6 | The float can be easily isolated from a nonautomatic pump enabling you to easily troubleshoot an issue |
|---|
| Features and Benefits 7 | Maximum operating temperature is 140 °F (60 °C) |
|---|
| Features and Benefits 8 | Mechanically activated and does not contain mercury |
|---|
| Features and Benefits 9 | 2-year limited warranty giving you extra protection and more peace of mind that your pump is going to turn off and on as expected |
|---|
| Highlight 1 | Converts a nonautomatic pump into an automatic pump by plugging the float into a wall outlet and plugging the pump into the back of the float's plug (hence the name "piggyback") |
|---|
| Highlight 2 | Adjustable on/off point set in the field based on the depth of the tank or basin in which it is installed |
|---|
| Highlight 3 | A 230 V, 13 Amp normally open float for pump down applications |
|---|

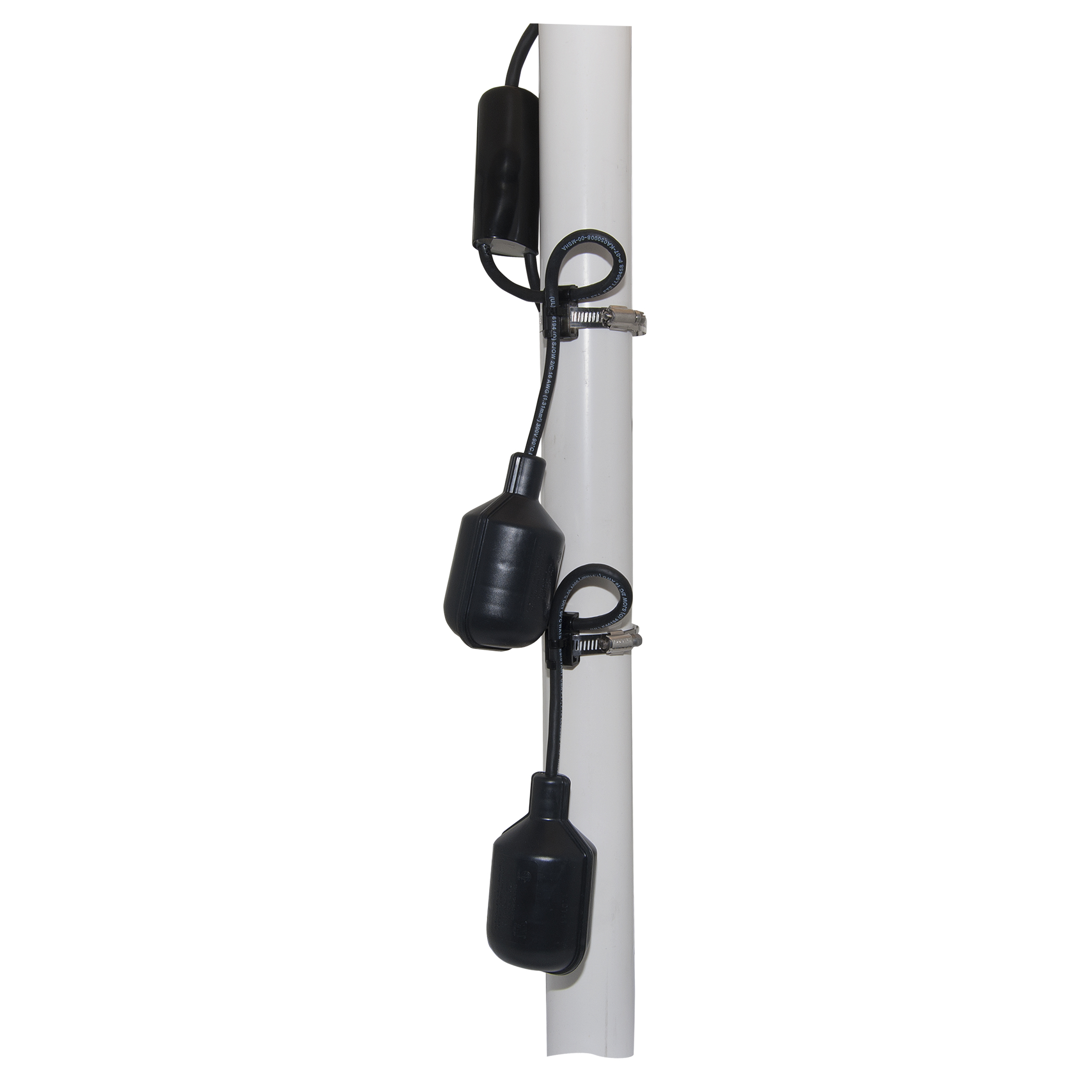

| Woocom - Description | Our double piggyback variable level float switch (VLFS) can convert a 230 V nonautomatic pump into an automatic pump. The pump must not draw over 15 Amps of current. The advantage to the double piggyback float is the on/off points are adjustable maximizing the run time in the tank. With this float switch, you can locate it wherever needed to get the job done.
The double piggyback switch is normally open when hanging vertically above the liquid level. As the water level rises it'll call the pump to run. The float that encases the mechanical switch is constructed of durable PVC/polypropylene. The standard cord length is 15' which is more than enough for most basin or tank pumping applications. |
|---|
| Woocom - Short description | The 15’ double piggyback variable level float switch allows you to adjust the on/off points on a nonautomatic pump rated for 230 V and 15 amps or less. The switch can be used in a variety of applications including sump, sewage, effluent, and grinder pumps. |
|---|
| Product Line Card Title | 15' 15 Amp, 230 V Double Piggyback Variable Level Float Switch 230V |
|---|
| Product Line Card Subtitle | 10-1965 - Zoeller Pump Company |
|---|
