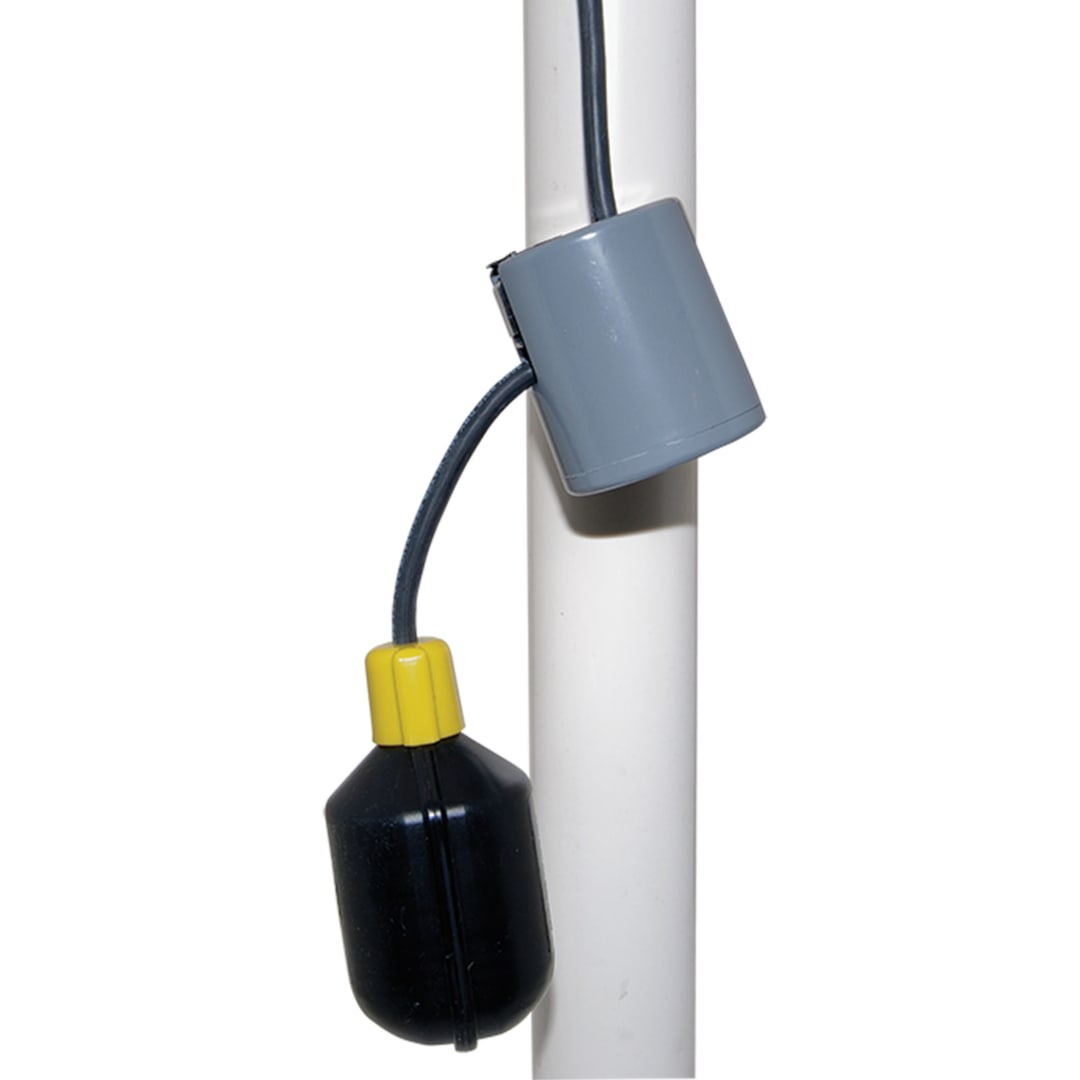

Zoeller 10-2068 50' Low Current Variable Level Control Switch with Adjustable Weight

10-2068

Float is constructed of impact-resistant and non-corrodible PVC/polypropylene encasing.
18/2 Type SJOW CPE Cord-Standard
Approximately 1/2" liquid level differential in switching action
Normally open when hanging vertically above liquid level. Switch closes when it reaches a few degrees above the horizontal position.
Low current switches for Class I, Division 1, Group C & D locations and Class Zone 1, Group IIA & IIB when used in intrinsically safe circuits and rated for 30 VDC, 0.1 Amps

Digital Assets

Image 1

Catalog

Technical Data File

Application	Lift Stations
List Price	153
List Price Effective Date	2025-05-12
Previous List Price	147
Previous List Price Effective Date	2025-01-01
IMAP	114.75
Temporary Product Line Card Category	Float Switch>Control Switch
Product Short Description	Switch,Mech Flt/30Vdc/.1A/50'Cd/Narrow/Extl Wt
Marketing Smart Title	Zoeller 10-2068 50' Low Current Variable Level Control Switch with Adjustable Weight
SKU	10-2068
UPC	053514191016

Color Black
Cord Length 50' (15.24 m)
Maximum Temperature 140 °F (60 °C)
Operation Normally Open
Turn On / Off Levels Variable level float switch, customer sets
Material PVC/polypropylene

Features and Benefits 1	Float is constructed of impact-resistant and non-corrodible PVC/polypropylene encasing.
Features and Benefits 2	18/2 Type SJOW CPE Cord-Standard
Features and Benefits 3	Approximately 1/2" liquid level differential in switching action
Features and Benefits 4	Normally open when hanging vertically above liquid level. Switch closes when it reaches a few degrees above the horizontal position.
Features and Benefits 5	Low current switches for Class I, Division 1, Group C & D locations and Class Zone 1, Group IIA & IIB when used in intrinsically safe circuits and rated for 30 VDC, 0.1 Amps
Highlight 1	For use with control panels and alarms in non-potable water applications
Highlight 2	Low current switches for Class I, Division 1, Group C & D locations and Class Zone 1, Group IIA & IIB when used in intrinsically safe circuits and rated for 30 VDC, 0.1 Amps
Product Line Card Title	50' Low Current Variable Level Control Switch with Adjustable Weight
Product Line Card Subtitle	10-2068 - Zoeller Pump Company

Cord Length	50' (15.24 m)
Maximum Temperature	140 °F (60 °C)
Operation	Normally Open
Turn On / Off Levels	Variable level float switch, customer sets
