| Features and Benefits 1 | Panel and controls UL Listed for United States and Canada |
|---|
| Features and Benefits 2 | Pump control and high liquid alarm differentiate between oil and water. The system includes the Oil Smart® pump control, Liquid Smart® alarm switch, and 20′ cords |
|---|

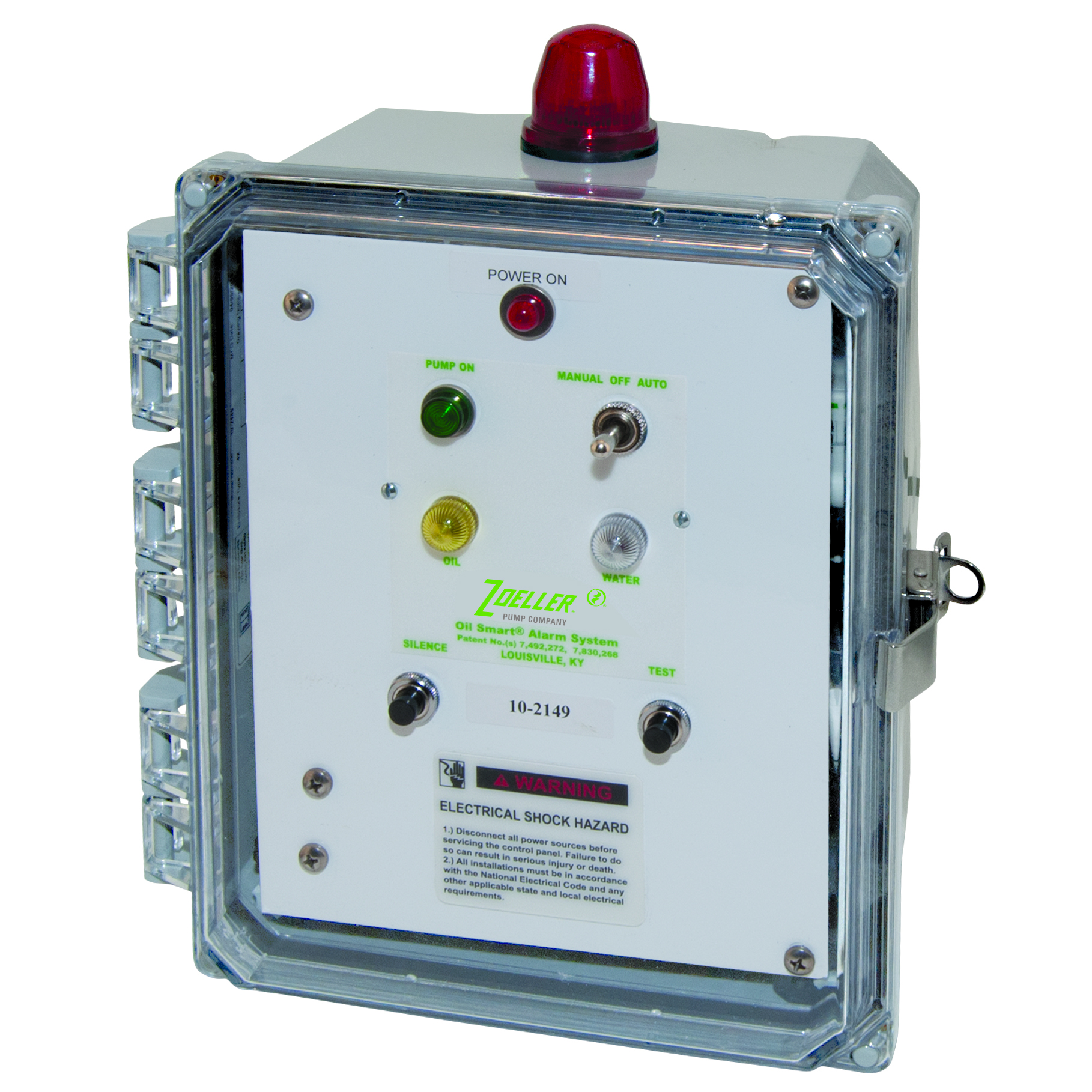

| Features and Benefits 3 | Pump control visible indicators: Pump hand-off-auto (H.O.A.) switch, green Pump Run light, and Power On light |
|---|
| Features and Benefits 4 | Alarm visible indicators: Red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons |
|---|
| Features and Benefits 5 | Alarm horn sounds at 85 decibels at 10 feet |
|---|
| Features and Benefits 6 | Complete panel remote monitoring dry contacts: Oil, Water, High Liquid |
|---|
| Features and Benefits 7 | Receive alarms through Z Control® Cloud! See FM3010. |
|---|
| Features and Benefits 8 | 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind |
|---|
| Highlight 1 | Oil Smart® alarm switch and Oil Smart® pump switch |
|---|
| Highlight 2 | NEMA 4X watertight enclosure with lockable latch |
|---|
| Highlight 3 | Capable of handling 115/200/230 V pumps up to 16.0 FLA |
|---|

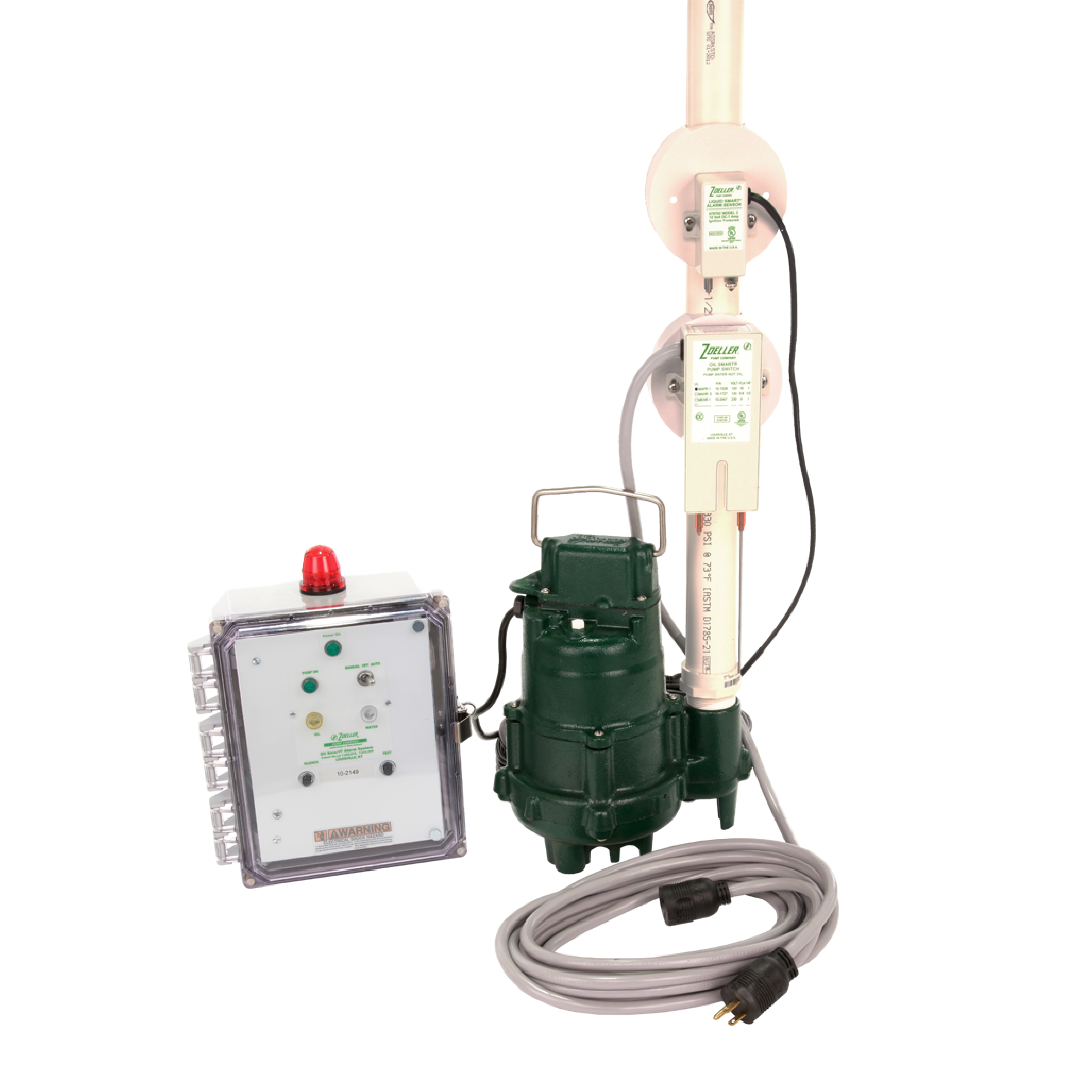

| Long Description | The Oil Smart® Simplex Control Panel is designed to help protect the environment from the dispersion of oils and/or hydrocarbons. The panel comes with an Oil Smart® Pump Switch and an Oil Smart® Alarm Switch. The simplex panel is capable of 115/200/230 V pumps up to 16.0 FLA while meeting elevator code ASME A17.1.
The Oil Smart® Pump Switch uses sensor probes made of high quality 304 stainless steel. These probes can distinguish between oil and water allowing the pump to only operate when sensing water. The probes call for the pump to run when they sense water and turn off when sensing oil or air. The Oil Smart® Alarm Switch has two probes that can distinguish between oil or water during high liquid levels. This will signal the panel to send out an audible alarm. Simultaneously, a red beacon will illuminate as an early warning of a problem and 1 of 2 other indicator lights will illuminate. On the face of the panel either a yellow light will illuminate for high oil or a white light for high water. There are dry contacts for each of these lights.
Save on costly fines or cleanup cost with the protection that the Oil Smart® provides. |
|---|
| Short Description | Control,Sim/Oil Smart/115V/1Ph/Alarm & Pump Switch |
|---|

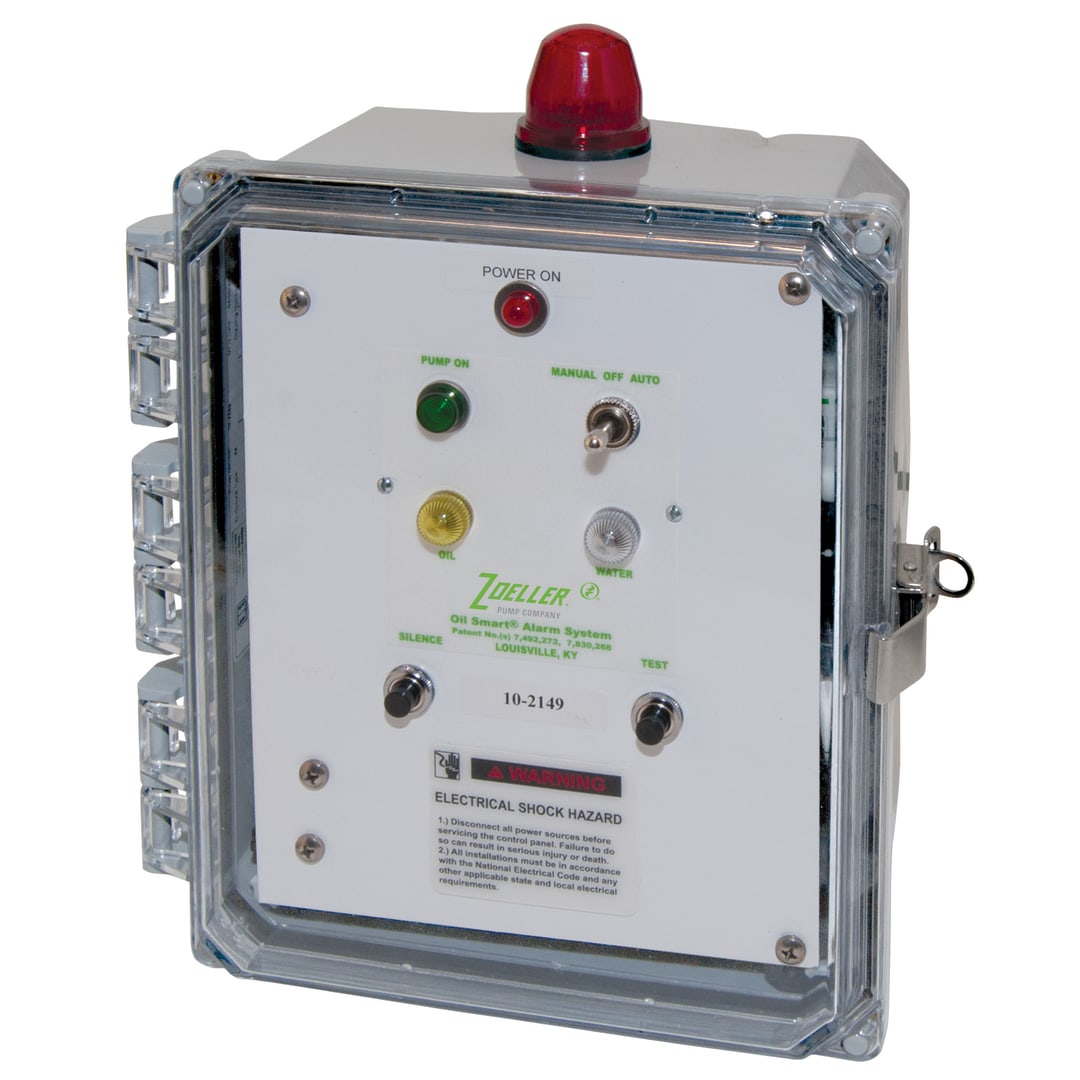

| Product Line Card Title | Zoeller 10-2149 Oil Smart® Simplex Control Panel |
|---|
| Product Line Card Subtitle | 10-2149 - Zoeller Pump Company |
|---|
