Zoeller Pump Company
108-0001
| Application (Primary) | Crawl Space Sumps |
|---|---|
| List Price | 642 |
| List Price Effective Date | 2025-05-12 |
| Previous List Price | 620 |
| Previous List Price Effective Date | 2025-01-01 |
| IMAP | $481.50 |
| Product Line Card Category | Preassembled Package>Sump Package System |
| Product Short Description | Crawl Space Sump W/M53 Pump/25'Cd |
| Marketing Smart Title | Zoeller 108-0001 108 Crawl Space System with M53 |
| SKU | 108-0001 |
| UPC | 053514094133 |
| Made in USA Percentage Claim | Made in USA using a majority US content |
| Series | Crawl Space |
| Model Family | Model 108 |
| Model Family - Secondary | M53 |
| Color | Black |
|---|---|
| Impeller Material | Thermoplastic |
| Pump Body Material | Cast Iron |
| Lower Bearing | Sleeve bearing |
| Upper Bearing | Sleeve bearing |
| Hardware | Stainless Steel |
| AMP | 9.7 |
|---|---|
| Hertz | 60 |
| Horsepower | 0.30 |
| Motor Insulation | Class B |
| Motor Protection | Auto reset thermal overload |
| Pump Motor Type | Shaded Pole |
| Phase | 1 |
| RPM | 1550 |
| Voltage | 115 |
| Cooling | Oil filled |
|---|---|
| Cord Length | 25' (7.62 m) |
| Cord Type | UL listed, 3-wire, grounded plug |
| Discharge | 1-1/2" NPT |
| GPM | 43 |
| GPH | 2580 |
| Impeller Type | Vortex |
| Max Flow Rate | 43 GPM (163 LPM) |
| Maximum Feet of Head | 19.25' |
| Maximum Temperature | 130 °F (54 °C) |
| Operation | Automatic |
| Solids Handling | 1/2" (12 mm) spherical solids |
| Turn On / Off Levels | 7-1/4" (18.4 cm) / 3" (7.6 cm) |

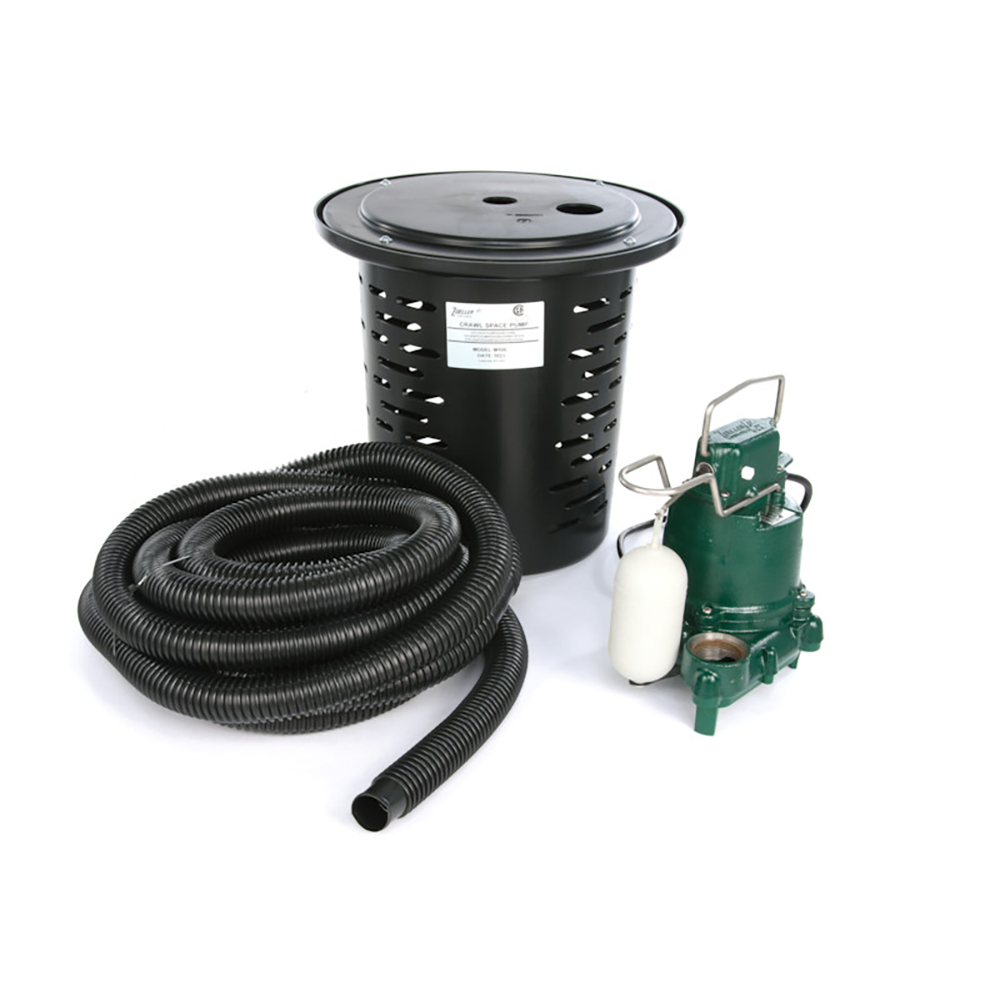

| Features and Benefits 1 | System includes automatic 3/10 HP pump, 24' (7 m) hose, and tank assembly |
|---|---|
| Features and Benefits 2 | Non-clogging vortex impeller |
| Features and Benefits 3 | Slotted 12-1/4" x 14-7/8" basin |
| Features and Benefits 4 | 3 year limited warranty on pump |
| Highlight 1 | Includes 115 V automatic sump pump for use in crawl space applications |
| Highlight 2 | Removes the accumulation of moisture commonly found in residential crawl spaces |
| Highlight 3 | Pump is 100% Factory Tested |
| Long Description | The Model 108 Crawl Space System is designed specifically for tight or restricted spaces with pooling water and poor drainage. The 3/10 HP pump helps prevent the accumulation of moisture, fungus and odors commonly found in residential crawl spaces. The perforated basin and solid lid keep large debris from entering the pit, eliminating maintenance. |
| Short Description | Crawl Space Sump W/M53 Pump/25'Cd |
| Product Line Card Title | Zoeller 108-0001 108 Crawl Space System with M53 |
| Product Line Card Subtitle | 108-0001 - Zoeller Pump Company |
| Shipping Class | 92.5 |
|---|---|
| Shipping Height (inches) | 22.25 |
| Shipping Length (inches) | 16.25 |
| Shipping (L x W x H) - cm | (L x W x H): 41.28 cm × 41.28 cm × 56.52 cm |
| Shipping Weight - lb / kg | 33.00 lb / 14.97 kg |
| Shipping Weight (pounds) | 33.00000 |
| Shipping Width (inches) | 16.25 |
| Country of Origin | US |
| ECCN | EAR99 |
| HSTariff# | 8413.81.0030 |
| NMFC Code | 128000 |
| NMFC Sub Code | 3 |
| Skid Quantity | 12 |
