| Features and Benefits 1 | Simplex pump control: Controls one pump and provides automatic cycling based on connected float-switch inputs |
|---|
| Features and Benefits 2 | Smart HAND/OFF/AUTO operation: Operating modes support normal automatic operation, manual control, and safer pump servicing |
|---|

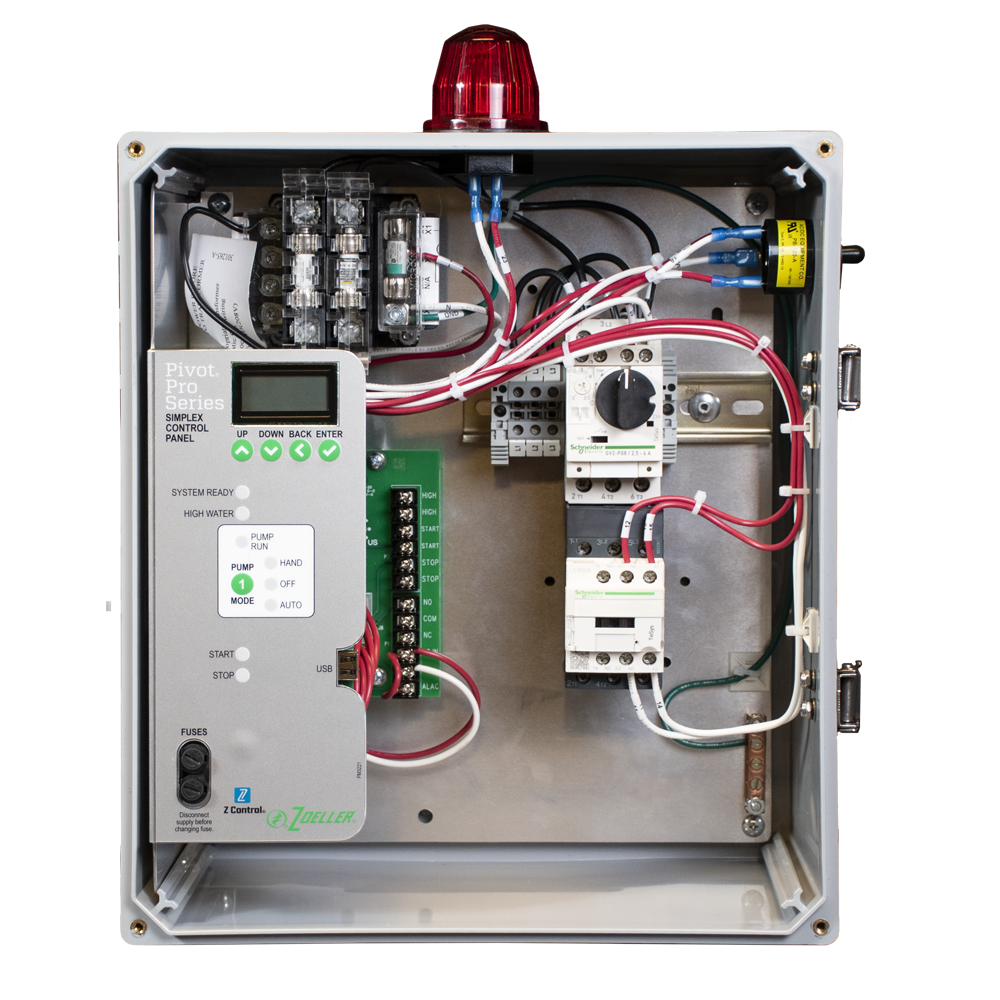

| Features and Benefits 3 | LCD interface: Provides access to configuration settings, elapsed runtime, cycle counts, service information, and panel status |
|---|
| Features and Benefits 4 | Integrated alarm system: A red beacon with 360-degree visibility and a 95 dB audible buzzer provide clear notification of alarm conditions |
|---|
| Features and Benefits 5 | NEMA 4X enclosure: The lockable enclosure supports indoor or outdoor use and protects panel components from environmental exposure |
|---|
| Features and Benefits 6 | Float monitoring: Terminals and status indicators support pump-operation and high-water float switches, helping operators identify level-control conditions |
|---|
| Features and Benefits 7 | Communication capability: An RS-485 serial port allows connection to an optional Z Control® Gateway for supported remote-monitoring functionality |
|---|
| Features and Benefits 8 | Dry-contact outputs: Pump-run and Form C auxiliary contacts support connection to external monitoring or building-control equipment |
|---|
| Features and Benefits 9 | Limited warranty: The Pivot Pro panel is backed by a 5-year limited warranty |
|---|
| Highlight 1 | Simplex control panel for one 200/230/460 V, three-phase pump rated 9 to 14 amps |
|---|
| Highlight 2 | Lockable NEMA 4X enclosure for indoor or outdoor installation |
|---|
| Highlight 3 | LCD interface with smart HOA operation and built-in audible and visual alarms |
|---|
| Long Description | The Zoeller 114F4-0001 Pivot Pro Simplex Control Panel is designed to control one three-phase pump in lift-station, sump, effluent, sewage, dewatering, or grinder-pump applications. It supports 200/230/460 V pump power and motors with a 9 to 14 amp full-load rating. A multi-tap transformer supplies the panel’s 120 V control circuit.
The panel features a user-friendly LCD interface, smart HAND/OFF/AUTO operation, float-status indicators, pump-run monitoring, and built-in audible and visual alarms. Its lockable 14-inch × 12-inch × 6-inch NEMA 4X enclosure is suitable for indoor or outdoor installation. RS-485 communication supports an optional Z Control® Gateway, while dry contacts provide pump-run and auxiliary outputs for integration with other equipment. The panel carries a 5-year limited warranty. |
|---|
| Short Description | Control,Pivot Pro/Sim/3Ph/200/230/460V/9-14A |
|---|

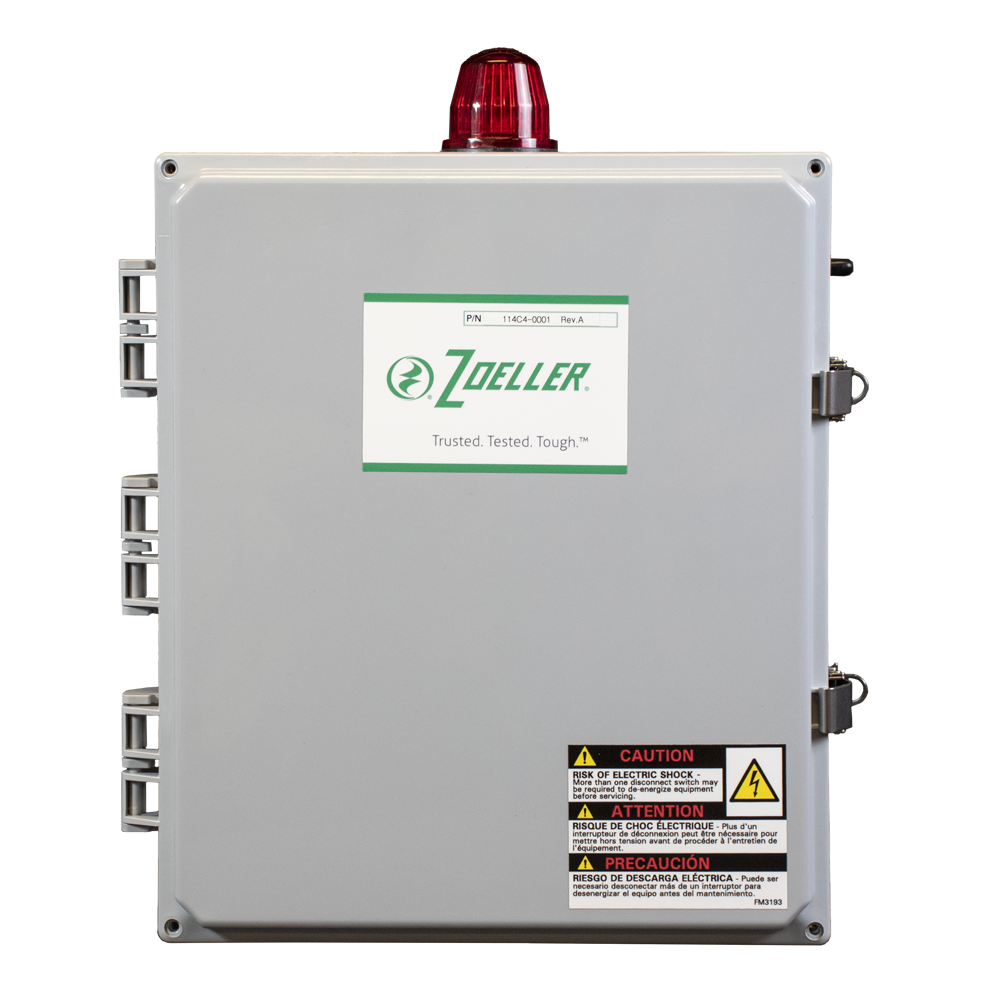

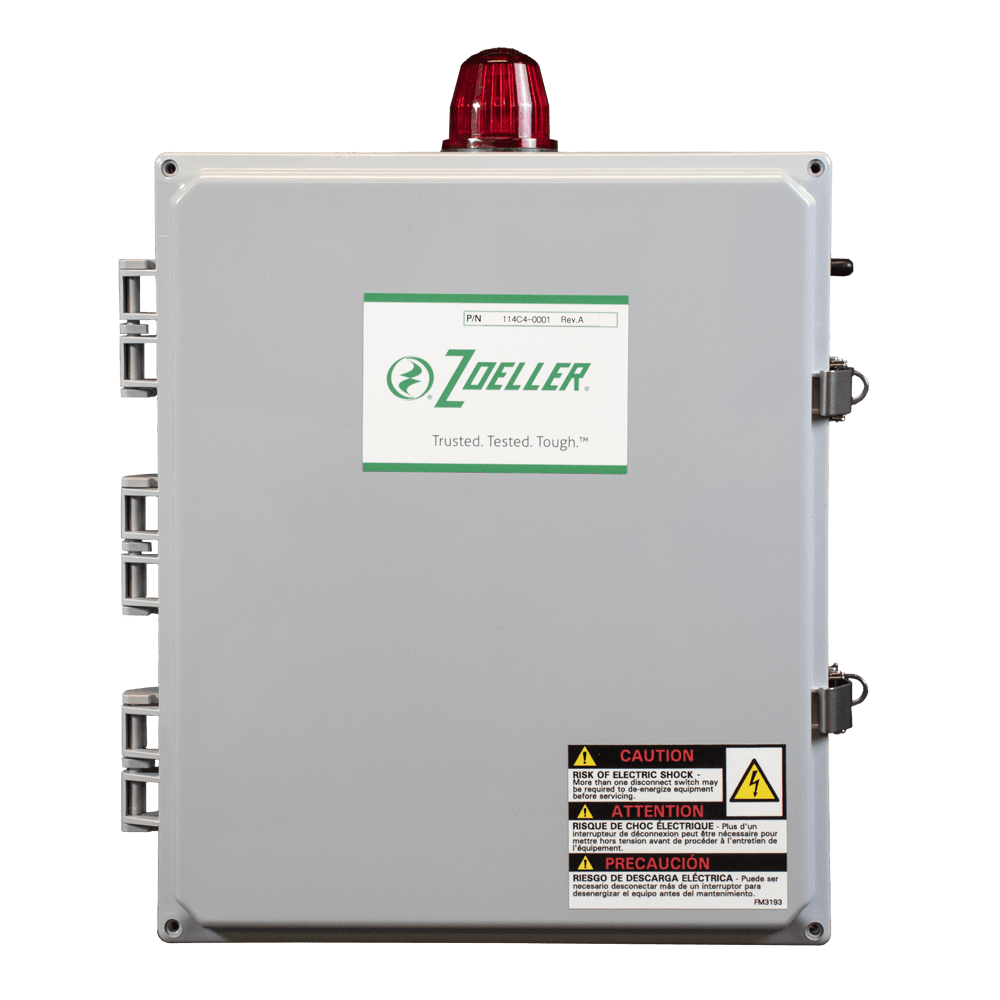

| Product Line Card Title | Zoeller 114F4-0001 Simplex Pivot Pro Control Panel, 9-14 Amps, 3 Ph, 200/230/460 V |
|---|
| Product Line Card Subtitle | 114F4-0001 - Zoeller Pump Company |
|---|
