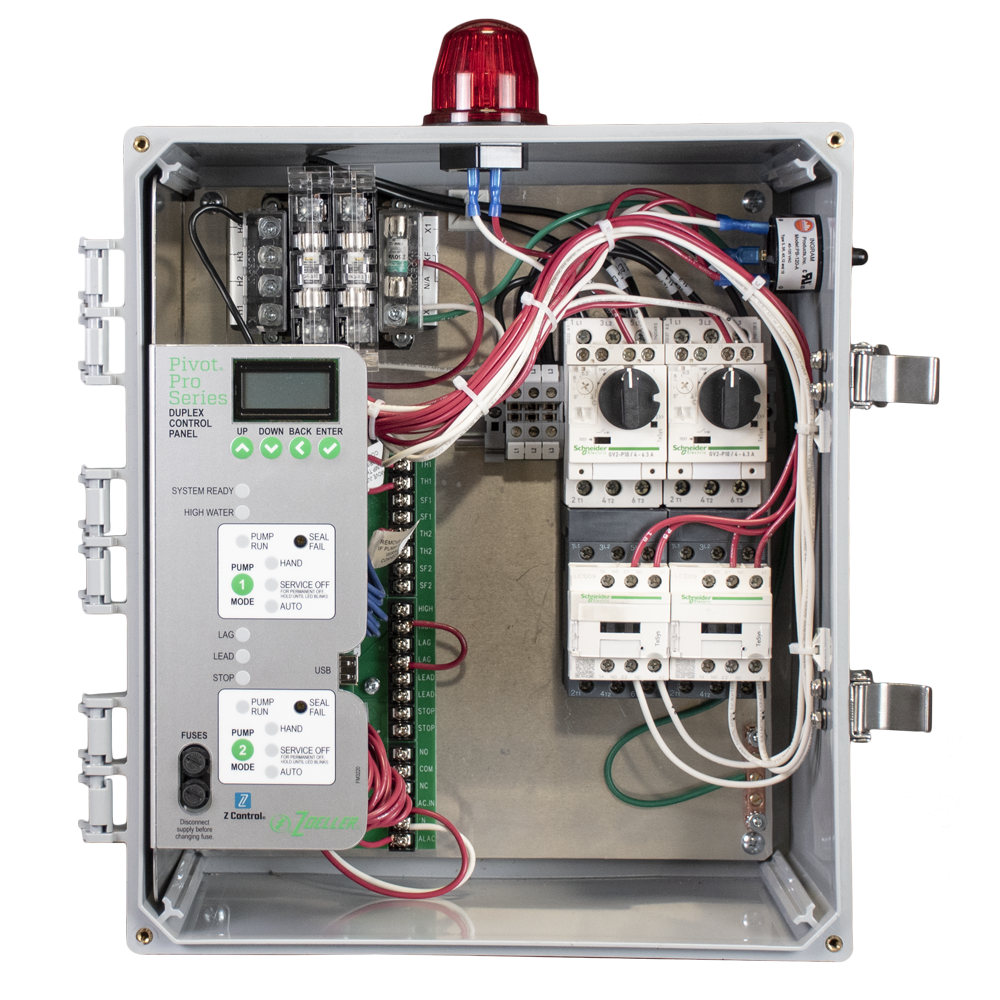

| Features and Benefits 1 | RED/AMBER/GREEN LEDs for float switch indicators, Pump Run, High Water, System Ready, and HOA functions |
|---|
| Features and Benefits 2 | Ample room within the panel around the terminal block for field wiring |
|---|
| Features and Benefits 3 | TEST toggle will check all LEDs, globe, and horn |
|---|
| Features and Benefits 4 | Connect your Pivot Pro to the Z Control Cloud using Zoeller’s Wi-Fi Gateway, item number 90002-0001 |
|---|
| Features and Benefits 5 | Lockable LCD menu allows for easy access to status, counters, and settings |
|---|
| Features and Benefits 6 | Adjustable settings |
|---|
| Features and Benefits 7 | Seal fail indicator/alarm for each pump (feature requires moisture sensor in pump) |
|---|
| Features and Benefits 8 | Thermal trip indicator/alarm for each pump (feature requires thermal sensor in pump) |
|---|
| Features and Benefits 9 | Lead/lag selector with pump run ratio settings |
|---|
| Features and Benefits 10 | Float switch logic choices: Smart or Relay, 3 or 4 float, SLLH or SLHL |
|---|
| Features and Benefits 11 | 5-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind |
|---|
| Highlight 1 | Duplex 3 Ph control panel with advanced features such as a user-friendly LCD interface and support for pump sensors and Z Control® |
|---|
| Highlight 2 | A NEMA 4X enclosure able to withstand a variety of weather conditions |
|---|
| Highlight 3 | 200/230/460 V, 3 Ph, 4-6.3 Amps, duplex control panel, highly featured |
|---|
| Long Description | Our Duplex Pivot Pro Control Panel for 200/230/460 V, 1 Ph lift station pump applications ranging from 4-6.3 Amps. Now you can get Zoeller quality in the whole system by pairing our pumps with our highly featured Pivot Pro Control Panel. The Pivot Pro offers a lockable LCD screen for easy onsite access and control.
This panel is designed to operate two pumps, so it is ideal for commercial applications where pump redundancy is important. The panel enclosure is NEMA 4X so it is able to be used outdoors and will withstand a variety of weather conditions.
For example, this panel detects and prevents problems to a far greater degree than regular panels. Alarms are built-in for bad components. Additionally, the use of microchip technology and logic allows for a long list of standard features.
The Pivot Pro Control Panel is capable of detecting, reacting, and notifying of problems with float switches. The benefit is that, unlike other panels, a pump can still turn on even when a float is bad. The panel can also detect bad components like contactors, overloads, seal fail circuits, etc. This means a warning is provided before the failure results in property damage.
The Pivot Pro Panel also has a selection of Modes including Auto, Hand, Service Off, and Permanent Off. The Service Off Mode allows you to prevent a pump from running during service. After 4 hours in Service Off, the audible and visual alarms will activate. This notification reminds the user to return the panel to Auto Mode. This selection of mode options is ideal for anyone servicing a lift station.
Additionally, the Pivot Pro Control Panel has a simple interface, can be modified for most applications, and with so many features in a single panel, stocking has never been easier. |
|---|
| Short Description | Control,Pivot Pro/Dup/3Ph/200/230/460V/4.0-6.3A |
|---|

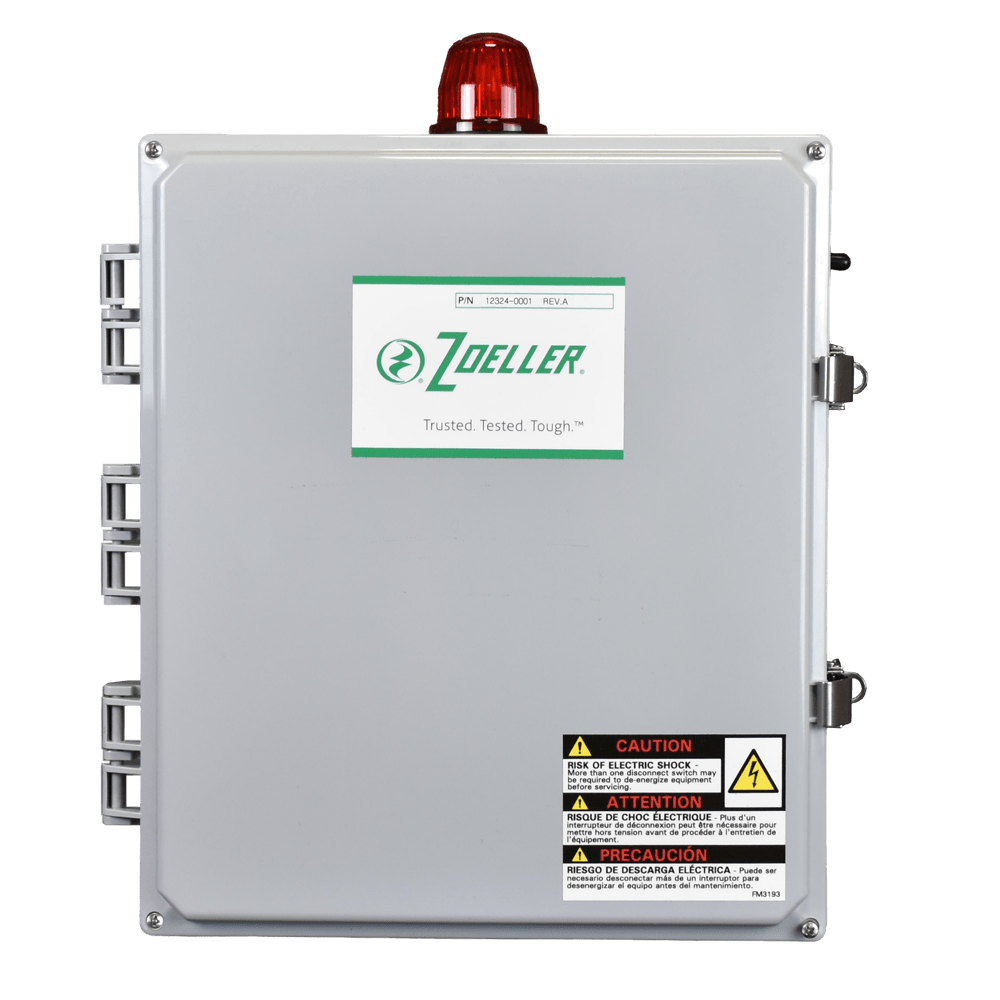

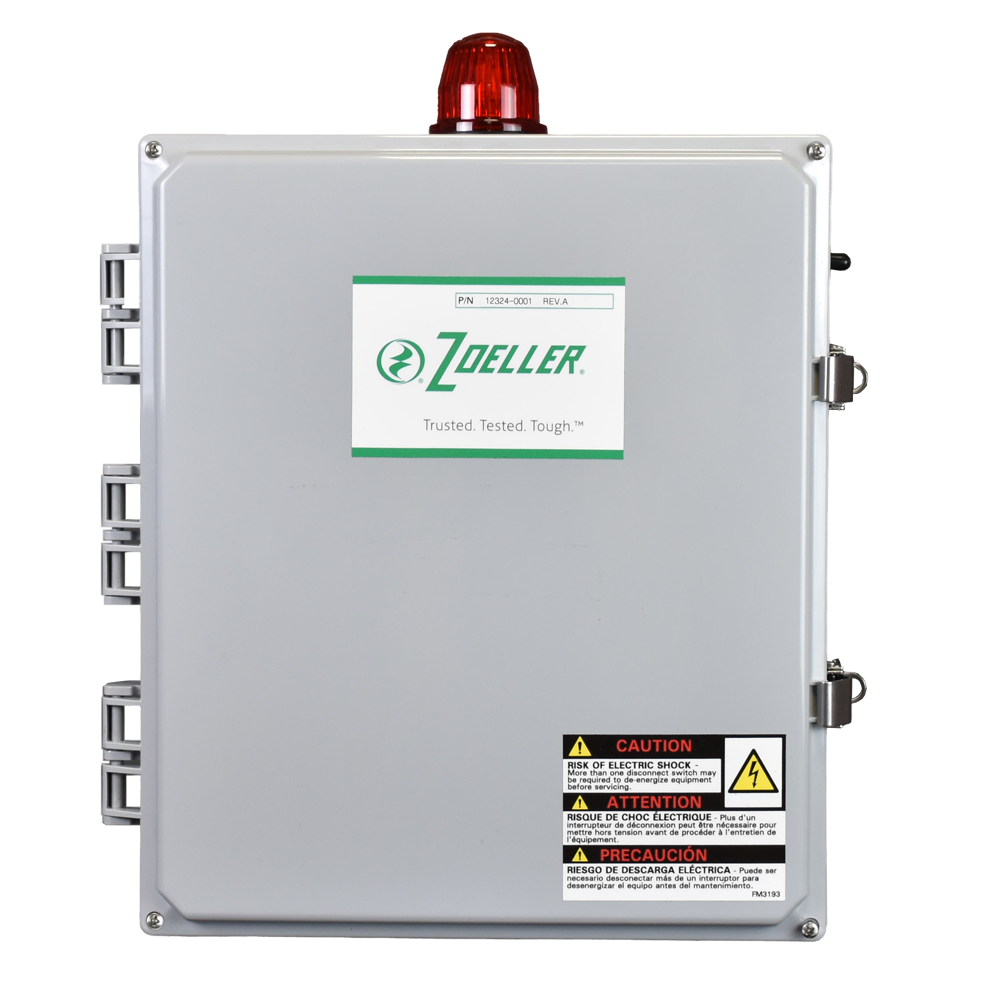

| Product Line Card Title | Zoeller 124D4-0001 Duplex Pivot Pro Control Panel, 4.0-6.3 Amps |
|---|
| Product Line Card Subtitle | 124D4-0001 - Zoeller Pump Company |
|---|
