| Features and Benefits 1 | System includes automatic 4/10 HP automatic pump, tank assembly and check valve |
|---|
| Features and Benefits 2 | Non-clogging vortex impeller capable of passing 3/4" spherical solids reducing the potential for clogs |
|---|
| Features and Benefits 3 | 12-1/4" x 15-1/2" basin with a small footprint so it is easily installed in a base cabinet under the sink, beneath a utility sink, or in any compact area |
|---|
| Features and Benefits 4 | The basin's cover includes a 1-1/2" discharge, 2" NPT vent, 2" inlet and cord seal opening |
|---|
| Features and Benefits 5 | 3-year limited warranty for peace of mind right out of the box |
|---|
| Highlight 1 | 115 V automatic high head and high flow Drain Pump for use in sink drain applications |
|---|
| Highlight 2 | Ideal for areas where gravity flow is not available, such as basement remodels, coffee bars, utility sinks, wet bar sinks, ice machine discharge, dishwashers, air conditioning condensate, and more |
|---|
| Highlight 3 | 100% Factory Tested |
|---|
| Long Description | Our Model 135 Drain Pump is an ideal choice for high head, high flow drain pump applications. A drain pump is a perfect solution when a drain is required but gravity drainage is not accessible. The drain pump eliminates the need to break concrete to install a sink drain. It is often used when adding a kitchen or wet bar in an unfinished basement. It allows you to pump the unwanted water to any discharge point desired. Due to its pumping capacity, the Model 135 is often used in commercial sink drain applications.
Our drain pump is also used to handle the wastewater from coffee bars, utility sinks, wet bar sinks, ice machine discharge, dishwashers, air conditioning condensate, and much more. Our Model 135 Drain Pump is constructed with a polypropylene, corrosion-resistant basin and comes with 4/10 HP submersible sump pump capable of passing solids up to 3/4-inch. For added convenience, the check valve with union is included.
The 1-1/2" discharge, 2" NPT vent, and 2" inlet openings are already built into the basin's lid so installation is quick and straight forward. The pump can pass laundry lint, making this drain pump model ideal for high-capacity laundry applications. The pump utilizes a non-clogging vortex impeller design, a dependable configuration that reduces downtime and maintenance costs.
Peace of mind right-out-of-the-box! Less hassle. Less mess. |
|---|
| Short Description | Drain Pump 135 WM152/115V/1Ph/Vfs |
|---|

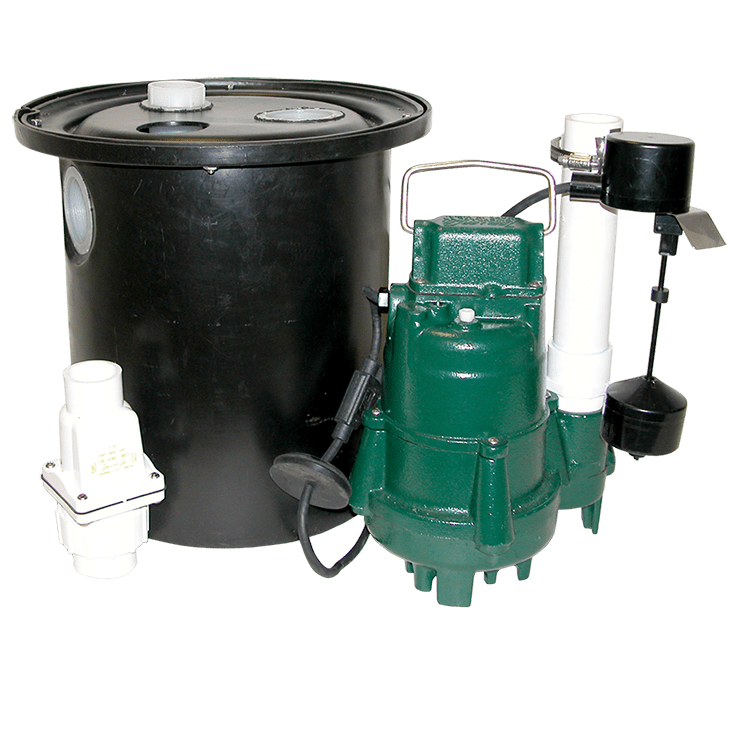

| Product Line Card Title | Zoeller 135-0005 WM152 Drain Pump 4/10 HP, 115V, 1PH |
|---|
| Product Line Card Subtitle | 135-0005 - Zoeller Pump Company |
|---|
