| Features and Benefits 1 | Oil filled for optimal heat dissipation: This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications. |
|---|
| Features and Benefits 2 | Automatic pump with piggyback variable level float switch which allows you to adjust the on / off level for optimal runtime |
|---|
| Features and Benefits 3 | Non-clogging, engineered thermoplastic vortex impeller design. The vortex impeller allows free passage of solids to prevent clogging. |
|---|
| Features and Benefits 4 | The single piggyback float switch turns a nonautomatic pump into an automatic pump and also allows you to isolate the pump from the switch making it easier to troubleshoot issues in the field |
|---|
| Features and Benefits 5 | For strength and durability, this pump includes a corrosion-resistant, powder-coated epoxy finish, cast iron construction, and stainless steel lifting handle and bolts. |
|---|
| Features and Benefits 6 | Stainless steel screws, handle and hardware to prevent rust and corrosion over the life of the pump |
|---|
| Features and Benefits 7 | 100% factory tested: Our factory-tested effluent pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures |
|---|
| Features and Benefits 8 | 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind |
|---|
| Highlight 1 | 115 V automatic effluent pump with a piggyback variable level float switch for use in septic system applications |
|---|
| Highlight 2 | 1/3 HP effluent pump, capable of handlings spherical solids up to 1/2-inch |
|---|
| Highlight 3 | 100% Factory Tested |
|---|

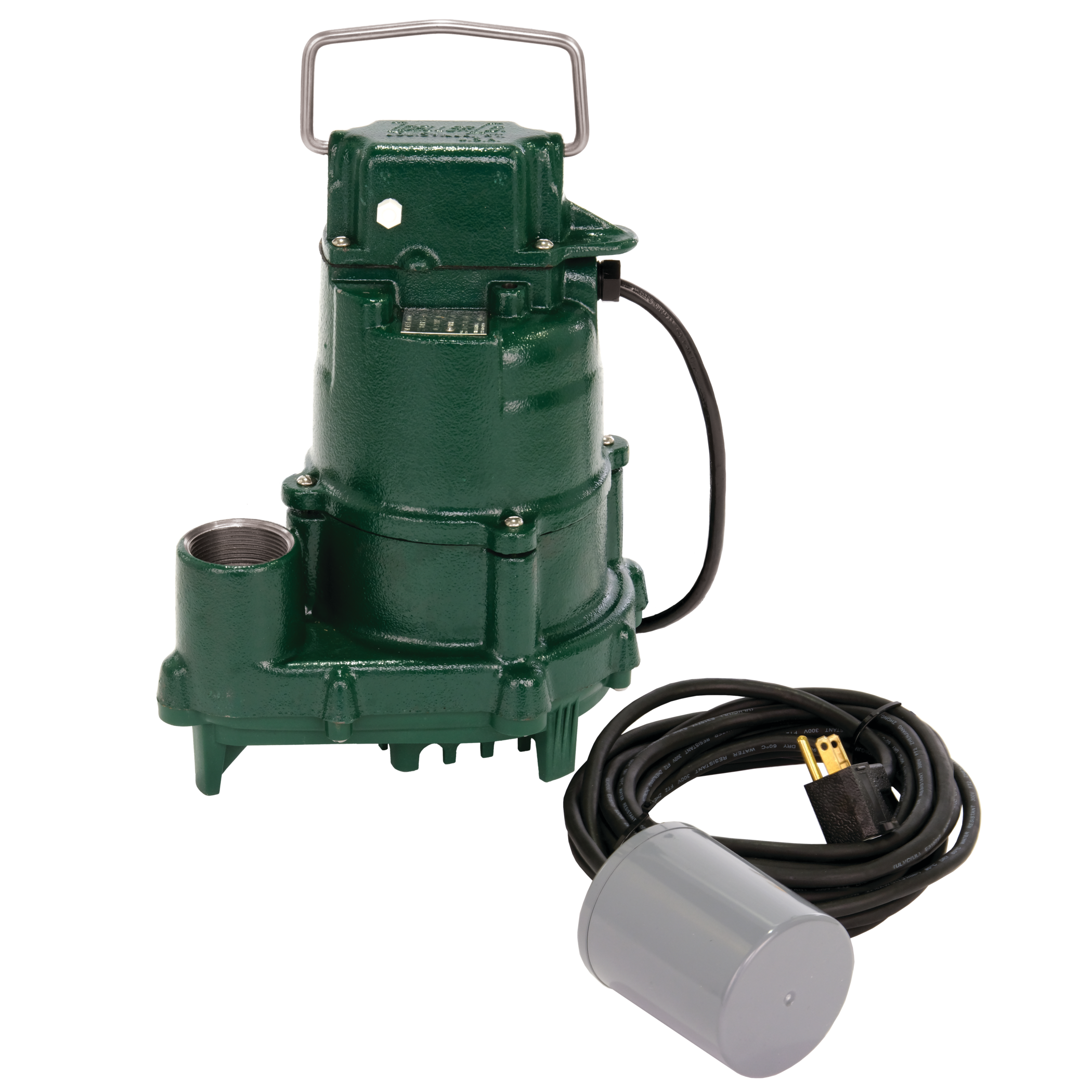

| Long Description | Our Model BN151 automatic Effluent Pump is designed to remove unwanted water in septic effluent applications. It is an ideal choice in high pressure or high flow applications. The professional-grade, 1/3 HP Model 151 is known for its dependability. The BN151 is an automatic pump equipped with a single piggyback float switch making it an automatic setup. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 151's cap, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump's identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 151 is able to withstand the most demanding applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box. |
|---|
| Short Description | BN151 115V/1Ph/ 1/3Hp/Pb20'/cCSAus |
|---|

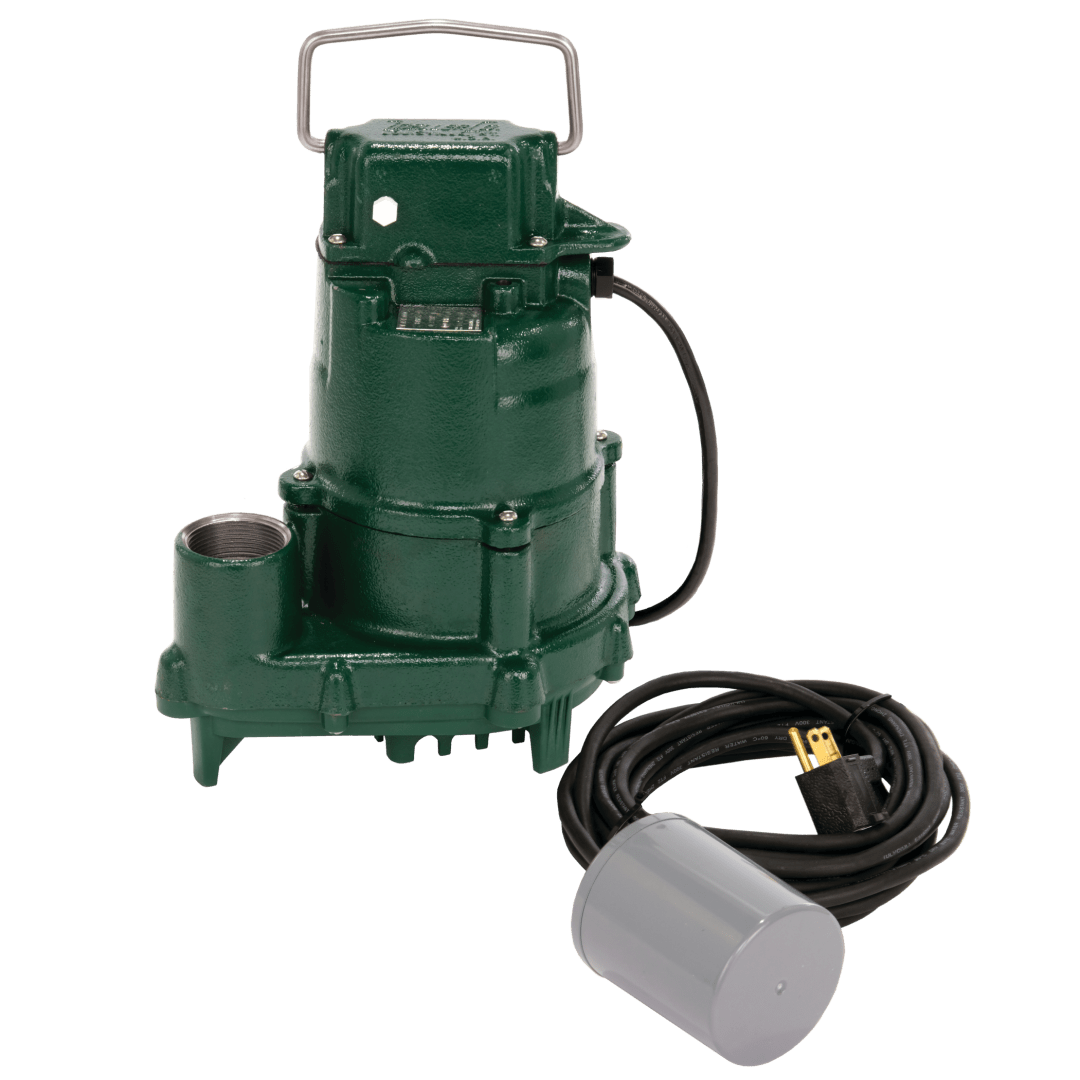

| Product Line Card Title | Zoeller 151-0005 BN151 Float Switch Operated Effluent Pump 0.33 HP, 115V, 1PH |
|---|
| Product Line Card Subtitle | 151-0005 - Zoeller Pump Company |
|---|
