| Features and Benefits 1 | Oil filled motor optimizes heat dissipation which prevents the pump from overheating during extended-use occurrences |
|---|
| Features and Benefits 2 | A versatile nonautomatic pump that can be paired with your choice of a piggyback float switch or a control panel to control the pump's on / off level (both sold separately) |
|---|
| Features and Benefits 3 | Built with an engineered plastic vortex impeller to allow free passage of 3/4” spherical solids to prevent the potential for clogging |
|---|
| Features and Benefits 4 | Powder-coated epoxy finish provides corrosion-resistance and extends pump life in harsh environments |
|---|
| Features and Benefits 5 | Stainless steel screws, bolts, and handle to prevent rust and corrosion even when installed in an elevator sump pump application |
|---|
| Features and Benefits 6 | Comes standard with a 1-1/2" threaded discharge and a 1-1/2" x 2" PVC male adapter so it will mate up to the most common pipe sizes |
|---|
| Features and Benefits 7 | 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it |
|---|
| Features and Benefits 8 | Comes with a 3-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product |
|---|
| Highlight 1 | 115 V nonautomatic effluent pump for use in septic system applications |
|---|
| Highlight 2 | 4/10 HP oil-filled motor and cast iron motor housing for optimal heat dissipation |
|---|
| Highlight 3 | 100% Factory Tested |
|---|

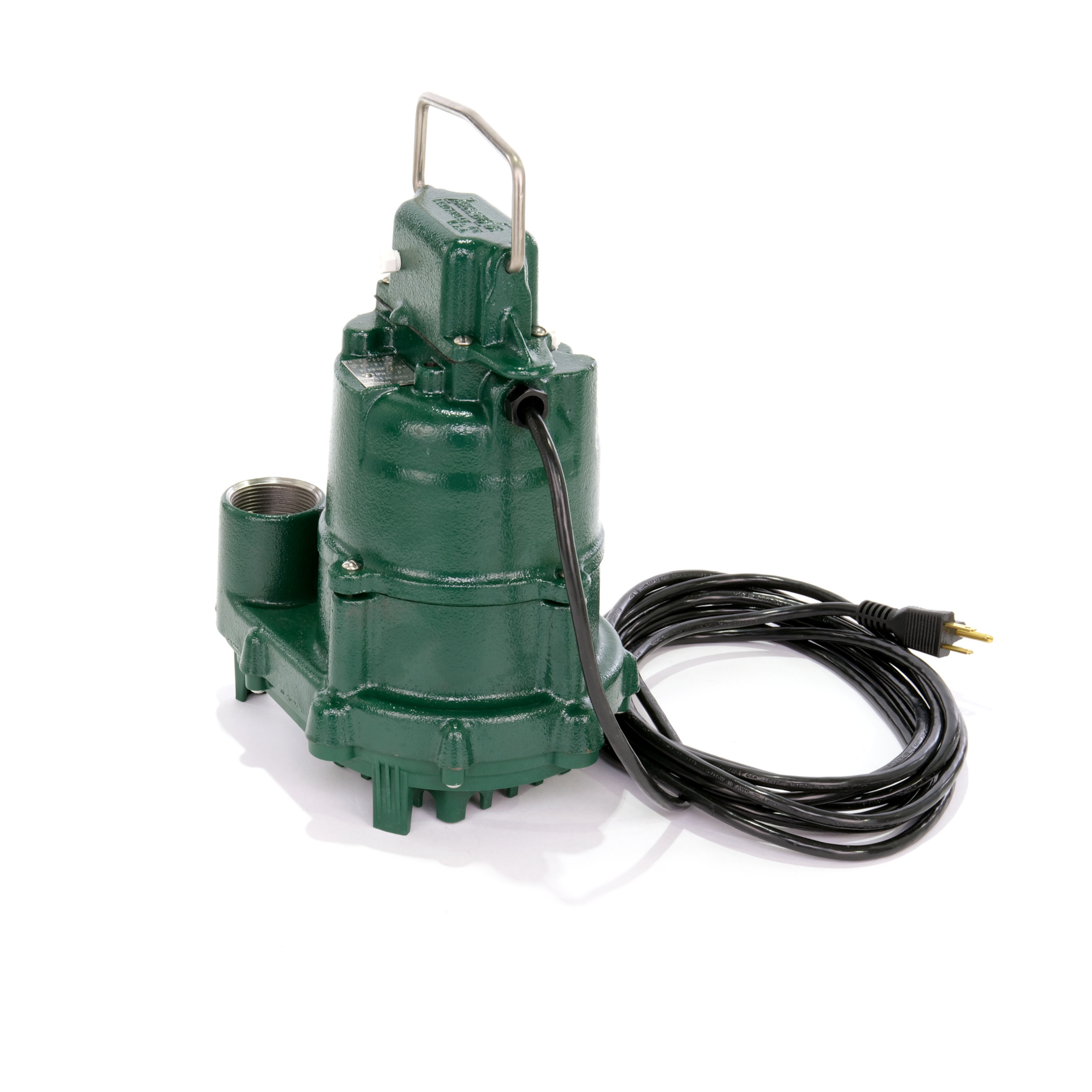

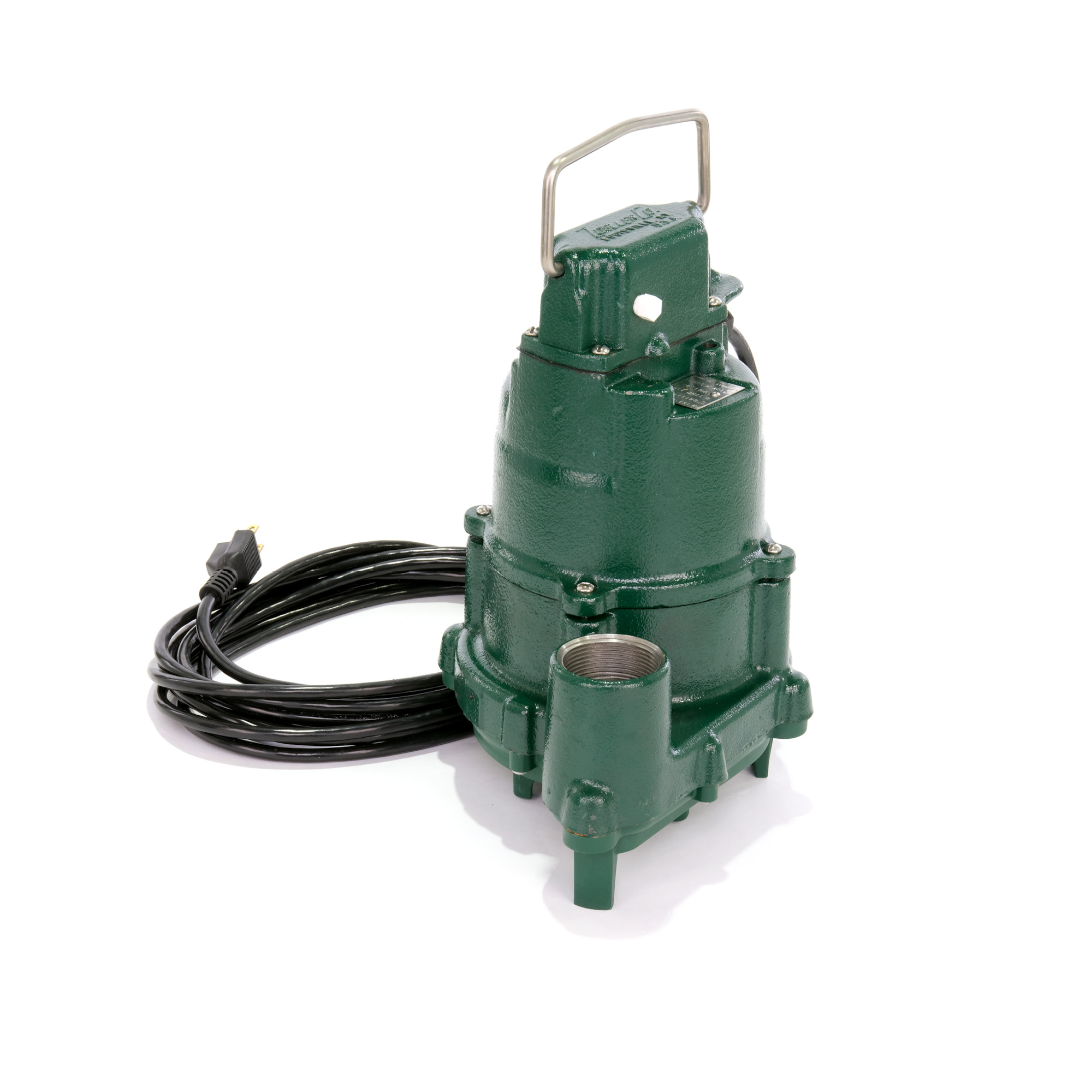

| Long Description | Our Model N152 nonautomatic Effluent Pump is designed to remove unwanted water in septic effluent applications. It is an ideal choice in high pressure or high flow applications. The professional-grade, 4/10 HP Model 152 is known for its dependability. The N152 is a nonautomatic pump requiring a piggyback float switch or control panel for operation. Either option allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 152's switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump's identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 152 is able to withstand the most demanding applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box. |
|---|
| Short Description | N152 115V/1Ph/.4Hp/cCSAus |
|---|
| Product Line Card Title | Zoeller 152-0002 N152 Nonautomatic Effluent Pump 4/10 HP, 115V, 1PH |
|---|
| Product Line Card Subtitle | 152-0002 - Zoeller Pump Company |
|---|
