| Features and Benefits 1 | Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating |
|---|
| Features and Benefits 2 | A versatile nonautomatic pump that comes with a single piggyback float switch that is ideal for applications where the on and off points may vary depending on the depth of the dose tank on the site |
|---|
| Features and Benefits 3 | Non-clogging, engineered thermoplastic vortex impeller design that allows free passage of solids to prevent clogging |
|---|
| Features and Benefits 4 | The single piggyback float switch turns a nonautomatic pump into an automatic pump and also allows you to isolate the pump from the switch making it easier to troubleshoot issues in the field |
|---|
| Features and Benefits 5 | Durable, cast iron construction for long-lasting corrosion and heat resistance |
|---|
| Features and Benefits 6 | Powder-coated epoxy finish provides corrosion-resistance and extends life in harsh environments |
|---|
| Features and Benefits 7 | Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion |
|---|
| Features and Benefits 8 | 100% factory tested: Our factory-tested effluent pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures |
|---|
| Features and Benefits 9 | 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind |
|---|
| Highlight 1 | 115 V nonautomatic effluent pump with a piggyback variable level float switch for use in septic system applications |
|---|
| Highlight 2 | 1/2 HP effluent pump, capable of handlings spherical solids up to 3/4-inch |
|---|
| Highlight 3 | 100% Factory Tested |
|---|

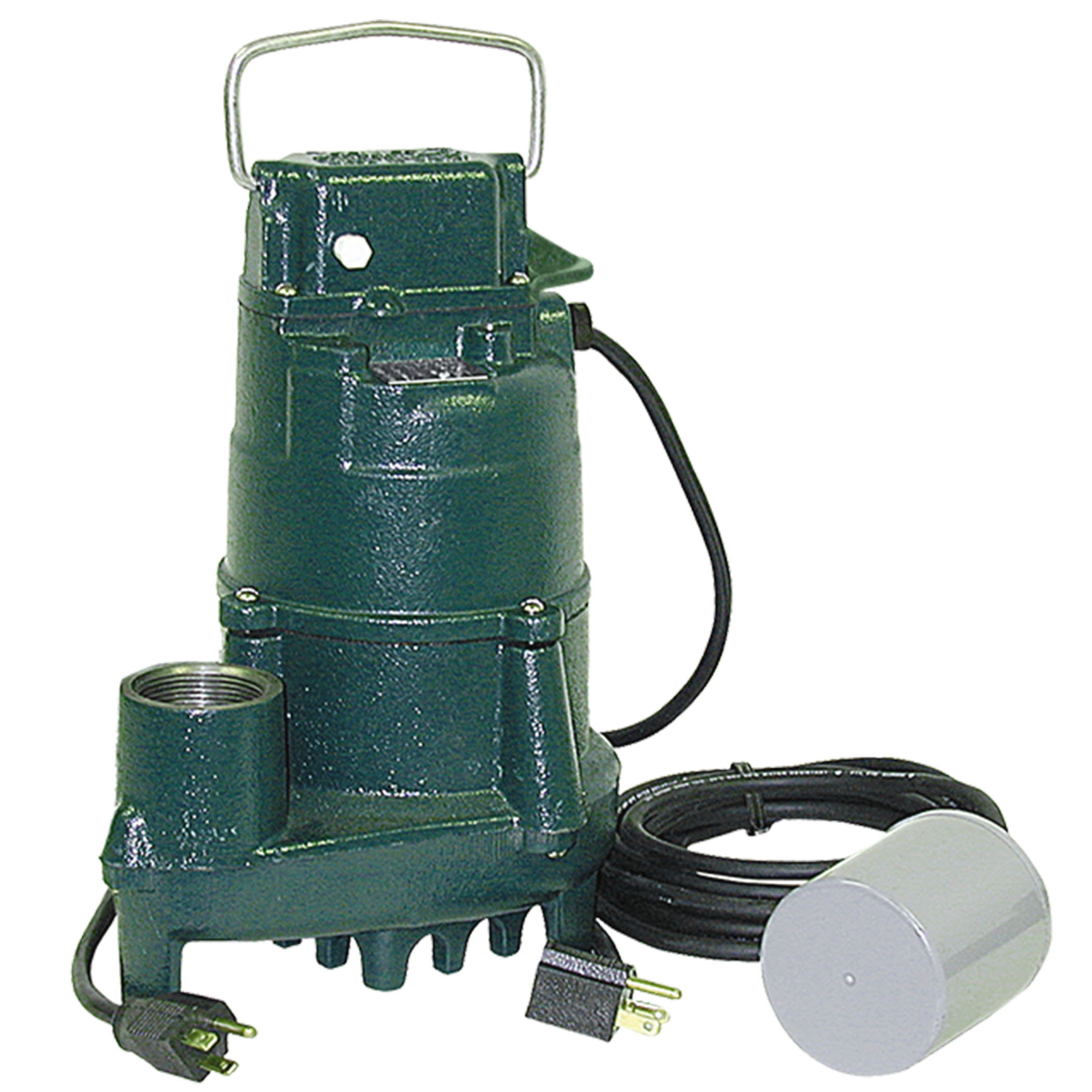

| Woocom - Description | Our Model BN153 nonautomatic Effluent Pump is designed to remove unwanted water in septic effluent applications. It is an ideal choice in high pressure or high flow applications. The professional-grade, 1/2 HP Model 153 is known for its dependability. The BN153 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 153's switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump's identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 153 is able to withstand the most demanding applications.

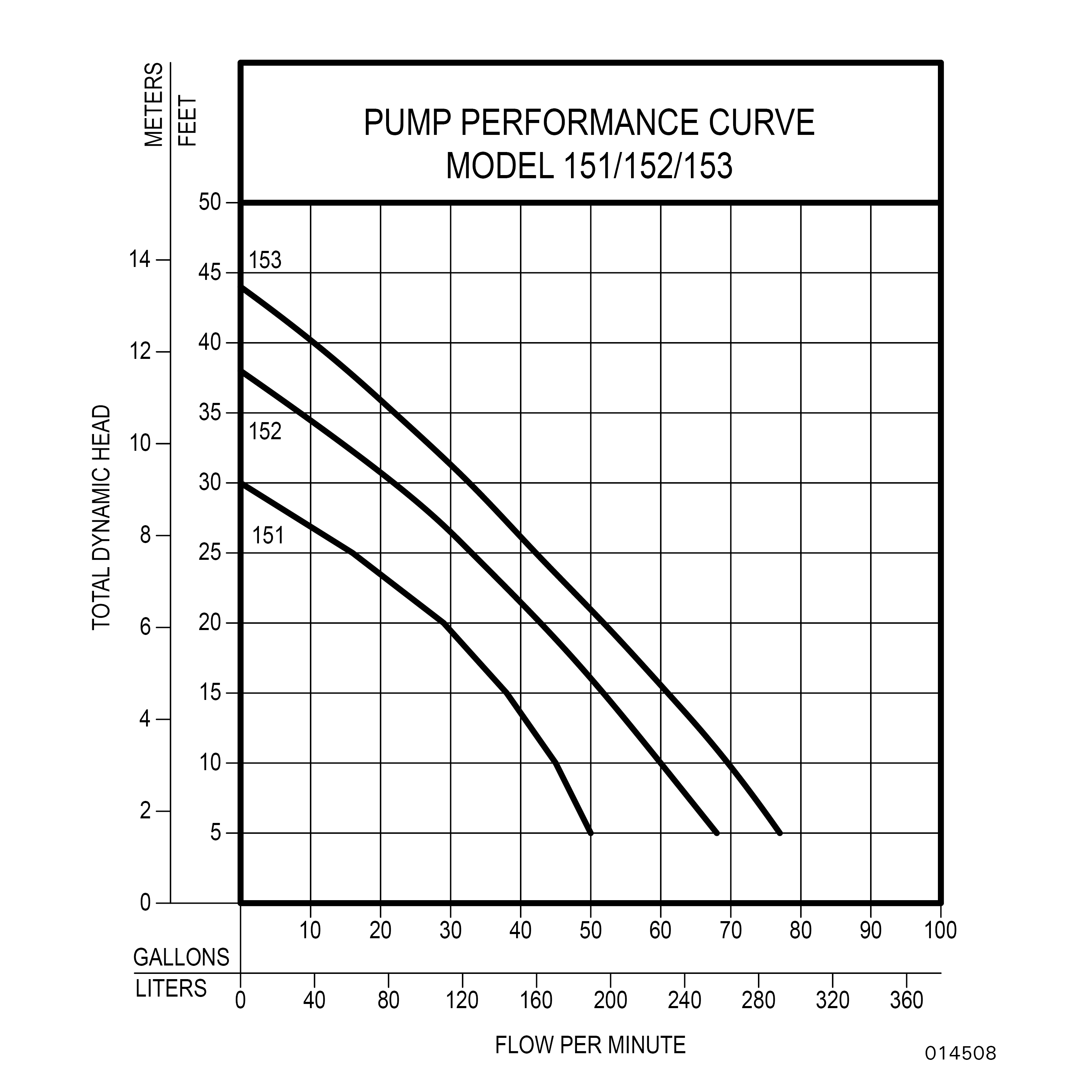

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box. |
|---|
| Woocom - Short description | The 1/2 HP Model 153 nonautomatic Effluent Pump with a variable level float switch is designed to pump sewage effluent in septic system applications. It is constructed of cast iron with a durable powder-coated epoxy finish to reduce corrosion, making it ideal for most septic system pump tanks. The Model 153 works well in residential and light commercial applications and is a desirable choice for longevity. Our BN153 comes with a single piggyback float switch allowing you to set the on and off point in the field. Backed by a one-year warranty, every pump is submerged and water tested to provide years of trouble-free performance. |
|---|
| Product Line Card Title | BN153 Float Switch Operated Effluent Pump 1/2 HP, 115V, 1PH |
|---|
| Product Line Card Subtitle | 153-0005 - Zoeller Pump Company |
|---|
