| Features and Benefits 1 | Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating |
|---|
| Features and Benefits 2 | Nonautomatic pump that requires a control panel and switches to set the on / off levels |
|---|
| Features and Benefits 3 | Corrosion resistant cast iron vortex impeller to allow free passage of 2" spherical solids which prevents clogging and increases reliability |
|---|
| Features and Benefits 4 | Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments |
|---|
| Features and Benefits 5 | Stainless steel screws, handle, and hardware to prevent rust and corrosion |
|---|
| Features and Benefits 6 | 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it |
|---|
| Features and Benefits 7 | Comes with a 1-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product |
|---|
| Highlight 1 | 200 - 208 V sewage pump for use in sewage lift stations |
|---|
| Highlight 2 | 1 HP, oil-filled motor and cast iron motor housing for optimal heat dissipation |
|---|
| Highlight 3 | 100% Factory Tested |
|---|
| Woocom - Description | Our Model I284 Sewage Pump is designed to remove raw sewage, effluent or ground water in sewage or stormwater removal applications. The 1 HP I284 is a time-tested and reliable sewage pump. The I284 is a nonautomatic pump requiring a float switch and control panel for operation. This allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The pump's vortex impeller allows it to pass 2" spherical solids. The impeller's clearance in relation to the pump housing allows water and solids to pass freely through the pump. This combination of design features lessens the chance of clogging and downtime.
The Model 284's motor housing, pump housing, and base are each constructed of cast iron. The pump's identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 284 is able to withstand the most demanding sewage ejector applications.

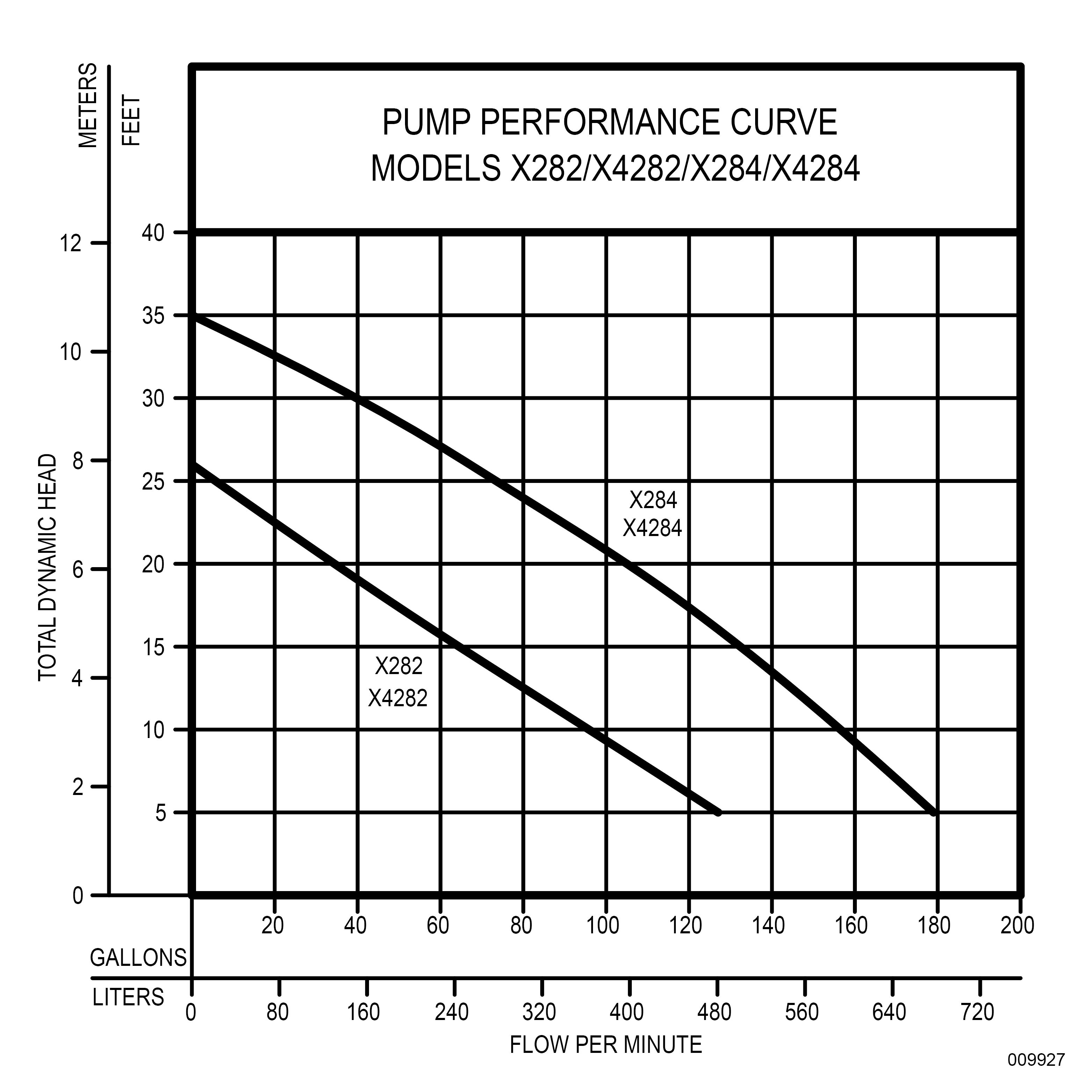

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box. |
|---|
| Woocom - Short description | The 1 HP Model I284 nonautomatic Sewage Pump is designed to remove raw sewage, effluent or ground water in sewage or stormwater applications. This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 1-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box. |
|---|

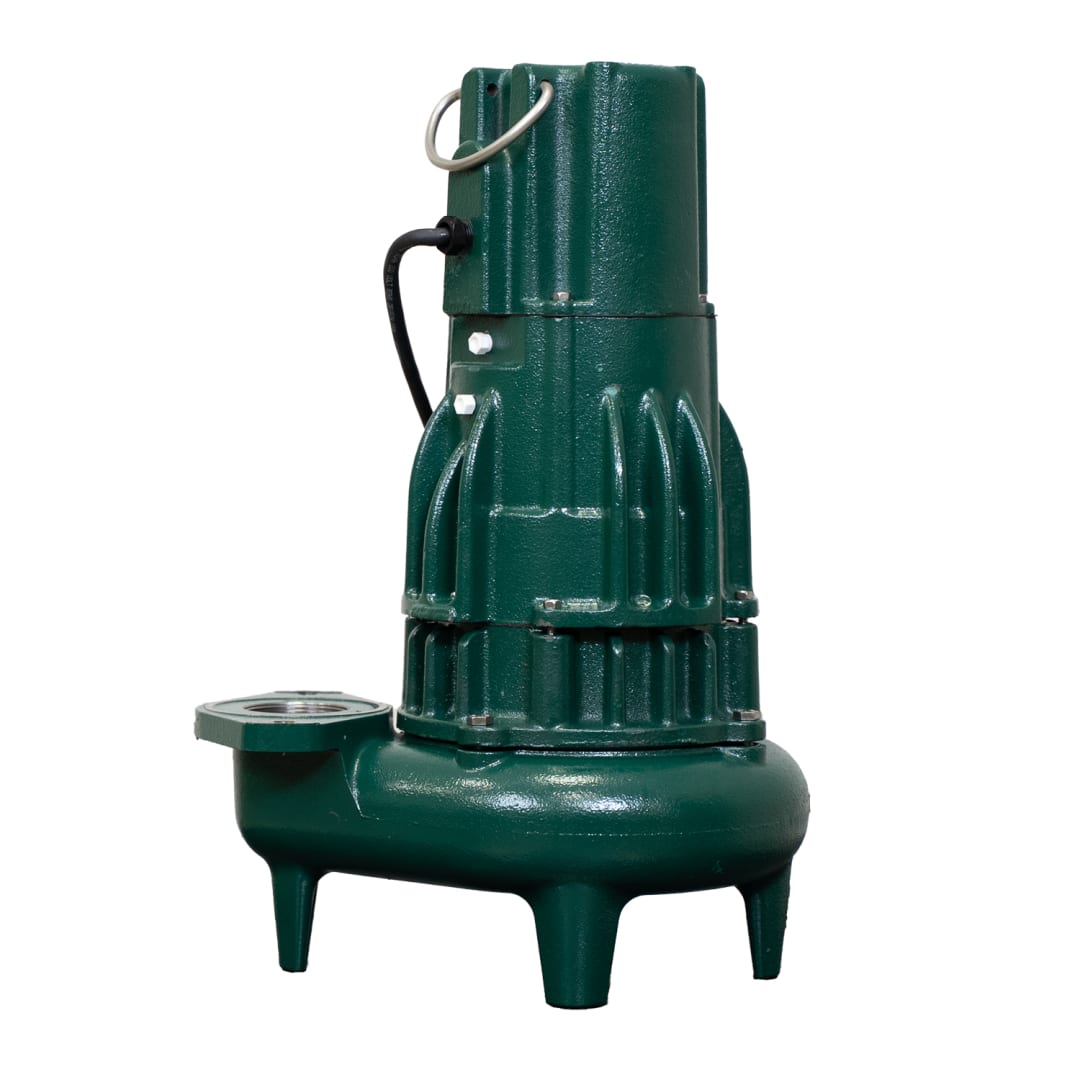

| Product Line Card Title | I284 Nonautomatic Sewage Pump 1 HP, 200V, 1PH |
|---|
| Product Line Card Subtitle | 284-0010 - Zoeller Pump Company |
|---|
