| Features and Benefits 1 | High visibility of green power light and red perimeter alarm LEDs make it easily visible |
|---|
| Features and Benefits 2 | 115 V outdoor APak alarm with 6' of power cord |
|---|
| Features and Benefits 3 | Simple to install on the wall near the sump pit, sewage ejector pit, or pump tank inside our outside the home |
|---|
| Features and Benefits 4 | NEMA 4X Enclosure 120 VAC, 60 Hz |
|---|
| Features and Benefits 5 | Audible buzzer rated at 85 decibels at 10’ that notifies you of a high water condition |
|---|
| Features and Benefits 6 | Silence/Reset/Test toggle switch on the side that allows you to initiate key functions |
|---|
| Features and Benefits 7 | Auxiliary output (dry contacts) for connection to additional alarm equipment, security system, building automation, or input of Z Control® device. 5 amps max, 120 VAC |
|---|
| Features and Benefits 8 | Added terminals for optional pump power meet NEC standards for junction boxes. 20 amps, 120/230 VAC |
|---|
| Features and Benefits 9 | 5-year limited warranty giving you extra protection and more peace of mind right out of the box |
|---|
| Highlight 1 | An outdoor auto-reset solid state alarm that monitors the water level in pump tanks |
|---|
| Highlight 2 | NEMA 4X non-corrodible enclosure rated for outdoor or indoor |
|---|
| Highlight 3 | Normally open mechanical float switch with 15’ cable included |
|---|
| Woocom - Description | Our outdoor APak® Alarm System monitors liquid in sump pits, sewage ejector pits, pump chambers, holding tanks, and other water systems outside the home. It is a NEMA 4X rated enclosure so it can withstand outdoor weather conditions without issue. This particular unit comes with a 15' mechanical float switch to indicate a high-water level. Our APak alarm will provide an audible and visual warning if the water level presents the danger of overflow. This gives you time to act and protect your property from flooding.
During standard operation the APak alarm is powered by a 115 V circuit. A green light will illumine giving you a visual that the device is receiving power.
In the event of high water, red LED lights will illuminate around the periphery of the enclosure and a buzzer will sound notifying you of a potential problem. The audible buzzer is rated at 85 decibels at 10' so it is recognizable even when installed outside the home. The APak also includes a Silence/Reset/Test toggle switch that allows you to manually initiate important functions.
The compact design makes it easy to install on a basement wall or the exterior of the home. With an APak® alarm in place, you'll be alerted of any high-water events so you can rest assured that your system is functioning as it should. |
|---|

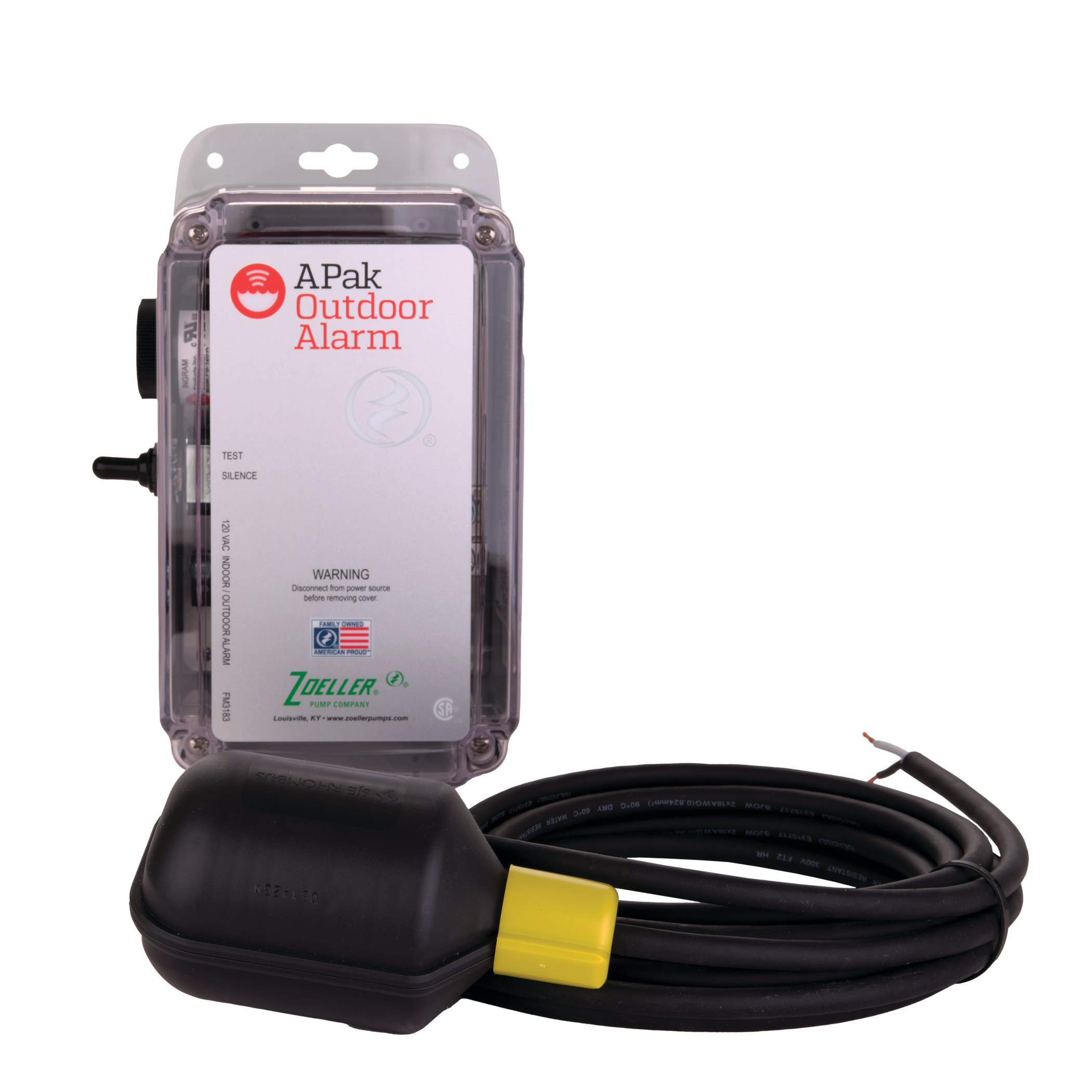

| Woocom - Short description | The Outdoor APak® Alarm System provides an audible and visual warning in the event of high liquid in pump basin. The NEMA 4X enclosure ensure that it can withstand changing weather conditions. The system comes with a 15' variable level float switch and 6' power cord. |
|---|

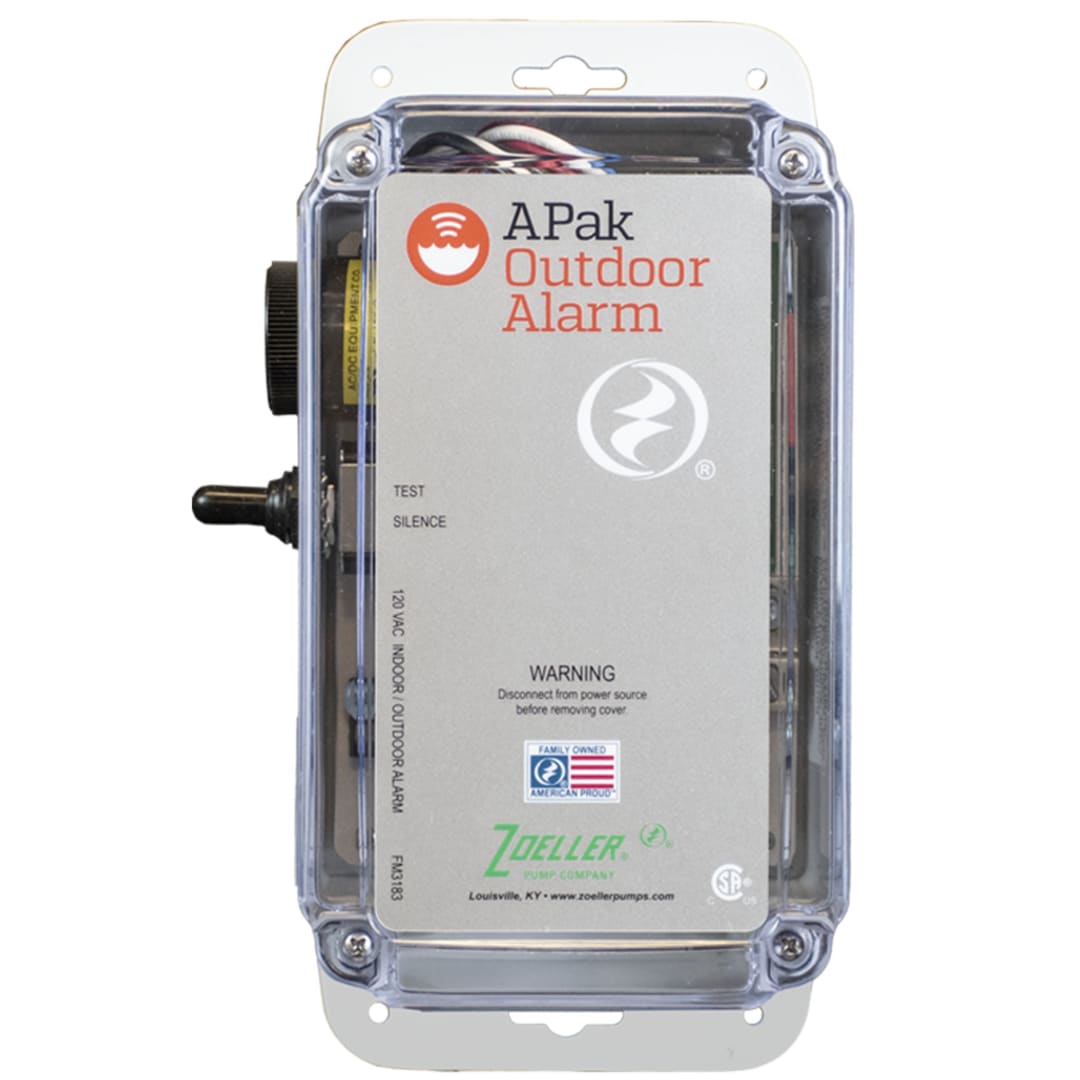

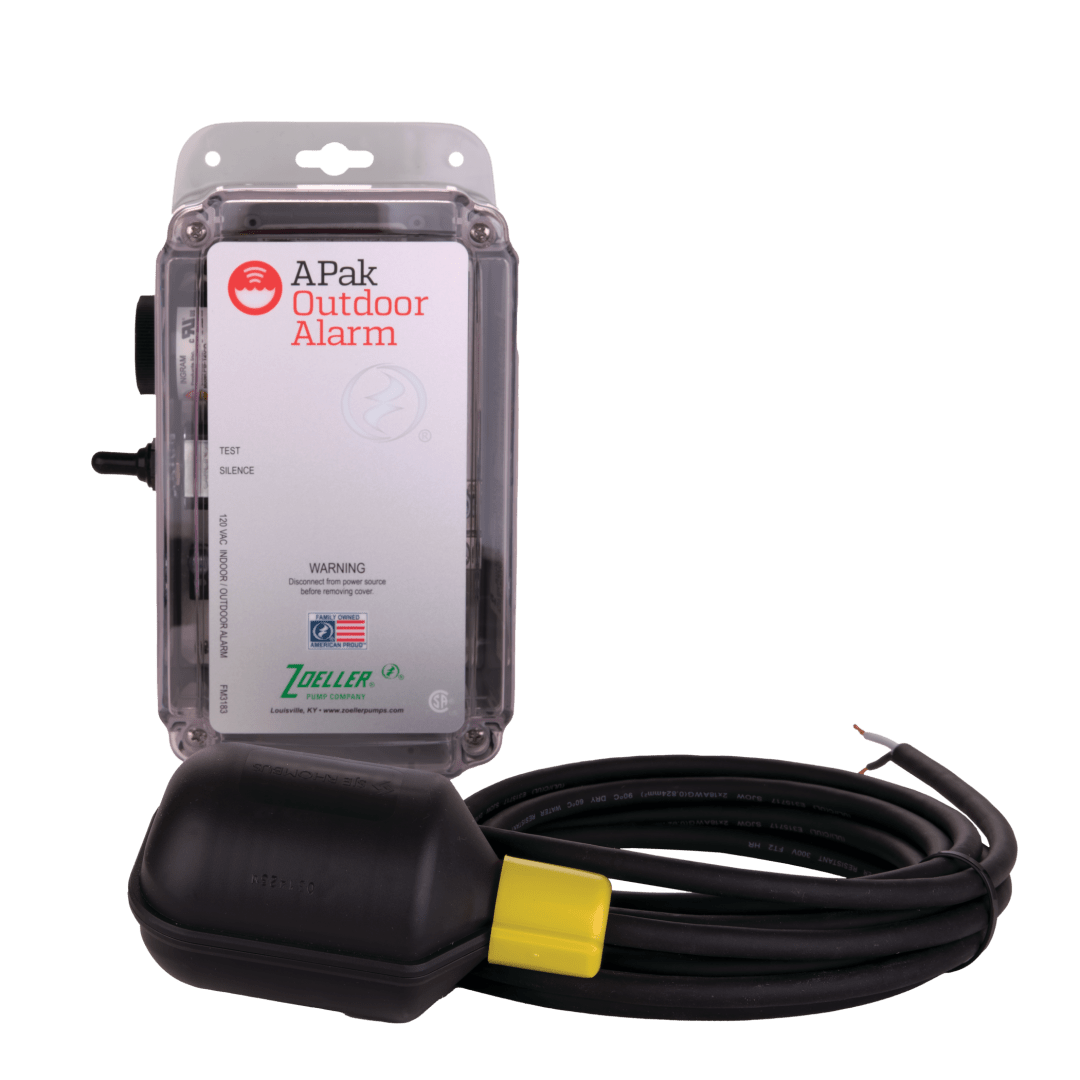

| Product Line Card Title | Standard APAK® Outdoor Alarm System with Mechincal Float |
|---|
| Product Line Card Subtitle | 91104-0001 - Zoeller Pump Company |
|---|
