| Features and Benefits 1 | The Model 264 is 100% Factory Tested |
|---|

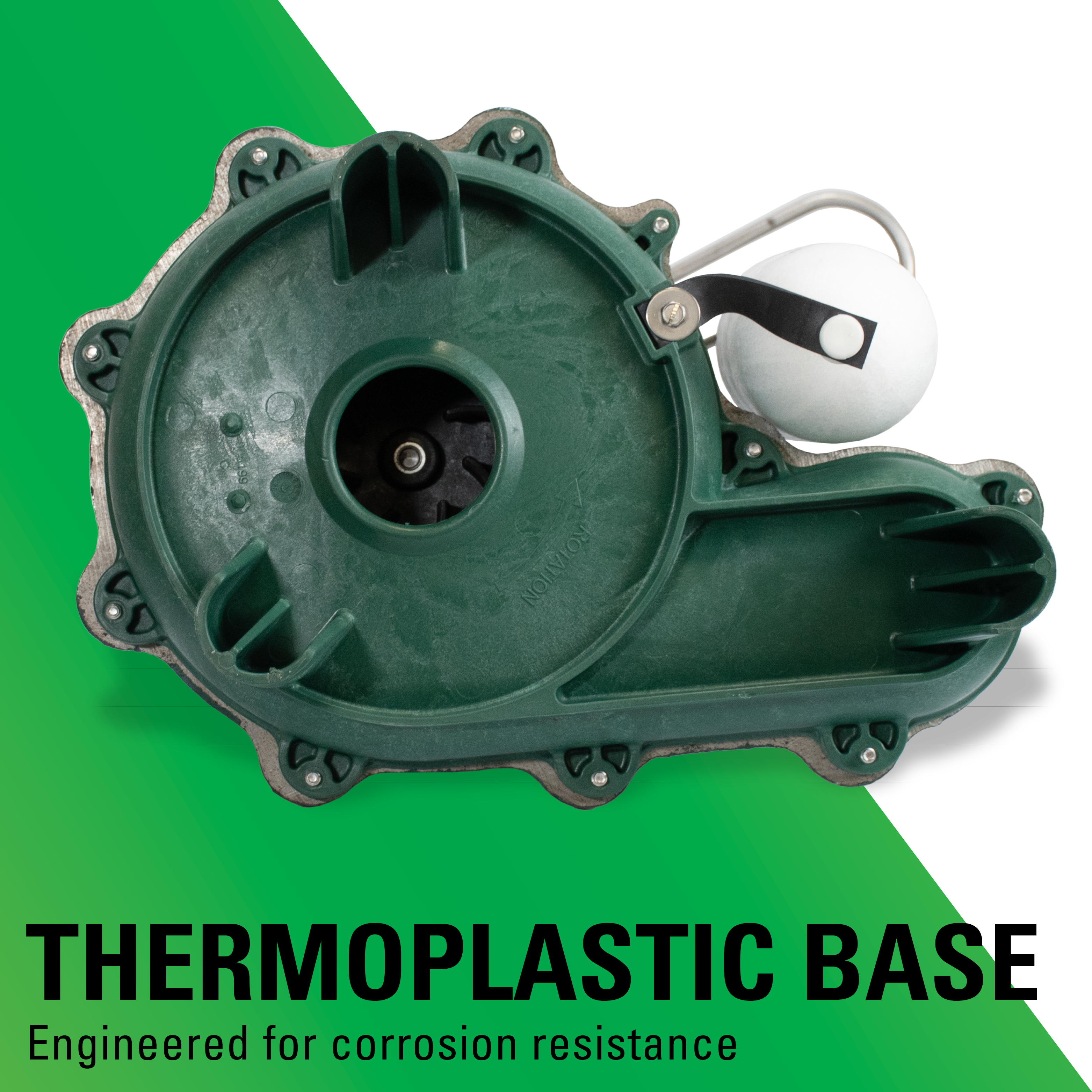

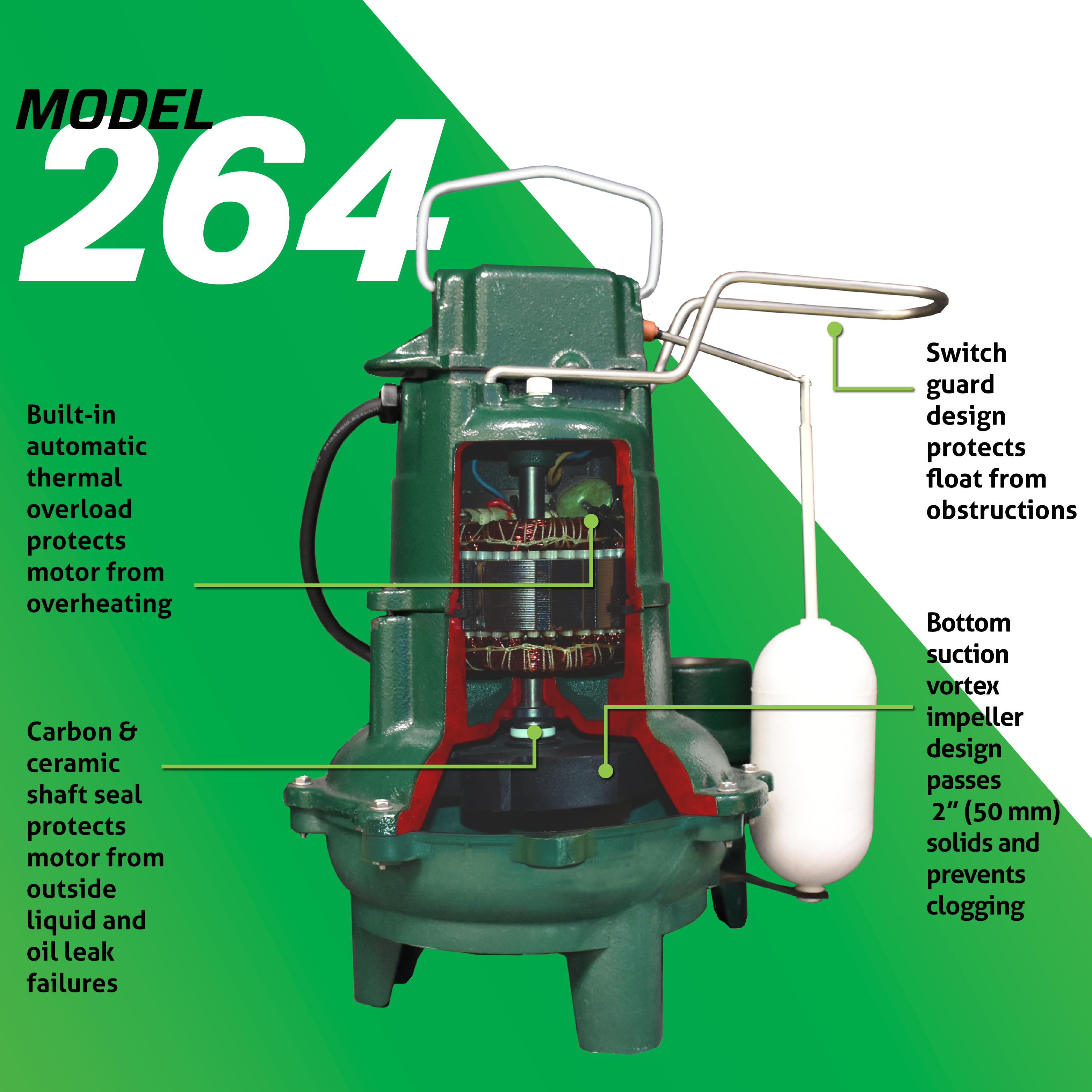

| Features and Benefits 2 | The Model 264 sewage pump is built with an engineered plastic base and vortex impeller capable of handling 2" spherical solids reducing the chance of clogs and downtime |
|---|
| Features and Benefits 3 | The pump's 115 V electrical cord seal is sealed in the cover |
|---|

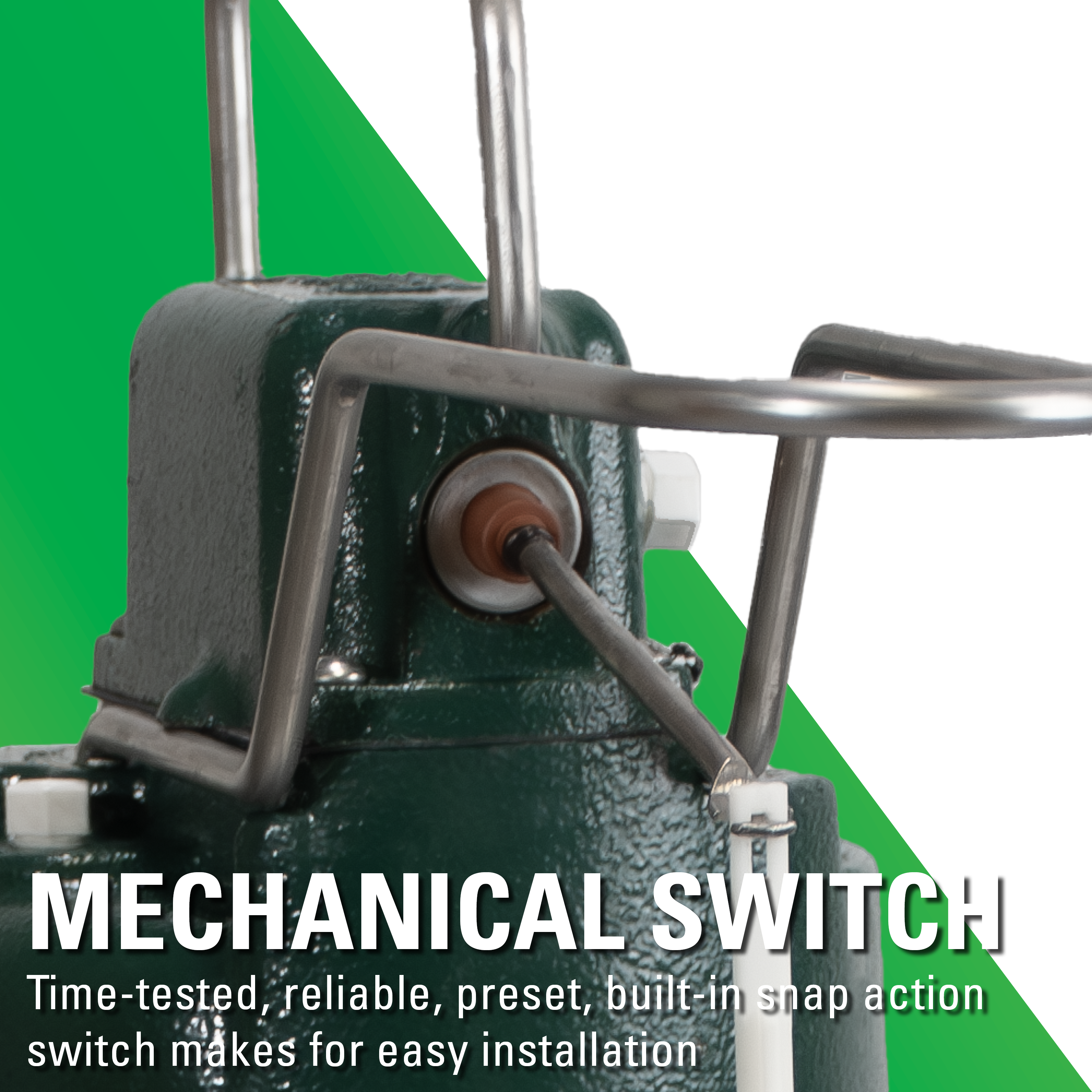

| Features and Benefits 4 | The pump switch is installed 180° from the 4" inlet to prevent the float from being affected by the inflow of raw sewage |
|---|
| Features and Benefits 5 | The discharge pipe is plumbed with a pre-drilled 3/16” weep hole to prevent the pump from becoming air-locked |
|---|
| Features and Benefits 6 | The polyethylene cover comes sealed and bolted down so the system is water and gas tight eliminating the escape of any odor |
|---|
| Features and Benefits 7 | 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind |
|---|
| Highlight 1 | Preassembled sewage ejector package for a job ready, fast, and easy install |
|---|
| Highlight 2 | Package is pre-plumbed with our Model 264 a fully automatic 115 V, 4/10 HP sewage pump |
|---|

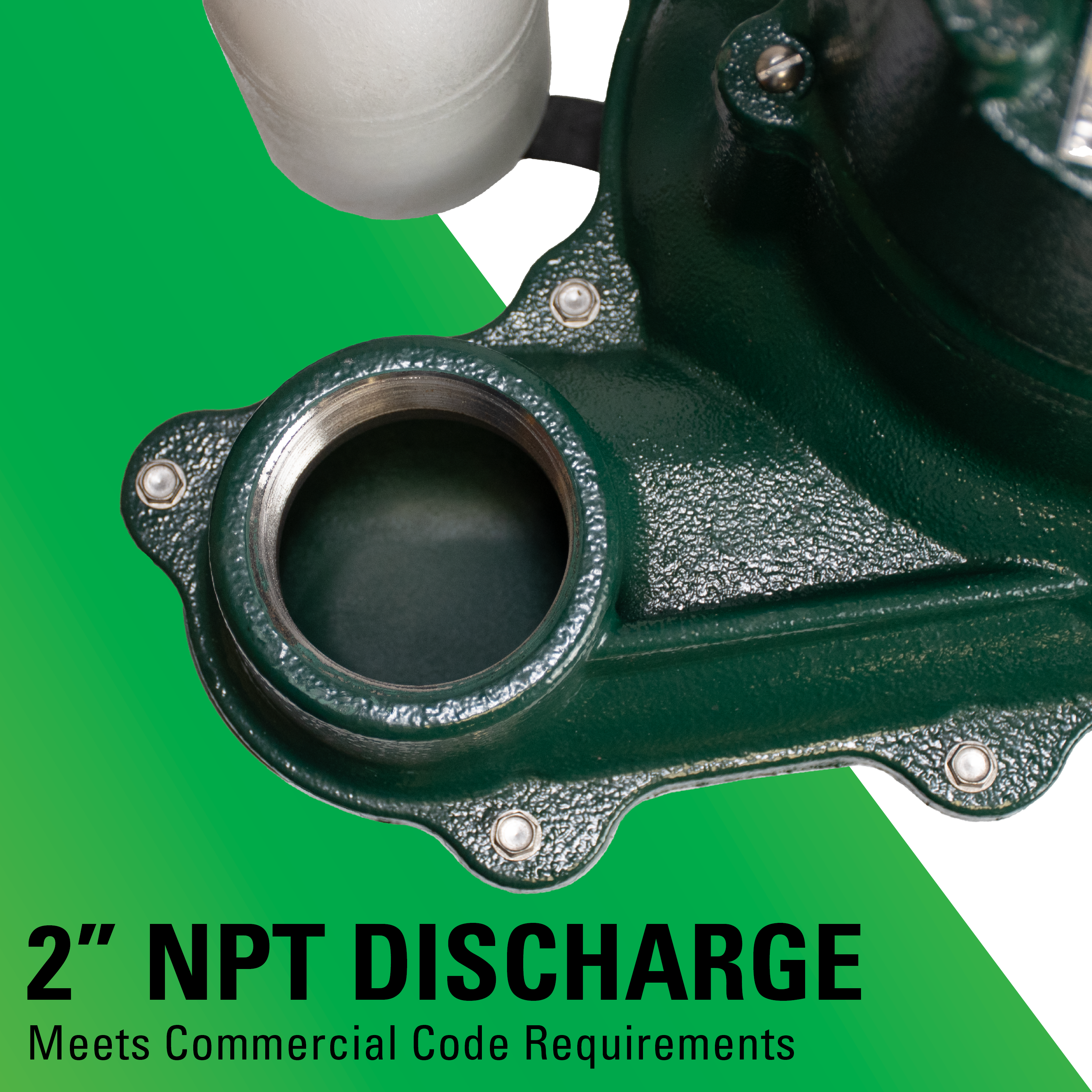

| Highlight 3 | 18” x 30” polyethylene cover and basin with a 4” inlet, 2" vent, and 2" discharge |
|---|
| Woocom - Description | Our Model 912 is a preassembled sewage ejector package that comes with all of the key components required for installation. It is ideal for those looking to install a job ready sewage ejector system. Purchasing a job ready package reduces installation errors while minimizing cost.
The Model 912 sewage ejector package is designed for burial flush-to-grade. The access cover is the only part that is visible after installation.

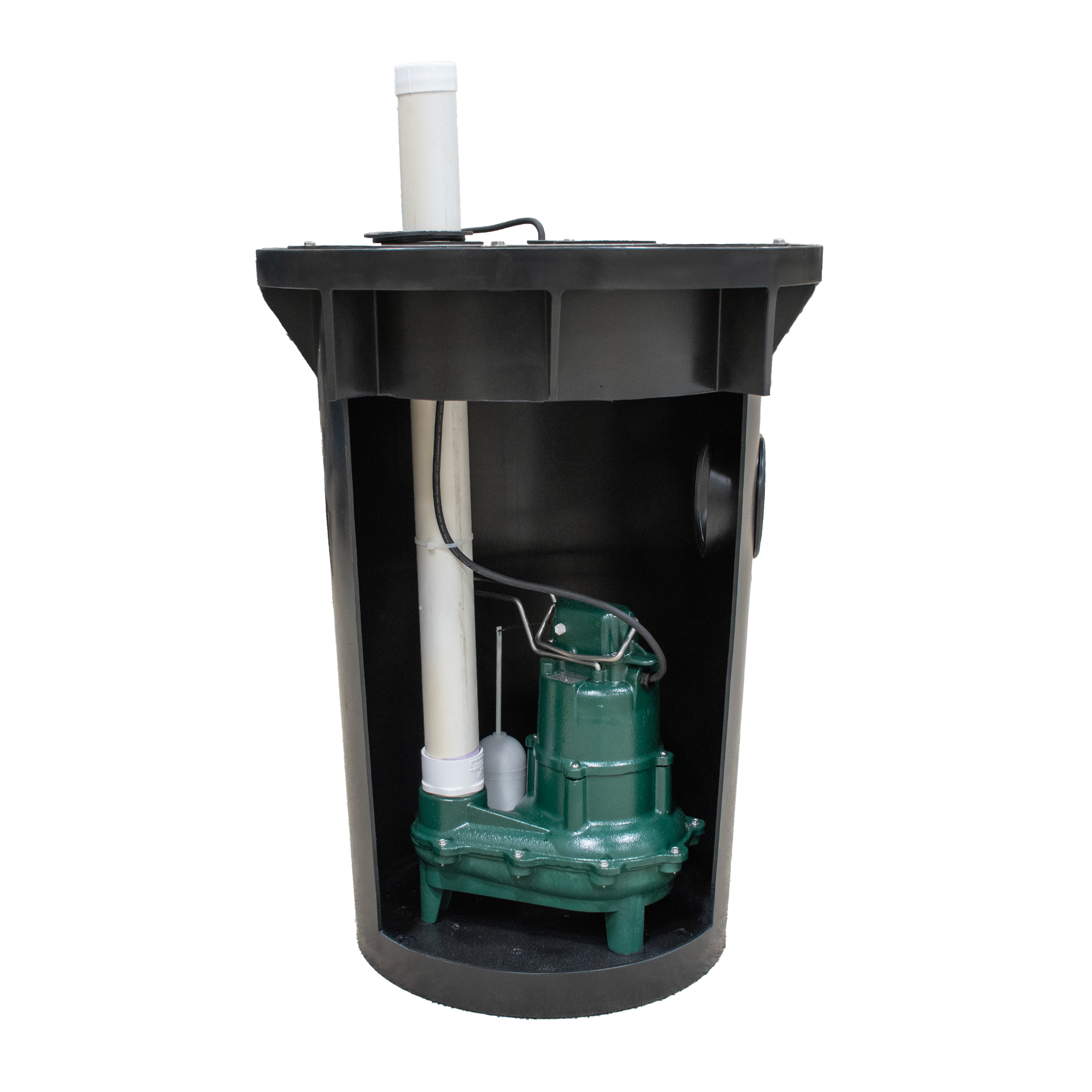

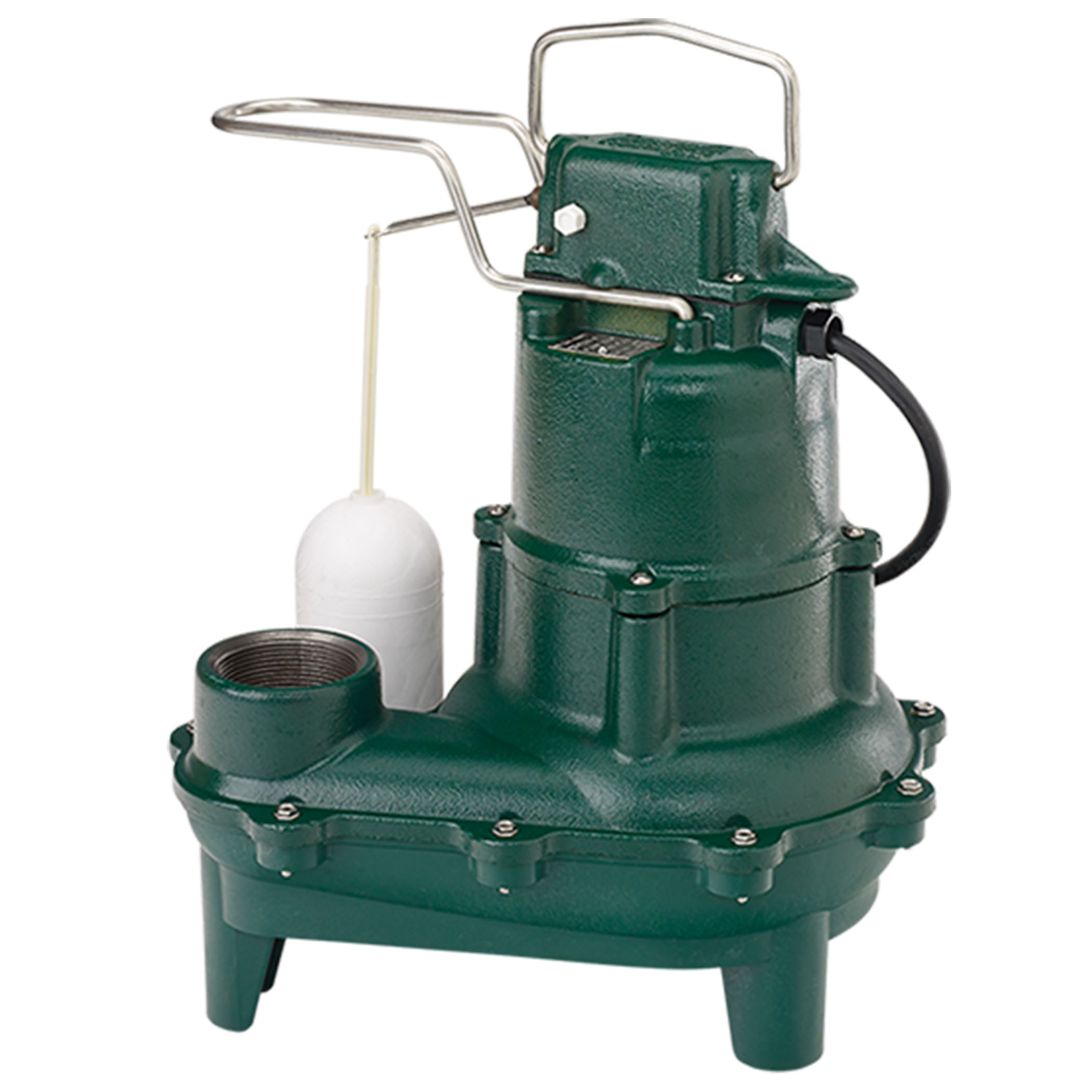

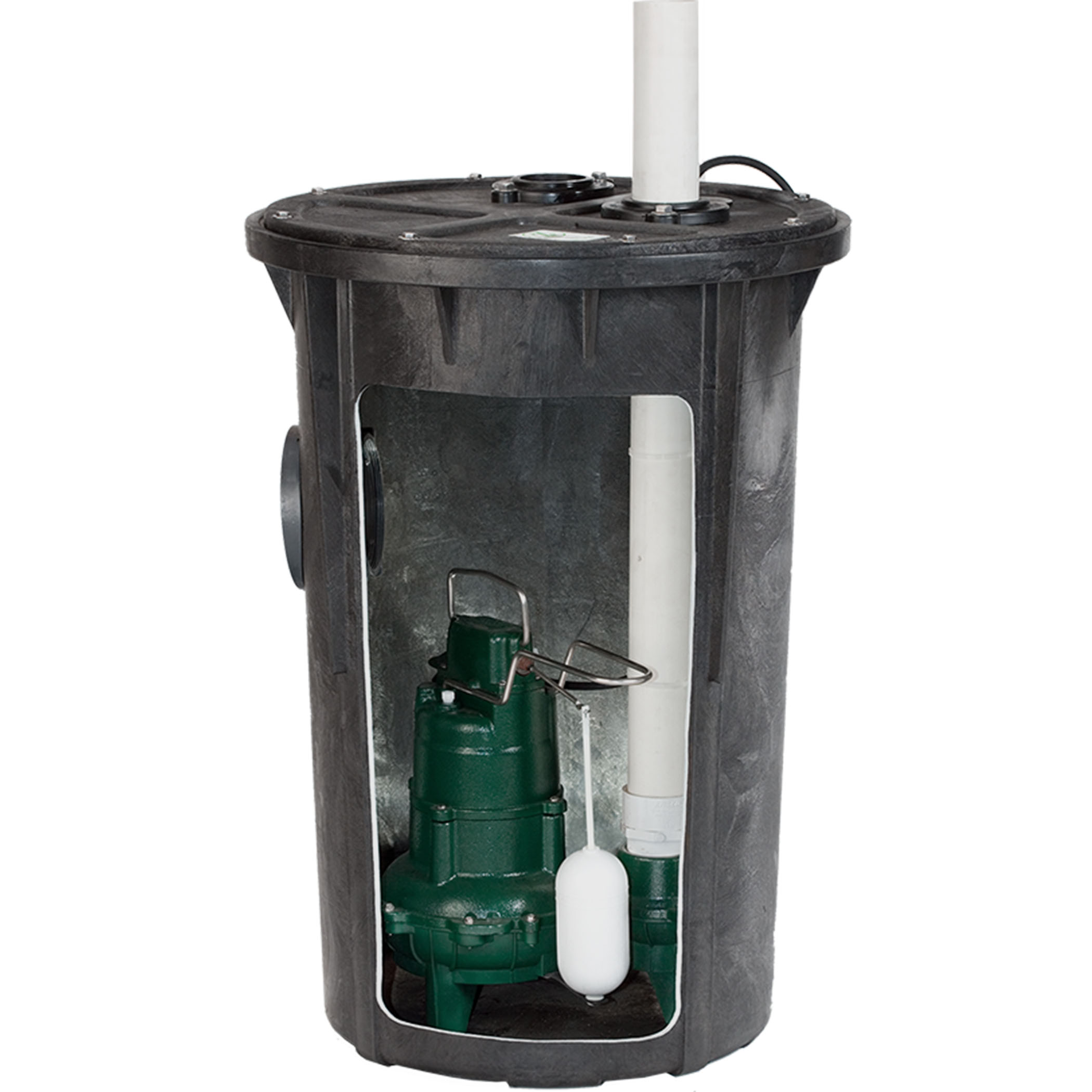

The package comes preassembled in an 18" x 30" polyethylene structural foam (PSF) basin. It includes our Model 264 automatic sewage pump. The Model 264 is a 4/10 HP pump. The vortex impeller design of the Model 264 allows the pump to pass 2" spherical solids limiting the potential for clogging and unwanted downtime.
The basin comes complete with a 2" PVC discharge pipe that includes a predrilled 3/16" weep hole to prevent the pump from becoming airlocked. The basin's cover includes a cord seal for the pump's electrical cord along with a predrilled 2" vent hole. The cover is sealed in place prior to shipment. The pre-plumbed 4" inlet hub makes for a quick connection to the main sewage line.
Each basin is filled with environmentally friendly packing peanuts prior to shipment to ensure things remain in place during transit. The packing material is water soluble, so it will disappear on the first use.
Job ready, fast, and easy installation! |
|---|
| Woocom - Short description | The Model 912 with the Model 264 is an economical 18" x 30" preassembled sewage ejector system ideal for those looking to install a pre-plumbed, job ready system. This package ships complete with the Model M264, a 4/10 HP, 115 V sewage pump. Designed for burial flush-to-grade, the access cover is the only part that is visible after installation. |
|---|
| Product Line Card Title | 912 Simplex 18" x 30" Sewage Package System with M264 115V 1PH |
|---|
| Product Line Card Subtitle | 912-0007 - Zoeller Pump Company |
|---|
