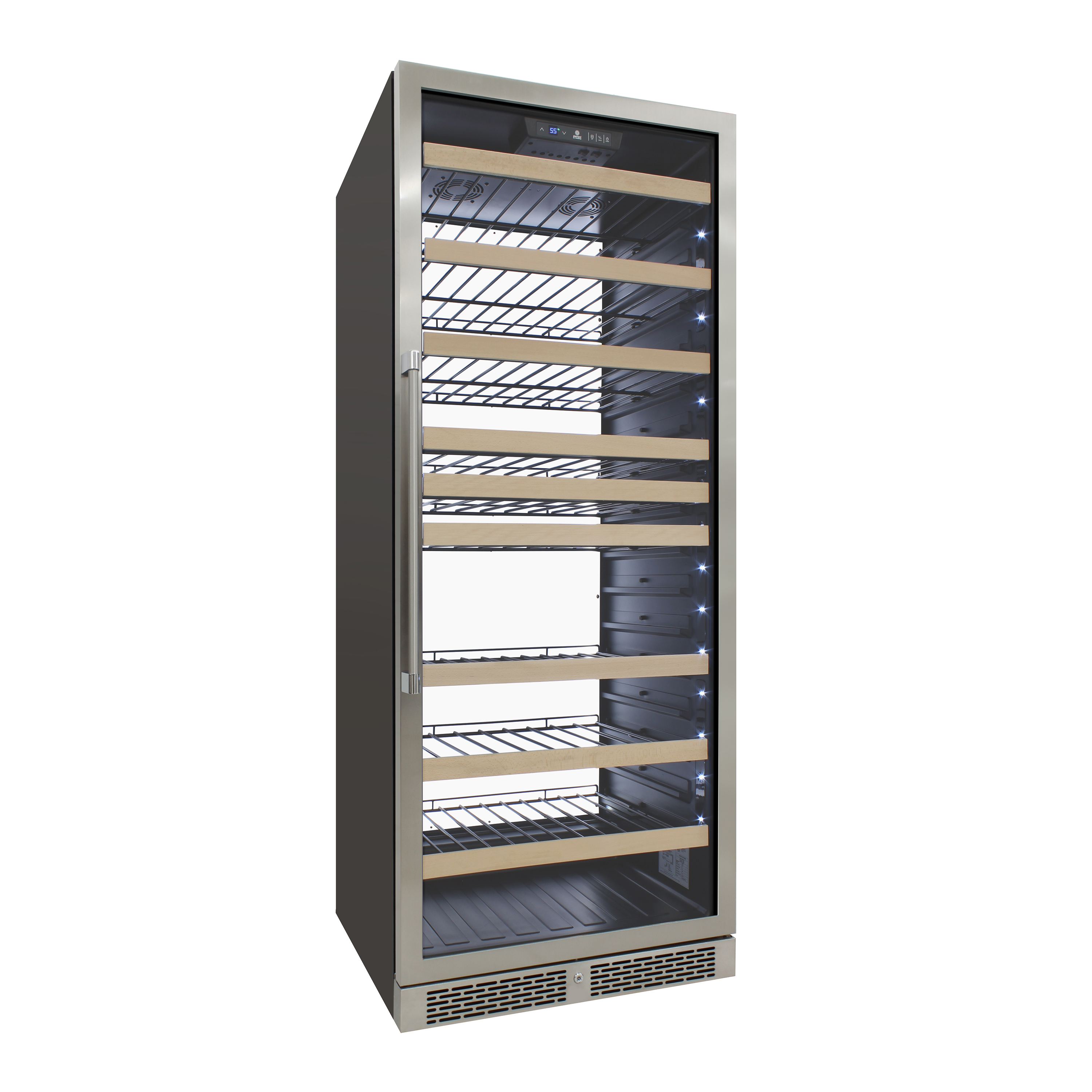

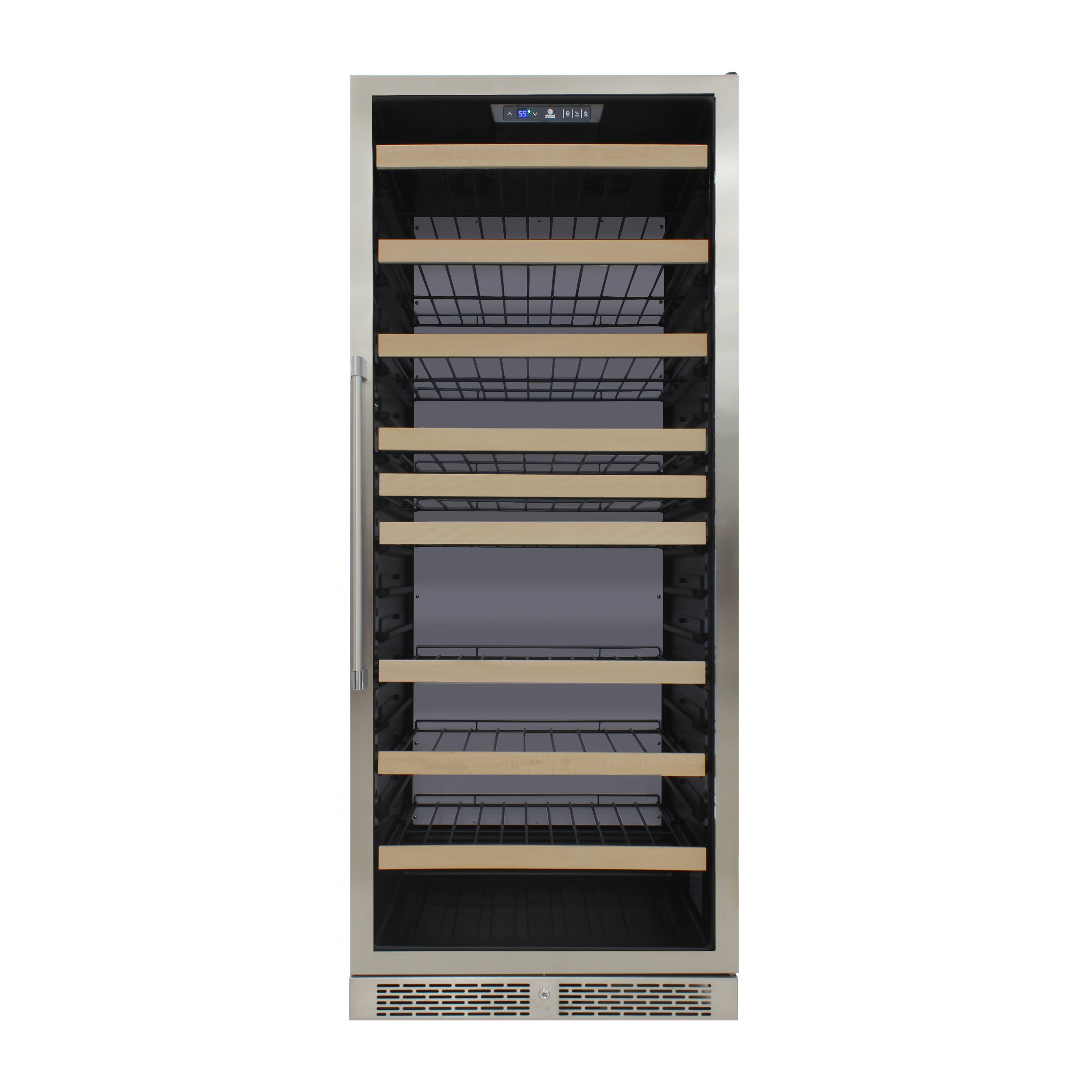

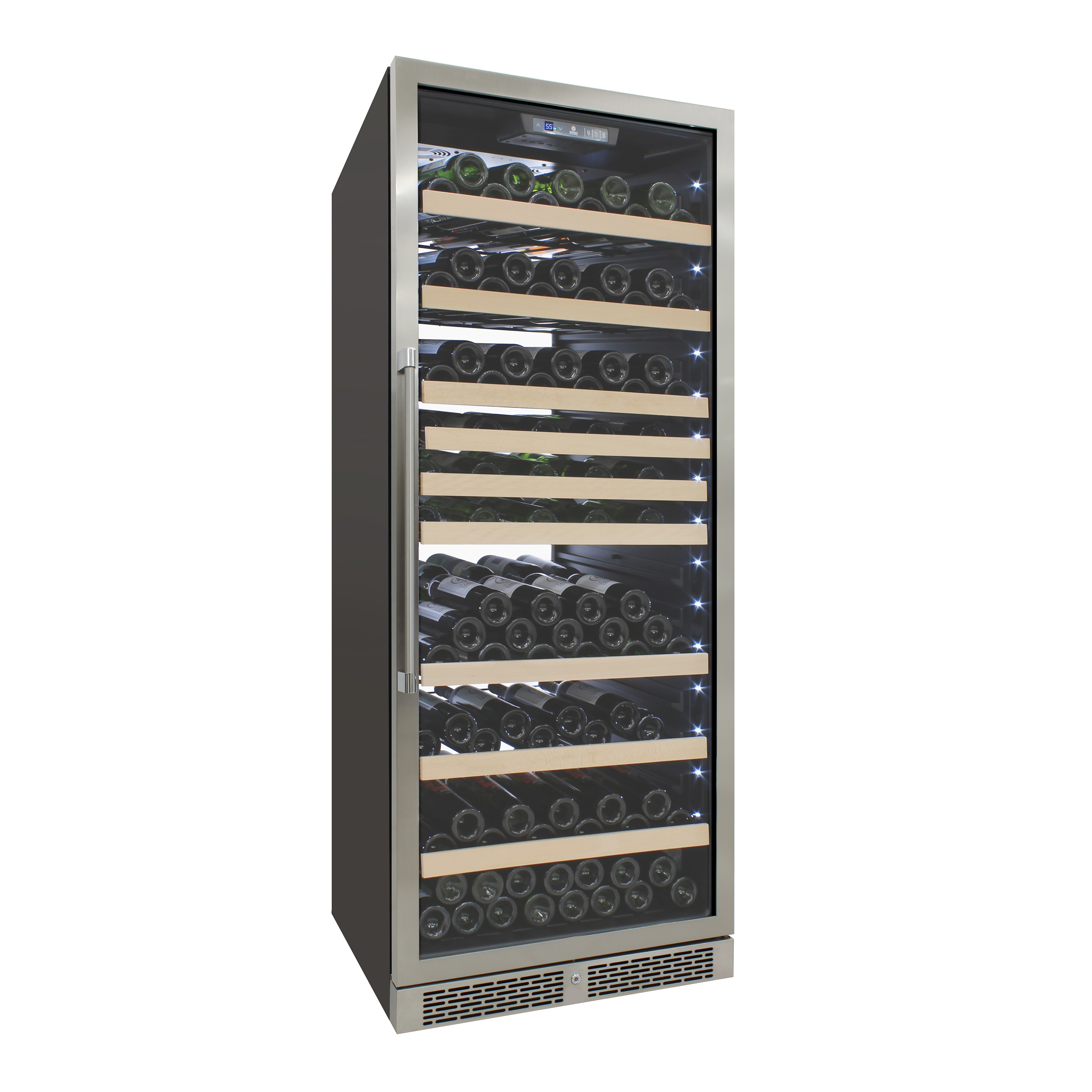

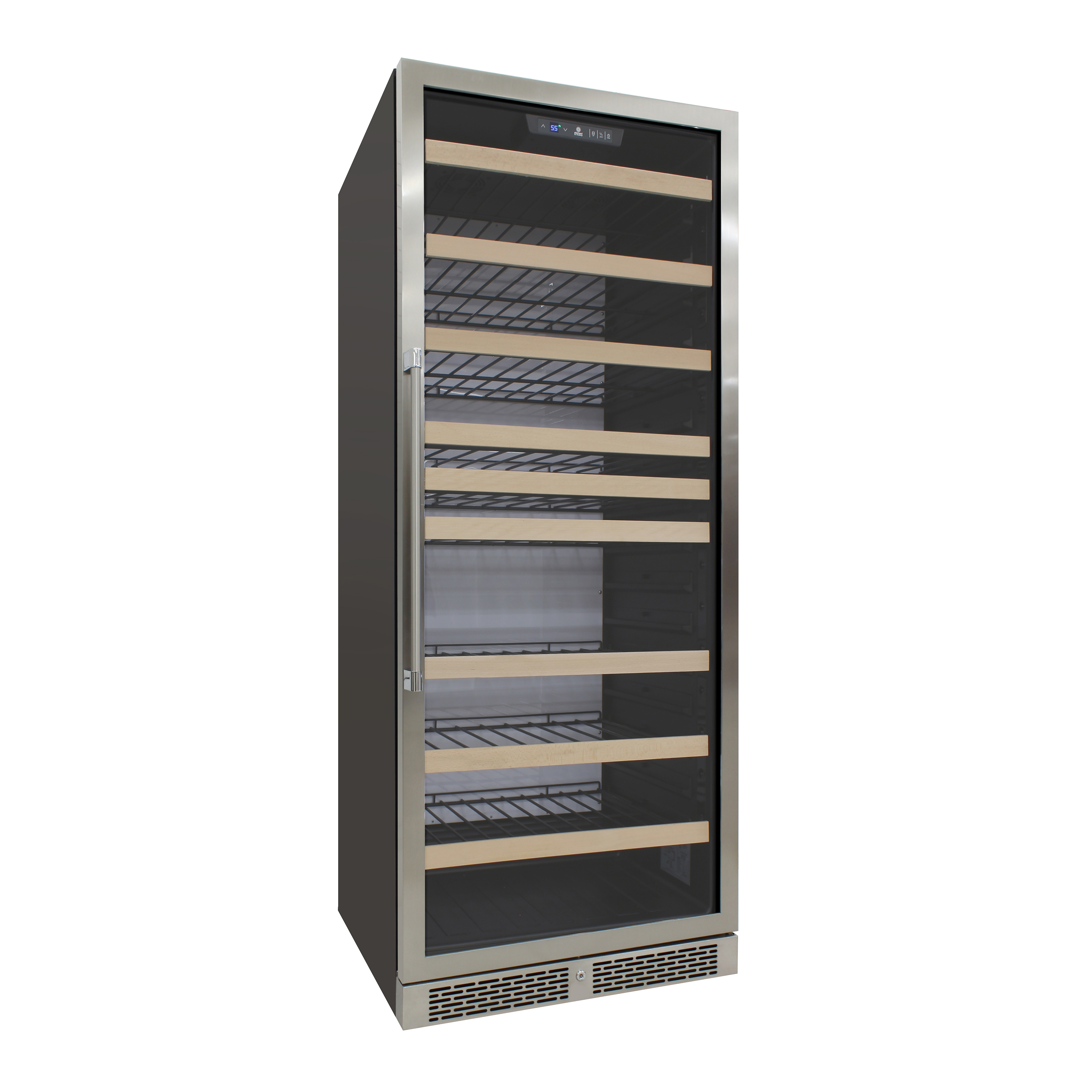

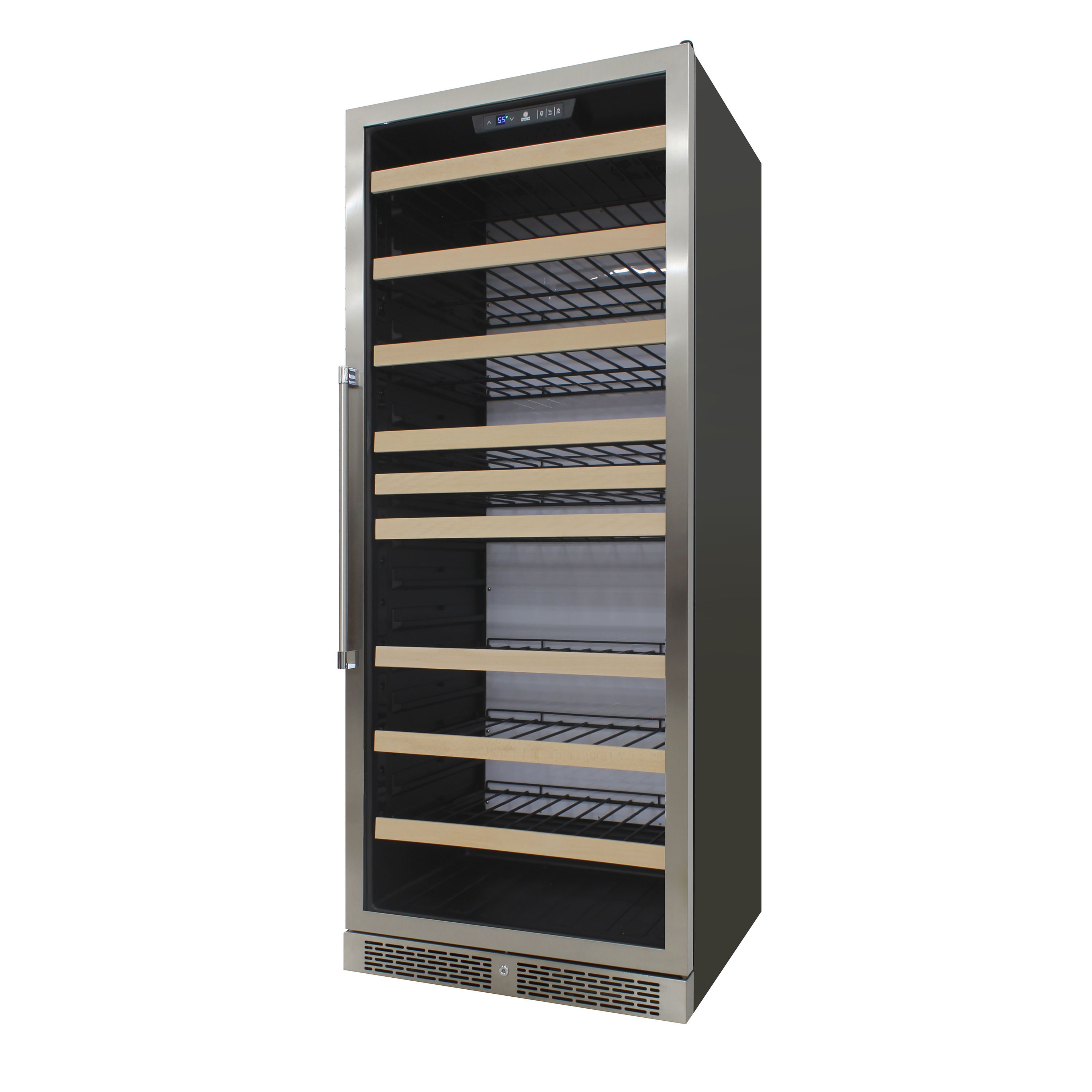

Vinotemp White Backlit Panel Single-Zone Wine Cooler, 173 Bottle Capacity
| Description | 173 Bottle Single-Zone Wine Cooler, White Backlit Lighting, Black Body, Stainless Steel Door |
|---|---|
| SKU | EL-300DSWL |
| UPC | 657433015189 |
| Model | EL-300DSWL |
| Brand | Vinotemp |
| Collection | Backlit Series |
| Product Line | Cooling |
| Category | Wine Cooler |
| Subcategory | Wine Cooler |
| Commercial / Residential | Both |
| SKU Status | Harvest |
|---|---|
| Discontinued Date | 2026-03-06 |
| Warranty | 2 Year Limited Warranty |
| SRP | 4799.99 |
|---|---|
| MAP Price | 4399.99 |
| Long Description | Store and display your collection in luxury with Vinotemp's 173-Bottle Wine Cooler. This Vinotemp wine refrigerator is front venting with easy installation to build in and fit perfectly in any kitchen or bar area. The stylish wine cooler is an entertainer's delight with its patented white interior Backlit panel that illuminates your collection. The adjustable temperature range allows users to select a proper, customized storage and serving temperature for both light and darker wines. A digital LED temperature display makes temperatures easy to read and ensures wine is being stored and served at the appropriate temperature. If it's a Backlit, it's a Vinotemp. Covered by the Vinotemp 2 Year Limited Warranty. |
|---|---|

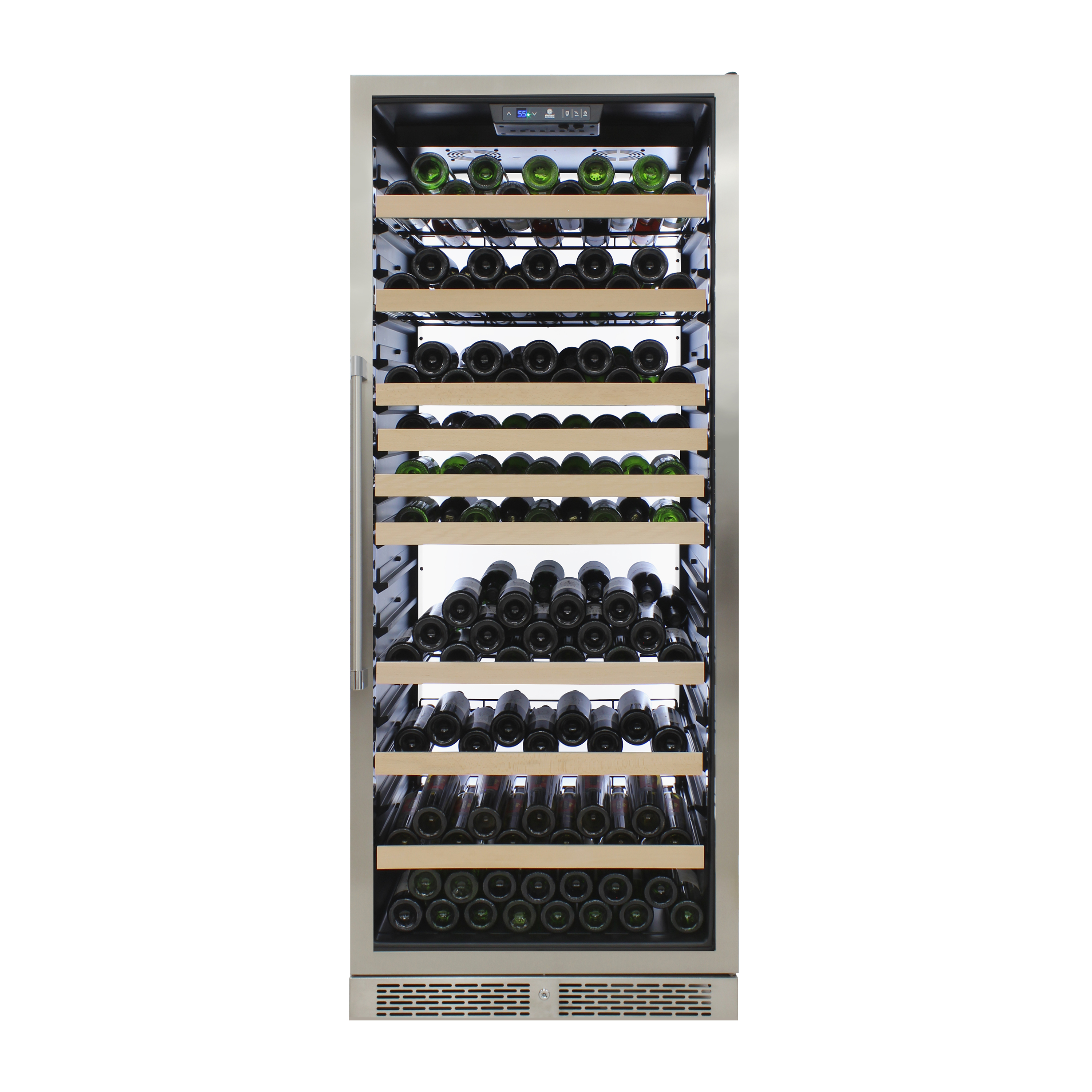

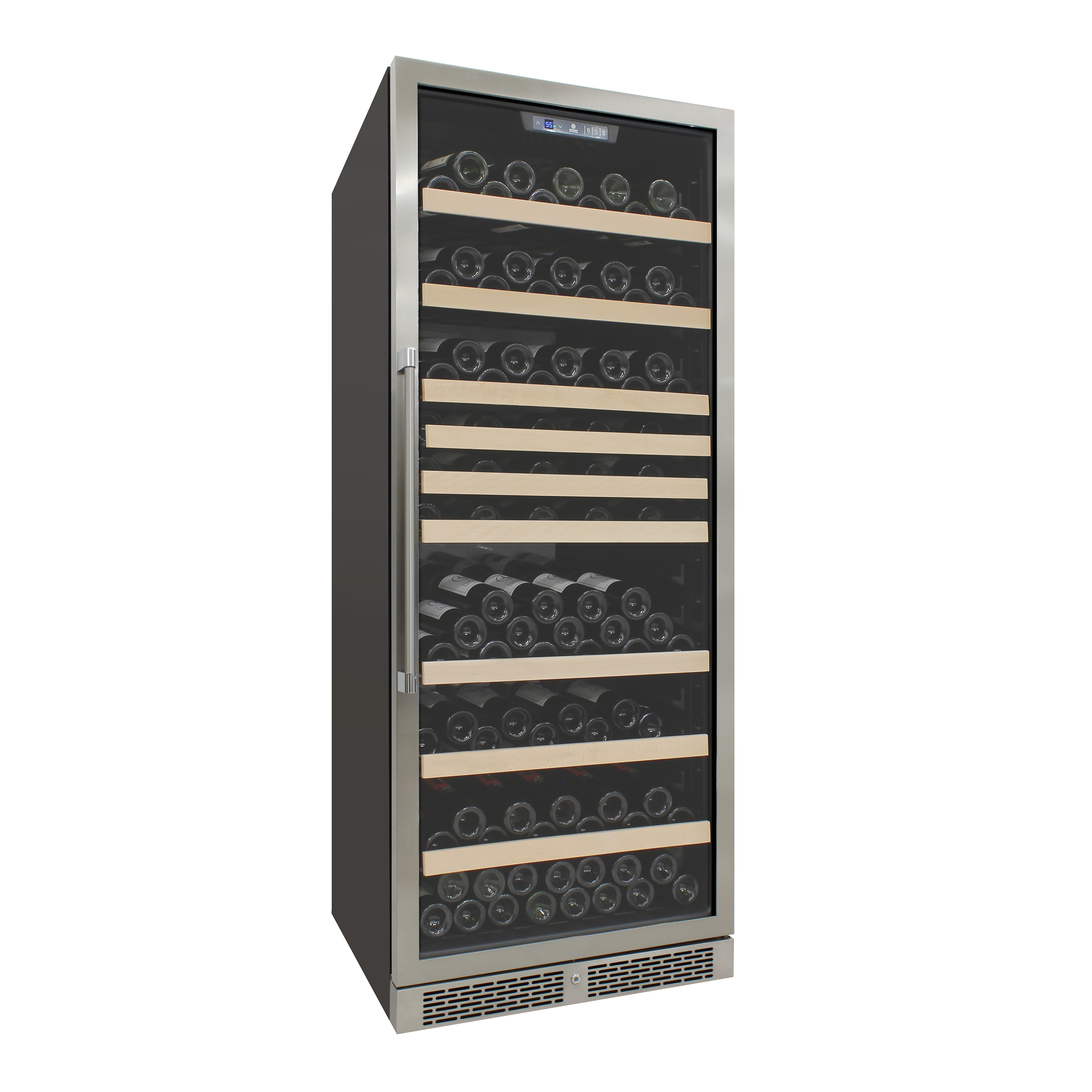

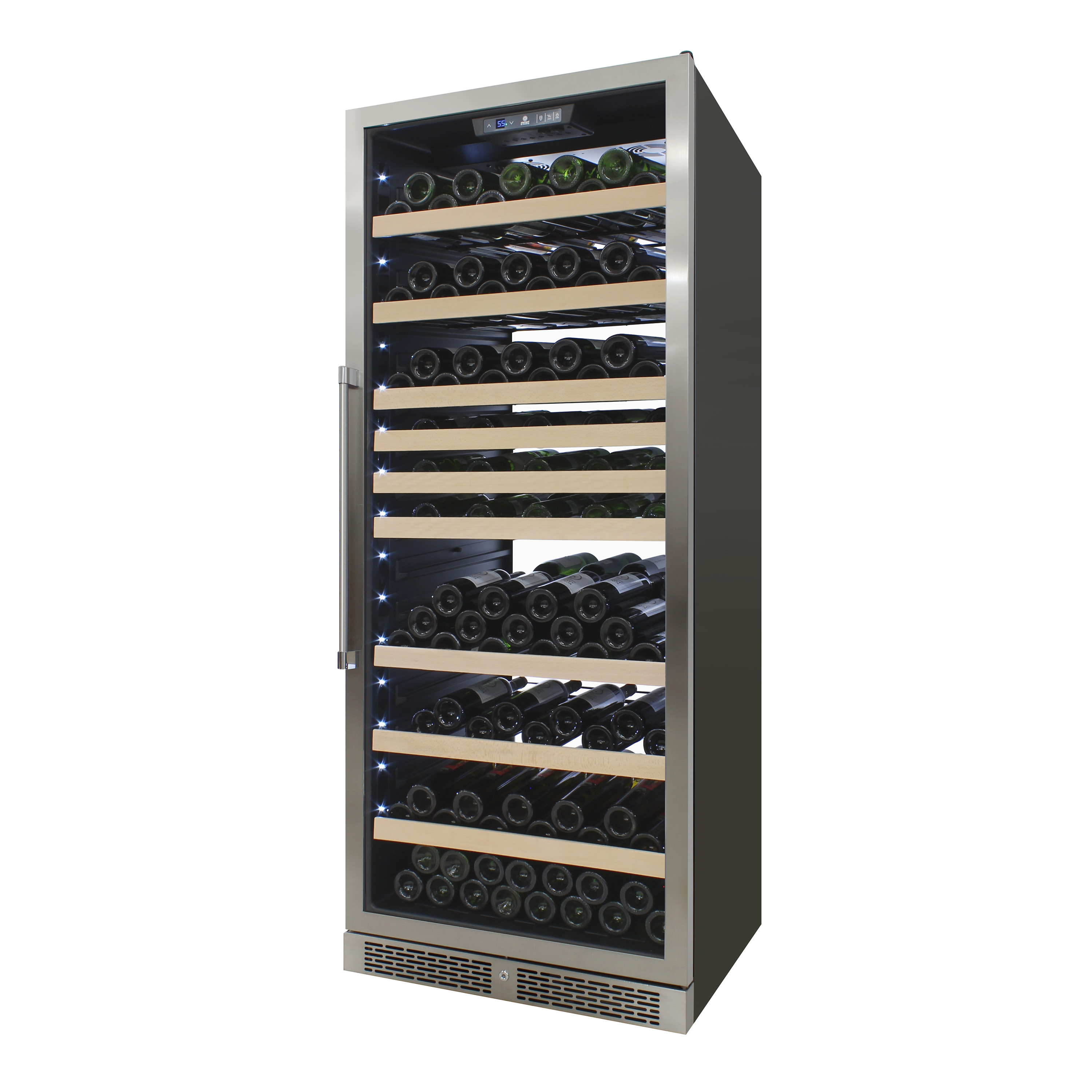

| Bullet 1 | Capacity: approximately 173 750 mL Bordeaux bottles and may include bulk storage |

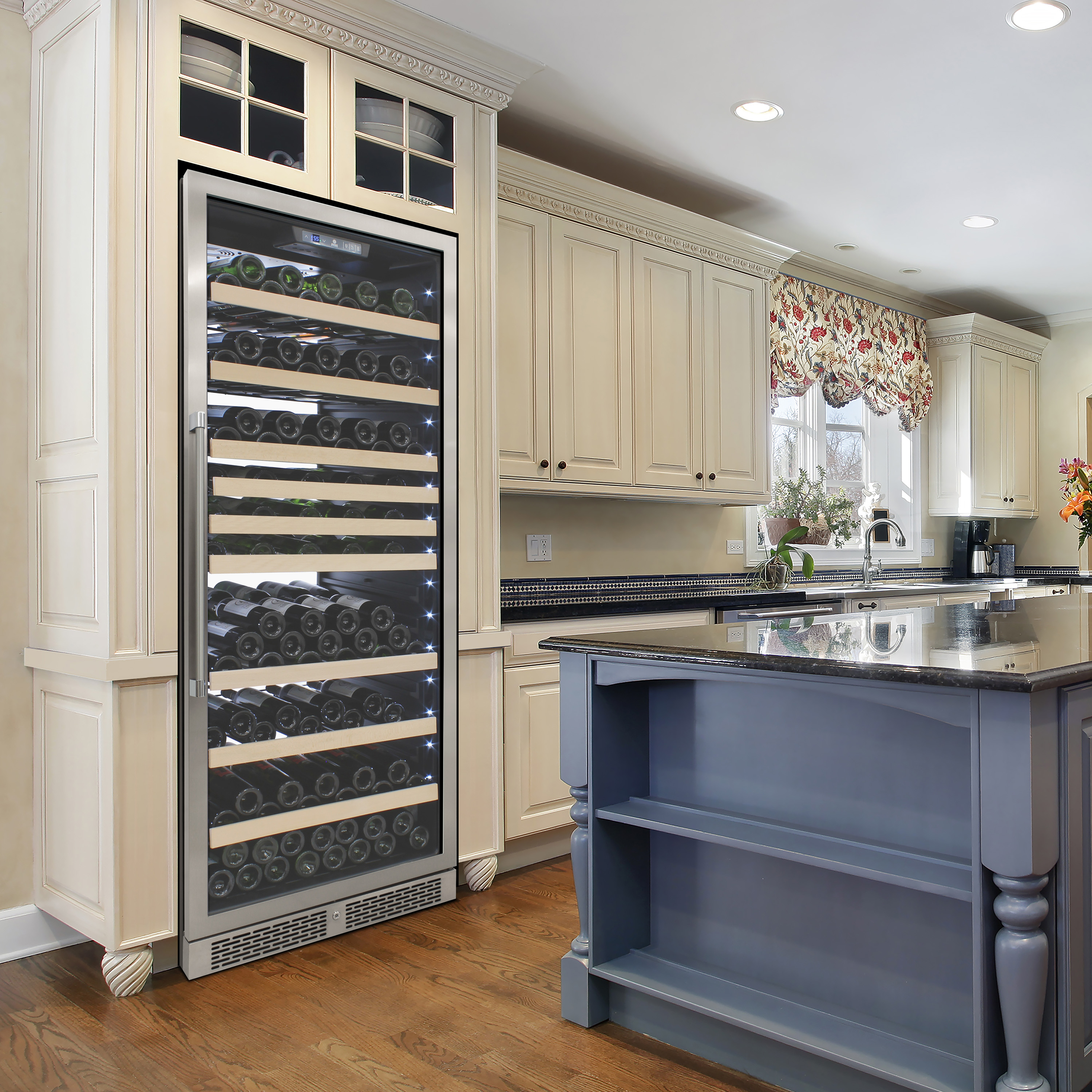

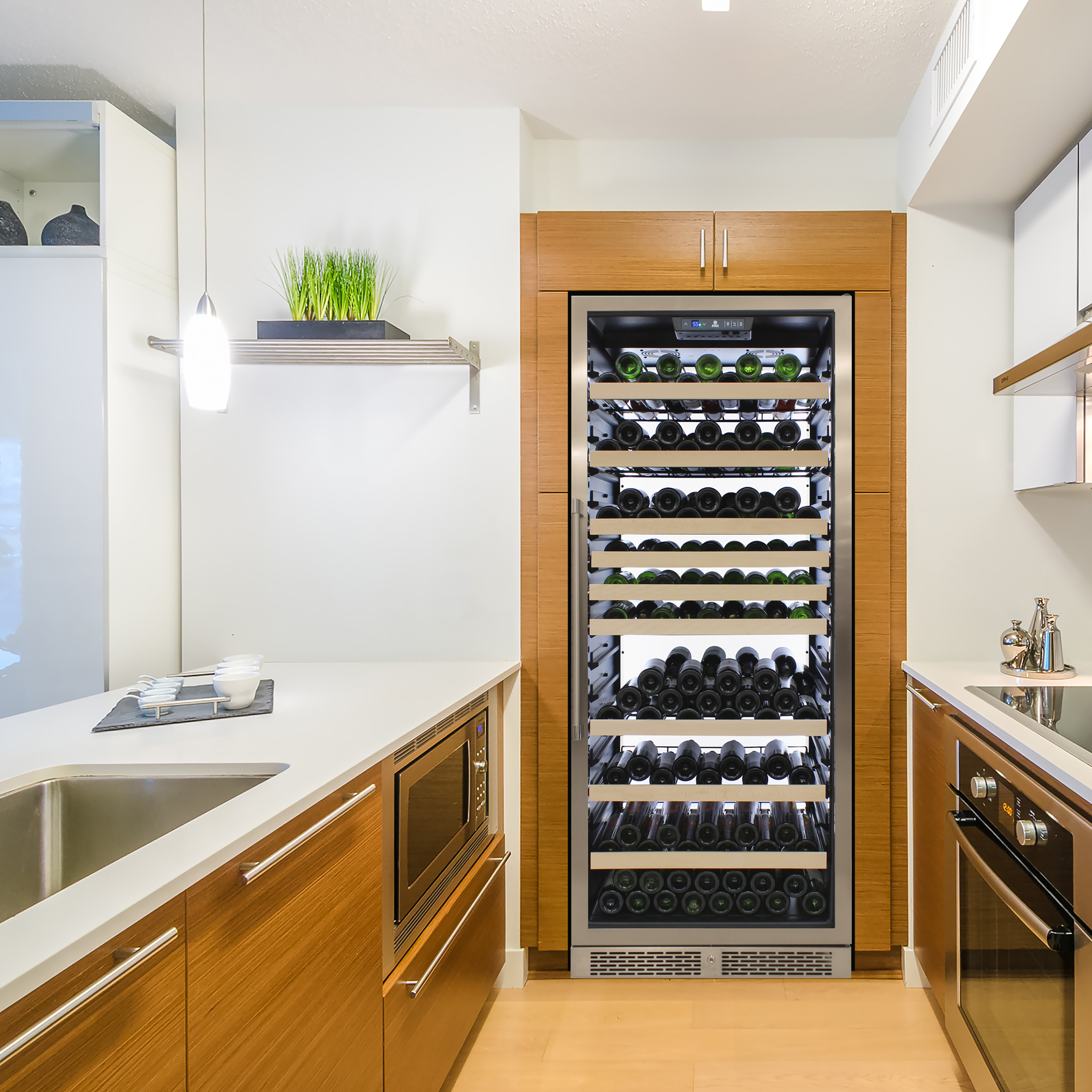

| Bullet 2 | Application: Front exhaust for built-in or freestanding installations |
| Bullet 3 | Temperature Range: 41°-65°F |
| Bullet 4 | Ambient Temperature Range: 41°-100°F / Humidity 45-90% |

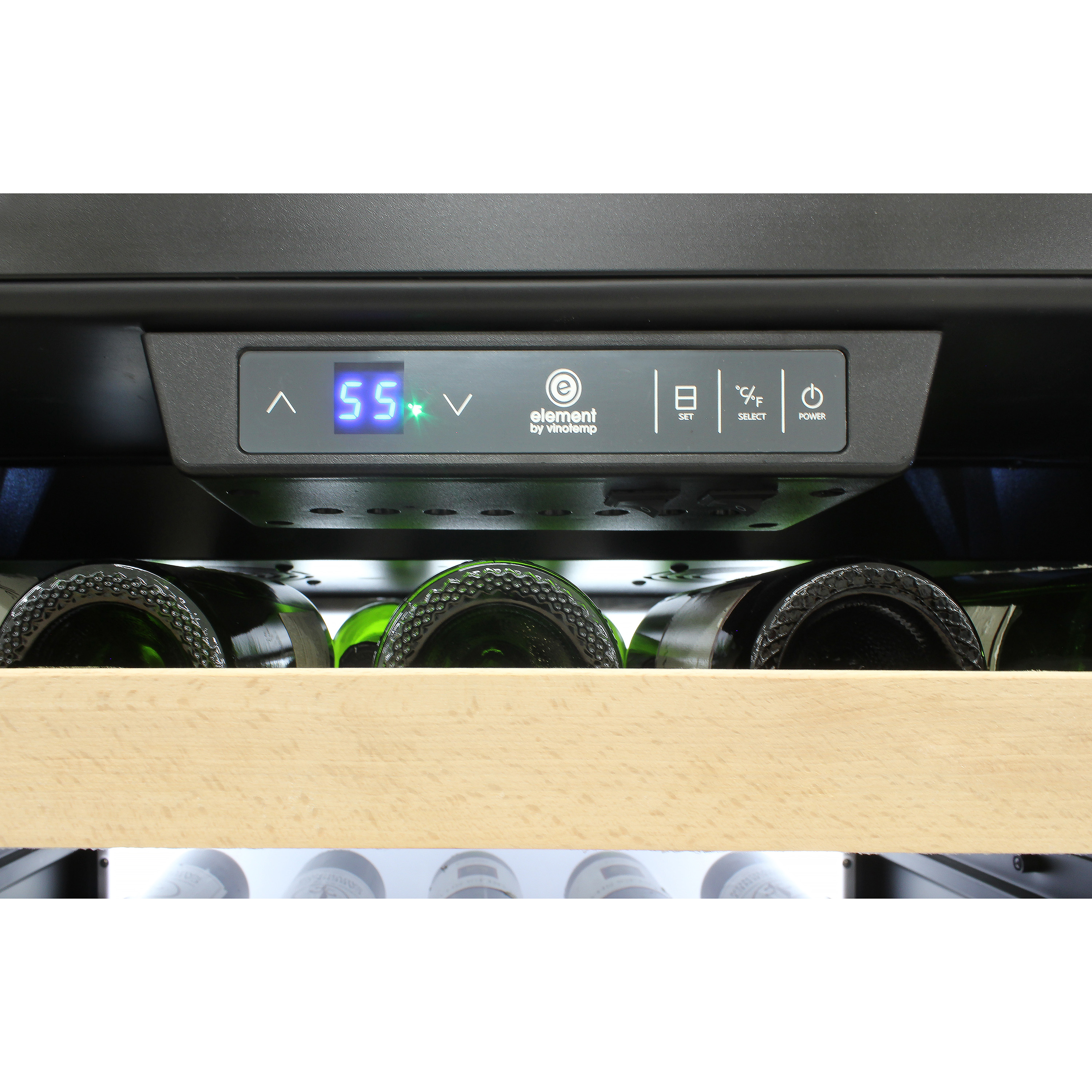

| Bullet 5 | Digital temperature control allows users to select a proper, customized storage and serving temperature for both light and darker wines |

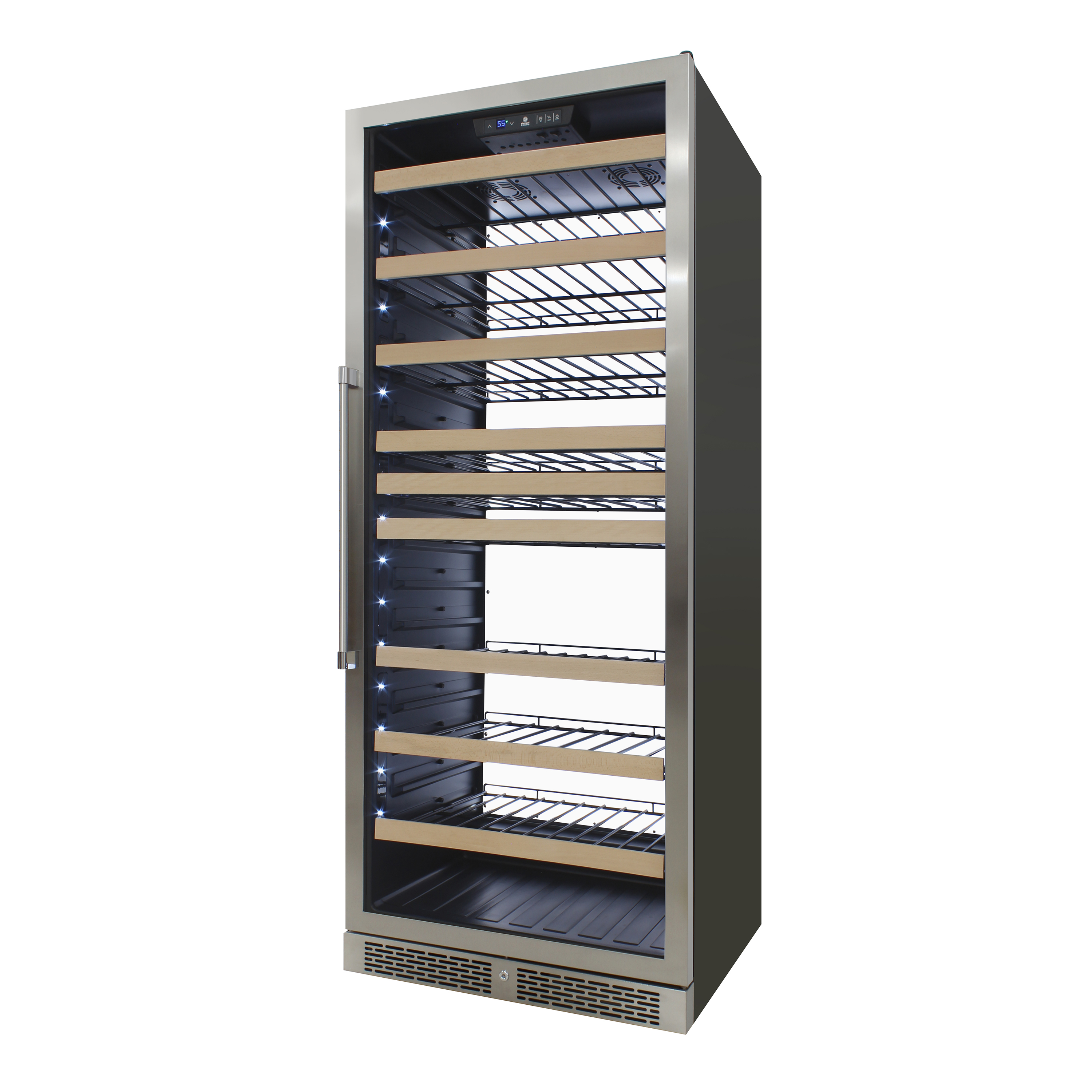

| Bullet 6 | Patented interior white Backlit™ (baklīt) panel (U.S. Patent No. D868,849 S) |

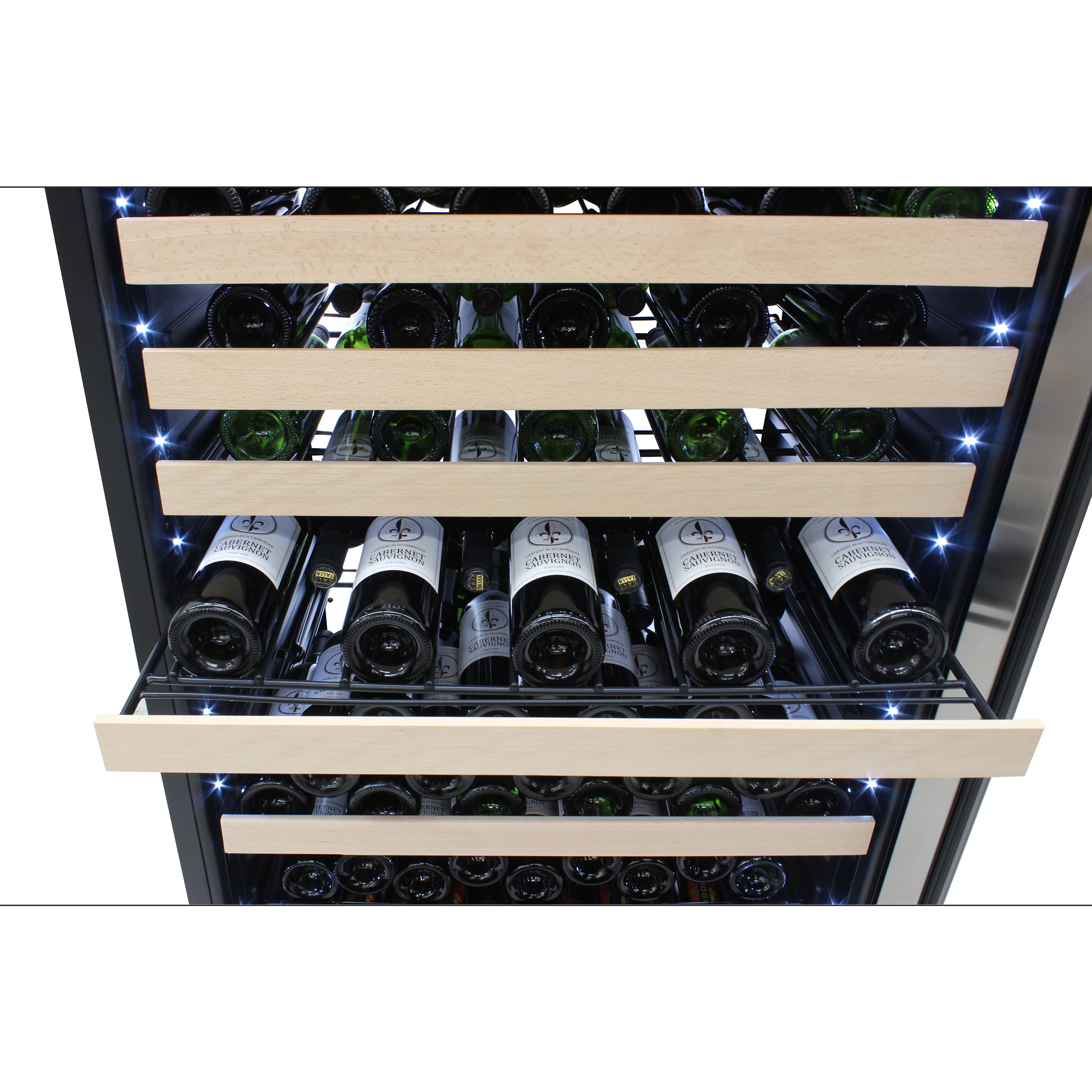

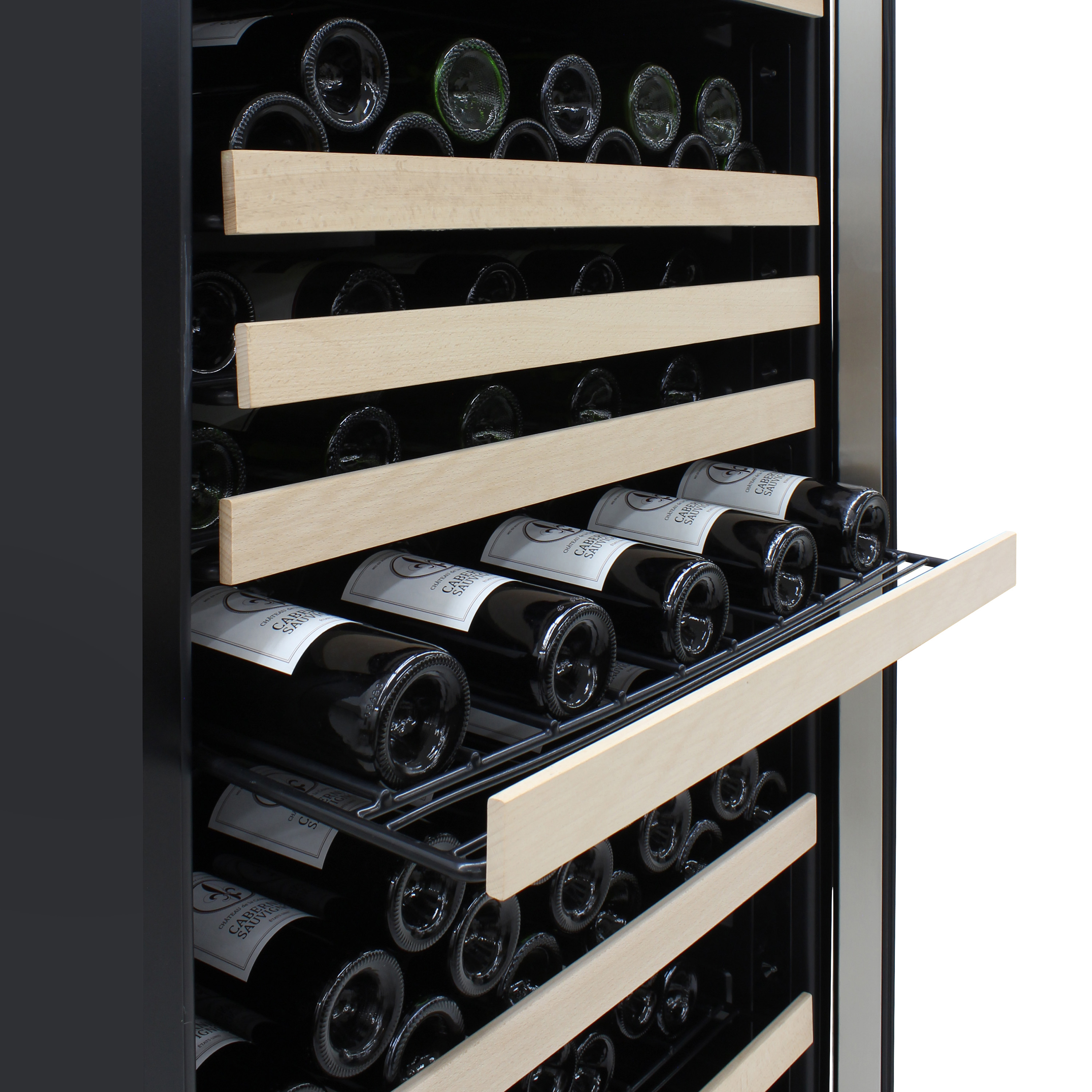

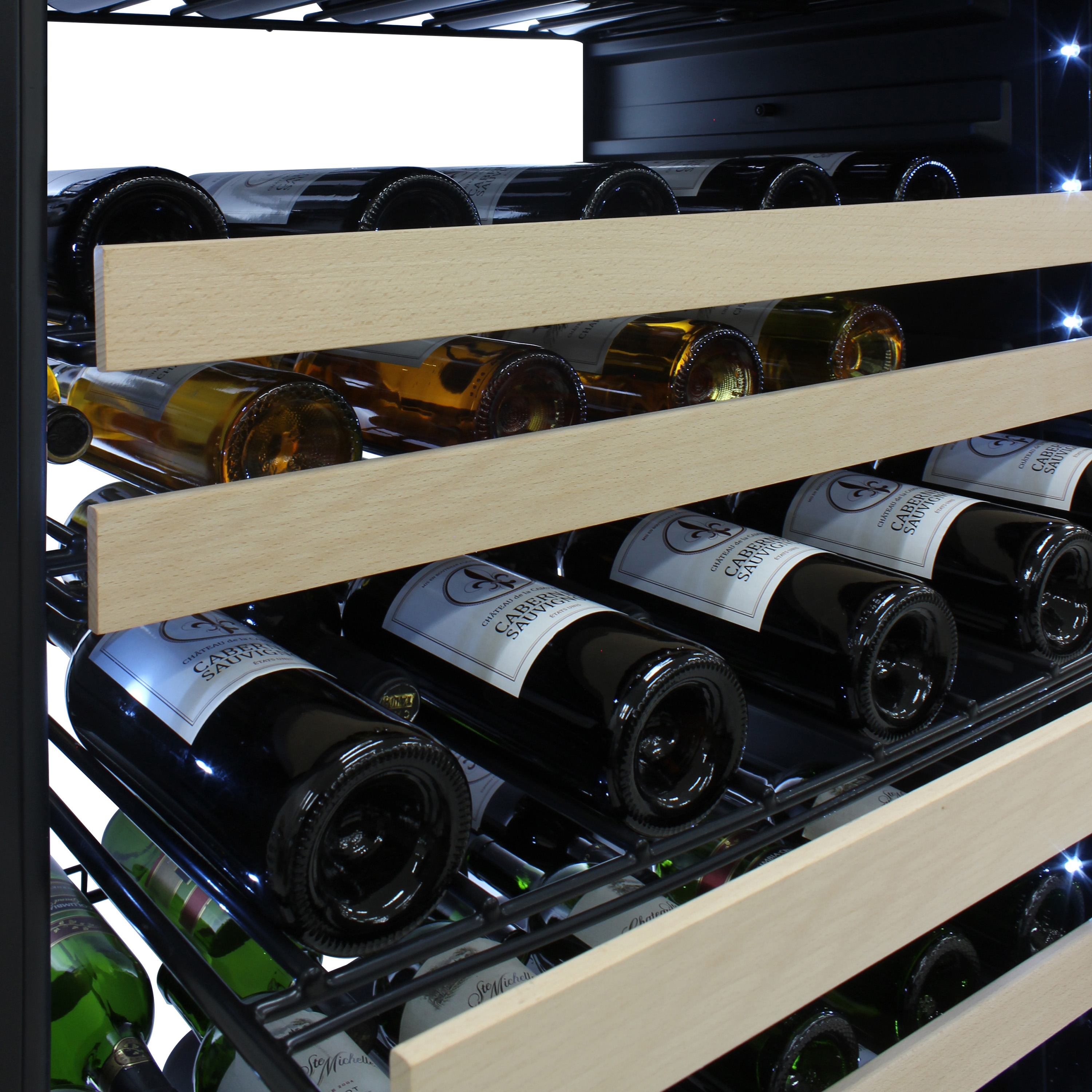

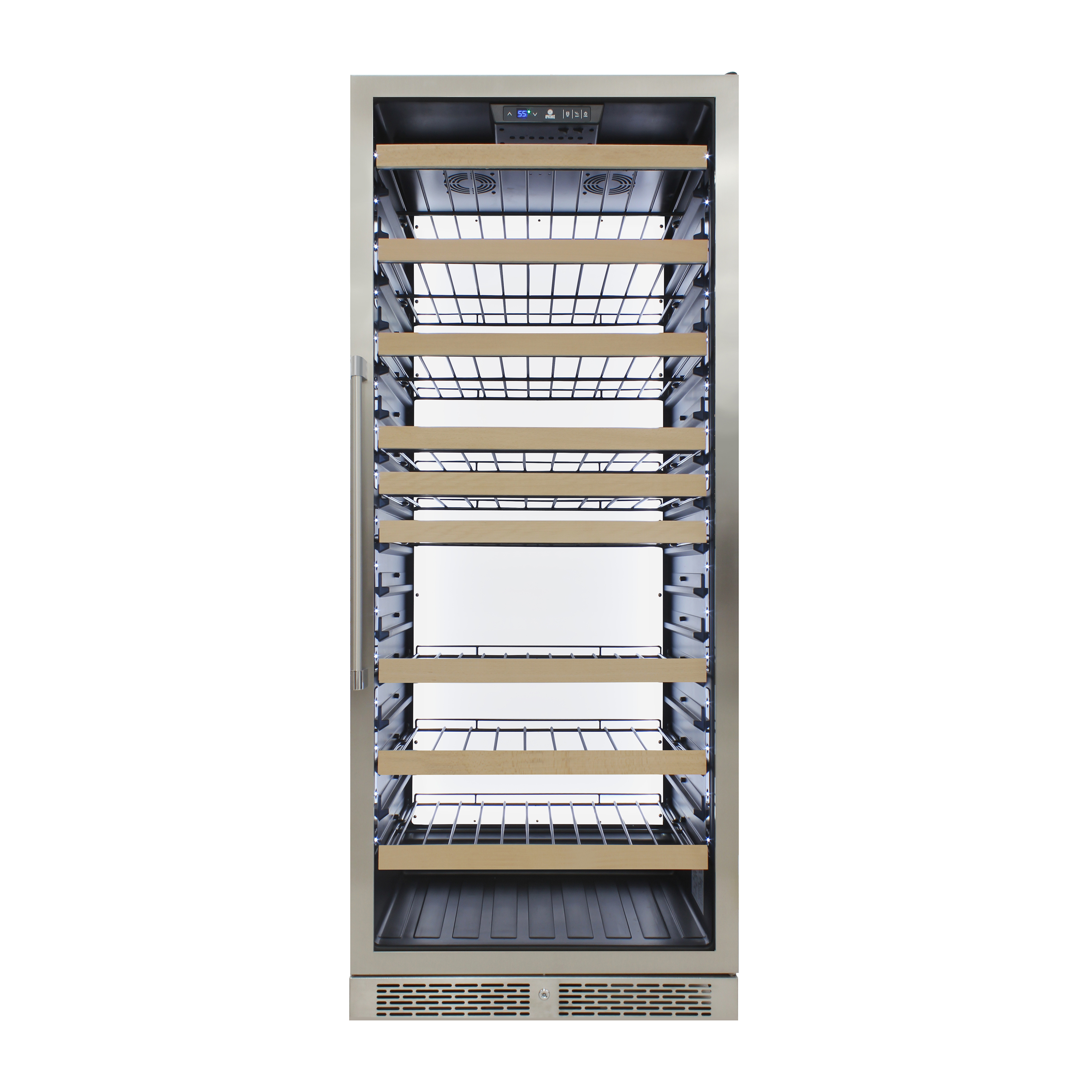

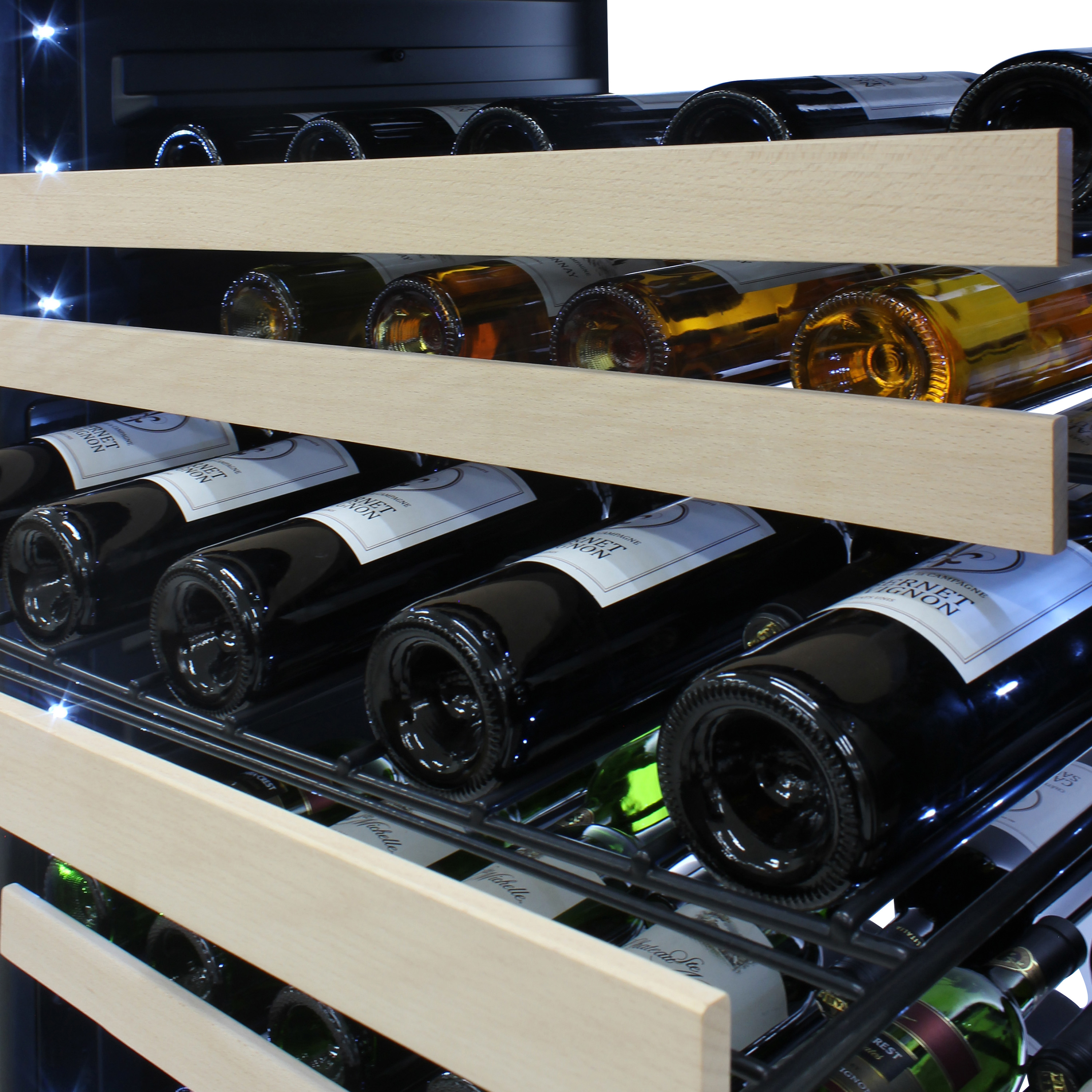

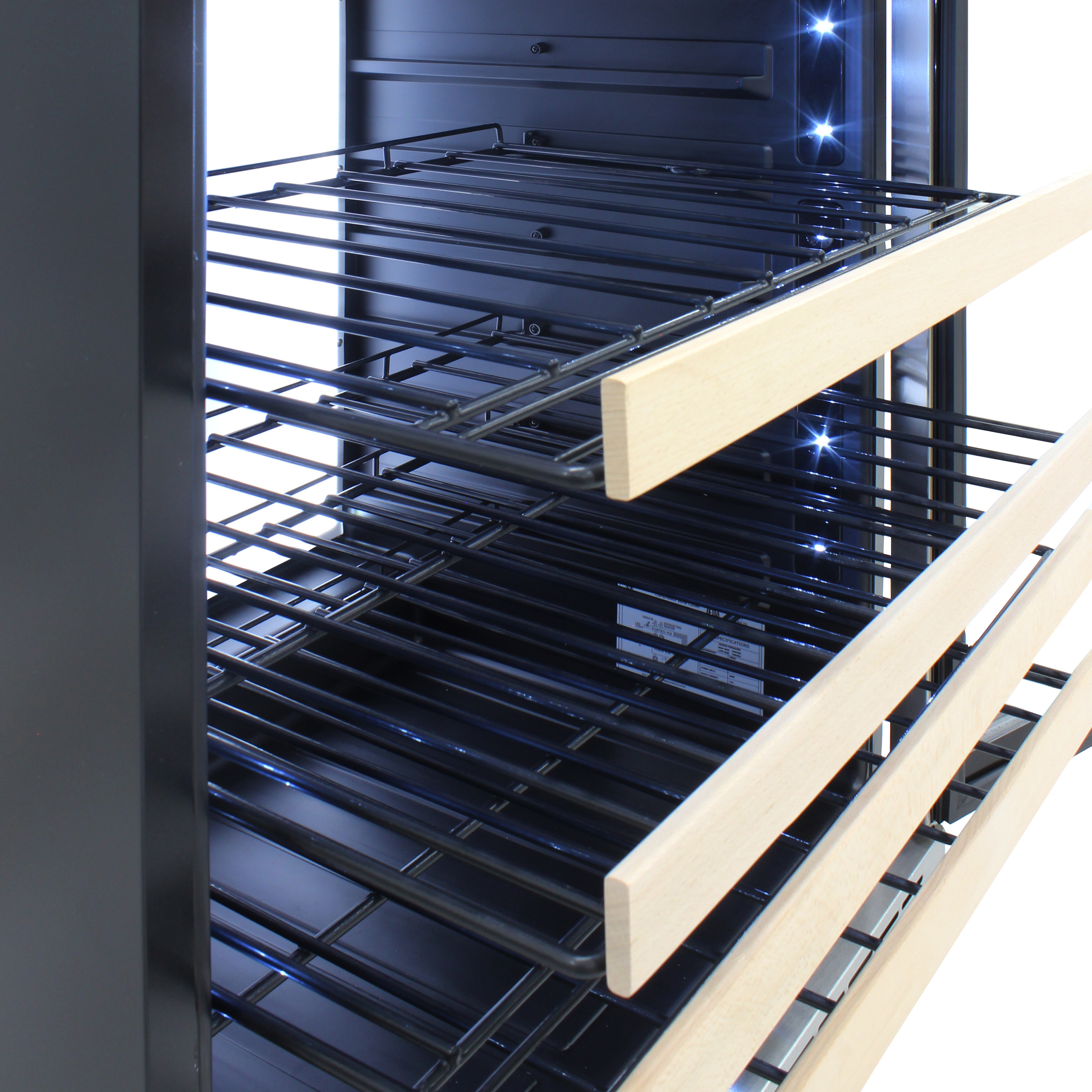

| Bullet 7 | Four side-view wire shelves and five wire shelves with wooden lip |
| Bullet 8 | Seamless steel glass door |
| Bullet 9 | Shelves can be easily adjusted to accommodate more or less bottles |
| Bullet 10 | Bottom storage compartment can fit larger style bottles like Champagne and Magnum |
| Included Components |
|

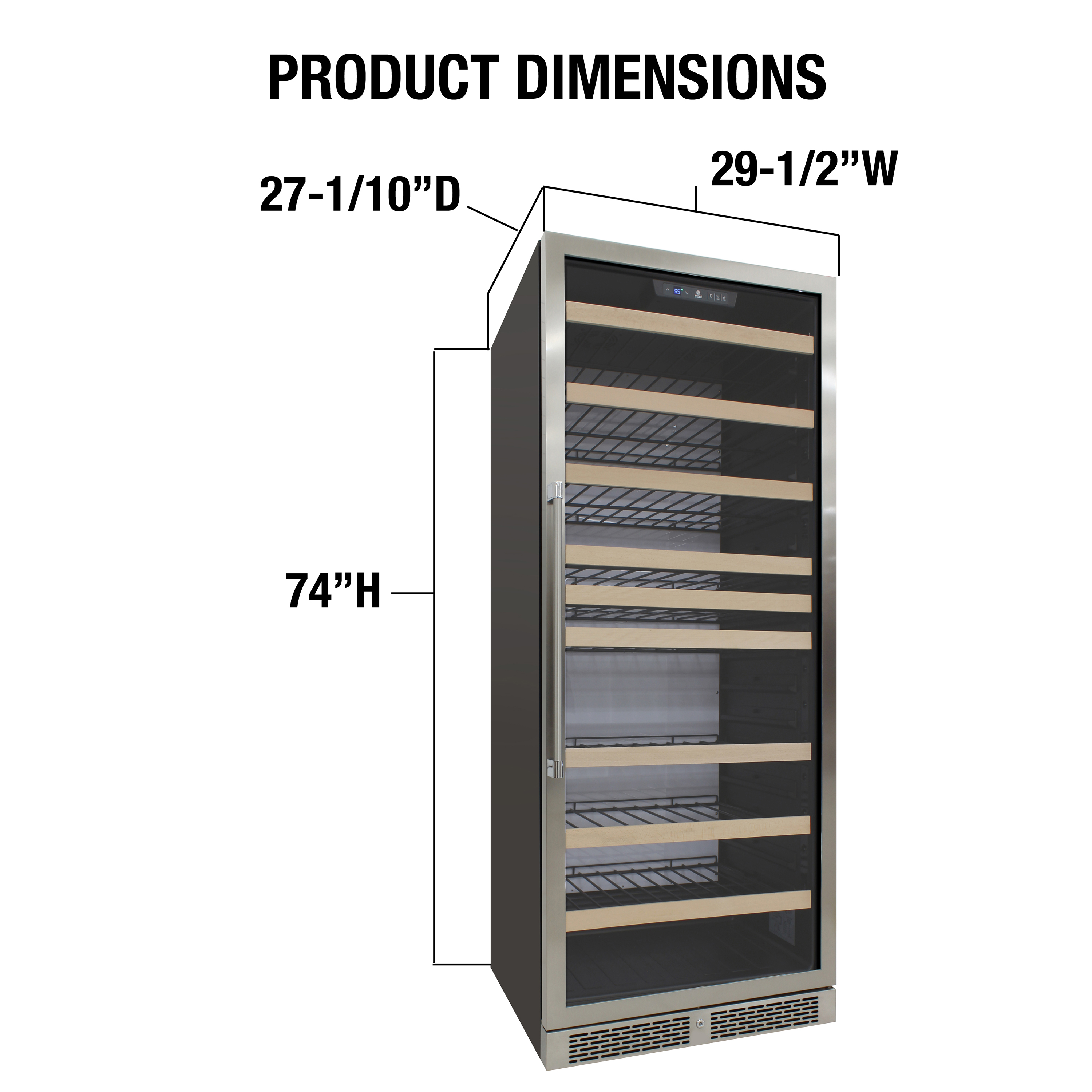

| Assembled Dimensions (in) | 27.1" x 29.5" x 74" |
|---|---|
| Assembled Weight (lb) | 283.34 |
| Assembly Required | No |
| Capacity | 21.2 cu. ft. |
| Volume Capacity | 21.2 cu. ft. |
| Color | Stainless Steel |
| Material | Stainless Steel |
| Installation Type | Freestanding or Built-In |
| Cutout Depth - Front to Back | 27.56" |
| Cutout Width - Side to Side | 30.31" |
| Cutout Height - Top to Bottom | 74.8" |

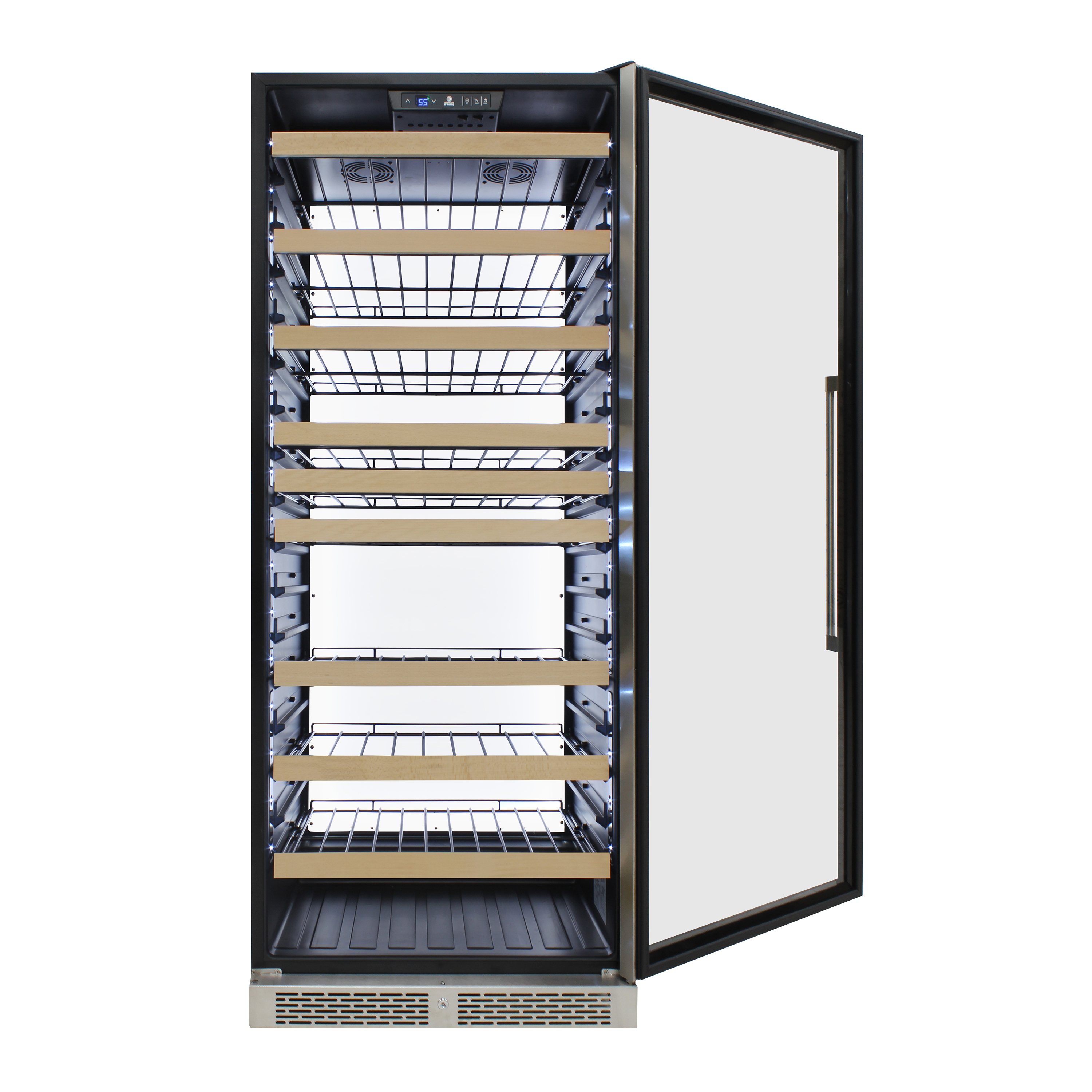

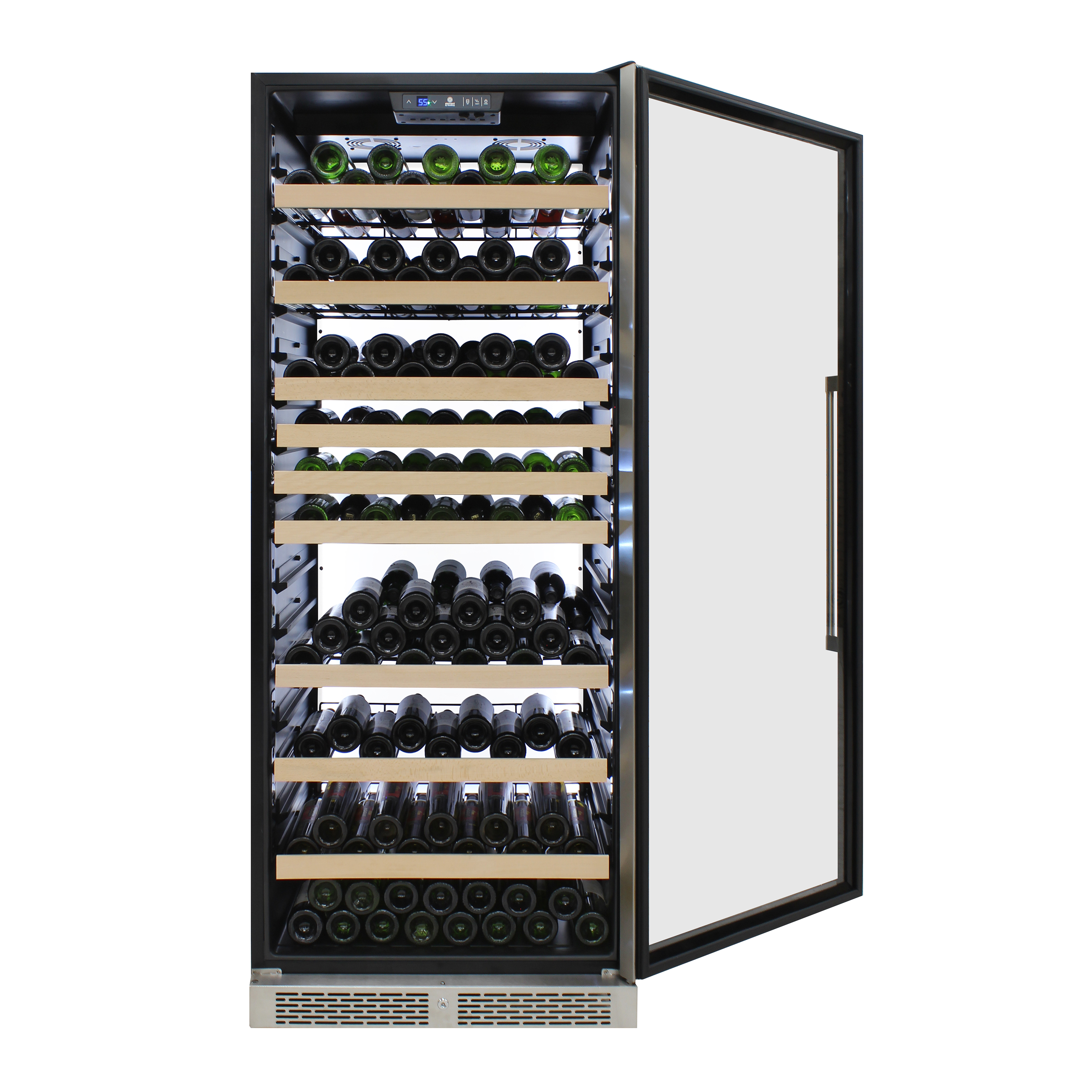

| Door Swing Orientation | Right |
| Depth - Door Open 90° | 56.6 |
| Portable | No |
| Outdoor Use | No |
| Adjustable Shelves | Yes |
| Adjustable Temperature Control | Yes |
| Temperature Range | 41° - 65° |
| First Zone Bottle/Can Capacity | 173 Bottles |
| First Zone Minimum Temperature | 41° |
| First Zone Maximum Temperature | 65° |
| Door Material | Stainless Steel |
| Shelf Material | Metal Wire |
| Anti-Vibration Technology | No |
| Automatic Shut Off | No |
| Compressor Location | Back/Bottom |
| Cooling System | Compressor |
| Door Color/Finish | Stainless Steel |
| Door Storage Type | None |
| Integrated Lock | Yes |
| Quiet Operation | Yes |
| Undercounter | No |
| Electric | Yes |
|---|---|
| Electrical Specs - Current (A), Voltage (V), Consumption (W) | 1.74A/115V/200W |
| Adjustable Temperature Control | Yes |
| Temperature Range | 41° - 65° |
| First Zone Maximum Temperature | 65° |
| First Zone Minimum Temperature | 41° |
| Batteries Required | No |
| Number of Doors | 1 |
|---|---|
| Number of Shelves | 9 |
| Number of Temperature Zones | 1 |
| Shipping Dimensions (in) | 30.00" x 31.00" x 81.00" |
|---|---|
| Pallet Dimensions (in) | 40.00" x 48.00" x 86.00" |
| Pallet Quantity | 2 |
| Shipped Assembled? | No |
| Packaging Type | BROWN BOX |
| Ship Type | LTL |
| Country of Origin | CN-CHINA |
| Harmonized Tariff Code (US) | 8418.50.0080 |
| Freight Class | 125 |
| Prop 65 Compliant | Yes |
|---|---|
| Prop 65 Chemical | May contain lead, tin or nickel |
| Prop 65 Warning Type | CALIFORNIA WARNING: Can expose you to Di(2-ethlhexyl) phlthalate (DEHP), a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov. |
| North American Gas/Electric Certification | cETL Listed |
| DOE Certified | Yes |
| CEC Certified | Yes |
| NRCan Listed | Yes |
| TAA Compliant | No |
