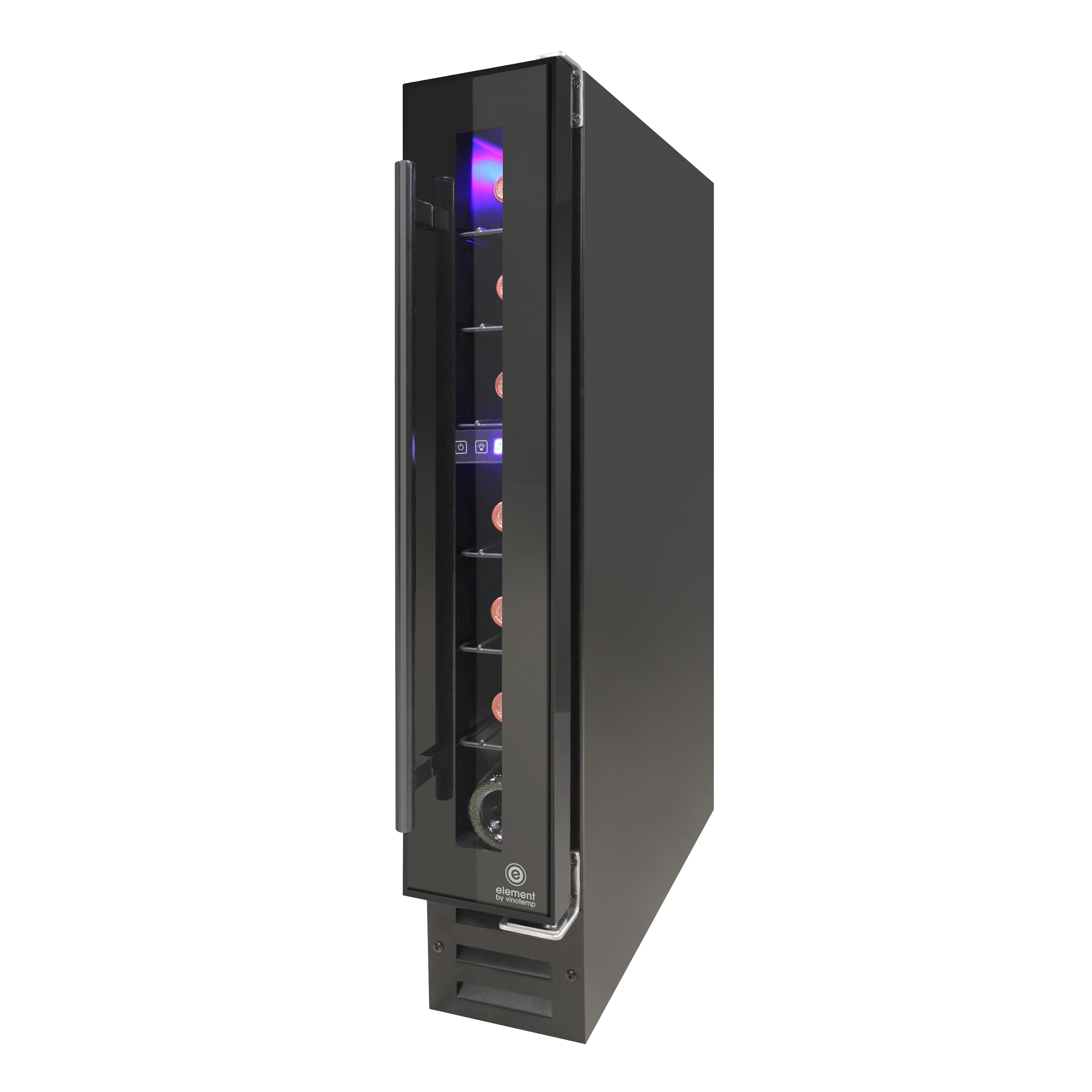

Vinotemp Private Reserve Series Compact Single-Zone Wine Cooler

EL-7TS-BLACK - 7 Bottle Wine Cooler Glass Door Commercial Grade

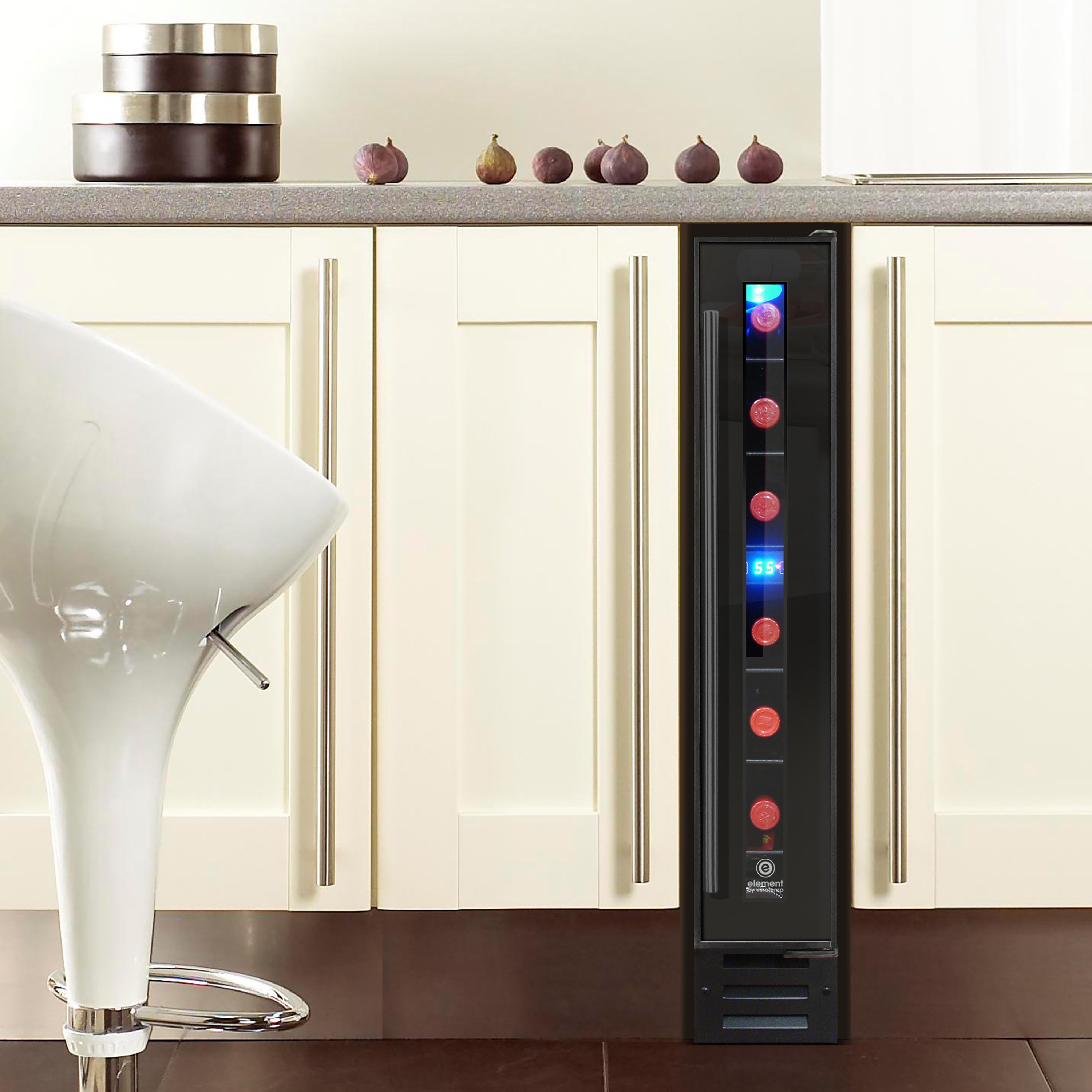

Image - Lifestyle

Image - Lifestyle 2

Image - DIMs

Image - Additional Lifestyle

Image - Additional Lifestyle

Image - Hero

Image - Front

Image - Detail 1

Image - Detail 2

Image - Detail 3

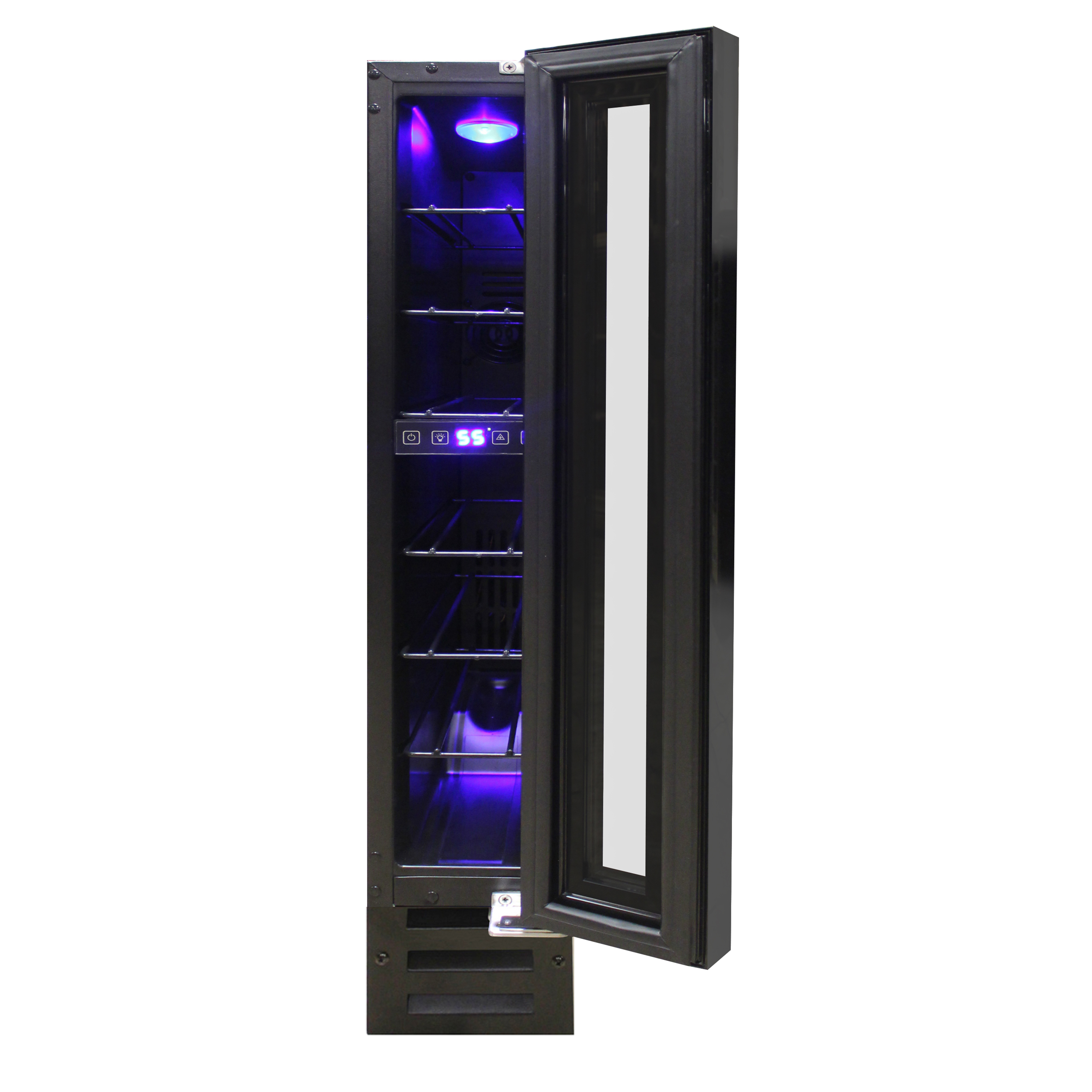

Image - Open

Image - High 45 Left

Image - High 45 Right

Description	7 Bottle Wine Cooler Glass Door Commercial Grade
SKU	EL-7TS-BLACK
UPC	657433013895
Model	EL-7TS
Brand	Vinotemp
Collection	Private Reserve Series
Product Line	Cooling
Category	Wine Cooler
Subcategory	Wine Cooler
Commercial / Residential	Residential

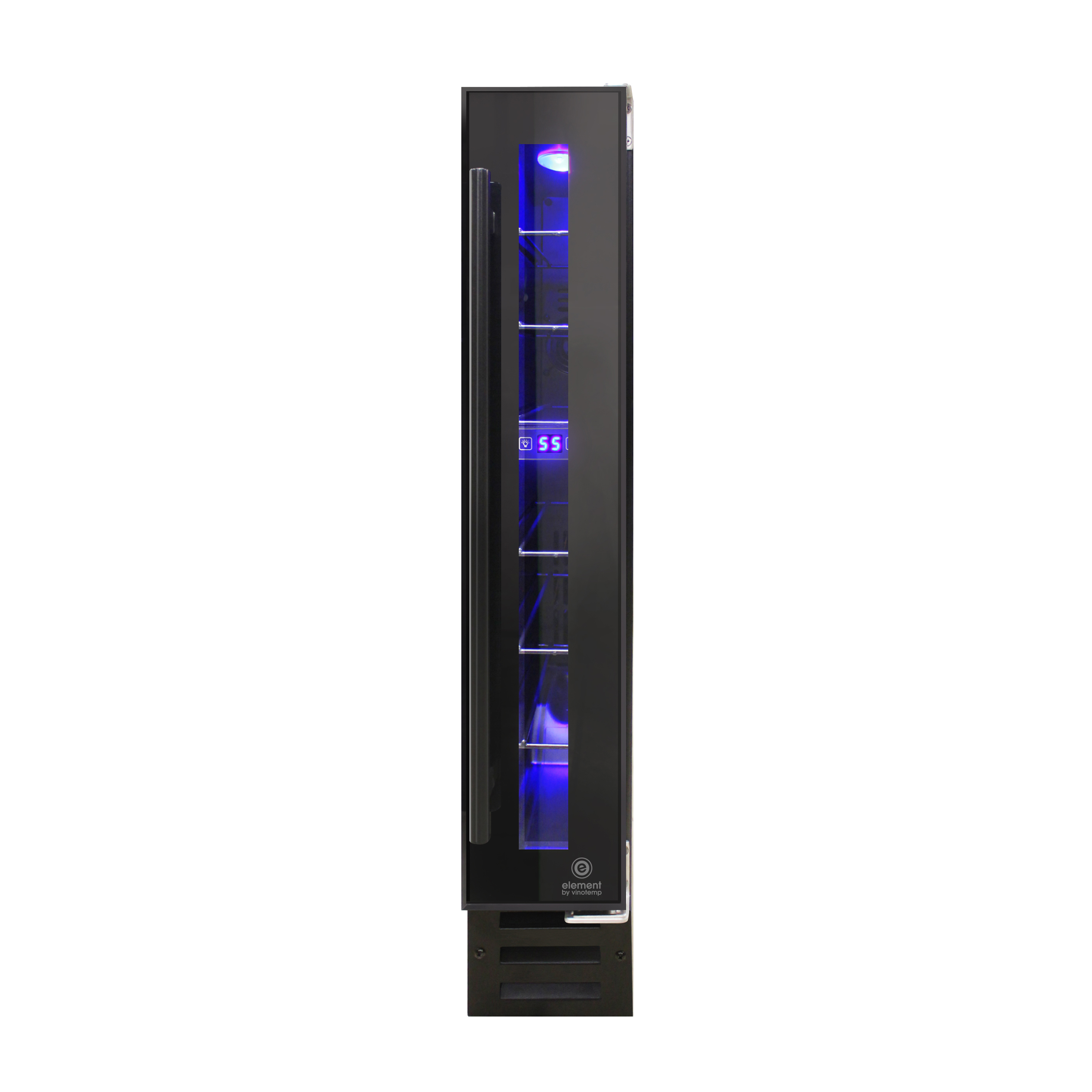

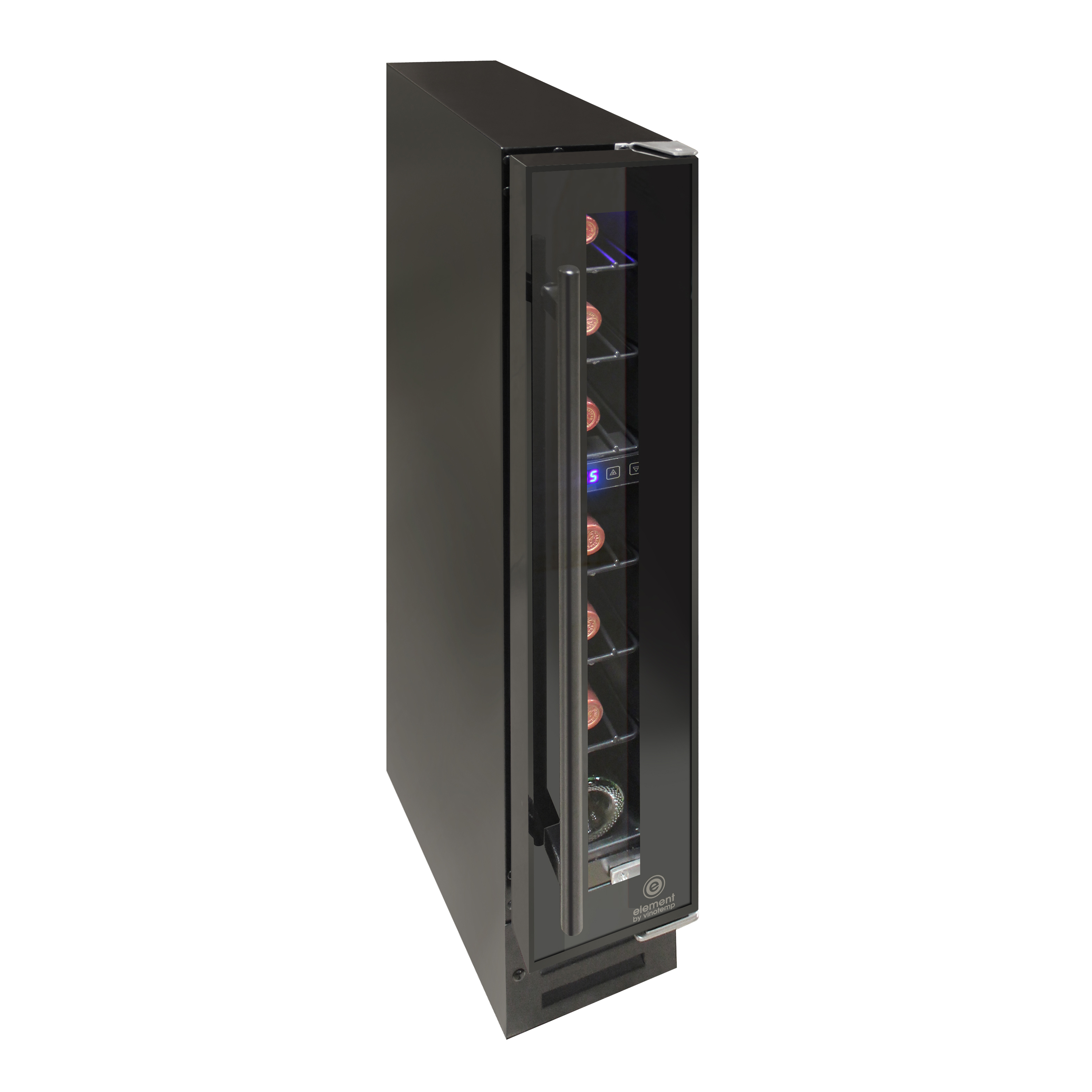

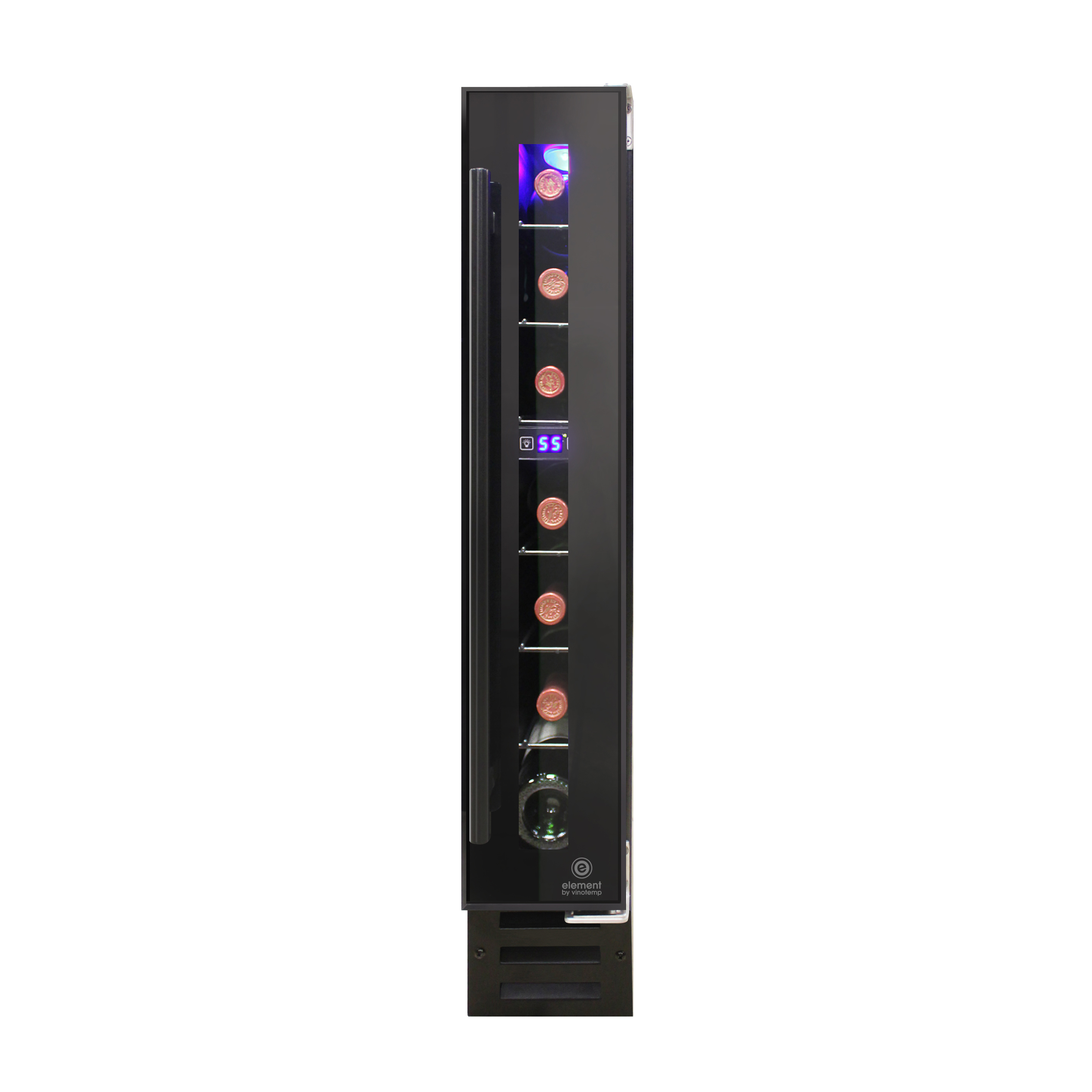

Long Description	Store your favorite wine bottles in this 7-Bottle Touch Screen Wine Cooler. The Vinotemp Private Reserve Series EL-7TS-BLACK features a handsome design with a black body, tinted black glass door with a magnetic seal, and a black pole handle. A touch screen control panel and digital temperature display allows wines to be set at different settings. This wine cooler is designed for built-in installation. It also features adjustable feet for leveling, an interior light to illuminate bottles and a control safety lock to disable access. Covered by the Vinotemp 2 Year Limited Warranty.
Bullet 1	Holds approximately 7 standard wine bottles
Bullet 2	Single-zone wine cooler

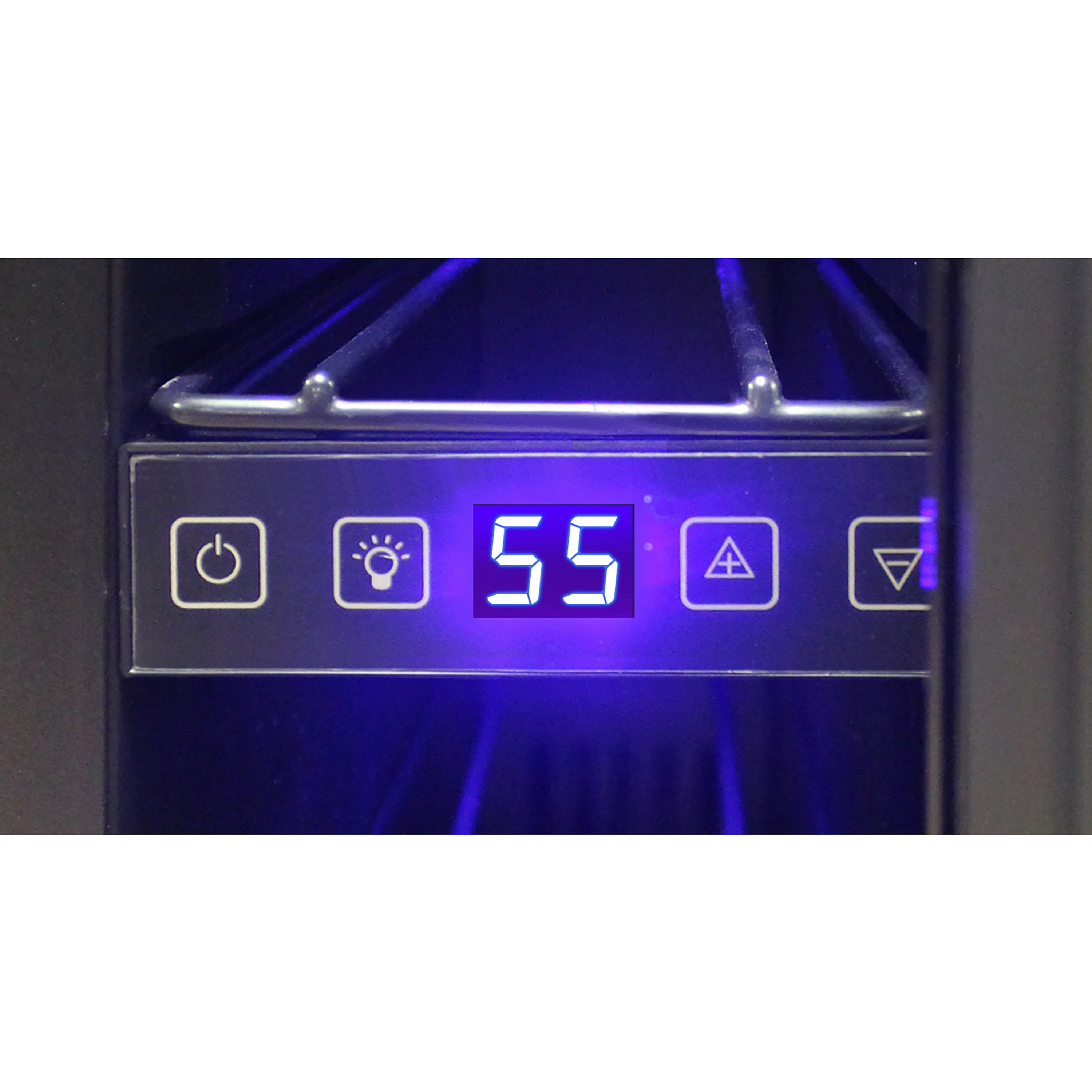

Bullet 3	Touch screen control panel and digital temperature display
Bullet 4	Sleek design with black body, black glass door and black pole handle
Bullet 5	Glass door with magnetic seal

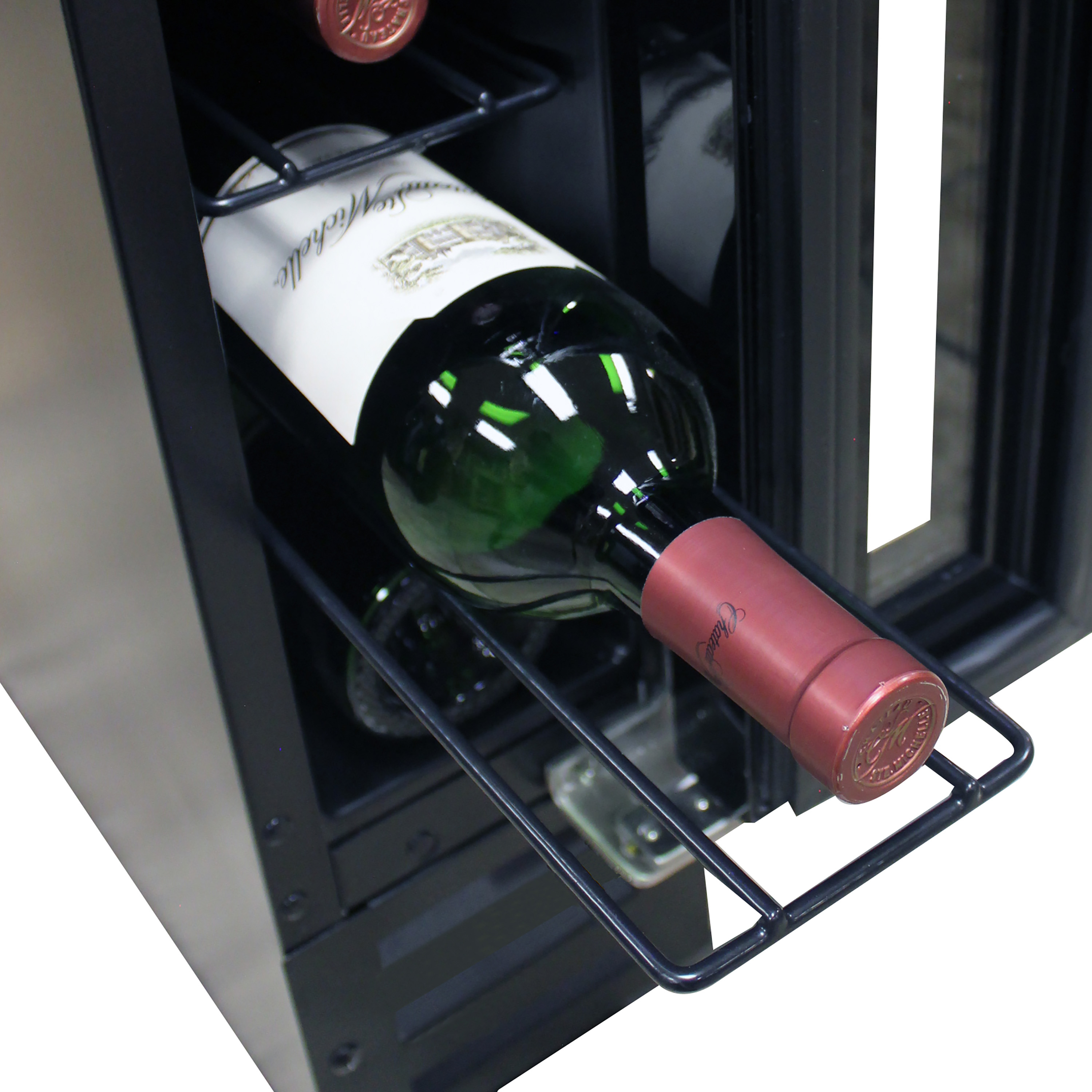

Bullet 6	Wire racking keeps bottles secure

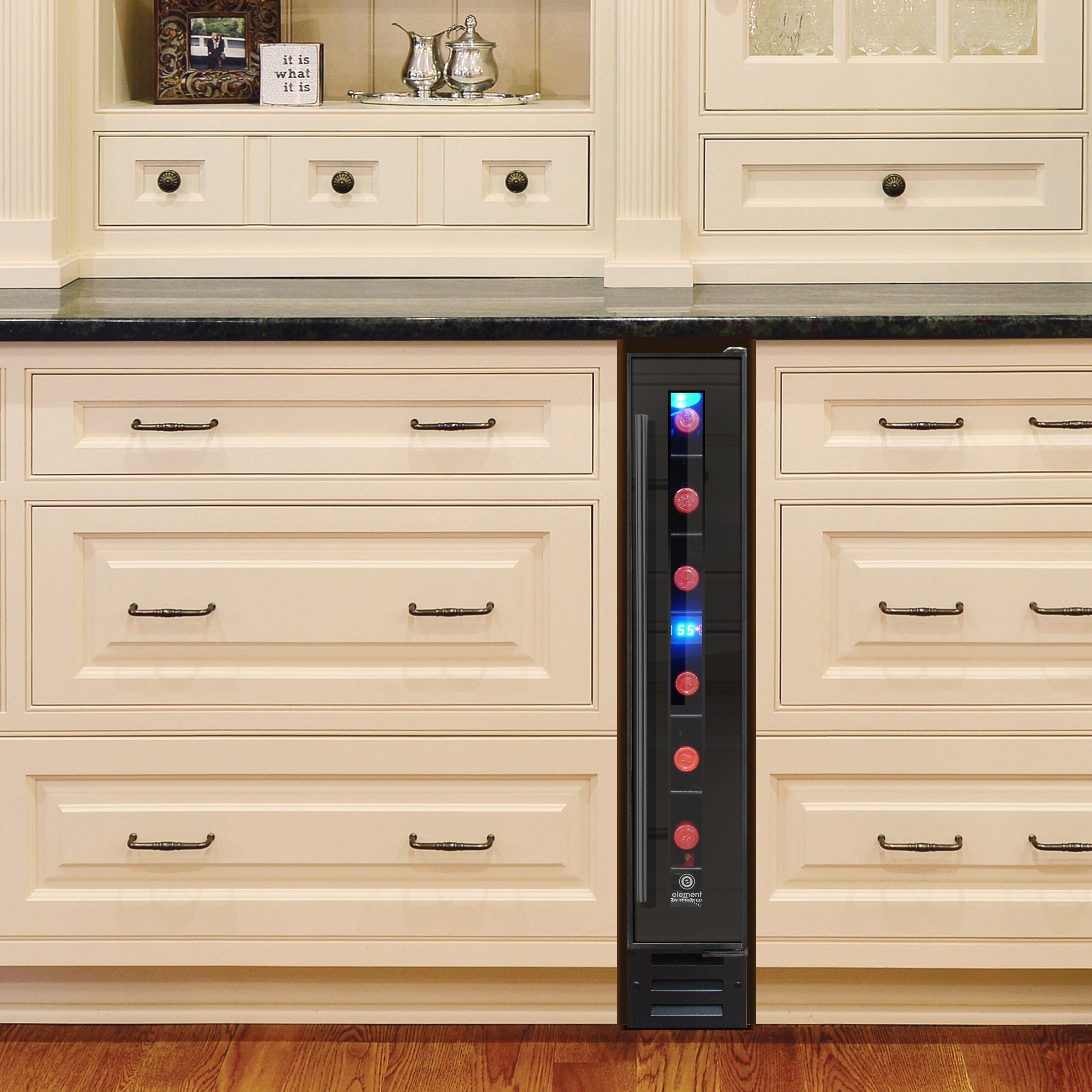

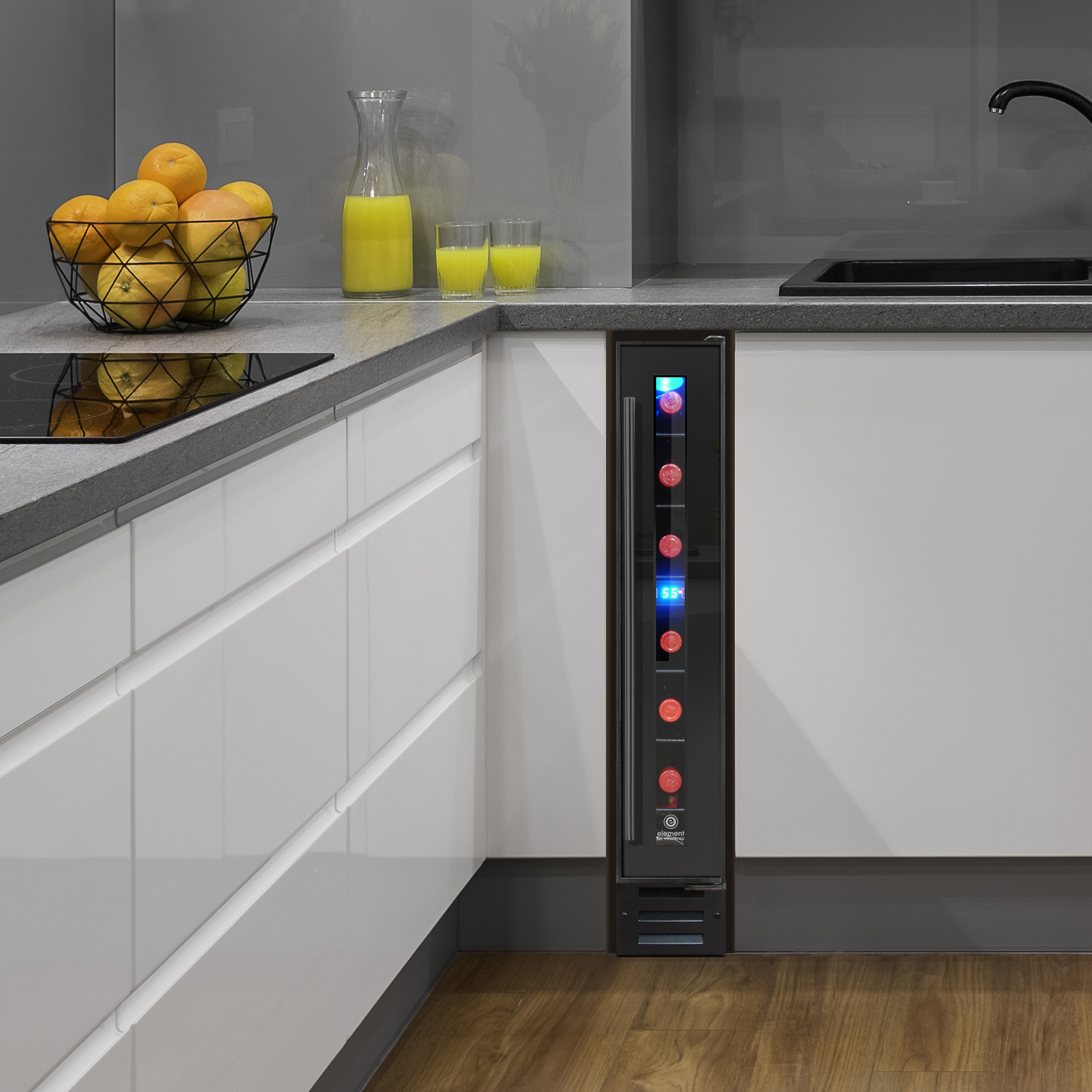

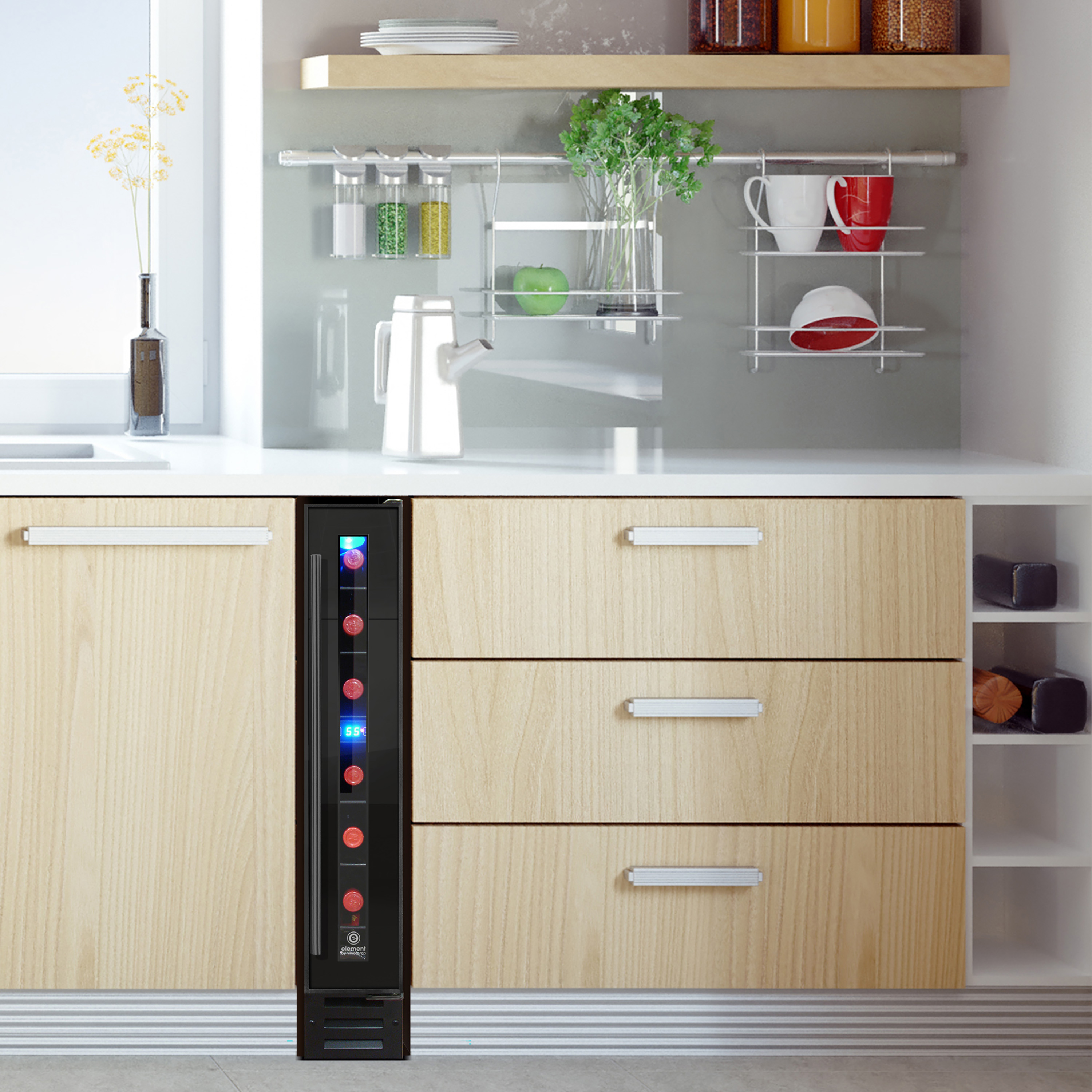

Bullet 7	For built-in installation
Bullet 8	Control panel safety lock to disable access
Bullet 9	Adjustable feet for leveling

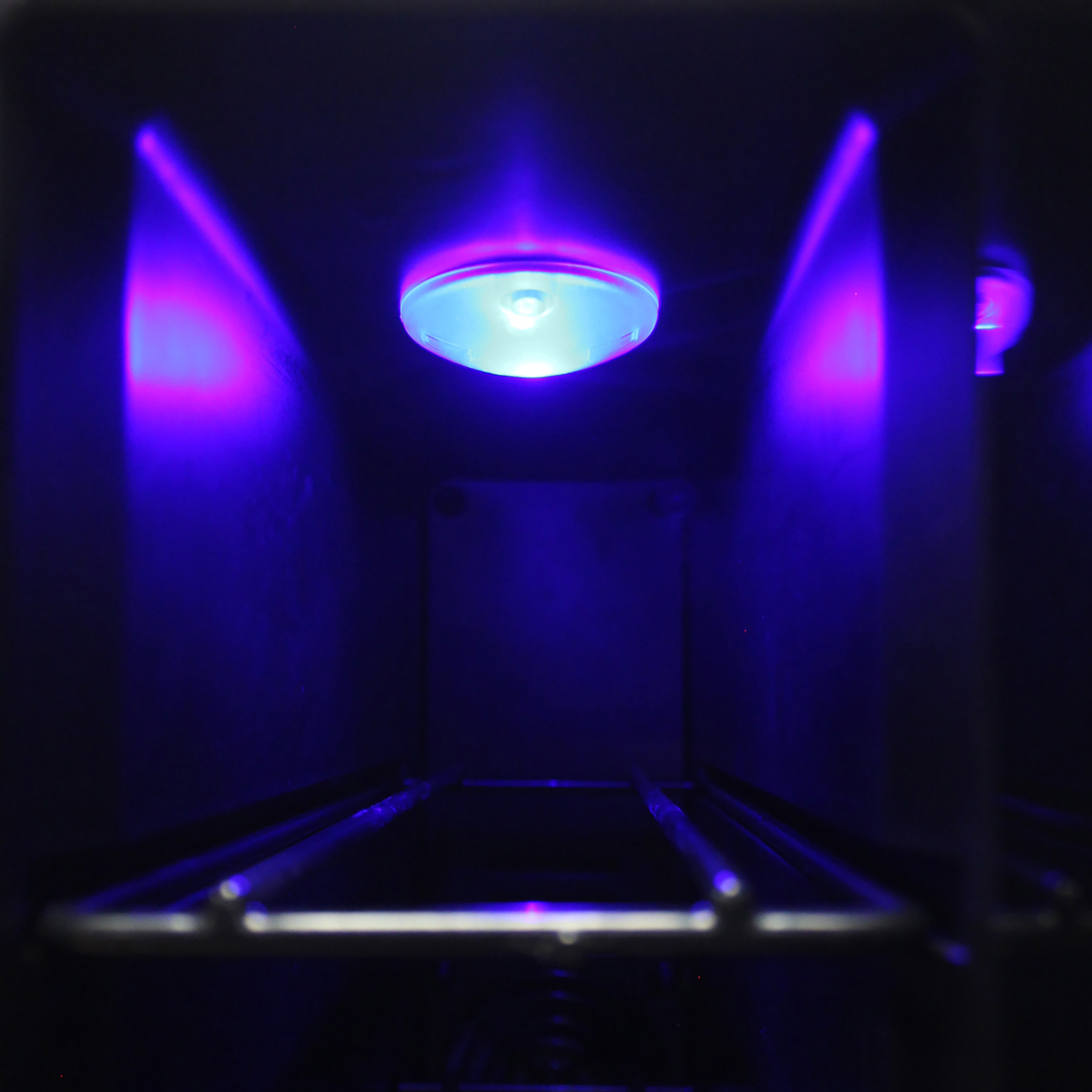

Bullet 10	Interior light to illuminate bottles

Instruction Manual	https://images.salsify.com/image/upload/s--cNeP8gA7--/sqav6mbidpxixh6sydlj.pdf
Spec Sheet	https://images.salsify.com/image/upload/s--JriiqMMt--/plrauz6zu6j6noiuhiql.pdf
Energy Guide PDF	https://images.salsify.com/image/upload/s--erpYoMaL--/fl9nmrnewnmydeoe0lz1.pdf
Image - Warranty	https://images.salsify.com/image/upload/s--NM5sAt37--/csgpzaxtiw4wul8r4qve.pdf

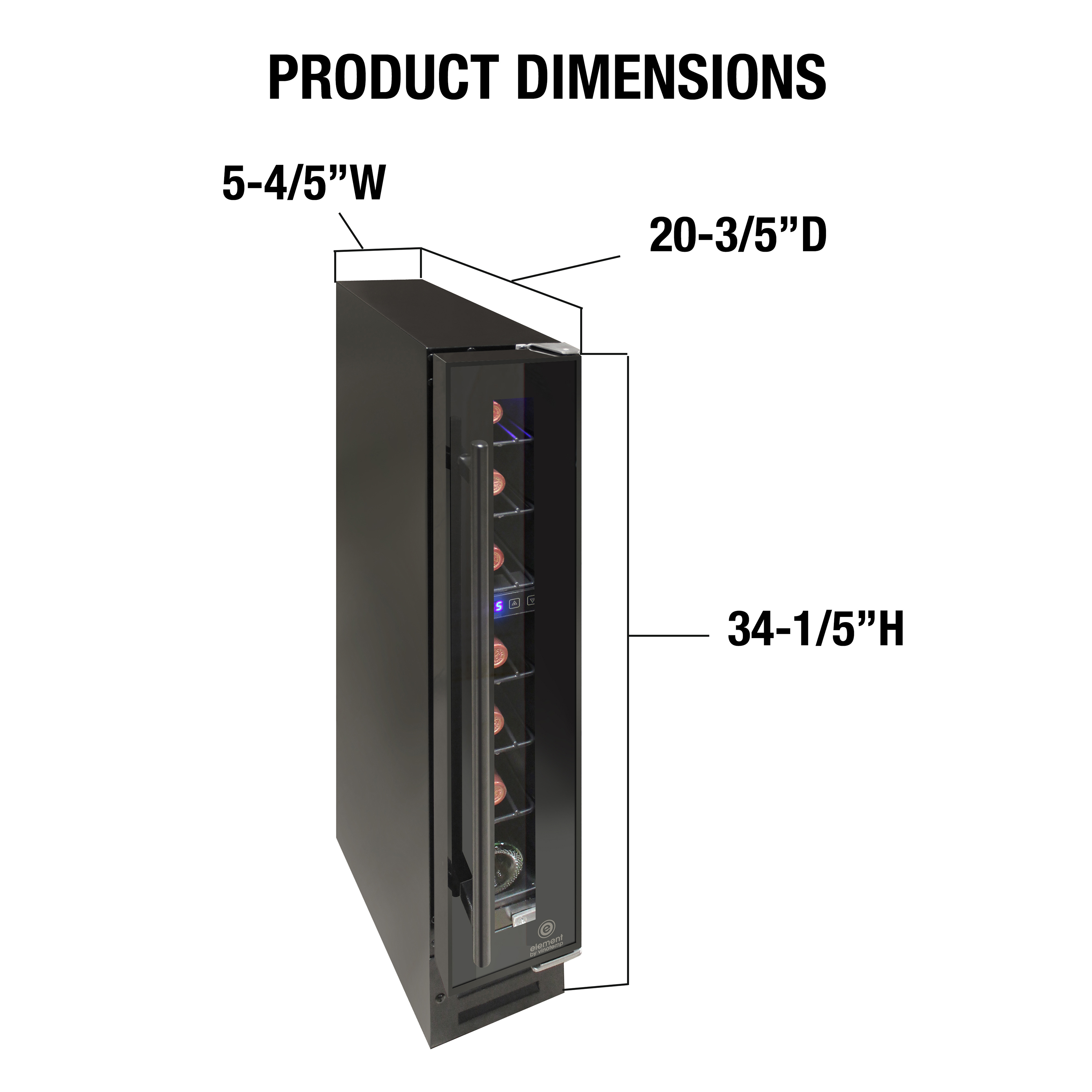

Assembled Dimensions (in)	20.6" x 5.8" x 34.2"
Assembled Weight (lb)	44
Assembly Required	No
Capacity	7 Bottles
Color	Black
Material	Metal
Installation Type	Built-In
Cutout Depth - Front to Back	20.85"
Cutout Width - Side to Side	6.3"
Cutout Height - Top to Bottom	34.45"
Door Swing Orientation	Right
Depth - Door Open 90°	26.4
Interior Dimensions	14.8 x 4.13 x 26.18
Portable	No
Outdoor Use	No
Adjustable Shelves	No
Adjustable Temperature Control	Yes
Temperature Range	40° - 72°
First Zone Bottle/Can Capacity	7 Bottles
First Zone Minimum Temperature	40°
First Zone Maximum Temperature	72°
Door Material	Metal
Anti-Vibration Technology	No
Automatic Shut Off	No
Cooling System	Compressor
Door Color/Finish	Black
Door Storage Type	None
Integrated Lock	No
Quiet Operation	Yes
Undercounter	Yes

Electric	Yes
Electrical Specs - Current (A), Voltage (V), Consumption (W)	0.61A/115V/70W
Decibels (dB)	40 dB
Adjustable Temperature Control	Yes
Temperature Range	40° - 72°
First Zone Maximum Temperature	72°
First Zone Minimum Temperature	40°
Batteries Required	No

Prop 65 Compliant	Yes
Prop 65 Chemical	May contain lead, tin or nickel
Prop 65 Warning Type	CALIFORNIA WARNING: Can expose you to Di(2-ethlhexyl) phlthalate (DEHP), a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov.
DOE Certified	Not Required
CEC Certified	Yes
TAA Compliant	No
