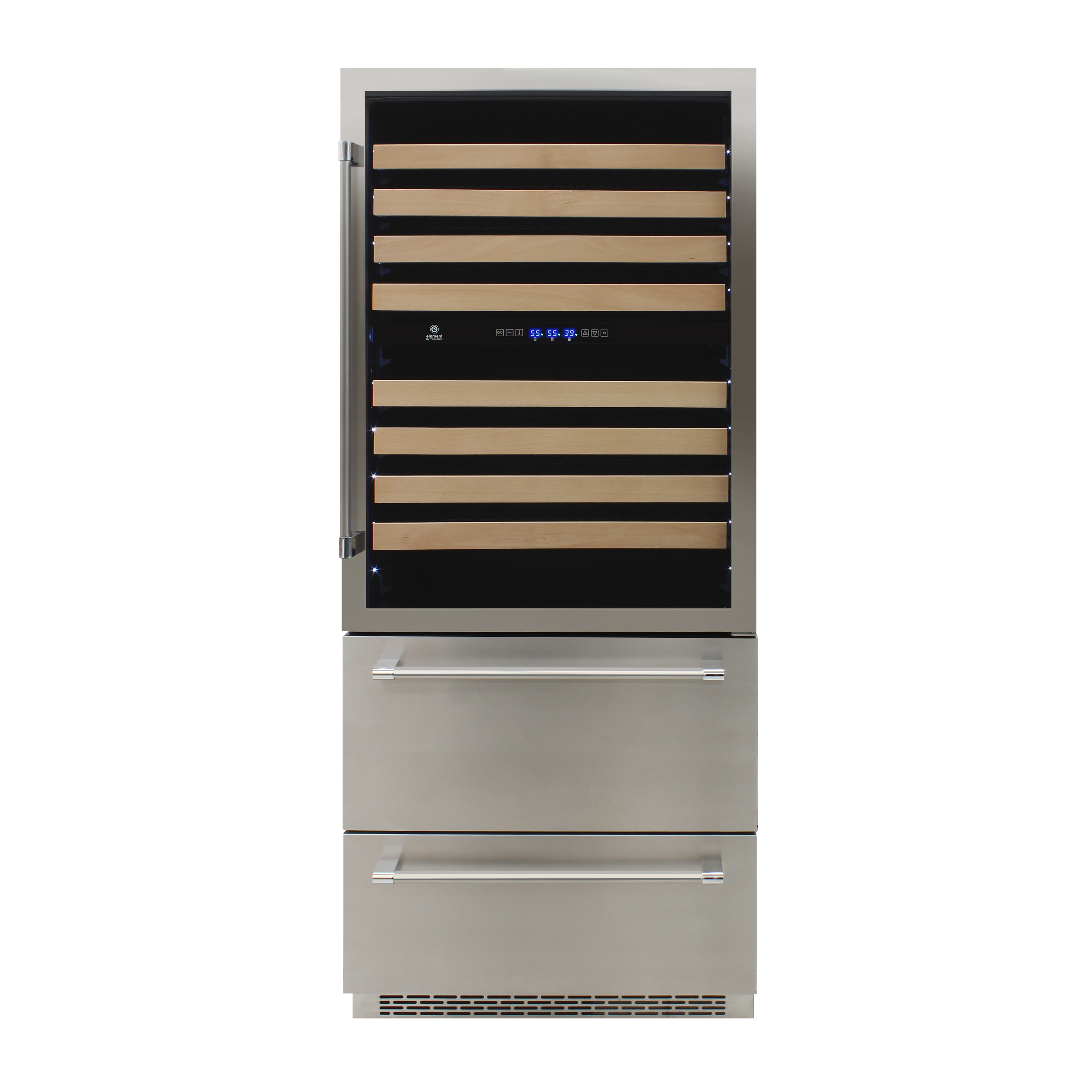

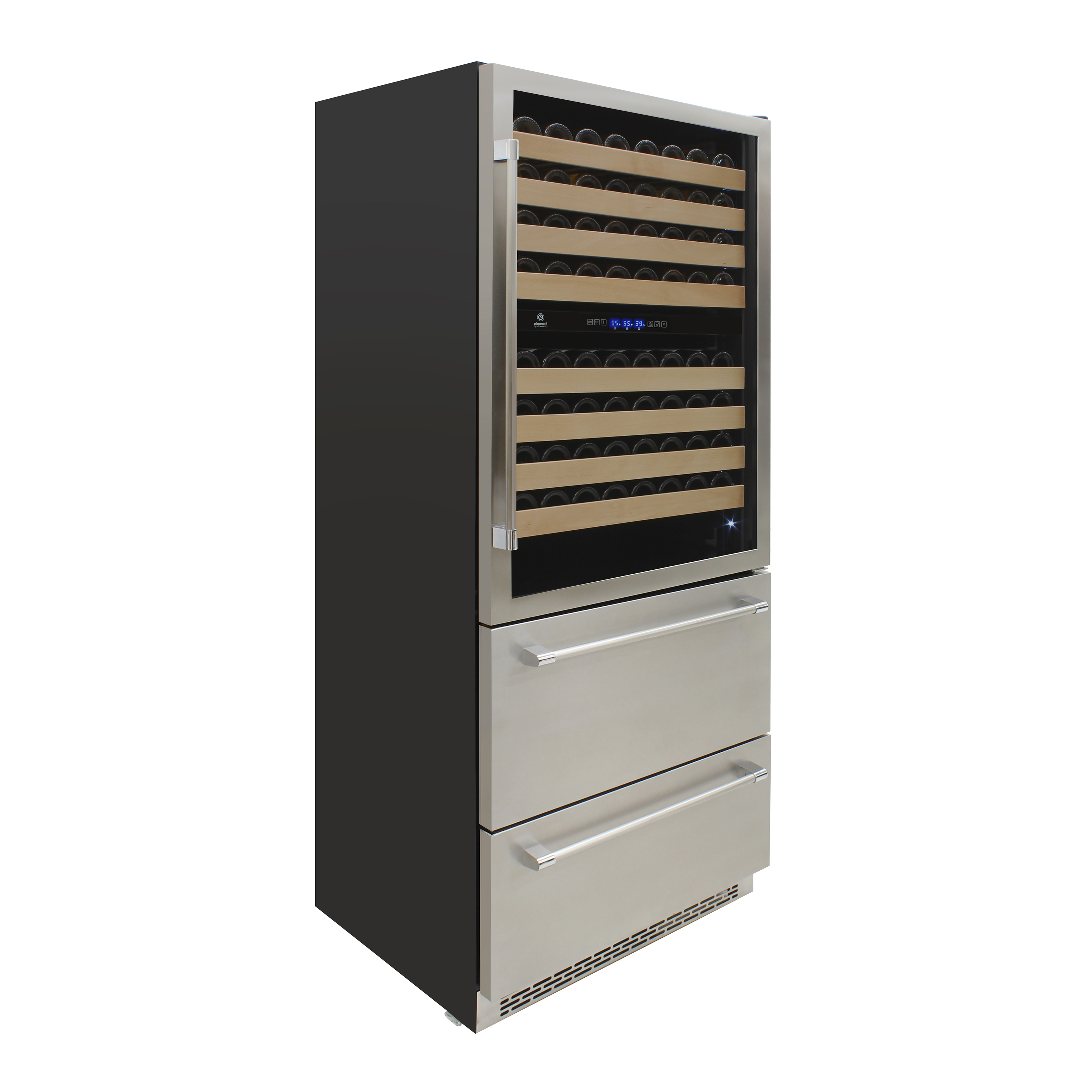

Vinotemp Triple-Zone Wine and Beverage Cooler, 135 Bottle Capacity
| Description | 135 Bottle Triple-Zone Wine Cooler With 2 Bottom Drawers, Stainless |
|---|---|
| SKU | EL-BWC30TB-S |
| UPC | 657433015172 |
| Model | EL-BWC30TB |
| Brand | Vinotemp |
| Collection | Connoisseur Series |
| Product Line | Cooling |
| Category | Wine Cooler |
| Subcategory | Wine Cooler |
| Commercial / Residential | Both |
| SKU Status | Harvest |
|---|---|
| Discontinued Date | 2026-03-06 |
| Warranty | 2 Year Limited Warranty |
| SRP | 4899.99 |
|---|---|
| MAP Price | 4649.99 |

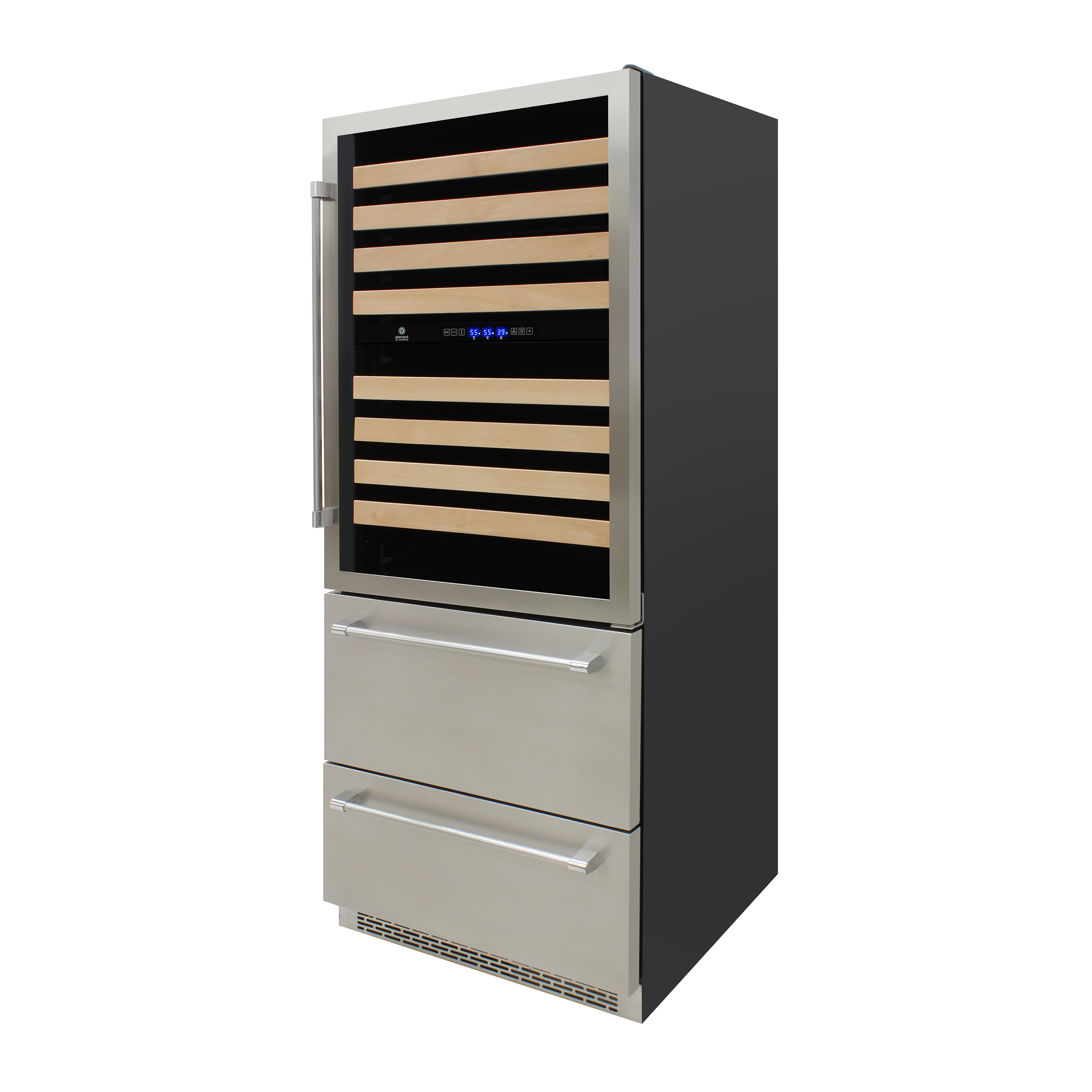

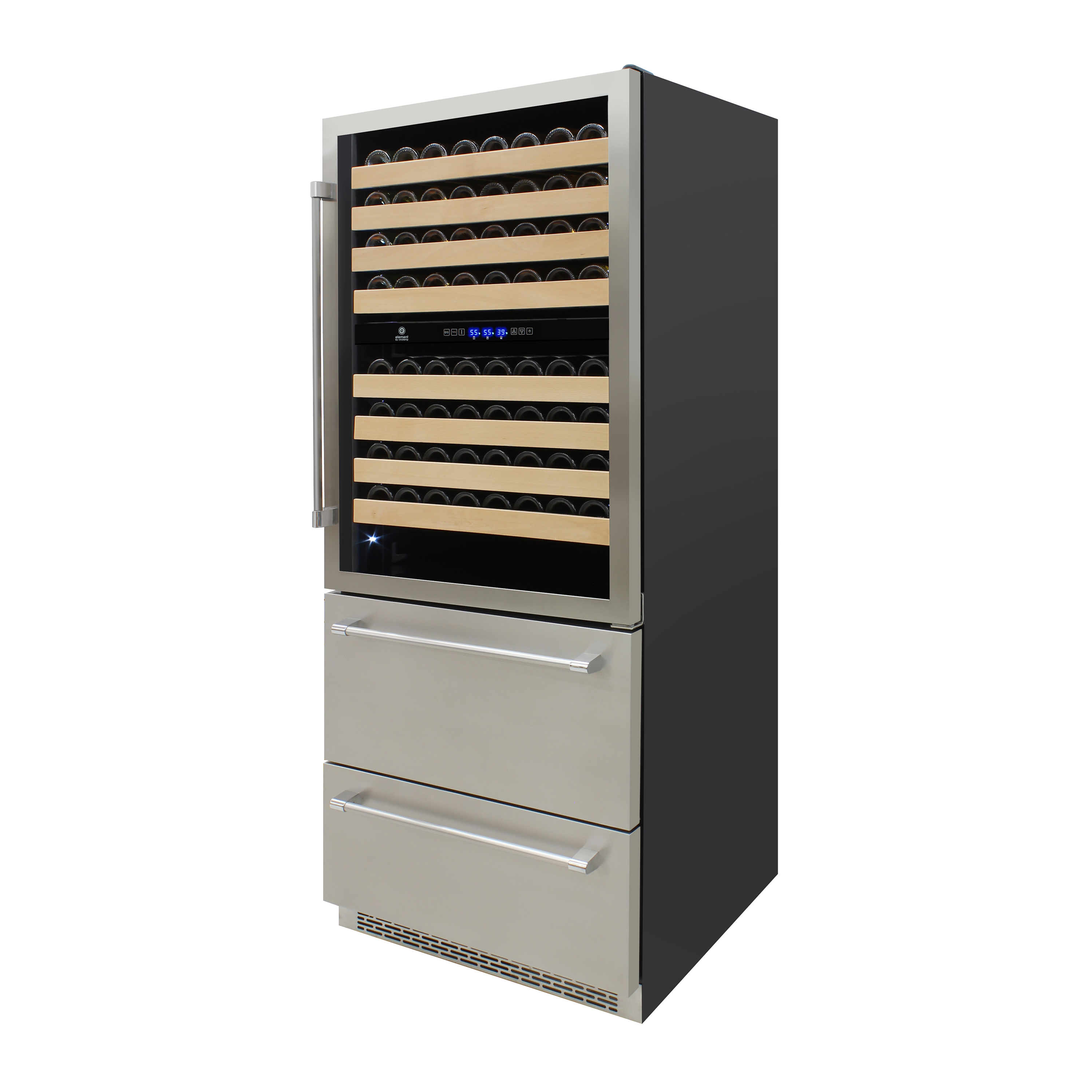

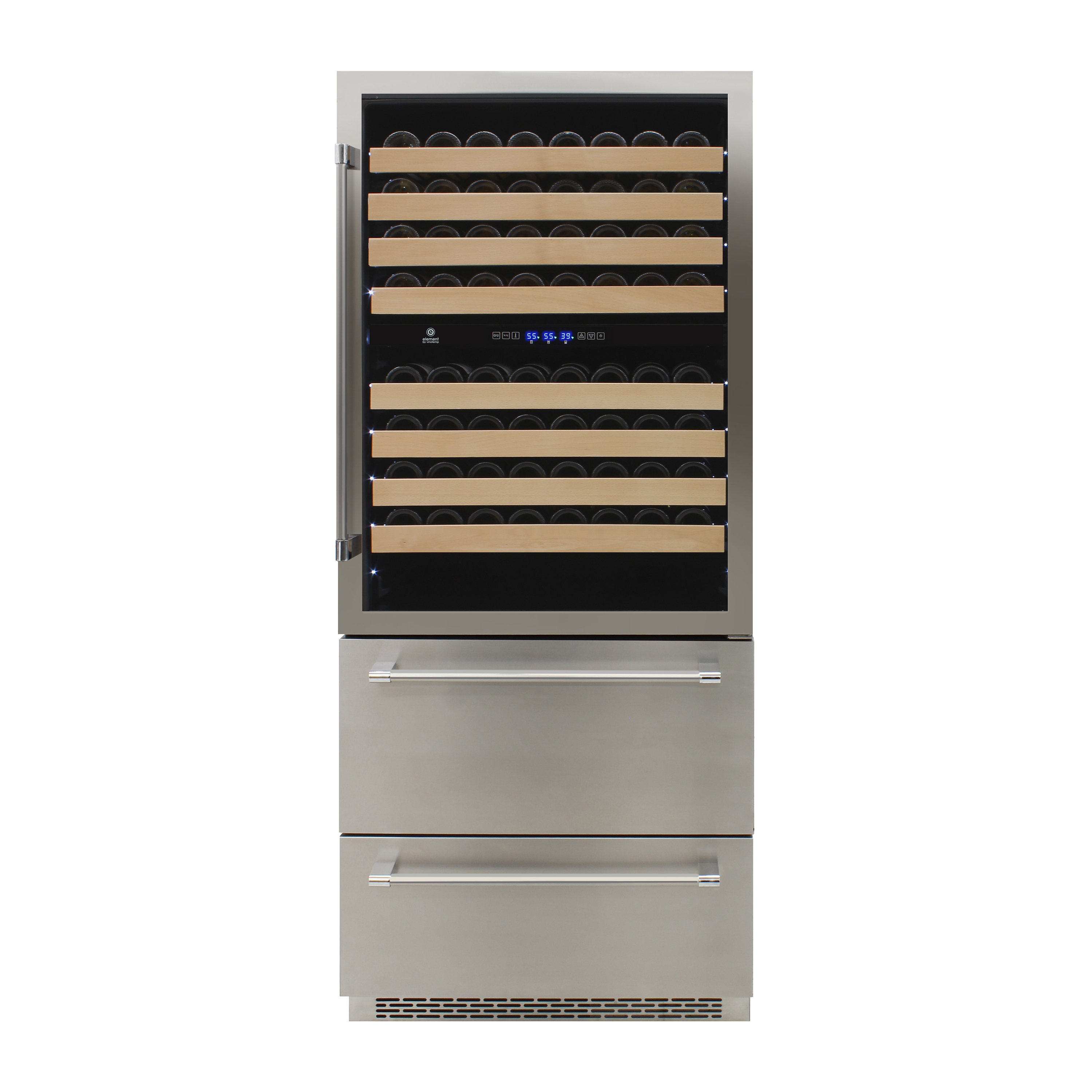

| Long Description | The EL-BWC30TB-S Wine Cooler & Drawer brings an element of class and elegance to any room. This premium wine & beverage cooler will allow you to store your collection in optimal conditions so that your favorite food, wine and beverages can be kept at respective temperatures. An easy-to-use digital control panel with LED readout allows you to set the individual cooling zones at three different temperatures to ensure that your goodies, wine bottles and beverage cans are maintained properly. This unit features a glass door with pole handle in the upper section for wine storage and two drawers with stainless steel exterior and horizontal handle in the lower section for beverage and food storage. Gliding metal wire racks with 53mm high wooded lip, stainless steel drawers and glass door give a stylish look to this unit while providing you with easy access to your favorite food, wine and beverages. This attractive and modern Wine Cooler & Drawer is designed to be a worthy home for all of your finest collections. Covered by the Vinotemp 2 Year Limited Warranty. |
|---|---|
| Bullet 1 | Holds approximately 135 standard 750mL wine bottles |
| Bullet 2 | Triple-zone unit |

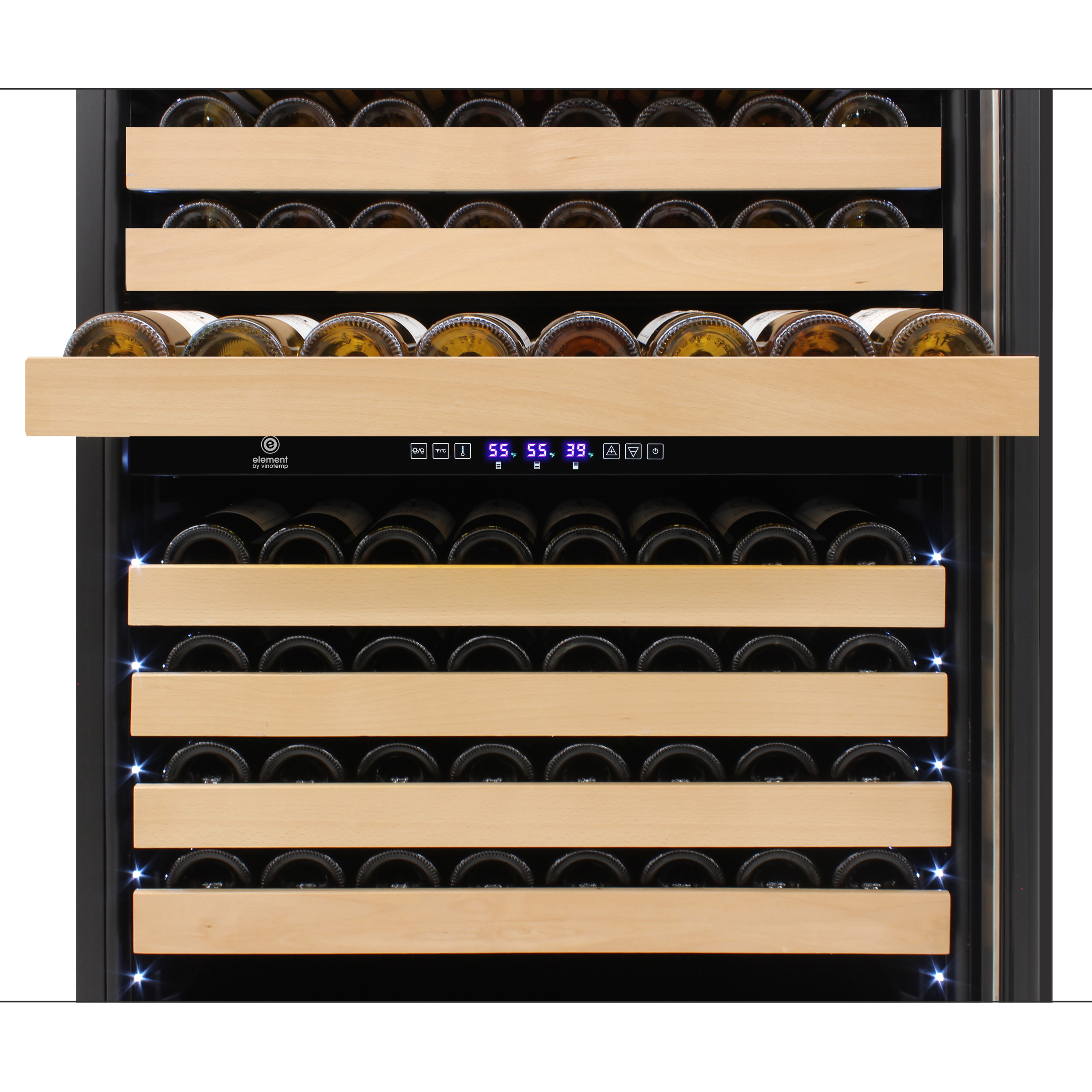

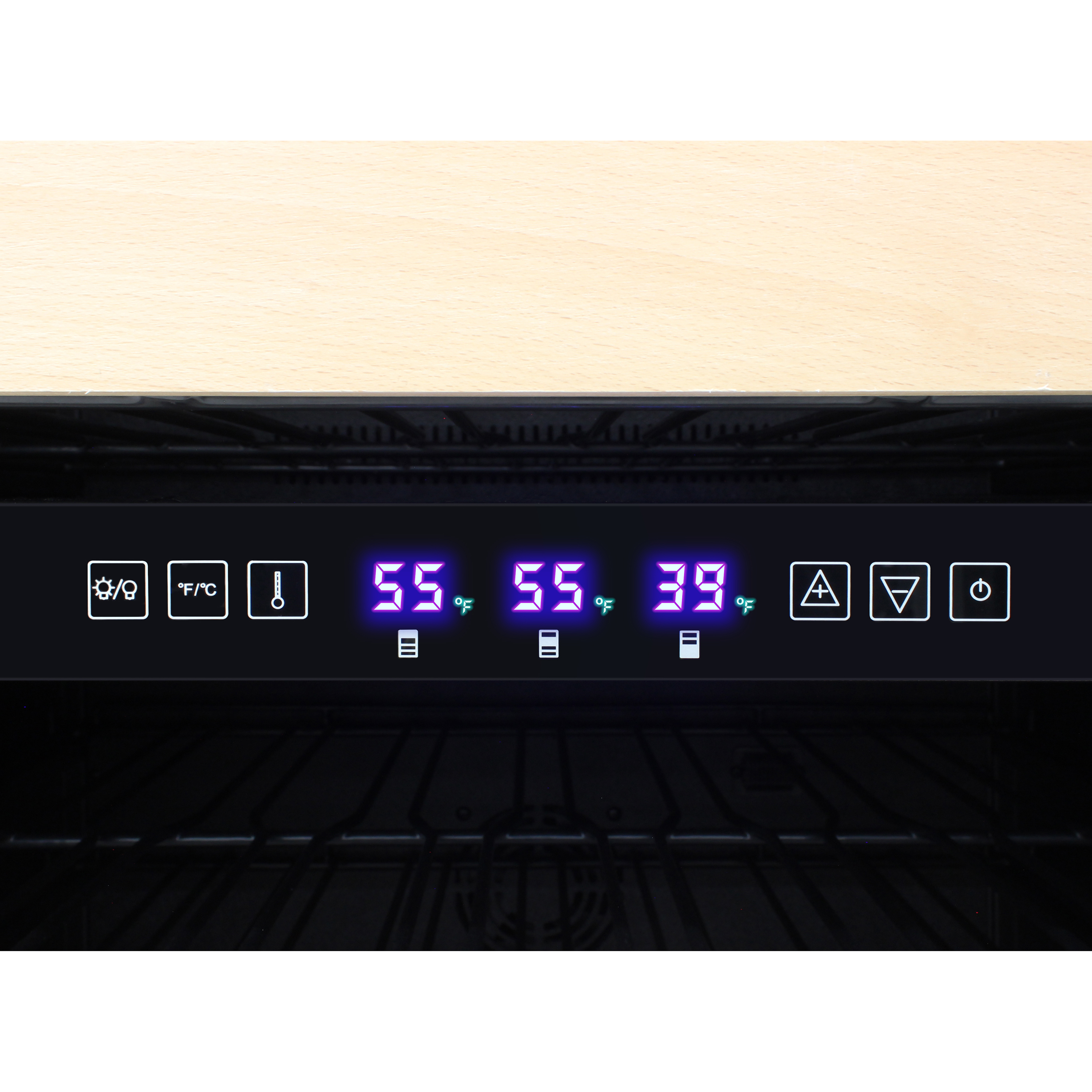

| Bullet 3 | Easy-to-use control panel with digital display |

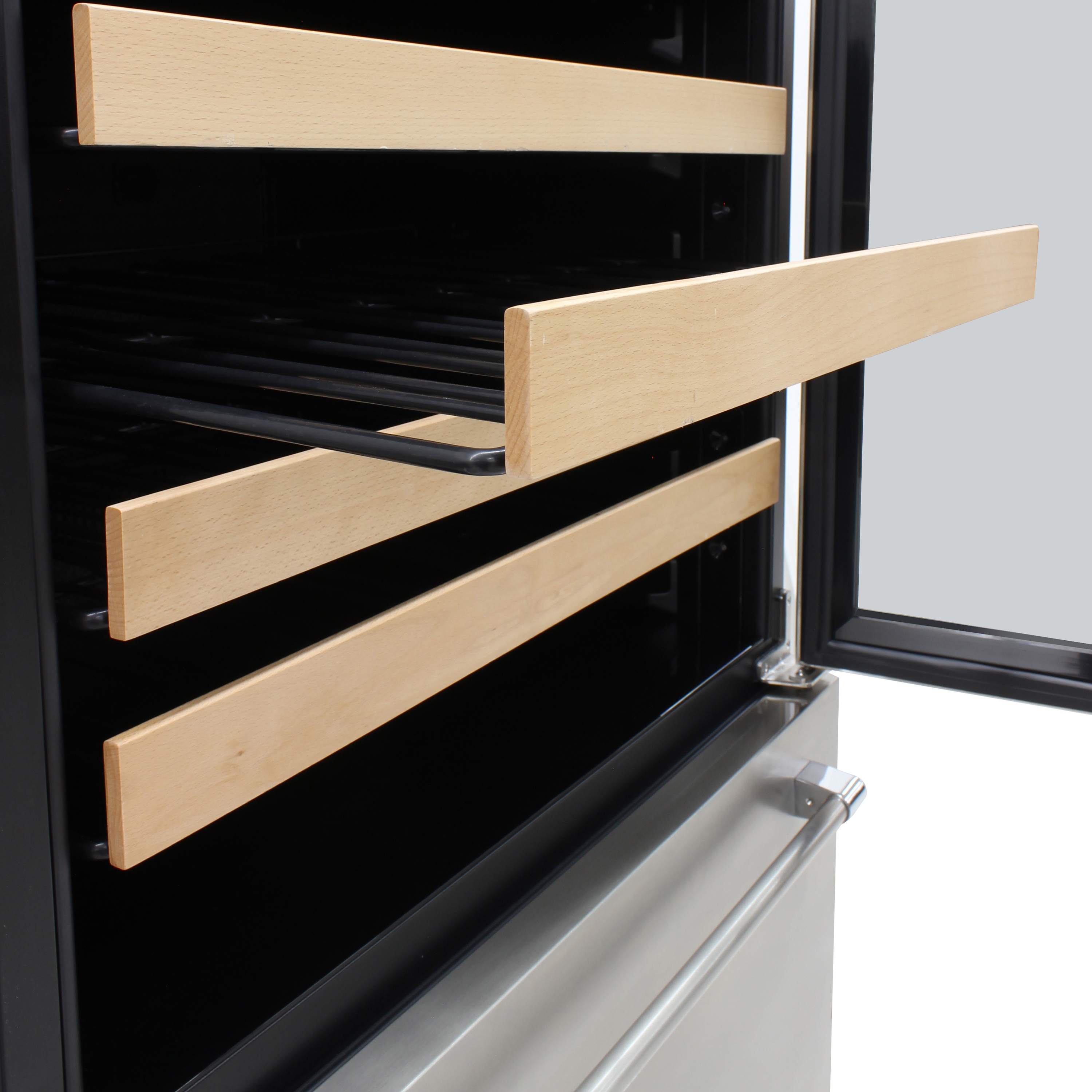

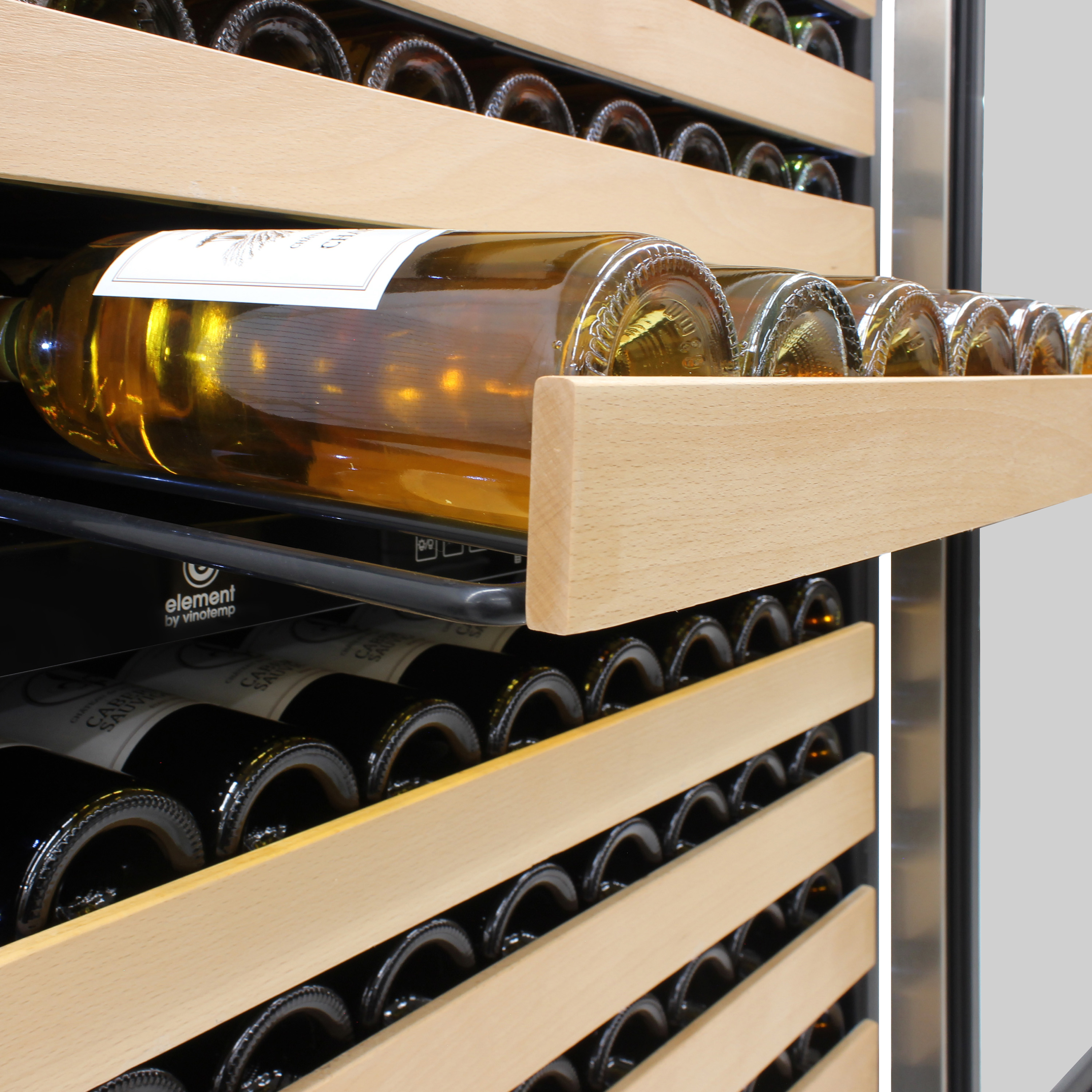

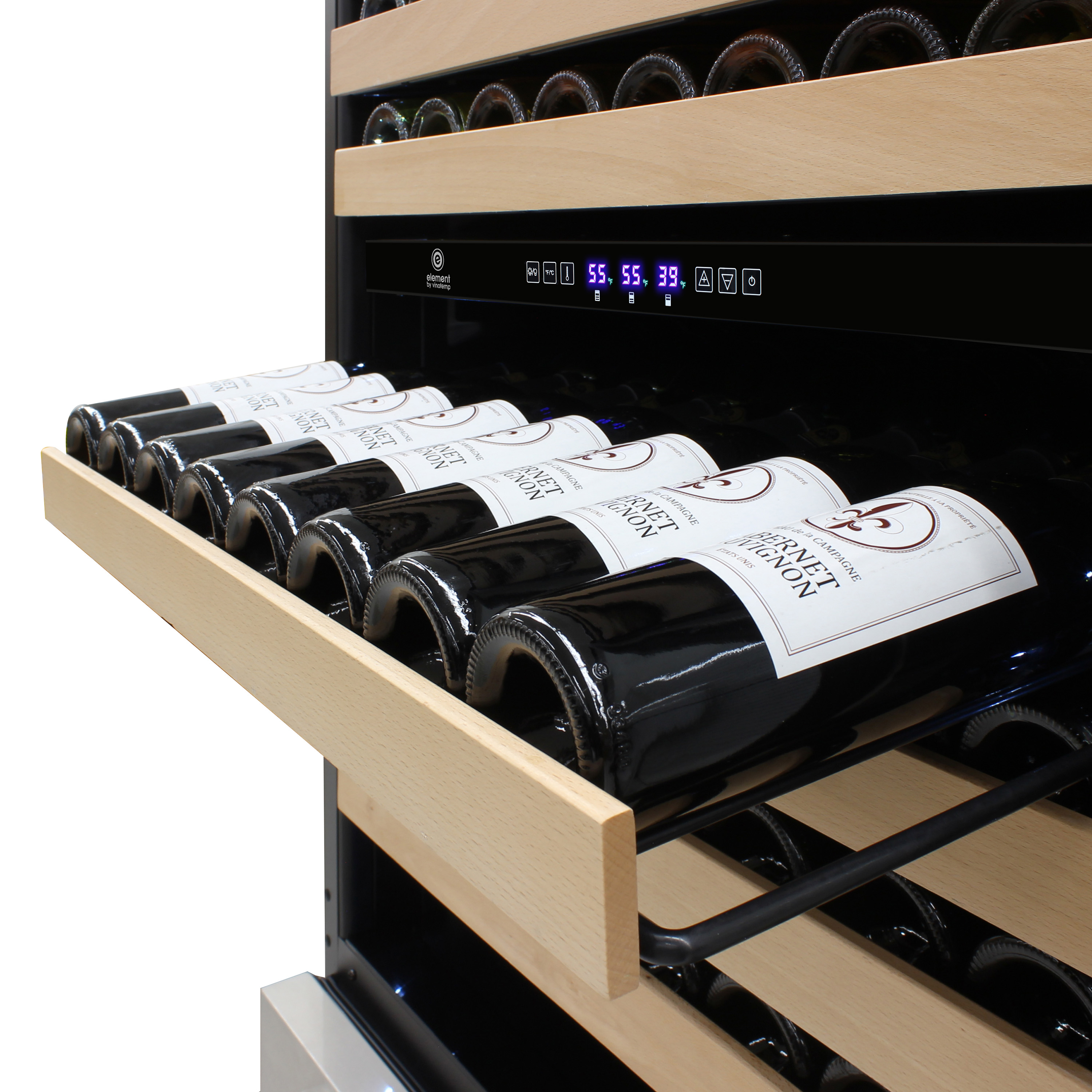

| Bullet 4 | Eight gliding metal wire shelves with 53mm-thick wooden trim |
| Bullet 5 | Stainless steel all-around on the front |

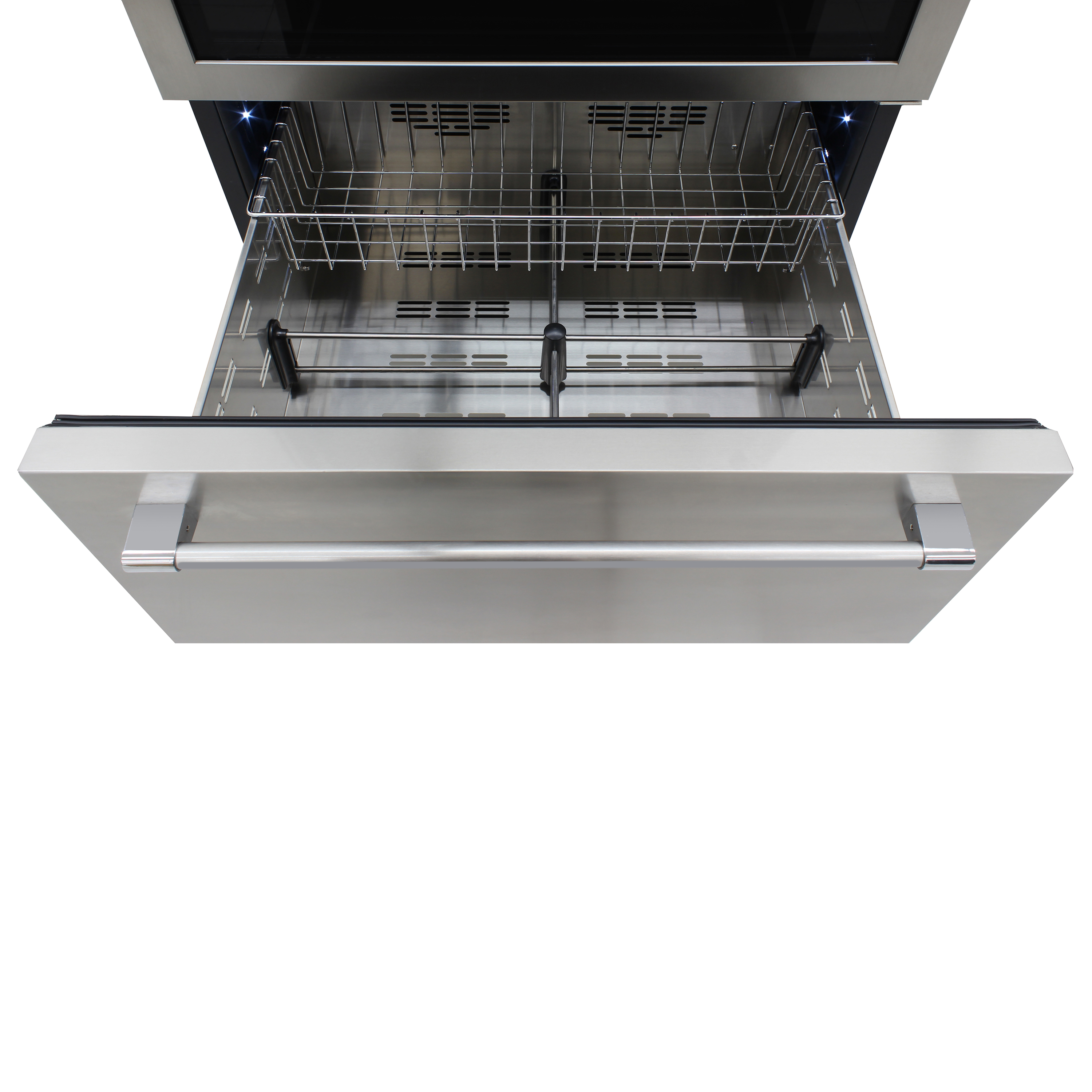

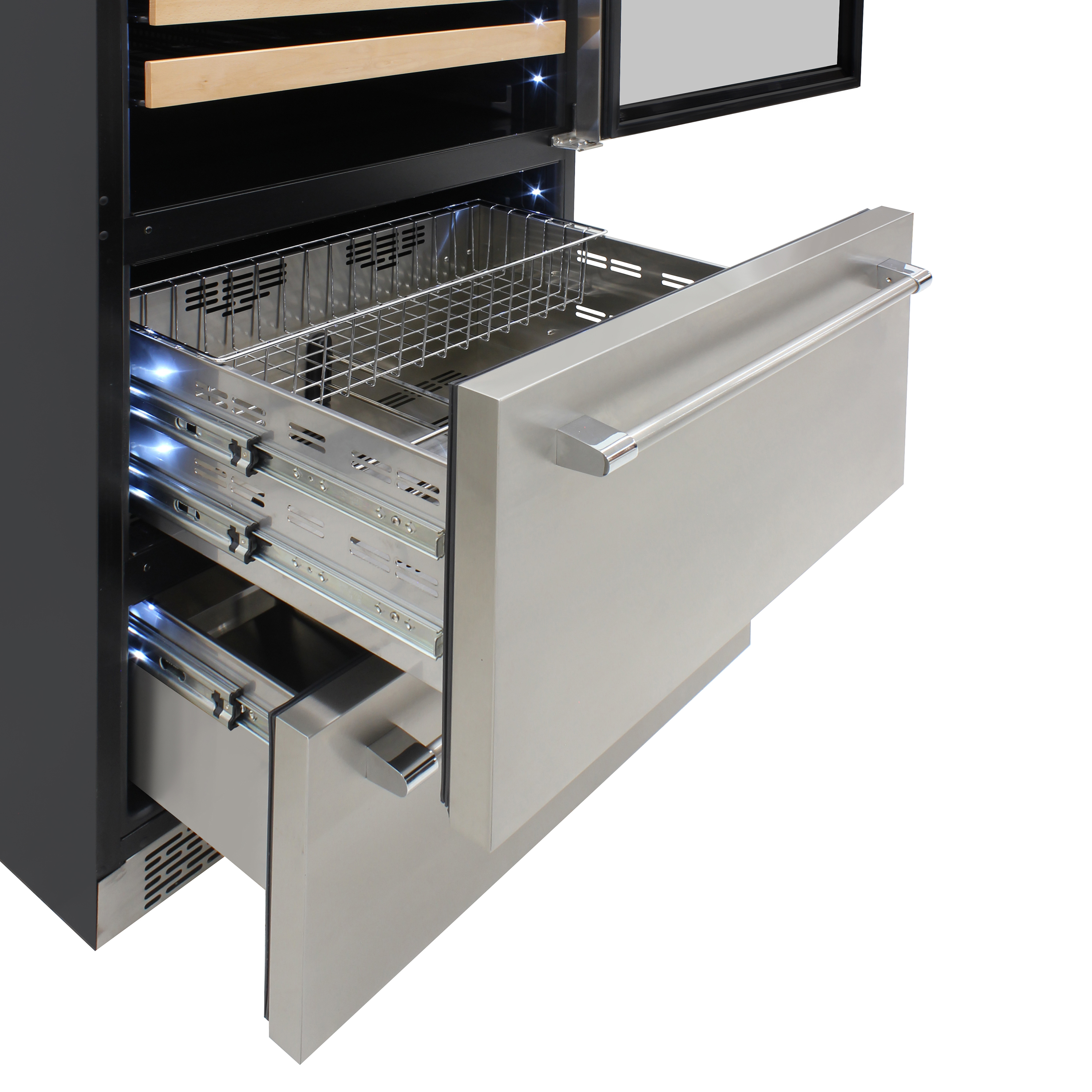

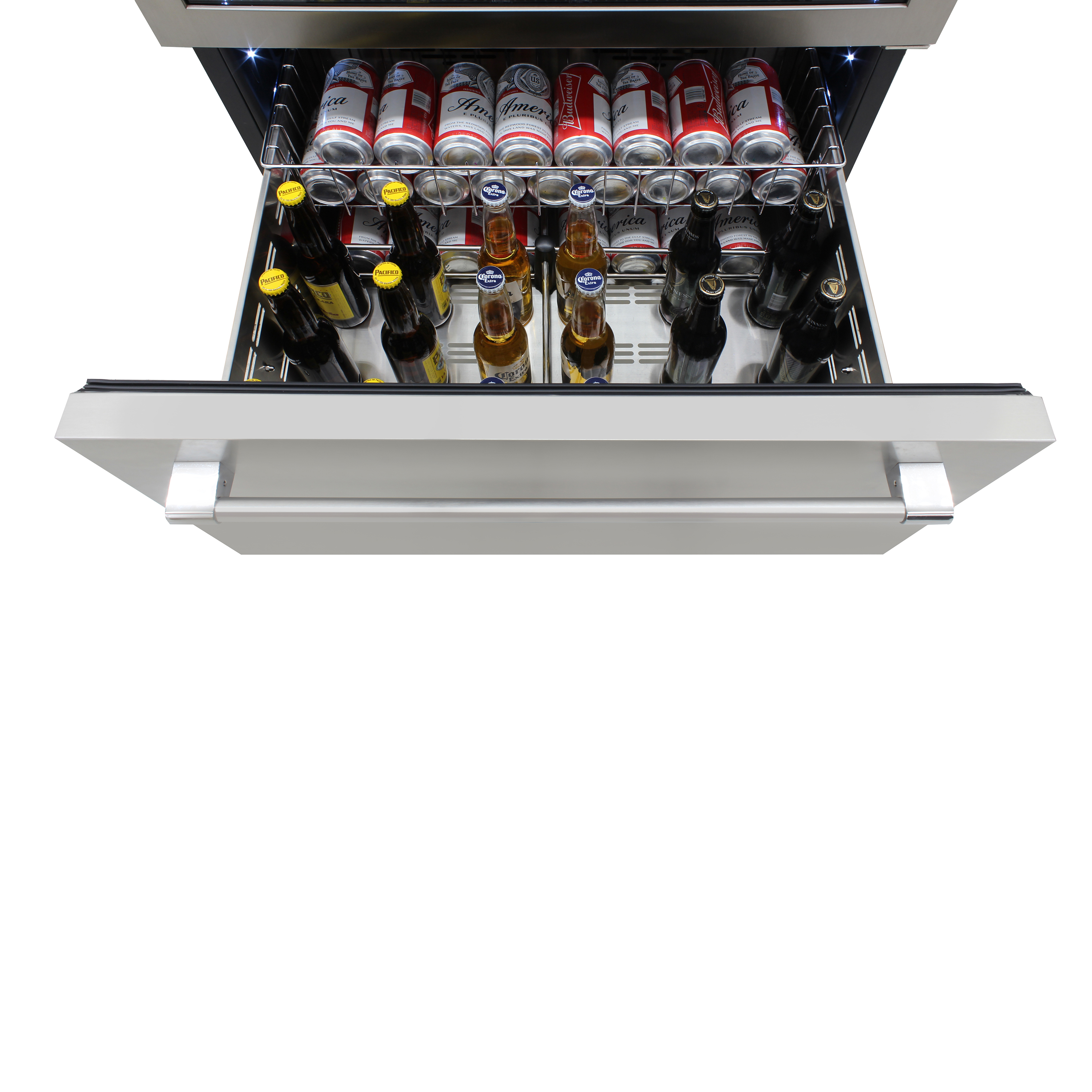

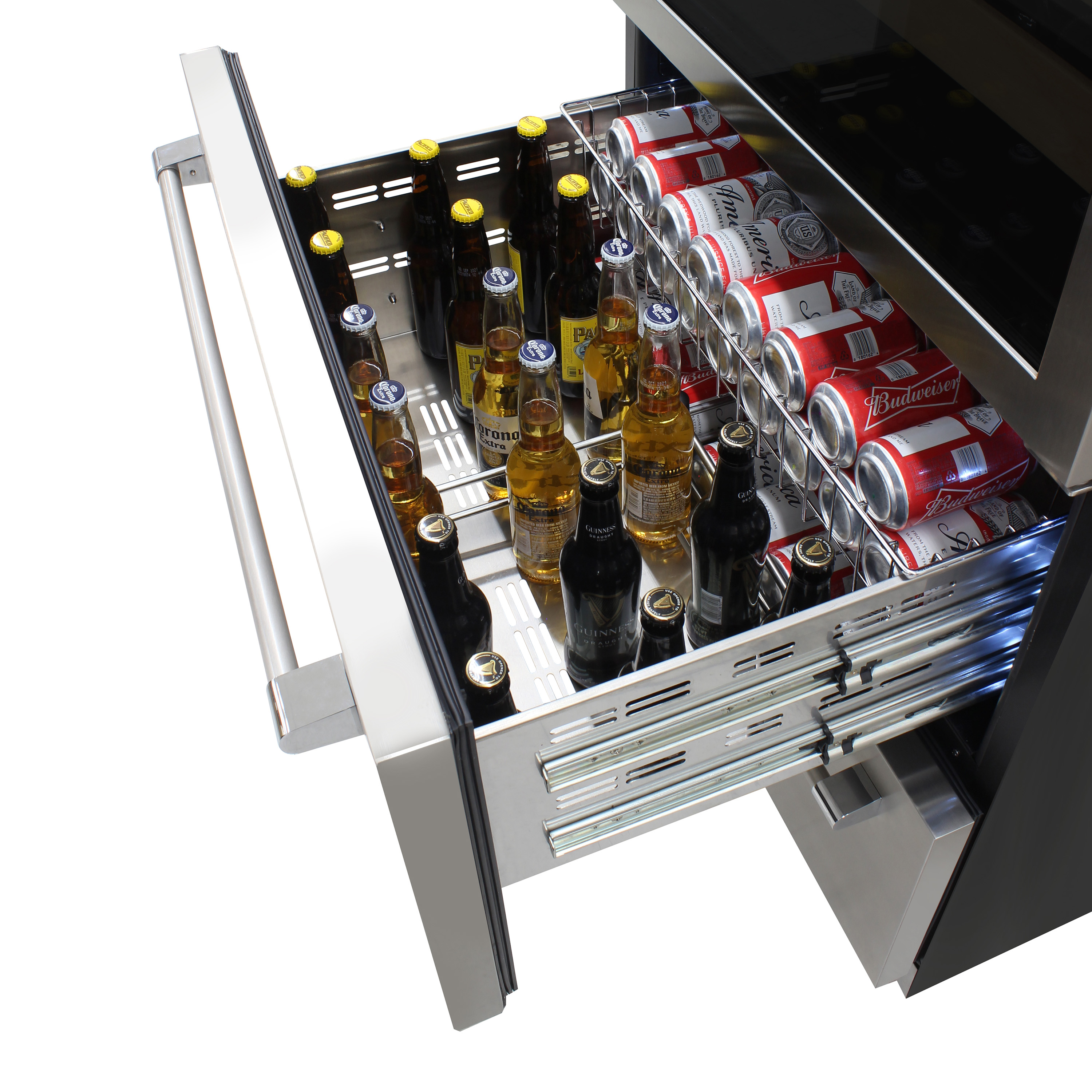

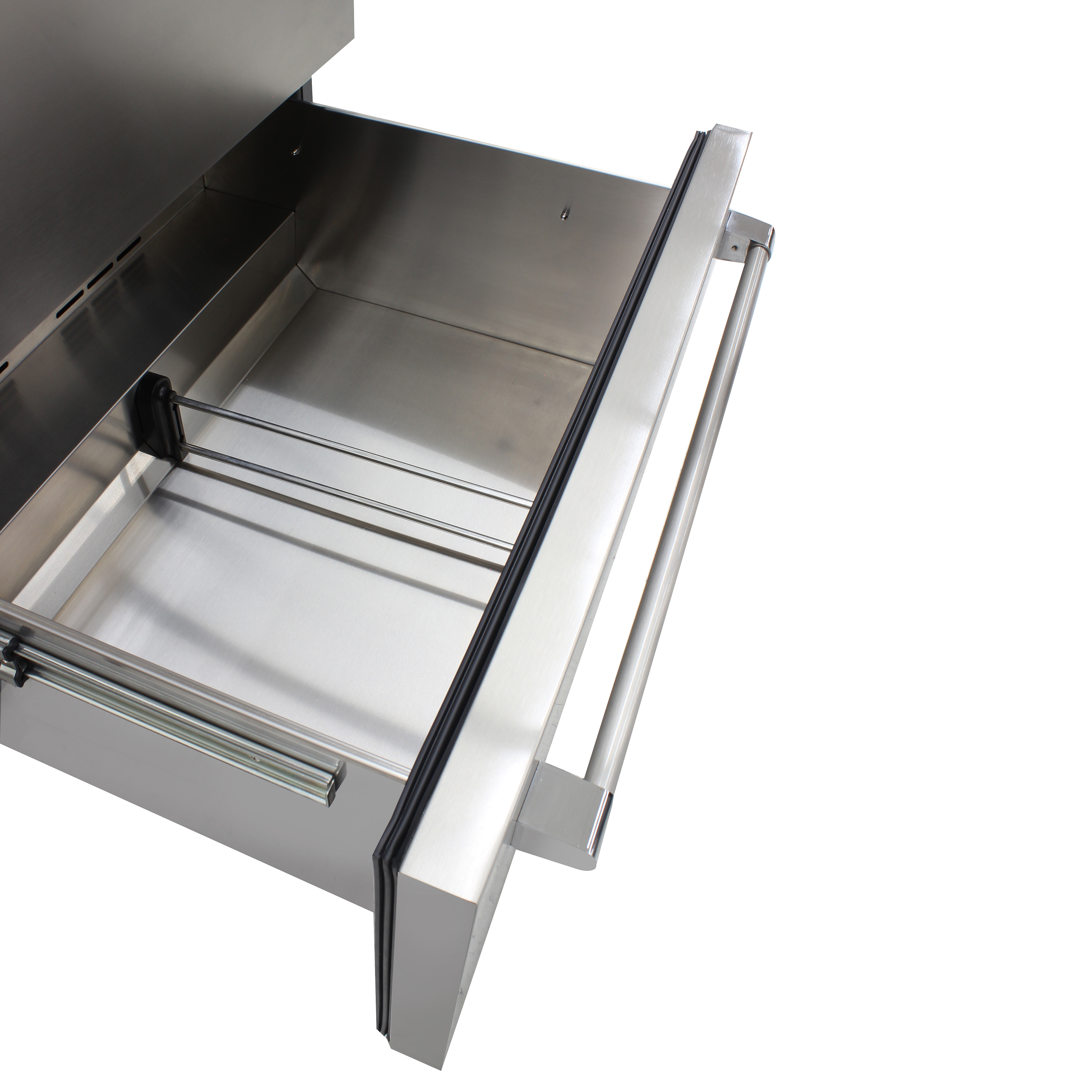

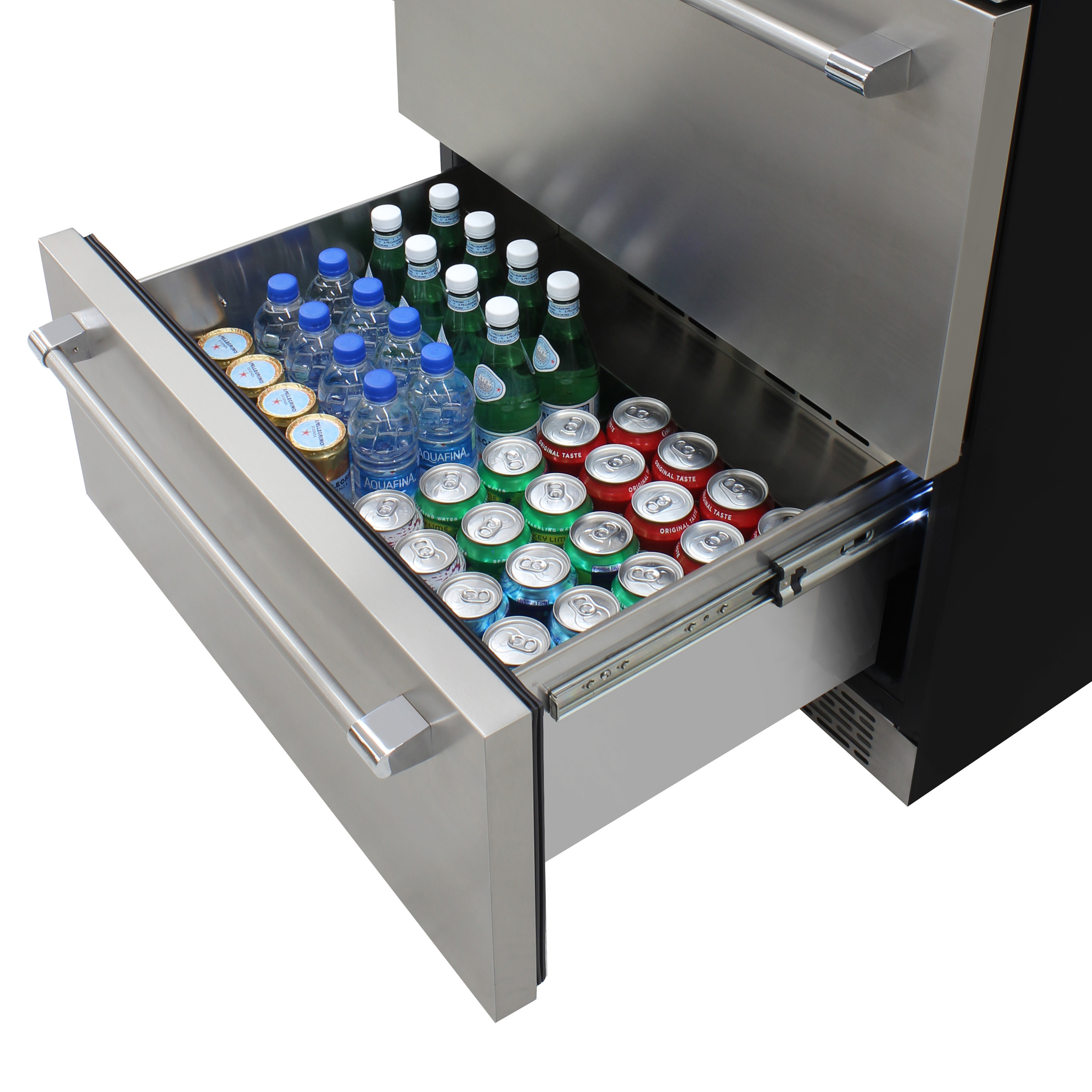

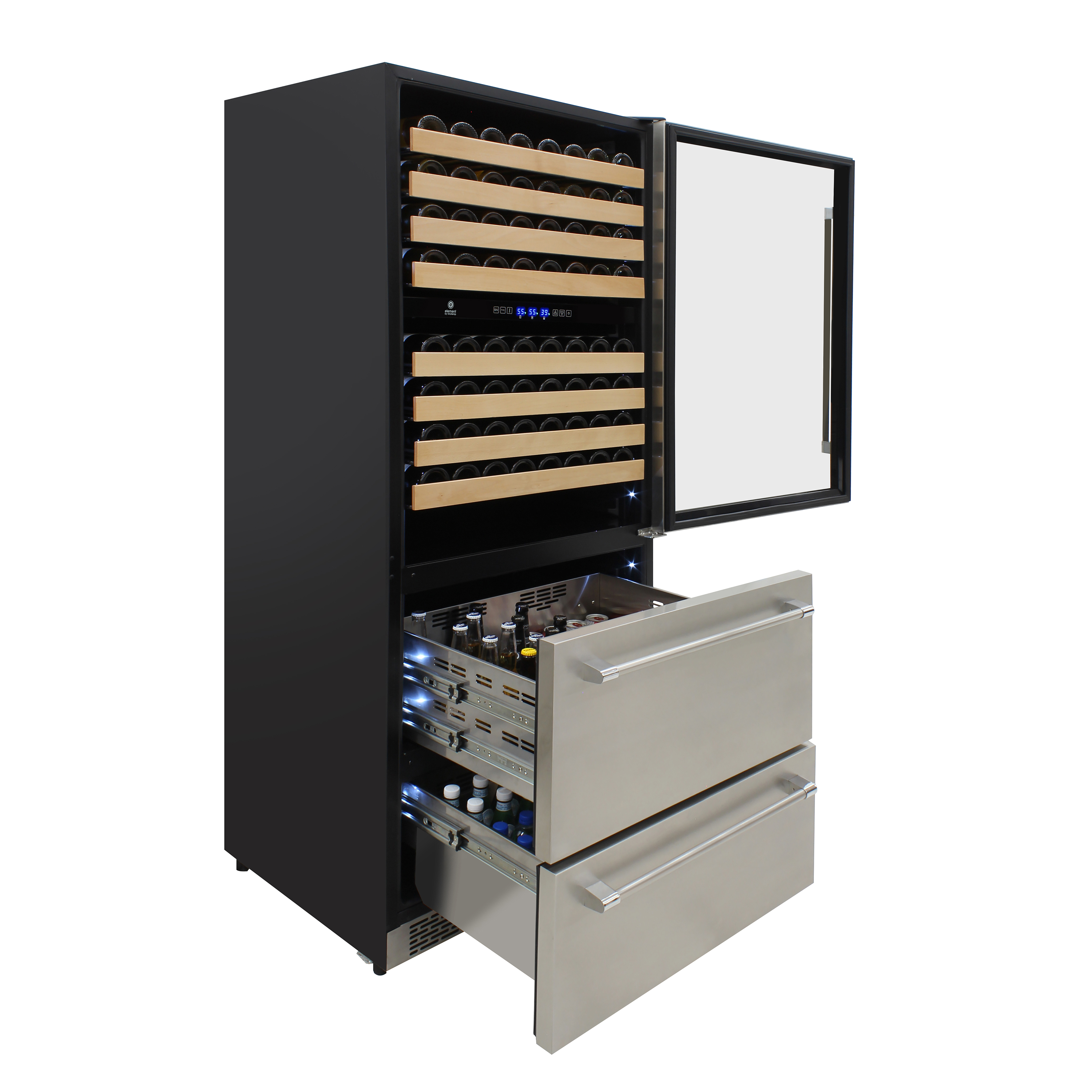

| Bullet 6 | Drawers on the bottom with storage baskets |
| Bullet 7 | White LED display light to best view your collection |

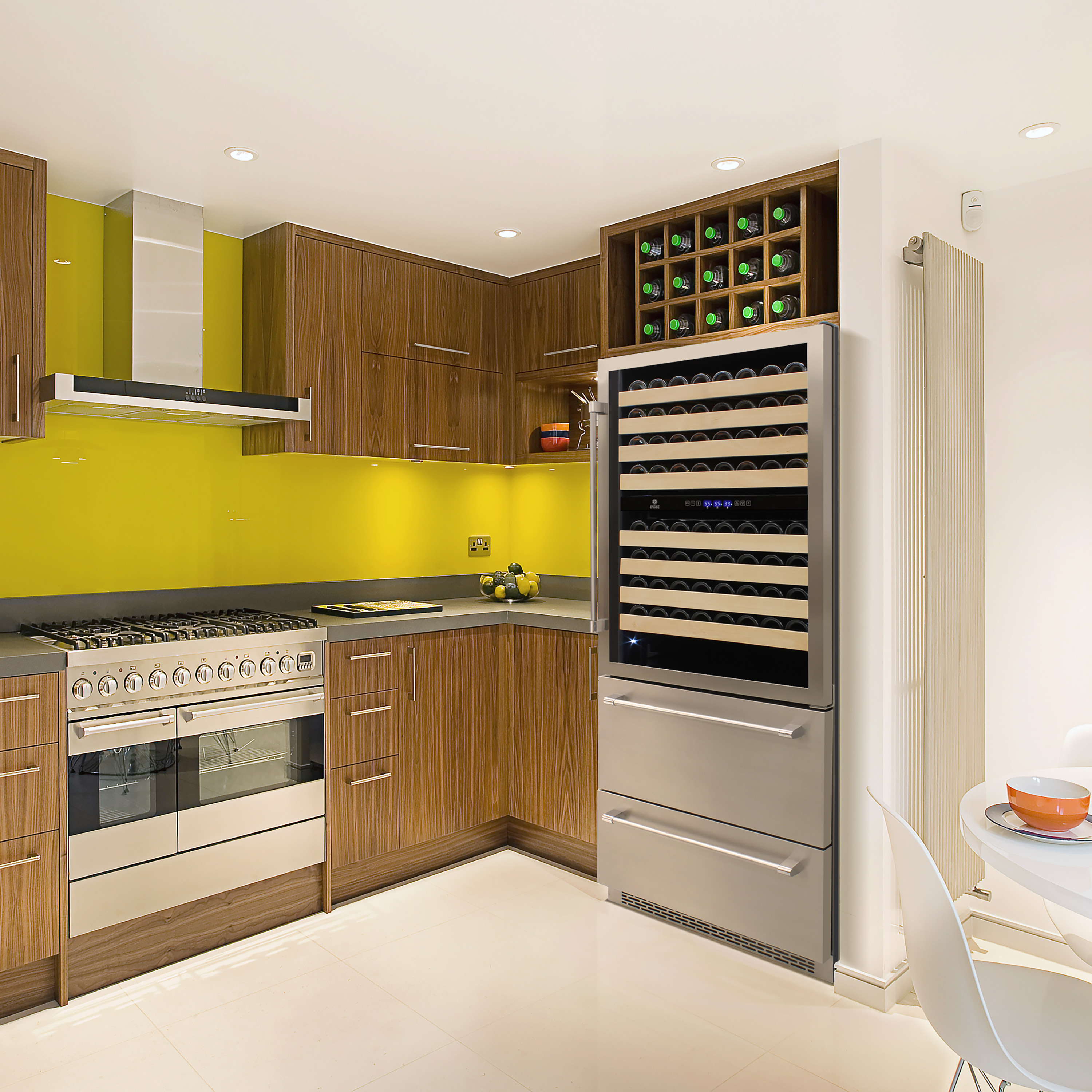

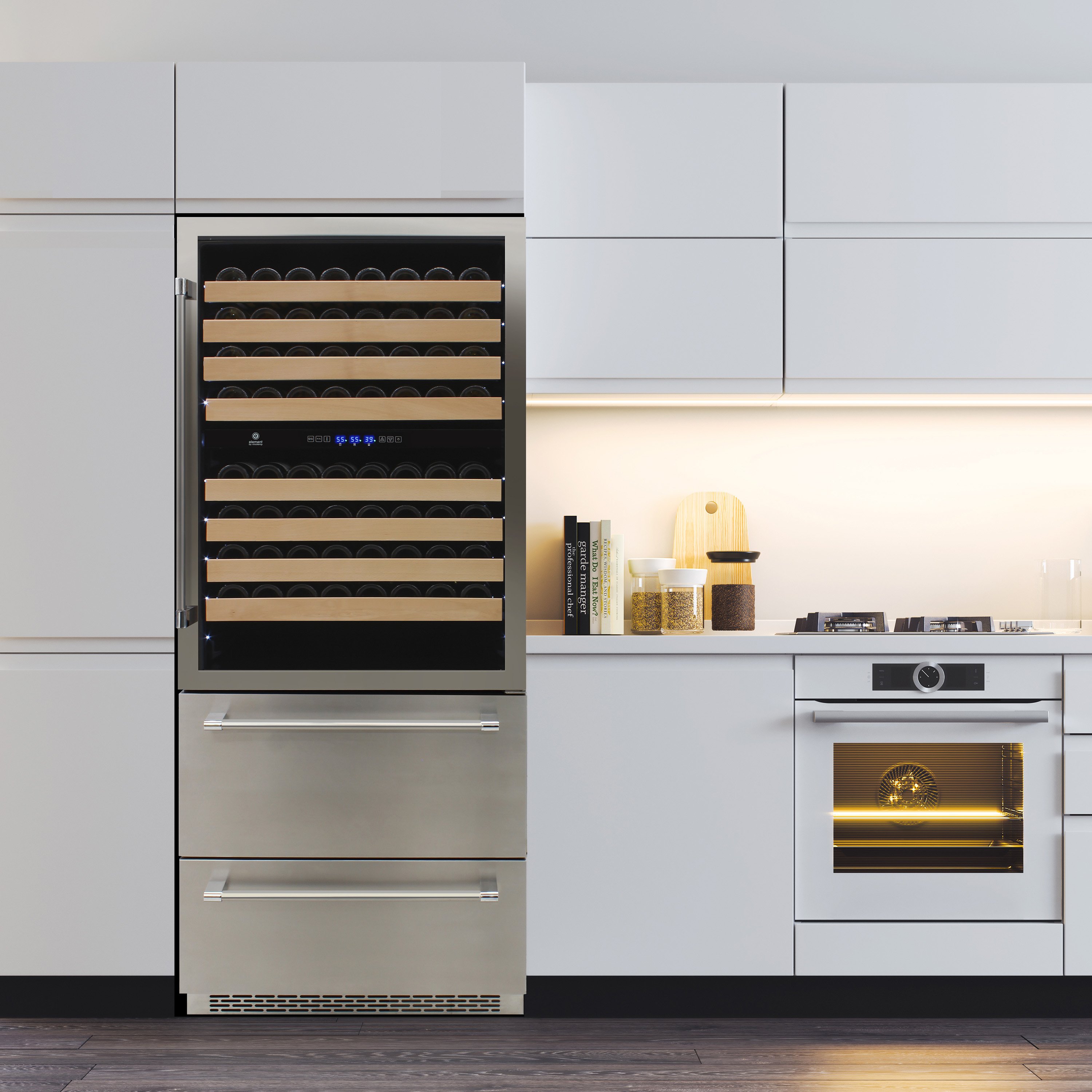

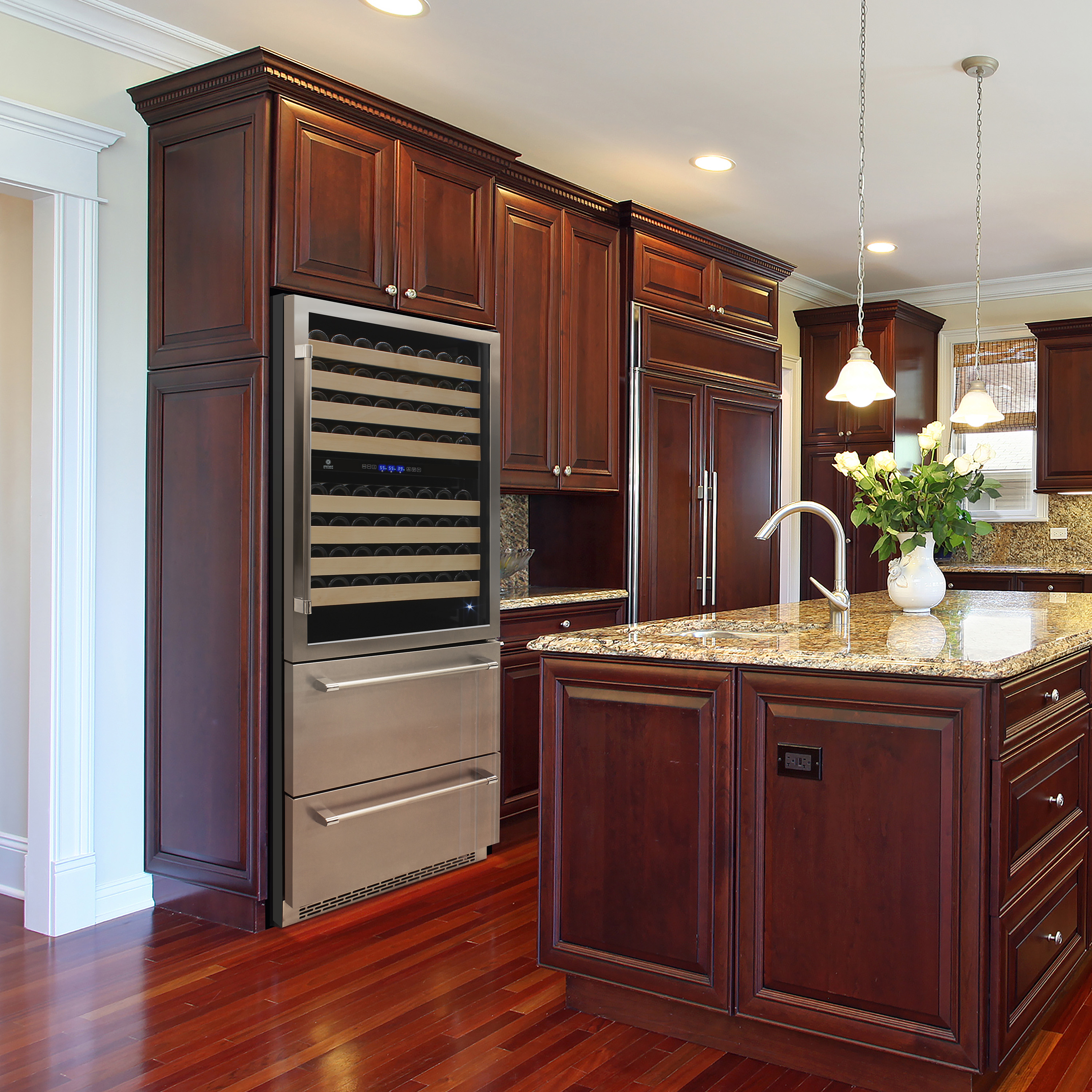

| Bullet 8 | Built-in or freestanding installation |
| Bullet 9 | Temperature range: upper zone 47°-56°F / lower zone 56°-65°F / drawers 39°-47°F |
| Bullet 10 | Volume: 21.2 cu ft |

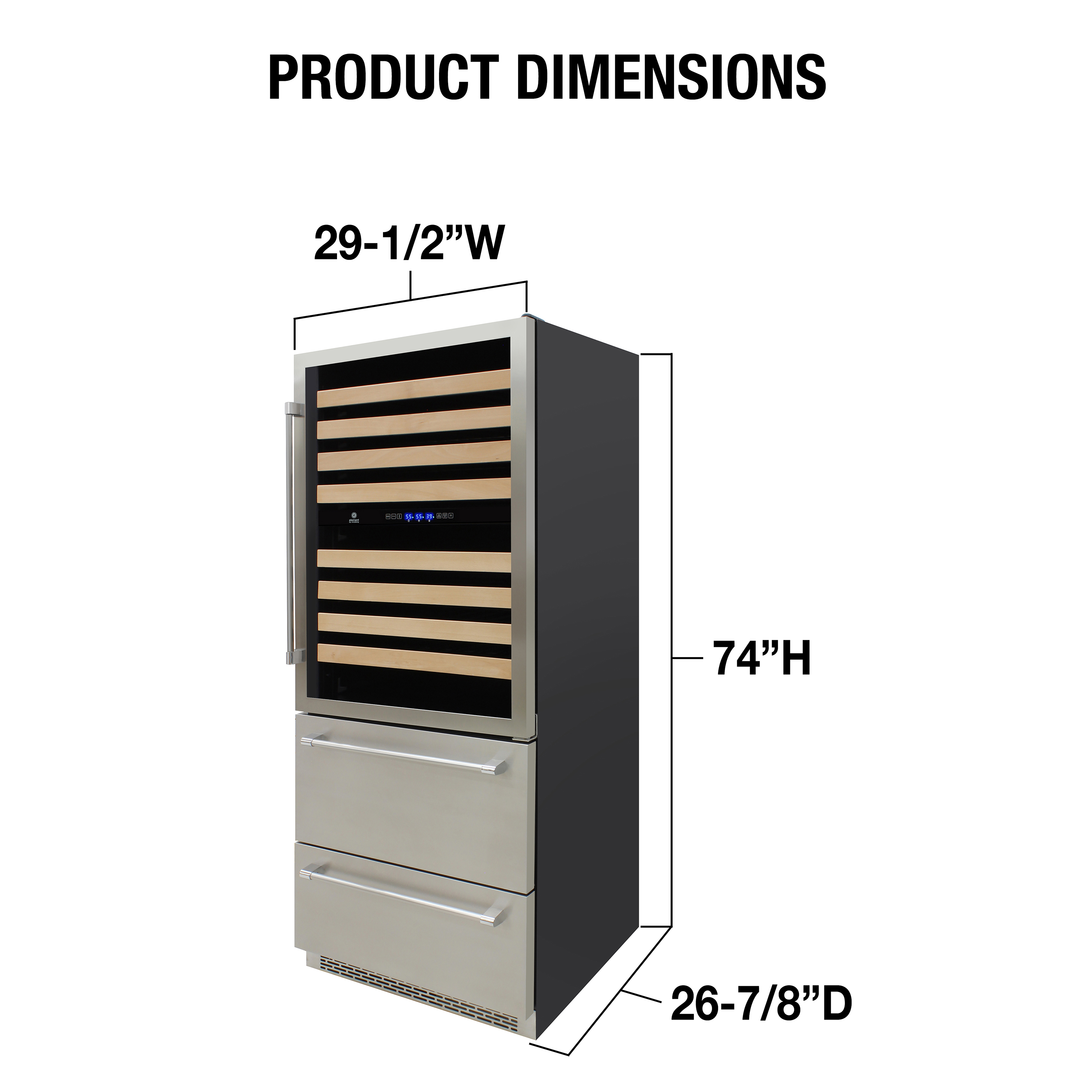

| Assembled Dimensions (in) | 26.88" x 29.5" x 74" |
|---|---|
| Assembled Weight (lb) | 332.96 |
| Assembly Required | No |
| Capacity | 135 Bottles |
| Color | Stainless Steel |
| Material | Stainless Steel |
| Installation Type | Freestanding or Built-In |
| Cutout Depth - Front to Back | 27.56" |
| Cutout Width - Side to Side | 33.46" |
| Cutout Height - Top to Bottom | 77.17" |
| Door Swing Orientation | Right |
| Depth - Door Open 90° | 56.375 |
| Portable | No |
| Outdoor Use | No |
| Adjustable Shelves | No |
| Adjustable Temperature Control | Yes |
| Temperature Range | 47° - 65° |
| First Zone Bottle/Can Capacity | 64 Bottles |
| First Zone Minimum Temperature | 34° |
| First Zone Maximum Temperature | 64° |
| Second Zone Bottle/Can Capacity | 71 Bottles |
| Second Zone Minimum Temperature | 34° |
| Second Zone Maximum Temperature | 64° |
| Third Zone Minimum Temperature | 34° |
| Third Zone Maximum Temperature | 64° |
| Door Material | Stainless Steel |
| Anti-Vibration Technology | No |
| Automatic Shut Off | No |

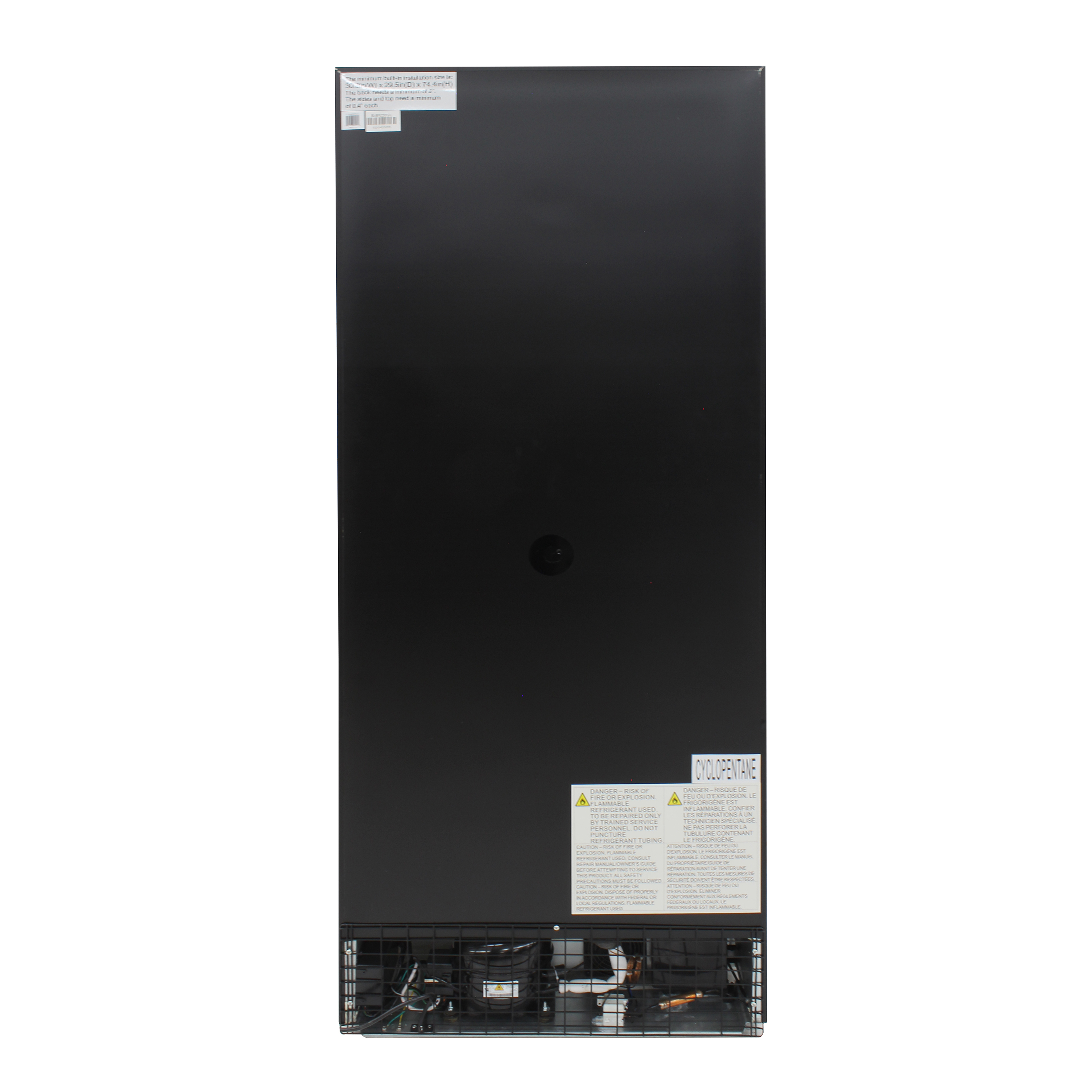

| Compressor Location | Back/Bottom |
| Cooling System | Compressor |
| Door Color/Finish | Stainless Steel |
| Door Storage Type | None |
| Integrated Lock | No |
| Quiet Operation | No |
| Refrigerant Ounces | 1.69 |
| Refrigerant Type | R600a |
| Undercounter | No |
| Electric | Yes |
|---|---|
| Electrical Specs - Current (A), Voltage (V), Consumption (W) | 3.22A/115V/370W |
| Adjustable Temperature Control | Yes |
| Temperature Range | 47° - 65° |
| First Zone Maximum Temperature | 64° |
| First Zone Minimum Temperature | 34° |
| Second Zone Minimum Temperature | 34° |
| Second Zone Maximum Temperature | 64° |
| Third Zone Minimum Temperature | 34° |
| Third Zone Maximum Temperature | 64° |
| Batteries Required | No |
| Number of Doors | 1 |
|---|---|
| Number of Drawers | 2 |
| Number of Shelves | 8 |
| Number of Temperature Zones | 3 |
| Item Package Dimensions (in) | 29.10" x 30.90" x 75.60" |
|---|---|
| Item Package Weight (lb) | 374 |
| Shipping Dimensions (in) | 31.50" x 30.00" x 77.20" |
| Shipping Weight | 335 |
| Shipping Quantity | 1 |
| Ship Type | LTL |
| Country of Origin | CN-CHINA |
| Harmonized Tariff Code (US) | 8418.50.0080 |
| Freight Class | 100 |
| Prop 65 Compliant | Yes |
|---|---|
| Prop 65 Chemical | Nickel (Metallic) |
| Prop 65 Warning Type | CALIFORNIA WARNING: Can expose you to Di(2-ethlhexyl) phlthalate (DEHP), a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov. |
| North American Gas/Electric Certification | cETL Listed |
| CEC Certified | Yes |
| NRCan Listed | No |
| Flammable Gasses | Yes |
| Refrigerant Type | R600a |
| Refrigerant Ounces | 1.69 |
| TAA Compliant | No |
