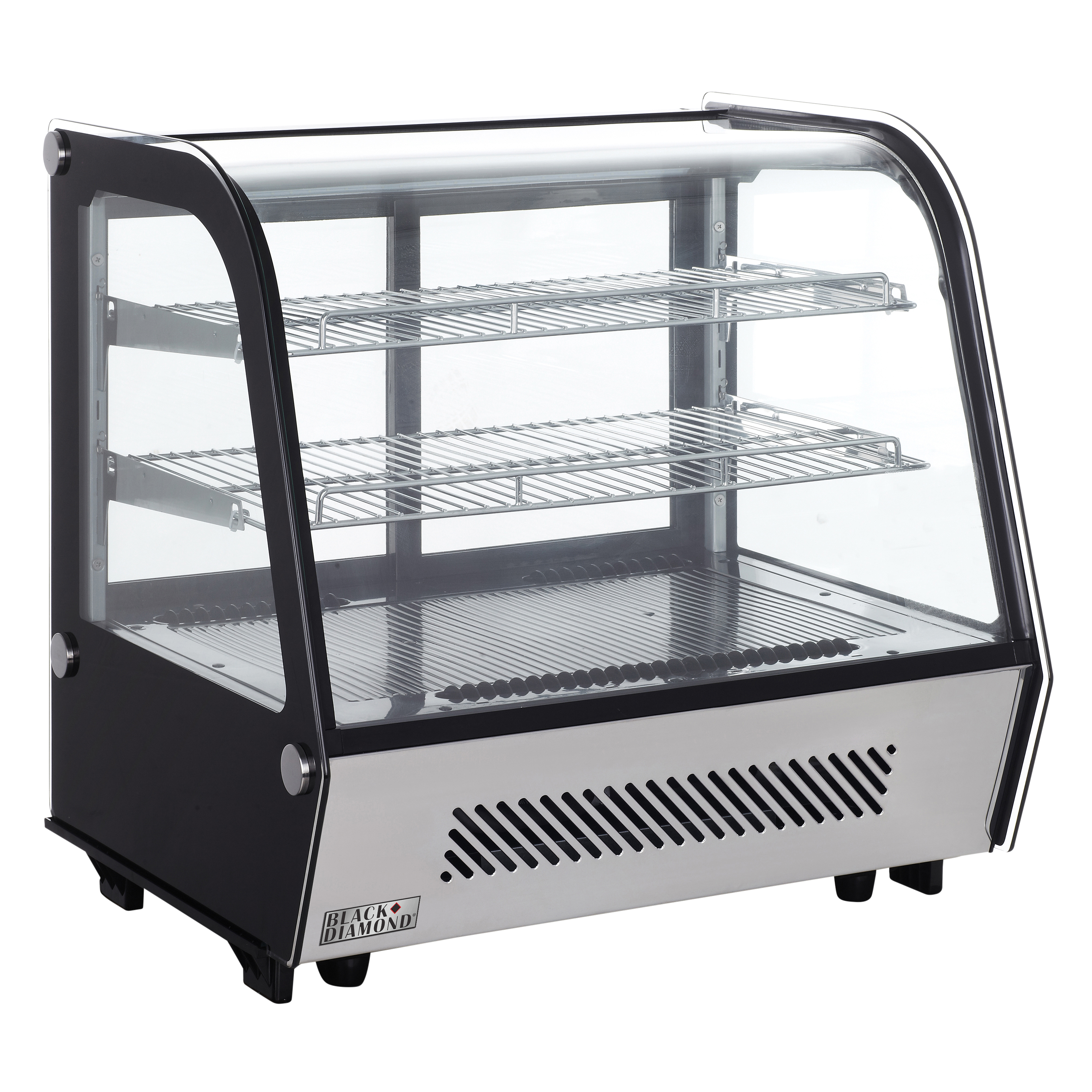

Black Diamond Refrigerated Countertop Display Case
BDRCTD-P
| Description | BD COUNTER DISPLAY 120L/4.2 CU. FT. |
|---|---|
| SKU | BDRCTD-120 |
| UPC | 840342805754 |
| Model | BDRCTD-P |
| Brand | Black Diamond |
| Collection | OG-BD |
| Product Line | Cooling |
| Category | Refrigerator |
| Subcategory | Countertop Display Case |
| Commercial / Residential | Commercial |
| SKU Status | Established |
|---|---|
| Warranty | One (1) Year Limited Warranty on Parts and Labor, One (1) Year Warranty on Compressor and Evaporator |
| List Price | 2300 |
|---|---|
| MAP Price | 1699.99 |
| Long Description | Maximize your product display and preservation with the Black Diamond Refrigerated Countertop Display Case, meticulously engineered for the demands of busy commercial environments. This unit features a robust stainless steel exterior and high-visibility PVC glass doors, combining durability with superior aesthetics to attract and engage customers at bakeries, cafes, delis, and coffee shops. With a 4.2 cu. ft. capacity, there's ample space to showcase a variety of chilled offerings—from desserts and pastries to sandwiches, salads, and beverages—while maintaining convenient access with dual sliding glass doors. The advanced bottom front-mounted 0.25 HP compressor ensures reliable cooling performance and rapid temperature recovery, supported by an eco-conscious R290 refrigerant system for sustainable operation. A digital control and display panel provides precise temperature management within a 32° to 53.6°F range, guaranteeing food safety and optimal freshness. Two adjustable shelves allow for flexible storage configurations, adapting easily to changing inventory or presentation needs. Internal LED lighting beautifully highlights every item, amplifying visual impact and driving impulse purchases. Maintenance is stress-free thanks to an automatic defrost system, while the curved glass design delivers maximum visibility from every angle. Additional features—including a NEMA 5-15P plug, automatic shutoff, durable shelf construction, and integrated lock—make installation straightforward and operation secure. Certified to cETL and ETL standards for commercial safety and quality, this display case reinforces confidence for operators. Perfect as a countertop bakery display, tabletop cooler display, or compact deli merchandiser, the Black Diamond Refrigerated Countertop Display Case offers reliable value and lasting performance. Enjoy peace of mind with the included one-year limited warranty, reflecting Black Diamond's commitment to quality and customer satisfaction. |
|---|---|
| Bullet 1 | Offers a 4.2 cu ft capacity for versatile product displays |
| Bullet 2 | Equipped with a 0.25 horsepower bottom front compressor for efficient, reliable cooling |
| Bullet 3 | Constructed with stainless steel exterior and PVC glass doors for strength and visibility |
| Bullet 4 | Maintains temperature range of 32° to 53.6°F for food safety |
| Bullet 5 | Sliding glass doors enable convenient access and effective product display |
| Bullet 6 | Includes two adjustable shelves for flexible merchandising |
| Bullet 7 | Static base provides secure placement without casters |
| Bullet 8 | Measures 27"H x 22.25"W x 28"D for compact countertop placement |
| Bullet 9 | Covered by the Black Diamond one-year limited warranty |
| Bullet 10 | Certified to cETL and ETL standards for safety and quality |
| Use and Care Instructions | Wash the inside with a damp warm cloth containing a water and baking soda solution |
| Dishwasher Safe Components | No |
| Included Components | (2) Shelves |
| Assembled Dimensions (in) | 28.00" x 22.25" x 27.00" |
|---|---|
| Assembled Weight (lb) | 126 |
| Assembly Required | Yes |
| Capacity | 4.2 cu. ft. |
| Color | Stainless Steel |
| Material | Stainless Steel and Glass |
| Non-Stick | Yes |
| Installation Type | Freestanding |
| Door Swing Orientation | Sliding |
| Depth - Door Open 90° | 28.00 |
| Depth - Excluding Door | 28.00 |
| Depth - Excluding Handles | 28.00 |
| Height - Excluding Top Hinge | 27.00 |
| Cooking Area Depth - Front to Back | 14" |
| Cooking Area Width - Side to Side Number | 14" |
| Cooking Area Height - Top to Bottom | 2.76" |
| Interior Lighting | Yes |
| Portable | No |
| Outdoor Use | No |
| Adjustable Shelves | Yes |
| Adjustable Temperature Control | Yes |
| Temperature Range | 32° - 53.6° |
| Door Material | PVC Glass |
| Automatic Shut Off | Yes |
| Casters | No |
| Compressor Location | Bottom Front |
| Control Type | Digital |
| Cooling System | Compressor |
| Defrost System Type | Automatic |
| Door Color/Finish | Standard Door frame is black |
| Door Storage Type | None |
| Drip Tray Included | No |
| Freezer Capacity | 4.2 cu. ft. |
| Freezer Type | Internal |
| Integrated Lock | Yes |
| Refrigerant Ounces | 1.94 oz |
| Refrigerant Type | R290 |
| Sensor Cooking | Yes |
| Undercounter | No |
| Vat Depth (in.) | 14 |
| Vat Width (in.) | 14 |
| Vent Placement | Front/Top |
| Electric | Yes |
|---|---|
| Electrical Specs - Current (A), Voltage (V), Consumption (W) | 1.8A/110-120V/199W |
| Utility Frequency (Hz) | 60 |
| HP | 1/4 |
| Power Phase | 1 ph |
| Avg. Energy Consumption (kWh / day) | 1.81 |
| Avg. Energy Consumption (kWh / year) | 660 |
| Cordless | No |
| Cord Length (Inches) | 50" |
| Plug Type | NEMA 5-15P |
| Adjustable Temperature Control | Yes |
| Temperature Range | 32° - 53.6° |
| Gas Type | LP |
| Batteries Required | No |
| Number of Burners | 4 |
|---|---|
| Number of Doors | 2 |
| Number of Drawers | 1 |
| Number of Items | 1 |
| Number of Power Levels | 1 |
| Number of Settings | 1 |
| Number of Shelves | 2 |
| Number of Temperature Zones | 1 |
| Unit of Measure | EA |
|---|---|
| Item Package Dimensions (in) | 28.00" x 22.25" x 27.00" |
| Shipping Dimensions (in) | 31.20" x 25.50" x 29.70" |
| Shipping Weight | 132 |
| Shipping Quantity | 1 |
| Pallet Dimensions (in) | 30.00" x 34.00" x 34.00" |
| Pallet Weight (lbs) | 180 |
| Pallet Quantity | 1 |
| Pallet Ti/Hi | 1 |
| Shipped Assembled? | Yes |
| Packaging Type | BROWN BOX |
| Ship Type | LTL |
| Country of Origin | CN-CHINA |
| Harmonized Tariff Code (US) | 8418.50.0080 |
| Freight Class | 92.5 |
| AB1200 Compliant | No |
|---|---|
| AB1200 Label Needed | None |
| Prop 65 Compliant | Yes |
| Prop 65 Warning Type | CALIFORNIA WARNING: Can expose you to Di(2-ethlhexyl) phlthalate (DEHP), a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov. |
| BPA Free | Yes |
| North American Gas/Electric Certification | cETLus Listed |
| Sanitation | ETLS Listed |
| CE Marked | No |
| Flammable Gasses | Yes |
| Refrigerant Type | R290 |
| Refrigerant Ounces | 1.94 oz |
| SIOC Certified | No |
| ADA Compliant | No |
| TAA Compliant | No |
