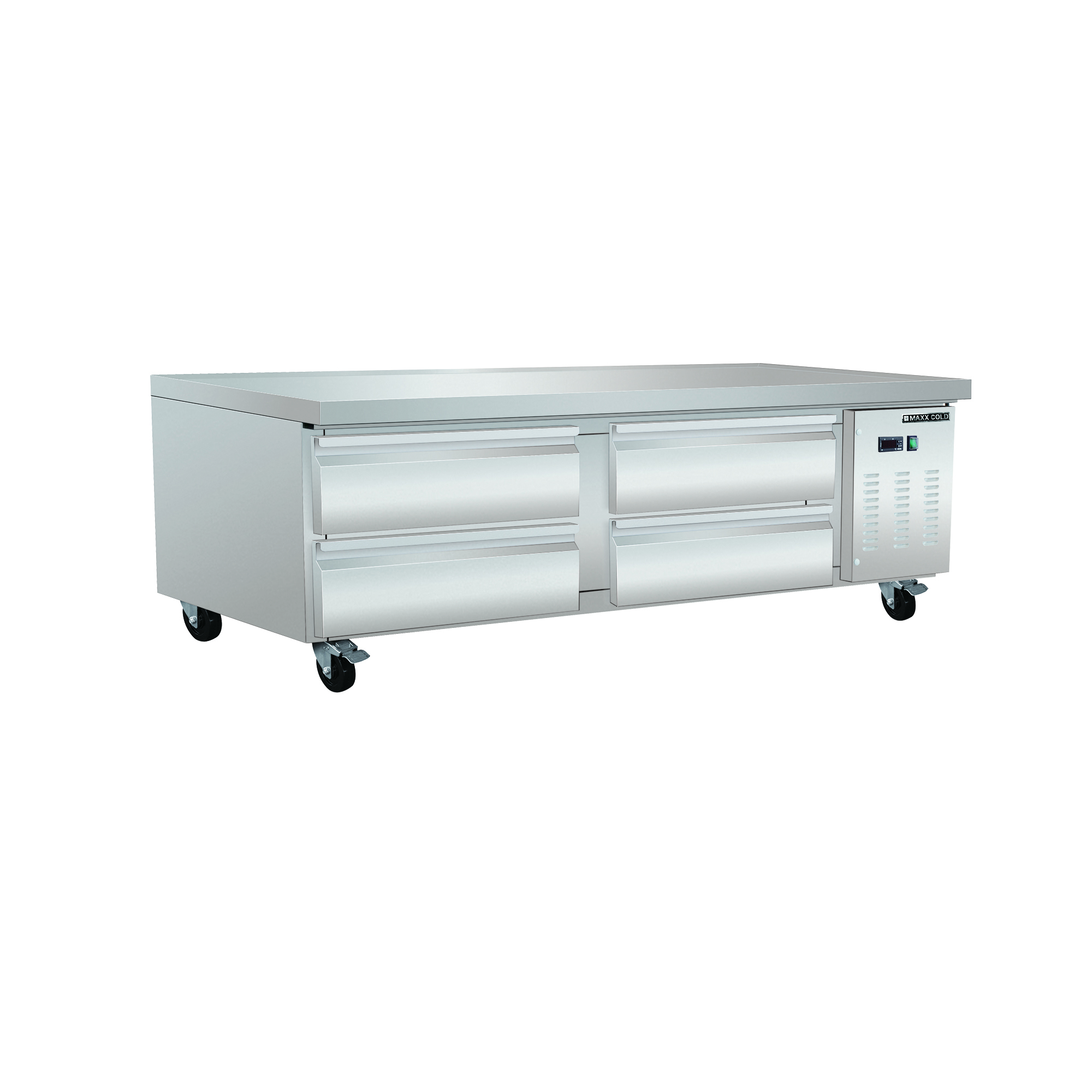

Maxx Cold X-Series Four-Drawer Refrigerated Chef Base
MXCB72HC
| Description | 74" Four Drawers Refrigerated Chef Base in Stainless Steel - 11.1 Cu. Ft. |
|---|---|
| SKU | MXCB72HC |
| UPC | 845035010637 |
| Model | MXCB72HC |
| Brand | Maxx Cold |
| Collection | X-Series Refrigeration |
| Product Line | Cooling |
| Category | Refrigerator |
| Subcategory | Chef Base |
| Commercial / Residential | Commercial |
| SKU Status | Harvest |
|---|---|
| Discontinued Date | 2026-01-27 |
| Warranty | 2 Years Parts & Labor + 5 Years Compressor (Part Only) |
| Alternative SKU | MXCB60HC |
| List Price | 8483 |
|---|---|
| SRP | 7043 |
| MAP Price | 3999.99 |
| Long Description | Offer staff a functional, organized and space-saving solution for food preparation in your commercial kitchen with the Maxx Cold X-Series Four-Drawer Refrigerated Chef Base. Constructed of durable stainless steel, this commercial chef base has a 74-inch worktop that provides room for countertop equipment such as grills. The refrigerated chef base is equipped with four drawers with easy-to-grip recessed handles and full extension, heavy-duty drawer slides. The drawers provide convenient storage for perishable ingredients, condiments and other food items requiring refrigeration. This refrigerated chef base has a storage capacity of 11.1 cubic feet and is equipped with four 5" swivel casters (two with brakes) for easy mobility in your commercial kitchen. The unit features an LED temperature display, urethane foam insulated walls and drawers, automatic defrost and a side-mounted compressor. The unit uses environmentally friendly refrigerant R290a. Streamline your foodservice operations with the Maxx Cold X-Series Four-Drawer Refrigerated Chef Base. Covered by the Maxx Cold One-Year Parts & Labor + Five-Year Compressor (Part Only) Warranty. |
|---|---|
| Bullet 1 | Constructed of stainless steel with a 74" worktop |

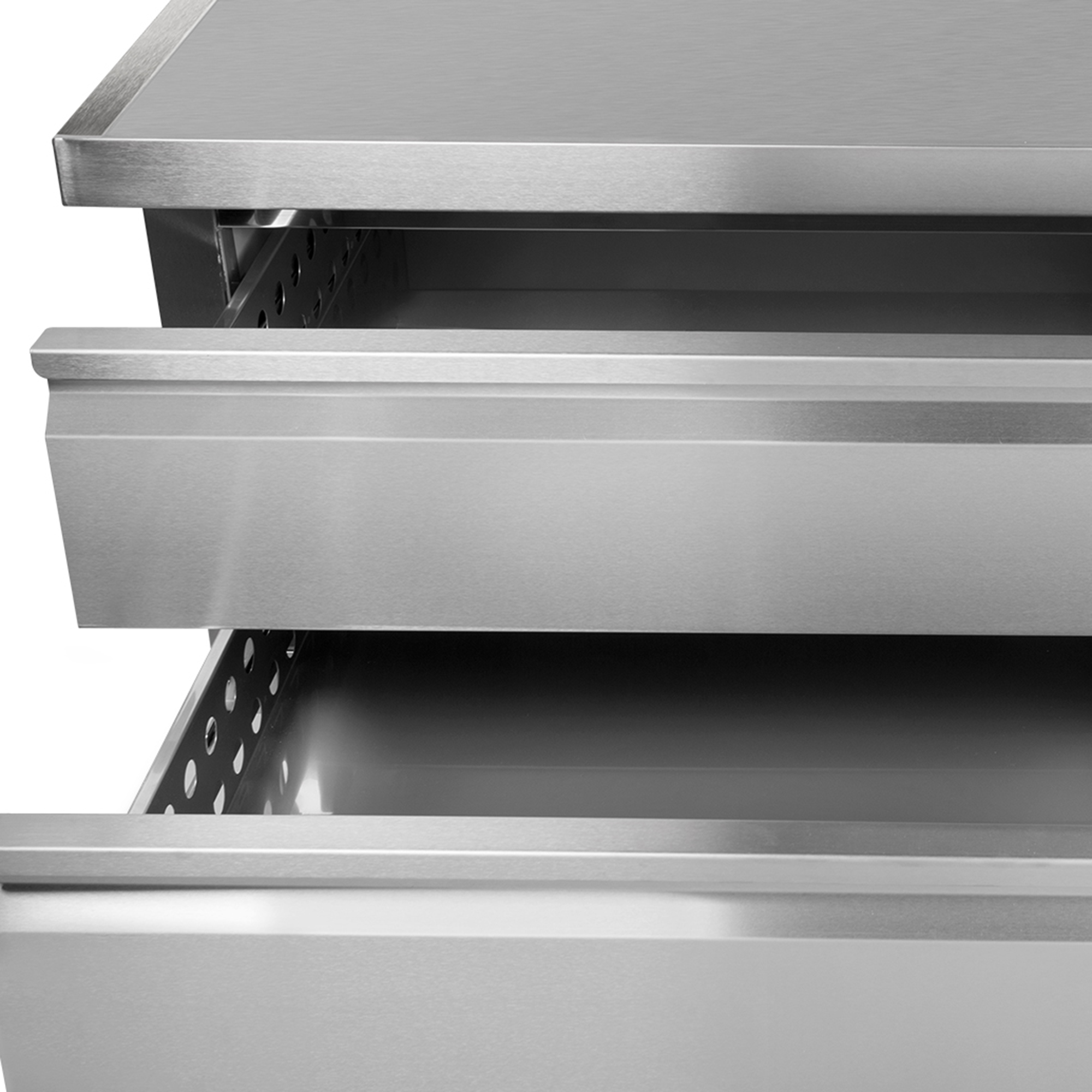

| Bullet 2 | Four drawers with easy-to-grip recessed handles |
| Bullet 3 | Storage capacity of 11.1 cu ft (314 L) |
| Bullet 4 | Full extension, heavy-duty drawer slides |

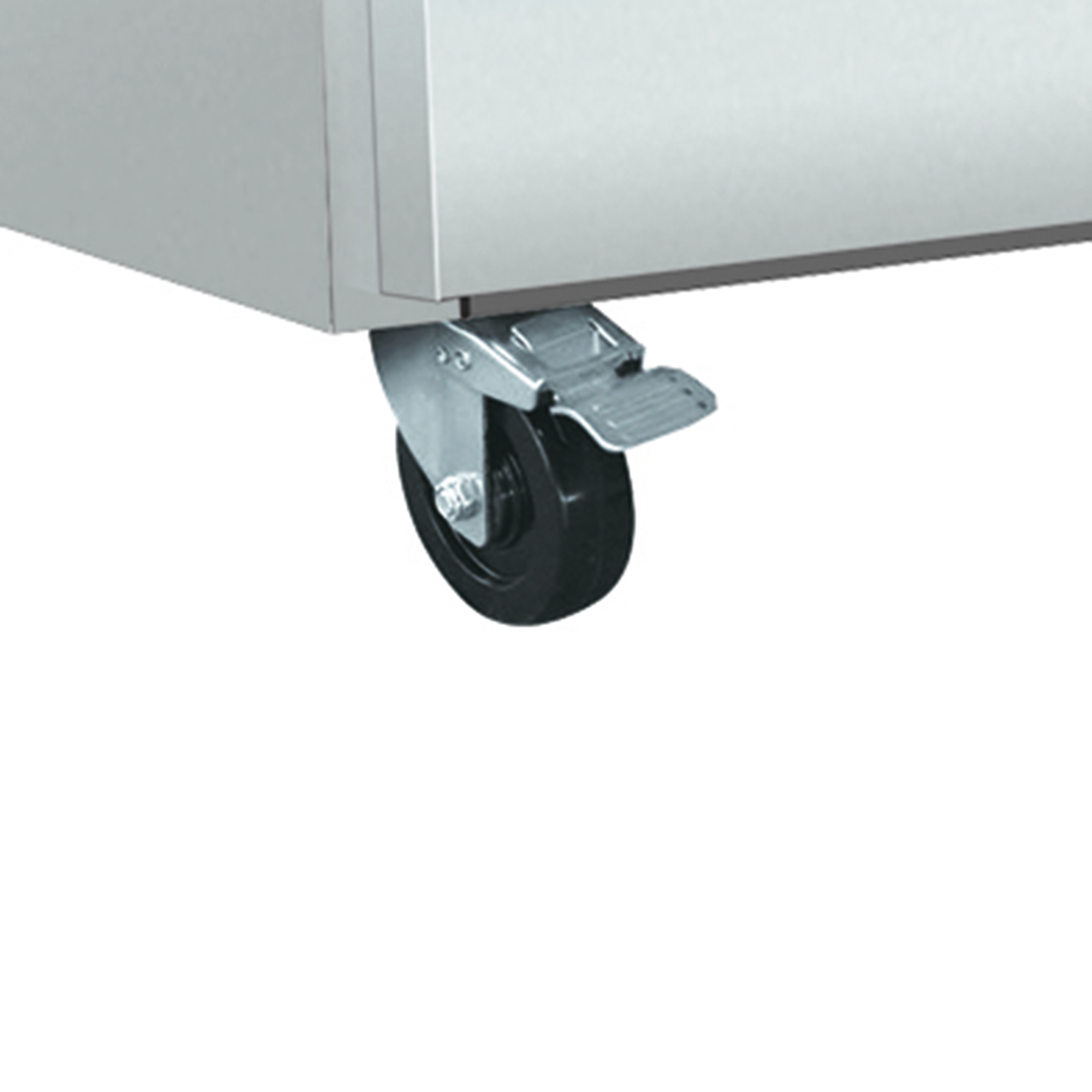

| Bullet 5 | Equipped with four (4) 5” swivel casters (two with brakes) |
| Bullet 6 | Solid-state controls and forced-air system deliver consistent, easily adjustable temperature performance |

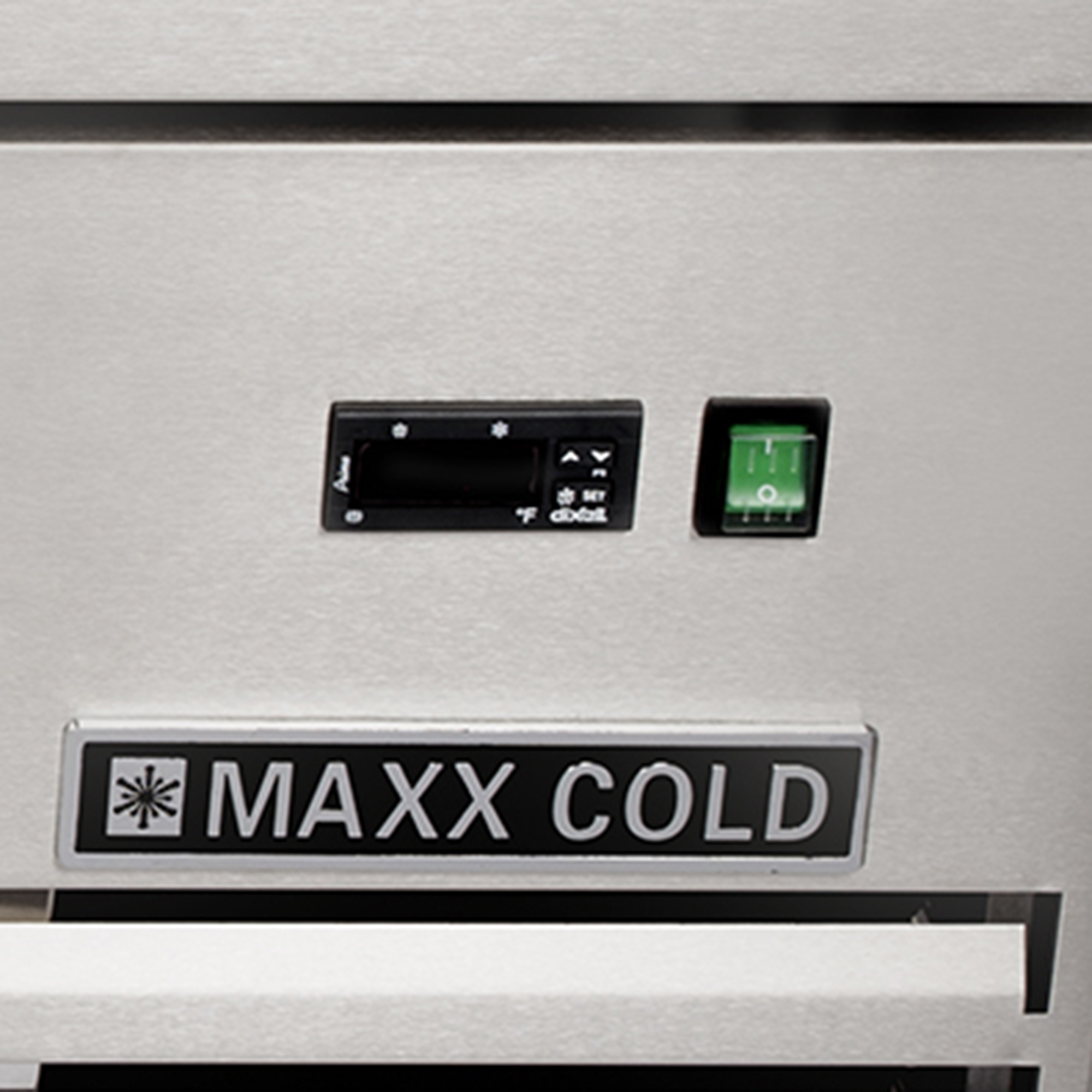

| Bullet 7 | LED temperature display |
| Bullet 8 | Urethane foam insulated walls and drawers |
| Bullet 9 | Holding temperature of 33°F to 41°F (1°C to 5°C) |
| Bullet 10 | Automatic defrost system |
| Use and Care Instructions | Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish. |
| Dishwasher Safe Components | Yes |
| Included Components |
|
| Assembled Dimensions (in) | 31.90" x 74.00" x 26.00" |
|---|---|
| Assembled Weight (lb) | 353 |
| Assembly Required | No |
| Capacity | 11.1 cu. ft. |
| Color | Stainless Steel |
| Material | Stainless Steel |
| Installation Type | Freestanding |
| Door Swing Orientation | Drawer |
| Depth - Door Open 90° | 27.60" |
| Depth - Excluding Door | 31.90" |
| Depth - Excluding Handles | 31.90" |
| Height - Excluding Top Hinge | 26" |
| Interior Lighting | No |
| Portable | No |
| Outdoor Use | No |
| Size | 74" |
| Adjustable Shelves | No |
| Adjustable Temperature Control | Yes |
| Temperature Range | 33° - 41° |
| First Zone Minimum Temperature | 33° |
| First Zone Maximum Temperature | 41° |
| Door Material | Stainless Steel |
| Casters | Yes |
| Caster Size | 5" |
| Control Type | Digital |
| Cooling System | Compressor |
| Defrost System Type | Automatic / Frost Free |
| Door Color/Finish | Stainless Steel |
| Door Storage Type | None |
| Freezer Type | No Freezer |
| Fresh Food Capacity | 11.1 cu. ft. |
| Integrated Lock | No |
| Internal Color | White |
| Refrigerant Ounces | 12.3 oz |
| Refrigerant Type | R290A |
| Undercounter | No |
| Electric | Yes |
|---|---|
| Electrical Specs - Current (A), Voltage (V), Consumption (W) | 2.1A/120V/250W |
| Power Phase | 1ph |
| Avg. Energy Consumption (kWh / day) | 1.49 |
| Avg. Energy Consumption (kWh / year) | 543.9 |
| Cordless | No |
| Cord Length (Inches) | 72" |
| Plug Type | NEMA 5-15P |
| Adjustable Temperature Control | Yes |
| Temperature Range | 33° - 41° |
| First Zone Maximum Temperature | 41° |
| First Zone Minimum Temperature | 33° |
| Batteries Required | No |
| Number of Doors | 0 |
|---|---|
| Number of Drawers | 4 |
| Number of Items | 1 |
| Number of Shelves | 0 |
| Number of Temperature Zones | 1 |
| Unit of Measure | EA |
|---|---|
| Shipping Dimensions (in) | 84.00" x 40.00" x 31.00" |
| Shipping Weight | 377 |
| Shipping Quantity | 1 |
| Shipped Assembled? | Yes |
| Packaging Type | BROWN BOX |
| Ship Type | LTL |
| Country of Origin | CN-CHINA |
| Harmonized Tariff Code (US) | 8418.50.0080 |
| Freight Class | 150 |
| AB1200 Compliant | Yes |
|---|---|
| AB1200 Label Needed | None |
| Prop 65 Compliant | Yes |
| Prop 65 Warning Type | CALIFORNIA WARNING: Can expose you to Di(2-ethlhexyl) phlthalate (DEHP), a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov. |
| BPA Free | No |
| North American Gas/Electric Certification | cETLus Listed |
| Sanitation | ETLS Listed |
| CE Marked | No |
| CEC Certified | Yes |
| Flammable Gasses | Yes |
| Refrigerant Type | R290A |
| Refrigerant Ounces | 12.3 oz |
| ADA Compliant | No |
| TAA Compliant | No |
