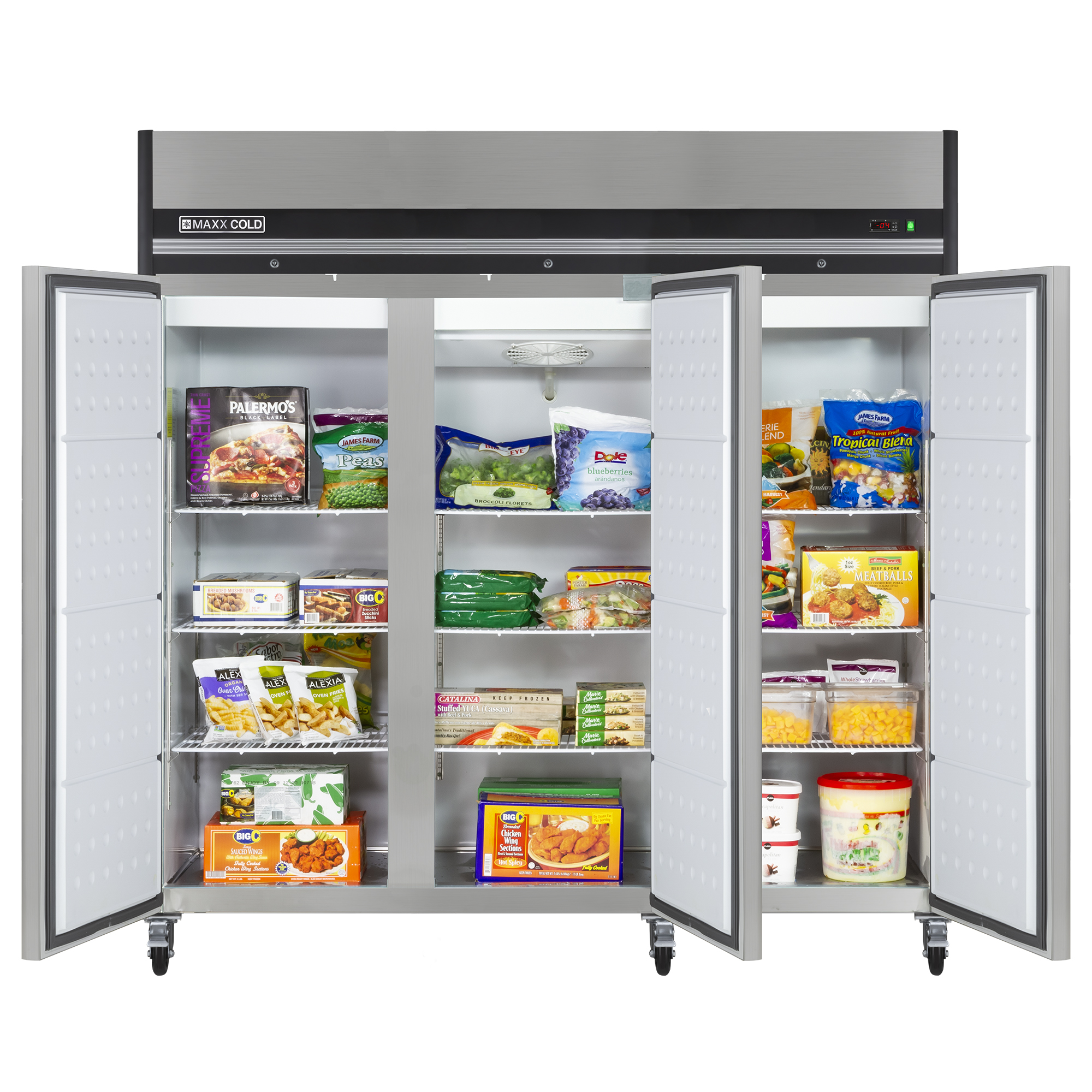

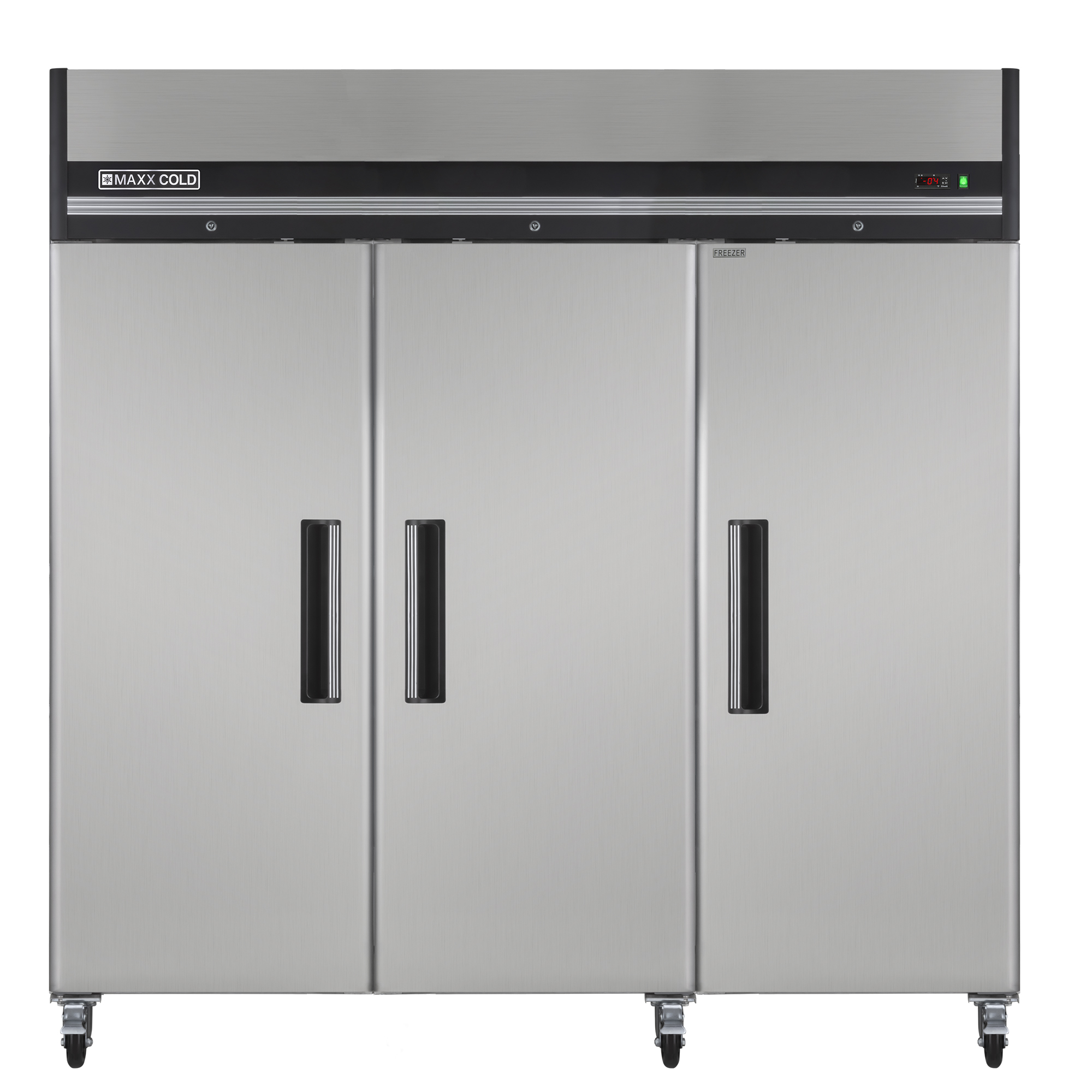

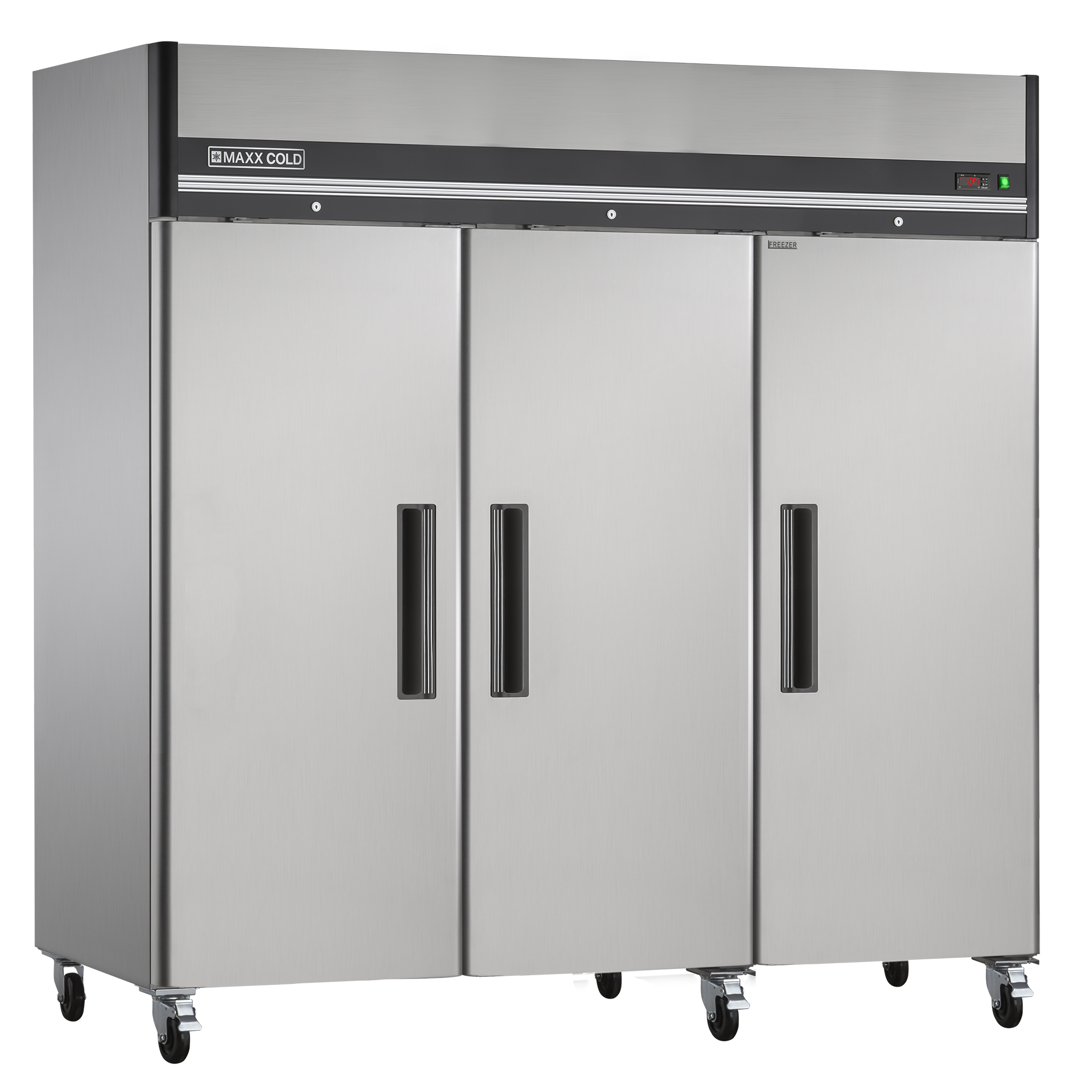

Maxx Cold Triple Door Reach-in Freezer
MXCF-72FDHC
| Description | 81" Triple Door Reach-In Freezer, Top Mount, Stainless Steel |
|---|---|
| SKU | MXCF-72FDHC |
| UPC | 845035004124 |
| Model | MXCF-72FDHC |
| Brand | Maxx Cold |
| Collection | X-Series Refrigeration |
| Product Line | Cooling |
| Category | Freezer |
| Subcategory | Reach-In |
| Commercial / Residential | Commercial |
| Transition Item | Yes |
| SKU Status | Harvest |
|---|---|
| Discontinued Date | 2025-10-17 |
| Warranty | 2 Years Parts & Labor + 5 Years Compressor (Part Only) |
| Transitioning From | MXCF-72FD |
| List Price | 15087 |
|---|---|
| SRP | 12498 |
| MAP Price | 6999.99 |

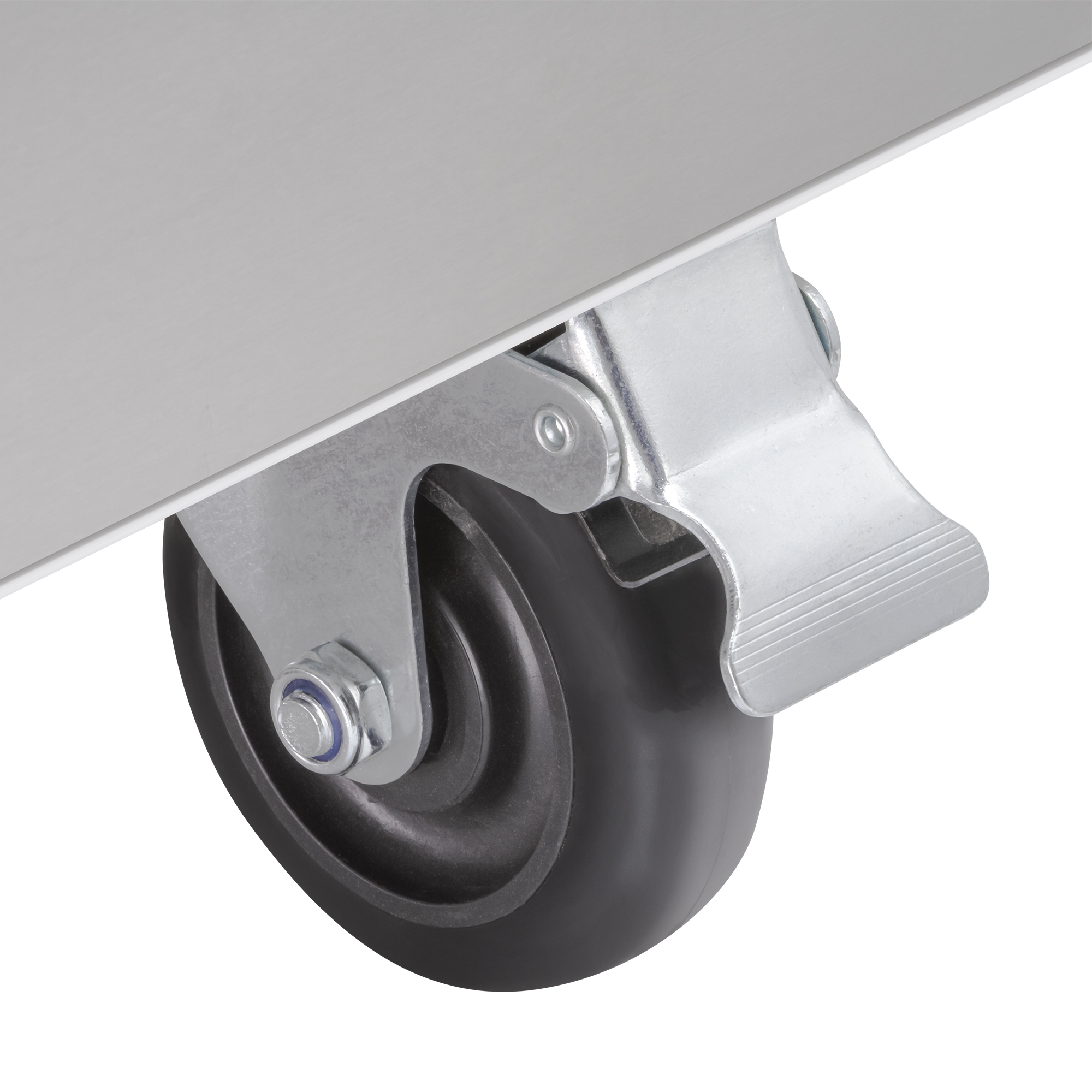

| Long Description | Store frequently accessed foodservice products within reach and at the proper storage temperature with the Maxx Cold Triple Door Reach-in Freezer. Constructed of durable stainless steel, this commercial reach-in freezer features three self-closing doors and a painted aluminum interior. The cabinet is equipped with nine heavy-duty fully adjustable and easy to clean wire shelves which can hold full size sheet pans. This unit provides up to 72 cubic feet of available storage, to hold various frozen foods like meat, seafood, desserts and more. This triple door commercial freezer model is engineered with an open-door alert that beeps if the freezer is left open for three minutes. The unit is mounted on 4-inch diameter swivel caster wheels that can easily be maneuvered. Standard features on this premium indoor freezer include integrated energy saving interior LED lighting, automatic defrost function, recessed door handles with locks and digital temperature control which maintains optimum temperature. Digital temperature display can be viewed from outside the cabinet, which is engineered with an integrated condensate evaporator; meaning no drain line connection is needed. The environmentally friendly urethane foam insulation on this three-door commercial freezer provides outstanding thermal regulation and is energy efficient. |
|---|---|

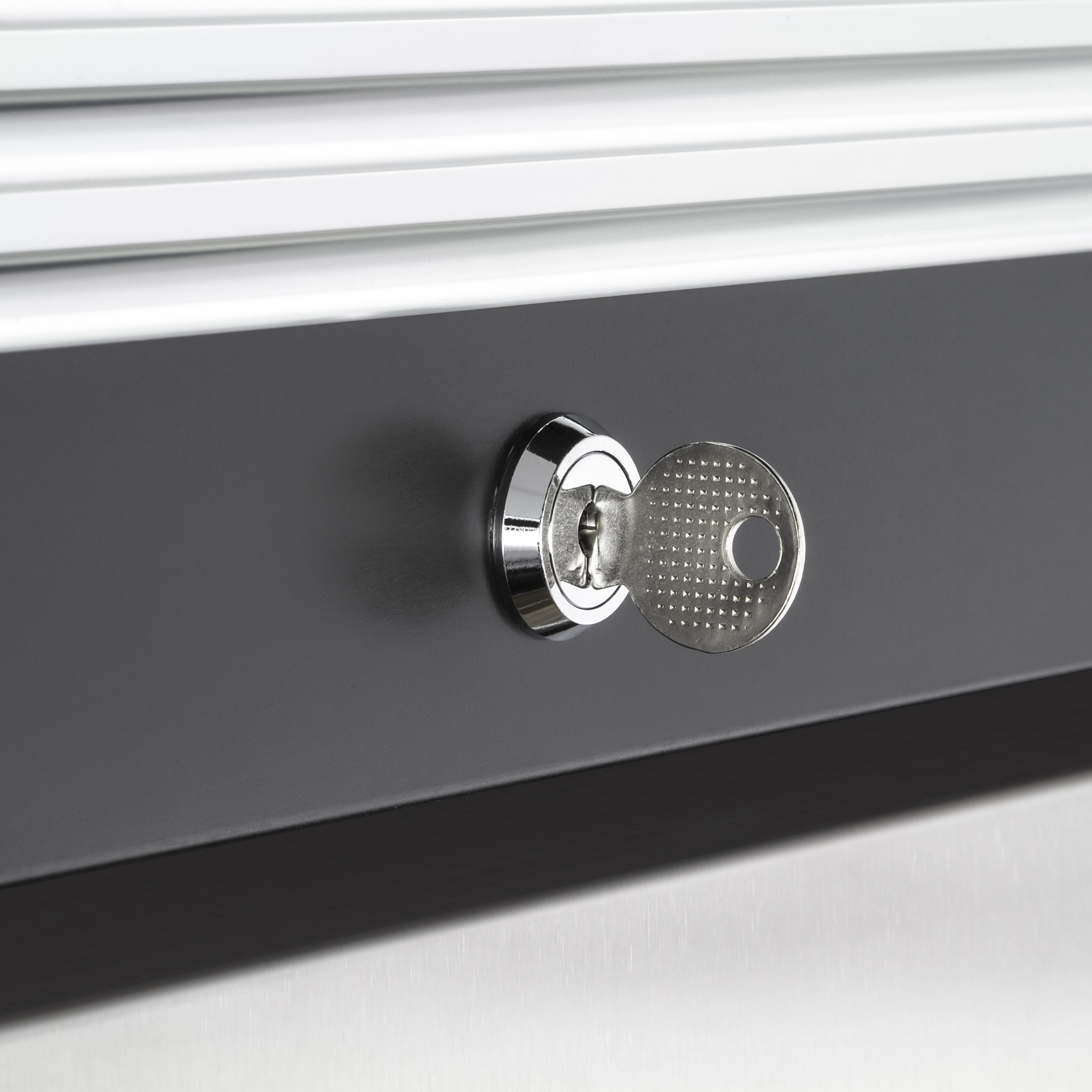

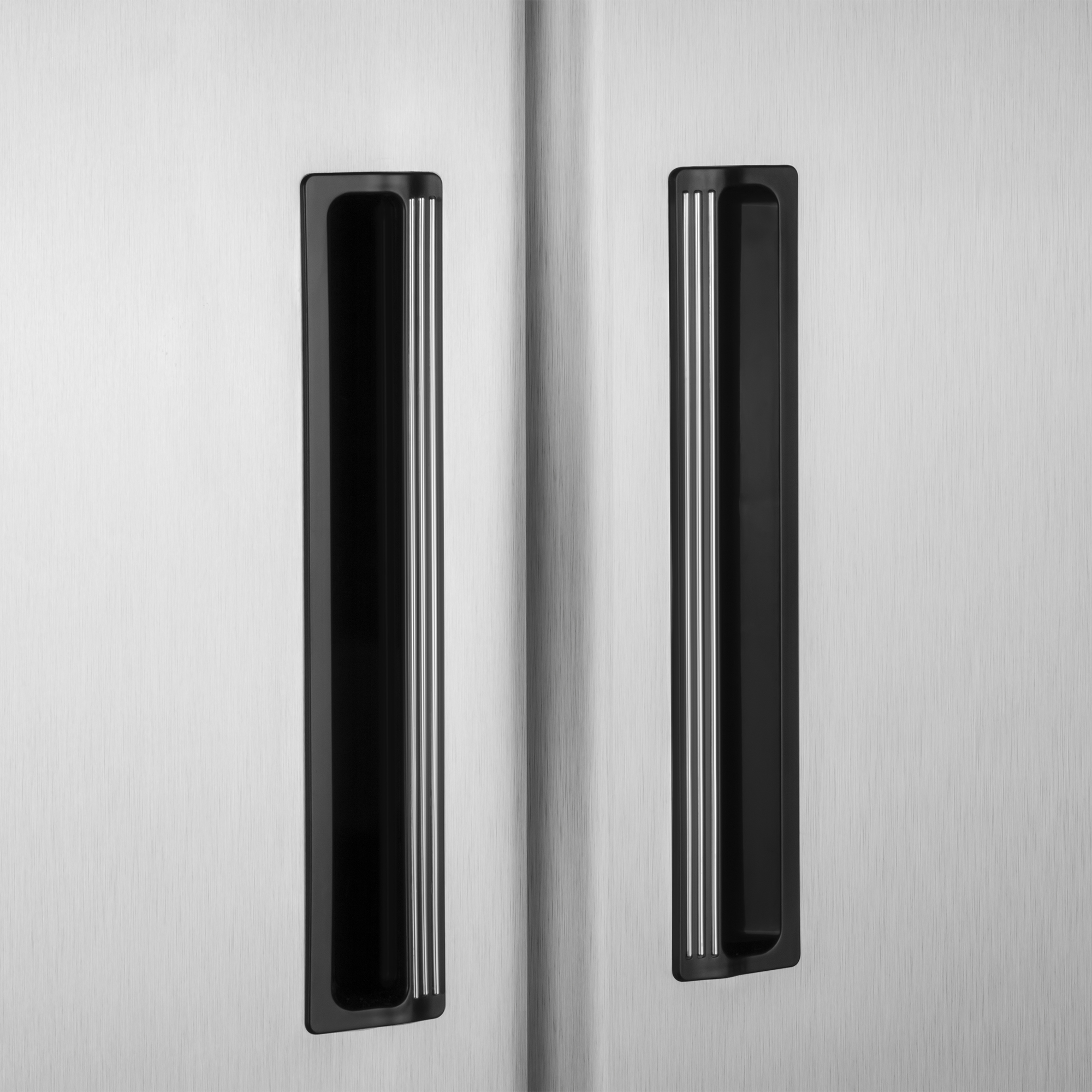

| Bullet 1 | Three self-closing, locking doors with easy-to-grip recessed handles |
| Bullet 2 | Constructed of a durable, easy to clean stainless steel exterior and painted aluminum interior |
| Bullet 3 | Holding temperature -10°F to 10°F (-23°C to -12°C) |
| Bullet 4 | Optimal storage capacity of 72 cu ft |
| Bullet 5 | Open door alert beeps when door has been open for 3 minutes |
| Bullet 6 | Equipped with integrated condensate evaporator therefore no drain line connection is needed |
| Bullet 7 | Automatic defrost system and interior lighting |
| Bullet 8 | Efficient forced-air refrigeration system |

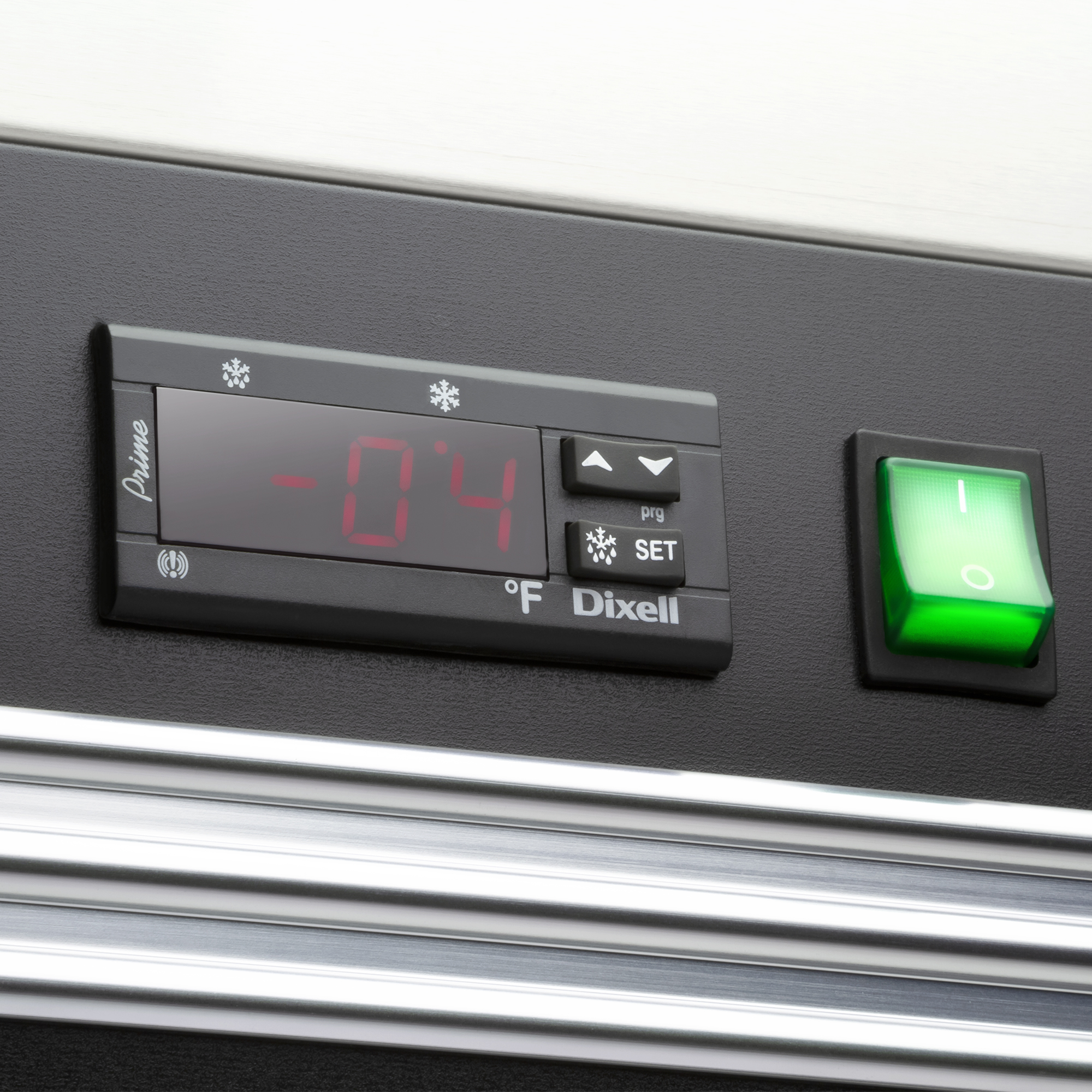

| Bullet 9 | LED display is easily viewed from exterior |

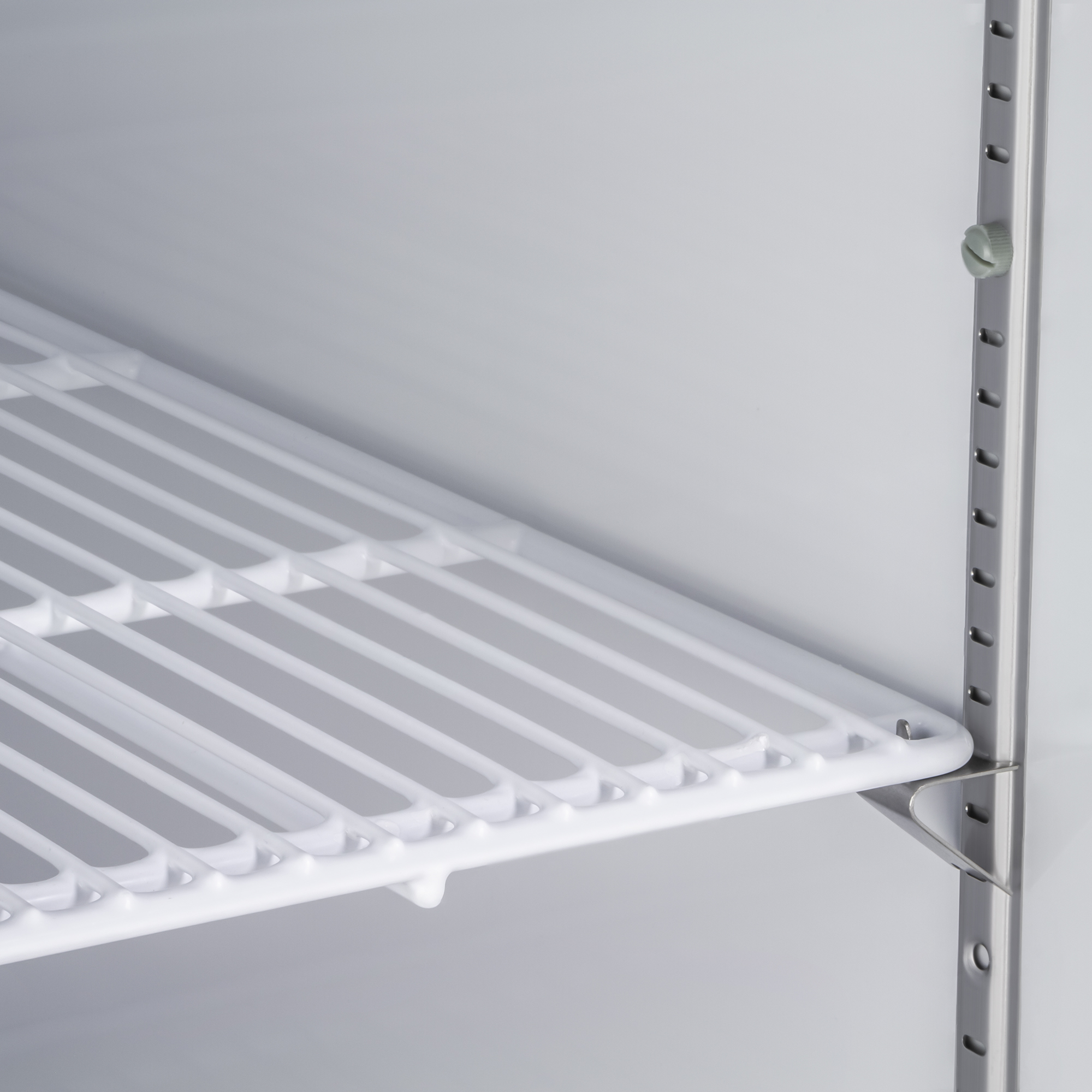

| Bullet 10 | Nine adjustable heavy-duty wire shelves |
| Use and Care Instructions | Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish. |
| Dishwasher Safe Components | Yes |
| Included Components |
|
| Assembled Dimensions (in) | 32.70" x 81.00" x 82.25" |
|---|---|
| Assembled Weight (lb) | 601 |
| Assembly Required | No |
| Capacity | 72 cu. ft. |
| Color | Stainless Steel |
| Material | Stainless Steel |
| Installation Type | Freestanding |
| Door Swing Orientation | French-Door |
| Depth - Door Open 90° | 55.20" |
| Depth - Excluding Door | 32.70" |
| Depth - Excluding Handles | 32.70" |
| Height - Excluding Top Hinge | 82.25" |
| Interior Lighting | Yes |
| Interior Dimensions | 26.50 x 76.10 x 52.10 |
| Portable | No |
| Outdoor Use | No |
| Size | 81" |
| Adjustable Shelves | Yes |
| Adjustable Temperature Control | Yes |
| Temperature Range | -10° - 10° |
| First Zone Bottle/Can Capacity | N/A |
| First Zone Minimum Temperature | -10 |
| First Zone Maximum Temperature | 10 |
| Door Material | Stainless Steel |
| Casters | Yes |
| Caster Size | 4" |
| Compressor Location | Top |
| Control Type | Digital |
| Cooling System | Compressor |
| Defrost System Type | Automatic / Frost Free |
| Door Color/Finish | Stainless Steel |
| Door Storage Type | None |
| Freezer Capacity | 67.7 cu. ft. |
| Freezer Type | Full Freezer |
| Integrated Lock | Yes |
| Internal Color | White |
| Refrigerant Ounces | 29.6 oz |
| Refrigerant Type | R290A |
| Undercounter | No |
| Electric | Yes |
|---|---|
| Electrical Specs - Current (A), Voltage (V), Consumption (W) | 9A/120V/1000W |
| Power Phase | 1ph |
| Kw Power | 1540 |
| Avg. Energy Consumption (kWh / day) | 7.71 |
| Avg. Energy Consumption (kWh / year) | 2814.2 |
| Cordless | No |
| Cord Length (Inches) | 72" |
| Plug Type | NEMA 5-15P |
| Adjustable Temperature Control | Yes |
| Temperature Range | -10° - 10° |
| First Zone Maximum Temperature | 10 |
| First Zone Minimum Temperature | -10 |
| Batteries Required | No |
| Number of Doors | 3 |
|---|---|
| Number of Drawers | 0 |
| Number of Items | 1 |
| Number of Shelves | 9 |
| Number of Temperature Zones | 1 |
| Unit of Measure | EA |
|---|---|
| Shipping Dimensions (in) | 84.00" x 40.00" x 81.00" |
| Shipping Weight | 549 |
| Shipping Quantity | 1 |
| Shipped Assembled? | Yes |
| Packaging Type | BROWN BOX |
| Ship Type | LTL |
| Country of Origin | CN-CHINA |
| Harmonized Tariff Code (US) | 8418.69.0180 |
| Freight Class | 150 |
| AB1200 Compliant | Yes |
|---|---|
| AB1200 Label Needed | None |
| Prop 65 Compliant | Yes |
| Prop 65 Warning Type | CALIFORNIA WARNING: Can expose you to Di(2-ethlhexyl) phlthalate (DEHP), a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov. |
| BPA Free | No |
| North American Gas/Electric Certification | cETLus Listed |
| Sanitation | ETLS Listed |
| CE Marked | No |
| DOE Certified | No |
| CEC Certified | Yes |
| NRCan Listed | No |
| Flammable Gasses | Yes |
| Refrigerant Type | R290A |
| Refrigerant Ounces | 29.6 oz |
| ADA Compliant | No |
| TAA Compliant | No |
