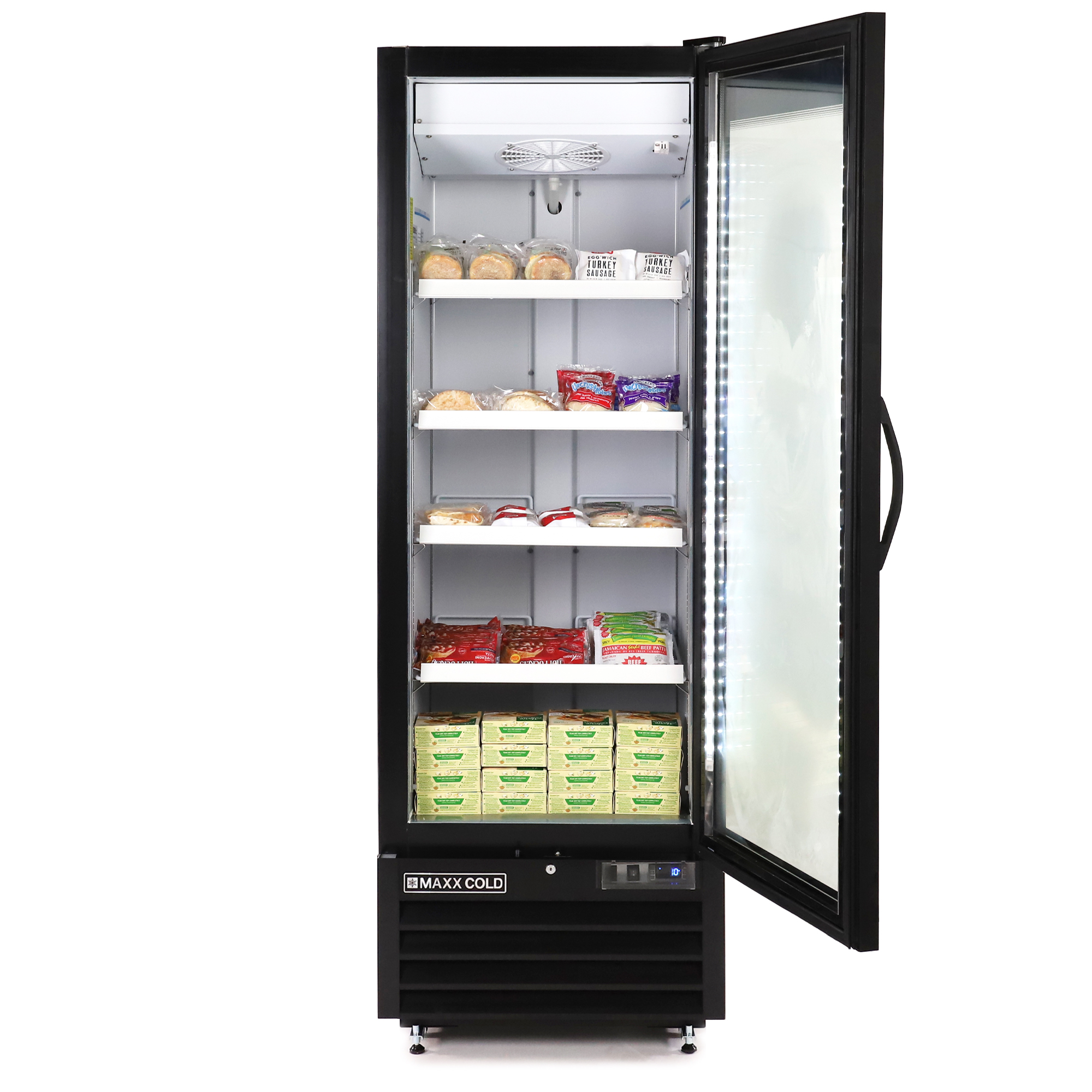

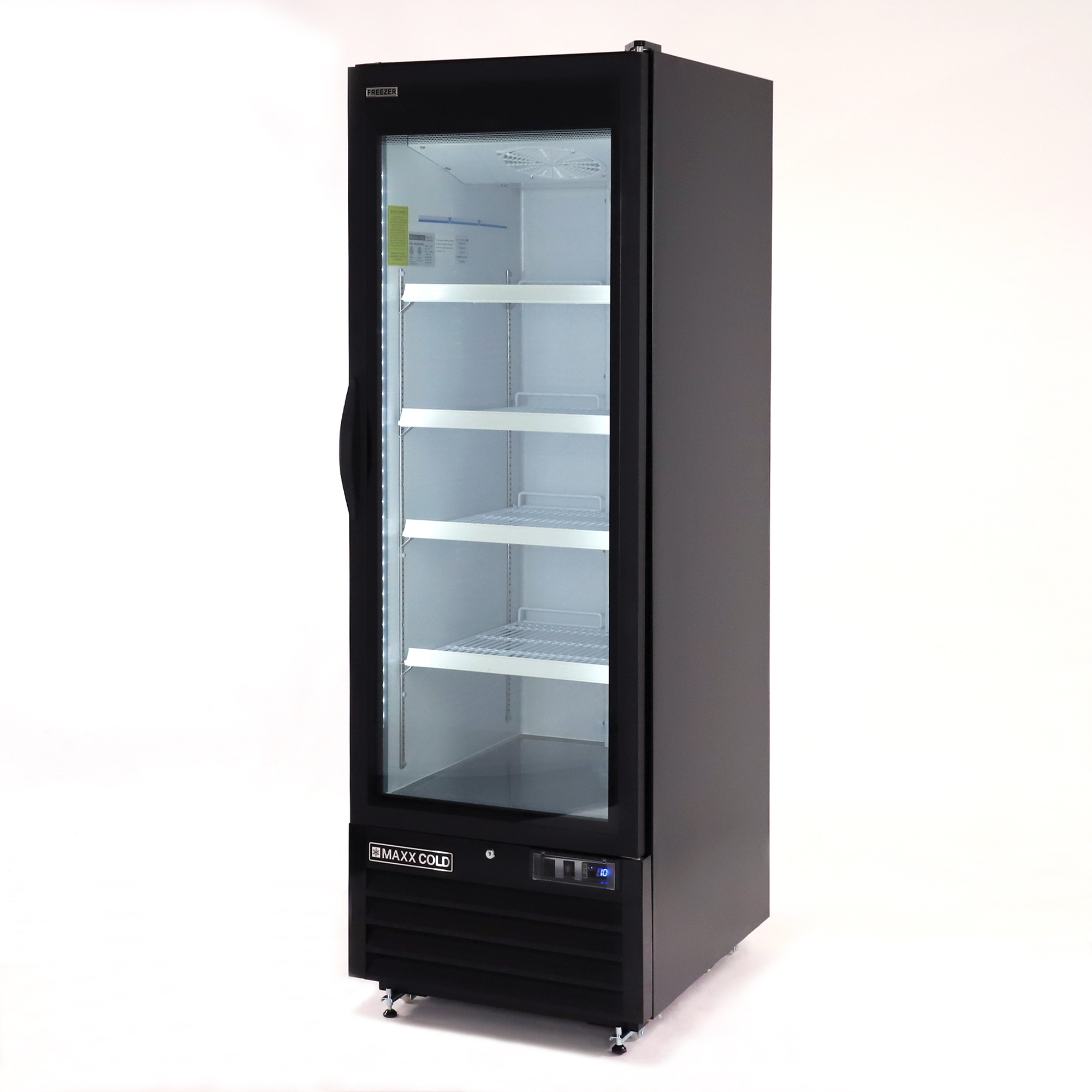

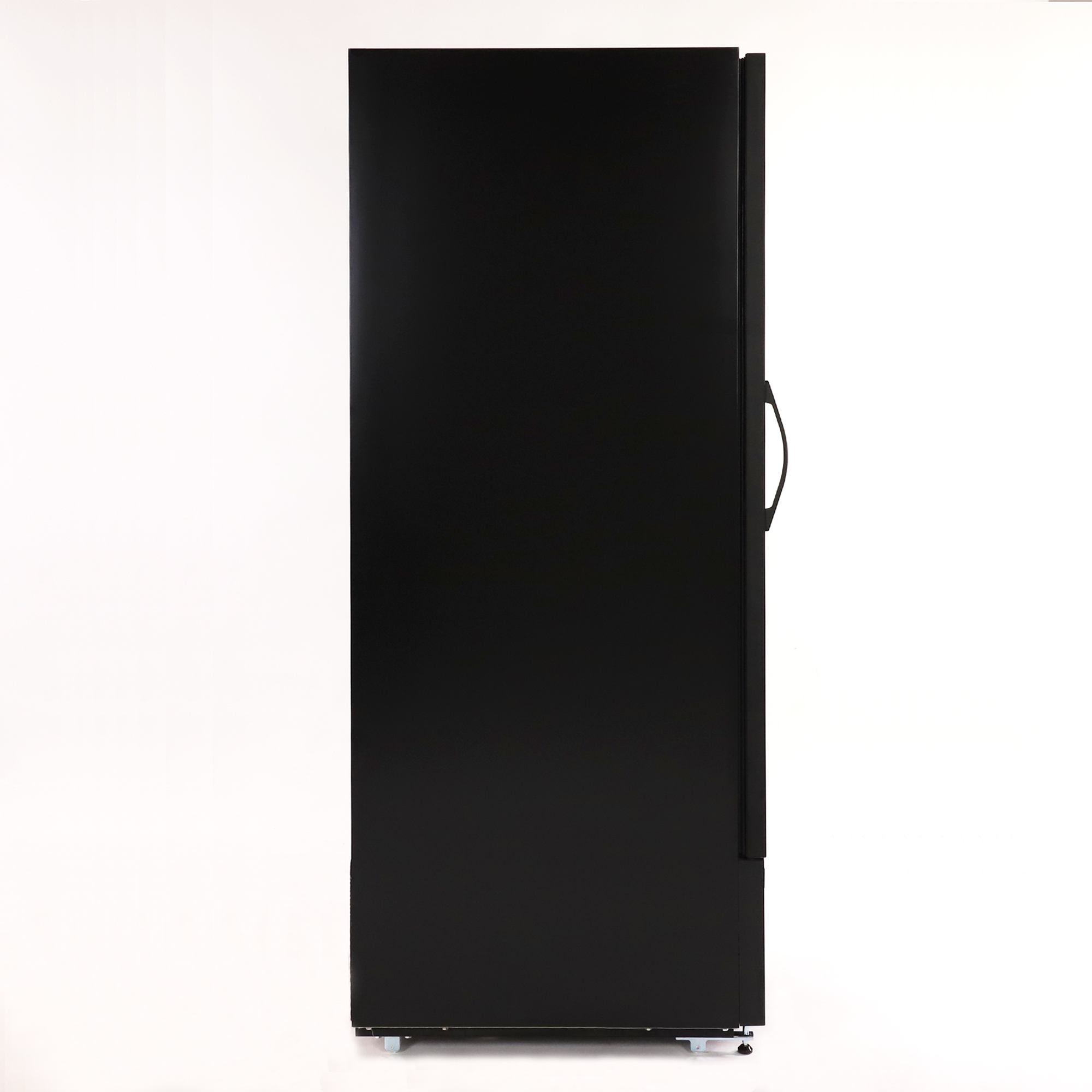

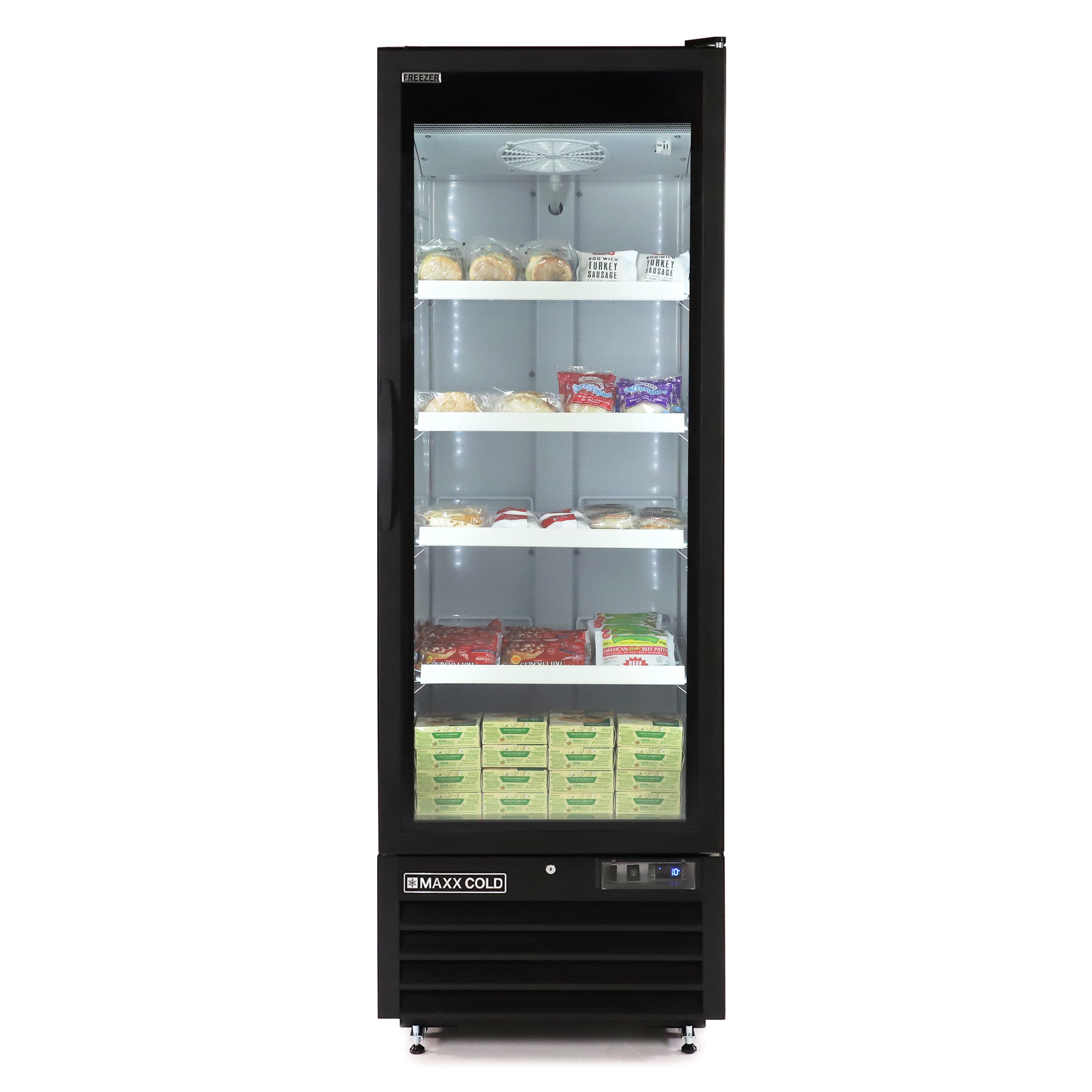

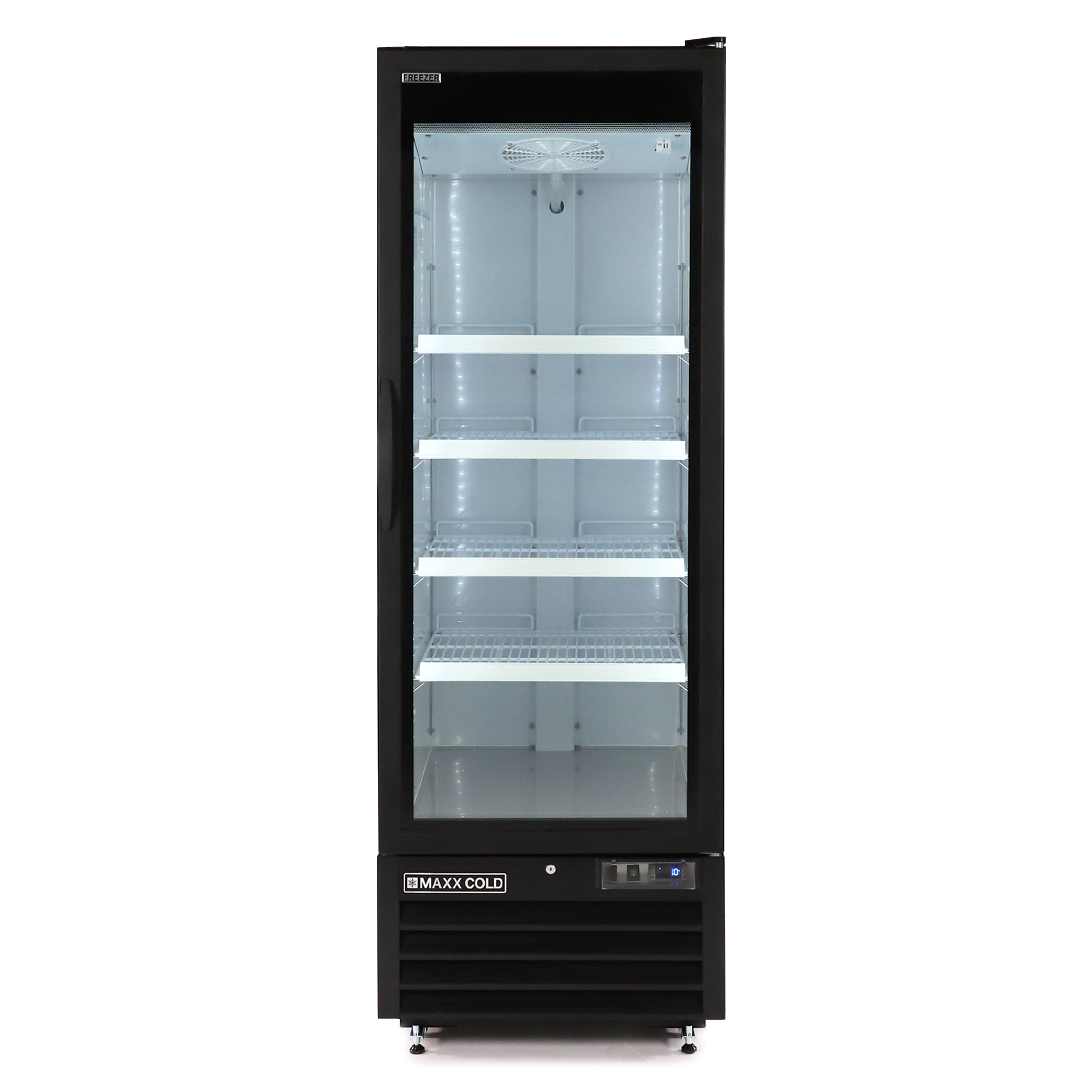

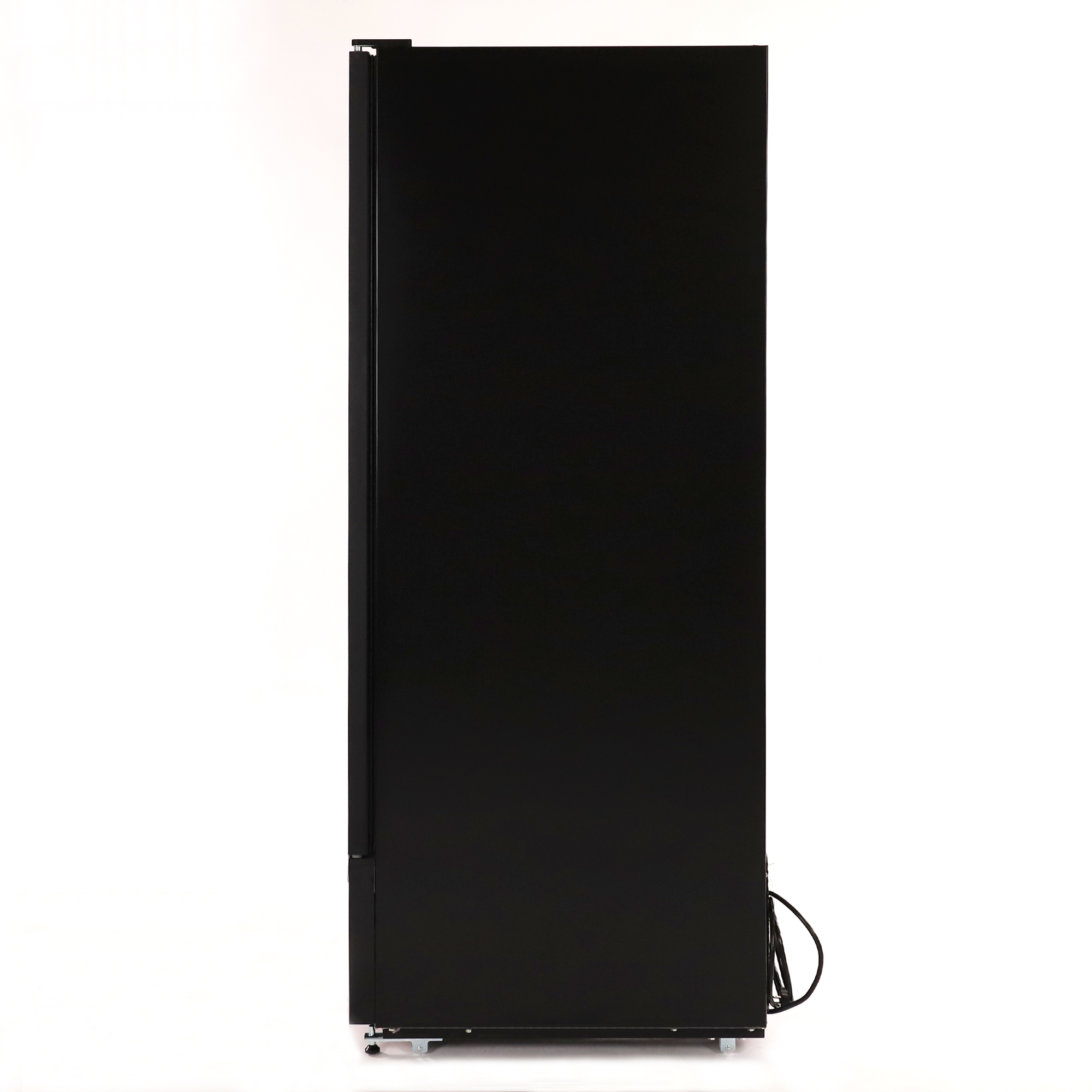

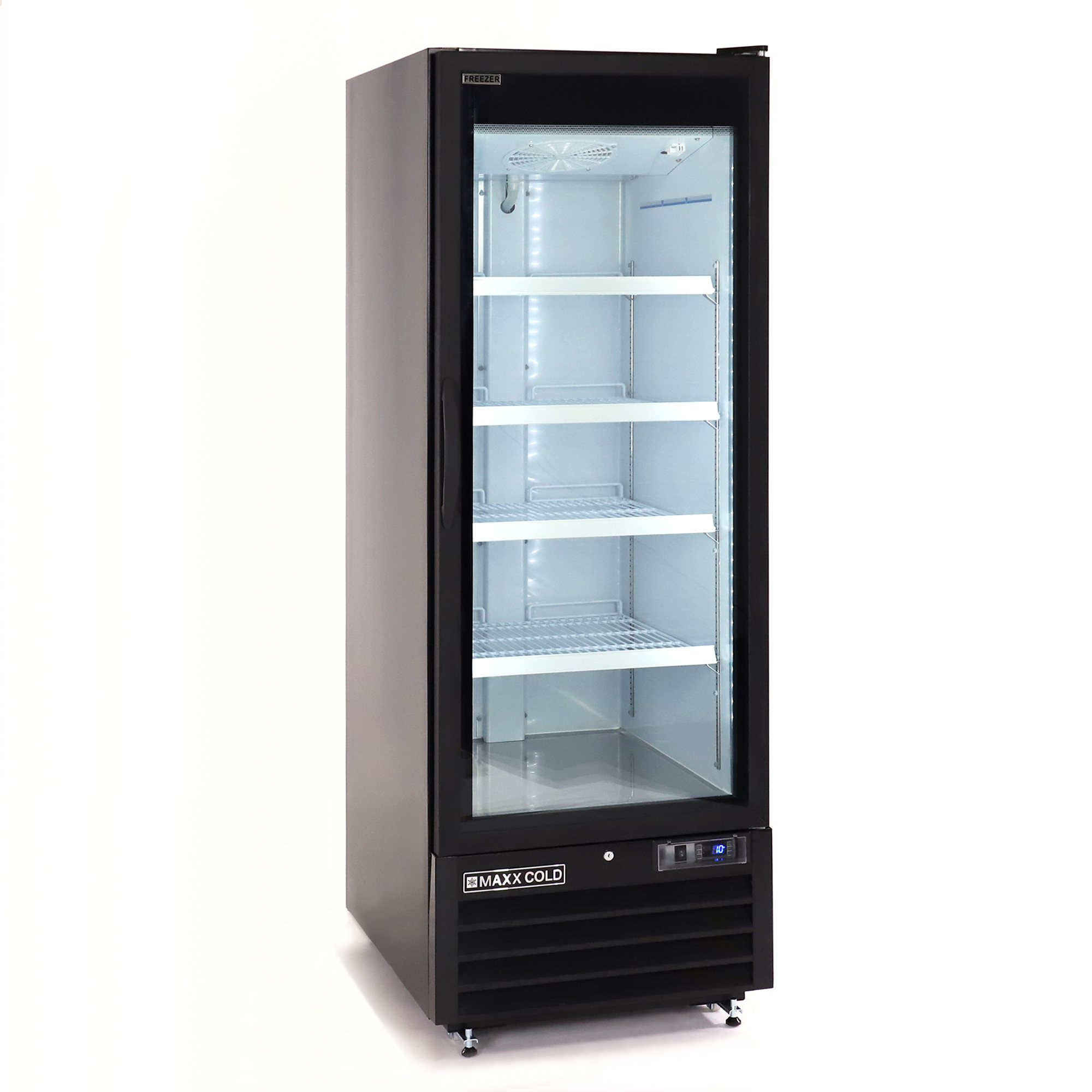

Maxx Cold 27” Glass Door Merchandiser Freezer, Large Storage Capacity, Single Door
MXGDM-30FBHC
| Description | One Door Merchandiser Freezer |
|---|---|
| SKU | MXGDM-30FBHC |
| UPC | 845035030154 |
| Model | MXGDM-30FBHC |
| Brand | Maxx Cold |
| Collection | X-Series Refrigeration |
| Product Line | Cooling |
| Category | Freezer |
| Subcategory | Merchandiser |
| Commercial / Residential | Commercial |
| SKU Status | Established |
|---|---|
| Warranty | 2 Years Parts & Labor + 5 Years Compressor (Part Only) |
| List Price | 6434 |
|---|---|
| SRP | 5339 |
| MAP Price | 2999.99 |
| Long Description | This Maxx Cold glass door merchandiser, large storage capacity freezer one-door model provides nominal storage capacity of 19 cubic feet (535L) and is ideal for restaurants and hospitality applications. The bottom mount, glass door merchandisers are energy efficient with CFC free foam refrigerant and the triple pane glass doors that are effective at clearly displaying contents and regulating temperature to preserve freshness and prolong shelf life of food & beverage products. This one-door model is easy to install, as this freezer merchandiser unit is equipped with integrated condensate pan, meaning no drain line connection is needed. Simple-to-use, programmable solid-state digital controls deliver accurate temperature regulation and for added security the self-closing doors are provided with a lock and key set. *Item not approved for sale in California |
|---|---|
| Bullet 1 | Constructed of a powder coated steel black exterior and white interior |
| Bullet 2 | Low-e triple pane glass doors |

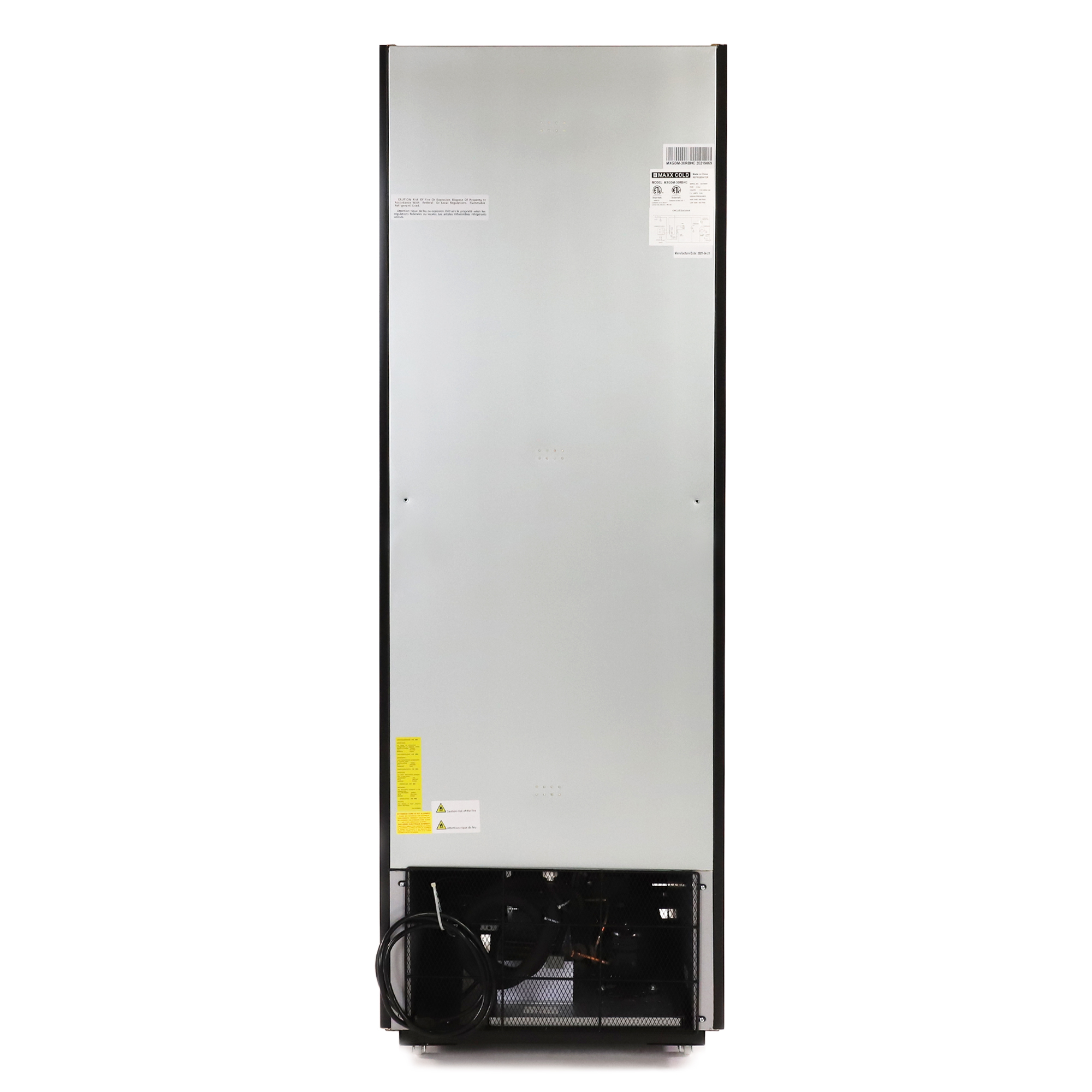

| Bullet 3 | Bottom mounted compressor |

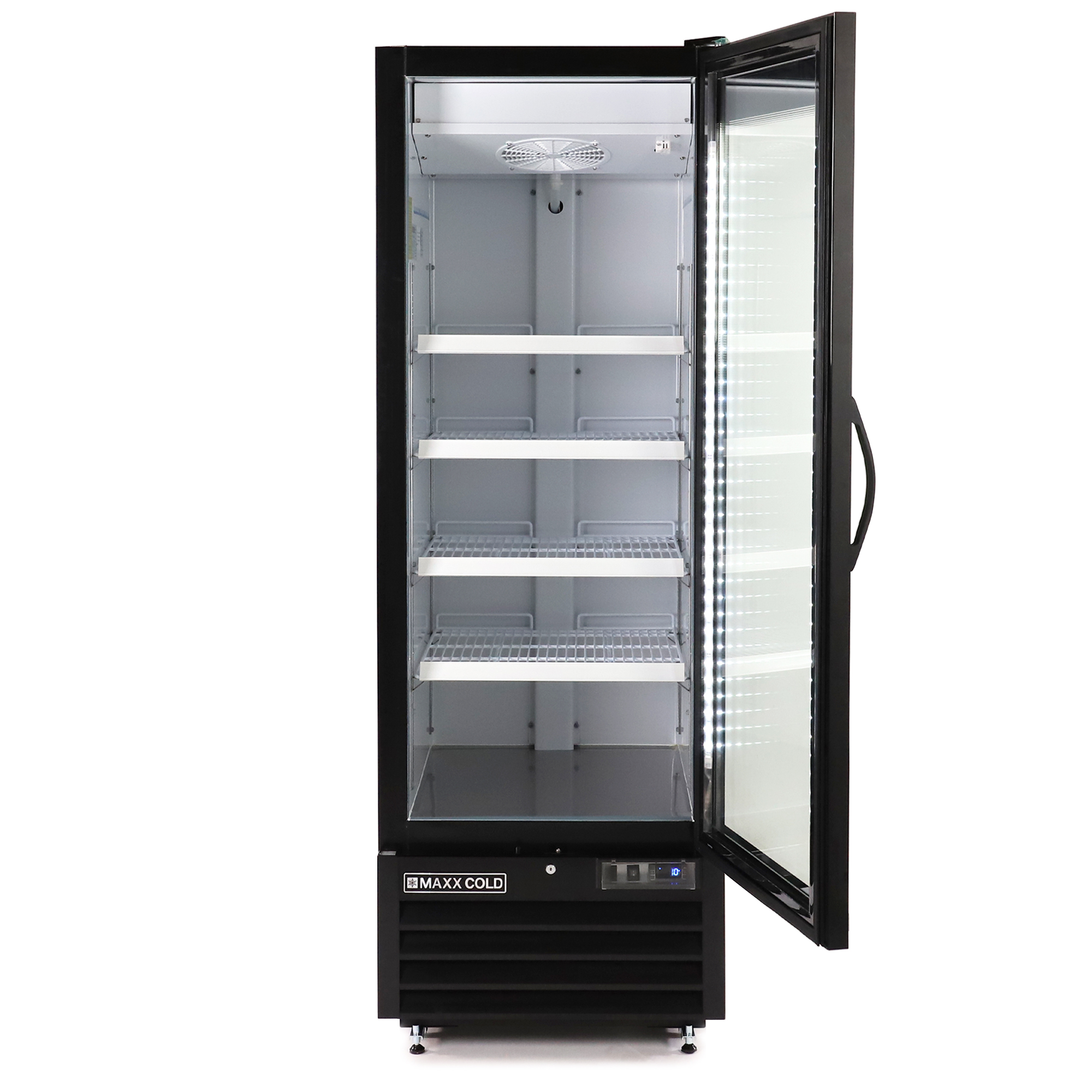

| Bullet 4 | Four (4) adjustable heavy-duty PE-coated wire shelves per door |
| Bullet 5 | Supplied with price holding strips |
| Bullet 6 | Four (4) rollers (2 with leveling feet) |
| Bullet 7 | Electronic thermostat and digital LED temperature display provide accurate and easy reading |
| Bullet 8 | Automatic defrost system |
| Bullet 9 | Self-closing doors are provided with lock and key set for security |
| Bullet 10 | Magnetic gasket can be replaced without tools |
| Use and Care Instructions | Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish. |
| Dishwasher Safe Components | Yes |
| Included Components |
|
| Assembled Dimensions (in) | 33.50" x 28.30" x 79.92" |
|---|---|
| Assembled Weight (lb) | 293.00 |
| Assembly Required | No |
| Capacity | 19 cu. ft. |
| Color | Black |
| Material | Powder Coated Steel |
| Installation Type | Freestanding |
| Door Swing Orientation | Right |
| Depth - Door Open 90° | 56.73" |
| Depth - Excluding Door | 27" |
| Depth - Excluding Handles | 31.90" |
| Height - Excluding Top Hinge | 79.50" |
| Interior Lighting | Yes |
| Interior Dimensions | 26.50" x 22" x 52.25" |
| Portable | No |
| Outdoor Use | No |
| Adjustable Shelves | Yes |
| Adjustable Temperature Control | Yes |
| Ambient Temperature Range | 77F-104F |
| Temperature Range | -4° - 10° |
| First Zone Bottle/Can Capacity | N/A |
| First Zone Minimum Temperature | -4.9 |
| First Zone Maximum Temperature | -1.3 |
| Door Material | Glass |
| Casters | Yes |
| Caster Size | 1.5" |
| Compressor Location | Bottom |
| Control Type | Digital |
| Cooling System | Compressor |
| Defrost System Type | Automatic / Frost Free |
| Door Color/Finish | Glass |
| Door Storage Type | No |
| Freezer Capacity | 19 cu. ft. |
| Freezer Type | Full Freezer |
| Integrated Lock | Yes |
| Internal Color | White |
| Refrigerant Ounces | 3.88 |
| Refrigerant Type | R290A |
| Undercounter | No |
| Electric | Yes |
|---|---|
| Electrical Specs - Current (A), Voltage (V), Consumption (W) | 8A/120V/950W |
| Power Phase | 1ph |
| Avg. Energy Consumption (kWh / day) | 6.54 |
| Avg. Energy Consumption (kWh / year) | 2387.1 |
| Cordless | No |
| Cord Length (Inches) | 72 |
| Plug Type | NEMA 5-15P |
| Decibels (dB) | 55 |
| Adjustable Temperature Control | Yes |
| Temperature Range | -4° - 10° |
| Ambient Temperature Range | 77F-104F |
| First Zone Maximum Temperature | -1.3 |
| First Zone Minimum Temperature | -4.9 |
| Batteries Required | No |
| Number of Doors | 1 |
|---|---|
| Number of Drawers | 0 |
| Number of Items | 1 |
| Number of Shelves | 4 |
| Number of Temperature Zones | 1 |
| Unit of Measure | EA |
|---|---|
| Shipping Dimensions (in) | 34.84" x 28.35" x 84.65" |
| Shipping Weight | 370.00 |
| Shipping Quantity | 1 |
| Shipped Assembled? | Yes |
| Packaging Type | BROWN BOX |
| Ship Type | LTL |
| Country of Origin | CN-CHINA |
| Harmonized Tariff Code (US) | 8418.50.0040 |
| Freight Class | 125 |
| AB1200 Compliant | Yes |
|---|---|
| AB1200 Label Needed | None |
| Prop 65 Compliant | Yes |
| Prop 65 Warning Type | CALIFORNIA WARNING: Can expose you to Di(2-ethlhexyl) phlthalate (DEHP), a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov. |
| BPA Free | No |
| North American Gas/Electric Certification | cETLus Listed |
| Sanitation | ETLS Listed |
| CE Marked | No |
| DOE Certified | No |
| CEC Certified | Yes |
| Flammable Gasses | Yes |
| Refrigerant Type | R290A |
| Refrigerant Ounces | 3.88 |
| ADA Compliant | No |
| TAA Compliant | No |
