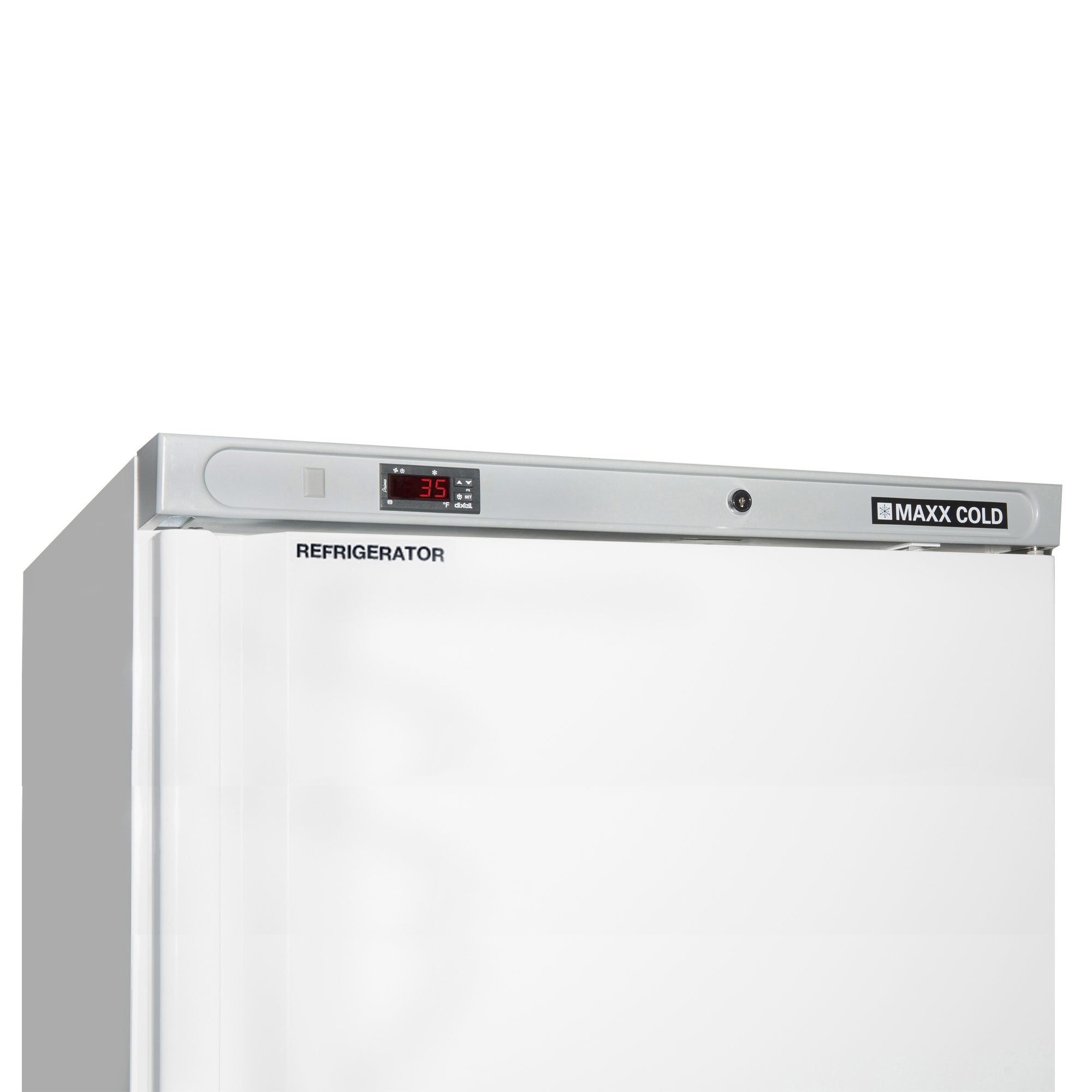

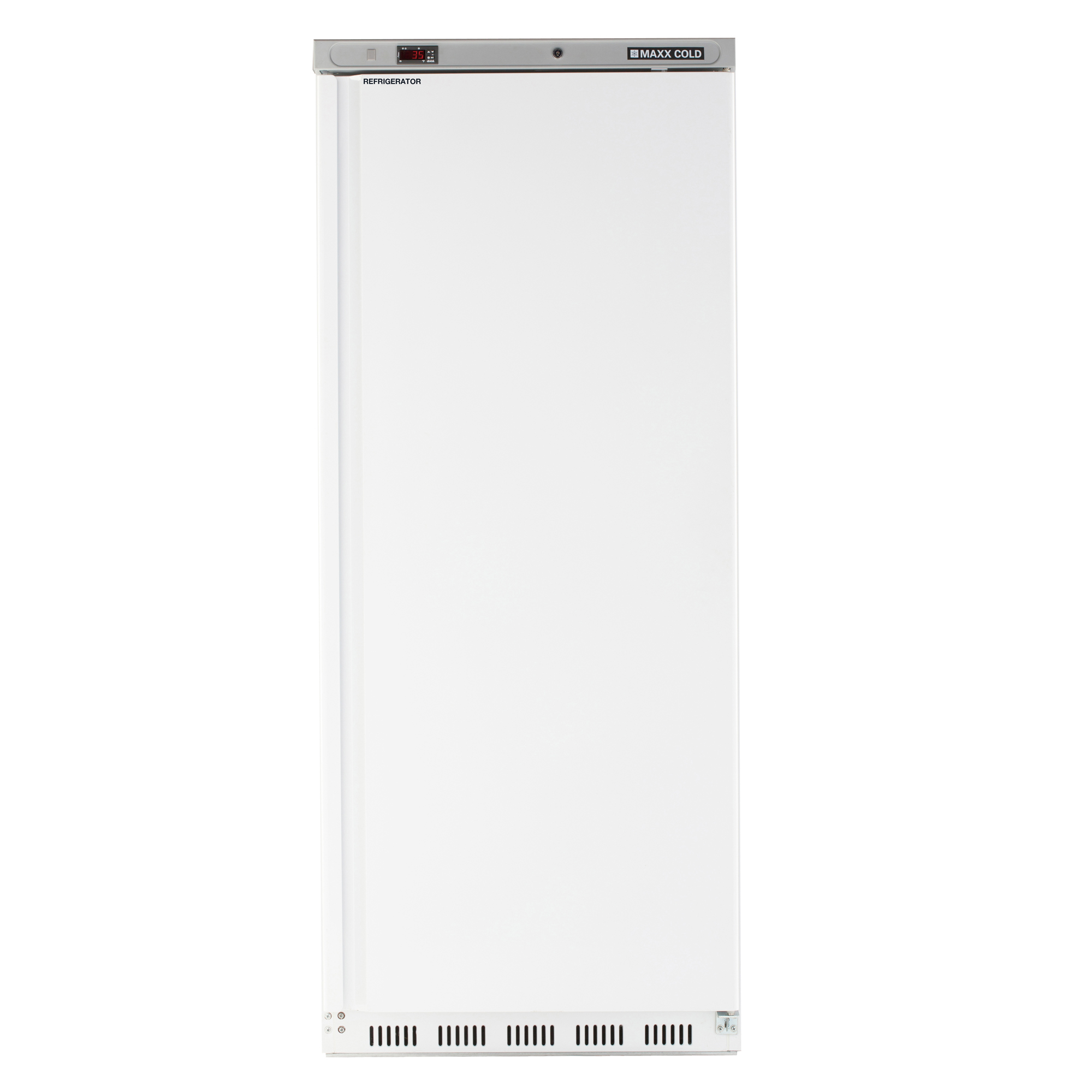

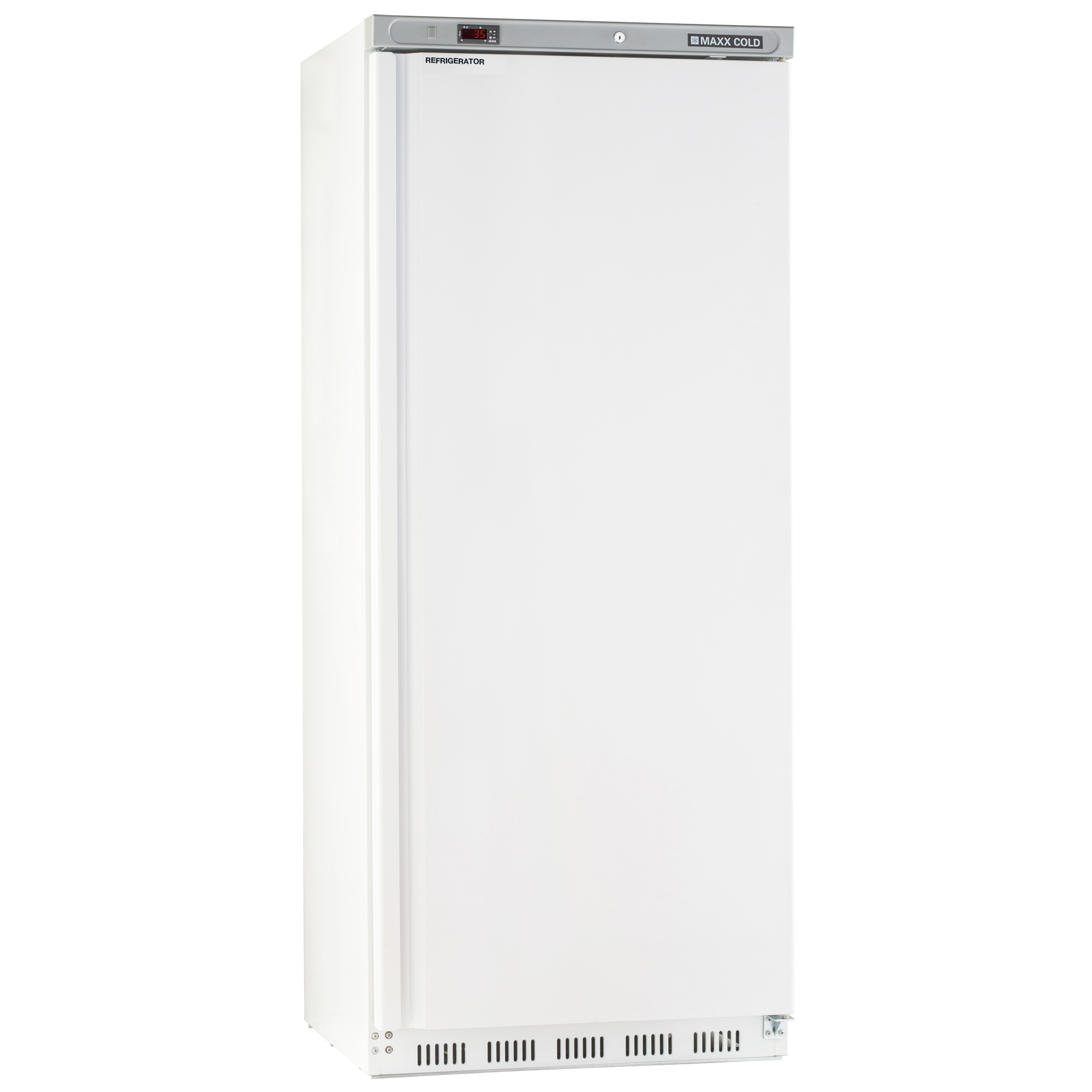

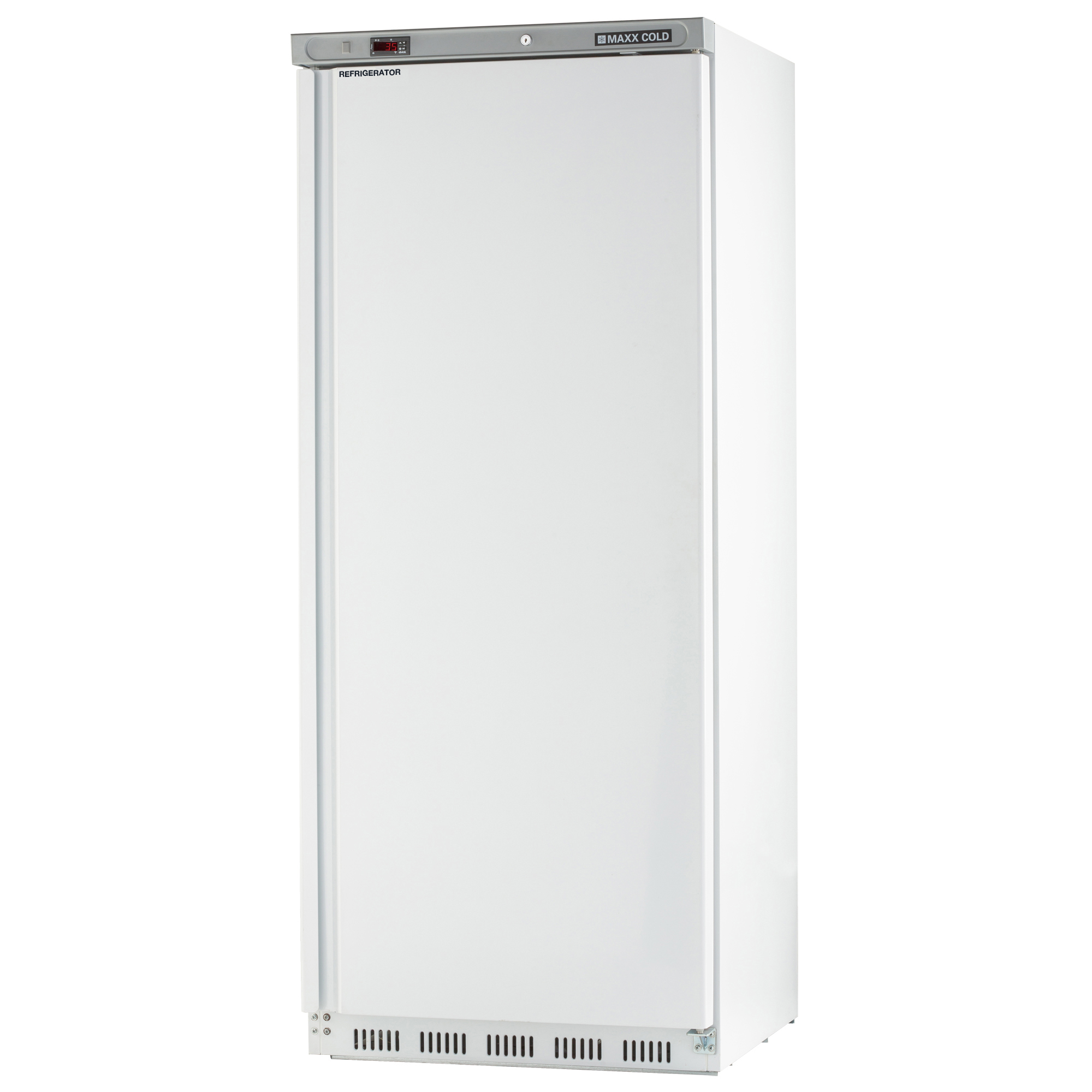

Maxx Cold 30.6" Single Door Economy Reach-In Refrigerator
MXX-23RHC
| Description | 30.6" Single Door Economy Reach-In Refrigerator |
|---|---|
| SKU | MXX-23RHC |
| UPC | 845035027314 |
| Model | MXX-23RHC |
| Brand | Maxx Cold |
| Collection | X-Series Refrigeration |
| Product Line | Cooling |
| Category | Refrigerator |
| Subcategory | Reach-In |
| Commercial / Residential | Commercial |
| Transition Item | Yes |
| SKU Status | Harvest |
|---|---|
| Discontinued Date | 2025-10-17 |
| Warranty | 2 Years Parts & Labor + 5 Years Compressor (Part Only) |
| Transitioning From | MXX-23R |
| List Price | 5162 |
|---|---|
| SRP | 4202 |
| MAP Price | 2329.99 |

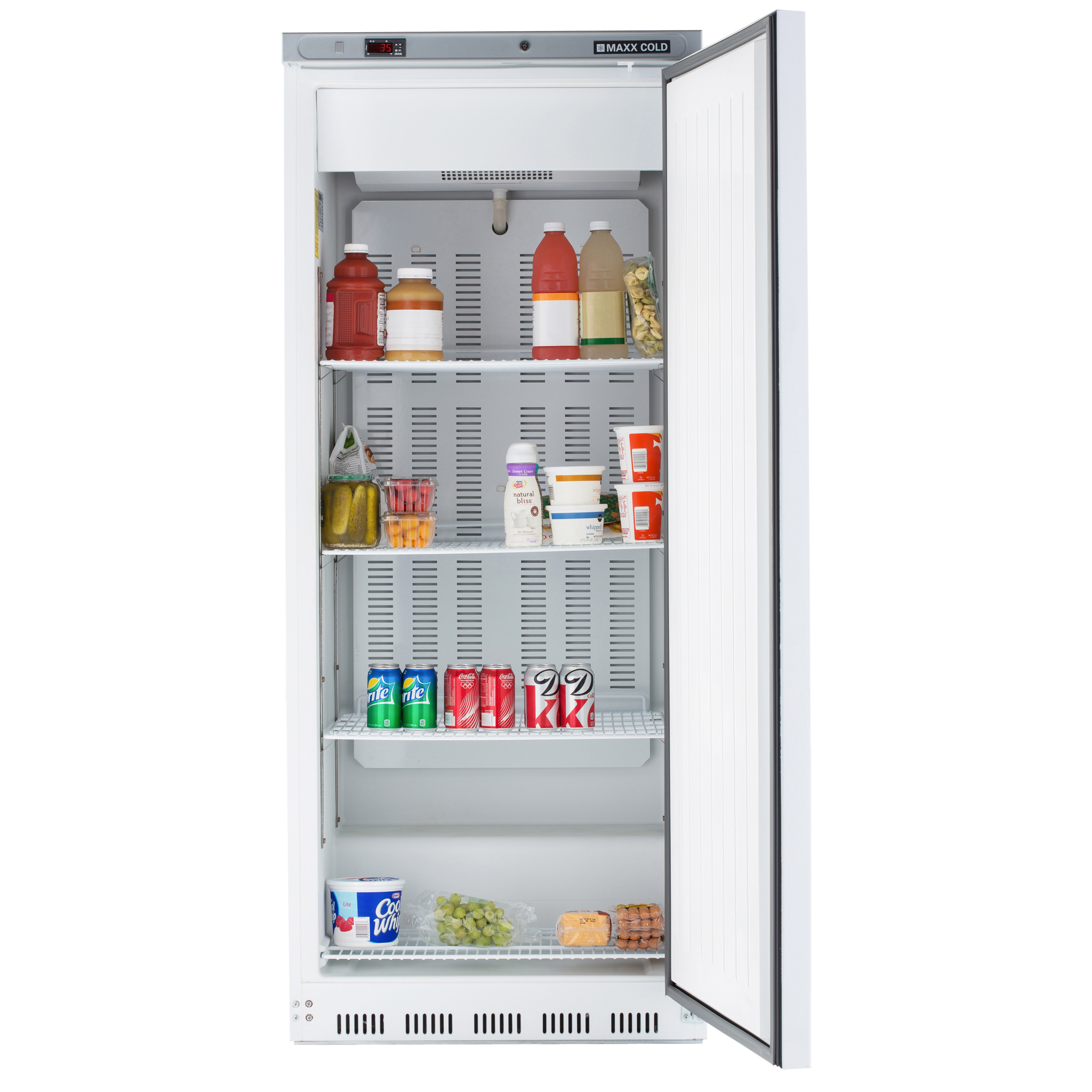

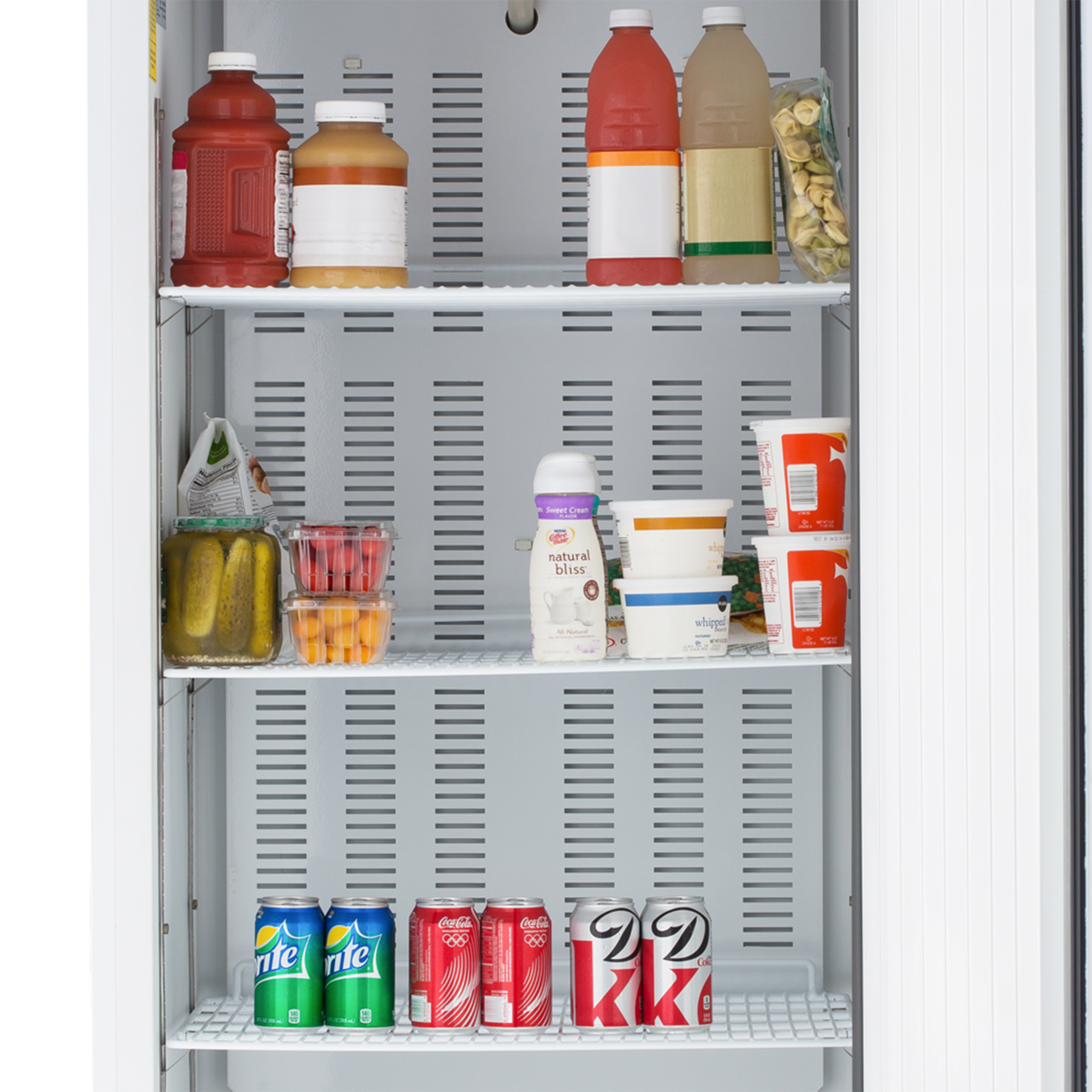

| Long Description | Maxx Cold X-Series Single Door Economy Refrigerator is supplied with 3 heavy-duty adjustable shelves and a fixed half-shelf, and features a digital solid-state temperature control system with digital LED temperature display for easy viewing. The energy efficient refrigeration system provides rapid temperature recovery and is designed with environment friendly urethane foam insulated walls, an automatic defrost system and door frame heaters. This refrigerator is made of easy to clean, low maintenance white painted steel exterior and white painted aluminum interior and provides up to 23 Cubic Ft. (651 L) of storage. The door on this unit is field-reversible and is designed with a heavy-duty recessed full-length handle. Additionally, this one-door reach-in refrigerator is equipped with an integrated door lock & key set for security. Mounted on 2.5” diameter swivel casters for mobility, the refrigerator is also engineered with integrated condensate evaporator, meaning no drain line connection is needed. |
|---|---|
| Bullet 1 | Constructed of easy to clean white painted steel exterior and sanitary painted aluminum interior |
| Bullet 2 | Easy to read digital controller display |
| Bullet 3 | Field reversible door with heavy-duty recessed handle and door lock |
| Bullet 4 | Optimal storage capacity of 23 Cubic Ft. (651 L) |
| Bullet 5 | Supplied with 2.5" diameter swivel casters |
| Bullet 6 | Automatic defrost system |
| Bullet 7 | Front breathing, bottom mount condensing unit |
| Bullet 8 | Holding temperature 34°F to 41°F (1⁰C to 5⁰C) |
| Bullet 9 | Removable snap-in gaskets allow for easy maintenance |
| Bullet 10 | Available in 120V/60Hz/1pH and International voltage available |
| Use and Care Instructions | Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish. |
| Dishwasher Safe Components | Yes |
| Included Components |
|
| Assembled Dimensions (in) | 29" x 30.38" x 78" |
|---|---|
| Assembled Weight (lb) | 286 |
| Assembly Required | No |
| Capacity | 23 cu. ft. |
| Color | White |
| Material | Powder Coated Steel |
| Installation Type | Freestanding |
| Door Swing Orientation | Right |
| Depth - Door Open 90° | 61" |
| Depth - Excluding Door | 29" |
| Depth - Excluding Handles | 29" |
| Height - Excluding Top Hinge | 79.70" |
| Portable | No |
| Outdoor Use | No |
| Size | 30.60" |
| Adjustable Shelves | Yes |
| Adjustable Temperature Control | Yes |
| Temperature Range | 33° - 41° |
| First Zone Bottle/Can Capacity | N/A |
| First Zone Minimum Temperature | 33 |
| First Zone Maximum Temperature | 41 |
| Door Material | Powder coated steel |
| Casters | No |
| Compressor Location | Bottom |
| Control Type | Digital |
| Cooling System | Compressor |
| Defrost System Type | Automatic / Frost Free |
| Door Color/Finish | White |
| Door Storage Type | No |
| Freezer Capacity | 23 |
| Freezer Type | No Freezer |
| Fresh Food Capacity | 23 cu. ft. |
| Integrated Lock | Yes |
| Internal Color | White |
| Refrigerant Type | R-290a |
| Undercounter | No |
| Electric | Yes |
|---|---|
| Electrical Specs - Current (A), Voltage (V), Consumption (W) | 7A/120V/350W |
| Power Phase | 1ph |
| Avg. Energy Consumption (kWh / day) | 1.11 |
| Avg. Energy Consumption (kWh / year) | 405.2 |
| Cordless | No |
| Cord Length (Inches) | 80 |
| Plug Type | NEMA 5-15P |
| Adjustable Temperature Control | Yes |
| Temperature Range | 33° - 41° |
| First Zone Maximum Temperature | 41 |
| First Zone Minimum Temperature | 33 |
| Batteries Required | No |
| Number of Doors | 1 |
|---|---|
| Number of Drawers | 0 |
| Number of Items | 1 |
| Number of Shelves | 3.5 |
| Number of Temperature Zones | 1 |
| Unit of Measure | EA |
|---|---|
| Shipping Dimensions (in) | 40.00" x 40.00" x 88.00" |
| Shipping Weight | 240 |
| Shipping Quantity | 1 |
| Shipped Assembled? | Yes |
| Packaging Type | BROWN BOX |
| Ship Type | LTL |
| Country of Origin | CN-CHINA |
| Harmonized Tariff Code (US) | 8418.69.0180 |
| Freight Class | 150 |
| Prop 65 Compliant | Yes |
|---|---|
| Prop 65 Warning Type | CALIFORNIA WARNING: Can expose you to Di(2-ethlhexyl) phlthalate (DEHP), a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov. |
| BPA Free | Yes |
| North American Gas/Electric Certification |
|
| Sanitation |
|
| CE Marked | No |
| DOE Certified | No |
| CEC Certified | Yes |
| Flammable Gasses | Yes |
| Refrigerant Type | R-290a |
| ADA Compliant | No |
