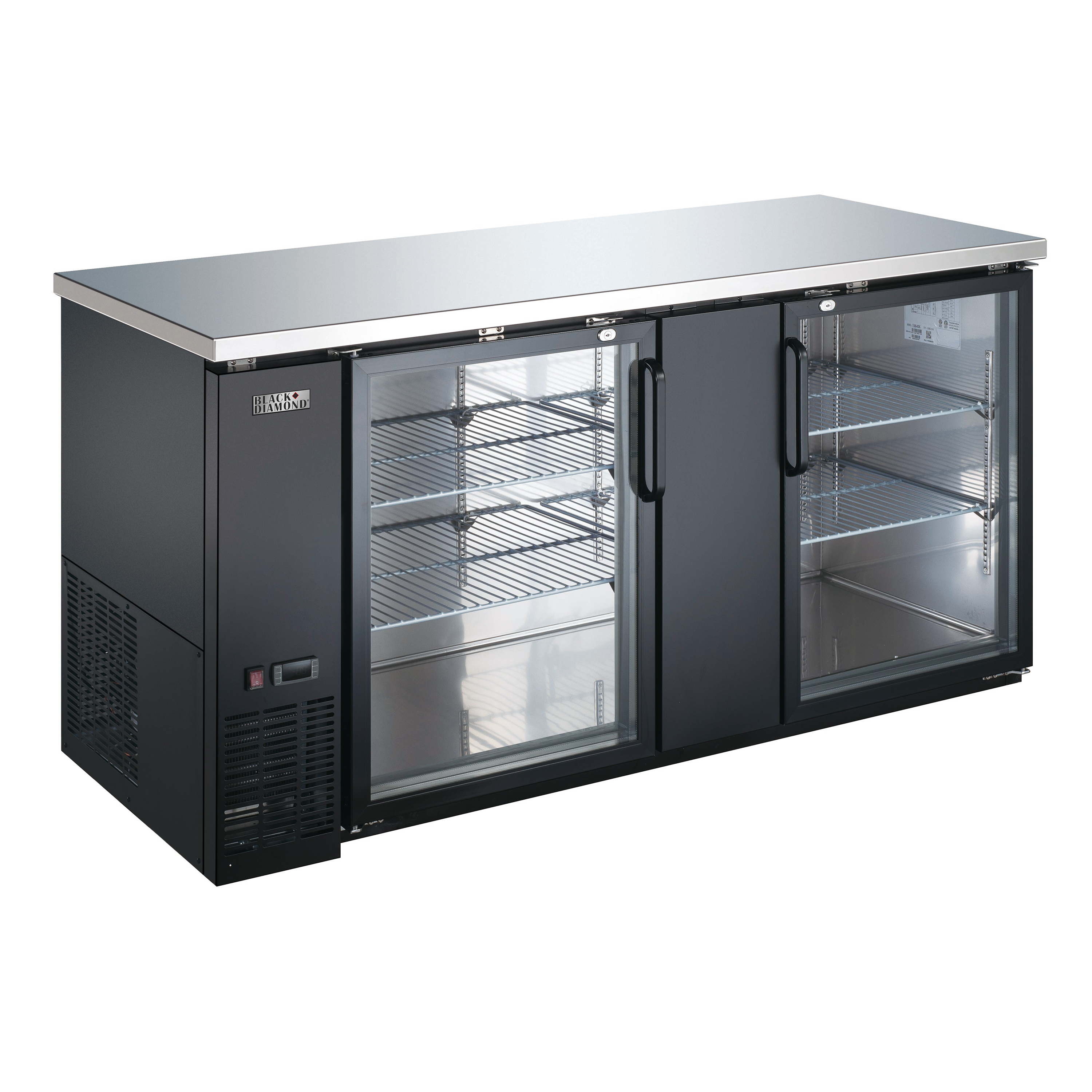

Black Diamond 2 Glass Door Back Bar Cooler
USBB-G
| Description | BD BACK BAR COOLER 69"W,GLASS |
|---|---|
| SKU | USBB-6928G |
| UPC | 840342807482 |
| Model | USBB-G |
| Brand | Black Diamond |
| Collection | U-Series |
| Product Line | Cooling |
| Category | Beverage Center |
| Subcategory | Back Bar Cooler |
| Commercial / Residential | Commercial |
| SKU Status | Established |
|---|---|
| Warranty | Two (2) Year Limited Warranty on Parts and Labor, Five (5) Year Warranty on Compressor and Evaporator |
| List Price | 4499 |
|---|---|
| MAP Price | 3599.99 |
| Long Description | Keep beer, soda and other beverages chilled and displayed with the Black Diamond 2 Glass Door Back Bar Cooler. This back bar merchandiser is designed to fit behind the bar or in tight spaces, maximizing storage space while maintaining an attractive presentation of the beverages. Built to last, this commercial bar cooler has a durable black steel exterior and is constructed with a 304 stainless steel top, interior walls and floor. It features two glass hinged doors with locks that allow customers and staff to easily see your selection of drinks without opening the unit. LED lighting showcases the contents and enhances visibility for bartenders and staff. Use the four adjustable plastic-coated wire shelves to store and organize beer, soda, garnishes and more. This two-door back bar cooler has a 23.3 cubic feet interior capacity that holds three half barrel kegs, 112 6-packs/12 oz cans or 120 6-packs/12 oz bottles. The unit has a temperature range of 33°F to 41°F, keeping beverages at the ideal serving temperature and ensuring drinks stay cold and refreshing. This back bar cooler uses environmentally-friendly R290 refrigerant and features foamed-in-place polyurethane high-density cell insulation throughout the entire cabinet. The unit has a side-mounted compressor, automatic defrosting and is ETL Listed, ETL Sanitation. The compact design of the Black Diamond 2 Glass Door Back Bar Cooler is ideal for bars or restaurants where space optimization is essential, making it a valuable addition to any commercial establishment that serves cold beverages. Covered by the Black Diamond Two-Year Warranty on Parts and Labor and Five-Year Warranty on the Compressor. |
|---|---|
| Bullet 1 | Constructed with a 304 stainless steel top, interior walls and floor |
| Bullet 2 | Durable black steel exterior |
| Bullet 3 | 2 glass hinged doors with locks allow customers and staff to easily see your selection of drinks without opening the unit |
| Bullet 4 | LED lighting showcases the contents and enhances visibility for bartenders and staff |
| Bullet 5 | 4 adjustable plastic-coated wire shelves to store and organize bottles, cans, soda and more |
| Bullet 6 | Compact design is ideal for bars or restaurants where space optimization is essential |
| Bullet 7 | 23.3 Cu. Ft. (660 L) interior capacity holds 3 half barrel kegs, 112 6-packs/12 oz cans or 120 6-packs/12 oz bottles |
| Bullet 8 | Temperature range of 33°F to 41°F keeps beverages at the ideal serving temperature |
| Bullet 9 | Covered by the Black Diamond Two-Year Warranty on Parts and Labor and Five-Year Warranty on the Compressor |
| Bullet 10 | Certified by cETL and ETL for safety and quality assurance |
| Use and Care Instructions | Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish. |
| Dishwasher Safe Components | No |
| Included Components | Shelves |
| Assembled Dimensions (in) | 69.10" x 27.80" x 35.60" |
|---|---|
| Assembled Weight (lb) | 297.62 |
| Assembly Required | No |
| Capacity | 23.3 cu. ft. |
| Volume Capacity | up to 373 lbs of ice production in 24 hours, and 580 lbs. of ice storage |
| Color | Black |
| Material | Stainless Steel |
| Installation Type | Freestanding |
| Door Swing Orientation | Reversible |
| Depth - Door Open 90° | 48.60" |
| Depth - Excluding Door | 25.80" |
| Depth - Excluding Handles | 27.80" |
| Height - Excluding Top Hinge | 33.50" |
| Interior Lighting | Yes |
| Interior Dimensions | 21.90" x 46.30" x 30.50" |
| Portable | No |
| Outdoor Use | No |
| Size | 69" |
| Shape | Half Dice |
| Adjustable Shelves | Yes |
| Adjustable Temperature Control | Yes |
| Temperature Range | 33° - 40° |
| First Zone Bottle/Can Capacity | (672) 12-oz cans (112 6-packs) |
| Door Material | Plastic Coated Steel |
| Anti-Vibration Technology | No |
| Automatic Shut Off | Yes |
| Casters | No |
| Cleaning Feature | Manual |
| Compressor Location | Side |
| Control Type | Electronic |
| Cooling System | Compressor |
| Daily Ice Production | 373 lbs per day |
| Defrost System Type | Automatic / Frost Free |
| Door Color/Finish | Black/Glass |
| Door Storage Type | None |
| Drain Included | No |
| Freezer Type | No Freezer |
| Integrated Lock | Yes |
| Keg Size | Half Barrel |
| Leg Height (in.) | 0.60" |
| Quiet Operation | No |
| Refrigerant Ounces | 2.471 |
| Refrigerant Type | R290 |
| Undercounter | Yes |
| Working Height (in.) | 36" |
| Electric | Yes |
|---|---|
| Electrical Specs - Current (A), Voltage (V), Consumption (W) | 3.5A/115V/325W |
| Utility Frequency (Hz) | 60 |
| HP | 1/5 |
| Power Phase | 1 ph |
| Avg. Energy Consumption (kWh / day) | 2.05 |
| Avg. Energy Consumption (kWh / year) | 22265 |
| Cordless | No |
| Cord Length (Inches) | 100.40 |
| Plug Type | NEMA 5-15P |
| Decibels (dB) | n/a |
| Adjustable Temperature Control | Yes |
| Temperature Range | 33° - 40° |
| Gas Type | LP |
| Batteries Required | No |
| Number of Doors | 2 |
|---|---|
| Number of Items | 1 |
| Number of Pieces | 1 |
| Number of Shelves | 4 |
| Number of Temperature Zones | 1 |
| Unit of Measure | EA |
|---|---|
| Shipping Dimensions (in) | 71.50" x 30.50" x 42.10" |
| Shipping Weight | 341 |
| Shipping Quantity | 1 |
| Shipped Assembled? | Yes |
| Packaging Type | BROWN BOX |
| Ship Type | LTL |
| Country of Origin | CN-CHINA |
| Harmonized Tariff Code (US) | 8418.50.0080 |
| Freight Class | 150 |
| AB1200 Compliant | Yes |
|---|---|
| AB1200 Label Needed | None |
| Prop 65 Compliant | Yes |
| Prop 65 Warning Type | CALIFORNIA WARNING: Can expose you to Di(2-ethlhexyl) phlthalate (DEHP), a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov. |
| BPA Free | YES |
| PFAS Free | Yes |
| North American Gas/Electric Certification | cETLus Listed |
| Sanitation | ETLS Listed |
| CE Marked | No |
| DOE Certified | No |
| NRCan Listed | No |
| Flammable Gasses | Yes |
| Refrigerant Type | R290 |
| Refrigerant Ounces | 2.471 |
| SIOC Certified | No |
| ADA Compliant | No |
| TAA Compliant | No |
