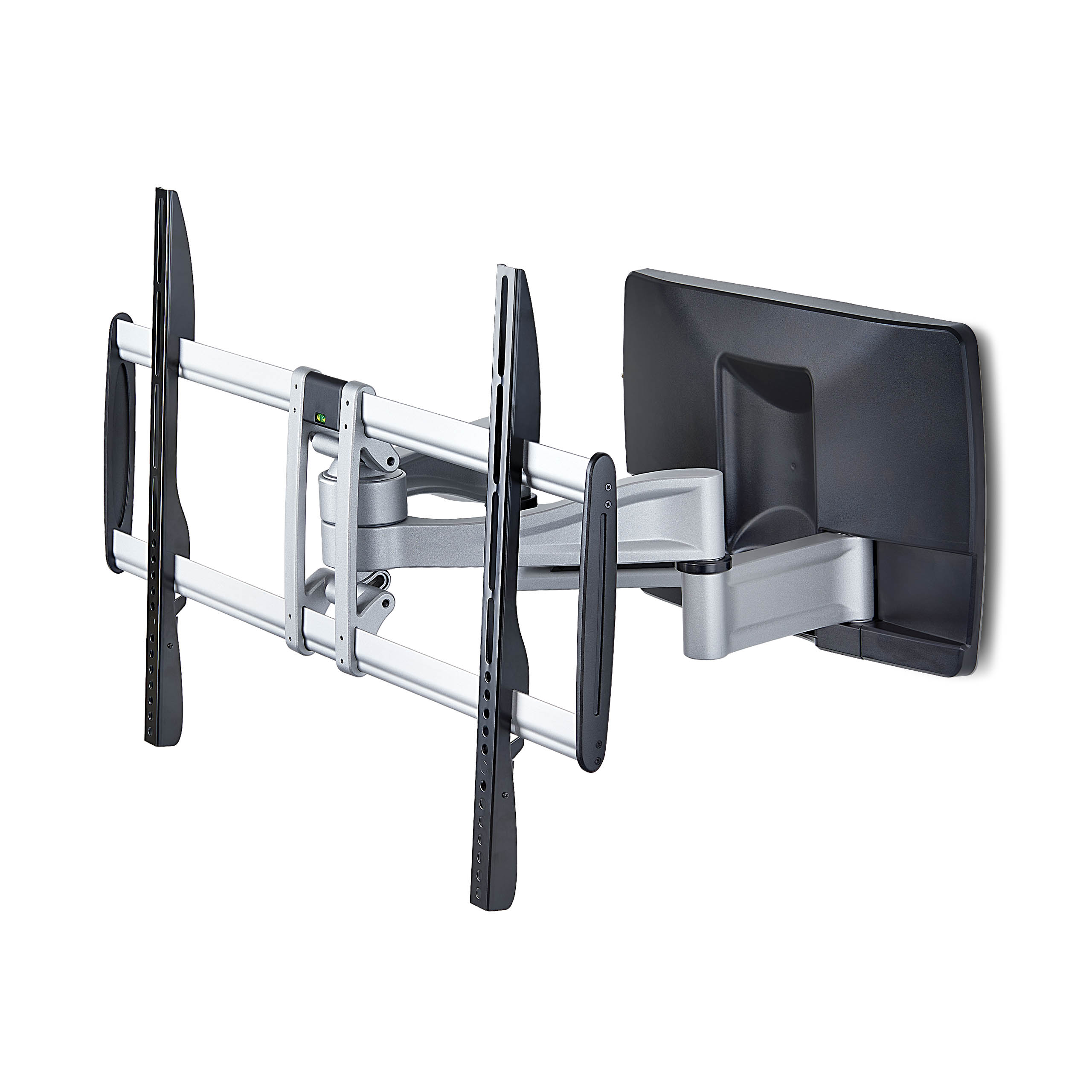

100AP1-TV-WALL-MOUNT
75 100 TV Wall Mount 110lb or higher Premium TAA
Mount a TV to a wall using this space-saving, low-profile mount with premium finish
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 75 100 TV Wall Mount 110lb or higher Premium TAA Product Number 100AP1-TV-WALL-MOUNT UPC 065030920056 Lifecycle status Pending Warranty 5 Years Weighted Opportunity 0 Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Wall Mounts Family Premium TV Wall Mounts Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX036X Product Title (Ultra-Short) Heavy-Duty TV Mount Product Title (Short) Heavy-Duty TV Wall Mount/Bracket, TAA Product Title (Medium) Heavy-Duty Articulating TV Wall Mount for up to 100-inch Flat Screens, VESA, TAA Product Title (Standard) Heavy-Duty Articulating TV Wall Mount for up to 100-inch and 187.4lb/85kg Flat Screens, VESA, Low-Profile Bracket, TAA Product Title (Long) Heavy-Duty Articulating TV Wall Mount for up to 100-inch and 187.4lb/85kg Flat Screens, VESA 800x500, VERSION TEST Product Title (AMZ) Heavy-Duty Articulating TV Wall Mount VERSION TEST 2 Title Ingram (Part 1) Heavy-Duty TV Wallmount/Bracket Title Ingram (Part 2) - For up to 100" Flat Screen, TAA Website Product Headline Mount a TV to a wall using this space-saving, low-profile mount with premium finish Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Flat screen wallmount supports 100in TVs up to 187.4lb, VESA 800×500 - TV bracket collapses to 4.1in (10.5cm) and extends to 21.6in; Tilt +2/-12 deg, swivel +/-60 deg - Dual-stud mounting for safe installation; Includes hardware; TAA-compliant Bullets (Consolidated) - Flat screen wallmount supports 100-inch TVs and 187.4lb max; VESA 800×500 max; Ideal mounting solution for meeting rooms/AV walls/large-format digital signage - TAA-compliant bracket collapses to 4.1in (10.5cm) and extends to 21.6in (55cm) max - Adjustable tilt +2°/-12° and swivel +60°/-60° for post-installation adjustments; Dual-stud mounting and dual-arm design ensure safe mounting and smooth motion - Includes mounting hardware; Securely mounts to wood studs/brick/concrete walls Marketing Copy Marketing Copy (No HTML) Applications - Securely mount large-format displays in high-traffic areas that demand safe and stable mounting

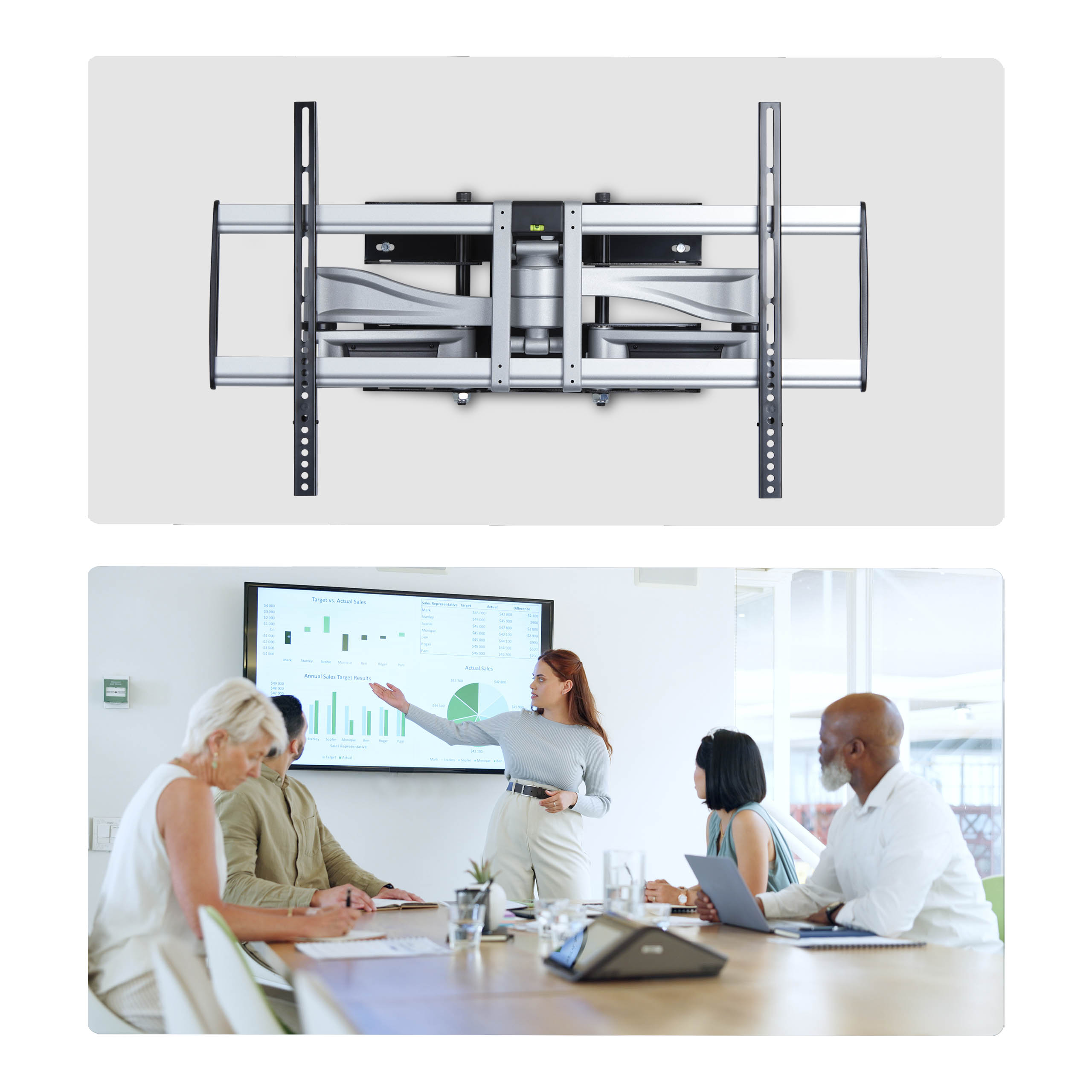

- Use for multi-purpose displays in lecture halls, large video conferencing rooms, and digital signage.
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + foam
Accessory Products - RH2A-7M-HDMI-CABLE
- HD2AP-15M-HDMI-CABLE
- 8K-A-50F-HDMI-CABLE
- HDMIMM80AC
- ST121WHDS2
- ST128HD20
- 1B-WALL-MOUNT-SHELF
- 2B-WALL-MOUNT-SHELF
- 27LC-4B00-POWER-CORD
- PXT10112
- CBMOWD4527
- CBMWWD1911
- HKLP25
- B506I-HOOK-LOOP-TIES
- CABLE-TAG-HLWH
- CBMDNMCC1
- 4K50IC-EXTEND-HDMI
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Related Products - FLATPNLWALL
- VIDWALLMNT
- FPWTLTPORT
- TV-WALL-MOUNT-65FS
- FHA-TV-WALL-MOUNT
- 65SAP2-TV-WALL-MOUNT

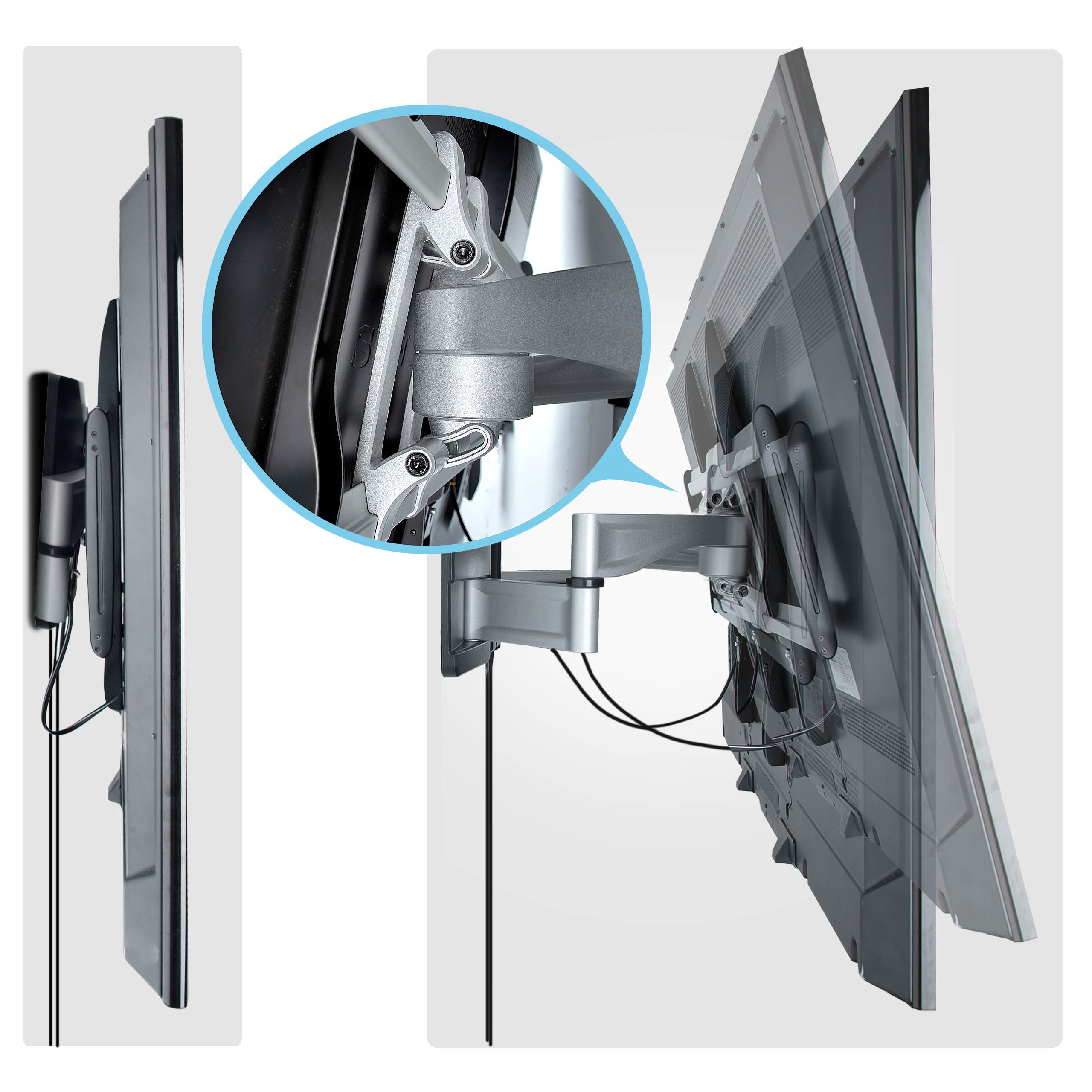

Color Black & Silver Construction Material Aluminum and Steel Product Length (mm) 870 Product Width (mm) 525 Product Height (mm) 550 Product Weight (g) 14230 TAA Compliant Yes Anti-theft No Display Tilt +2° / -12° Fits Curved Display No Fits UltraWide Displays No General Specifications - Minimum Distance to Wall: 4.1in (10.5cm)
- Maximum Distance to Wall: 21.6in (55cm)

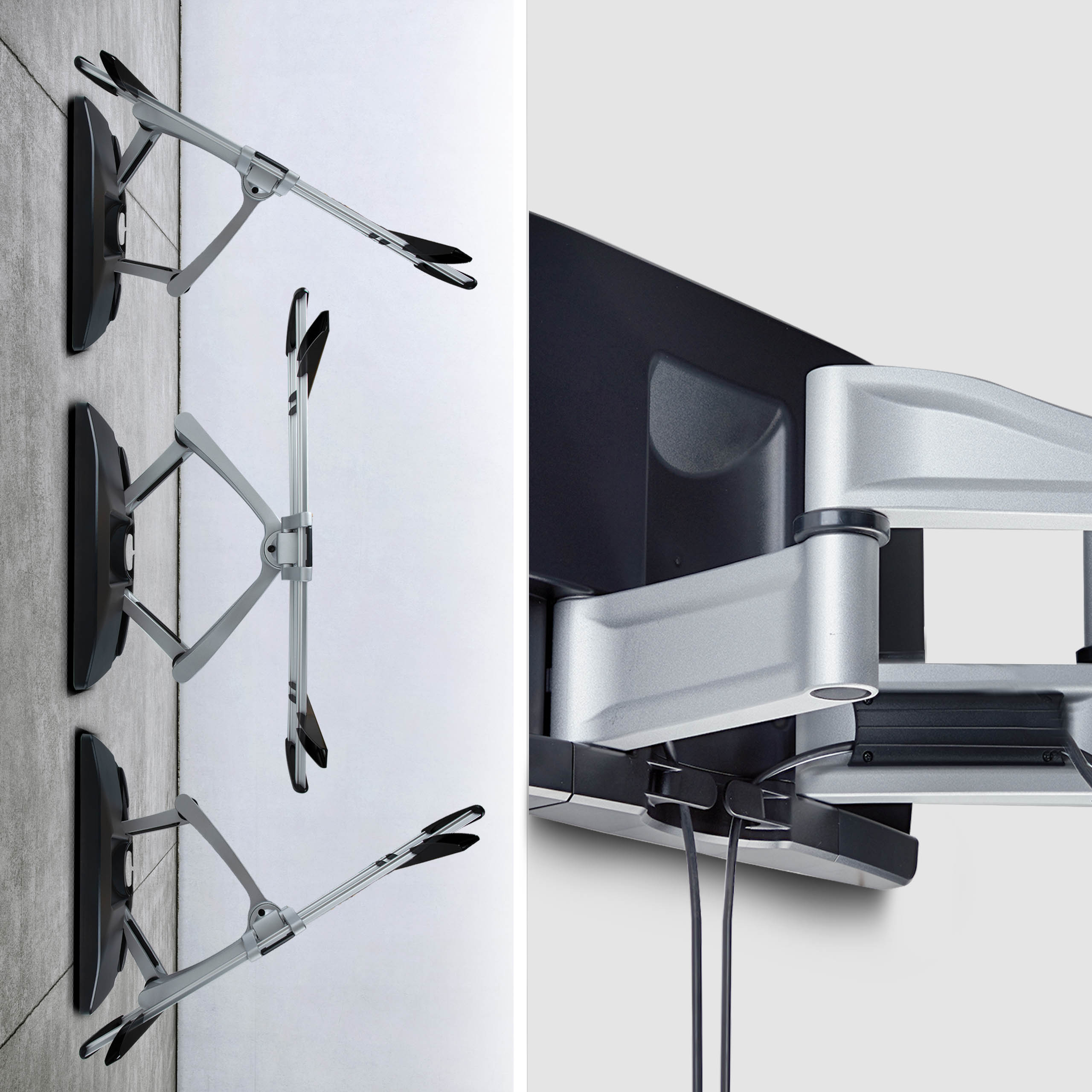

Height Adjustment No Maximum Display Size 100" Minimum Display Size 32" Projector Mount No Swivel / Pivot +60° / -60° TV Weight Capacity Range Up to 85kg (187.4lb) Video Wall No Weight Capacity for Display Mounts (g) 85000 Articulating No Cable Management Yes Minimum Profile from Wall (mm) 40 Mounting Options Wall-Mount Number of Displays 1 Orientation Horizontal Tools Included Yes VESA Hole Pattern(s) - 200x200 mm
- 200x300 mm
- 200x400 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 400x400 mm
- 500x300 mm
- 600x300 mm
- 600x400 mm
- 800x400 mm
- 800x500 mm

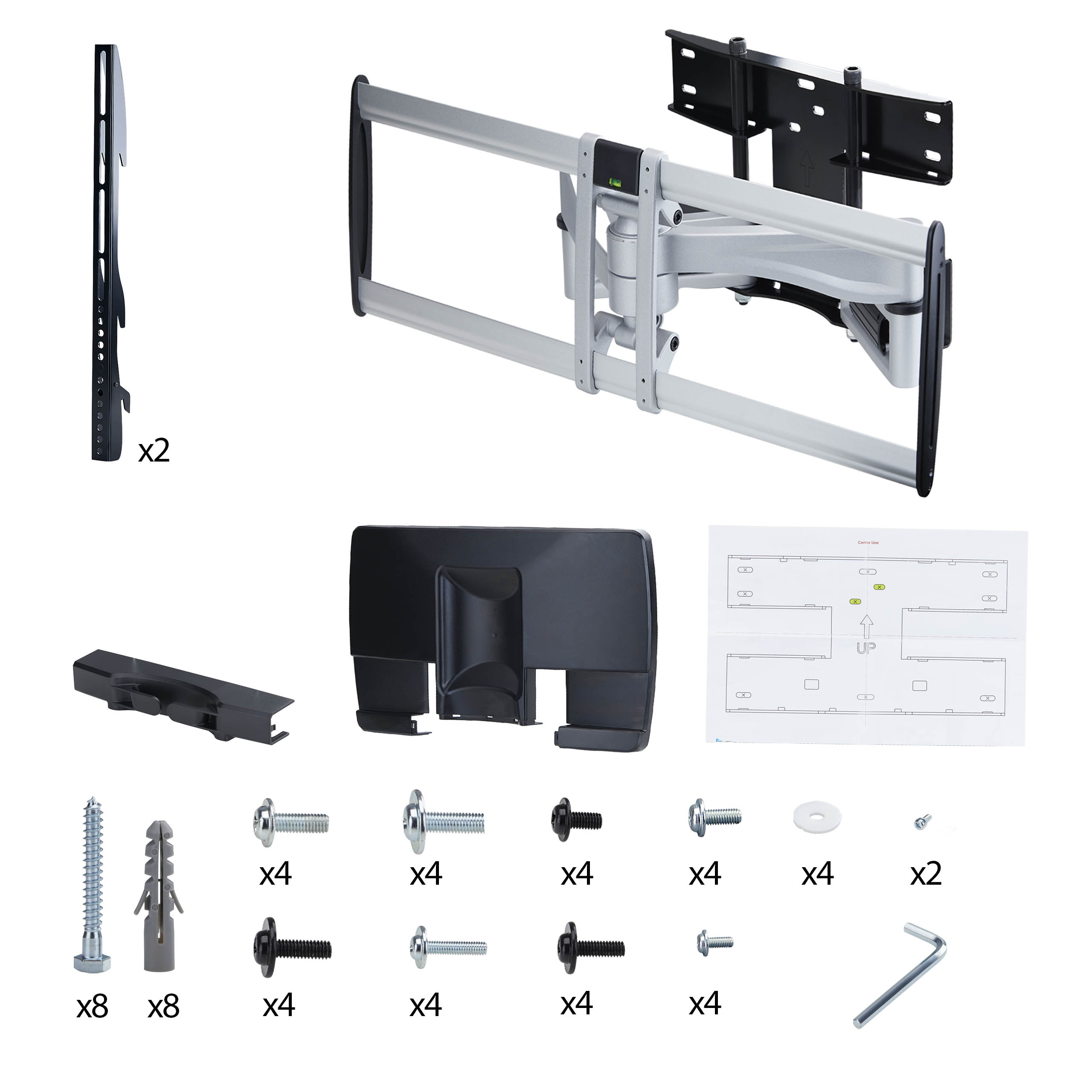

Wallmountable Yes Carton Depth (mm) 945 Carton Height (mm) 180 Carton Quantity 1 Carton Weight Gross (g) 16500 Included in Package - 1 - TV Wall Mount Assembly
- 2 - Vertical Mounting Brackets
- 2 - Vertical Mounting Bracket Screws
- 1 - Wall Plate Cover
- 1 - 6mm Hex Key
- 4 - M4x12mm Screws
- 4 - M4x18mm Screws
- 4 - M5x12mm Screws
- 4 - M6x12mm Screws
- 4 - M6x18mm Screws
- 4 - M8x12mm Screws
- 4 - M8x18mm Screws
- 4 - M8x25mm Screws
- 8 - Wall Mounting Screws
- 8 - Concrete Anchors
- 4 - Flat Washers
- 1 - Product Documentation
- 1 - Wall Mounting Template
- 1 - Wall Cable Manager
Package Depth (mm) 945 Package Height (mm) 180 Package Width (mm) 386 Package Weight (g) 16500 Packaging Description Articulated TV Wall Mount up to 100-inch and 187.4lb (85kg) Packaging Description India Articulated TV Wall Mount up to 100-inch and 187.4lb (85kg) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN/DE QSG Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2025-06-05 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment Full Motion TV Wall Mount - Heavy Duty Articulating TV Wall Mount Bracket for 32" to 75" (165lb/75kg) VESA Display - Universal Adjustable Tilt/Swivel Flat Screen Arm Comparable SKU 2 Comment Articulating TV Wall Mount, VESA Wall Mount, Supports 26 to 65 inch/99lb/Flat/Curved TVs, Retractable Low Profile, TAA Digital Content Due Date 2025-10-21 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - 50x25mm In-Life Change Summary Updated Bullet 2 Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product Medium Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2025-05-20 Target Production Release 2025-05-27 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
