101N-USBC-DOCK
USB C Dual Monitor Dock HDMI VGA DP

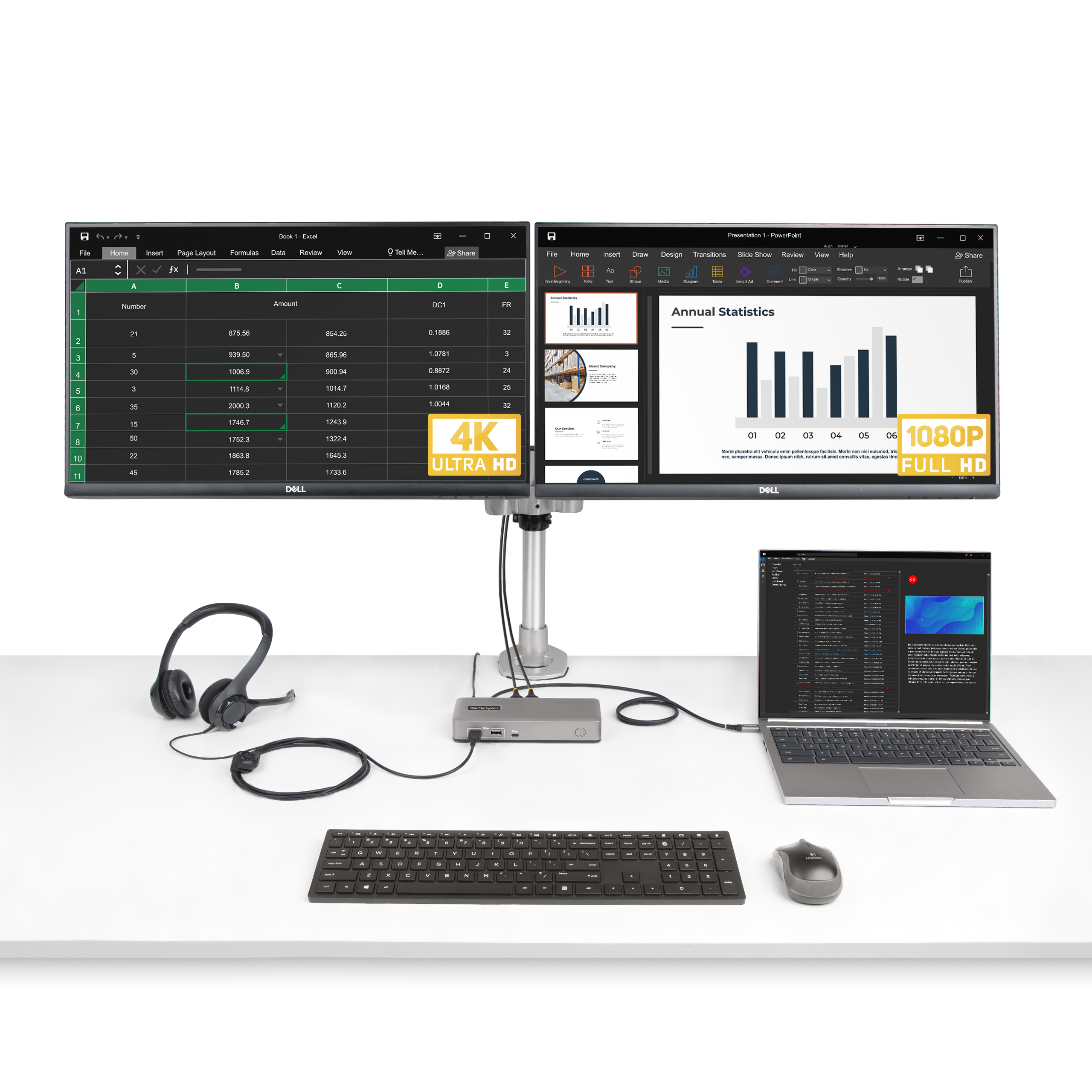

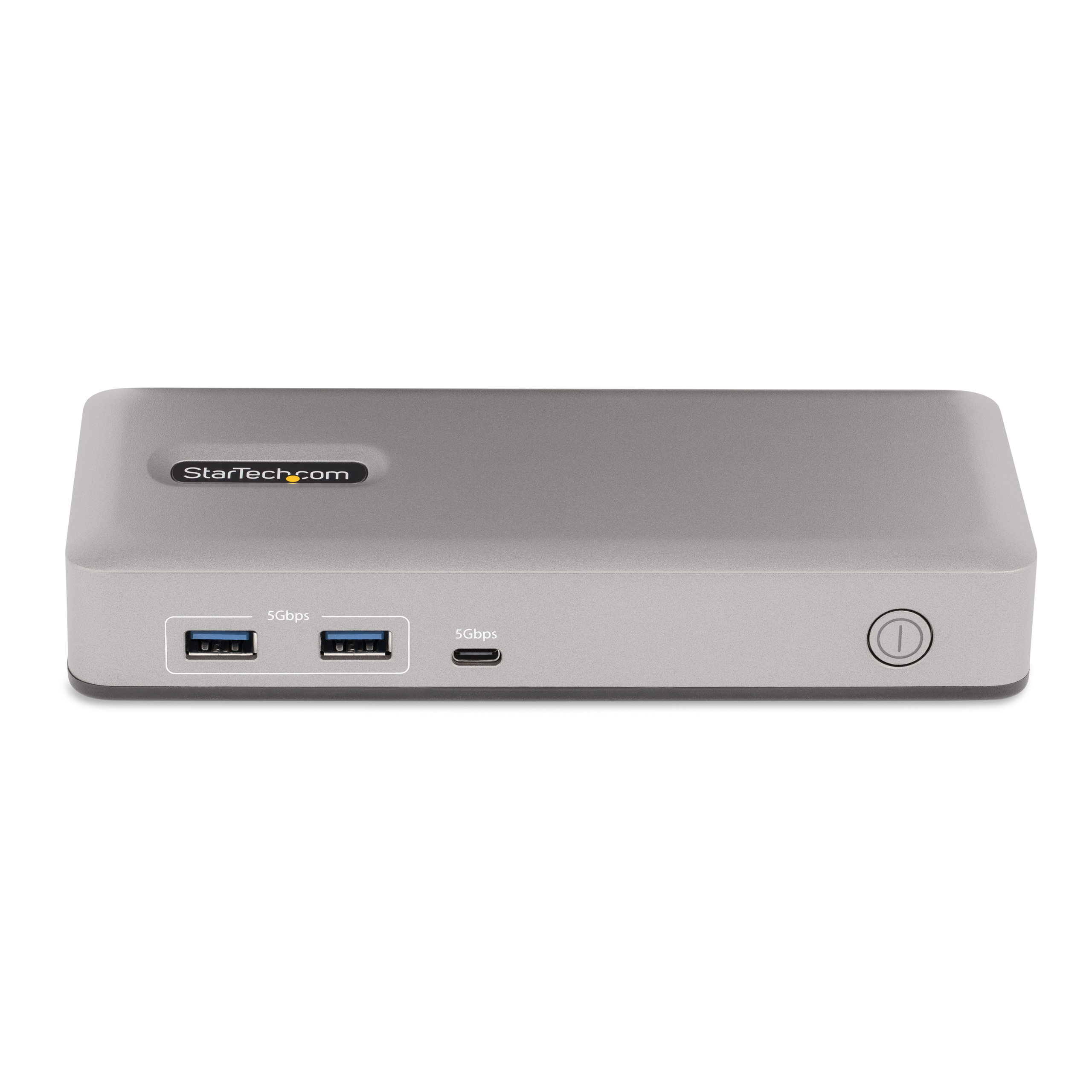

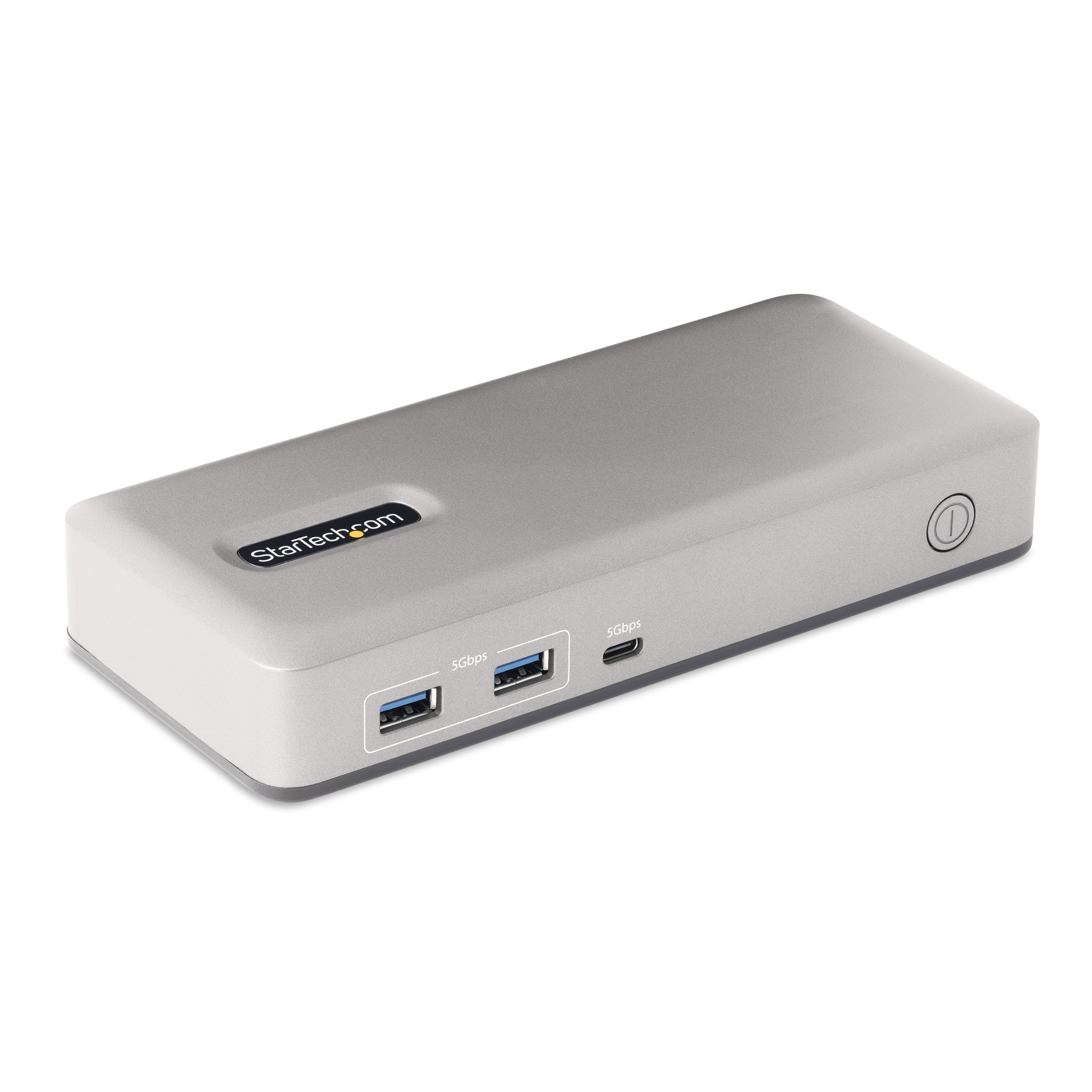

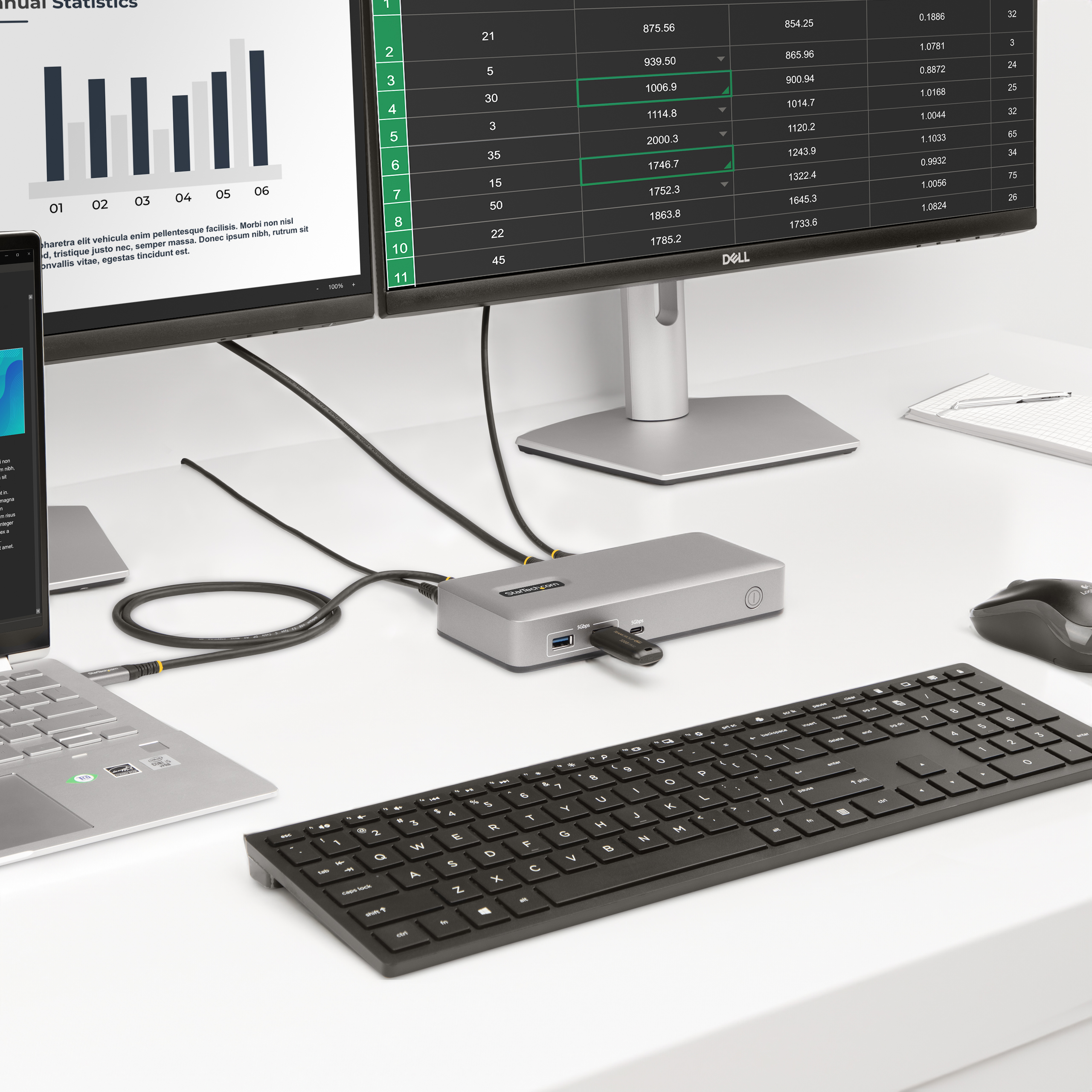

Turn a USB Type-C enabled laptop into a dual-monitor DisplayPort and HDMI or VGA workstation with 6 USB-A and 1 USB-C peripheral ports
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name USB C Dual Monitor Dock HDMI VGA DP Product Number 101N-USBC-DOCK UPC 065030893985 Lifecycle status Active Warranty 3 Years Weighted Opportunity 331200 Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family USB-C - no ethernet (WFH) Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) USB-C 3.2 Gen 1 Dock Product Title (Short) Dual-Monitor USB-C Docking Station, 4K Product Title (Medium) Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, 7x USB Product Title (Standard) Dual-Monitor USB-C Docking Station, DisplayPort & HDMI/VGA Multi Monitor Dock, 4K 60Hz, USB-C Dock, 7x USB Hub, 85W PD, TAA Product Title (Long) Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K 60Hz - USB 3.2/3.1 (5Gbps) Type-C Dock - 7x USB Hub, 85W PD, Windows & ChromeOS - TAA Product Title (AMZ) Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K 60Hz - USB 3.2/3.1 (5Gbps) Type-C Dock - 7x USB Hub, 85W PD, Windows & ChromeOS , TAA Title Ingram (Part 1) Dual-Monitor USB-C Laptop Dock Title Ingram (Part 2) DP and HDMI/VGA, 7xUSB, PD 3.0 Website Product Headline Turn a USB Type-C enabled laptop into a dual-monitor DisplayPort and HDMI or VGA workstation with 6 USB-A and 1 USB-C peripheral ports Bullet 1 7-PORT USB HUB: The dock features a wide variety of extra USB ports for device connectivity; 2x USB 3.2 Type-A (5Gbps) front facing ports, 1x USB 3.2 5Gbps Type-C front facing port, 4x USB 2.0 Type-A HID rear facing ports; Features Driverless installation Bullet 2 HIGH-PERFORMANCE VIDEO: Supports up to 2x 2560x1440 60Hz through DP & HDMI ports or single 4K 60Hz (Intel 11th Gen or higher with DP 1.4 Alt Mode & MST req. for max performance); 1080p VGA; MST utilizes laptop GPU for uncompressed video & low CPU usage Bullet 3 DEVICE SECURITY: Includes USB-IF Certified 3.3ft (1m) Locking USB-C host cable; Locking USB-C host port; Mounting holes for optional bracket; K-slot and Nano Slot; USB Event Monitoring & Windows Layout utilities Bullet 4 85W POWER DELIVERY 3.0: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; Front-facing power button to turn docking station on/off Bullet 5 FLEXIBLE MULTIMONITOR OUTPUT: Provides video versatility with DisplayPort (DP) 1.4, HDMI 2.0b and VGA display outputs; Choose between single or dual video; For dual video pair DP as the primary output with HDMI or VGA as the secondary output Bullets (Compact) USB-C docking station enables single/dual monitors via MST with one from a DP 1.4 output and a second from HDMI 2.0b w/HDR or VGA - Port replicator w/7-Port USB hub - Driverless setup - 85W PD w/incl power adapter - Locking USB-C host cable Bullets (Consolidated) - USB-C docking station enables single/dual monitors (up to 2x 2560x1440 60Hz through DP & HDMI or 1080p VGA) via MST - DisplayPort 1.4 HDMI 2.0b and VGA video outputs - Driverless setup - Windows/ChromeOS - Port Replicator w/7-port USB hub: 2x USB-A (5Gbps); 1x USB-C (5Gbps); 4x USB 2.0 Type-A -Features Locking USB-C host port with USB-IF Certified 3.3ft Locking USB-C host cable - 85W PD 3.0 w/included power adapter - Mounting holes for optional bracket | K-Slot & Nano Slot for lock (not incl) Marketing Copy Marketing Copy (No HTML) Applications - Add dual displays to a USB-C laptop
- Expand the connectivity of a USB-C laptop with 7x USB ports
Website Search Keyword - dual 4k 60hz docking station
- dual display usb 3.0 docking station
- dual displayport usb c dock
- dual hdmi usb c dock
- Dual Monitor USB C Docking Station
- dual monitor usb dock
- universal laptop docking station
- usb 3.0 docking station
- usb 3.1 gen 1 docking station
- usb 3.2 docking station
- usb c dock 4k 60hz
- usb c port replicator
- Docking Stations
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Special Notes - USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
- Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.

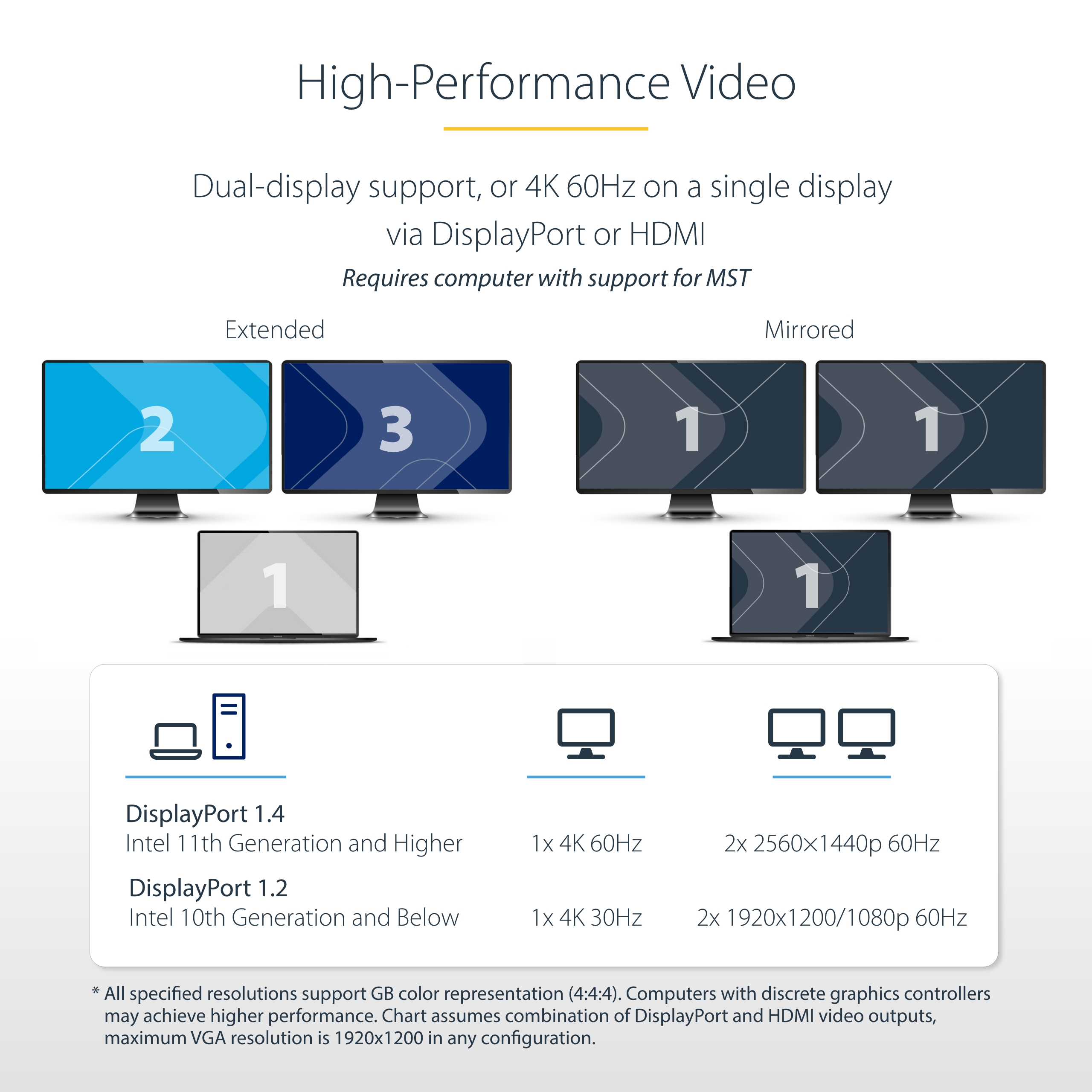

System and Cable Requirements For a multi-monitor configuration, the computer must support MST. If the computer doesn't support MST, both displays will show the same video signal. Accessory Products - HDDVIMM3
- HDMMV1M
- HDMMV2M
- MXT101MMHQ3
- MXT101MMHQ
- DISPLPORT3L
- DISPLPORT6L
- DP2HD4K60S
- DP2VGA2
- SSPMSVESA
- SSPMSUDWM
- LTULOCK4D
- LTLOCK3DCOIL
- LTLOCK4D
- BRNCHLOCK
- DOCK-NUC-VESA-MOUNT
Related Products - 129N-USBC-KVM-DOCK
- DK30CHHPD
- DK30C2DPEP
- DK30C2DPPD
- MST30C2HHPD
- 102B-USBC-MULTIPORT
- 120B-USBC-MULTIPORT
- DKM31C3HVCPD

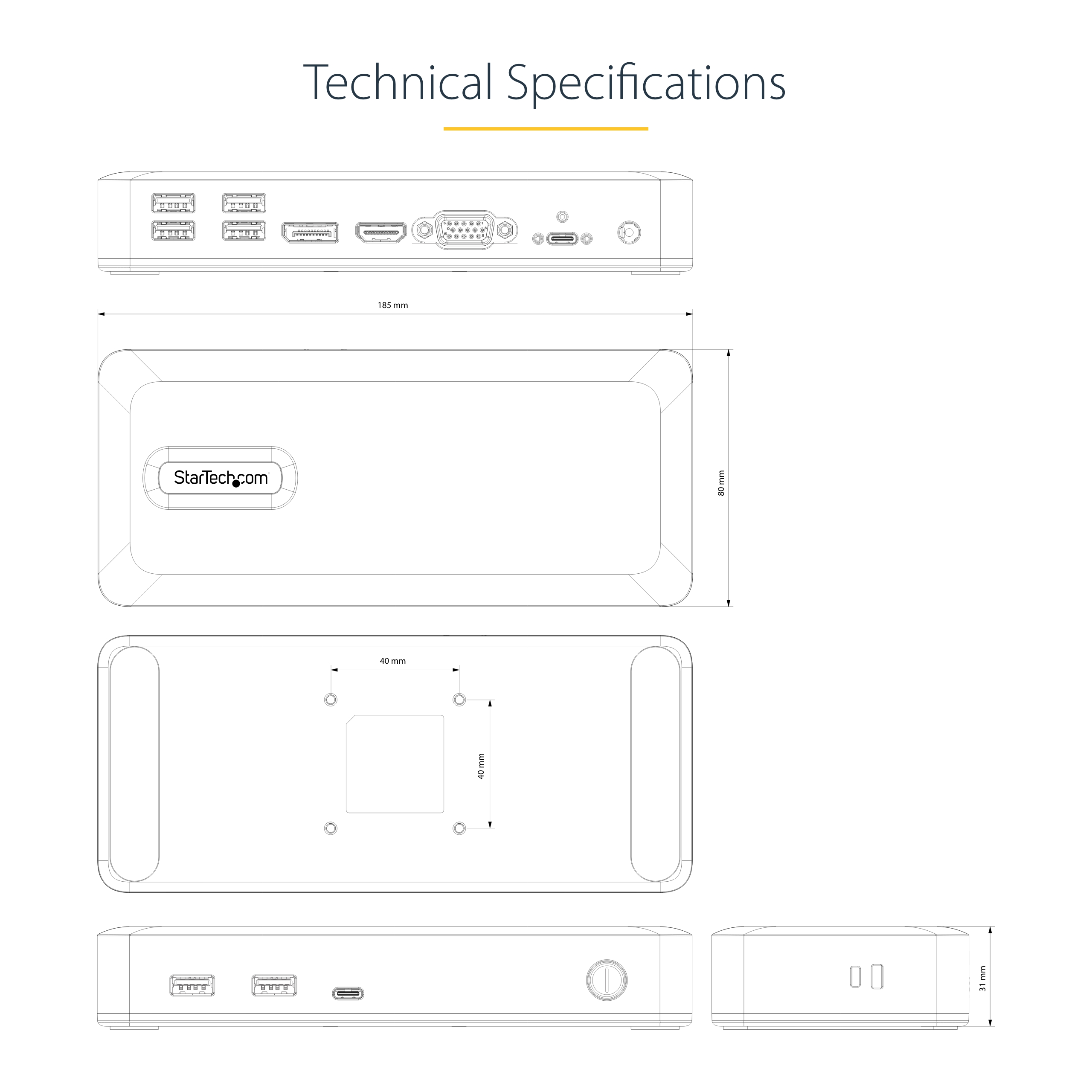

Input Current 2.37A Input Voltage 100 - 240 AC Output Current 6.75A Output Voltage (V) 20V DC Power Consumption (In Watts) 135W Power Delivery 85W Power Source AC Adapter Included Plug Type CP (OD:7.4/ID:5.1/CPD:0.6) Color Space Gray Humidity 0~95% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 80.000 Product Width (mm) 185.000 Product Height (mm) 31.000 Product Weight (g) 275.000 Storage Temperature -20°C to 70°C (-4°F to 185°F) TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Maximum Data Transfer Rate 5 Gbps Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 11
- Windows 8.1
- Windows 8
- Windows 7
- Chrome OS
- Windows 11 ARM

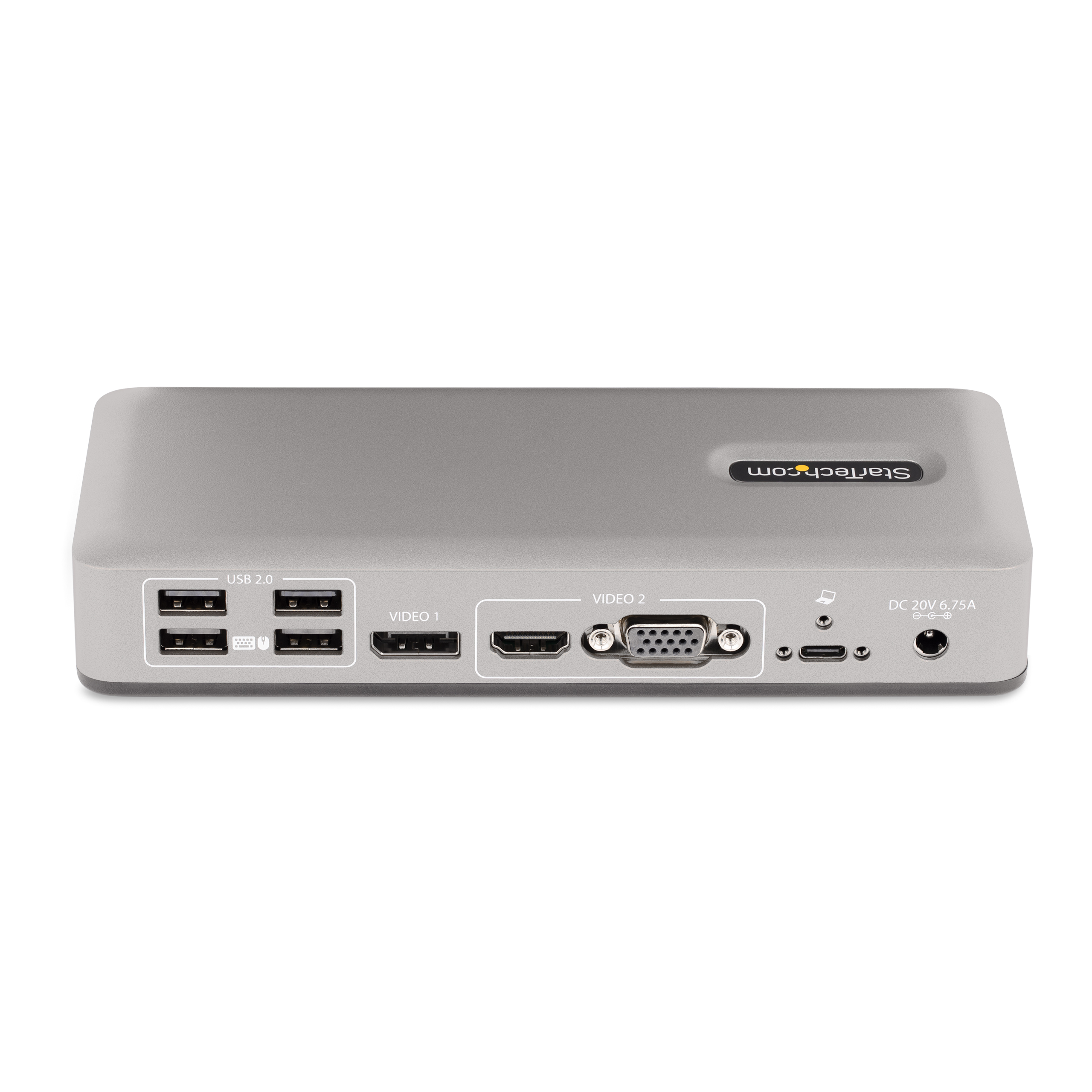

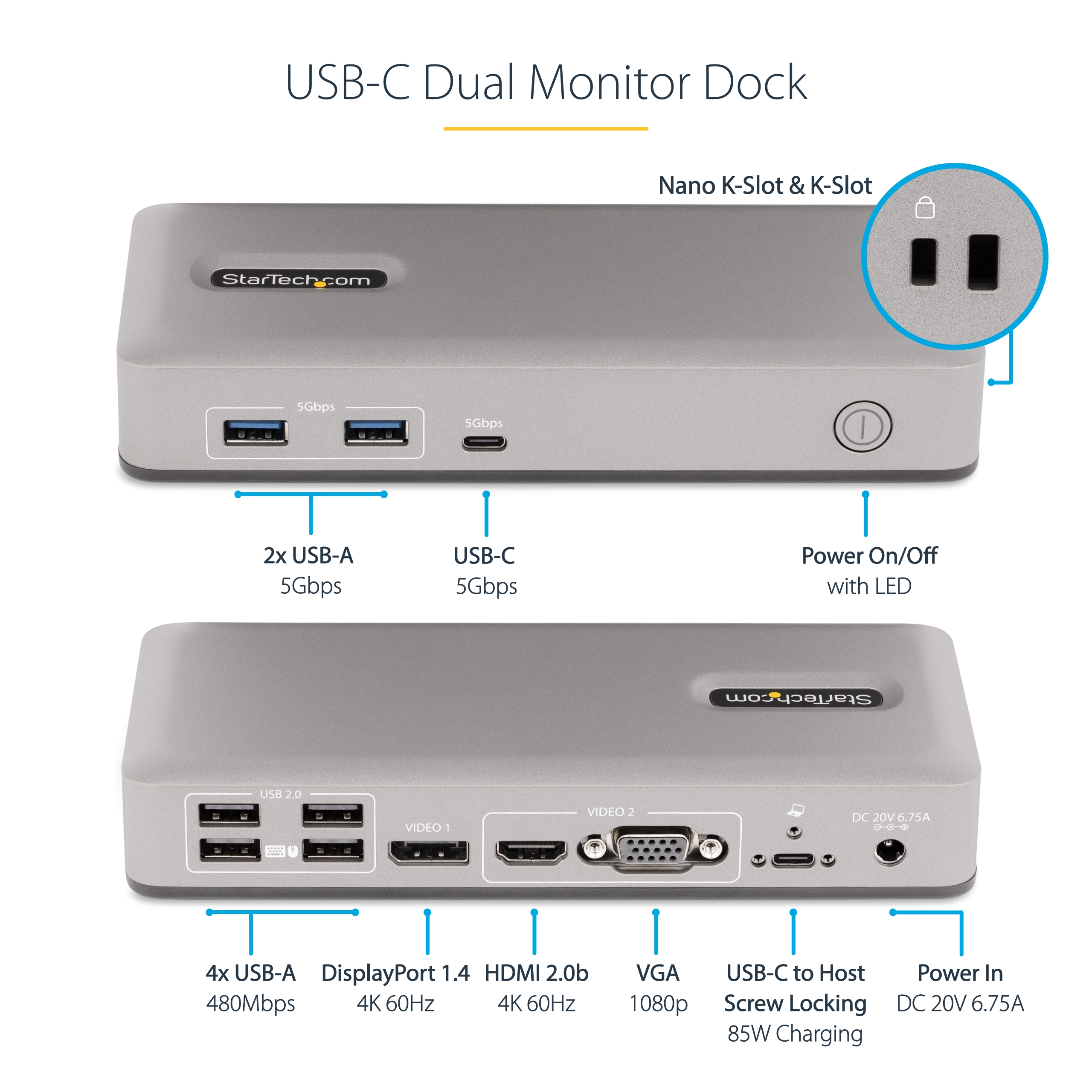

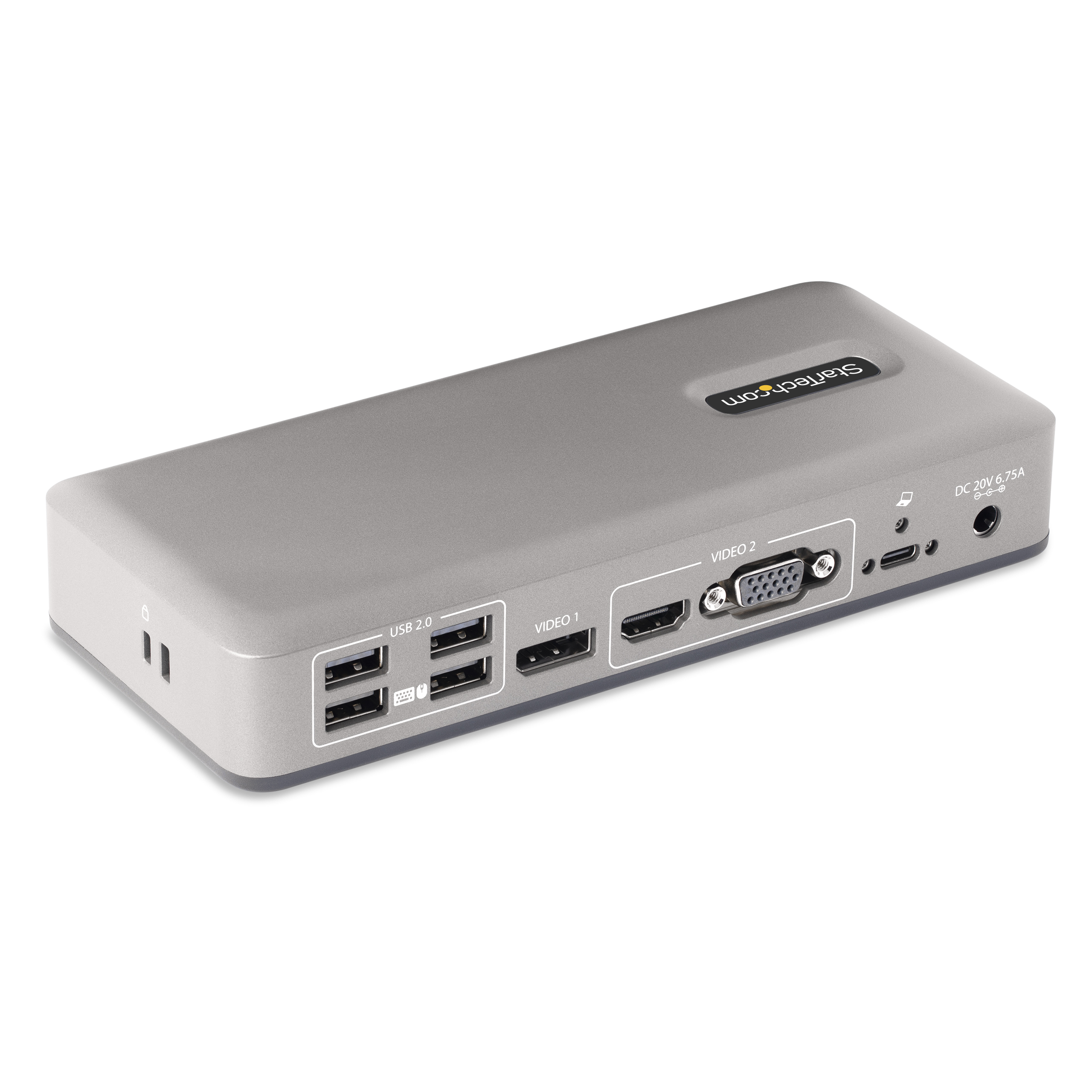

UASP Support Yes USB Type and Rate USB 5Gbps Video Output Port - HDMI
- DisplayPort
- VGA
Video Transport Technology USB-C (DP Alt-Mode) Bus Type USB-C Chipset ID - Realtek - RTD2142
- Realtek - RTS5450M
- Realtek - RTS5451
- Realtek - RTS5411S
- Terminus - FE1.1s

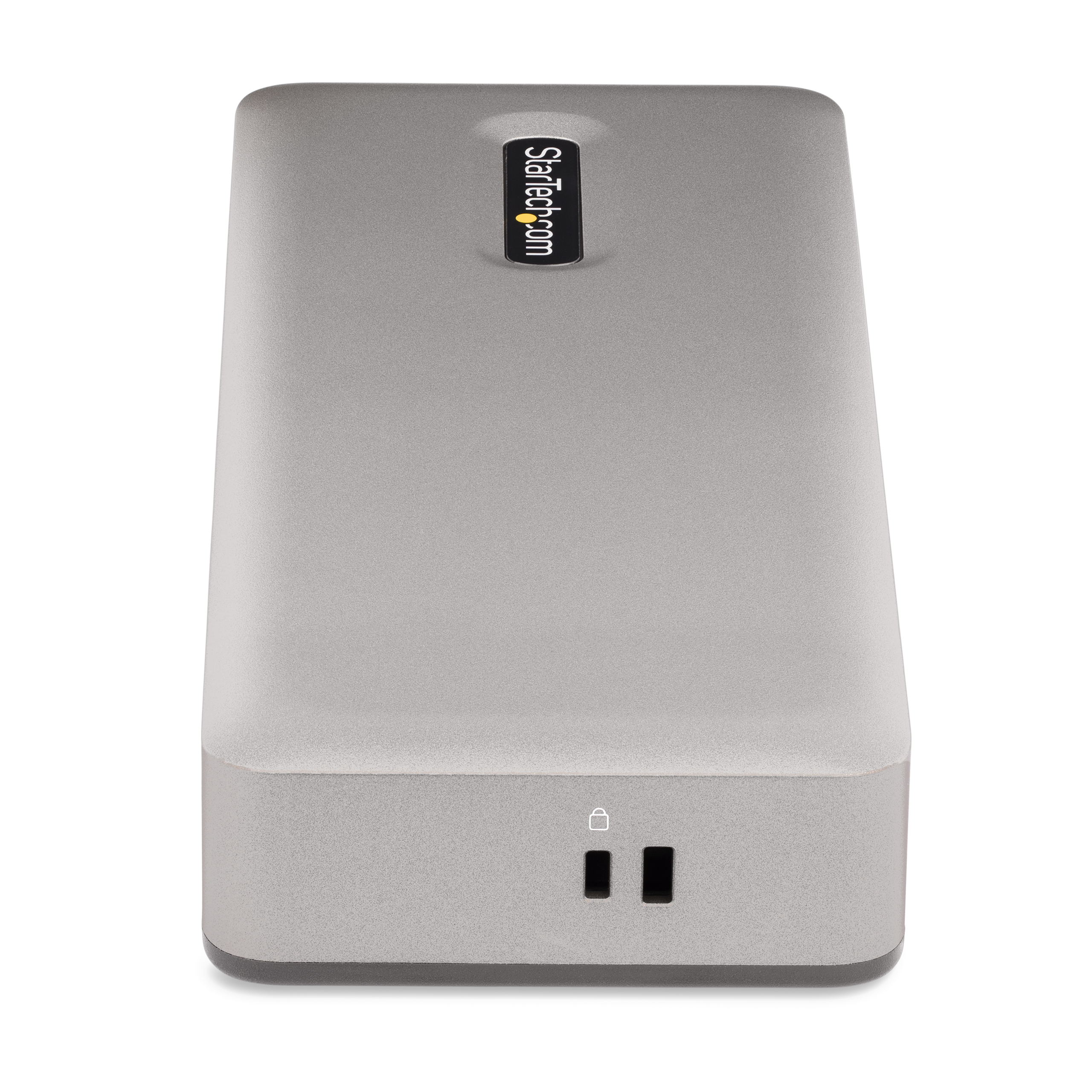

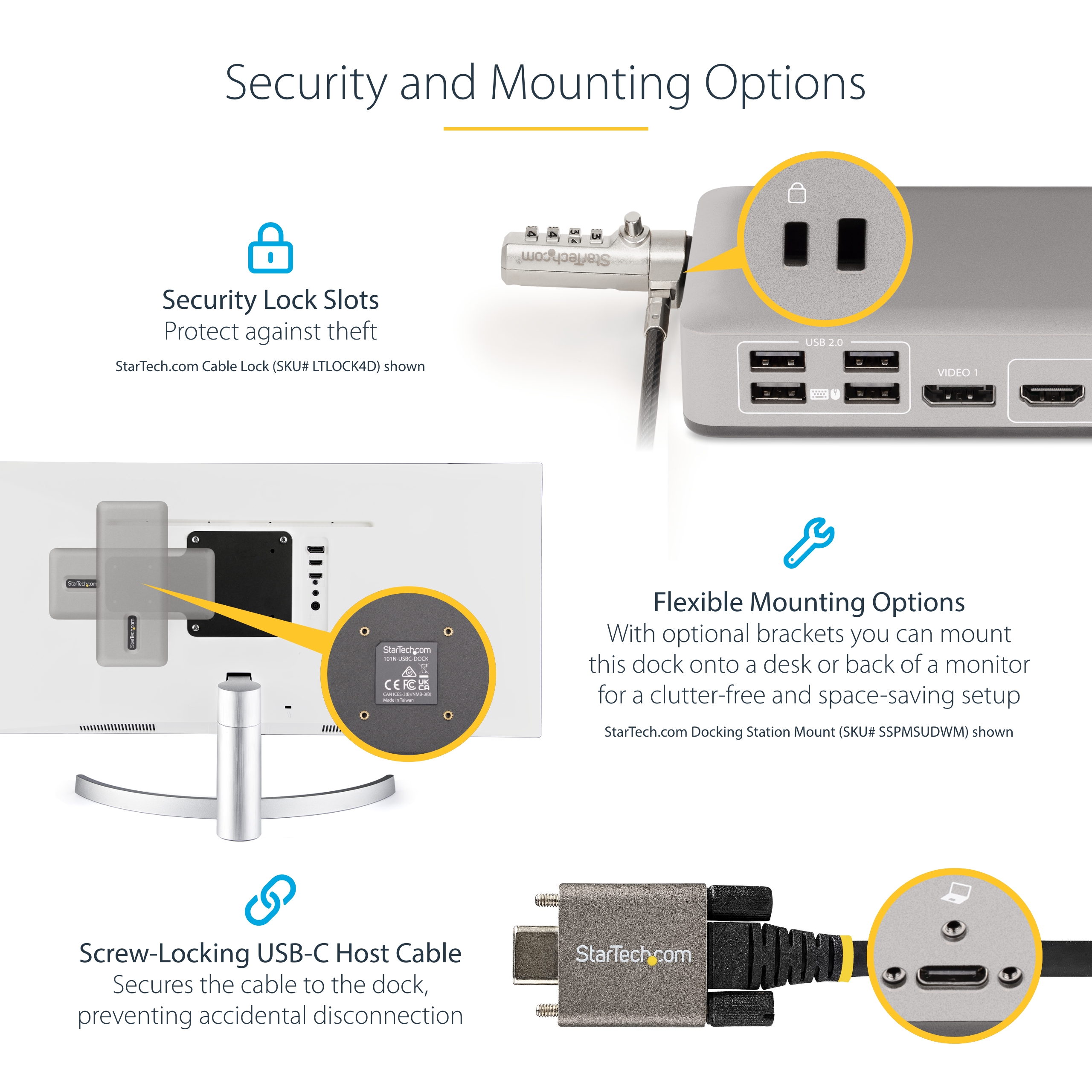

Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
Host Connection Port USB-C Industry Standards - DisplayPort 1.4
- HDMI 2.0b
- DisplayPort 1.4 Alt Mode (USB-C Host Port)
- USB 3.2 Gen 1 (5Gpbs)
- USB Power Delivery 3.0

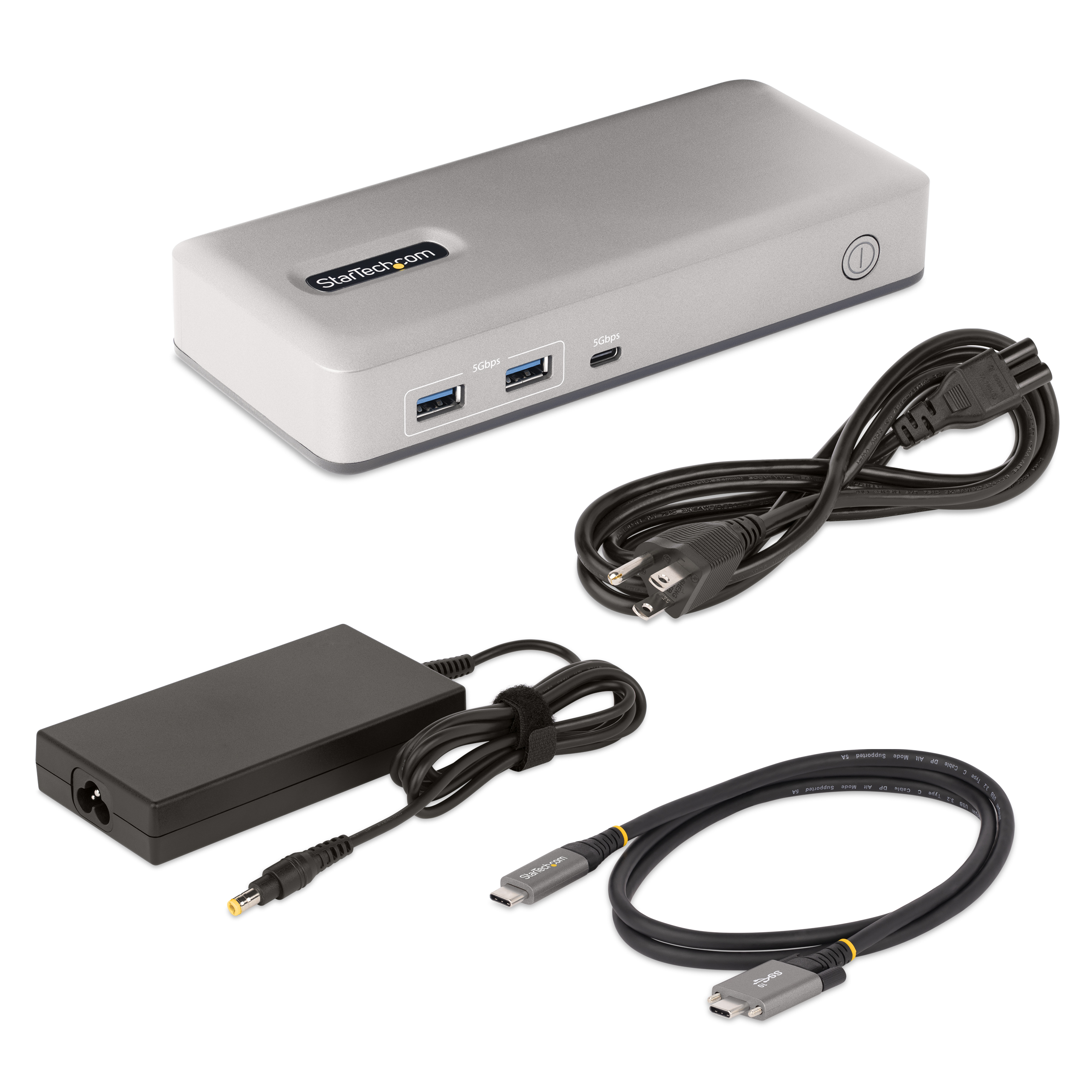

Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Power LED Number of Displays 2 Carton Depth (mm) 460 Carton Height (mm) 293 Carton Quantity 12 Carton Weight Gross (g) 13122 Included in Package - 1 - USB-C Docking Station

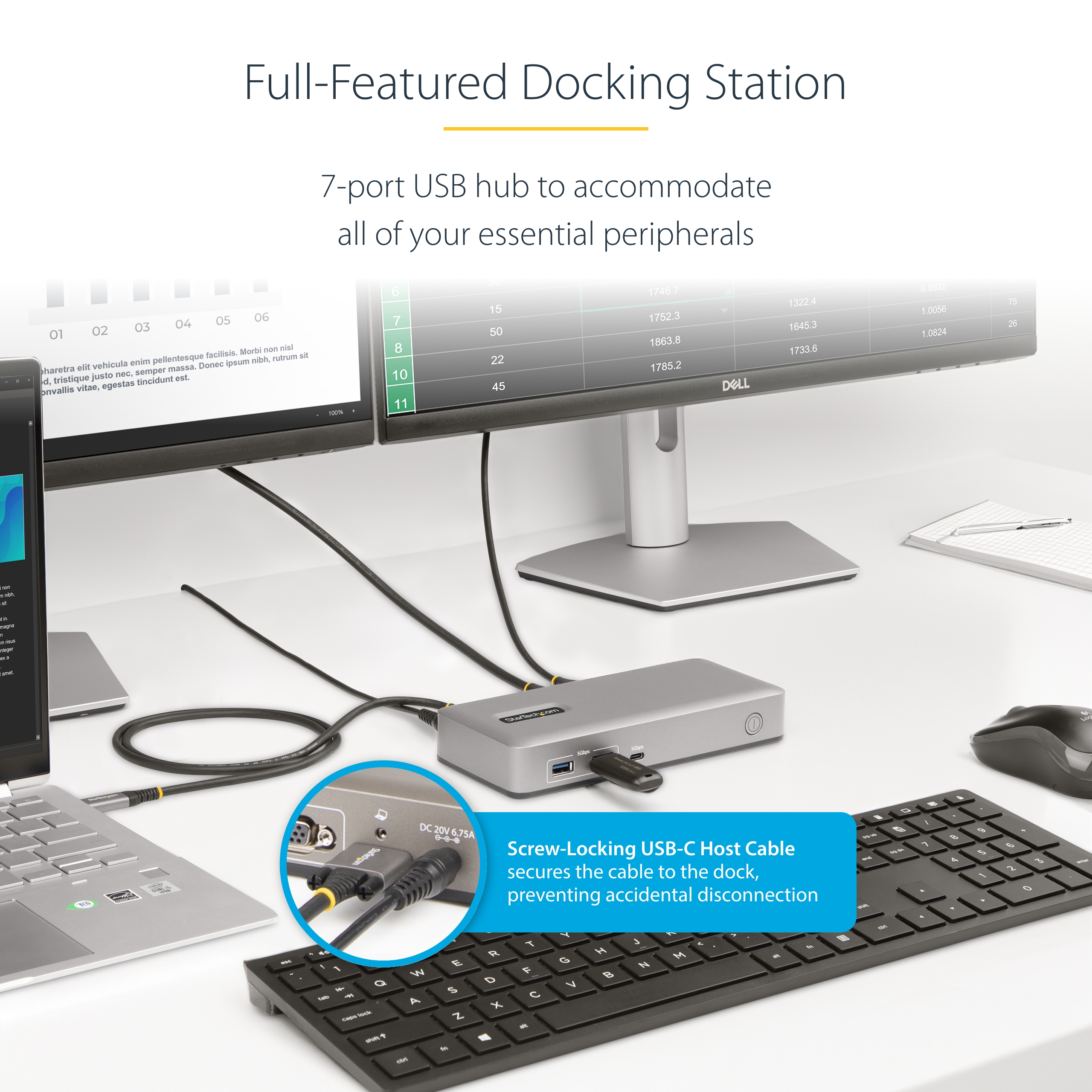

- 1 - 3.3ft [1m] USB-C Host Cable (Screw Locking)
- 1 - Universal Power Adapter (North America)
- 1 - Quick-Start Guide
Package Depth (mm) 219 Package Height (mm) 131 Package Width (mm) 109 Package Weight (g) 1020 Packaging Description USB-C Dual Monitor Dock - DP & HDMI or VGA - 6x USB-A / 1 x USB-C - 85W PD Packaging Description India This is a test description. Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-03-08 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Comp has GbE, 101N does not. Comp has 4 USB C, 101N has 6. Comp is only 65W PD Comparable SKU 2 Comment This is the only dock we carry without RJ45 ethernet connection Digital Content Due Date 2023-08-07 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved No Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) CA,JP,US Primary Technology - DisplayPort 1.4
- HDMI 2.0 / 4K 60 Hz and HDR
- Power Delivery
Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2023-03-01 Target Production Release 2023-03-08 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Video Not Required
