10320-ST

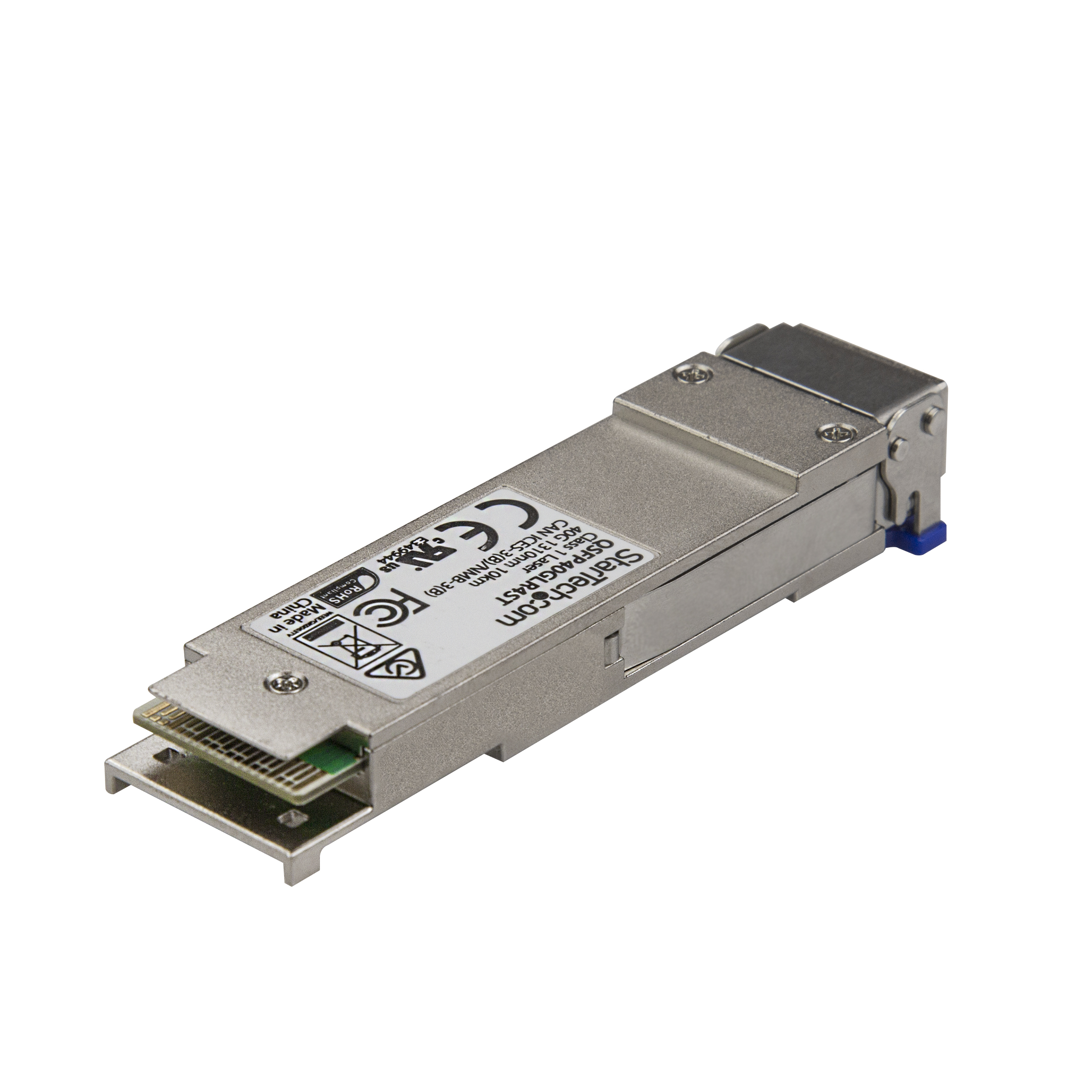

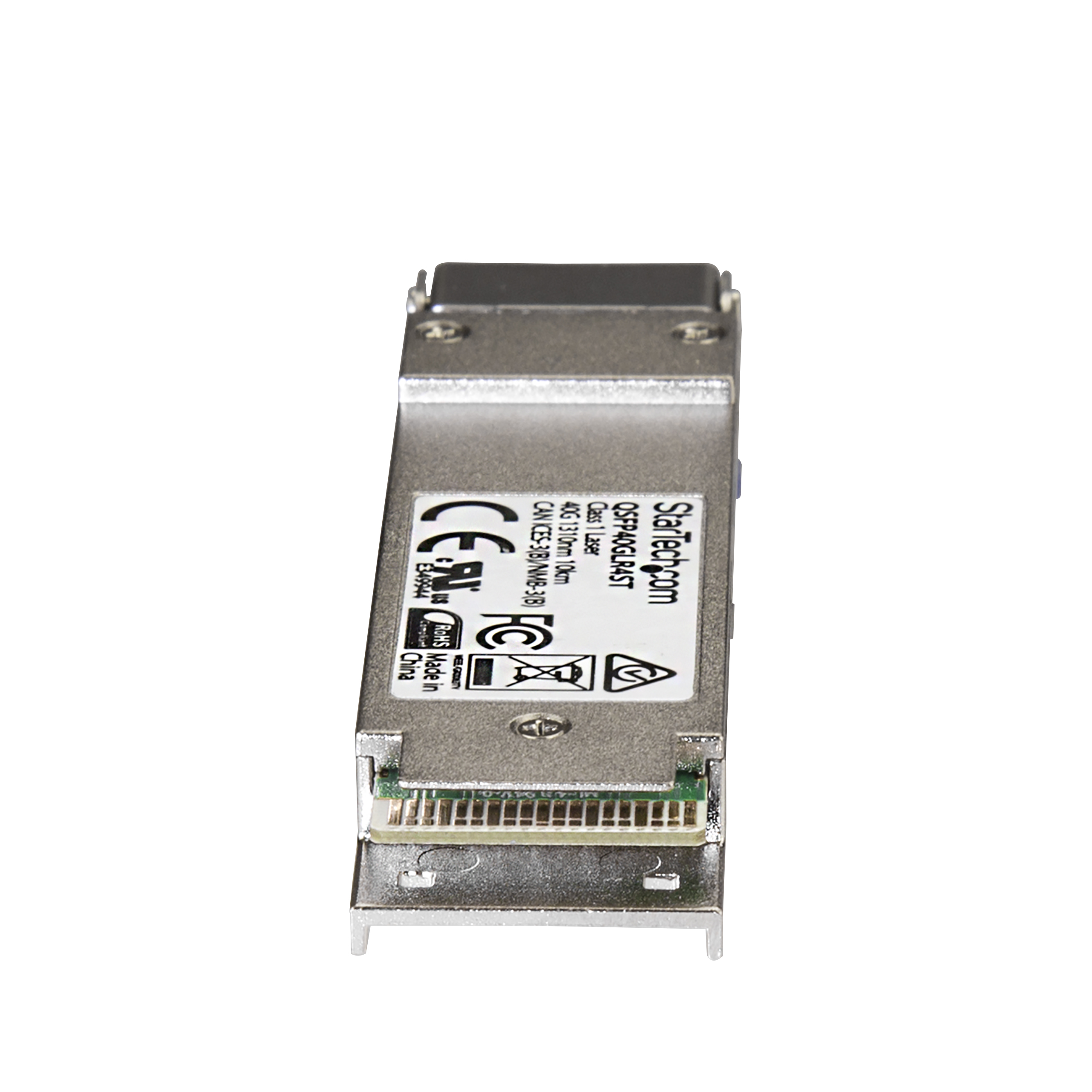

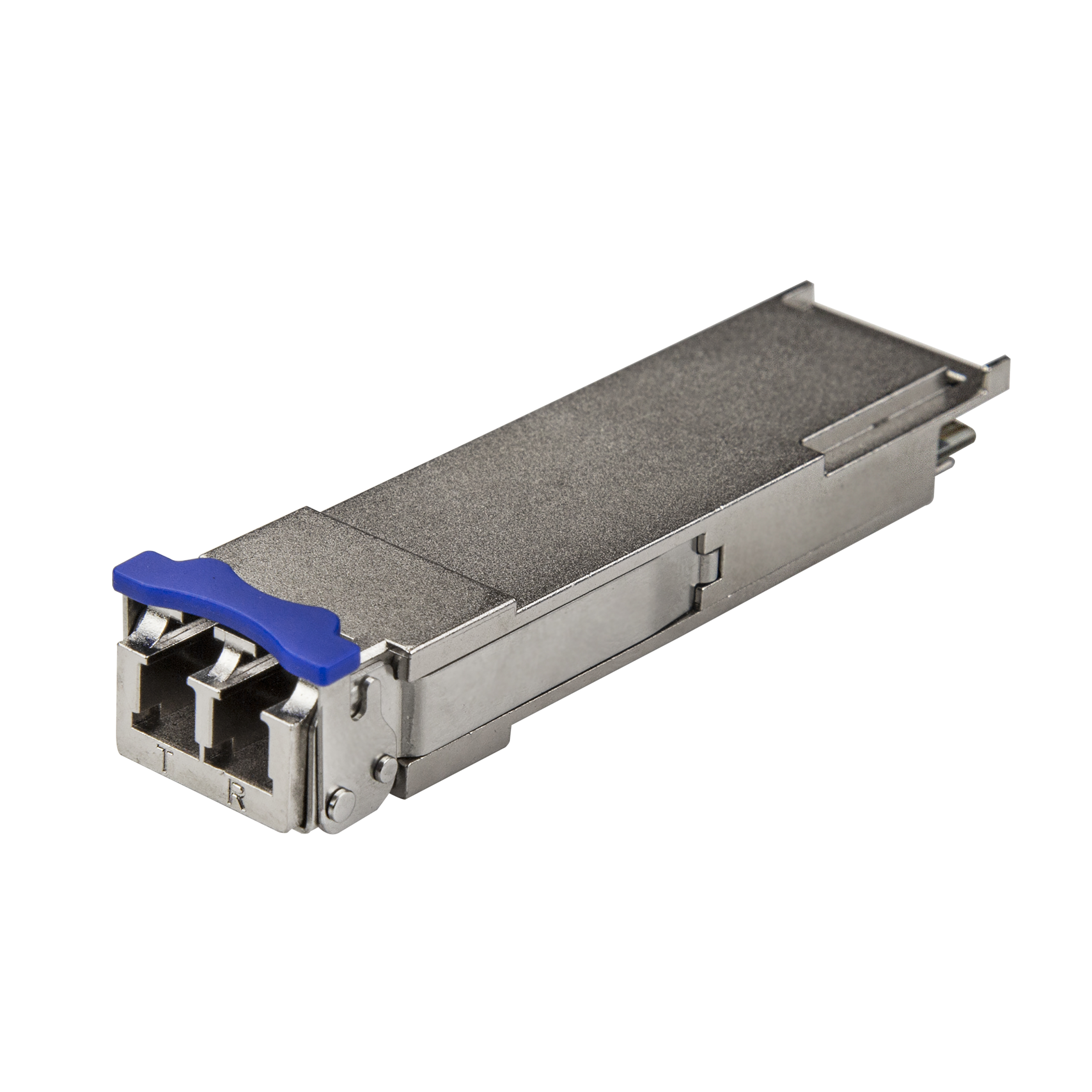

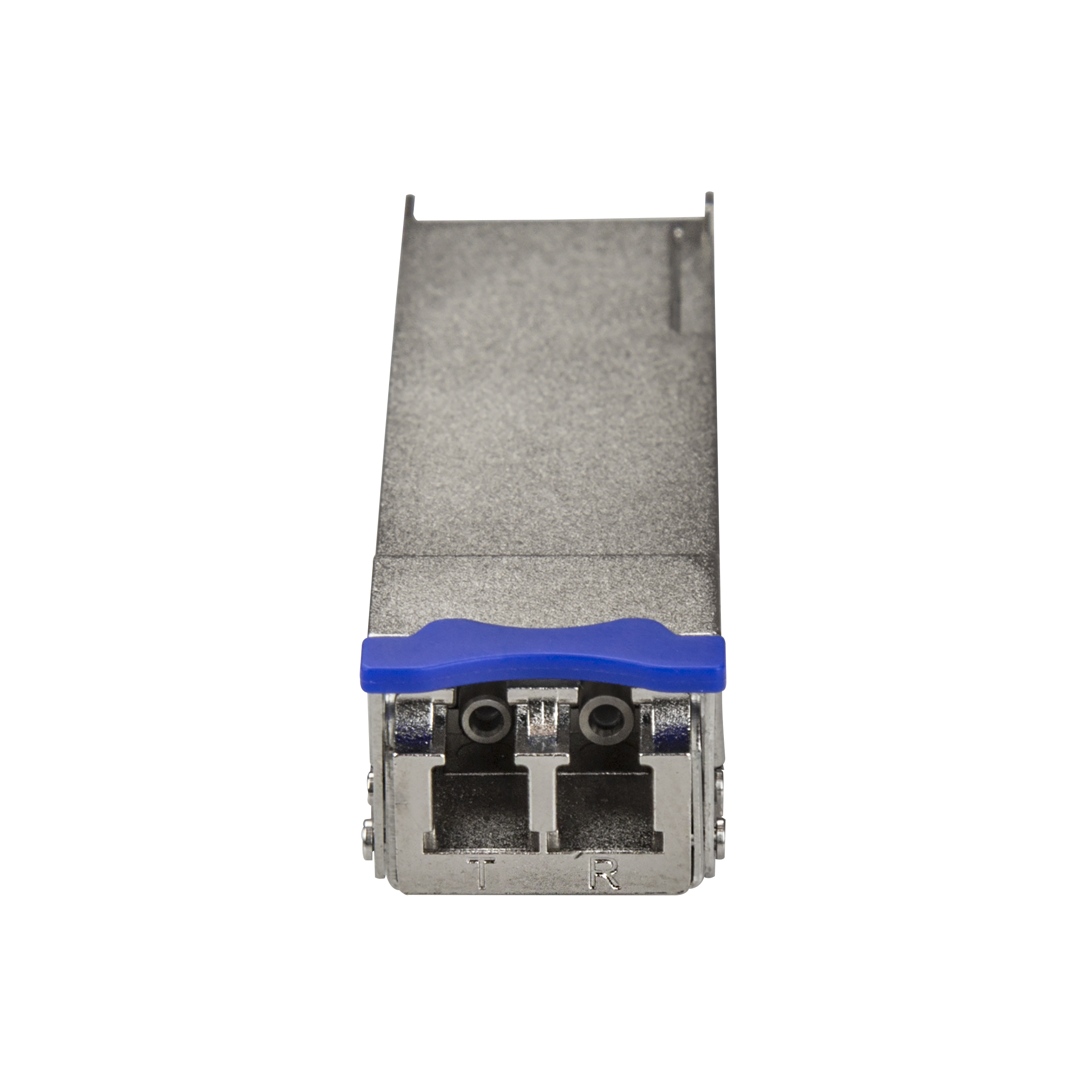

Extreme Networks 10320 Compatible 40GBase LR4 QSFP Transcei
40 Gbps | Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Images
Product Name Extreme Networks 10320 Compatible 40GBase LR4 QSFP Transcei Product Number 10320-ST UPC 065030886871 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Extreme Networks Compatible Family Extreme Networks Compatible - 40G QSFP+ Modules Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) 10320 Comp Product Title (Short) QSFP+ for Extreme Networks 10320 Product Title (Medium) Extreme Networks 10320 Comp QSFP+ SM Module - 40GBase-LR4 - Lifetime Warranty Product Title (Standard) Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4 - 40GE Gigabit Ethernet QSFP+ Single Mode Fiber (SMF) - 10 km DDM Product Title (Long) Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4 - Single Mode Fiber (SMF) - 40GE Gigabit Ethernet QSFP+ - LC 10 km - 1270nm to 1330nm - DDM Product Title (AMZ) Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4 - Single Mode Fiber (SMF) - 40GE Gigabit Ethernet QSFP+ - LC 10 km - 1270nm to 1330nm - DDM (10320-ST) Title Ingram (Part 1) Extreme Networks 10320 Comp - Title Ingram (Part 2) QSFP+ Module - SM Transceiver Website Product Headline 40 Gbps | Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty Bullet 1 100% EXTREME NETWORKS 10320 COMPATIBLE: Designed, programmed and tested to work with compatible Extreme Networks switches and routers to deliver reliable 40GbE connectivity Bullet 2 TECHNICAL SPECS: 40GBASE-LR4 | 40 Gbps | Single Mode | LC Connector | 1270nm to 1330nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10 km (6.2 mi) Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Extreme Networks routers and switches; DDM support reports the transceiver's status to most SNMP network management tools Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullets (Compact) Extreme Networks 10320 Compatible QSFP+ - 40GBASE-LR4 40 Gbps - 40GbE Module - 40GE Gigabit Ethernet QSFP+ 1270nm to 1330nm Single Mode Transceiver - 10 km (6.2 mi) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) 100% Extreme Networks 10320 compatible - 40GBASE-LR4 40 Gbps Gigabit Ethernet - 1270nm to 1330nm Single Mode - Up to 10 km (6.2 mi) - LC Connector DDM - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 10320
- 40 gigabit qsfp+
- 40G qsfp+
- 40g qsfp+ lr4
- 40g qsfp+ transceiver
- 40gbase lr4
- 40gbase lr4 qsfp+
- 40gbe qsfp+
- 40ge qsfp+
- axiom qsfp+
- extreme networks 10320
- extreme networks compatible qsfp+
- fiber optic transceiver
- fiber optic transceiver module
- fiber transceiver module
- proline qsfp+
- qsfp+
- qsfp+ module
- qsfp+ optical transceiver
- qsfp+ transceiver
- single mode fiber module
- single mode fiber transceiver
- single mode module
- single mode transceiver
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Power Consumption (In Watts) 2.5W Product Length (mm) 72.000 Product Width (mm) 18.300 Product Height (mm) 13.000 Product Weight (g) 44.000 TAA Compliant No Compatible Networks 40 Gbps Digital Diagnostics Monitoring Support No Fiber Operating Mode Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 41.25Gbps Max Transfer Distance 10 km (6.2 mi) MTBF (hours) 95,832,026 hours Wavelength 1270nm to 1330nm Fiber Connector LC Industry Standards IEEE 802.3ba 40GBASE-LR4 OEM Part Number 10320 SFP Compatible Brand Extreme Networks Carton Depth (mm) 340 Carton Height (mm) 350 Carton Quantity 100 Carton Weight Gross (g) 5400 Included in Package 1 - QSFP+ Transceiver Package Depth (mm) 134 Package Height (mm) 44 Package Width (mm) 184 Package Quantity 1 Package Weight (g) 128 Packaging Description 40Gb Fiber QSFP+ - 10320 Compatible - SM LC Packaging Description India 40Gb Fiber QSFP+ - 10320 Compatible - SM LC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2021-02-03 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-07-11 Target Production Release 2019-07-19 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
