10G5A2CS-USB-C-HUB

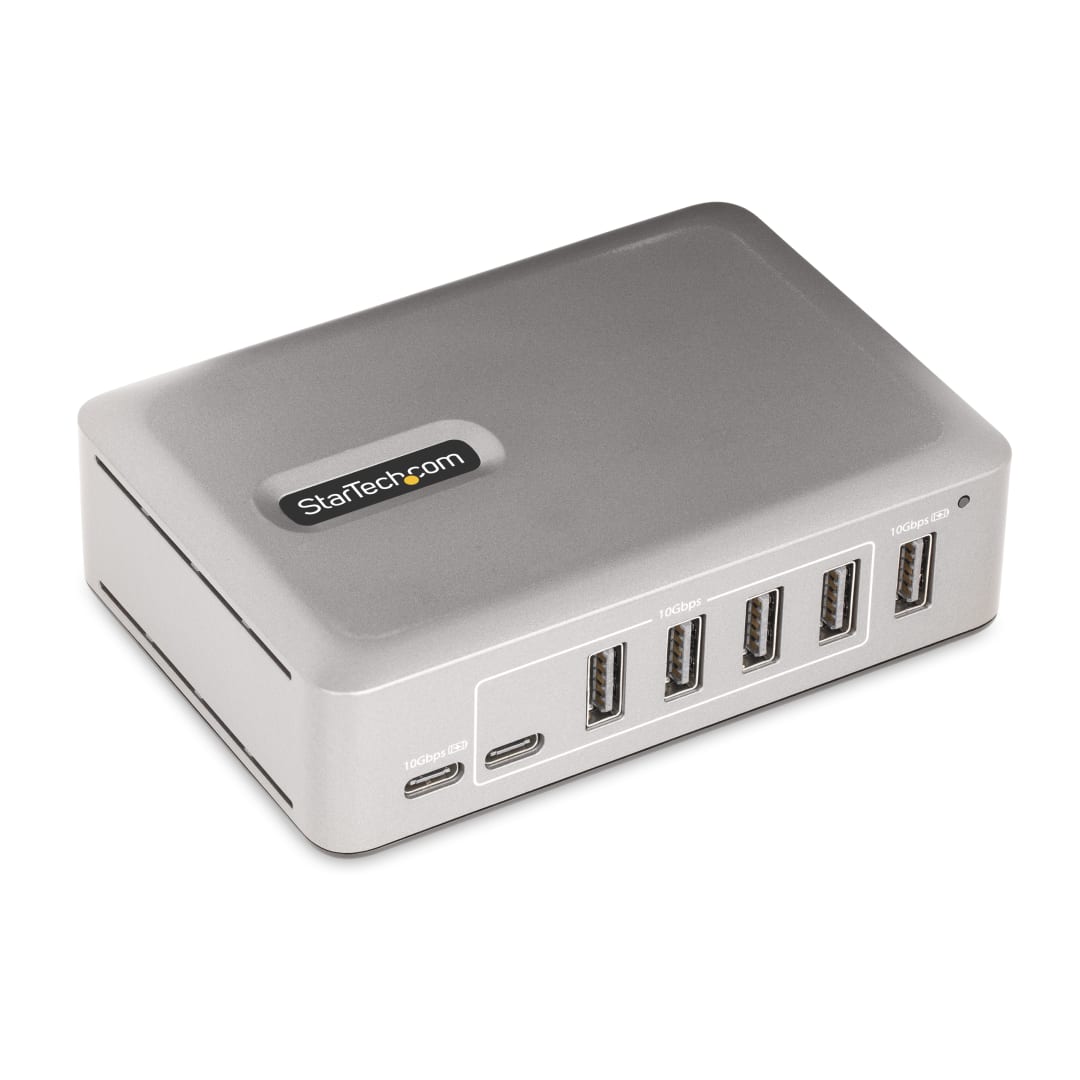

7 Port USB 3 1 Gen 2 USB C to 5A 2C HUB

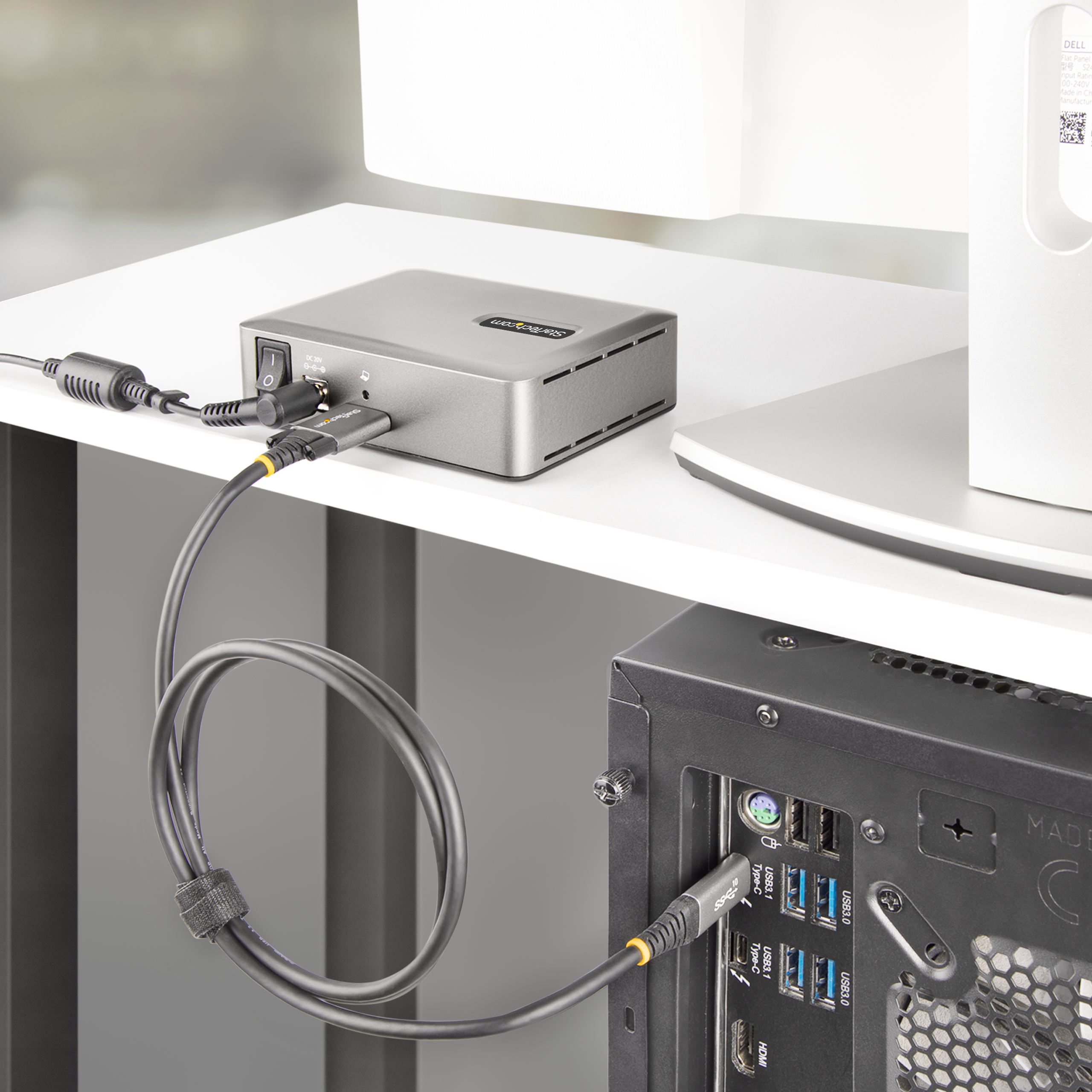

Add 5x USB-A and 2x USB-C ports to a USB-C enabled Desktop/Laptop
Main Image

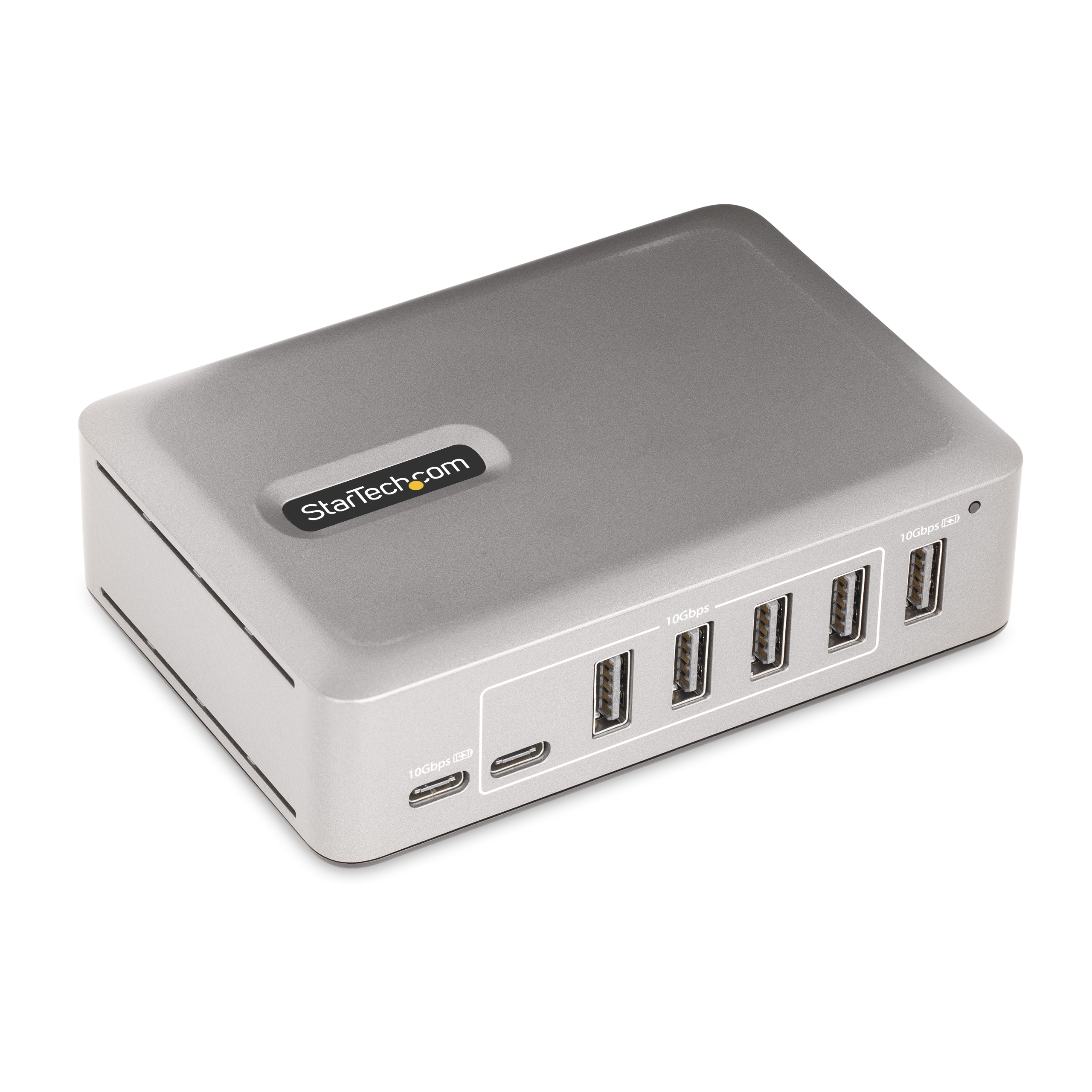

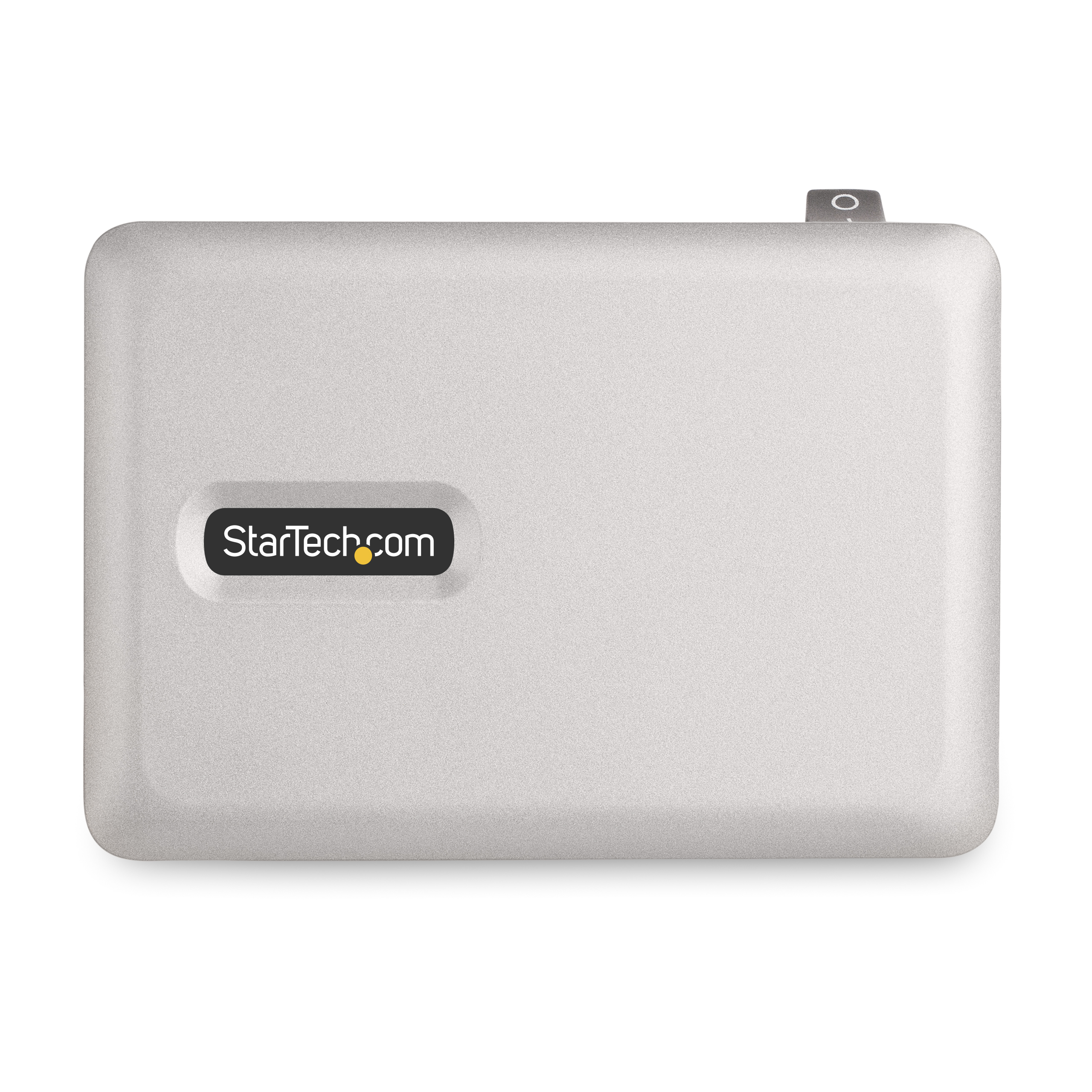

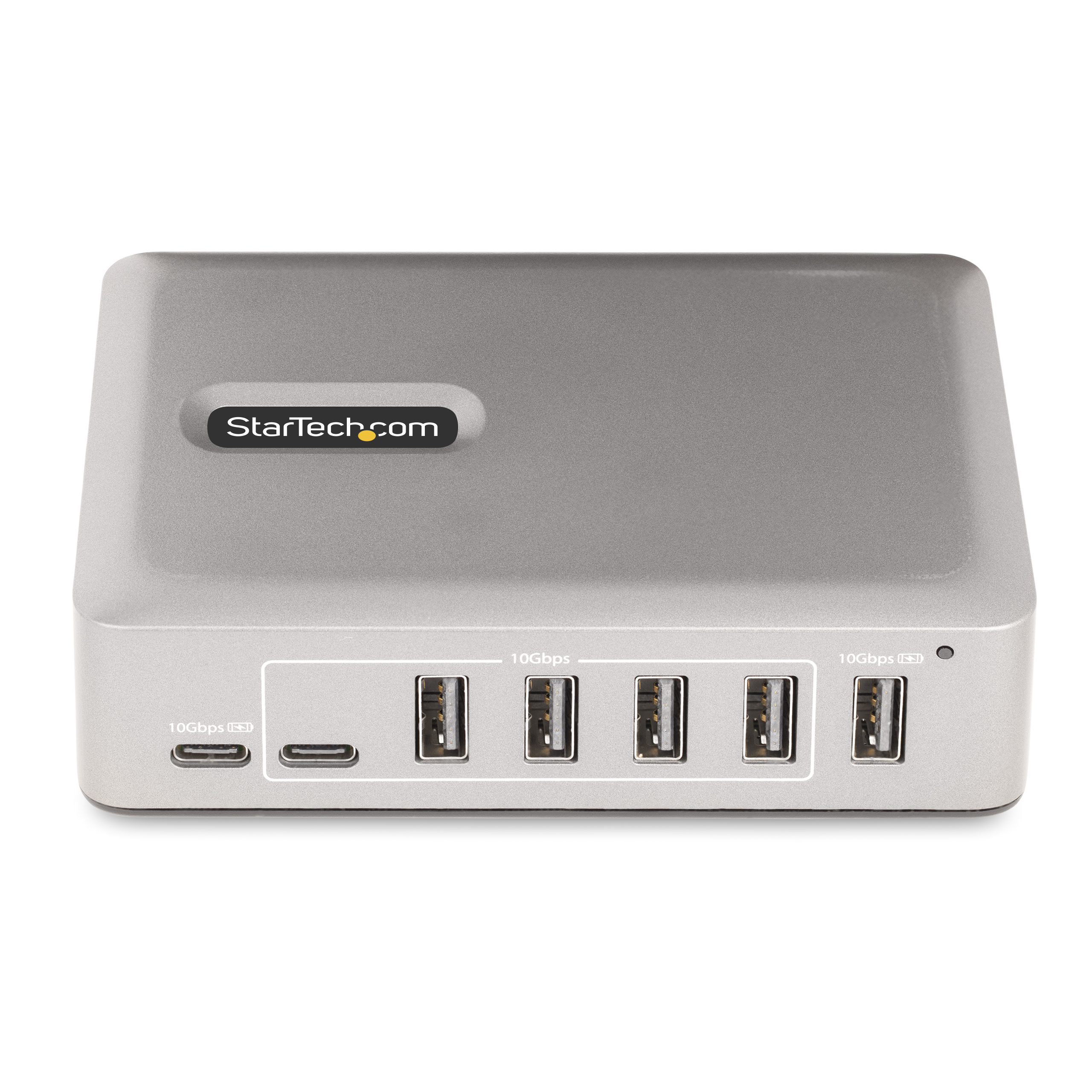

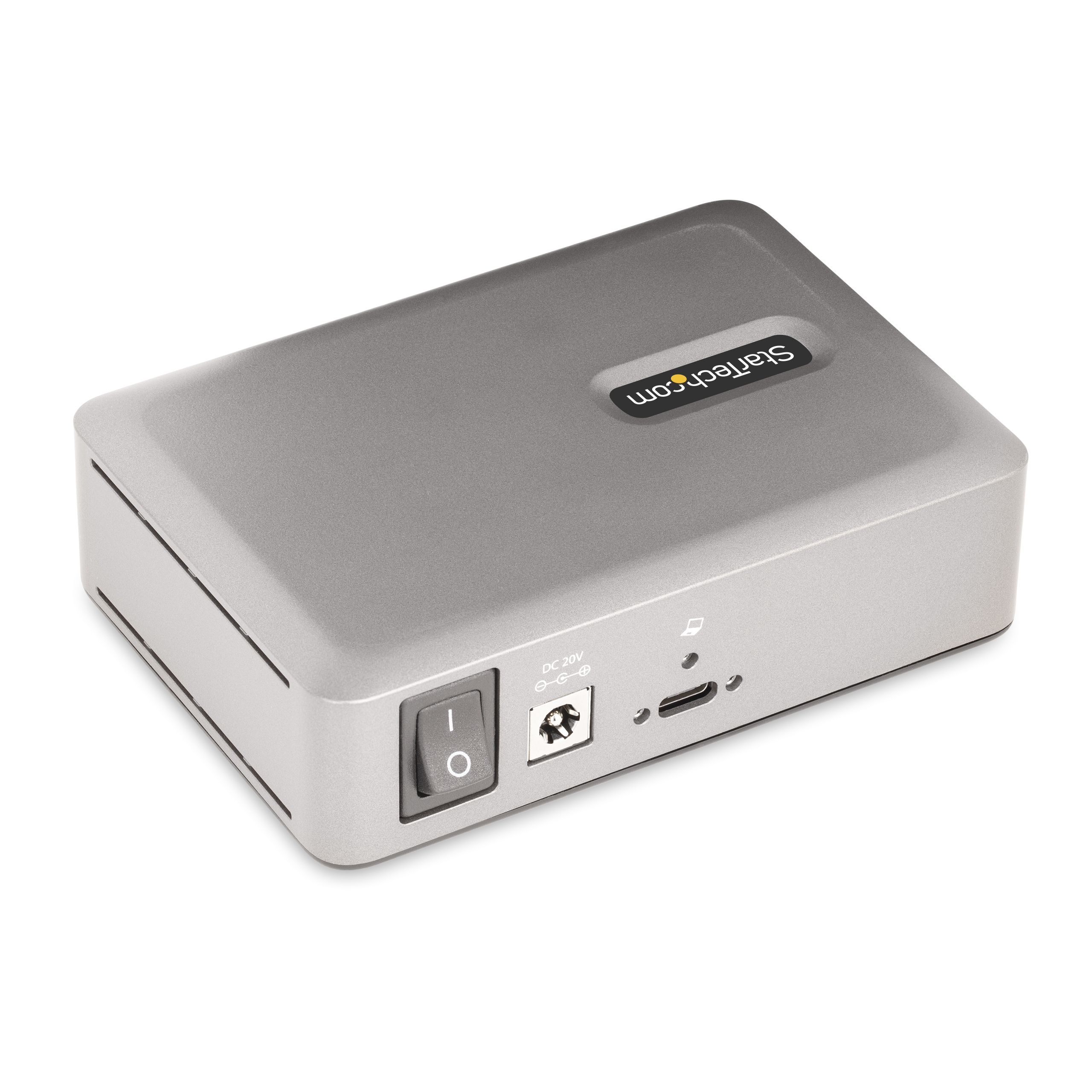

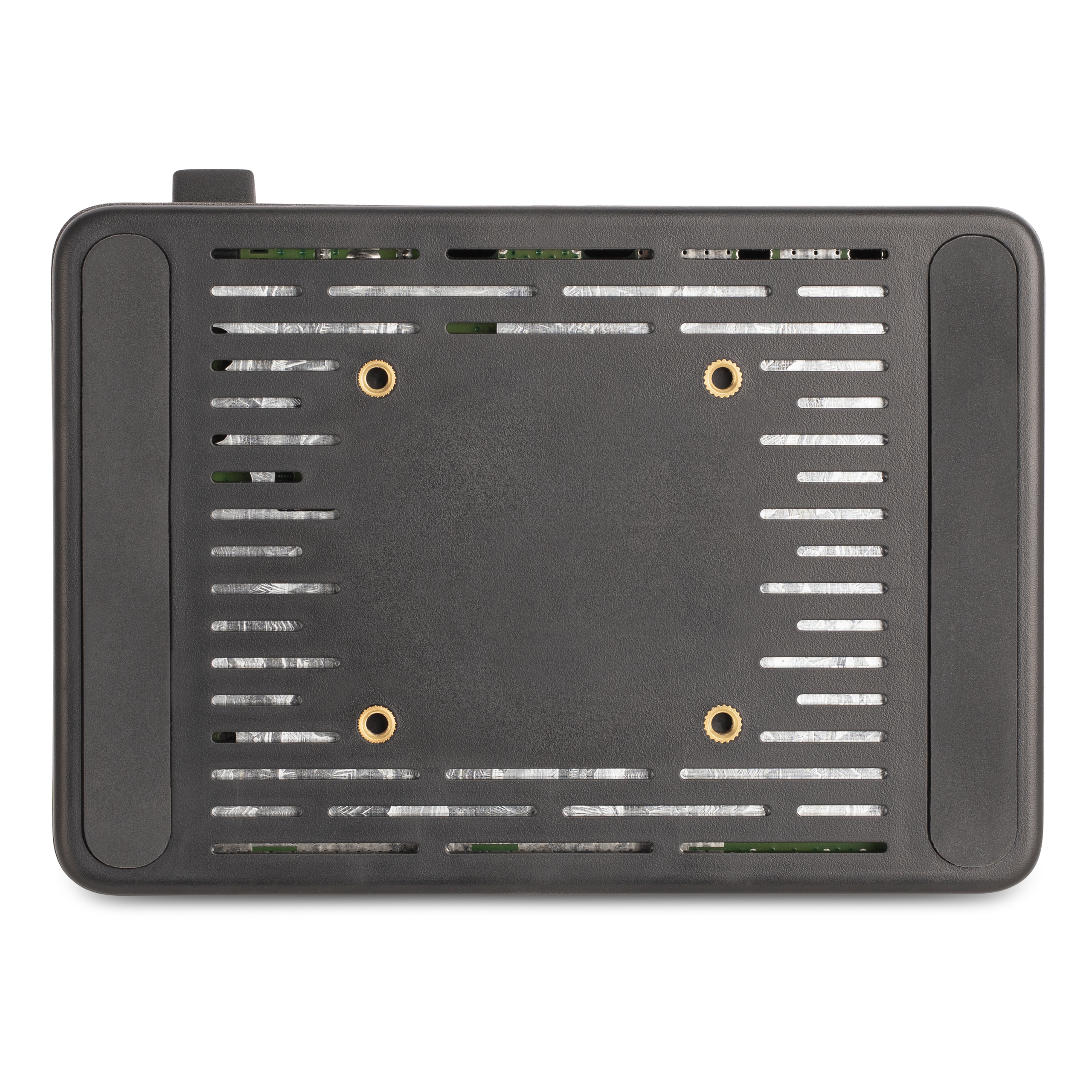

Product Images
Product Images
Product Images
Product Images
Product Images

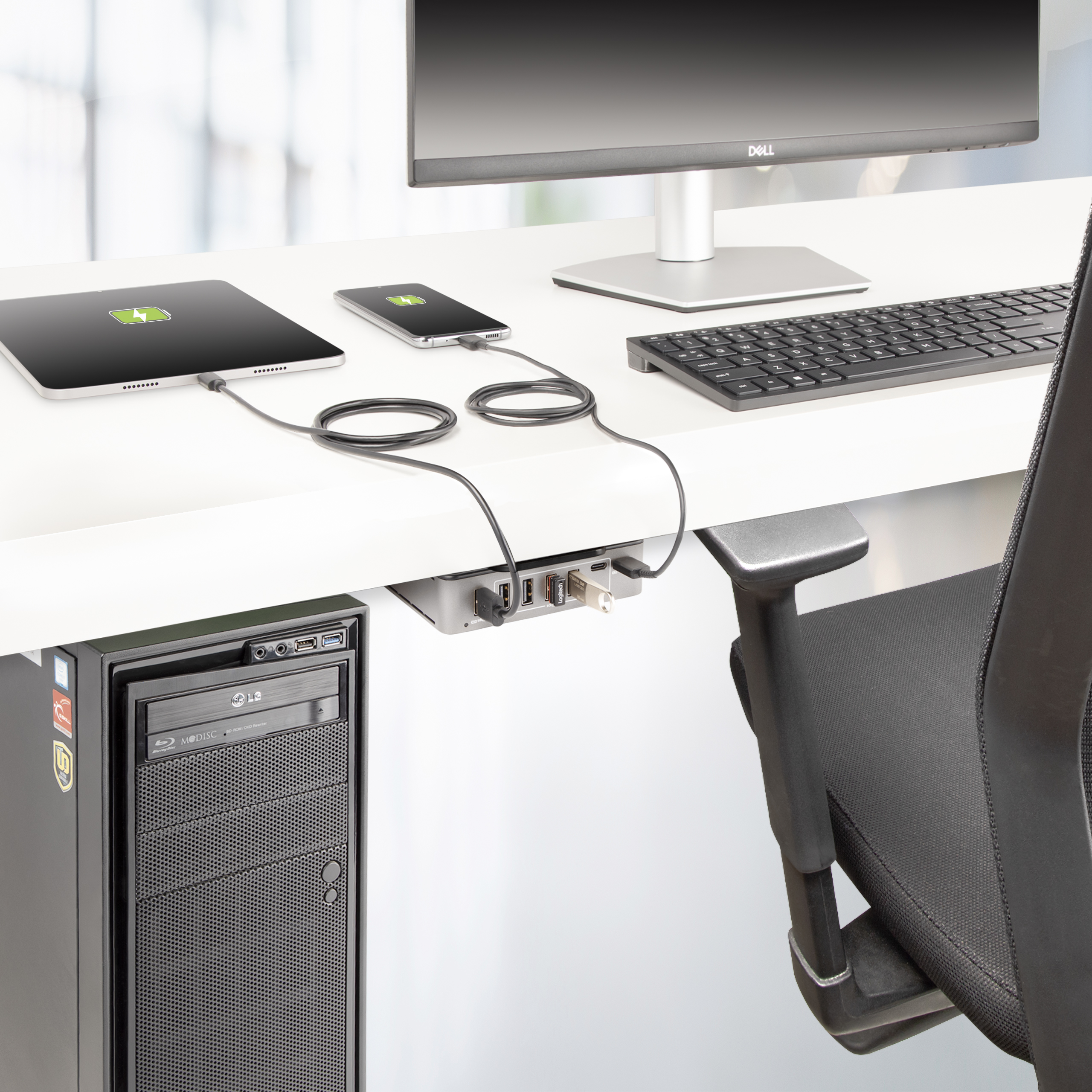

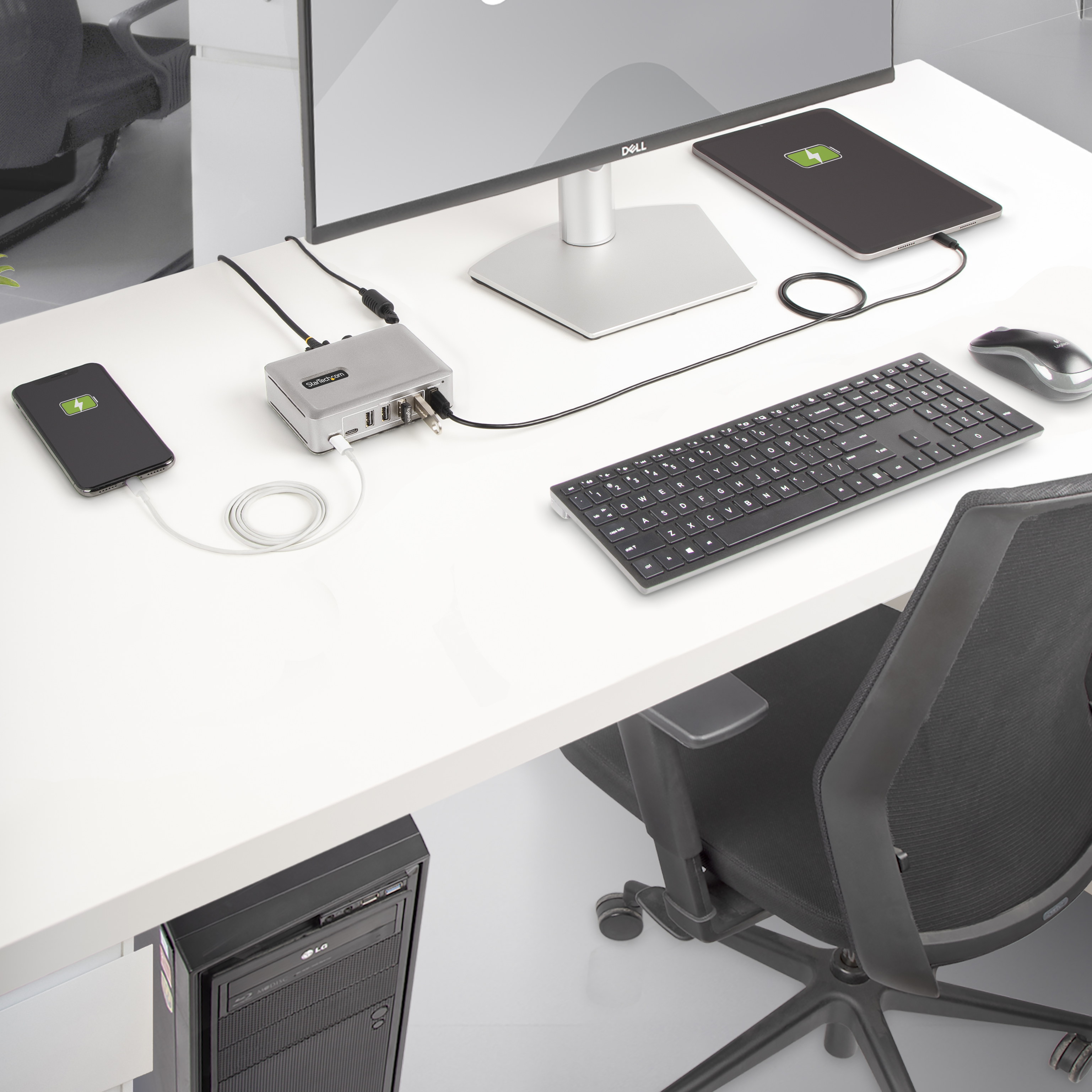

Application Images
Application Images
Application Images
BOM Image
Video Link YouTube
Product Name 7 Port USB 3 1 Gen 2 USB C to 5A 2C HUB Product Number 10G5A2CS-USB-C-HUB UPC 065030899086 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C External Powered Hubs - 10Gbps Family USB-C External Powered Hubs - 10Gbps - 7-Port - C/A Mix Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Product Title (Ultra-Short) 7-Port USB-C Hub Product Title (Short) 7-Port USB-C Hub, Self-Powered, 10Gbps Product Title (Medium) 7-Port USB-C Hub, USB-A/C Ports, Self-Powered w/ BC1.2 Charging, USB 3.1 10Gbps Product Title (Standard) 7-Port USB-C Hub, 5x USB-A + 2x USB-C, Self-Powered w/65W Power Supply, USB 3.1 10Gbps Desktop/Laptop USB Hub w/Charging, TAA Product Title (Long) 7-Port USB-C Hub - 5x USB-A + 2x USB-C - Self-Powered w/65W Power Supply - USB 3.1 10Gbps - Desktop/Laptop USB Hub w/3ft USB-IF Certified Locking Cable - USB C Hub - TAA Product Title (AMZ) 7-Port USB-C Hub - 5x USB-A/2x USB-C - Self-Powered w/65W Power Supply - USB 3.1 10Gbps - Desktop/Laptop USB Hub w/3ft USB-IF Certified Locking Cable - USB C Splitter , TAA Title Ingram (Part 1) 7-Port USB-C Hub, Self-Powered Title Ingram (Part 2) Desktop/Laptop Expansion Hub Website Product Headline Add 5x USB-A and 2x USB-C ports to a USB-C enabled Desktop/Laptop Bullet 1 7-PORT USB-C HUB: USB 3.2 Gen 2 (10Gbps) expansion hub features a USB-C host connector with 7x downstream USB ports (5x USB-A, 2x USB-C); Self-powered with included power supply Bullet 2 65W POWER ADAPTER INCLUDED: Power Adapter ensures each port provides specified power; 2x USB BC 1.2 ports (1x USB-C, 1x USB-A) each provide 12W for charging devices w/Charging Data Port & Dedicated Charging Port modes; Other ports provide 4.5W Bullet 3 USB-IF CERTIFIED HOST CABLE: Premium 3ft (1m) USB-C host cable included; USB-IF certified; Flexible and durable TPE jacket; USB-IF certified cable and screw-locking USB-C port ensures a reliable and secure connection to the USB hub Bullet 4 IT PRO PERFORMANCE: Overcurrent Protection (OCP) prevents peripherals from overdrawing power to reduce device dropouts/shutdown; Wake On USB wakes desktop/laptop from sleep state; Mount to desk/wall/VESA mount w/SSPMSUDWM & SSPMSVESA (sold separately) Bullet 5 OUR ADVANTAGE: Includes IT Pro Connectivity Tools software to improve USB security on Windows systems - Featuring USB Event logging functionality with timestamps to allow admins to identify potentially malicious devices; Works w/ USB-C and Thunderbolt 3/4 Bullets (Compact) 7-Port USB 3.2 Gen 2 (10Gbps) Type-C expansion hub for laptop/desktops (5x USB-A/2x USB-C) - Self-powered with 65W Power Supply - 2x USB BC 1.2 charging ports - USB-IF certified screwlocking 3ft host cable - OS independent - Mountable Bullets (Consolidated) USB 3.2 Gen 2 (10Gbps) Type-C expansion hub for laptops/desktops - 7-Port Externally Powered USB hub | Over Current Protection (OCP) | Wake-on-USB - Self-powered with 65W Power Supply | 2x USB BC 1.2 ports (1x USB-C/1x USB-A) each provide 12W for charging devices | 1x USB-C and 4x USB-A provide 4.5W - OS independent - USB-IF Certified 3ft locking USB-C cable w/TPE jacket - Mounting holes for desk/wall/VESA mount (mount plate sold separately) - USB Event Monitoring app Marketing Copy Marketing Copy (No HTML) Applications - Connect seven USB peripherals (5x USB-A, 2x USB-C) to a USB-C equipped laptop or desktop
- Charge USB devices with or without a host computer connected, with support for both CDP (Charging Downstream Port) & DCP (Dedicated Charging Port) modes
Website Search Keyword - 7 in 1 usb c hub
- 7 port USB 3.1 Gen 2 hub
- 7 port USB hub
- 7-port USB-C hub
- bus powered usb hub
- desktop usb hub
- laptop usb hub
- mountable usb hub
- powered usb c hub
- type c hub
- usb 3.1 gen 2 hub
- usb 3.2 gen 2 hub
- usb c 3.1 gen 2 hub
- usb c hub with power supply
- usb c port expander
- usb c port replicator
- usb c powered hub
- usb c splitter
- usb c to usb a hub
- usb expansion hub
- usb hub 3 port
- usb hub bc 1.2
- usb hub with charging
- usb-c to usb-a hub
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes - USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).
- The base of the USB hub can reach temperatures of up to 75°C (167°F) during normal operation.
Accessory Products - SSPMSVESA
- SSPMSUDWM
Related Products - HB31C2A1CGS
- HB31C3ASDMB
- HB31C4AB
- HB31C3A1CB
- HB31C2A2CB
- HB31CM4CPD3
- HB31C4AS
- HB31CM1A3CB
- 10G8A2CS-USB-C-HUB
Input Voltage 110V-240V AC Output Current 3.42 A Output Voltage (V) 19V DC Power Consumption (In Watts) 65 W Power Delivery No PD Pass-Through Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1000 Color Space Gray Humidity 0% ~ 95% RH (no condensation) at 25°C (77°F) Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 115.000 Product Width (mm) 80.000 Product Height (mm) 32.200 Product Weight (g) 278.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate 10 Gbps (USB 3.2 Gen 2) OS Compatibility OS Independent Supported Charging Outputs - BC 1.2 (1.5A)
- Apple 2.4A
- Apple 1A
UASP Support Yes USB Type and Rate USB 10Gbps Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 2 10Gbps Cable Jacket Material TPE - Thermoplastic Elastomers Chipset ID - VIA - VL822-Q7
- VIA - VL162

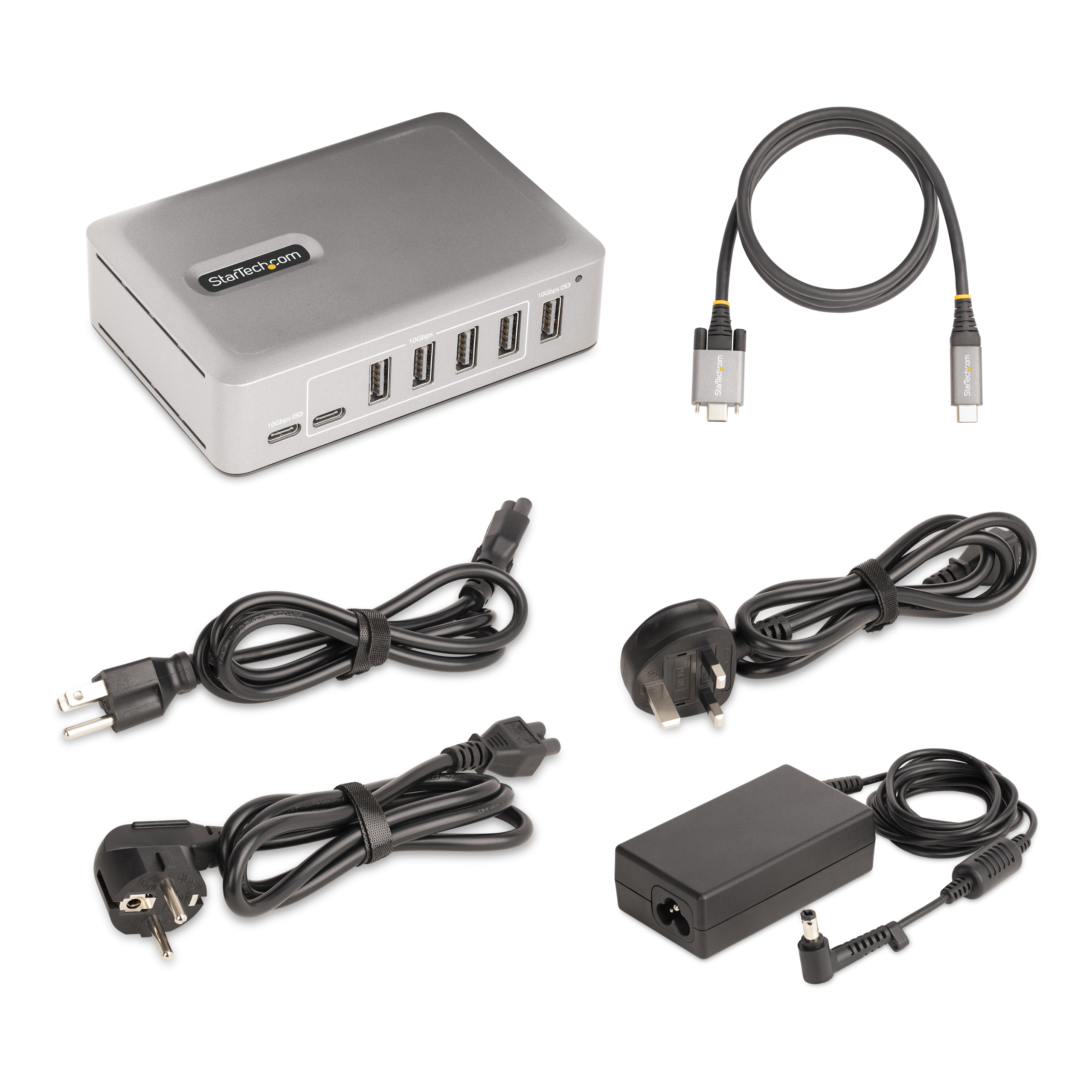

Industry Standards USB 3.2 Gen 2 (10Gbps) - Backward compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1.1 Interface/Bridge USB 3.2 Gen 2 (10 Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Status LED - Green: Solid (Power is on, USB HUB is connected to a host), Slow Pulse (Power is on, USB HUB is not connected to a host), Off (Power is not connected, USB Hub is in off state) Number of Battery Charge 1.2 Ports 2 USB Port Type USB-A, USB-C Carton Depth (mm) 404 Carton Height (mm) 521 Carton Quantity 10 Carton Weight Gross (g) 12402 Included in Package - 1 - USB Hub
- 1 - USB-C Host Cable
- 1 - Universal Power Adapter (NA, EU, UK)
Package Depth (mm) 252 Package Height (mm) 96 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 1182 Packaging Description 7-Port USB-C Hub - USB 3.2 Gen 2 (10Gbps) - 5x USB-A, 2x USB-C Packaging Description India 7-Port USB-C Hub - USB 3.2 Gen 2 (10Gbps) - 5x USB-A, 2x USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (10Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-A (10Gbps, 12W) Connector 2 (Quantity) 1 Connector 3 USB-C (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-C (10Gbps, 12W) Connector 4 (Quantity) 1 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2022-08-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Features 5Gbps and has 5A and 2C ports (1 port supports BC1.2 charging) Comparable SKU 2 Comment n/a Digital Content Due Date 2023-05-26 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2023-01-14 Target Production Release 2023-03-15 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Not Required
