Main Image
10PKPCI1S550
Main Image
Product Images
Product Images
Product Images
Product Images

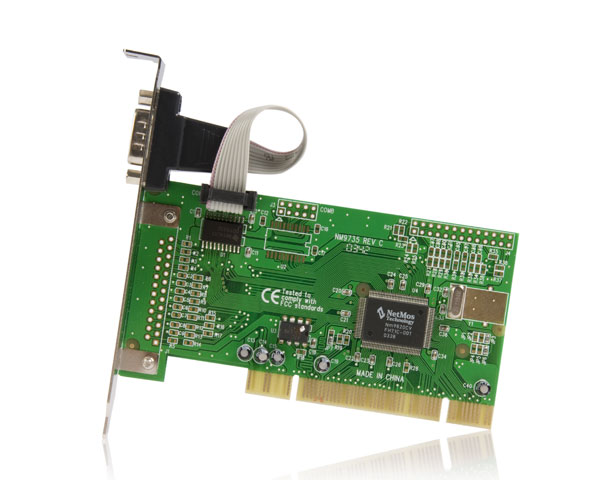

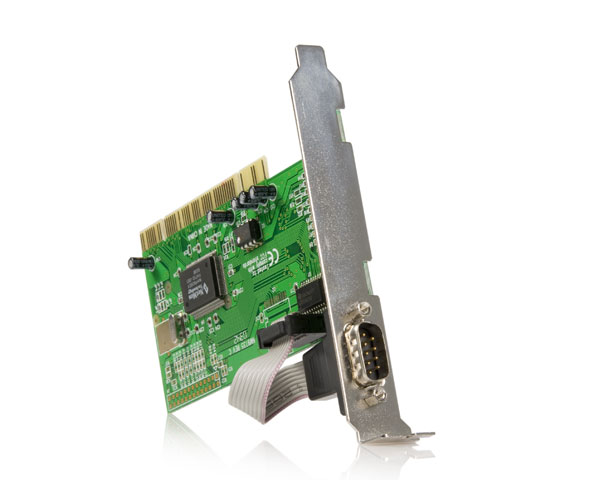

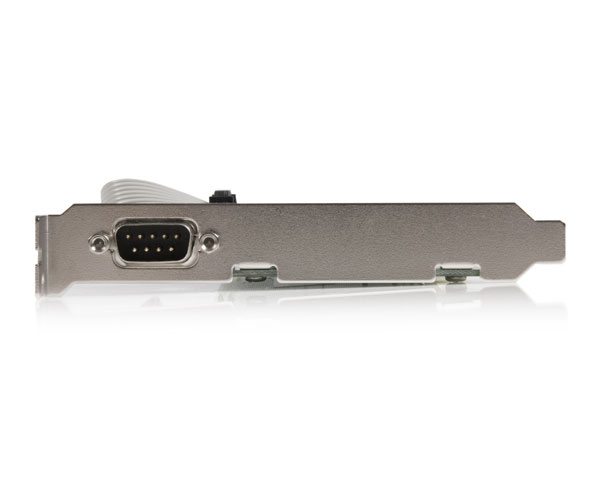

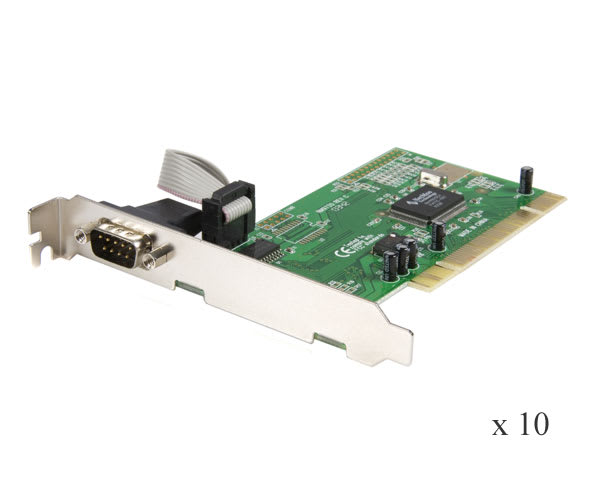

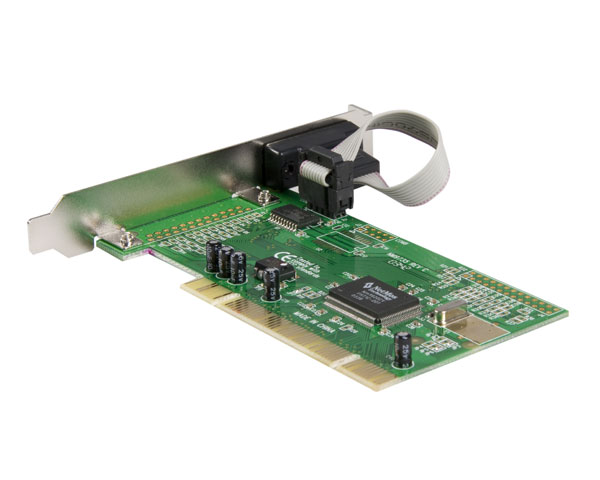

Product Name 10 Pack of PCI1S550 Serial Cards Product Number 10PKPCI1S550 UPC 065030790048 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 10 Pkg of 1 Port PCI Serial Adapter Card Product Title (Standard) StarTech.com 10 Pack of 1 Port PCI RS232 Serial Adapter Card with 16550 UART - Serial adapter - PCI - serial RS-232 (pack of 10 ) Product Title (Long) 10 Pack of 1 Port PCI RS232 Serial Adapter Card with 16550 UART Title Ingram (Part 1) 10 Pack of 1 Port PCI RS232 Seri Title Ingram (Part 2) al Adapter Card w/ 16550 Bullet 1 Includes drivers for Linux® and all versions of Windows® Bullet 2 Supports the RS-232 serial interface and the PCI bus interface Bullet 3 16 byte FIFO buffer ensures fast data transfer while multitasking Marketing Copy Applications - Great for OEMs, system builders or IT professionals requiring quantity serial cards for mass installations or upgrades
Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
Related Products - PCI2S550_LP
- 10PKPCI2S550
- PCI1S550
- PCI4S550
- PCI4S550N
- PCI2S550
TAA Compliant No General Specifications - Bus Type: PCI 2.1
- Serial Ports: 1 x 16C550
- Communication Buffer: 16 Byte FIFO
Maximum Data Transfer Rate 115.2 Kbps Supported Serial Protocol RS-232 Wake-On-LAN (WOL) Yes Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID ASIX - MCS9820CV IO Card Port Style Integrated on Card Carton Depth (mm) 550 Carton Height (mm) 380 Carton Quantity 50 Carton Weight Gross (g) 42700 Included in Package - 1 - 10 Pack of PCI1S550 Serial Cards
- 1 - Driver
- 1 - Manual
Package Depth (mm) 288 Package Height (mm) 195 Package Width (mm) 114 Package Quantity 10 Package Weight (g) 830 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 PCI / PCI-X Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
