10ULE-TV-WALL-MOUNT
TV Wall Mount, 100", Extendable, Lateral, UL Cert
Mount a TV to a wall and retain rear access with this extendable, VESA-compatible mount for displays up to 105in
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name TV Wall Mount, 100", Extendable, Lateral, UL Cert Product Number 10ULE-TV-WALL-MOUNT UPC 065030922999 Lifecycle status Pending Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Wall Mounts Family TV Wall Mounts - Extendable, UL Certified Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) UL Listed TV Mount Product Title (Short) UL Listed TV Wall Mount for up to 105" Product Title (Medium) UL Listed Extendable TV Wall Mount for up to 105-inch 176lb Displays, Adjustable Product Title (Standard) UL Listed Extendable TV Wall Mount for Up to 105-inch 176lb (80kg) Displays, Easy Rear Access, Laterally Adjustable Bracket Product Title (Long) UL Listed Extendable TV Wall Mount for up to 105inch 176lb (80kg) Display, Easy Rear Access, Laterally Adjustable Bracket Supports up to VESA 1000x600 Product Title (AMZ) UL Listed Extendable TV Wall Mount for up to 105-inch 176lb (80kg) Displays, Easy Rear Access, Laterally Adjustable Bracket Supports up to VESA 1000x600 Title Ingram (Part 1) UL Listed TV Wall Mount/Bracket Title Ingram (Part 2) - Extendable/Adjustable Bracket Website Product Headline Mount a TV to a wall and retain rear access with this extendable, VESA-compatible mount for displays up to 105in Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) UL Listed TV mount supports up to 105inch displays and 176lb - UL 2442 tested to 4x rated load - Extendable to 6.8" for rear TV access or collapses to 2.1" - Bracket can slide to center on wood studs concrete or brick walls - VESA 200x200 to 1000x600 Bullets (Consolidated) TV mount supports up to 105-inch displays and 176lb for meeting rooms and digital signage - Tested and certified by UL Solutions to UL 2442 and complies with a 4x weight safety factor over its rated load - Extendable arms reach up to 6.8in (17.2cm); Quick-release cords make it easy to remove / reinstall the display - Side to side sliding design helps center on wood studs concrete or brick walls; Supports VESA 200x200 to 100x600 - Adjustable bracket tilts +10 to -15deg and swivels +10 to -10deg Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- UL - Safety - Mechanical - Canada / United States - UL Listed Mark Mechanical Safety (Canada and US)
Accessory Products - HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Color Black Construction Material Steel Product Length (mm) 1070 Product Width (mm) 53 Product Height (mm) 350 Product Weight (g) 18450 TAA Compliant No Anti-theft Yes Display Swivel +10° / -10° Display Tilt +10° / -15° Height Adjustment Yes Maximum Display Size 105" Minimum Display Size 55" TV Weight Capacity Range Up to 80kg (176lb) Video Wall No Minimum Profile from Wall (mm) 53 Mounting Options Wall-Mount Number of Displays 1 VESA Hole Pattern(s) - 200x200 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 400x400 mm
- 600x400 mm
- 600x600 mm
- 800x400 mm
- 800x600 mm
- 900x600 mm
- 1000x600 mm

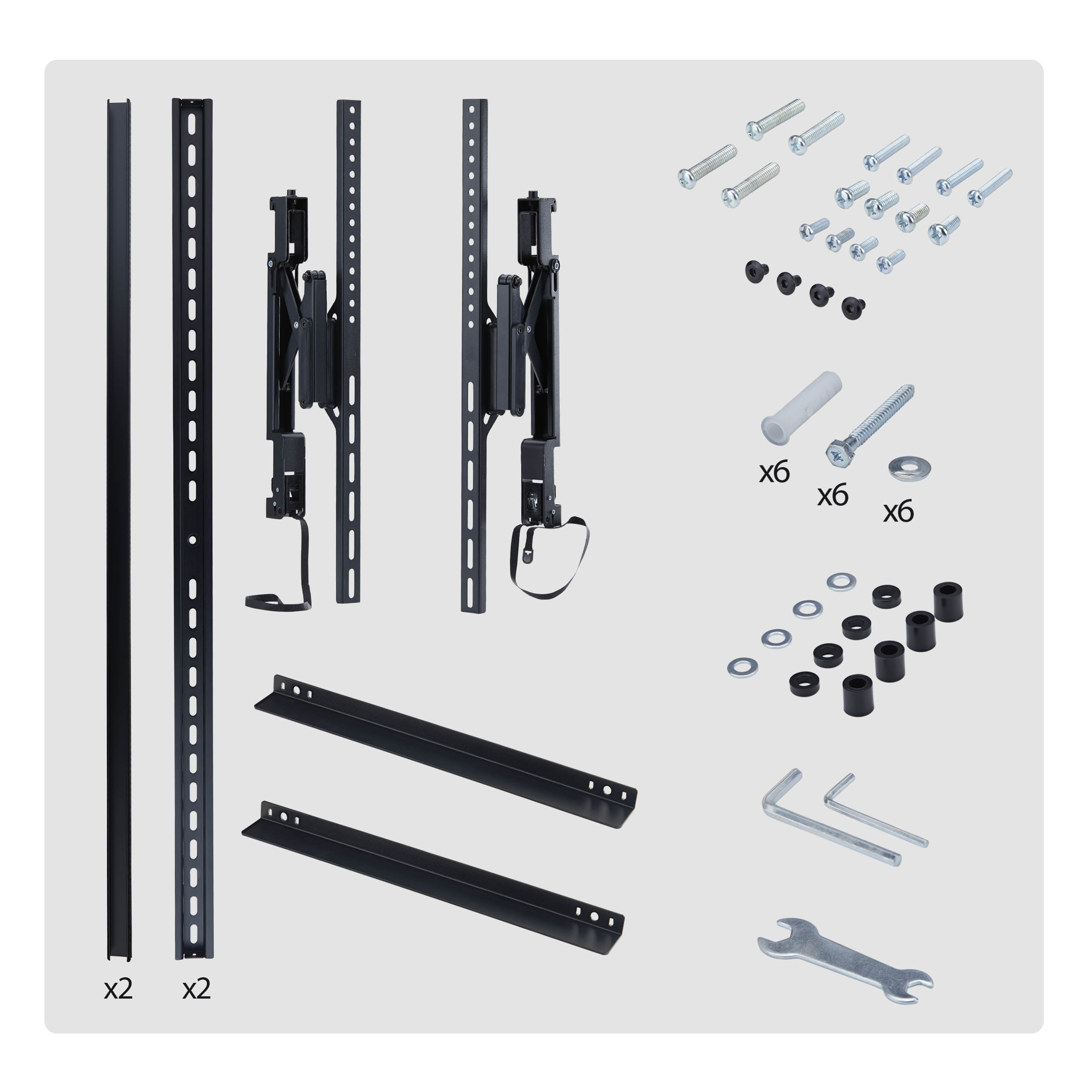

Included in Package - 1 - TV Mounting Assembly, Right
- 1 - TV Mounting Assembly, Left
- 2 - Horizontal Brackets
- 2 - Vertical Brackets
- 1 - Spirit/Buble Level
- 1 - 4mm Hex Key
- 1 - 6mm Hex Key
- 1 - Wrench
- 4 - M6x8mm Screws
- 4 - M6x14mm Screws
- 4 - M8x16mm Screws
- 4 - M6x30mm Screws
- 4 - M8x35mm Screws
- 4 - Washers
- 4 - Short Spacers
- 4 - Long Spacers
- 6 - Wall Mounting Screws
- 6 - Wall Anchors
- 6 - Wall Mounting Washers
- 1 - Product Documentation
- 1 - Wall Mounting Template
Packaging Description TV Wall Mount with 7" (17.2cm) extension - Up to 105" and 176lb (80kg) TVs Packaging Description India TV Wall Mount with 7" (17.2cm) extension - Up to 105" and 176lb (80kg) TVs A+ Not Required Actual Inbox Documents Created Compliance Insert & In Box EN/DE QSG Amazon Merchandising Manager Kristian Haighton Amazon Visual Content Level Gold Application Photos Uploaded Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment First family of extendable TV Wall Mount - non-Videowall design Comparable SKU 2 Comment First family of extendable TV Wall Mount - non-Videowall design Digital Content Due Date 2026-05-27 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,PL,SE,SG,UK,US Primary Technology None Priority New Product High Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2025-10-31 Target Production Release 2025-11-07 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Latest Vending Machine Not Compatible with Vending Machine Video Not Required
