11050-PC-SERIAL-CARD

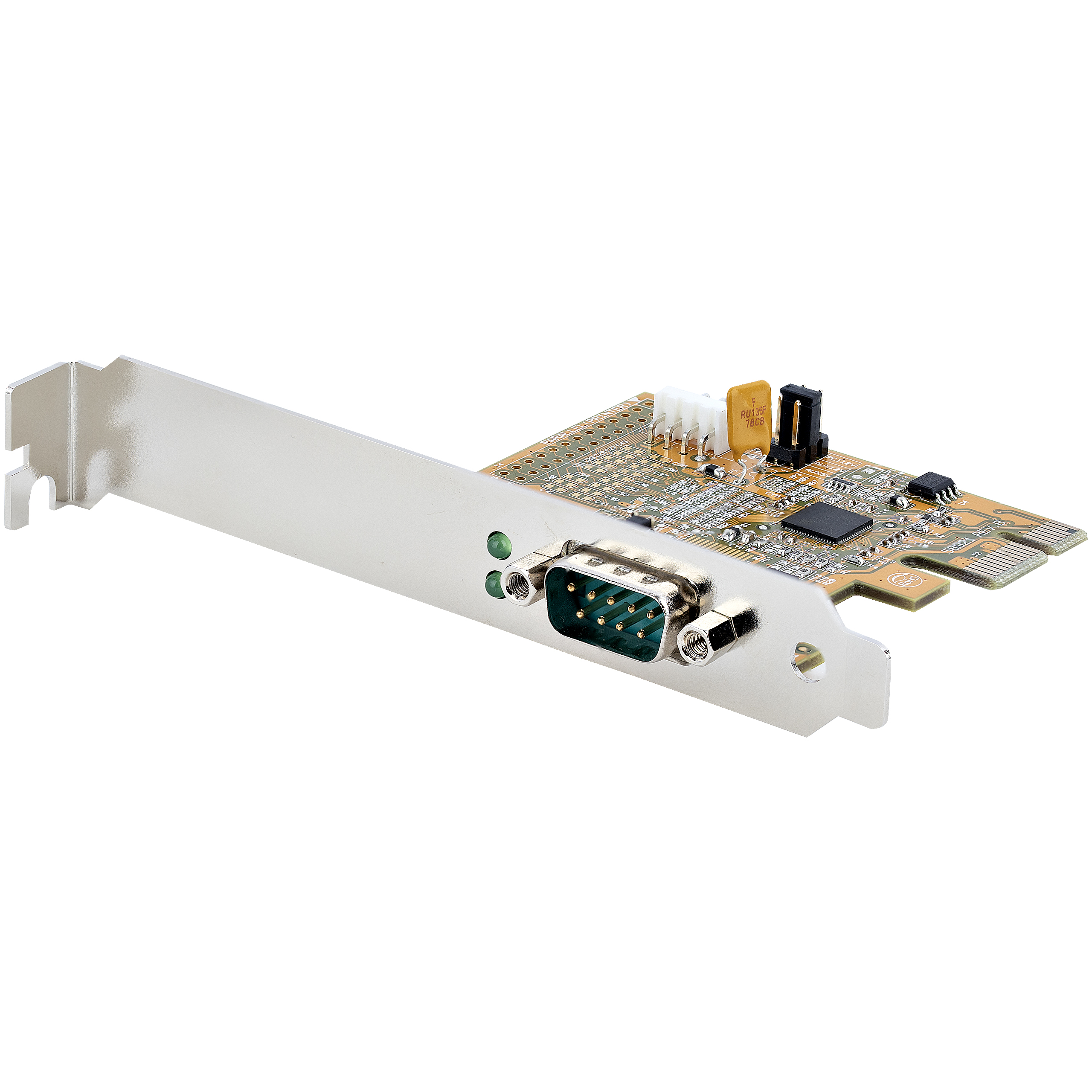

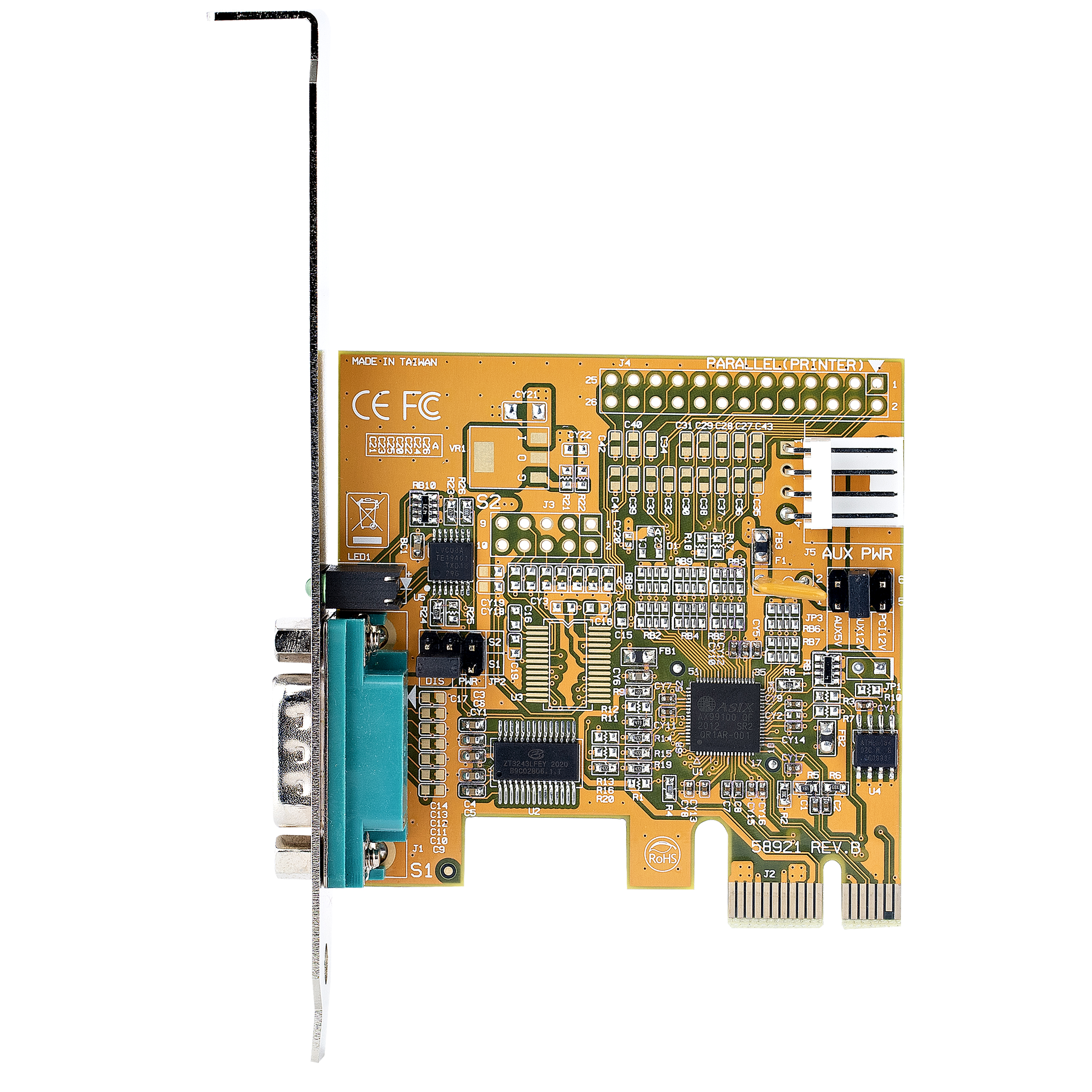

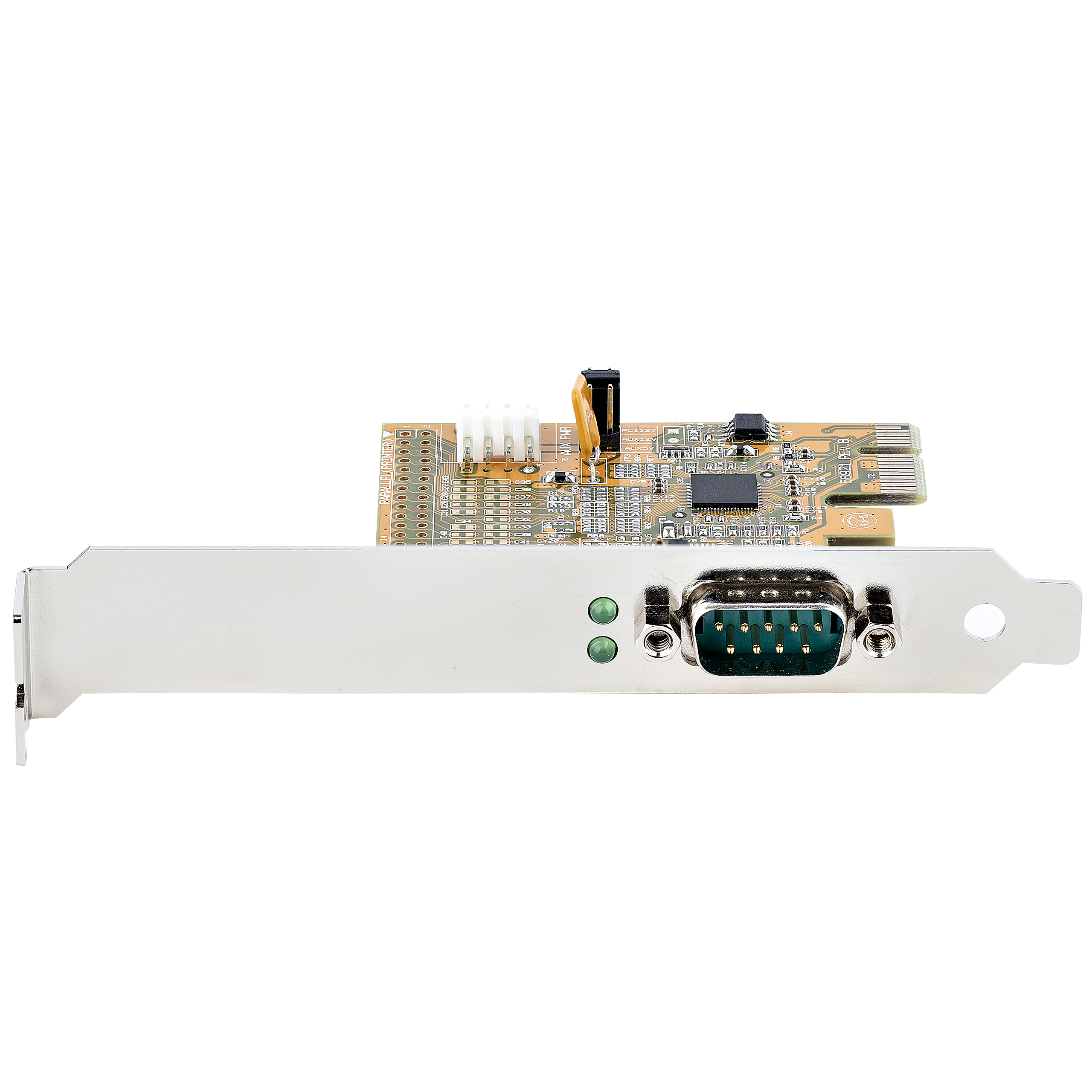

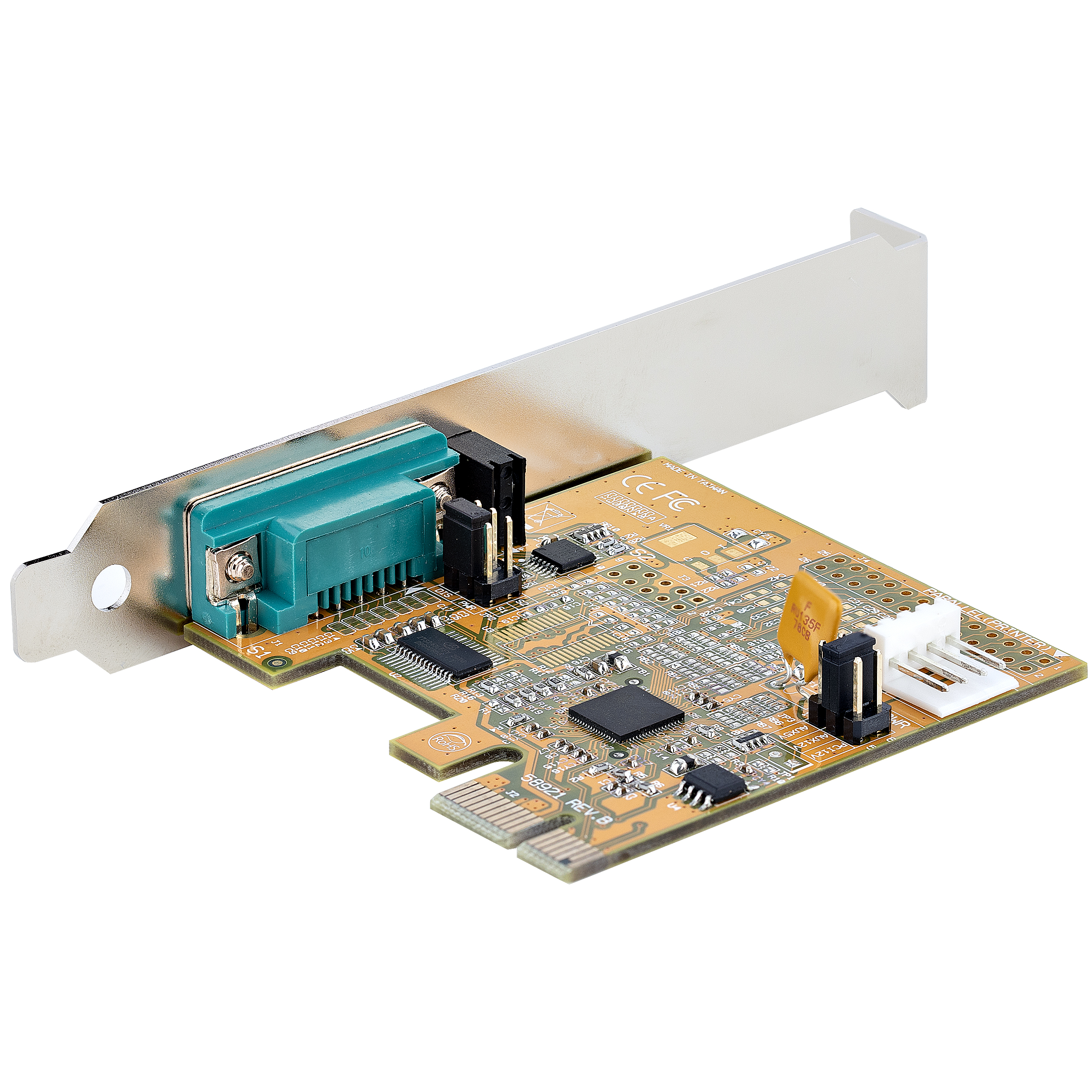

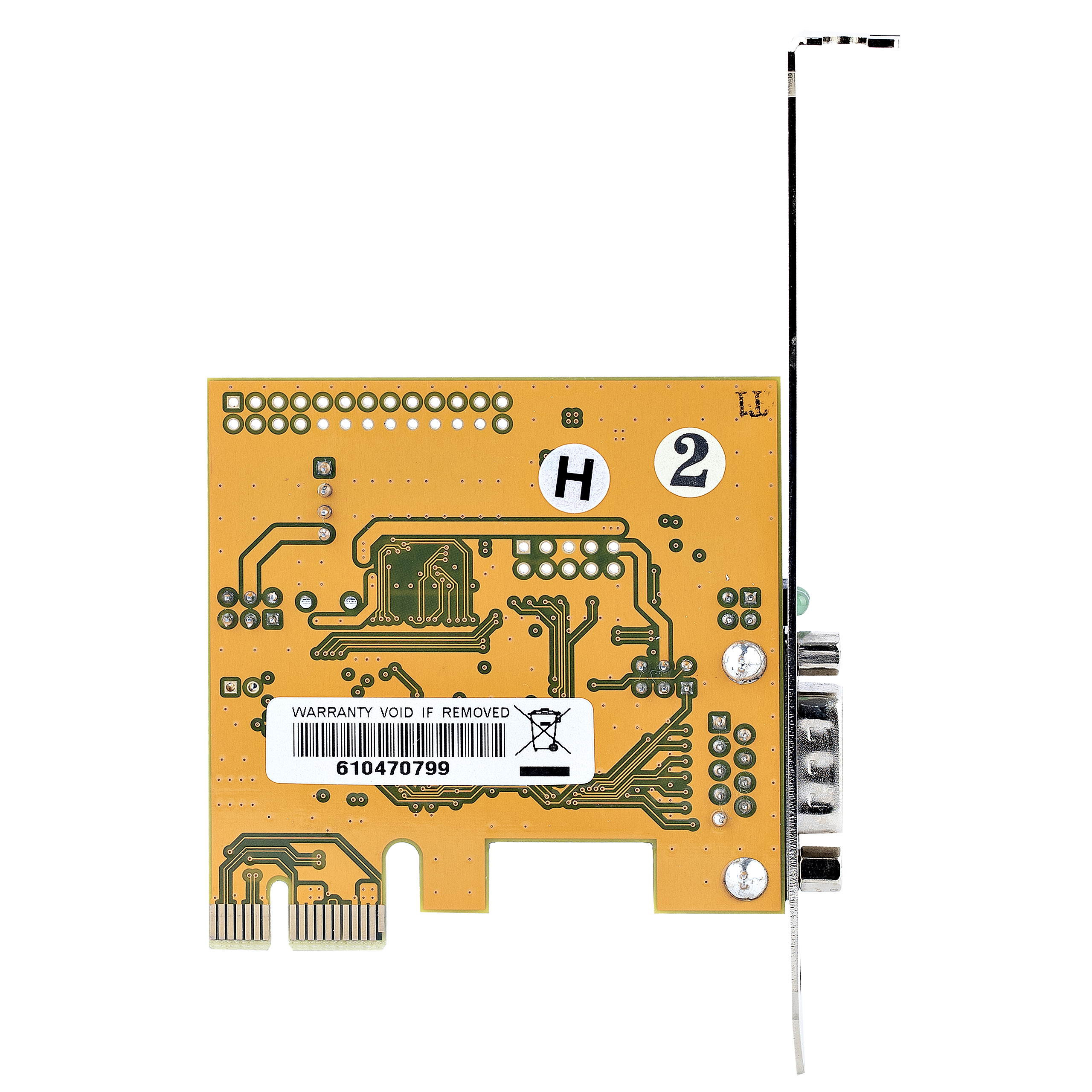

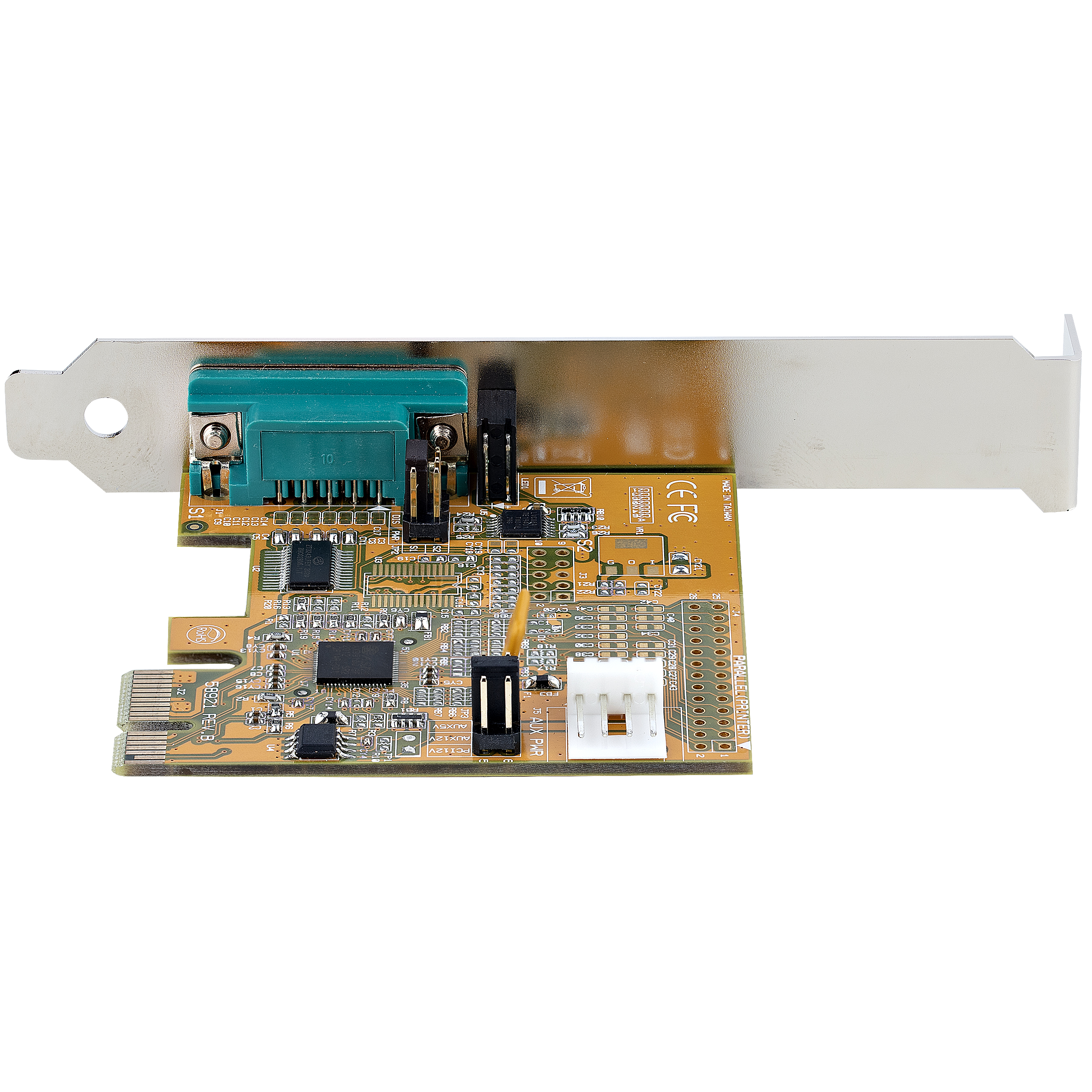

1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Se
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Se Product Number 11050-PC-SERIAL-CARD UPC 065030894777 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 161050 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) PCIe Serial Card Product Title (Short) PCI Express Serial Card, PCIe to RS232 Product Title (Medium) 1-Port PCI Express Serial Card, PCIe to RS232 (DB9) Card, COM Retention Product Title (Standard) 1-Port PCI Express Serial Card, PCIe to RS232 (DB9) Interface Card, 16C1050 UART, COM Retention, Low Profile, Win/Linux, TAA Product Title (Long) 1-Port PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card, 16C1050 UART, Standard/Low Profile Brackets, COM Retention, Windows/Linux - TAA Product Title (AMZ) 1-Port PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card, 16C1050 UART, Standard/Low Profile Brackets, COM Retention, Windows/Linux , TAA Title Ingram (Part 1) 1-Port PCIe Serial Port Card - Title Ingram (Part 2) 16C1050 UART, 5V/12V, Status Lights Website Product Headline Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1 Bullet 1 PCIE TO SERIAL: Connect a serial RS232 (DB9) devices to a computer with this PC serial card. Features support for high performance 16C1050 UART. Monitor activity with the built-in LED status lights on the PCI express DB9 card Bullet 2 DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile bracket is included Bullet 3 APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 port accepts screw locking serial cables Bullet 4 PC SERIAL CARD SPECS: 1 Port | 16C1050 UART | Max Baud 921.6 Kbps | 256 Byte FIFO | COM Retention | Supports Windows and Linux | Asix AX99100A Chipset | Odd/Even/Mark/Space/None Parity Modes | 5/6/7/8/9 Data Bits | PCIe 2.0 x1 | Low-profile Bracket Included Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Connect a serial RS232 (DB9) device using this PC Serial Card. Supports 16C1050 UART. LED lights to monitor activity on the PCI express DB9 card - The UART PCIe card supplies 5/12V over pin 9. Continue using legacy hardware with this RS232 PCIe card Bullets (Consolidated) Connect a serial RS232 (DB9) device using this PC Serial Card. Supports 16C1050 UART. LED status lights to monitor activity on the PCI express DB9 card - Use this serial interface card to connect barcode readers/receipt printers/scales PLCs/medical devices. The UART PCIe card can supply 5V or 12V over pin 9. Low profile bracket included - This card is ideal for IT applications e.g. server rooms/industrial control/automation/logistics/labs. Continue using legacy hardware with this RS232 PCIe card Marketing Copy Marketing Copy (No HTML) Website Search Keyword - PCI Express serial card
- db9 card
- low profile serial card
- mini pcie rs232
- pc serial card
- pci express db9
- pcie to rs232
- rs 232 pcie
- rs232 card
- rs232 pcie card
- serial interface card
- uart pcie
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU

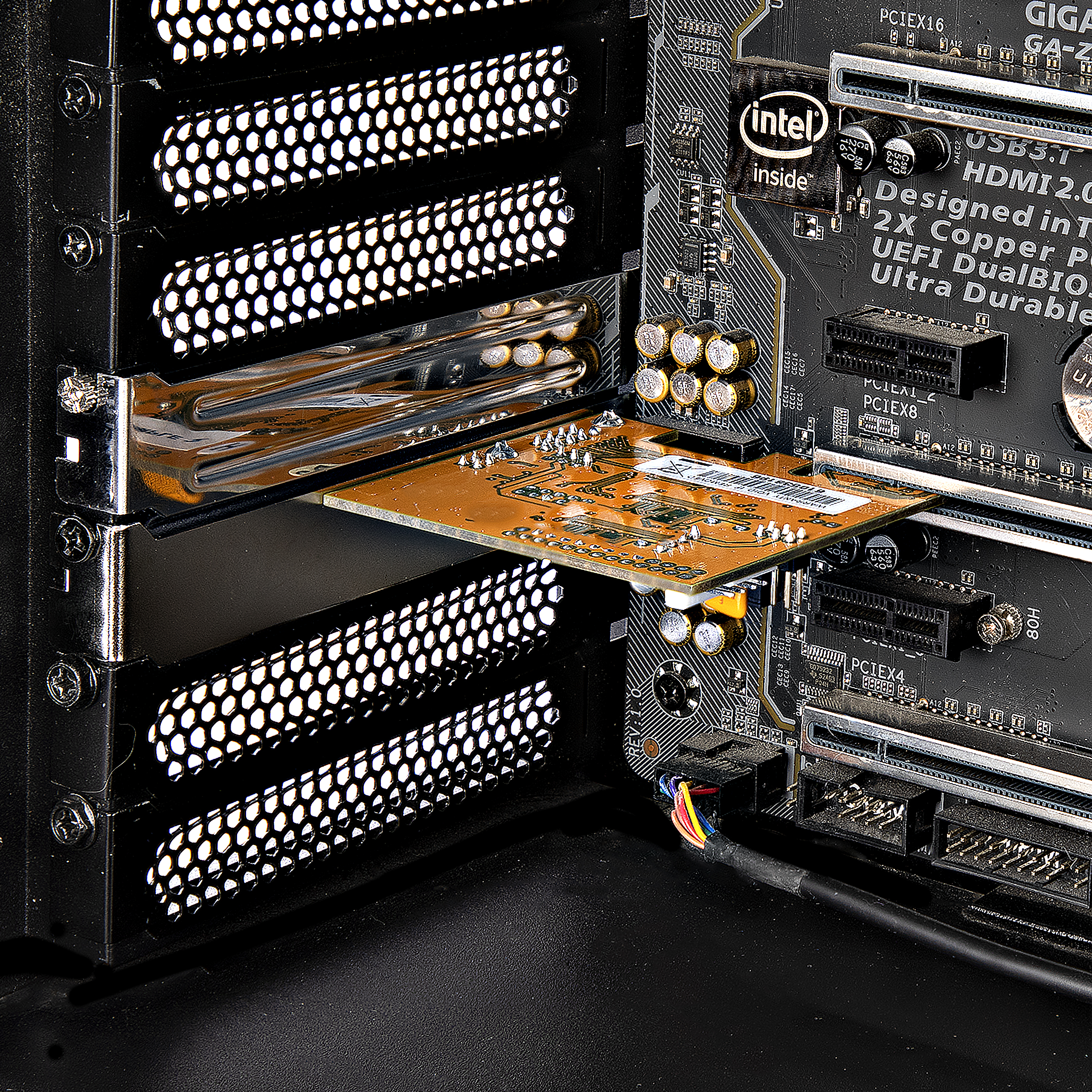

System and Cable Requirements Computer with an available PCI Express x1 or greater slot Accessory Products - MXT100
- MXT106
- MXT1003
- SCNM925FM
- SCNM9FF
- SCNM9FM2MBK
Related Products - PEX8S1050LP
- PEX2S1050
- PEX8S1050
- PEX4S953LP
- PEX4S953
- PEX4S232485
- PEX2S1P553B
- PEX4S553
- PEX4S553B
- PEX2S5531P
- PEX1S553LP
- PEX2S553
- PEX2S553LP
- PEX1S952LP
- PEX4S952
- PEX1S953LP
Color Yellow Humidity 5 ~ 95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 73.000 Product Width (mm) 18.000 Product Height (mm) 120.000 Product Weight (g) 42.000 Storage Temperature -40°C to 75°C (-40°F to 167°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 FIFO 256 Bytes Flow Control Hardware and Software Max Baud Rate 921.6 Kbps OS Compatibility - Windows 7
- Windows 8
- Windows 10
- Windows 11
- Windows Server 2016
- Windows Server 2019
- Linux
- Windows 8.1
Parity Even, Odd, None, Space, and Mark Supported Serial Protocol RS-232 Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID - ASIX - AX99100A
- ASIX - ZT3243LFEY
Industry Standards PCI Express Version 2.0 x1 Interface/Bridge Serial IO Card Port Style Integrated on Card LED Indicators Carton Depth (mm) 530 Carton Height (mm) 340 Carton Quantity 50 Carton Weight Gross (g) 7778 Included in Package - 1 - PCIe Serial Card

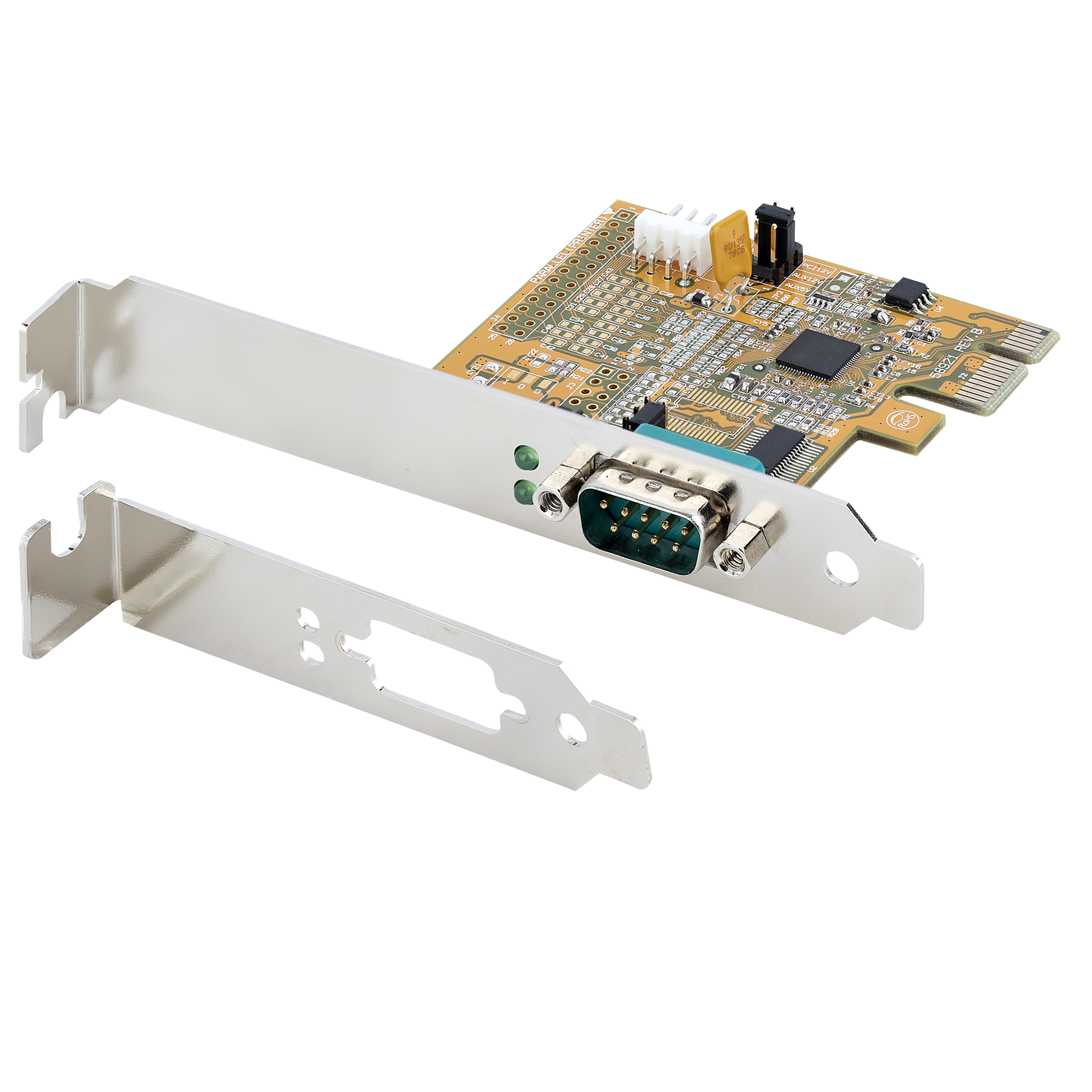

- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Included In Package for Label - 1 - PCIe Serial Card
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Package Depth (mm) 145 Package Height (mm) 41 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 128 Packaging Description 1-Port PCI Express Serial Card with COM Port Activity LEDs - 16C1050 UART Packaging Description India 1-Port PCI Express Serial Card with COM Port Activity LEDs - 16C1050 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2021-11-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-04-15 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2021-11-05 Target Production Release 2021-11-19 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
