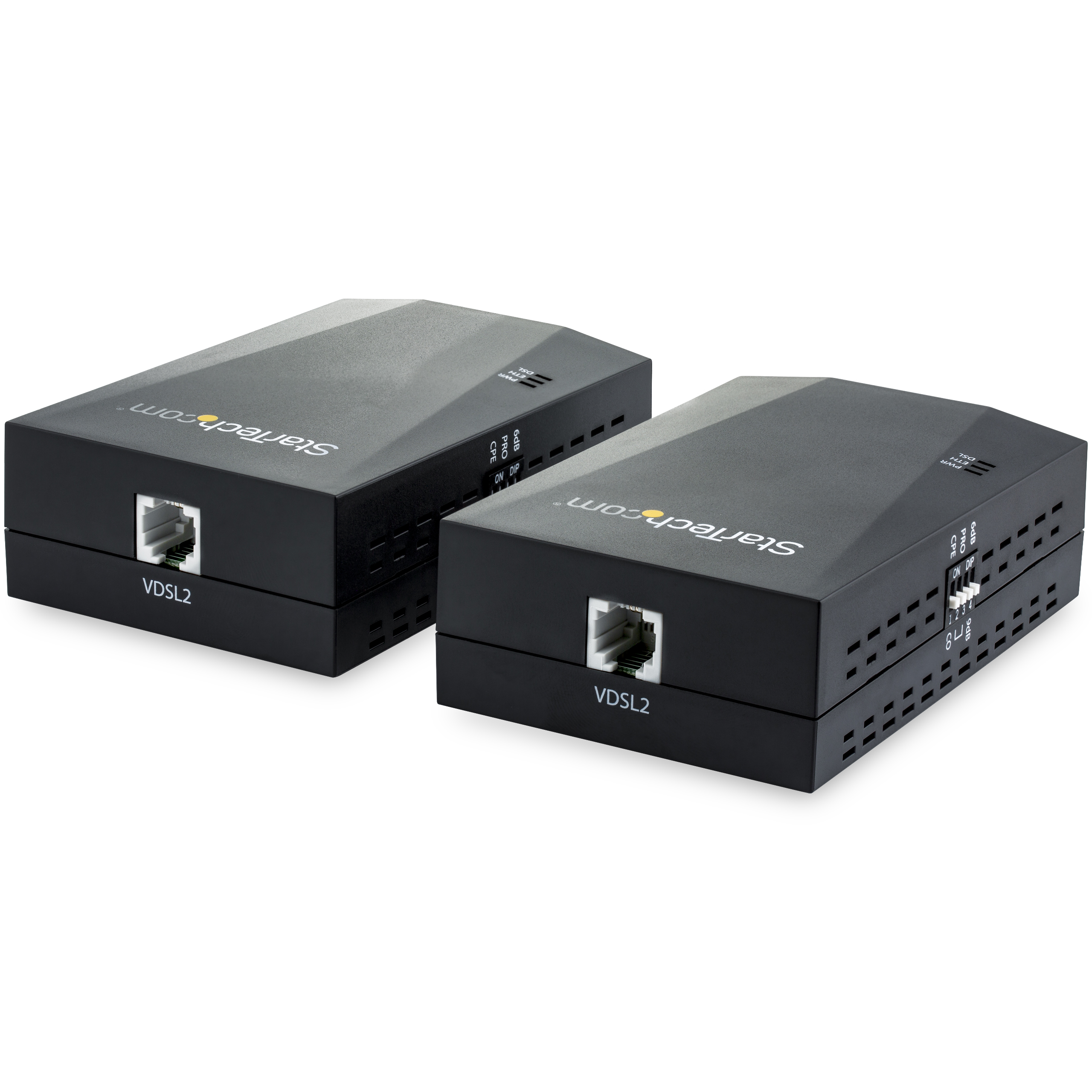

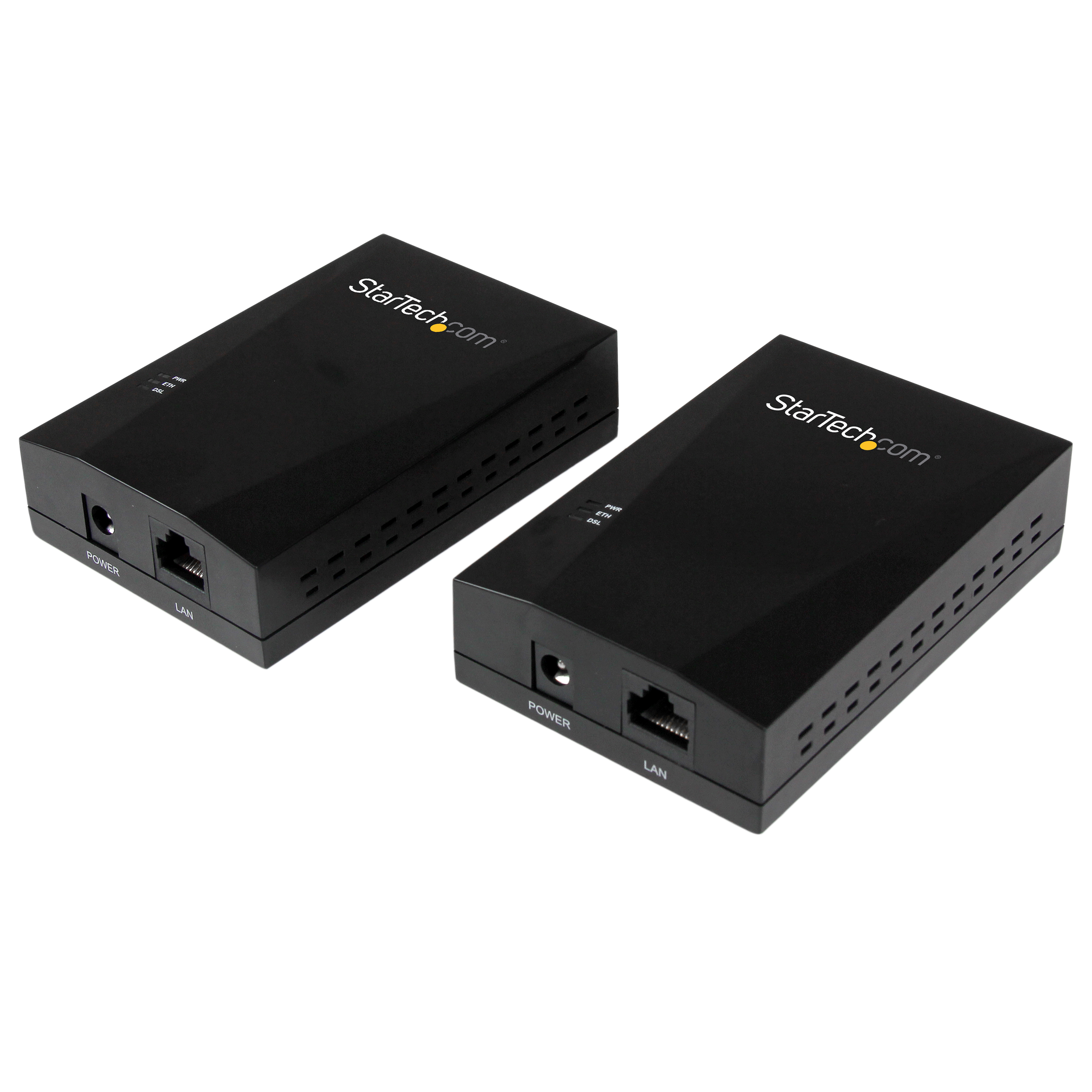

110VDSLEX2EU
VDSL2 Network Extender - LAN Over RJ11 Phone Line

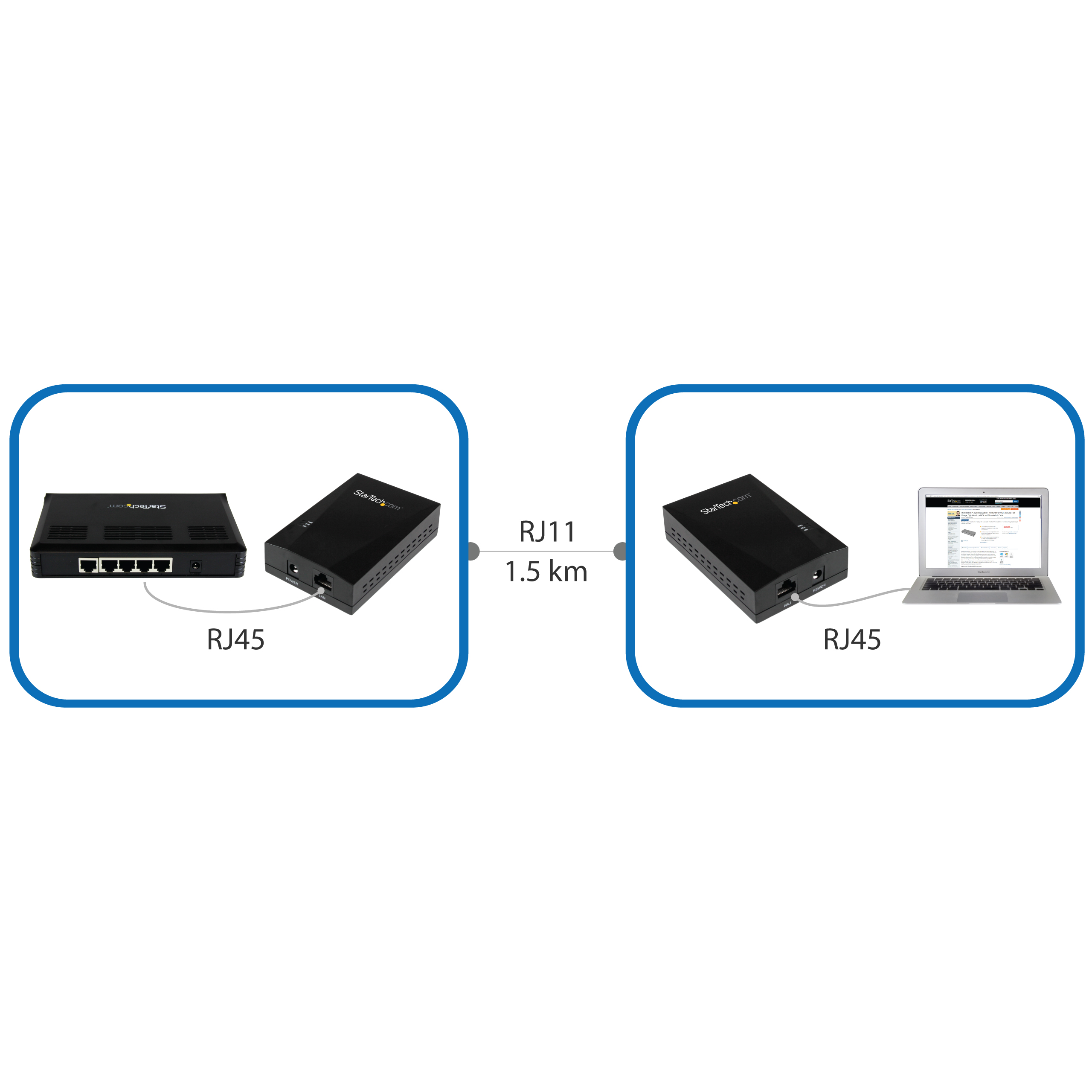

Scale your 10/100 Mbps Ethernet network up to 1.5km over RJ11 phone lines
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name VDSL2 Network Extender - LAN Over RJ11 Phone Line Product Number 110VDSLEX2EU UPC 065030860451 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX065X Product Title (Ultra-Short) VDSL2 Extender Kit Product Title (Short) VDSL2 Ethernet Extender Kit - 1.5km Product Title (Medium) VDSL2 Ethernet Extender Kit Over Single-Pair Wire w/ ESD - 10/100Mbps - 1.5km Product Title (Standard) VDSL2 Ethernet Extender Kit Over Single-Pair Wire - 10/100Mbps - 1.5km Product Title (Long) VDSL2 Ethernet Extender Kit Over Single-Pair Wire - 10/100Mbps - 1.5km Product Title (AMZ) VDSL2 Ethernet Extender Kit Over Single-Pair Wire - 10/100Mbps - 1.5km LAN Network Extender w/ ESD - Ethernet Over Phone Line (110VDSLEX2EU) Title Ingram (Part 1) VDSL2 Network Extender - LAN Title Ingram (Part 2) Over RJ11 Phone Line w/ ESD Website Product Headline Scale your 10/100 Mbps Ethernet network up to 1.5km over RJ11 phone lines Bullet 1 Reduce additional expenses using your existing phone line infrastructure or RJ11 cable Bullet 2 Convenient point-to-point extension over longer distances than standard 10/100Mbps Ethernet cable Bullet 3 Protects your connected equipment with 8kV air and 4kV contact ESD and surge protection Bullet 4 Compact desktop design with wall-mount support Bullet 5 Simple plug-and-play setup Bullets (Consolidated) Scale your 10/100 Mbps Ethernet network up to 1.5km over single-pair wire such as RJ11 phone lines - Long reach Ethernet extension connects a remote location cost-effectively while maintaining high transfer rates - LAN network extender with ESD and surge protection - Compact desktop design with wall-mount support - Easy plug and play set-up - Supports auto-MDIX, Auto-Negotiation, full-duplex operation, and VLAN tagging Marketing Copy Applications - Connect users or network segments in isolated areas of a large complex or separate buildings
- Perfect for stone, concrete, and heritage buildings where network connectivity is typically unavailable
- Extend network access or connect IP cameras and WiFi access points in remote areas of a stadium, auditorium, or campus
Website Search Keyword - 2 wire
- two wire
- Ethernet extension
- network extender
- network extension
- lan extender
- phone line extender
- remote network
- DSL extender
- VDSL extender
- copper extender
- 10/100 extender
- RJ45 extender
- VDSL2 extender
- single pair wire extender
- ethernet over rj11
- ethernet over phone line
- ethernet extender kit
- ethernet over vdsl
- ethernet over vdsl2
- ethernet extender
- vdsl2 ethernet extender
- ethernet over vdsl2 kit
- vdsl over 10/100 network
- vdsl2 over fast ethernet
- ethernet extender kit over Single Pair Wire
- network extender over phone line
- network extender over telephone wire
- network extender over rj11
- Ethernet extender over single pair wire
- Ethernet extender over vdsl
- dsl Ethernet extender
- vdsl Ethernet extender
- LAN over phone line
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - C6PATCH3BK
- C6PATCH10BK
- C6PATCH25BL
- C6PATCH35OR
- RJ6FT
- RJ12FT
- RJ25FT
- SVA5N3NEUA
Related Products - 110VDSLEXTEU
- 410VDSLEXT2
Input Current 0.2 A Input Voltage 240V AC Output Current 1.0 A Output Voltage (V) 5 DC Power Consumption (In Watts) 3 Power Source 2 AC Adapters Included Plug Type N Center Tip Polarity Positive Color Black Humidity 10~90% RH (Non-Condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 101 Product Width (mm) 67 Product Height (mm) 30 Product Weight (g) 90 Storage Temperature -20°C to 65°C (-4°F to 149°F) TAA Compliant Yes Auto MDIX Yes General Specifications - Jumbo Frame Support: 9K max.
- Full Duplex Support: Yes
- Auto Negotiation: Yes
- VLAN Tagging: Yes
Max Distance 1.5 km (0.9 mi) Maximum Data Transfer Rate 200 Mbps - Full-Duplex MTBF (hours) 22,500 hours Chipset ID Industry Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
- VDSL2 ITU-T G.993.2, VDSL ITU-T G.993.1, and VDSL2/VDSL ITU-T G.997.1 compliant
- IEEE 802.3x Full Duplex Flow Control, IEEE 802.1Q VLAN Tagging
LED Indicators - 1 - Power
- 1 - Ethernet
- 1 - VDSL

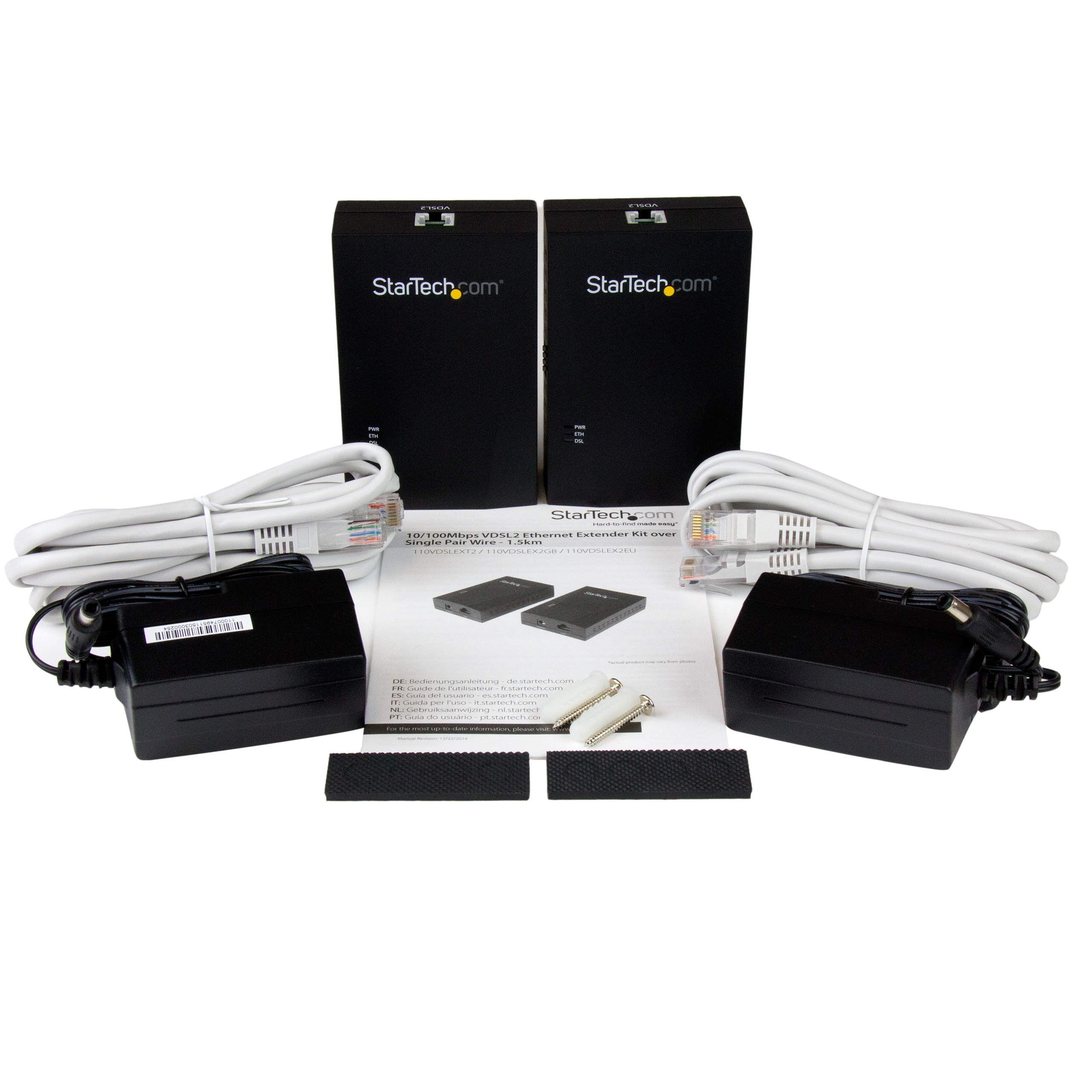

Regulatory Approvals Carton Depth (mm) 410 Carton Height (mm) 302 Carton Quantity 20 Carton Weight Gross (g) 13810 Included in Package - 1 - Ethernet VDSL2 - Transmitter
- 1 - Ethernet VDSL2 - Receiver
- 2 - RJ45 Cables
- 8 - Rubber Feet
- 2 - Power Adapter
- 1 - Instruction Manual
- 2 - Wall-mount Screws and Anchors
Package Depth (mm) 138 Package Height (mm) 83 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 634 Packaging Description 10/100Mbps VDSL2 Ethernet Extender Kit - 1.5km Packaging Description India 10/100Mbps VDSL2 Ethernet Extender Kit - 1.5km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-11 Connector 2 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 RJ-11 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-12-02 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,DE,DK,ES,EU,FR,IT,NL,SE Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2014-12-08 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
