110VDSLEXT

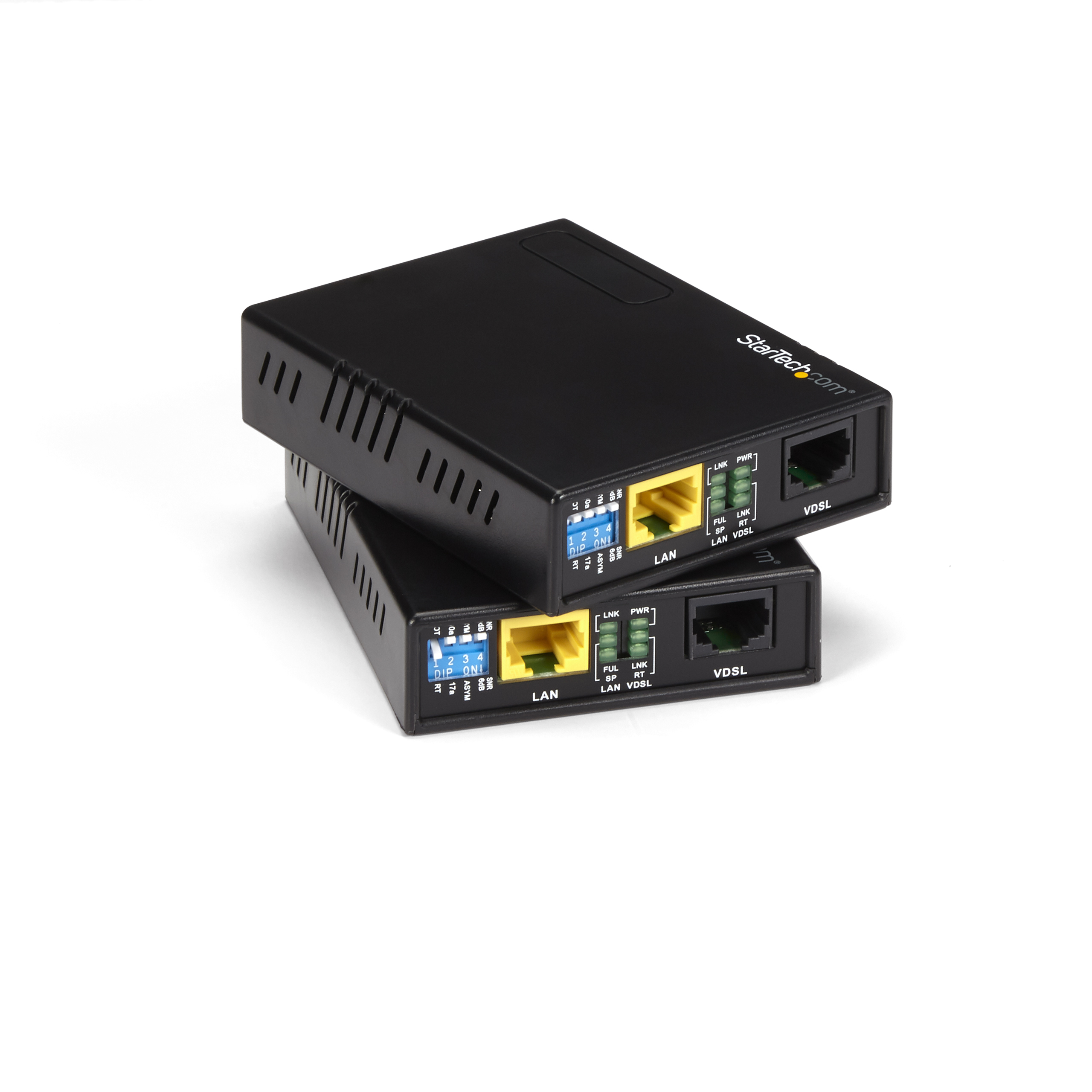

10/100Mbps VDSL Ethernet Ext Kit
Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines
Main Image
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 10/100Mbps VDSL Ethernet Ext Kit Product Number 110VDSLEXT UPC 065030832618 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Extenders Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) . Product Title (Short) VDSL2 Ethernet Extender Kit over UTP Product Title (Standard) 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire, 1km, TAA - Replaced by VDSL-LAN-EXTENDER-1G Product Title (Long) 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire, 1km, TAA - Replaced by VDSL-LAN-EXTENDER-1G Product Title (AMZ) 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire, Long Range Repeater, Replaced by VDSL-LAN-EXTENDER-1G Title Ingram (Part 1) 10/100 VDSL2 Ethernet Extender K Title Ingram (Part 2) it over Single Pair Wire 1km Website Product Headline Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines Bullet 1 Light in weight and a very compact design Bullet 2 Supports flow control for Fast Ethernet (pause frame or Back Pressure) Bullet 3 IEEE 802.1Q VLAN tag transparent Bullet 4 Allows you the ability to select fixed SNR margin (9 dB) or fixed target data rate Bullet 5 Supports both symmetric and asymmetric transmission Bullets (Compact) Extend your 10/100Mbps network up to 1km over Ethernet or RJ11 phone lines - High-speed Ethernet extension using copper telephone line (RJ11) or other existing two-pair wiring - Enables network connectivity in remote locations up to 1km away Bullets (Consolidated) Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines - Network Extender - Ethernet Extender - LAN Extender - Ethernet over Phone - Short Haul Modem - 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km Marketing Copy Marketing Copy (No HTML) The Ethernet extender over phone line kit lets you span a 10/100 network over extremely long distances (up to 1km) while still maintaining high-speed network connectivity. Use Your Existing Cabling The point to point ethernet cable extender enables you to run the connection over standard RJ45 cabling, existing RJ11 phone lines, or any other set of single pair wires. The VDSL/VDSL2 ethernet extender kit is simple to install and provides an out-of-the-box solution as both the Ethernet-VDSL extender and receiver units are included. Versatile Use A perfect solution for a broad range of applications, the ethernet extender over copper kit can connect isolated user stations within the same building or between separate buildings. The DSL ethernet extenders can overcome infrastructure obstacles and distances, such as older stone or concrete architecture, where new wiring or wireless may be impossible. The VDSL Ethernet LAN Extender kit helps to eliminate expense by allowing video streaming and data to share the same telephone pair without interference. The ethernet cable extender is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Provide ethernet over copper connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, and other harsh environment applications
- Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related network communications
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)
Website Search Keyword - 2 wire
- two wire
- Ethernet extension
- network extender
- network extension
- lan extender
- phone extender
- phone line extender
- remote network
- DSL extender
- VDSL extender
- copper extender
- 10/100 extender
- RJ45 extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes You have the ability to use up to four sets over a single Cat5e or Cat6 cable which can be used as separate LAN (or VLAN) connections, or bridged into a trunk line for additional speed/bandwidth over long distances (Up to two sets only over standard Cat5). Accessory Products - C6PATCH10BK
- C6PATCH15BL
- C6PATCH20GR
- C6PATCH25GN
- RJ25FT
- RJ12FT
- WIRC6PATBKRL
- WIRRJ11
- SVA12M2NEUA
- SVA12M5NA
Related Products - EOC110K
- EOC110R

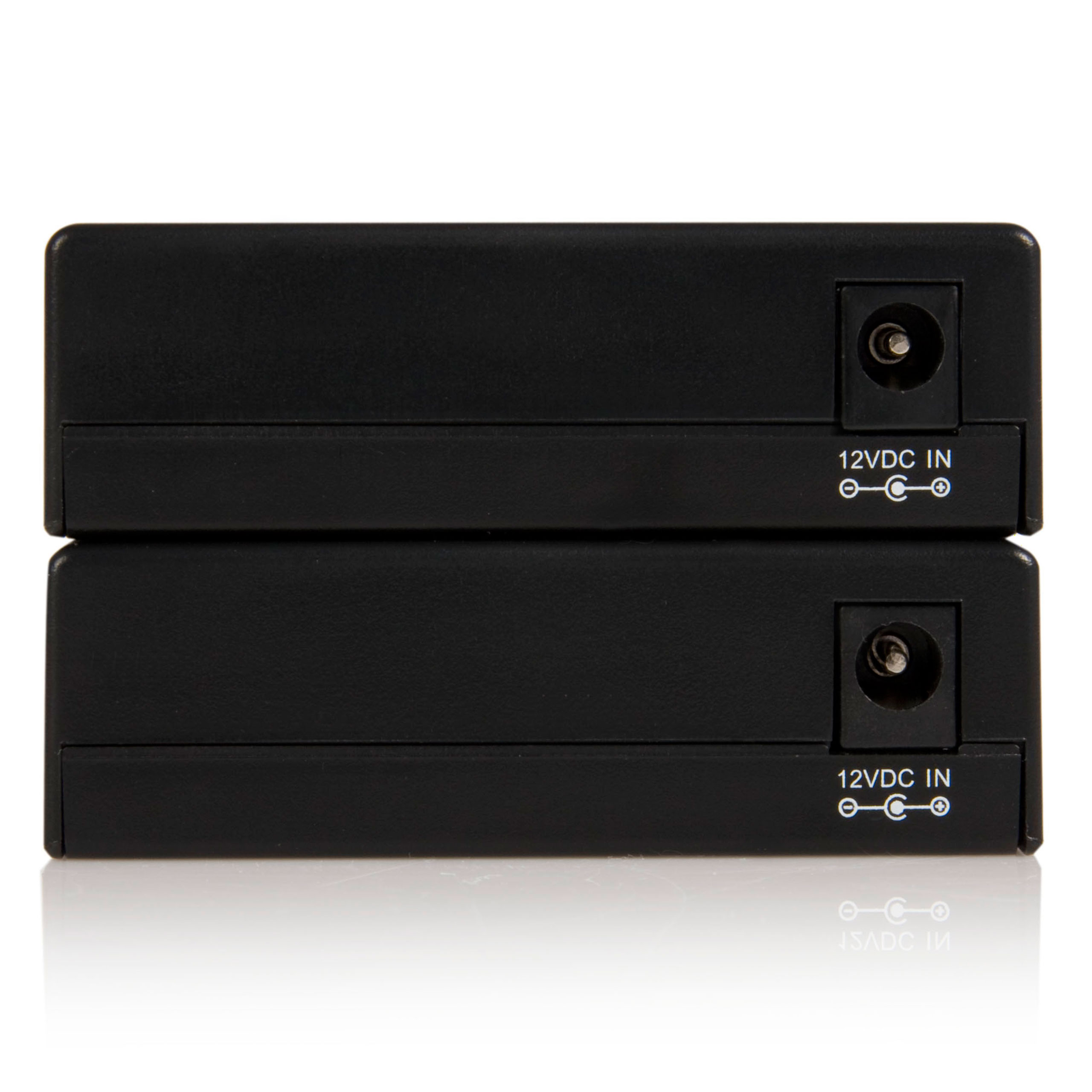

Replacement Product VDSL-LAN-EXTENDER-1G Equivalent Part Number in the EU 110VDSLEXTEU Equivalent Part Number in the UK 110VDSLEXTGB Output Current 1A Output Voltage (V) 12V DC Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~95% RH Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Steel Product Length (mm) 95.000 Product Width (mm) 72.000 Product Height (mm) 22.000 Product Weight (g) 173.000 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant Yes Max Distance 1 km (0.6 mi) Maximum Data Transfer Rate Industry Standards - VDSL2 ITU-T G.993.2, VDSL ITU-T G.993.1, and VDSL2/VDSL ITU-T G.997.1 compliant

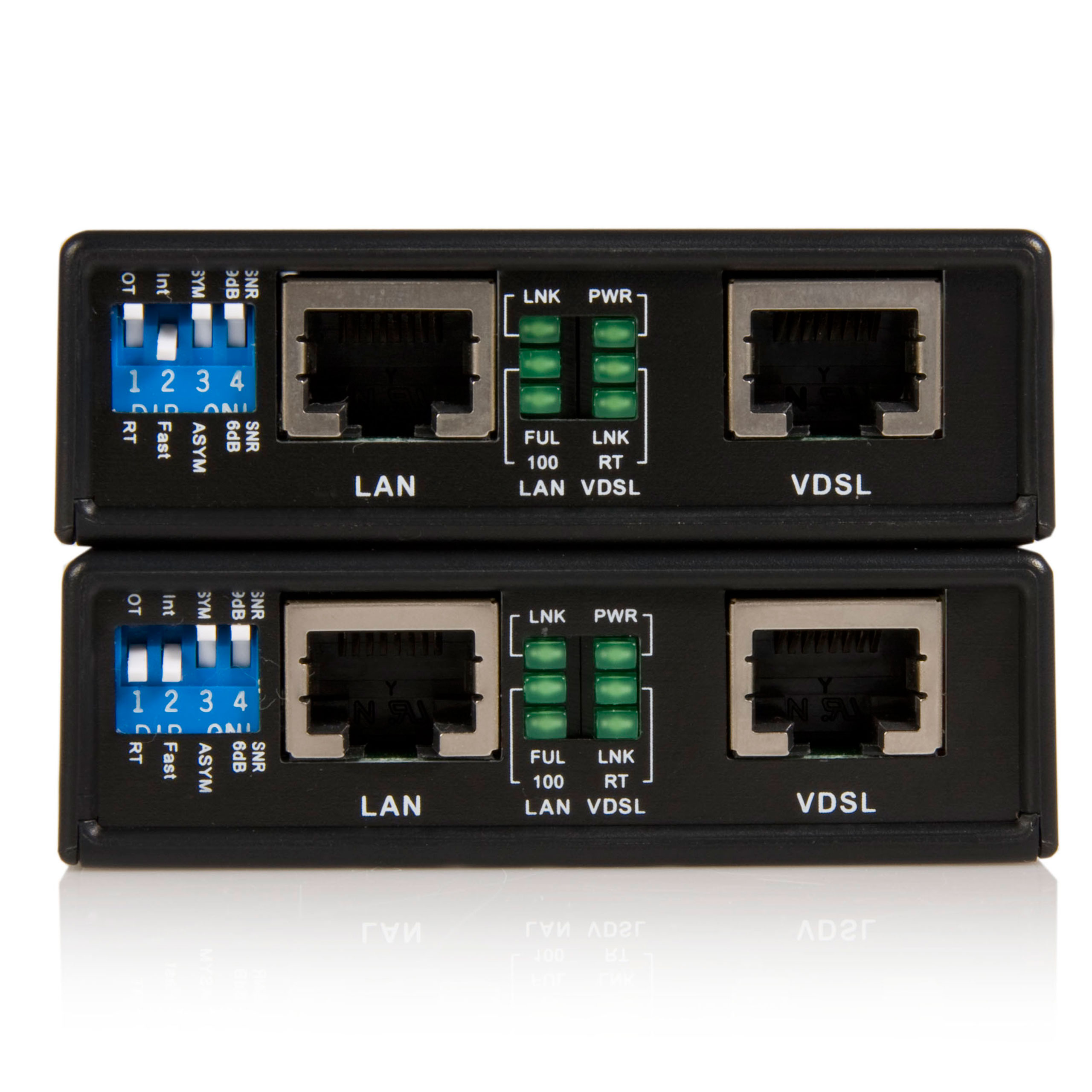

LED Indicators - 3 - LAN: ACT/LNK, 10/100 Mbps, Half/Full Duplex
- 3 - VDSL: Power On/Off, CO/CPE, Idle/Trained/Link

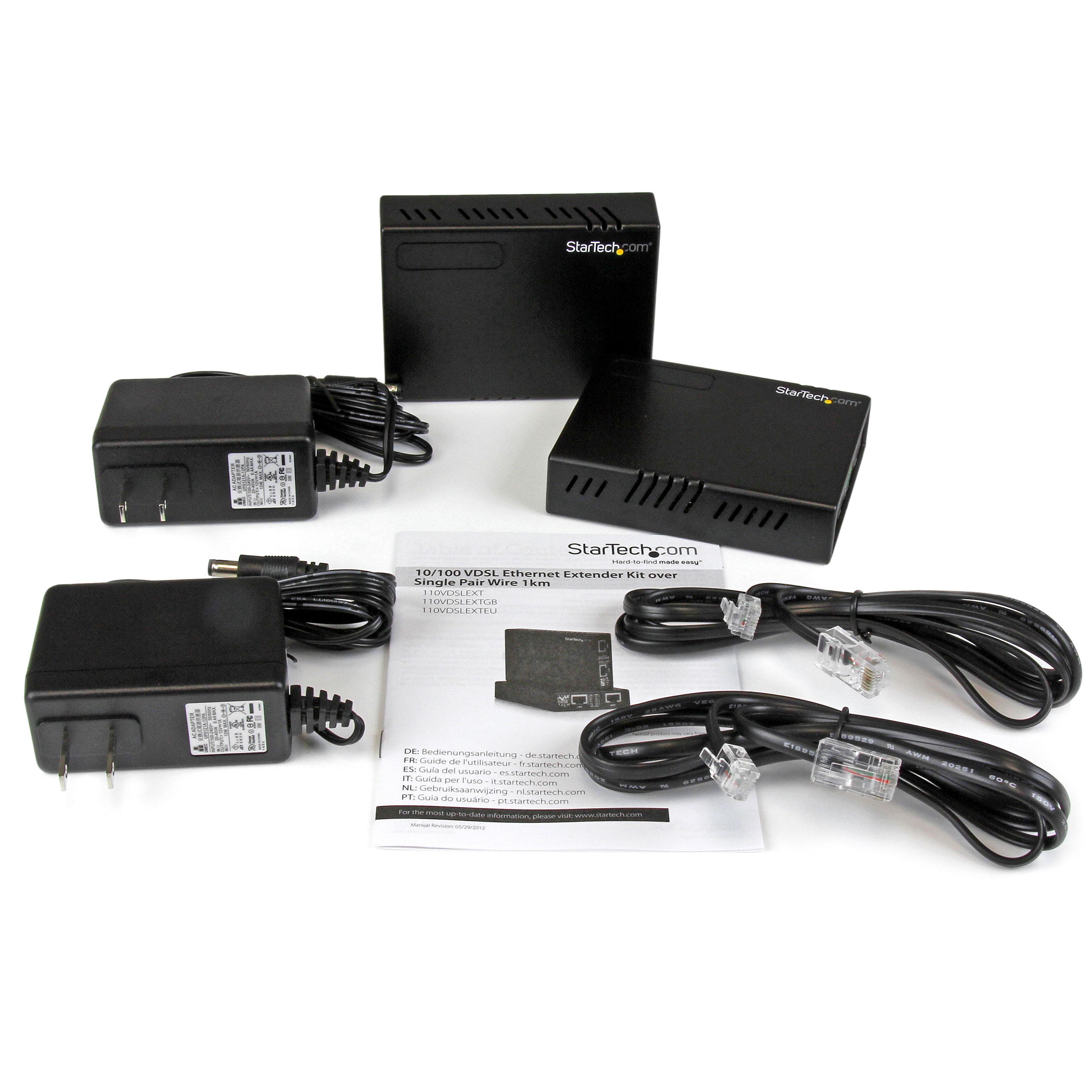

Carton Depth (mm) 430 Carton Height (mm) 315 Carton Quantity 15 Carton Weight Gross (g) 11630 Included in Package - 1 - Ethernet VDSL Receiver
- 1 - Ethernet VDSL Extender
- 1 - Instruction Manual
- 2 - RJ-45 to VDSL Cable
- 2 - Power Adapter
Package Depth (mm) 183 Package Height (mm) 133 Package Width (mm) 153 Package Quantity 1 Package Weight (g) 696 Packaging Description 10/100 Mbps VDSL Ethernet Extender Kit – 1km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,HK,JP,NZ,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
