110VDSLEXTGB

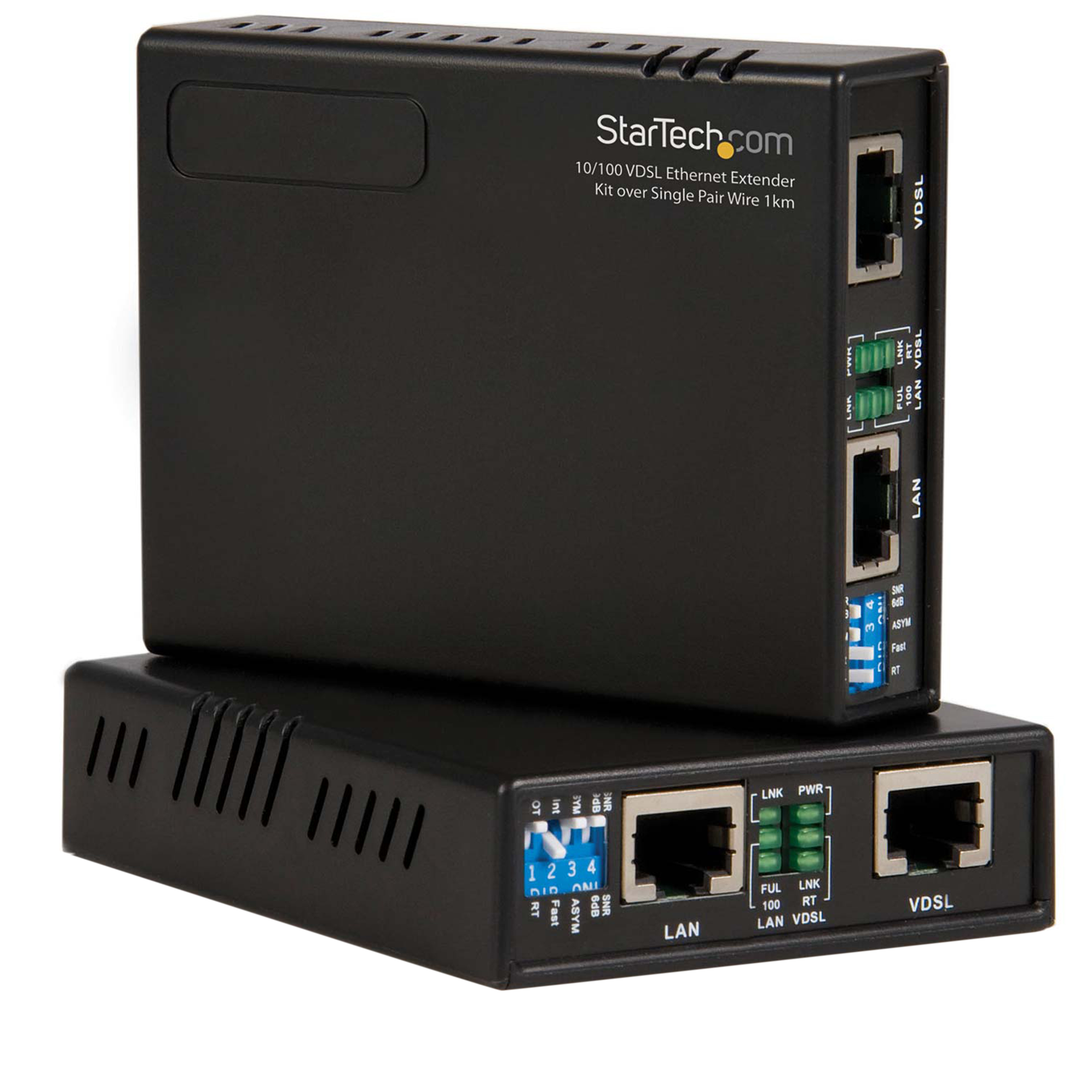

10 100Mbps VDSL Ethernet Extender Kit
Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines
Main Image
Product Images
Product Images
BOM Image
Product Name 10 100Mbps VDSL Ethernet Extender Kit Product Number 110VDSLEXTGB UPC 065030834513 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Extenders Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 10/100 VDSL2 Ethernet Extender Kit - 1km Product Title (Standard) StarTech.com Ethernet extender kit - VDSL2 - 10/100 - extender kit - single pair wire - 1 km Product Title (Long) 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km Product Title (AMZ) 10/100 Mbps VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km Network Extender - VDSL2 LAN Extender - Short Haul Modem (110VDSLEXTGB) Title Ingram (Part 1) 10/100 VDSL2 Ethernet Extender K Title Ingram (Part 2) it over Single Pair Wire 1km Website Product Headline Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines Bullet 1 Allows you the ability to select fixed SNR margin (9 dB) or fixed target data rate Bullet 2 IEEE 802.1Q VLAN tag transparent Bullet 3 Light in weight and a very compact design Bullet 4 Selectable CPE and CO mode via DIP switch Bullet 5 Supports both symmetric and asymmetric transmission Bullets (Consolidated) Extend your 10/100Mbps network by up to 1 km over Ethernet or RJ11 phone lines - 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - 1km Network Extender/Ethernet Extender/LAN Extender - Ethernet over Phone/Short Haul Modem - Long reach Ethernet extension connects a remote location cost-effectively while maintaining high transfer rates - Simple Plug and play installation with no software or driver installation for a hassle-free setup - Compact and lightweight design Marketing Copy Applications - Provide ethernet over copper connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, and other harsh environment applications
- Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related network communications
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes You have the ability to use up to four sets over a single Cat5e or Cat6 cable which can be used as separate LAN (or VLAN) connections, or bridged into a trunk line for additional speed/bandwidth over long distances (Up to two sets only over standard Cat5). Accessory Products - C6PATCH10BK
- C6PATCH15BL
- C6PATCH20GR
- C6PATCH25GN
- RJ25FT
- RJ12FT
- WIRC6PATBKRL
- WIRRJ11
- SVA12M2NEUA
- SVA12M5NA

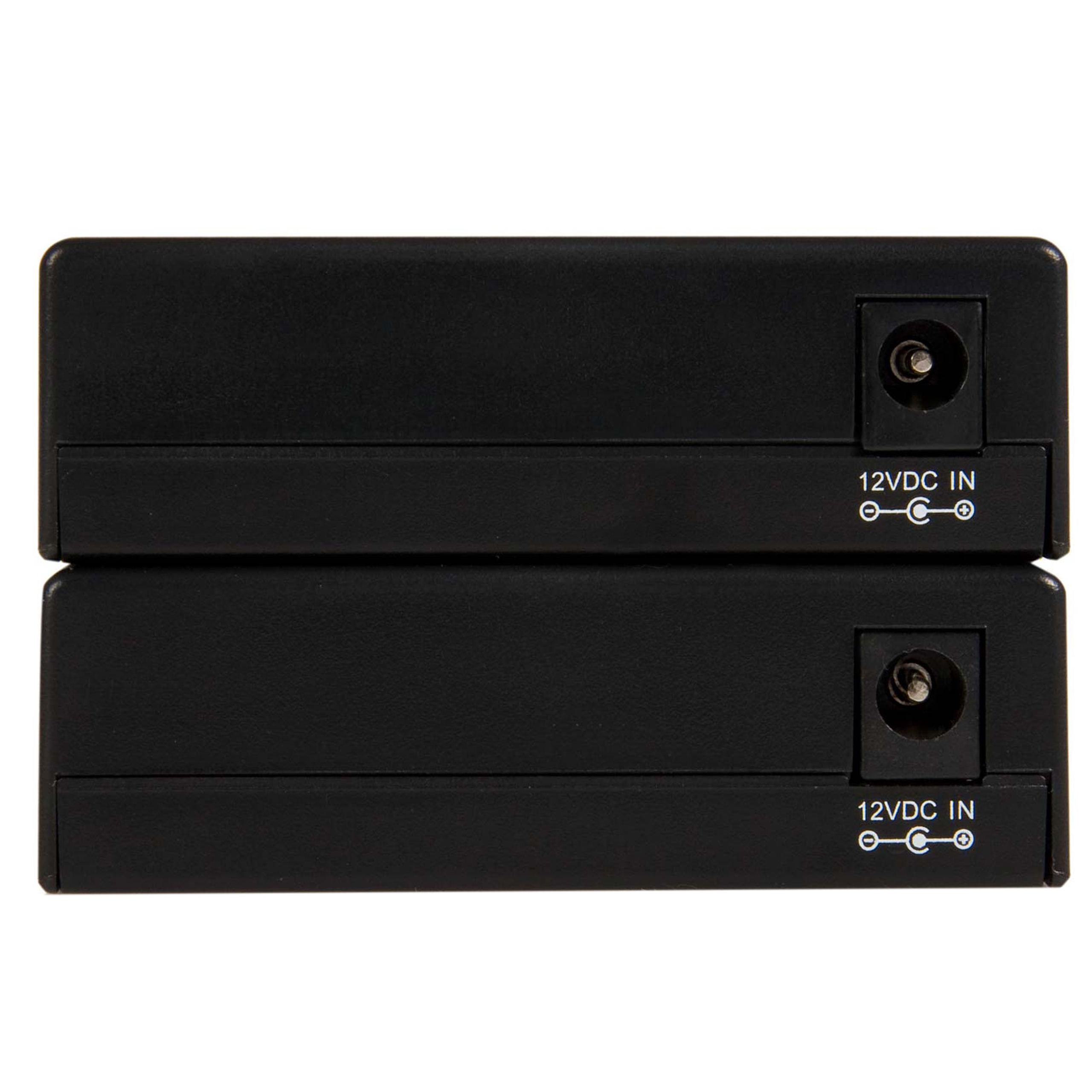

Input Voltage 230 AC Output Current 1A Output Voltage (V) 12V DC Power Consumption (In Watts) 12 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 95.000 Product Width (mm) 72.000 Product Height (mm) 22.000 Product Weight (g) 90.000 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant Yes Max Distance 1 km (0.6 mi) Maximum Data Transfer Rate Industry Standards - VDSL2 ITU-T G.993.2, VDSL ITU-T G.993.1, and VDSL2/VDSL ITU-T G.997.1 compliant

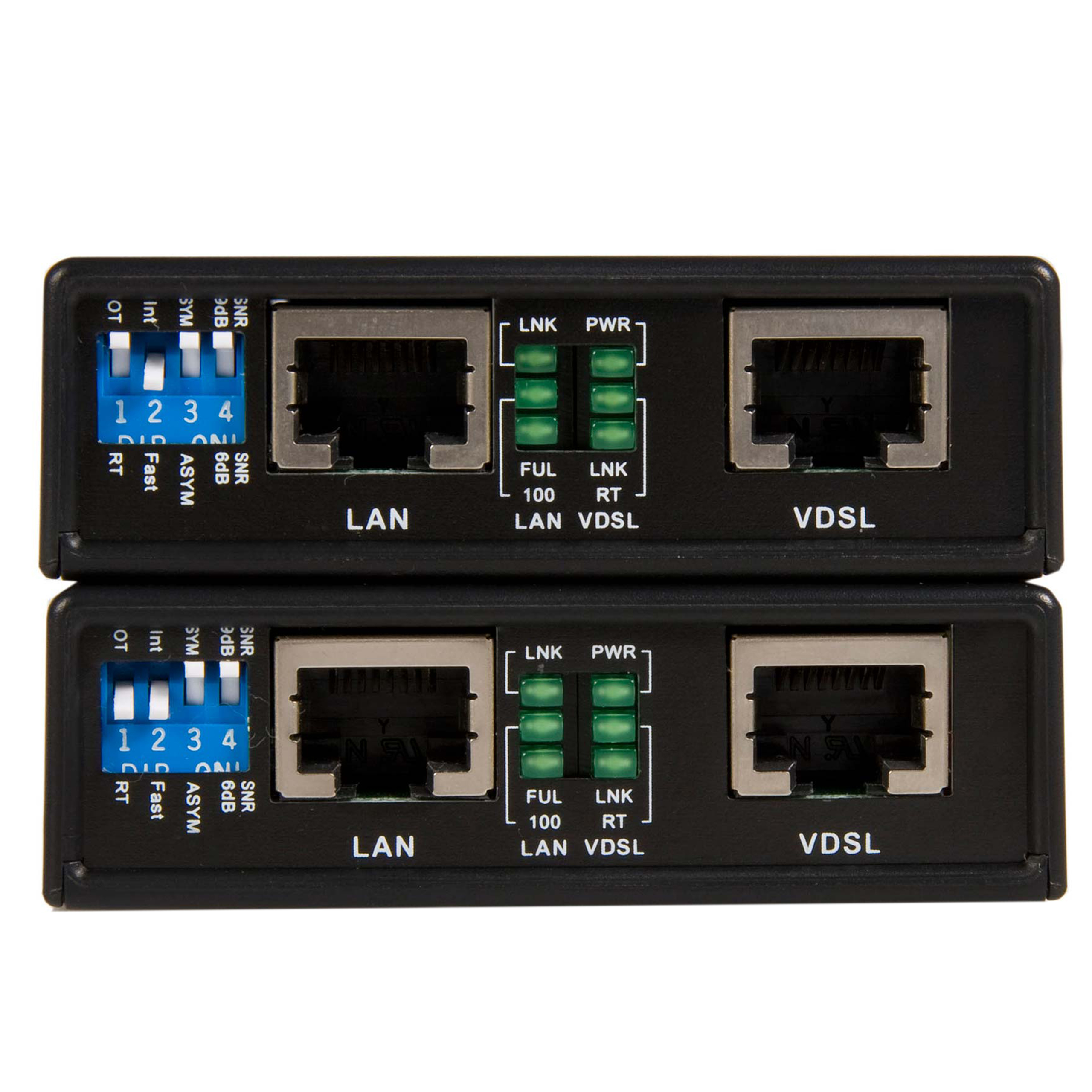

LED Indicators - 3 - LAN: ACT/LNK, 10/100 Mbps, Half/Full Duplex
- 3 - VDSL: Power On/Off, CO/CPE, Idle/Trained/Link

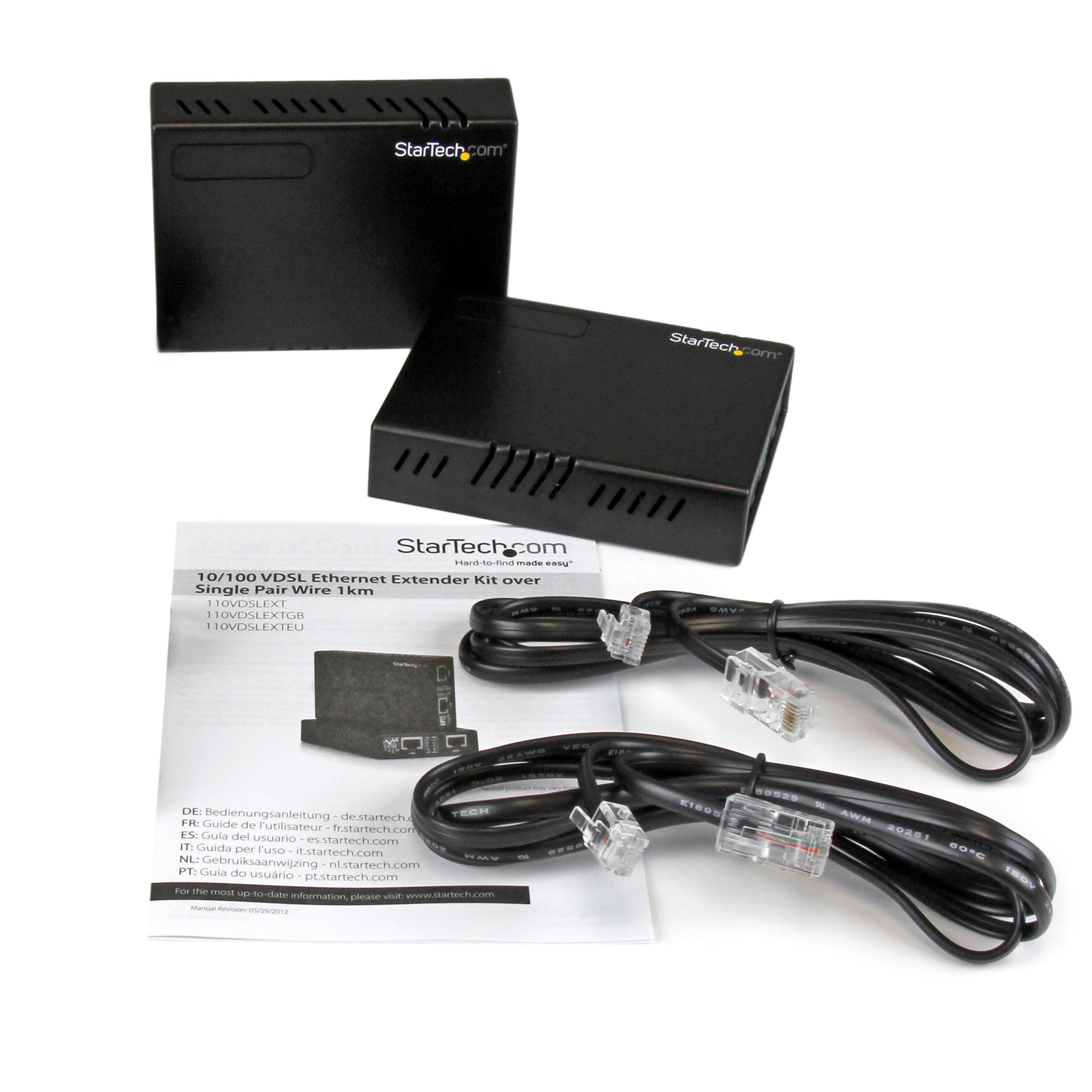

Carton Depth (mm) 519 Carton Height (mm) 432 Carton Quantity 1 Carton Weight Gross (g) 15300 Included in Package - 1 - Extender
- 1 - Instruction Manual
- 2 - Power Adapter
- 1 - Receiver
- 2 - RJ-45 to VDSL Cable
Package Depth (mm) 148 Package Height (mm) 95 Package Width (mm) 137 Package Quantity 1 Package Weight (g) 940 Packaging Description 10/100 Mbps VDSL Ethernet Extender Kit – 1km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) EU,IE,UK Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
