116U-USBC-DOCK
USB-C Triple Monitor Docking Station - DL6950
Seamlessly standardize across platforms with triple 4K display support
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name USB-C Triple Monitor Docking Station - DL6950 Product Number 116U-USBC-DOCK UPC 065030900096 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family USB-C Dock, Triple DL6950 Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) Triple Monitor Dock Product Title (Short) Triple Monitor Docking Station, HDMI/DP Product Title (Medium) USB-C Triple Monitor Docking Station - 4K HDMI & DP - 5x USB - GbE - 100W USB PD Product Title (Standard) USB-C Triple Monitor Docking Station - Triple 4K HDMI/DP USB-C Dock - 5x USB Hub - GbE - 100W PD - Universal / Multi Monitor Product Title (Long) USB-C Triple Monitor Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal 4K HDMI DP Dock, Thunderbolt Compatible, 100W Laptop Charging Product Title (AMZ) USB-C Triple Monitor Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal 4K HDMI DP Dock, Thunderbolt Compatible, 100W Laptop Charging Title Ingram (Part 1) USB-C Triple Monitor Docking Title Ingram (Part 2) Station - 4K HDMI/DP - 100W PD, GbE Website Product Headline Seamlessly standardize across platforms with triple 4K display support Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Triple Monitor 4K Universal Laptop Docking Station - Connect two HDMI and/or DisplayPort monitors via DisplayLink and a 3rd HDMI monitor via DP 1.2 Alt Mode - 3x USB-A/2x USB-C Hub; 100W PD; GbE; 3.5mm Audio - 3.3ft/1m USBC cable - Win/macOS/Chrome Bullets (Consolidated) Triple 4K Monitor Laptop Docking Station - Two 4K 60Hz HDMI 2.0 and/or DisplayPort 1.2 (DP++) monitors via DisplayLink; 3rd 4K 30Hz HDMI monitor via DP 1.2 Alt Mode - 1x USB-A (10Gbps/BC 1.2) Hub; 2x USB-A (5Gbps); 1x USB-C (10Gbps/BC 1.2); 1x USB-C (5Gbps); 100W PD 3.0; 3.5mm Audio; Gigabit Ethernet/WoL - 3.3ft/1m USB-IF Certified USB-C host cable included; Connectivity Tools App; K-Slot - Compatible with Windows/macOS/Chrome and hardware platforms including Intel, AMD and the Apple M-Series Marketing Copy Marketing Copy (No HTML) Applications - Use in laptop hot-desk workstations for hoteling
- Charge your tablets and smartphones from the B.C 1.2 USB ports
Website Search Keyword - laptop docking station triple monitor
- multi monitor docking station
- triple 4k docking station
- triple 4k monitor docking station
- triple monitor dock
- triple monitor docking station
- universal docking station triple monitor
- USB 3.2 Gen 2 Hub
- usb c laptop docking station
- usb c to displayport dock
- usb c to hdmi docking station
- usb c triple display docking station
- USBC dock
- Docking Stations
- Dell Pro Max 14
- Intel Core Ultra 200H Series
Required Marketing Compliance Marks DisplayLink - Specification - Global - DisplayLink Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure your host device's USB-C port supports USB Power Delivery and DP alt mode.
- A 4K-capable display is required to achieve 4096 x 2160p/3840 x 2160p resolution.
- A 4K-capable computer is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) on the DP Alt-Mode HDMI port.
- USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
System and Cable Requirements A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery 2.0 and DP alt mode). Accessory Products - HDMM1MP
- HDMM2MP
- HDMM3MP
- HDMIMM3HS
- HDMIMM6HS
- HDMIMM10HS
- HDMIMM15HS
- HDMM1MHS
- HDMM2MHS
- 45PATCH10WH
- DISPLPORT3L
- RJ45PATCH10
- 45PATCH10GR
- 45PATCH25WH
- 45PATCH25GR
- DISPLPORT6L
- 45PATCH25BK
- DP14MM1M
- DP14MM2M
- HDMIDVIMM6
- HDDVIMF8IN
- DP2VGA3
- DP2DVI2
- HD2VGAE2
- USB31CCV50CM
- HDMMV2M
Related Products - DKT30CHPD
- DKT30CSDHPD
- DKT30CHV
- DKT30CDVPD
- CDP2VGAUACP
- DK30BACDD
- USB3SMDOCKHV
- DKT30CHPDW
- USB31GEHD
- USB3SMDOCKV
- CDP2HDUACPW
- DKT30CHD
- MST30C2DPPD
- CDPVGDVHDBP
- CDPVGDVHDB
- CDPVGDVHDMDP
- DKT30CHSDPD1
- 127B-USBC-MULTIPORT
Constrained SKU Alternatives (Limited Stock) DK31C2DHSPDUE Input Current 2.5 A Input Voltage 110V-240V AC Output Current 5.41 A Output Voltage (V) 24 DC Power Consumption (In Watts) 15W Power Delivery 100W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 985 Color Space Gray Humidity 0~85% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 190.000 Product Width (mm) 85.000 Product Height (mm) 30.000 Product Weight (g) 270 Storage Temperature -10°C to 55°C (14°F to 131°F) TAA Compliant No Compatible Networks 10/100/1000 Mbps Device Power Consumption (In Watts) 985 Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Maximum Data Transfer Rate 10Gbps Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) MTBF (hours) 44,877 Hours OS Compatibility - Windows 11
- Windows 10
- Windows 8.1
- Windows 8
- Windows 7
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Ubuntu
- Chrome OS
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch

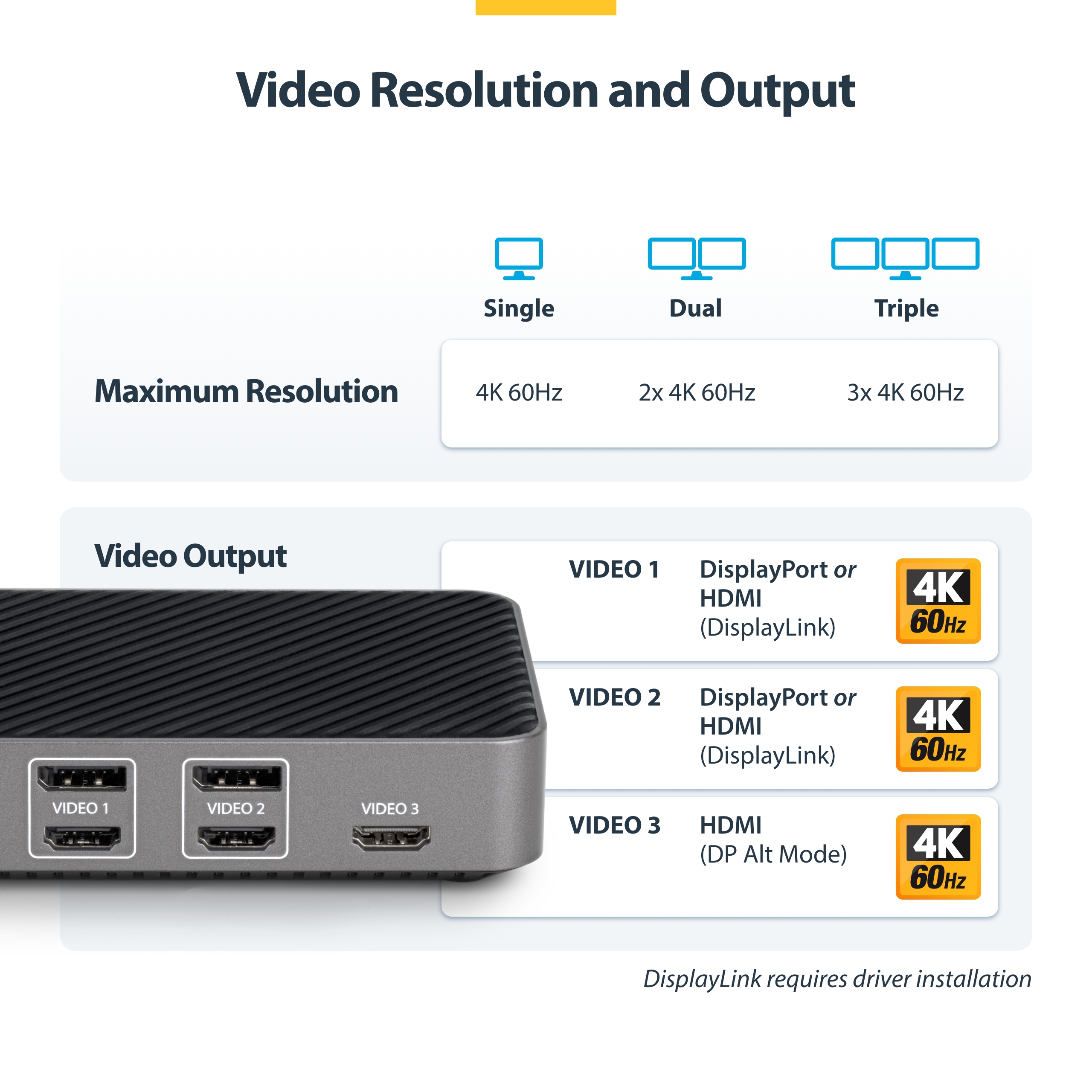

Supported Charging Outputs BC 1.2 (1.5A) USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Video Output Port - HDMI
- DisplayPort
Video Transport Technology USB Graphics Wake-On-LAN (WOL) Yes Audio Yes Bus Type USB 3.2 Gen 2 Chipset ID - DisplayLink - DL-6950-N
- VIA - VL817C0
- Parade - PS176C0
Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port USB-C Industry Standards - HDMI 2.0
- DisplayPort 1.4
- USB 3.2 Gen 2 (10Gbps)
- USB 3.2 Gen 1 (5Gbps)
- 1000Base-T, 100Base-TX, 10Base-T (IEEE802.3ab compliant)

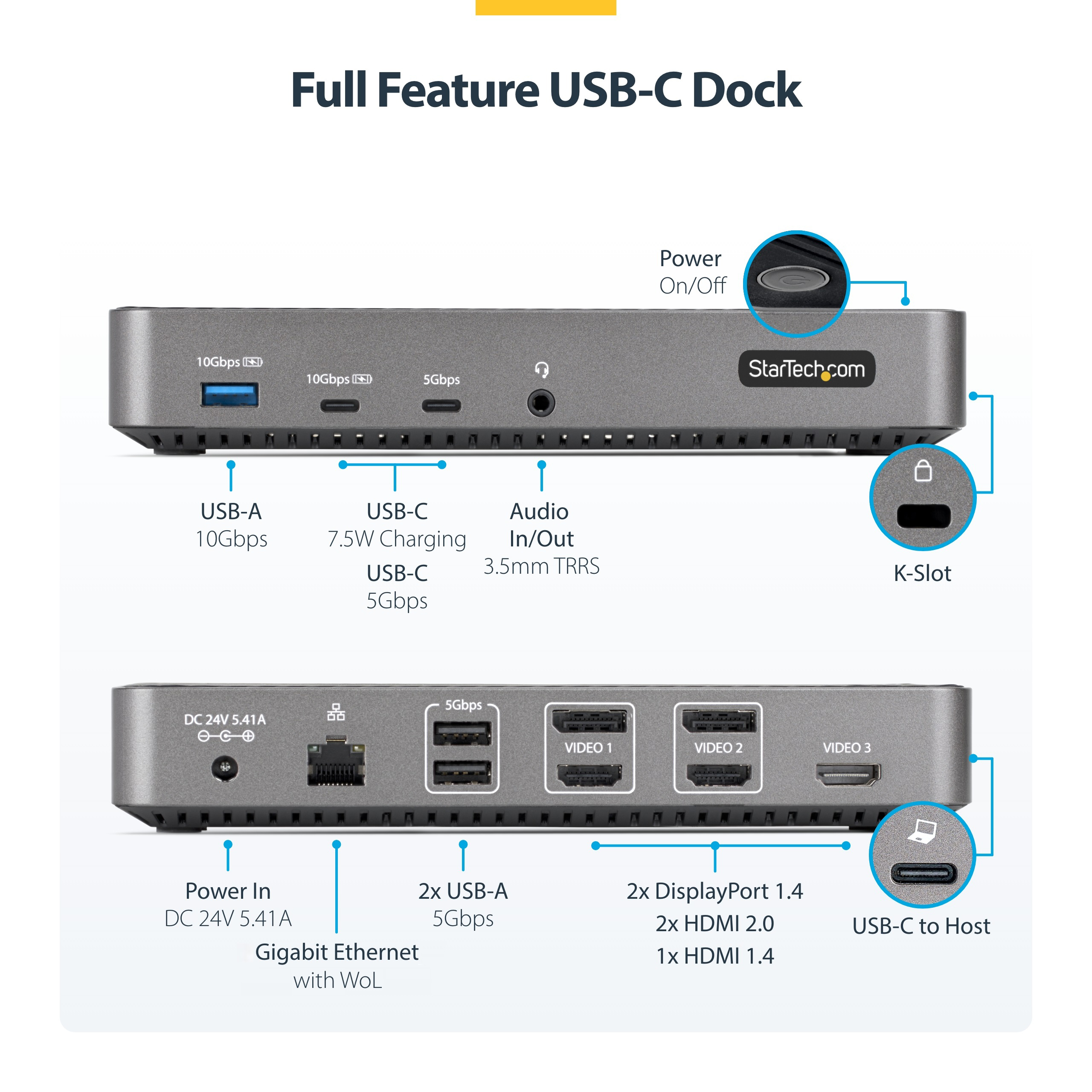

Interface/Bridge USB 3.2 Gen 2 10Gbps Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power LED (white) Number of Battery Charge 1.2 Ports 2 Number of Displays 3 Other Ports - Gigabit Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack
- USB-A BC 1.2 Fast Charge

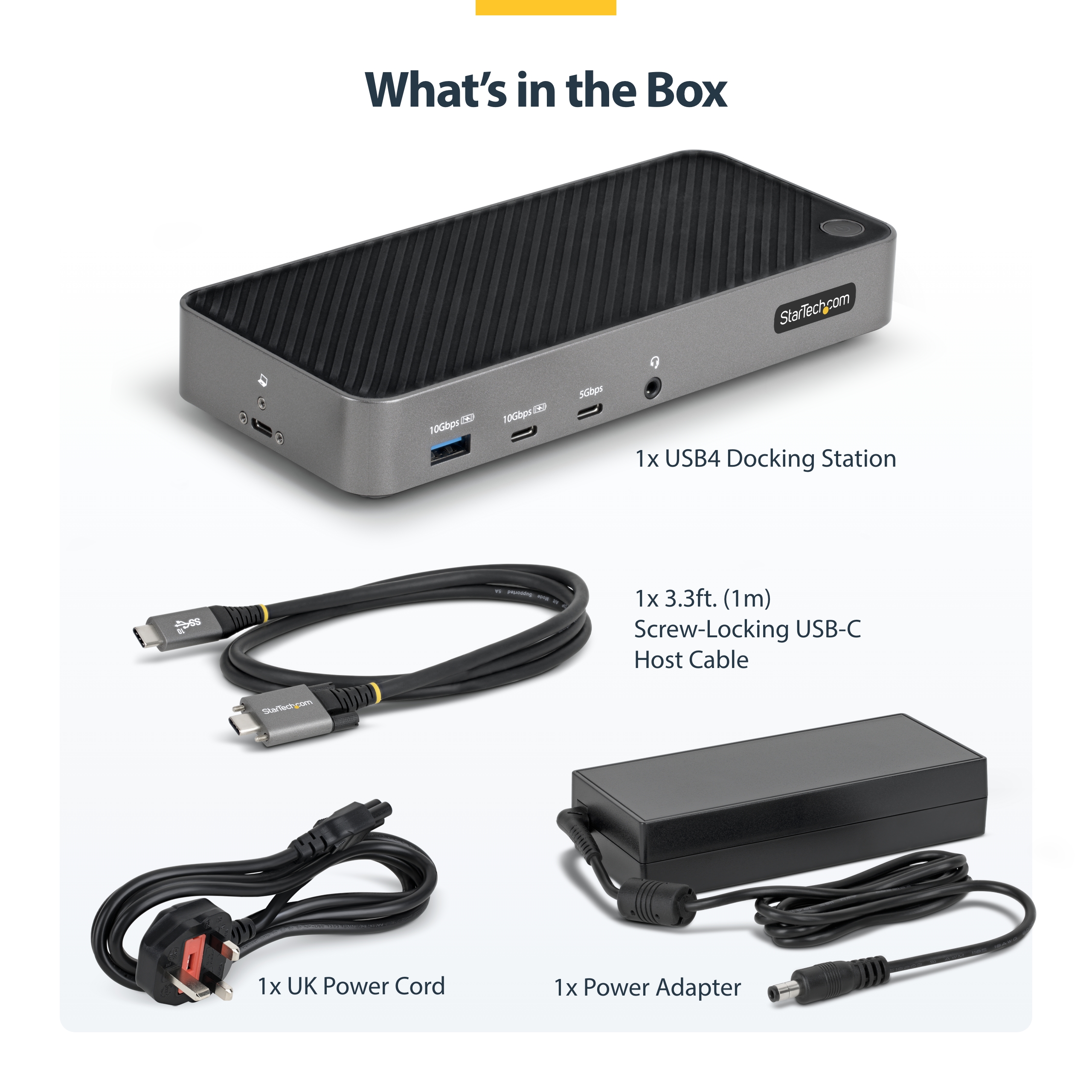

USB Port Type USB-A, USB-C Carton Depth (mm) 280 Carton Height (mm) 290 Carton Quantity 10 Carton Weight Gross (g) 11350 Included in Package - 1 - USB-C Docking Station
- 1 - 3 ft [1 m] USB-C Host Cable
- 1 - Power Adapter (UK)
- 1 - Quick-Start Guide
Package Depth (mm) 205 Package Height (mm) 50 Package Width (mm) 250 Package Quantity 1 Package Weight (g) 1135 Packaging Description USB-C Triple Monitor Dock 2x DP/3x HDMI - 2x USB-C/3x USB-A - GbE - 100W PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 3 Connector 2 DisplayPort Connector 2 (Quantity) 2 Connector 3 USB-A (10Gbps, 7.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (10Gbps, 7.5W) Connector 4 (Quantity) 1 Connector 5 USB-C (5Gbps, 4.5W) Connector 5 (Quantity) 1 Connector 6 USB-A (5Gbps, 4.5W) Connector 6 (Quantity) 2 Connector 7 3.5mm (4 Conductors, TRRS) Connector 7 (Quantity) 1 Connector 8 RJ-45 Connector 8 (Quantity) 1 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Amazon Only SKU No Application Photos Uploaded Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USBC Triple 4K / 2 x DP + HDMI / 5 port usb hub / 100wPD Comparable SKU 2 Comment NA version of same dock Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) IE,UK Primary Technology - USB 3.2 Gen 2 / 10Gbps
- DisplayPort 1.2 / 4K 60Hz
- HDMI 2.0 / 4K 60 Hz and HDR
Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2022-08-10 Target Production Release 2022-09-15 Tech Lead Sam Raskas Technical Writer Alex Garcia Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
