118-USBC-HDMI-VGADVI

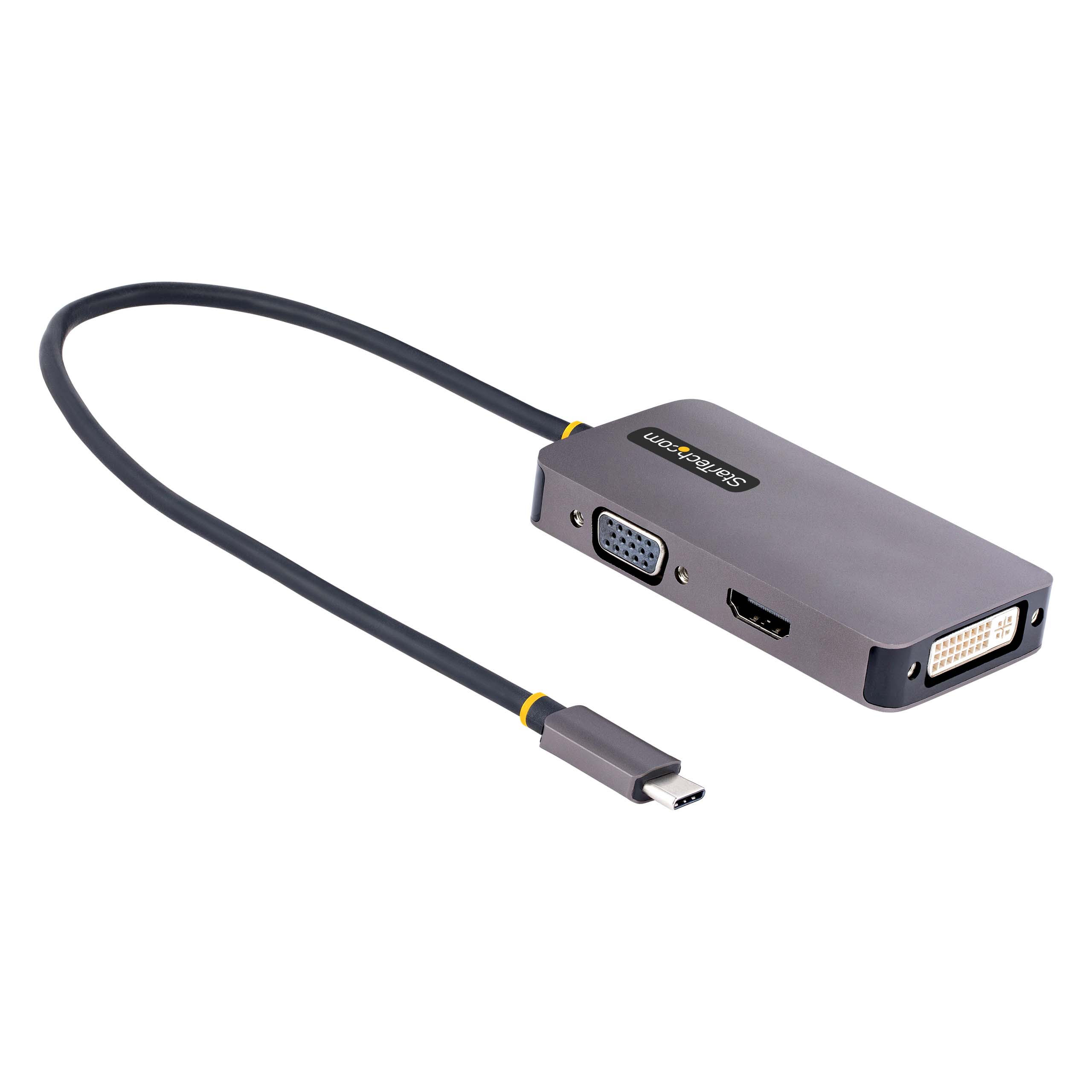

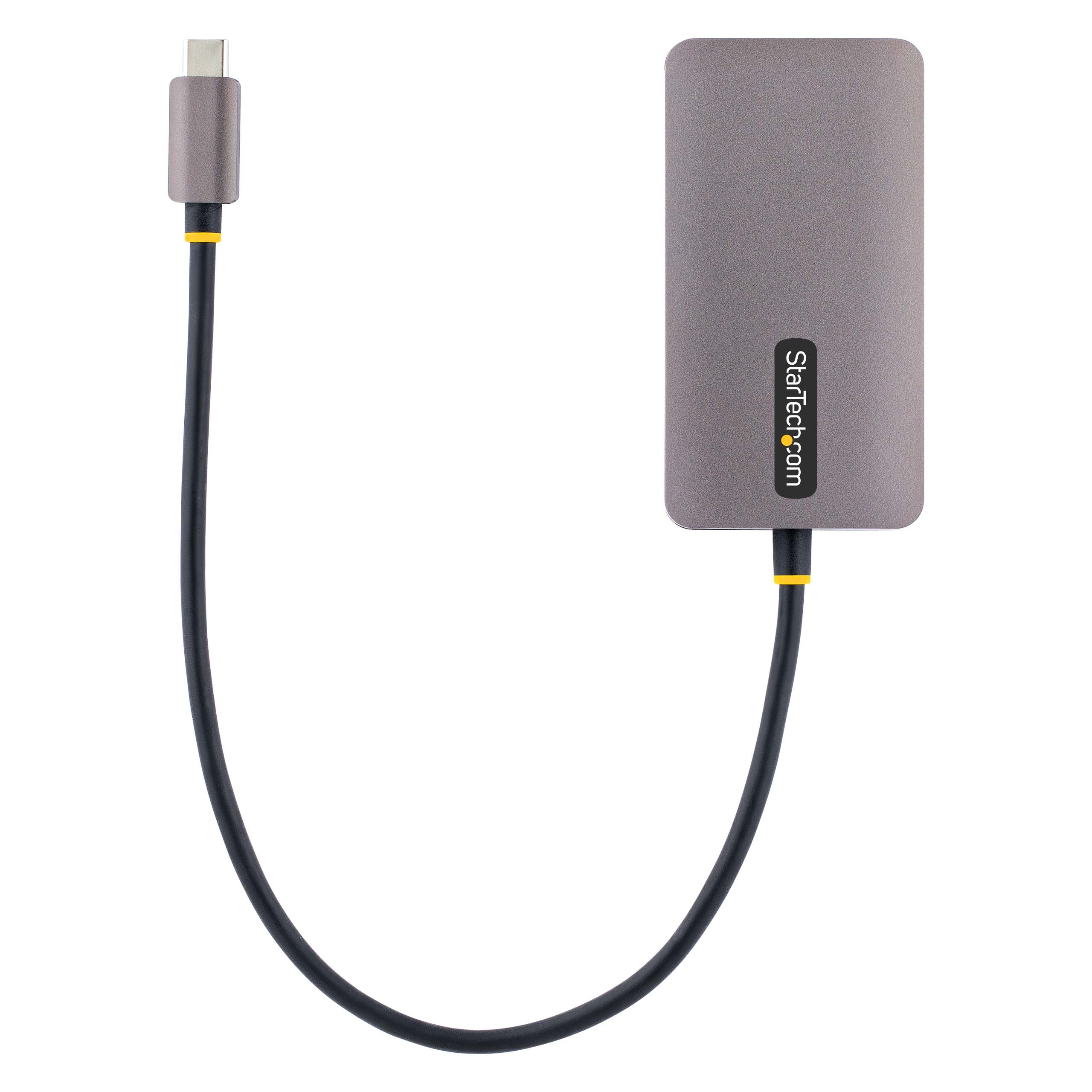

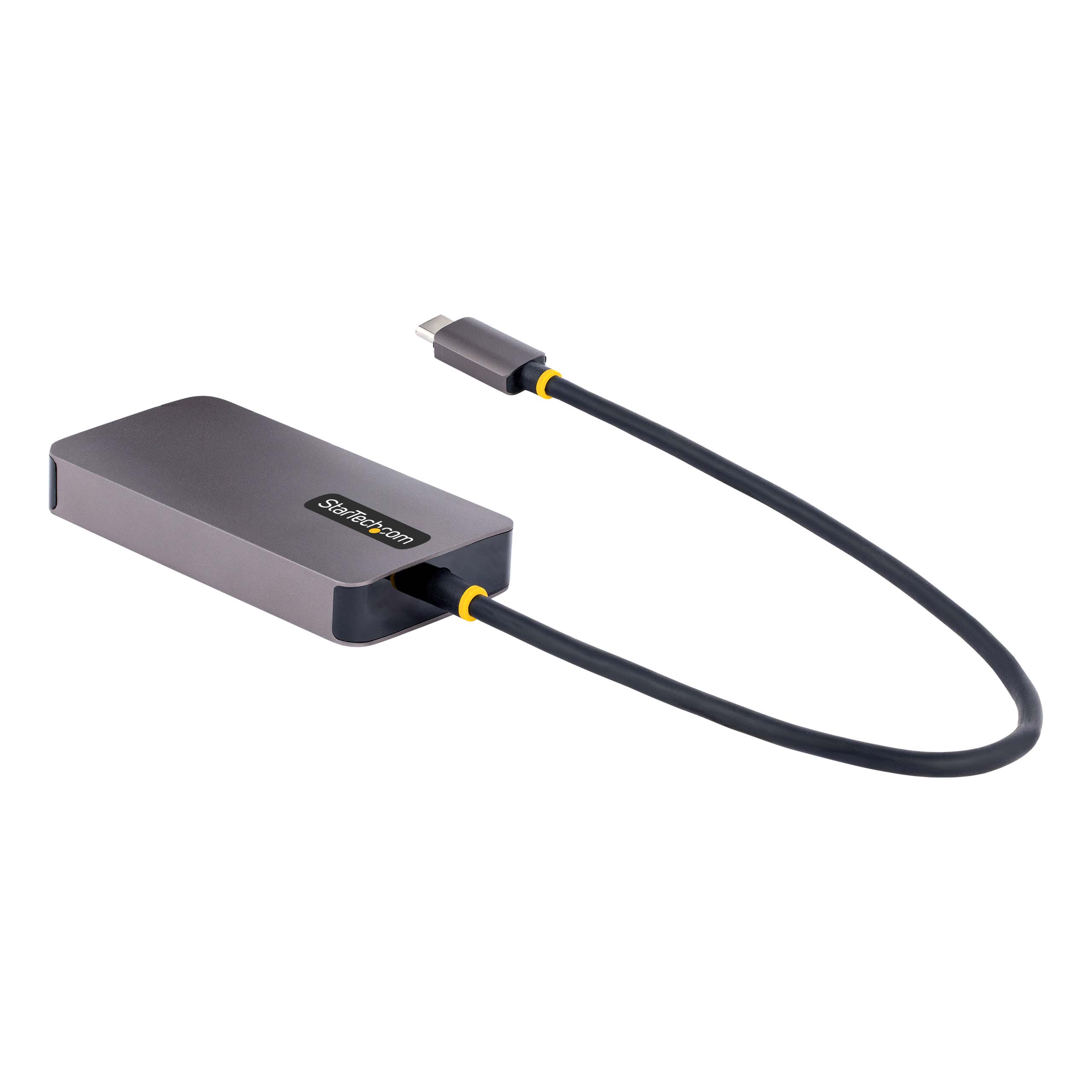

USB C to DVI HDMI 4K 60Hz VGA Adapter
USB Type-C™ to VGA DVI or HDMI® Travel Adapter | 4K 60Hz | Aluminum
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Application Images
Application Images
Application Images
Product Name USB C to DVI HDMI 4K 60Hz VGA Adapter Product Number 118-USBC-HDMI-VGADVI UPC 065030895583 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C Travel Adapters Family USBC to Multiport Display Adapters, DP Alt Mode, 4K60 Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) USB C Video Adapter Product Title (Short) USB C Video Adapter, HDMI/VGA/DVI Product Title (Medium) USB C Video Adapter to HDMI DVI VGA, 4K 60Hz, Aluminum, USB-C Travel Adapter Product Title (Standard) USB C Video Adapter, USB C to HDMI DVI VGA Adapter, 4K 60Hz, Aluminum, Video Display Adapter, USB Type C Travel Adapter Product Title (Long) USB C Video Adapter, USB C to HDMI DVI VGA Adapter, Up to 4K 60Hz, Aluminum, Multiport Video Display Adapter, Thunderbolt 3 / 4 Compatible, USB Type C Travel Adapter Product Title (AMZ) USB C Video Adapter, USB C to HDMI DVI VGA Adapter, Up to 4K 60Hz, Aluminum, Multiport Video Display Adapter, Thunderbolt 3/4 Compatible, USB Type C Travel Adapter (118-USBC-HDMI-VGADVI) Title Ingram (Part 1) USB C Video Adapter - Title Ingram (Part 2) 4K 60Hz | Aluminum Website Product Headline USB Type-C™ to VGA DVI or HDMI® Travel Adapter | 4K 60Hz | Aluminum Bullet 1 USB-C SINGLE MONITOR ADAPTER: USB-C DP Alt-mode to HDMI 2.0b (4K 60Hz, 7.1ch Audio, HDR, HDCP 2.2), VGA (1920x1200 60Hz) or DVI-I (1080p 60Hz, HDCP 1.4); This USB C to HDMI DVI VGA Adapter supports dual mirrored video output for VGA & HDMI or VGA & DVI-I Bullet 2 4K 60Hz RESOLUTION: The USB C Video Adapter's HDMI output supports 4K 60Hz and Ultra Wide Screen resolutions up to 3840x1080p 60Hz; Compatible with lower resolutions; Works with monitors and displays from Dell, Asus, Acer, LG, Samsung, Sharp, Sony Bullet 3 WIDE HOST COMPATIBILITY: Compatible with USB-C, Thunderbolt 3 and Thunderbolt 4 Laptops, Ultrabooks and Chromebooks, from HP, Dell, Surface, Lenovo, MacBooks (Intel and M1 chip) | The USB C Multiport Video Adapter works on Windows, macOS and Linux Bullet 4 TOUGH & PORTABLE: Durable all aluminium USB Type-C multiport adapter with small form factor is designed for easy transport in a laptop bag; The USB C Video Adapter is convenient for on-the-go use between office, home, shared spaces, and business travel Bullet 5 EASY TO USE: Plug and Play (PnP) installation, no software or drivers required; Extended 12" (30cm) attached cable for setup flexibility; The USB C Adapter is compatible with screw locking cables for secure connection with VGA/DVI displays and projectors Bullets (Compact) USB C to HDMI DVI VGA Adapter supports HDMI 2.0b (4K60Hz/HDR) | VGA/DVI-I (1080p) | HDCP 2.2/1.4 - USB-C DP Alt-mode/Thunderbolt 3/4 compatible - Works w/ HP/Dell/Surface/Lenovo/MacBooks(Intel/M1 chip) - Metal housing - No drivers; 12" attached cable Bullets (Consolidated) USB C to HDMI DVI VGA Adapter supports HDMI 2.0b (4K60Hz/HDR) | VGA/DVI-I (1080p) | HDCP 2.2/1.4 - For Laptops/Ultrabooks/Chromebooks with USB-C DP Alt-mode/Thunderbolt 3/4 from HP/Dell/Surface/Lenovo/MacBooks (Intel/M1 chip) - Portable durable aluminum housing for on the go use between office/home/shared spaces/business travel | Compatible with VGA/DVI screw locking cables - No drivers; Windows macOS Linux; Extended attached 12" cable for setup flexibility - HDMI Ultrawide Monitor Support Marketing Copy Marketing Copy (No HTML) Applications - Carry the adapter with you when you travel, and connect to almost any display

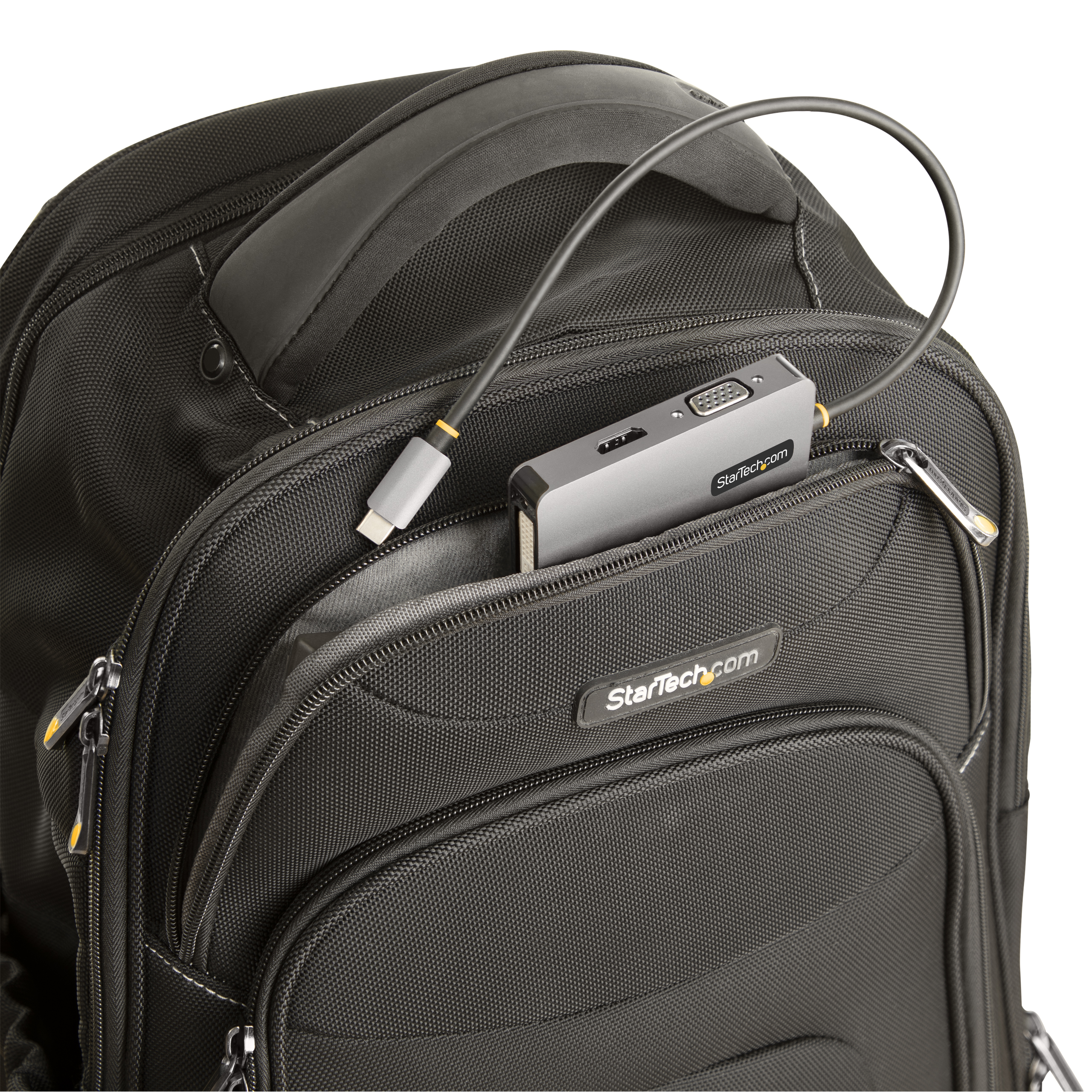

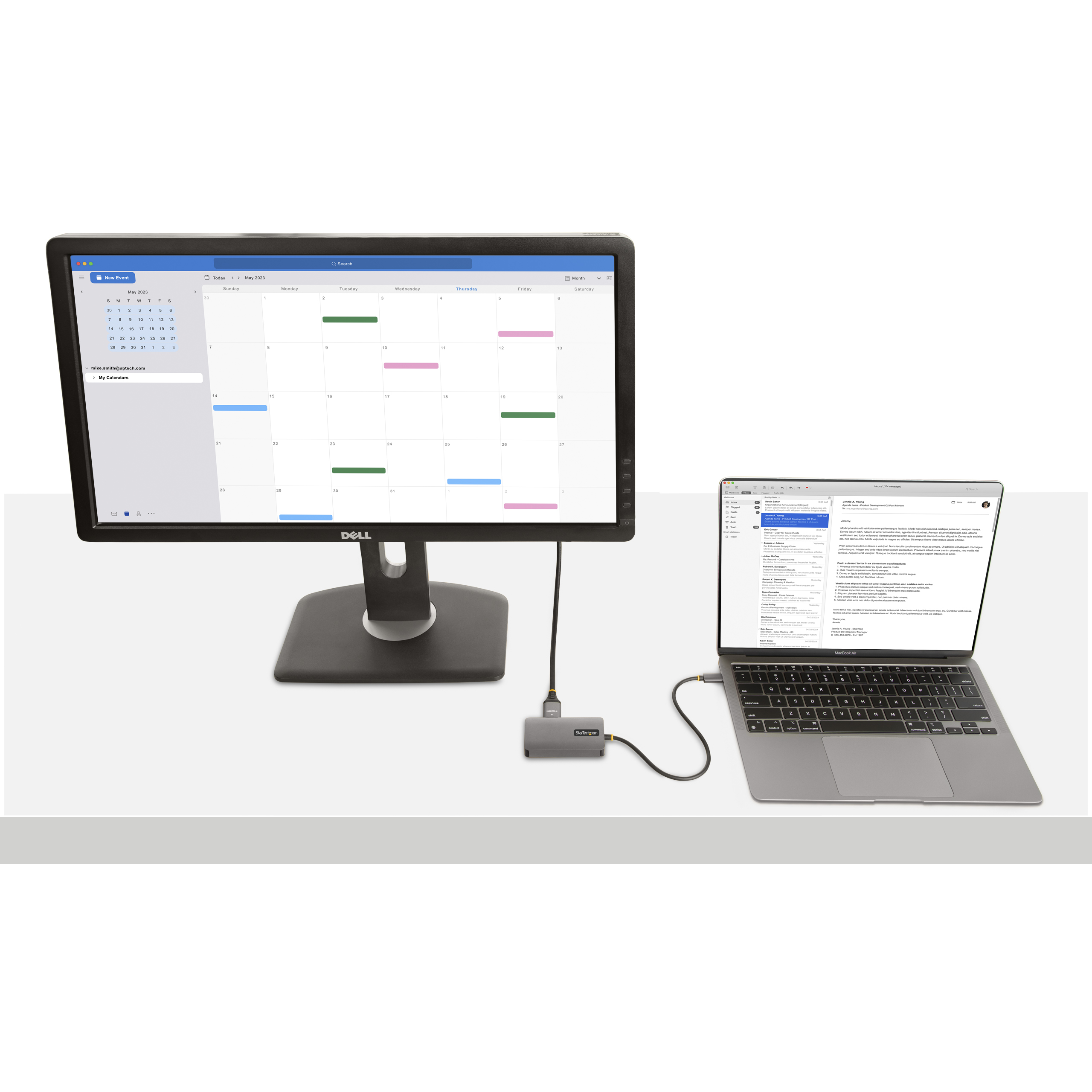

- Connect your USB-C device to an HDMI, VGA, or DVI display at an office, home office, in shared spaces, or during business travel
- Connect a secondary VGA, DVI, or HDMI monitor to your MacBook
Website Search Keyword - multi display adapter for laptop
- usb c digital av multiport adapter
- usb c display adapter
- usb c monitor adapter
- usb c multiport video adapter
- usb c to hdmi dvi vga adapter
- usb c travel adapter
- usb c video adapter
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
Special Notes - This adapter does not support MST or dual extended displays

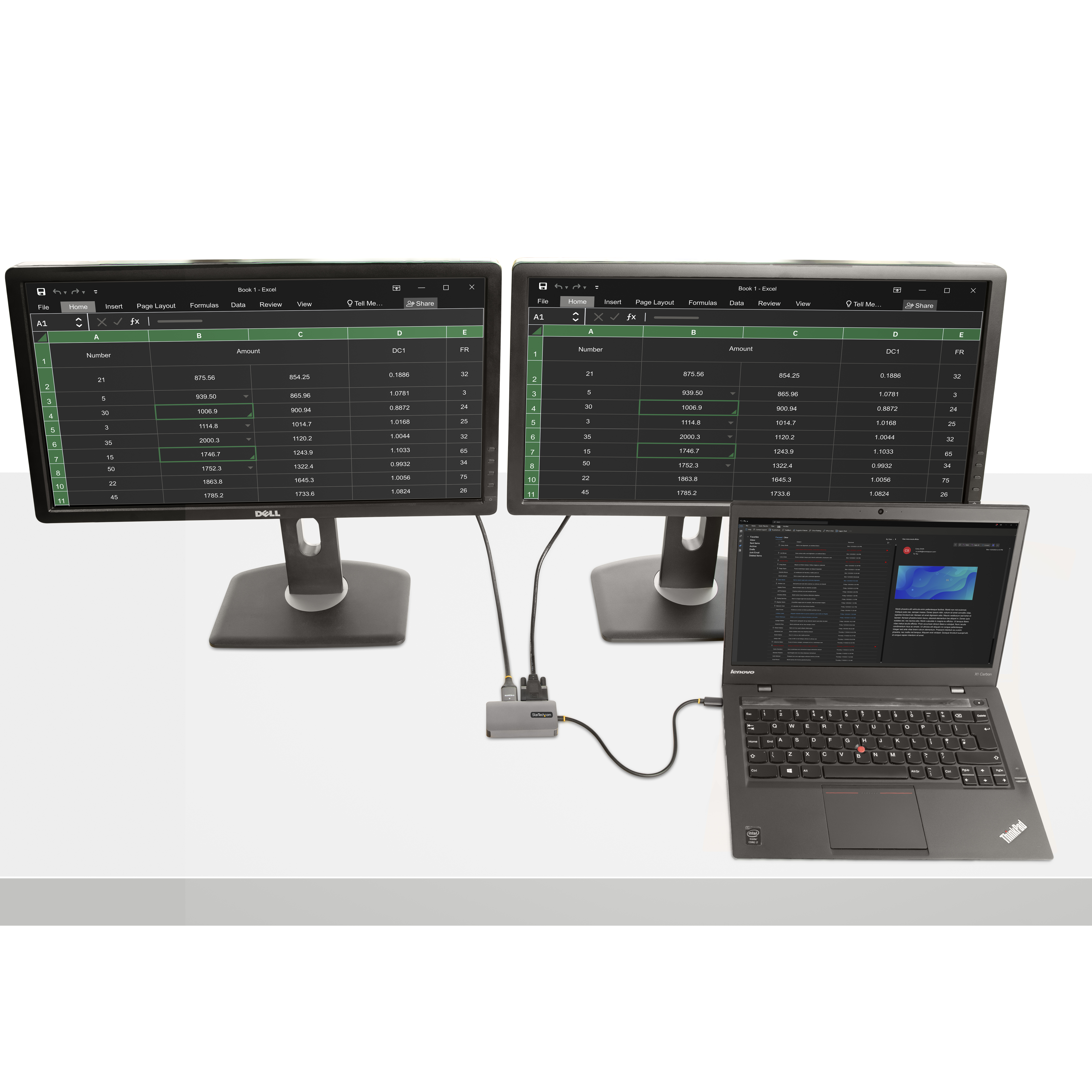

- Support for dual mirrored displays only using combinations of VGA & HDMI or VGA & DVI-I
Accessory Products - HDMM21V1M
- HDMM21V2M
- MXT101MMHQ
- MXT101MMHQ3
- DVIDDMM3
- DVIDDMM6
Related Products - CDPVDHDMDP2G
- CDPVDHMDPDP

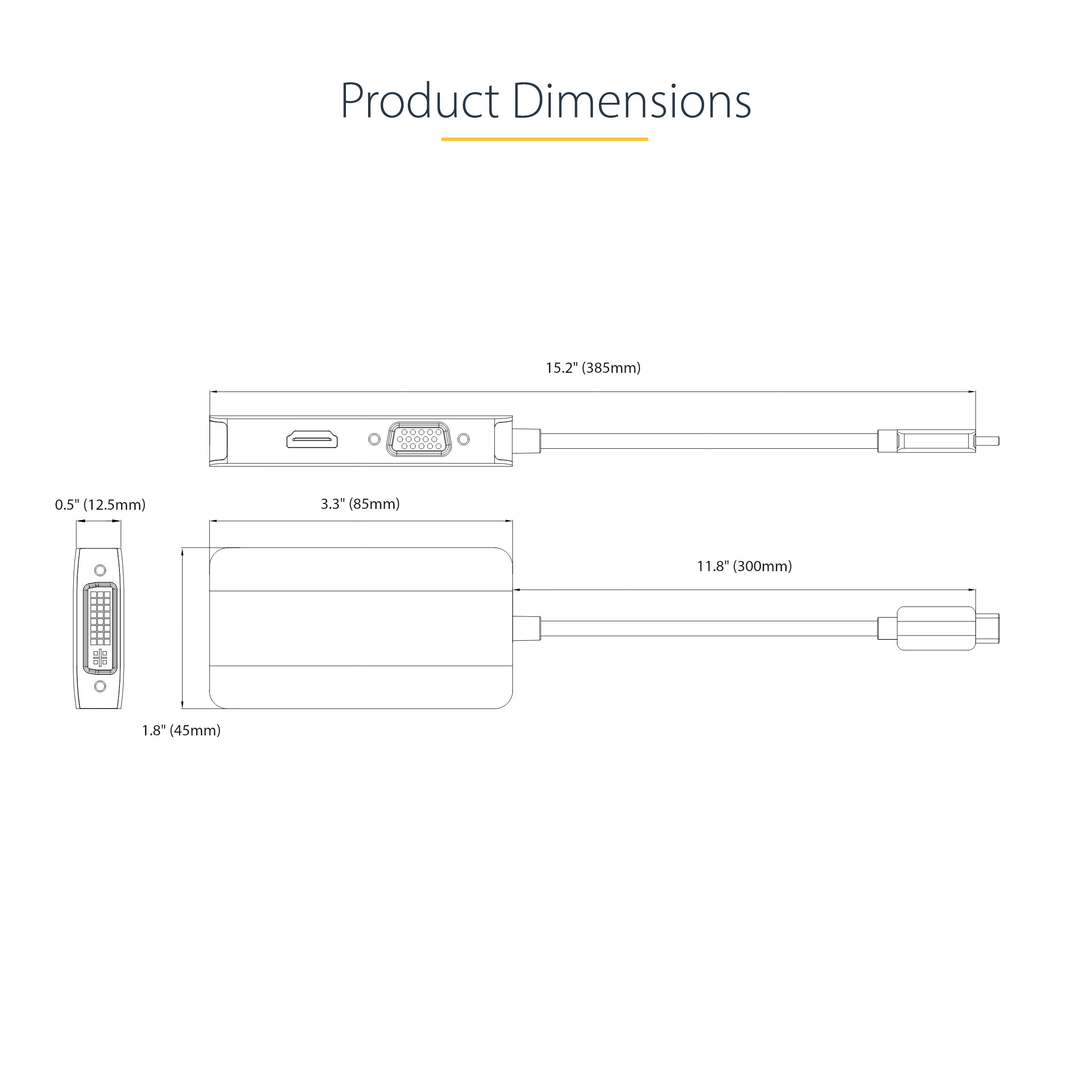

Input Voltage 5V DC Output Voltage (V) 5 DC Power Delivery No PD Pass-Through Power Source Bus Powered Cable Length (mm) 300 Color Gray Humidity 10% ~ 85 % RH Operating Temperature 0℃ to 45℃ (32°F to 113°F) Product Length (mm) 85.000 Product Width (mm) 45.000 Product Height (mm) 14.000 Product Weight (g) 75.000 Storage Temperature -10℃ to 70℃ (14°F to 158°F) TAA Compliant No Audio Specifications - VGA - No Audio Support
- DVI - No Audio Support
- HDMI - 7.1 Channel Audio
HDR Support Yes Maximum Analog Resolutions 1920 x 1200 @ 60 Hz (VGA) Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility OS Independent Video Output Port - DVI
- HDMI
- VGA

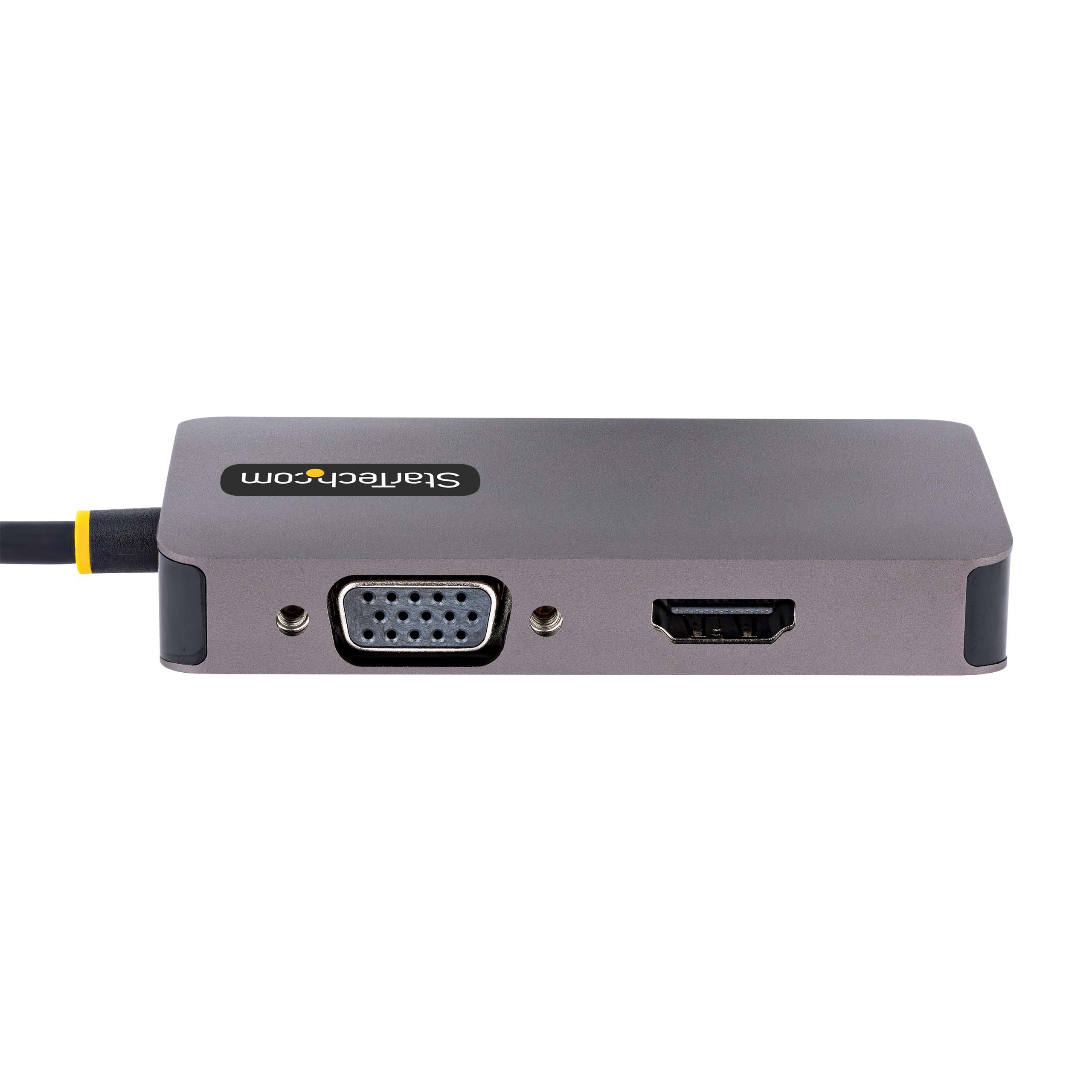

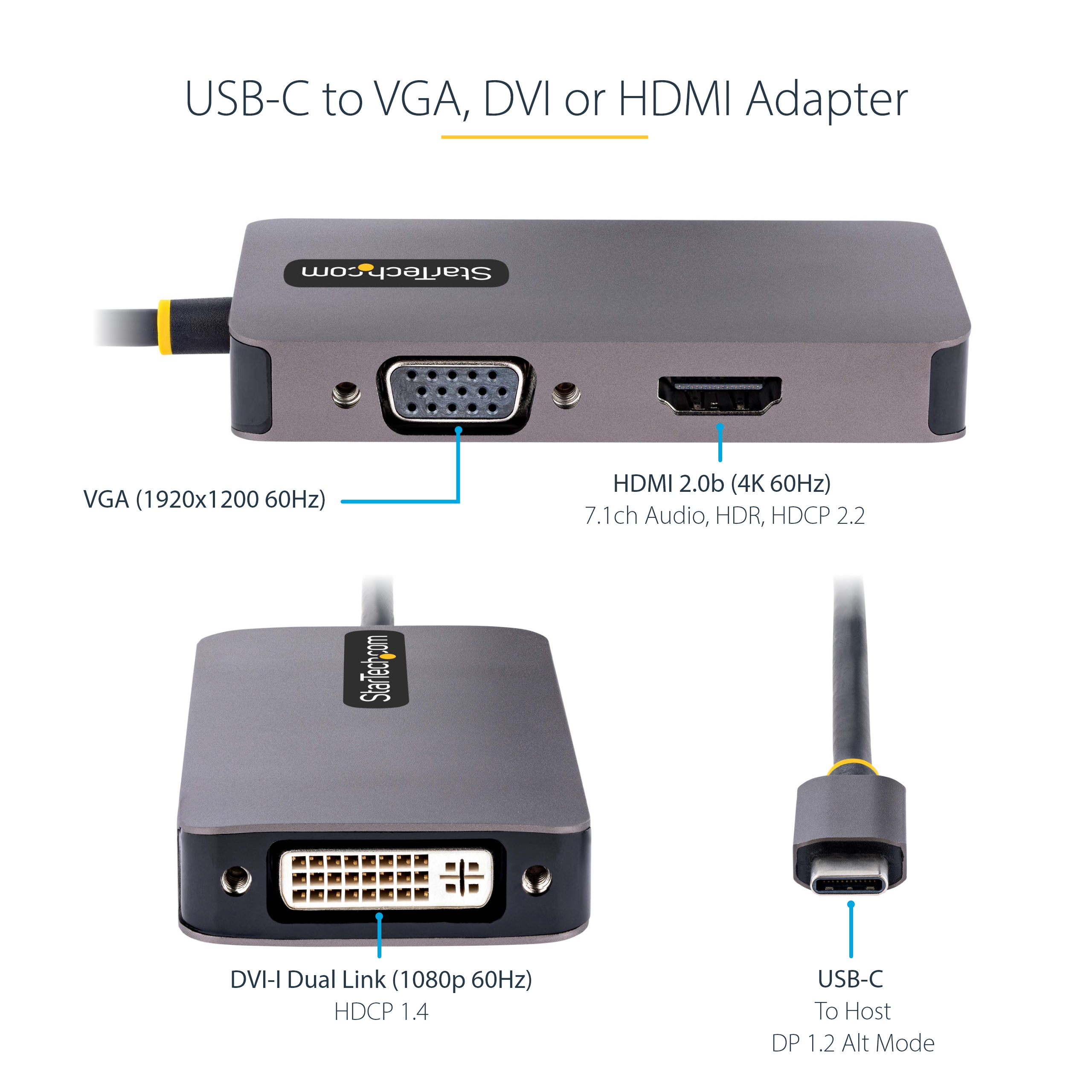

Wide Screen Supported Yes Active or Passive Adapter Active AV Input USB-C AV Output - VGA

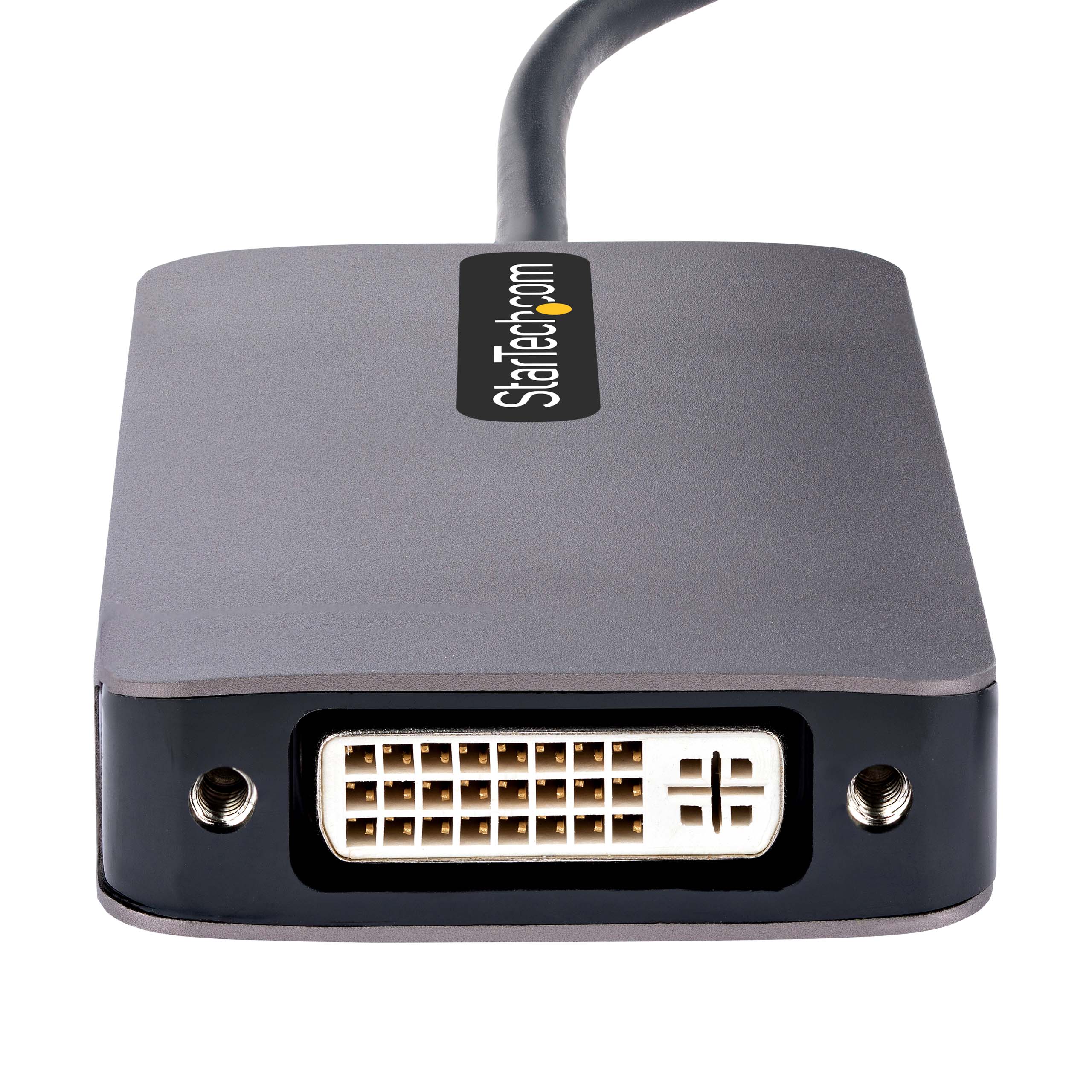

- DVI-I (Digital Only) - Dual-Link
- HDMI

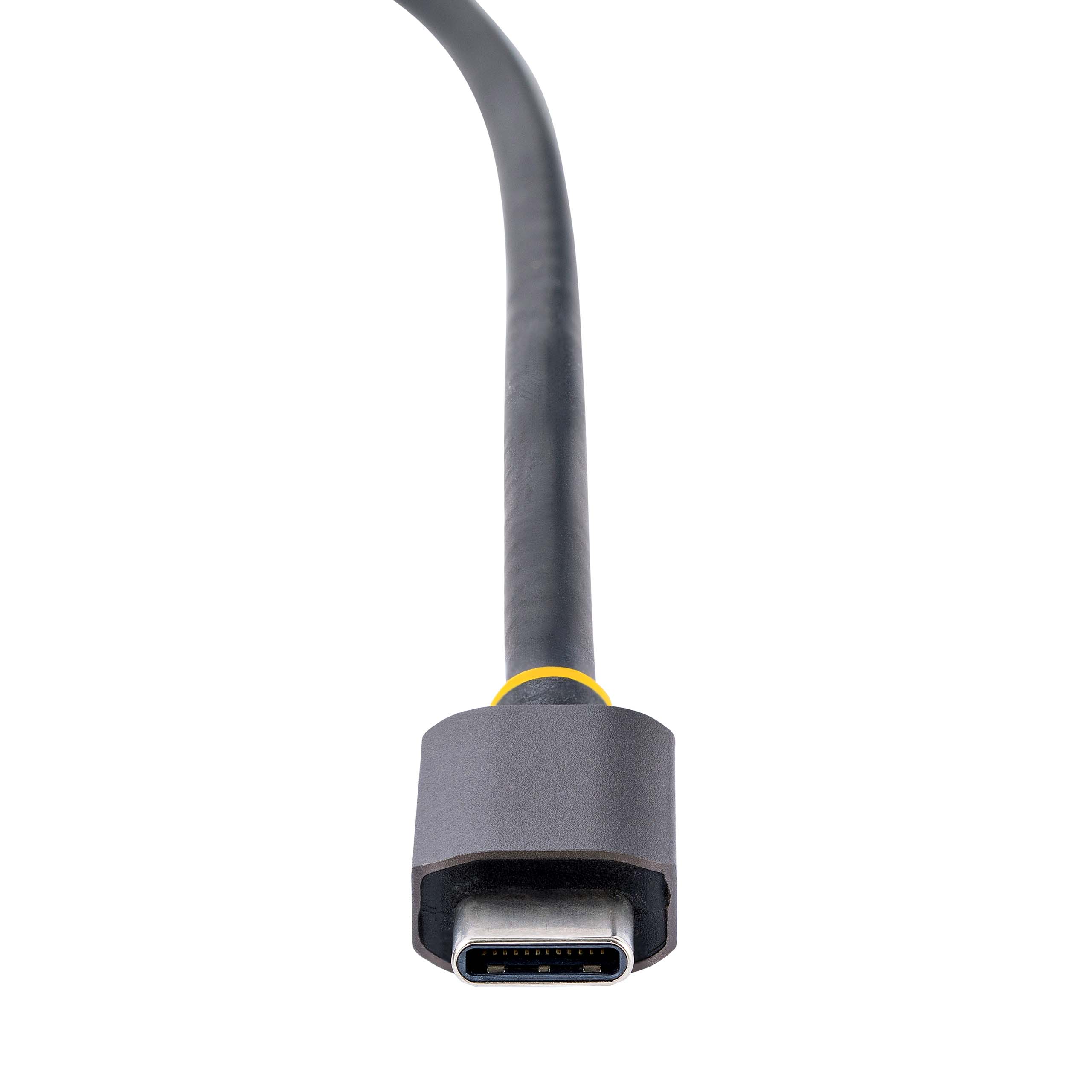

Chipset ID ITE - IT6224FN Converter Type Travel A/V Adapters Host Connection Port USB-C Number of Displays 1 Carton Depth (mm) 542 Carton Height (mm) 327 Carton Quantity 60 Carton Weight Gross (g) 8540 Included in Package 1 - USB-C Multiport Video Adapter Included In Package for Label 1 - USB-C Multiport Video Converter Package Depth (mm) 173 Package Height (mm) 33 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 122 Packaging Description USB-C to VGA, DVI or HDMI Adapter - 4K 60hz Packaging Description India USB-C to VGA, DVI or HDMI Converter - 4K 60hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2021-11-29 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-04-13 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2021-11-22 Target Production Release 2021-11-29 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
