122-USBC-HDMI-4K-VGA

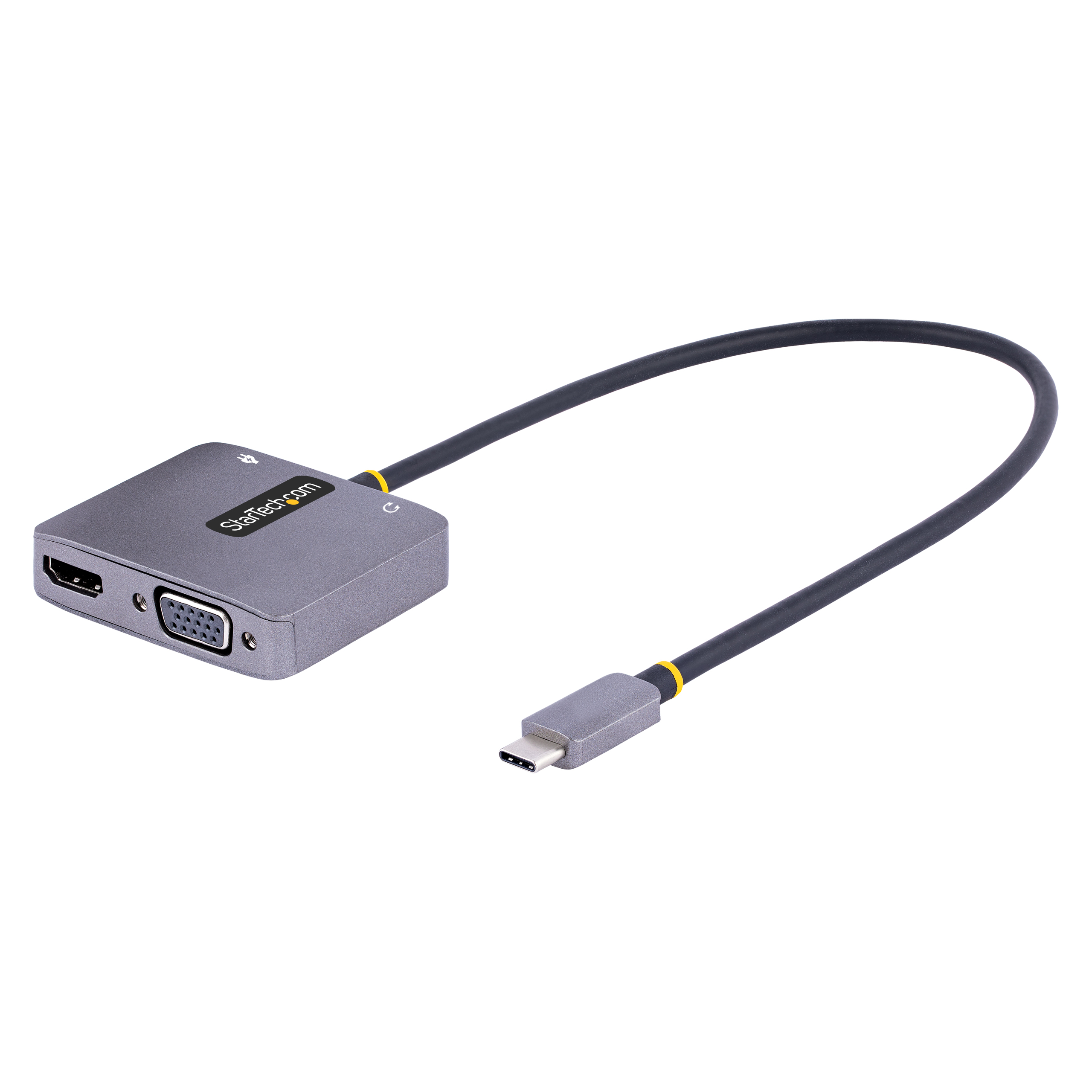

USB C to Dual Display HDMI VGA
Single monitor (HDMI or VGA) or dual-mirrored (HDMI/VGA) video adapter with audio and power delivery pass-through
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name USB C to Dual Display HDMI VGA Product Number 122-USBC-HDMI-4K-VGA UPC 065030895590 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C Travel Adapters Family USBC to Multiport Display Adapters, DP Alt Mode, 4K60 Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) USB C Video Adapter Product Title (Short) USB C Video Adapter HDMI/VGA, 4K HDR, PD Product Title (Medium) USB C Video Adapter with 3.5mm Audio, 4K 60Hz HDR, 100W PD 3.0, TB3/4 Compatible Product Title (Standard) USB C Video Adapter, USB C to HDMI VGA Multiport Adapter, 3.5mm Audio, 4K 60Hz HDR, 100W PD 3.0 PT, USB C Display Adapter Product Title (Long) USB C Video Adapter, USB C to HDMI VGA Multiport Adapter, 3.5mm Audio, 4K 60Hz HDR, 100W PD Pass-Through, Thunderbolt 3/4 Compatible - USB C Display Travel Adapter Product Title (AMZ) USB C Video Adapter, USB C to HDMI VGA Multiport Adapter, 3.5mm Audio, 4K 60Hz HDR, 100W PD Pass-Through, Thunderbolt 3/4 Compatible - USB C Display Travel Adapter (122-USBC-HDMI-4K-VGA) Title Ingram (Part 1) USB C Video Adapter HDMI/VGA - Title Ingram (Part 2) 4K 60Hz, 3.5mm Audio, 100W PD Website Product Headline Single monitor (HDMI or VGA) or dual-mirrored (HDMI/VGA) video adapter with audio and power delivery pass-through Bullet 1 USB-C SINGLE MONITOR ADAPTER: USB-C DP Alt-mode to HDMI 2.0b (4K 60Hz, HDR, 7.1ch Audio, HDCP 2.2) or VGA (1920x1200 60Hz), USB-C PD pass through (100W), and 3.5mm Audio | This USB C Display Adapter supports mirrored HDMI+VGA video output at 1080p Bullet 2 EXTRA LONG CABLE: This USB Type C Video Adapter features a 12" (30cm) attached cable, for extended reach and to reduce port/connector strain on devices/tablets such as Surface Pro 7 and up, iPad Pro, HP Elite x2 series, or laptops on riser stands Bullet 3 RELIABLE PERFORMANCE: Bus powered or external USB-C power adapter with up to 100W Power Delivery 3.0 pass through | The USB C Multiport Adapter enables full 100W charging for laptops | Built-in chipset reduces signal loss, providing a crystal clear image Bullet 4 COMPREHENSIVE HOST COMPATIBILITY: USB-C DP Alt-mode, Thunderbolt 3, and Thunderbolt 4 laptops from HP/DELL/Microsoft/Lenovo or Surface/Ultrabook/Chromebook/MacBook (Intel and M1 chip) | Windows, macOS, iPadOS, Linux, Chrome OS and Android Bullet 5 APPLICATIONS: Use the 3.5mm Audio output to add speakers, when connected to a VGA projector | Mirrored HDMI+VGA displays are ideal for presentations | Convenient for on-the-go use in office, home, and business environments Bullets (Compact) USB C Video Adapter supports HDMI 2.0b (4K60Hz/HDR) | VGA (1920x1200@60Hz) | HDMI/VGA (1080p) | 100W PD 3.0 passthrough | 3.5mm Audio - USB-C DP Alt-mode/Thunderbolt 3/4 compatible; Works w/ HP/Dell/Surface/Lenovo/MacBook (Intel/M1 chip); No drivers Bullets (Consolidated) USB C Video Adapter supports HDMI 2.0b (4K60Hz/HDR/7.1ch Audio/HDCP 2.2) | VGA (1080p) | 100W USB-C Power Delivery 3.0 and 3.5mm Audio - PD 3.0 pass through; For USB-C DP Alt-mode Thunderbolt 3/4 laptops from HP/DELL/Microsoft/Lenovo or Surface/Ultrabook/Chromebook/MacBook (Intel/M1) - Attached 12" cable for setup flexibility; Multiport Display Adapter supports mirrored HDMI+VGA - For on-the-go use between office/home/business travel - No Drivers; Windows macOS Chrome OS Linux Marketing Copy Marketing Copy (No HTML) Website Search Keyword - multi display adapter for laptop
- usb c digital av multiport adapter
- usb c display adapter
- usb c monitor adapter
- usb c multiport video adapter
- usb c to hdmi vga audio
- usb c travel adapter
- usb c video adapter
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - This adapter does not support MST or dual-extended displays.

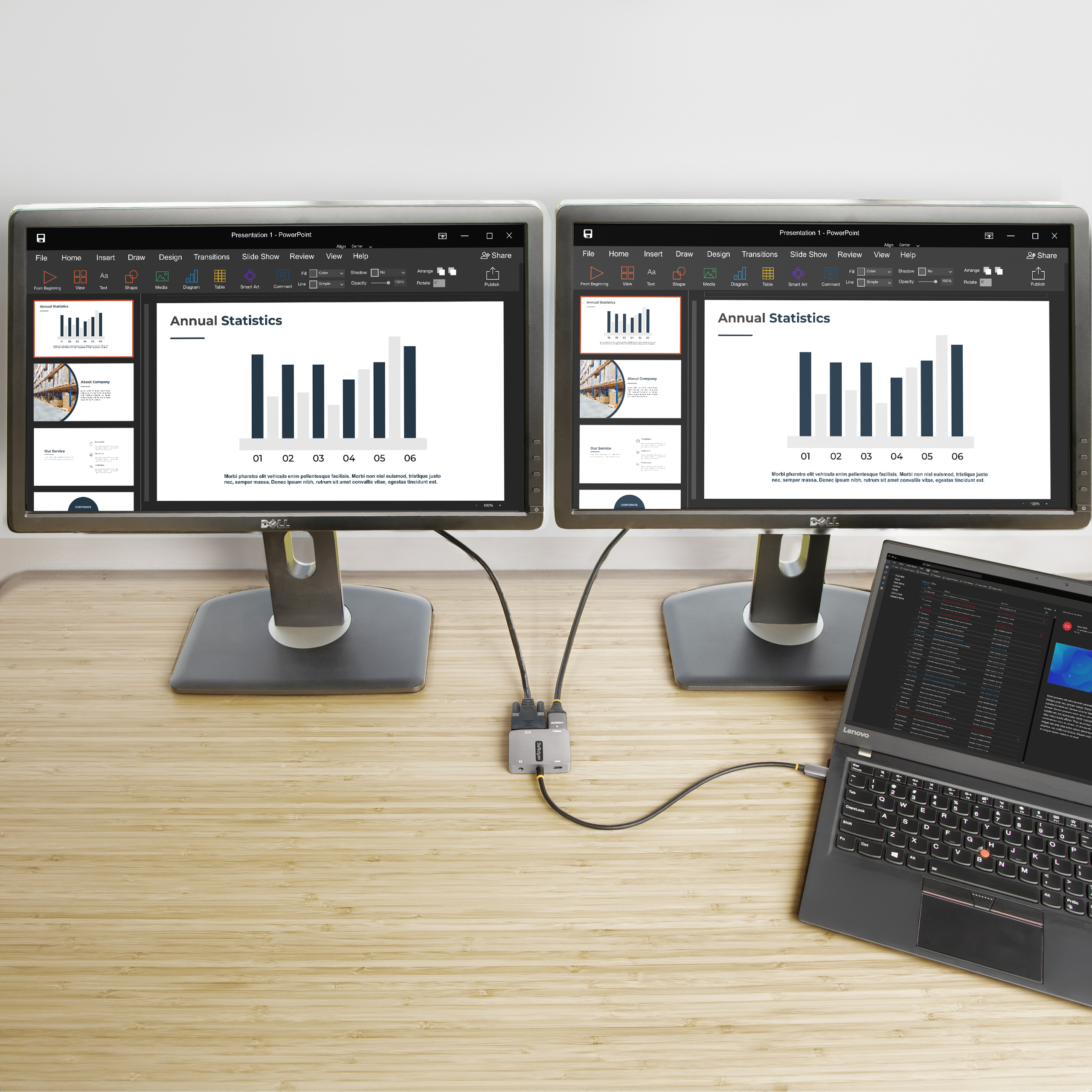

- Support for dual-mirrored displays using VGA and HDMI
- The 3.5mm audio output will not be active unless a display is connected to the product.
Accessory Products - HDMM21V1M
- HDMM21V2M
- HDMM21V3M
- MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
Related Products - CDP2DP14UCPB
- CDP2DVIUCP
- CDPVDHMDPDP

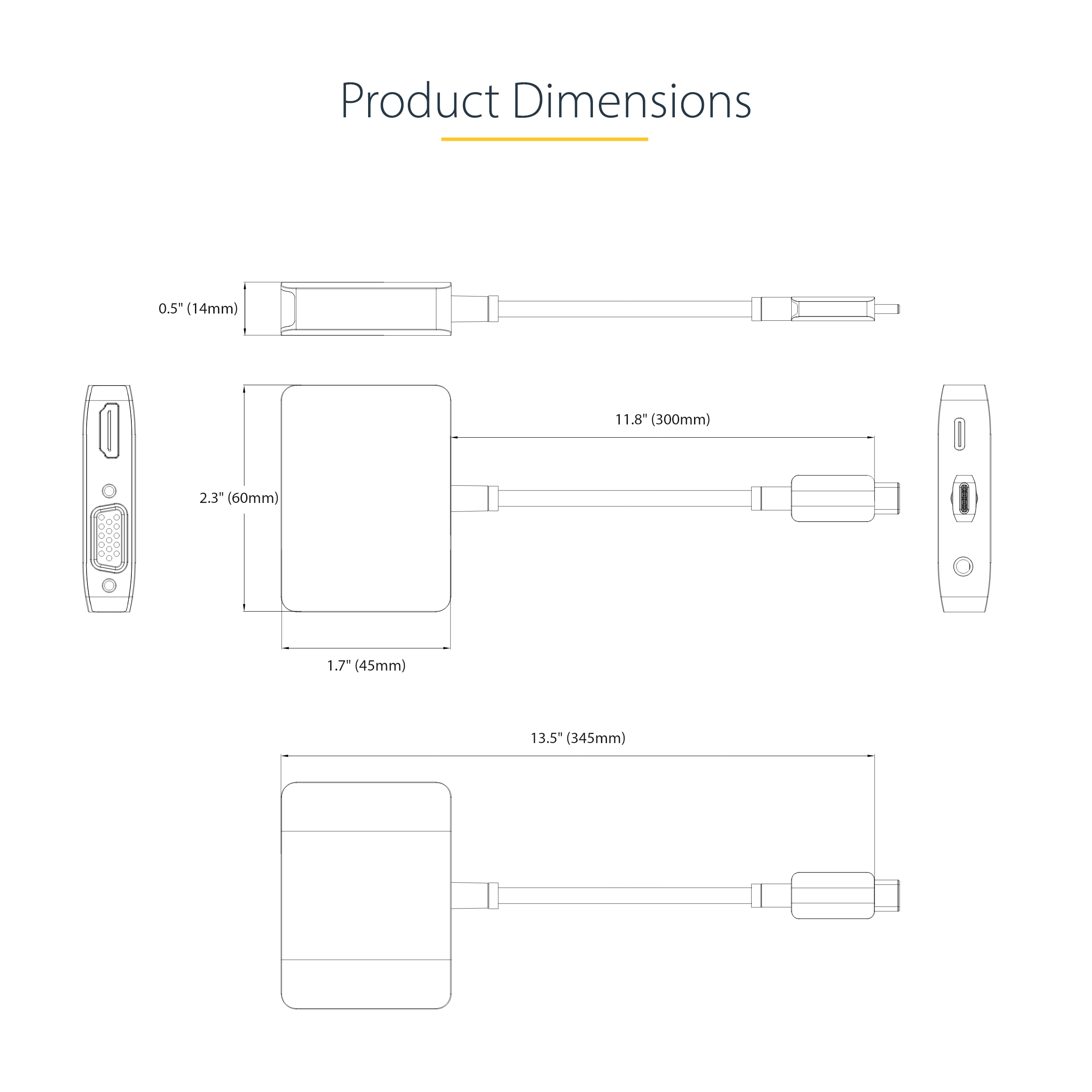

Power Delivery 100W Power Source Bus Powered and Host USB-C Power Adapter Color Gray Humidity 10% - 85% RH Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 45.000 Product Width (mm) 60.000 Product Height (mm) 14.000 Product Weight (g) 41.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications - HDMI - 7.1 Channel Audio
- Analog Stereo - 2 Channel Audio
General Specifications - Maximum Cable Distance To HDMI Display: 7m [22.9ft]
- Maximum Cable Distance To VGA Display: 30m [98.4ft]
HDR Support Yes Maximum Analog Resolutions 1920 x 1200 @ 60 Hz (VGA) Maximum Digital Resolutions 3840 X 2160 @ 60 Hz (HDMI) Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility OS Independent Supported Resolutions Video Output Port - HDMI
- VGA

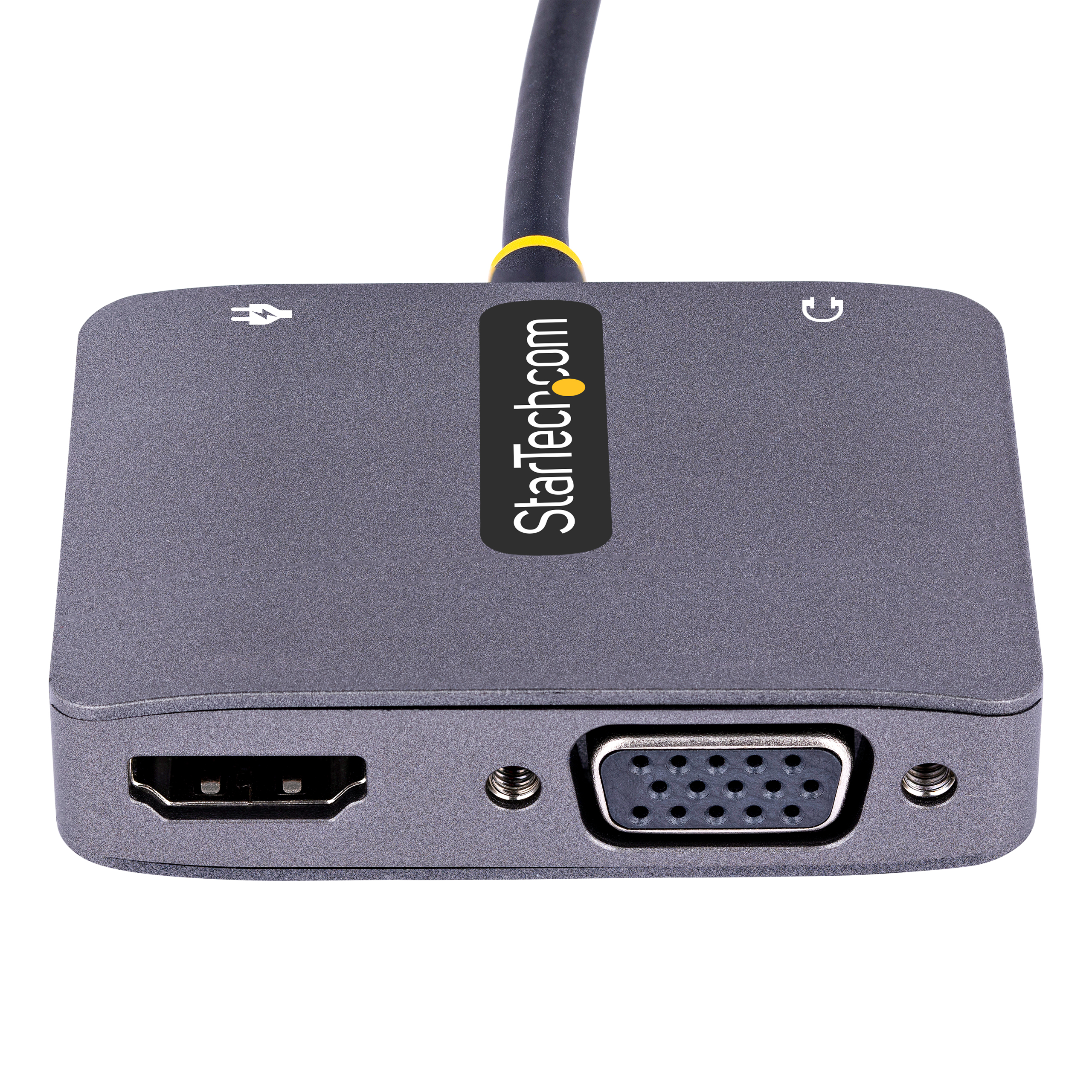

Wide Screen Supported Yes Active or Passive Adapter Active AV Input USB-C AV Output - VGA
- HDMI

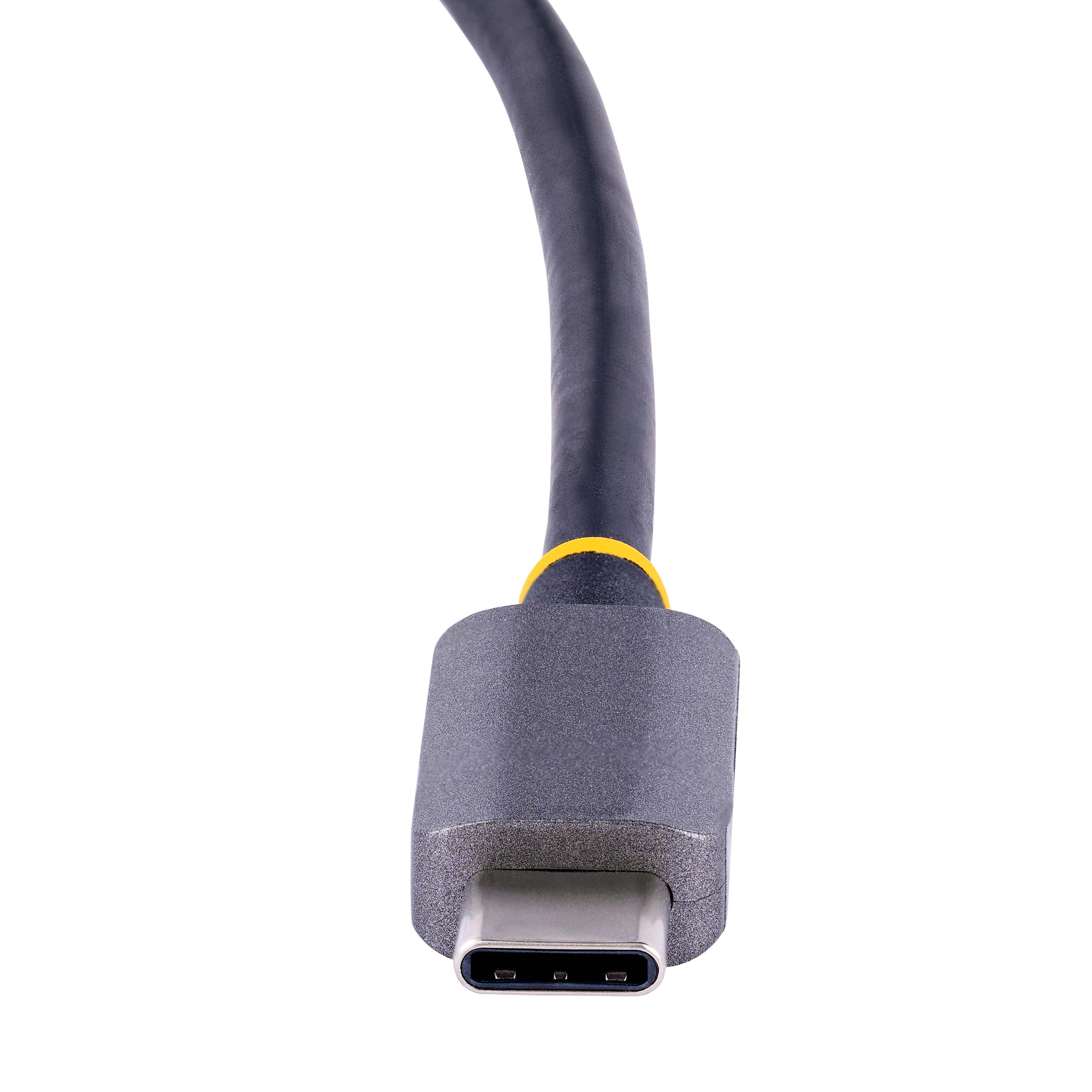

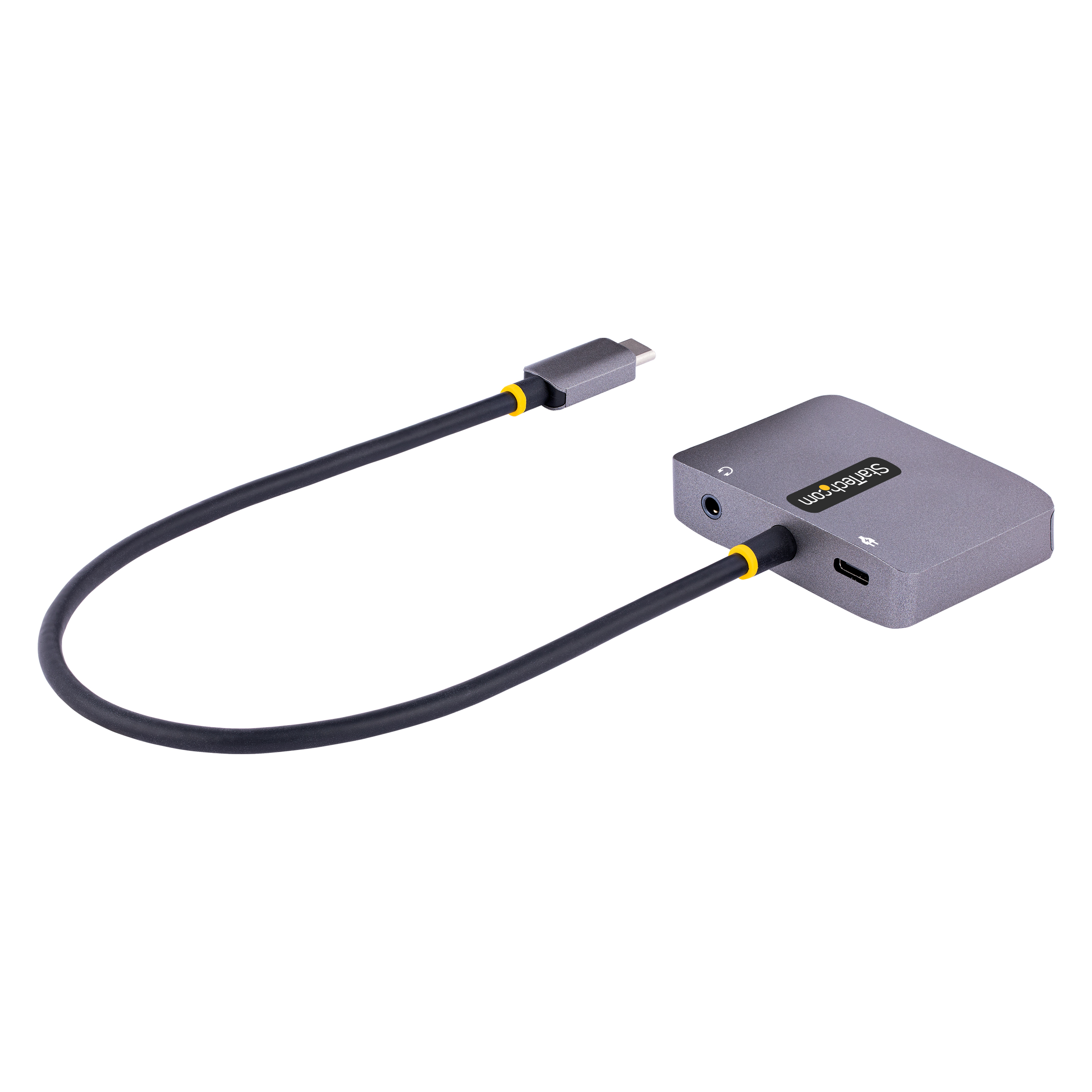

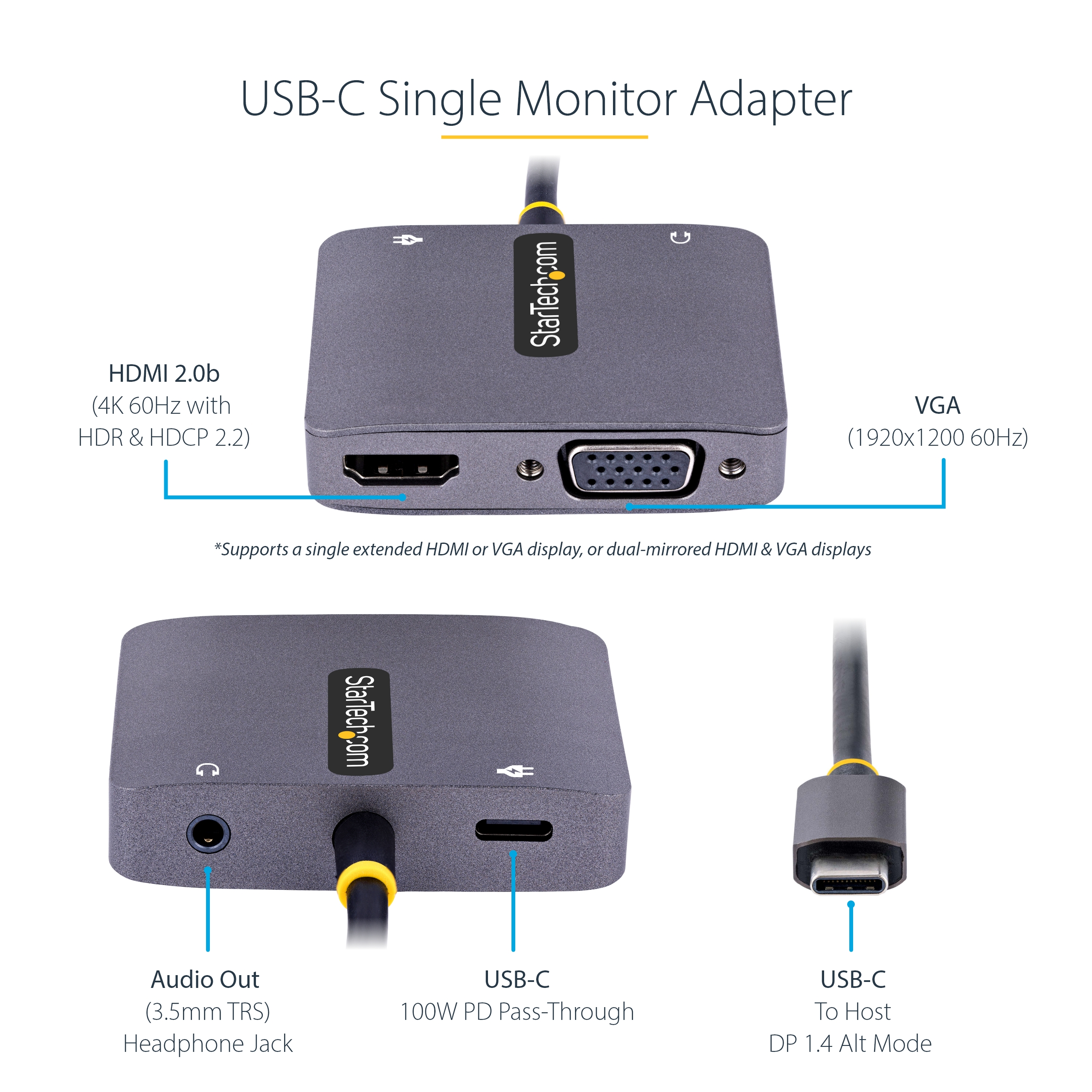

Chipset ID Converter Type Travel A/V Adapters Host Connection Port USB-C Number of Displays 1 Carton Depth (mm) 541 Carton Height (mm) 324 Carton Quantity 60 Carton Weight Gross (g) 6520 Included in Package 1 - USB-C to HDMI and VGA Adapter Included In Package for Label 1 - USB-C To HDMI And VGA Converter Package Depth (mm) 147 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 90 Packaging Description USB-C HDMI / VGA Adapter - 100W PD - 4K 60Hz Packaging Description India USB-C HDMI / VGA Converter - 100W PD - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 USB-C (100W PD Only) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2021-12-02 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-03-09 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology - HDMI 2.0 / 4K 60 Hz and HDR
- USB-C
Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2022-02-25 Target Production Release 2022-03-04 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle Mainstream
