128-HDMI-DISPLAYPORT

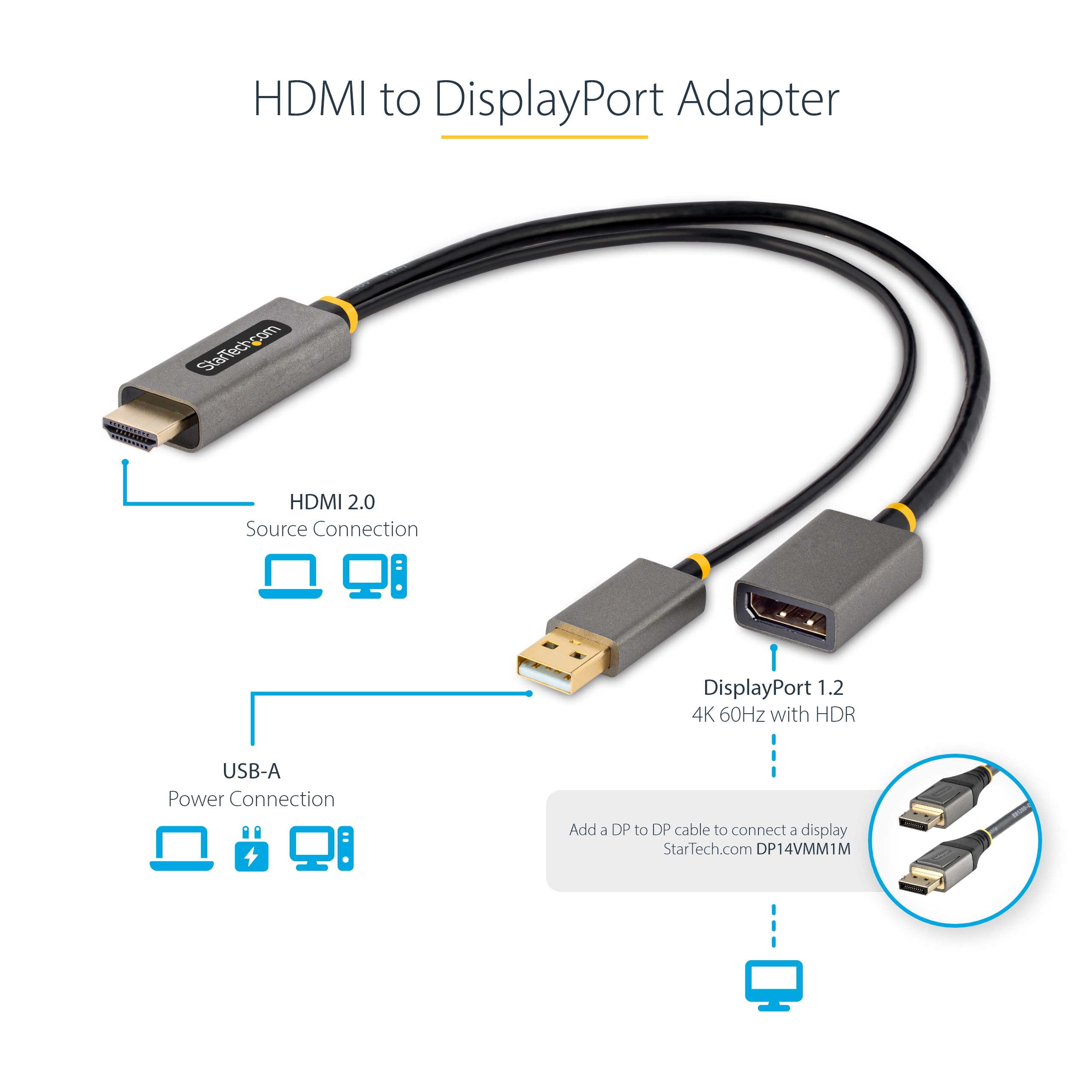

HDMI to DisplayPort Adapter - 4K 60Hz
4K 60Hz | HDR | HDCP 2.2 | Ultrawide Display Support
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name HDMI to DisplayPort Adapter - 4K 60Hz Product Number 128-HDMI-DISPLAYPORT UPC 065030897143 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 HDMI and DVI Display Adapters Category Level 3 HDMI to DisplayPort Family HDMI to DisplayPort Adapters Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) HDMI to DP Adapter Product Title (Short) HDMI to DisplayPort Adapter, HDMI 4K60Hz Product Title (Medium) 1ft (30cm) HDMI to DisplayPort Adapter, 4K 60Hz HDR, HDMI 2.0 to DP 1.2 Product Title (Standard) 1ft (30cm) HDMI to DisplayPort Adapter, 4K 60Hz HDR HDMI Source to DP Monitor, USB Bus Powered, HDMI 2.0 to DisplayPort 1.2 Product Title (Long) 1ft (30cm) HDMI to DisplayPort Adapter Cable, Active 4K 60Hz HDMI 2.0 to DP 1.2 Converter, HDR, USB Bus Powered, HDMI Source to DisplayPort Monitor for Laptops/PC Product Title (AMZ) 1ft (30cm) HDMI to DisplayPort Adapter Cable, Active 4K 60Hz HDMI 2.0 to DP 1.2 Converter, HDR, USB Bus Powered, HDMI Source to DisplayPort Monitor for Laptops/PC (128-HDMI-DISPLAYPORT) Title Ingram (Part 1) HDMI to DisplayPort Adapter - Title Ingram (Part 2) HDMI to DP Converter - HDMI DP 4K Website Product Headline 4K 60Hz | HDR | HDCP 2.2 | Ultrawide Display Support Bullet 1 HDMI TO DISPLAYPORT CONVERSION: This active adapter converts and boosts any HDMI 2.0 source to a DP 1.2 output for connecting a DisplayPort monitor - This adapter is not bi-directional and only works from a HDMI source to a DisplayPort display Bullet 2 4K 60HZ RESOLUTION: This HDMI to DP adapter supports up to 3840x2160 60Hz, HDR, HDCP 2.2, and 2ch DisplayPort audio - Utilizes the video capabilities of the host, enabling high performance video output - Supports ultrawide monitor resolutions Bullet 3 REDUCED PORT STRAIN: This HDMI to DisplayPort Adapter features a 1ft/30cm cable between HDMI and DP connectors, reducing strain on the ports - Attached 1ft/30cm USB power cable connects to a USB-A Port or Wall Charger - Extend USB cable with USBEXTAA6BK Bullet 4 HOST COMPATIBILITY: Plug and play setup works with any HDMI 2.0 source including a laptop, desktop, Ultrabook, MacBook or Chromebook from HP/Dell/Microsoft/Lenovo/Apple - OS Independent - Backwards compatible with previous HDMI versions Bullet 5 DISPLAY COMPATIBILITY: Connect the HDMI to DP Converter to the primary or secondary display (for extended desktop setup) - Tested at max resolution on a range of DP monitors from Dell, Samsung, Asus, Acer, and LG Bullets (Compact) 1ft HDMI to DisplayPort Adapter converts and boosts any HDMI 2.0 source to a DP 1.2 output; Supports up to 3840x2160 60Hz HDR, HDCP 2.2, 2ch audio, Ultrawide resolutions; HDMI 2.0 to DP Converter features a 1ft USB-A power cable; OS Independent Bullets (Consolidated) This 1ft HDMI to DisplayPort Adapter converts and boosts any HDMI 2.0 source to a DP 1.2 output - Supports up to 3840x2160 60Hz/HDR/HDCP 2.2/2ch DisplayPort audio/Ultrawide resolutions - 1ft cable between HDMI and DP connectors reduces strain on the ports - Attached 1ft/30cm USB power cable connects to a USB-A Port or Wall Charger |Extend with USBEXTAA6BK - OS Independent | HDMI to DP Adapter only works from a HDMI source to a DisplayPort monitor | Compatible with previous HDMI versions Marketing Copy Marketing Copy (No HTML) Applications - Connect a 4K 60Hz HDMI computer to a 4K 60Hz DisplayPort monitor
- Design and edit graphic files on a DP display, using the HDMI output of a computer
- View camera footage from a HDMI enabled camera on a DisplayPort monitor
Website Search Keyword - HDMI 2.0 to DisplayPort adapter
- HDMI 2.0 to DisplayPort converter
- HDMI 4K to DisplayPort
- HDMI to DisplayPort adapter
- HDMI to DisplayPort converter
- HDMI to DP
- HDMI to DP adapter
- HDMI to DP converter
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes To achieve 4K 60Hz, both the source and display must support this resolution and refresh rate Accessory Products - DP14VMM1M
- DP14VMM2M
- DP14VMM3M
- USBEXTAA3BK
- USBEXTAA6BK
Related Products - HD2DP
- HD2DPMM2M
- HD2DPMM3M

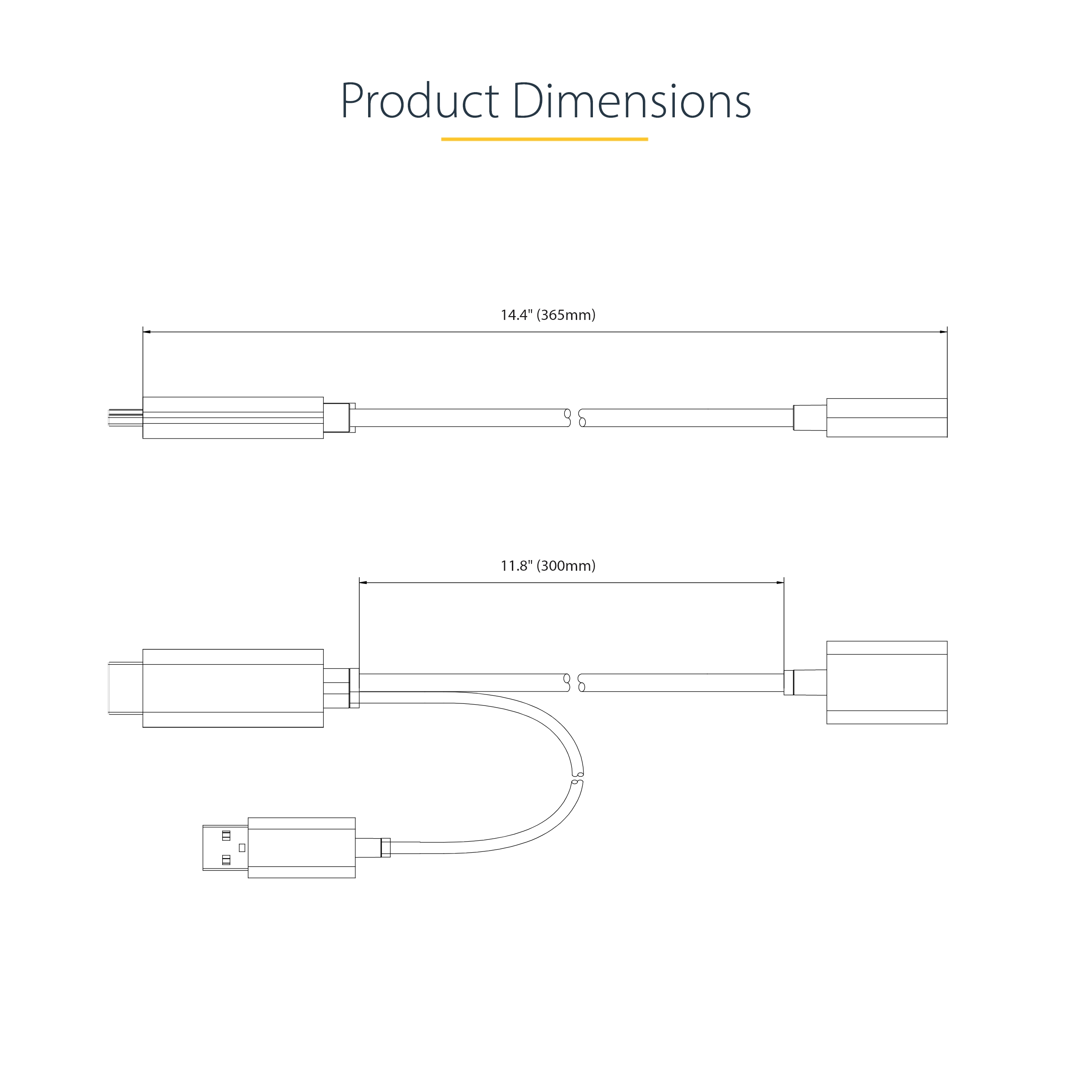

Input Voltage 5V DC Power Source USB-Powered Cable Length (mm) 300 Color Gray Humidity 10~85% RH (non-condensing) Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 20.000 Product Width (mm) 365.000 Product Height (mm) 11.000 Product Weight (g) 38.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Audio Specifications DisplayPort - 2 Channel Audio HDR Support Dynamic HDR Maximum Digital Resolutions 3840 x 2160 @ 60Hz Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility OS Independent Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input HDMI AV Output DisplayPort - 1.2 Chipset ID Lontium - LT6711A Host Connection Port HDMI Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 509 Carton Height (mm) 219 Carton Quantity 180 Carton Weight Gross (g) 8886 Included in Package 1 - HDMI to DisplayPort Adapter Included In Package for Label 1 - HDMI To Displayport Converter Number of Sub-Cartons 18 Package Depth (mm) 126 Package Height (mm) 21 Package Width (mm) 199 Package Quantity 1 Package Weight (g) 46 Packaging Description HDMI to DisplayPort 1.2 Adapter - 4K 60Hz - USB Powered Packaging Description India HDMI to DisplayPort 1.2 Converter - 4K 60Hz Sub-Carton Depth (mm) 158 Sub-Carton Height (mm) 69 Sub-Carton Width (mm) 253 Sub-Carton Quantity 10 Sub-Carton Weight (g) 426 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 DisplayPort Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Application Photos Not Required Artwork Due Date 2022-05-20 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment 4K 30hz / standarr short attached cable Digital Content Due Date 2022-07-20 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2022-05-24 Target Production Release 2022-05-31 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
