129UE-USBC-KVM-DOCK
USB C 3 2 10Gbps KVM Dock

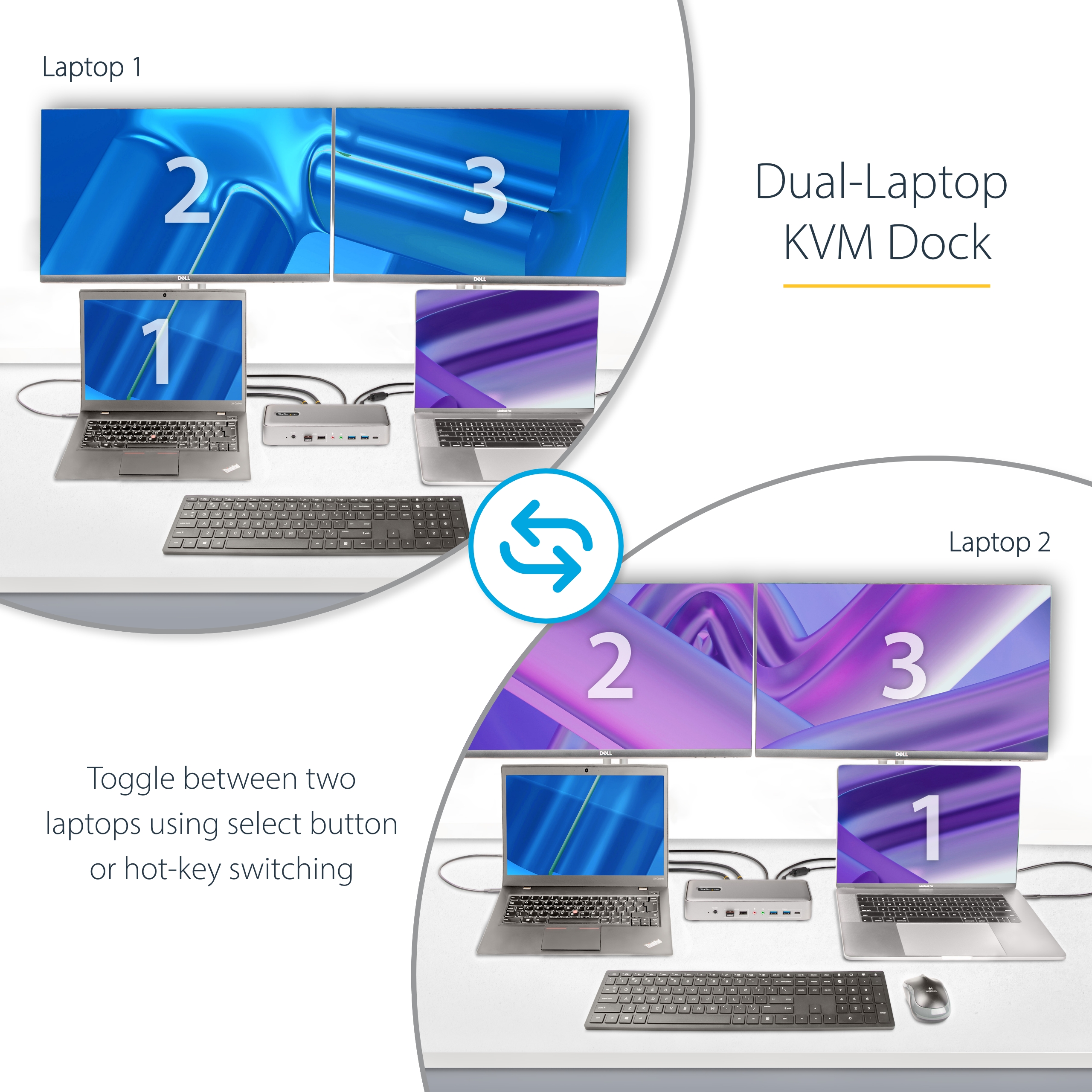

Share a dual 4K 60Hz workstation between two laptop computers through a USB Type-C connection
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name USB C 3 2 10Gbps KVM Dock Product Number 129UE-USBC-KVM-DOCK UPC 065030898492 Lifecycle status Active Warranty 3 Years Weighted Opportunity 263562 Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family KVM DOCK Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Manual Diagram https://images.salsify.com/image/upload/s--QufYIgIw--/ba6998ec8302f9d5811347bfdf7474d1729b5e81.pdf Driver Software Product Title (Ultra-Short) KVM Docking Station Product Title (Short) USB-C KVM Docking Station, Dual 4K 60Hz Product Title (Medium) Dual-Laptop USB-C KVM Docking Station, Dual 4K 60Hz DisplayPort Dock/Hub/GbE/PD Product Title (Standard) Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5x USB Hub, GbE, 90W/45W PD, Windows/Mac, TAA Product Title (Long) Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - TAA Product Title (AMZ) Dual-Laptop USB-C KVM Docking Station, Dual-Monitor 4K 60Hz DisplayPort Dock, 5x USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/macOS, 2-Host KVM Dock , TAA Title Ingram (Part 1) Dual-Laptop USB-C KVM Docking Title Ingram (Part 2) Station - KVM Switch Dock Website Product Headline Share a dual 4K 60Hz workstation between two laptop computers through a USB Type-C connection Bullet 1 DUAL-LAPTOP KVM DOCK: Dock and Switch between two laptops at your desk / workstation and share dual 4K 60Hz monitors, keyboard, mouse and other USB peripherals; Switch between two laptops using a toggle button located on the front of the docking station Bullet 2 COMPATIBILITY: Dual-Host KVM Dock supports mixed OS, Windows, macOS, ChromeOS, Linux; Works w/ Intel, AMD and the Apple M-Series, enabling two external displays even on laptops that natively only support one; Driver installation required on Windows/macOS Bullet 3 SIMULTANEOUSLY CHARGE TWO LAPTOPS: USB-C KVM docking station charges both connected laptops over USB-C (PD 3.0); The included 180W power adapter automatically provides 90W of power to the active host and 45W of power to the host on standby Bullet 4 CONNECTIVITY: The dock features a variety of ports for device connectivity; 2x USB 2.0 Type-A HID, 2x USB-A (10Gbps), USB-C (10Gbps), 2x DisplayPort, 2x USB-C host ports, Gigabit Ethernet, 3.5mm stereo audio, 3.5mm mic, 2x K-Slots (Standard/Nano) Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout Bullets (Compact) Dual-Laptop KVM Dock switches between 2 USB Type-C hosts w/ toggle button - Charge 2 laptops (90W to active, 45W to standby PC) - Dual Monitor 4K 60Hz including on base M-Series MacBook Pro/Air - 5x USB Hub & GbE - Windows/Mac/Chrome (mixed OS) Bullets (Consolidated) - Dual-Laptop KVM Dock switches between 2 USB-C hosts with toggle button; Simultaneously charge 2 laptops (90W to active / 45W to standby PC) - DisplayLink Certified; Dual Monitor 4K 60Hz (2x DisplayPort) - Works with Windows/macOS/ChromeOS and supports mixed operating systems - Supports 2 external displays on base Apple M-Series; 5x USB Hub; GbE; 3.5mm audio/mic; K-Slots (Standard/Nano) - Connectivity Tools (MAC Address Pass-Through/USB Event Monitoring/Windows Layout Utility/WiFi Auto Switch) Marketing Copy Marketing Copy (No HTML) Applications - Software developers and IT technicians can access to two different computers/platforms for testing

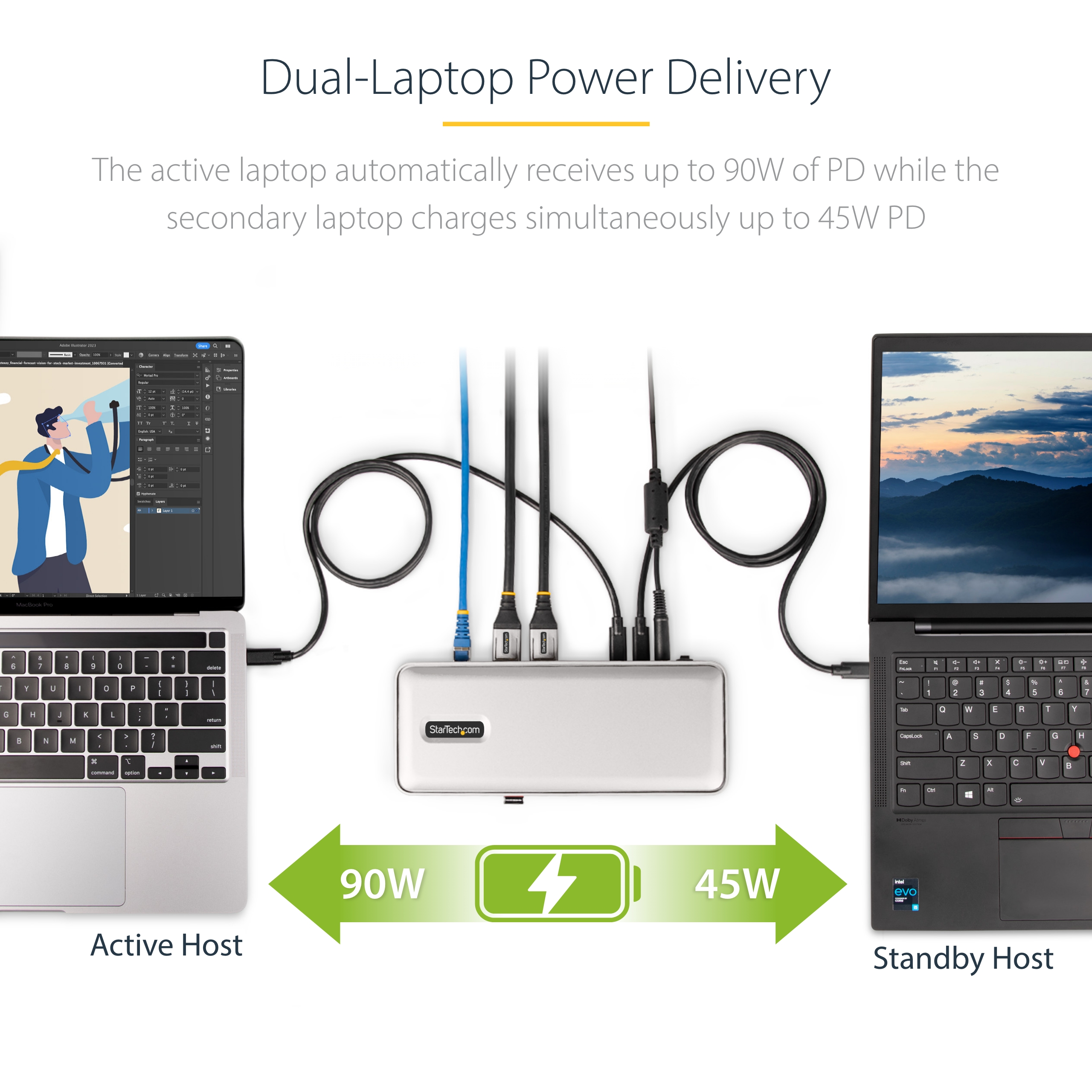

- Power Delivery charges two separate computers simultaneously, with 90W of power to the computer that's currently in use and 45W of power to the second computer
Website Search Keyword - docking station for mac and pc
- docking station for windows and mac
- docking station kvm combo
- docking station with kvm
- dual host docking station
- dual monitor kvm docking station
- kvm dock
- kvm docking station
- kvm docking station for two laptops
- kvm switch docking station
- kvm thunderbolt
- laptop dock kvm
- thunderbolt 3 kvm docking station
- usb c dock kvm switch
- usb c kvm dock
- apple
- apple M3
- M3 Pro
- M3 Max
- Apple M3 Pro
- Apple M3 Max
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps), USB 3.1 System and Cable Requirements Up to two host devices with available USB-C ports (to support laptop charging the host device's USB-C port must support USB Power Delivery) Input Current 2.4 A Input Voltage 110V-240V AC Output Current 9 A Output Voltage (V) 20V DC Power Consumption (In Watts) 180 Power Delivery 90W (to the active host computer ) / 45W (to the second computer) Power Source AC Adapter Included Plug Type CP (OD:7.4/ID:5.1/CPD:0.6) Center Tip Polarity Positive Color Space Gray Humidity 0~90% RH (Non-condensing) Material Plastic Operating Temperature -10°C to 45°C (14°F to 113°F) Product Length (mm) 223.850 Product Width (mm) 90.000 Product Height (mm) 39.900 Product Weight (g) 402.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Full Duplex Support Yes General Specifications - KVM Ports: 2
- Rack-Mountable: No
- On-Screen Display: No
- IP Control: No

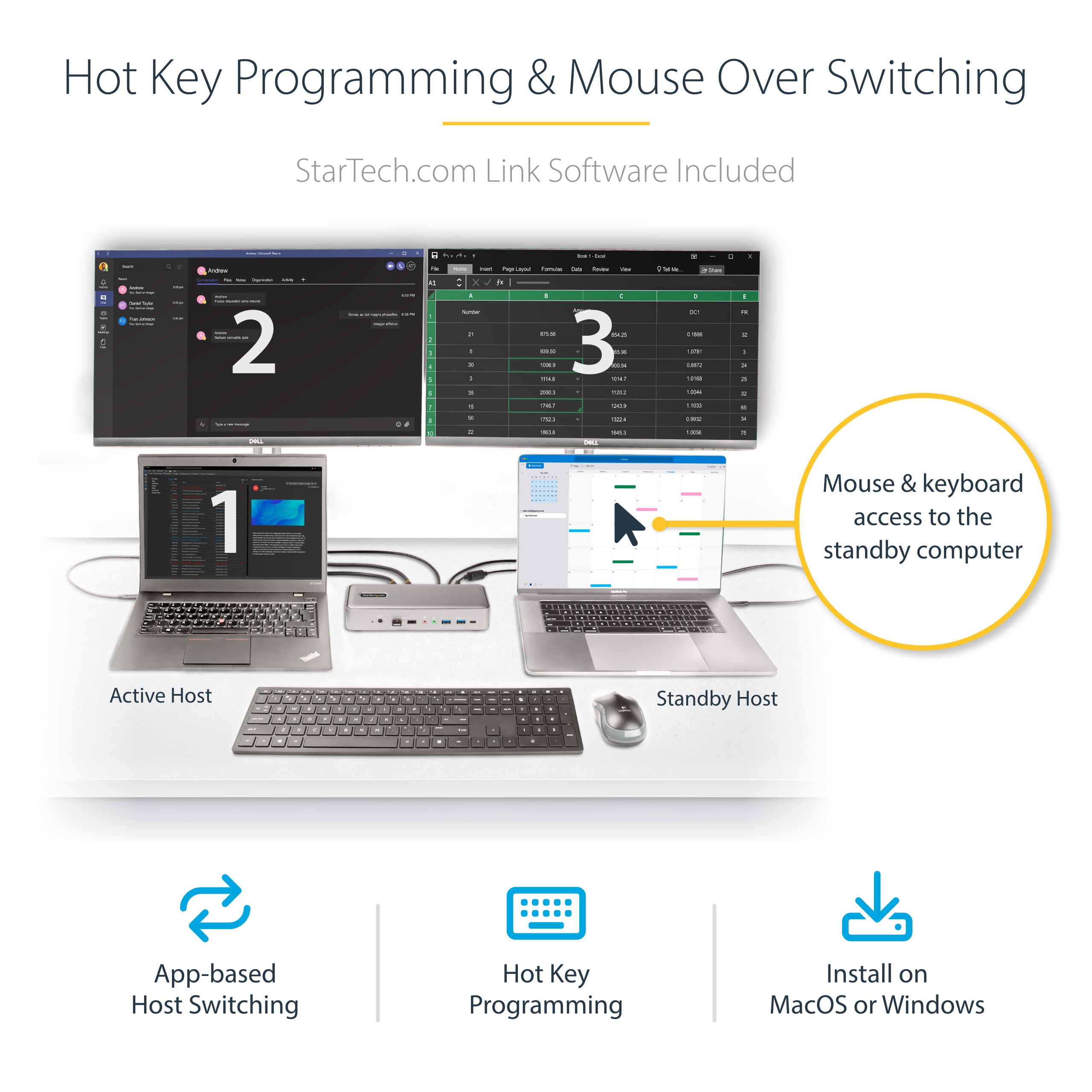

- Port Selection Support: Push Button and Hot-Keys

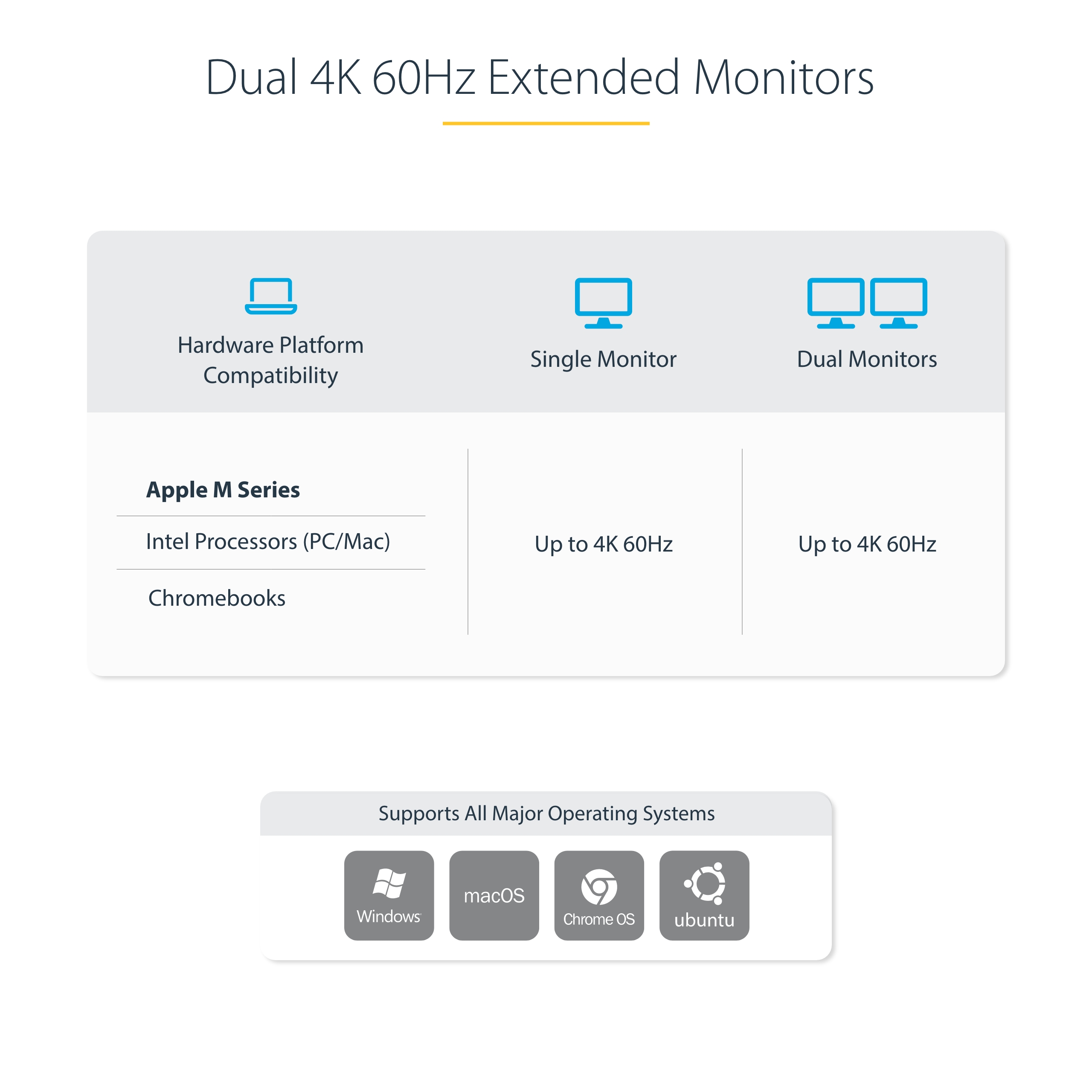

Maximum Data Transfer Rate USB 3.2 Gen 2 (10 Gbps) Maximum Digital Resolutions 2x DisplayPort - 4096 x 2160p (4K) 60Hz Maximum Supported Resolution 4K 60Hz (3840x2160) MTBF (hours) 42,209 Hours OS Compatibility - Windows 11
- Windows 10
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- Chrome OS
- Ubuntu
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

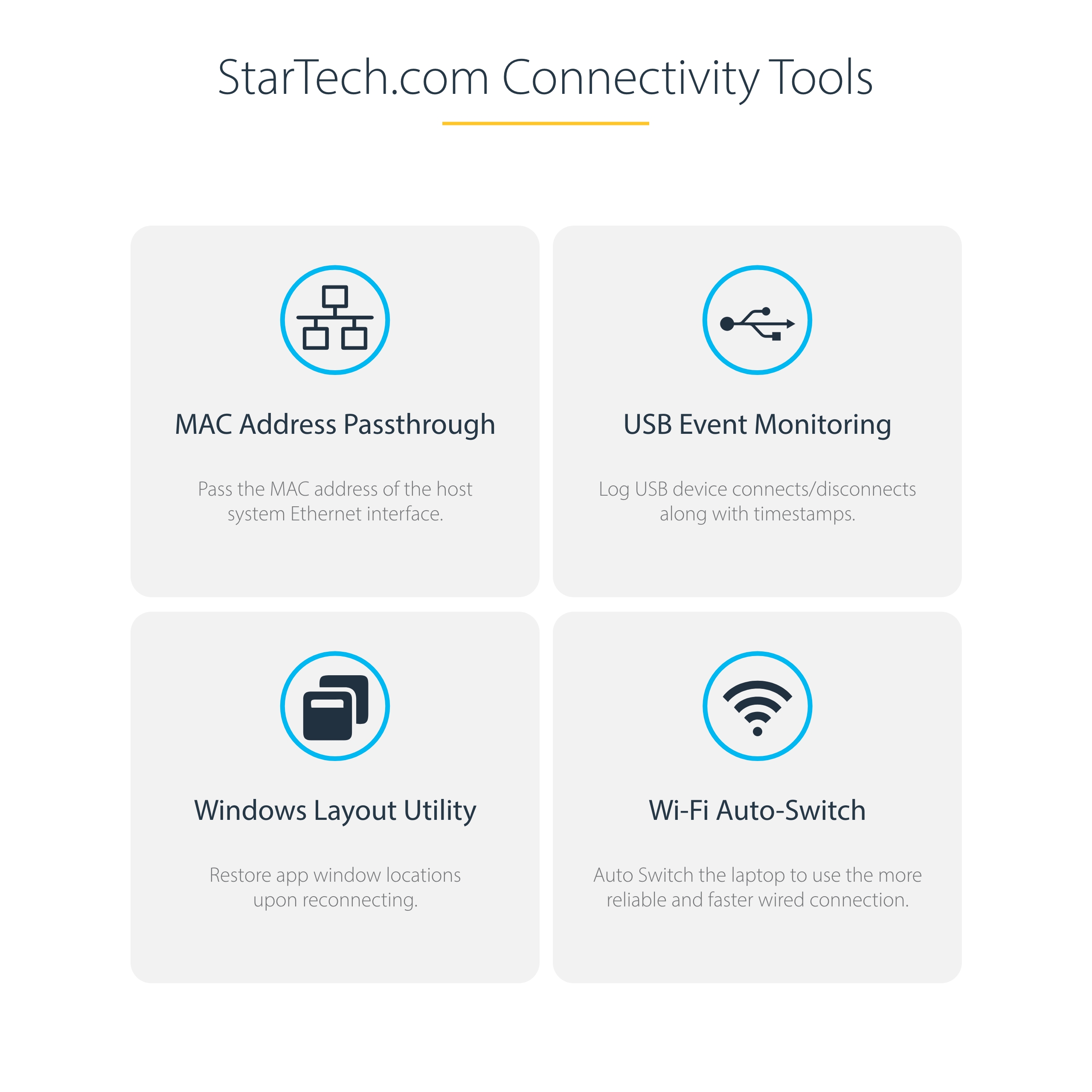

PXE No StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch

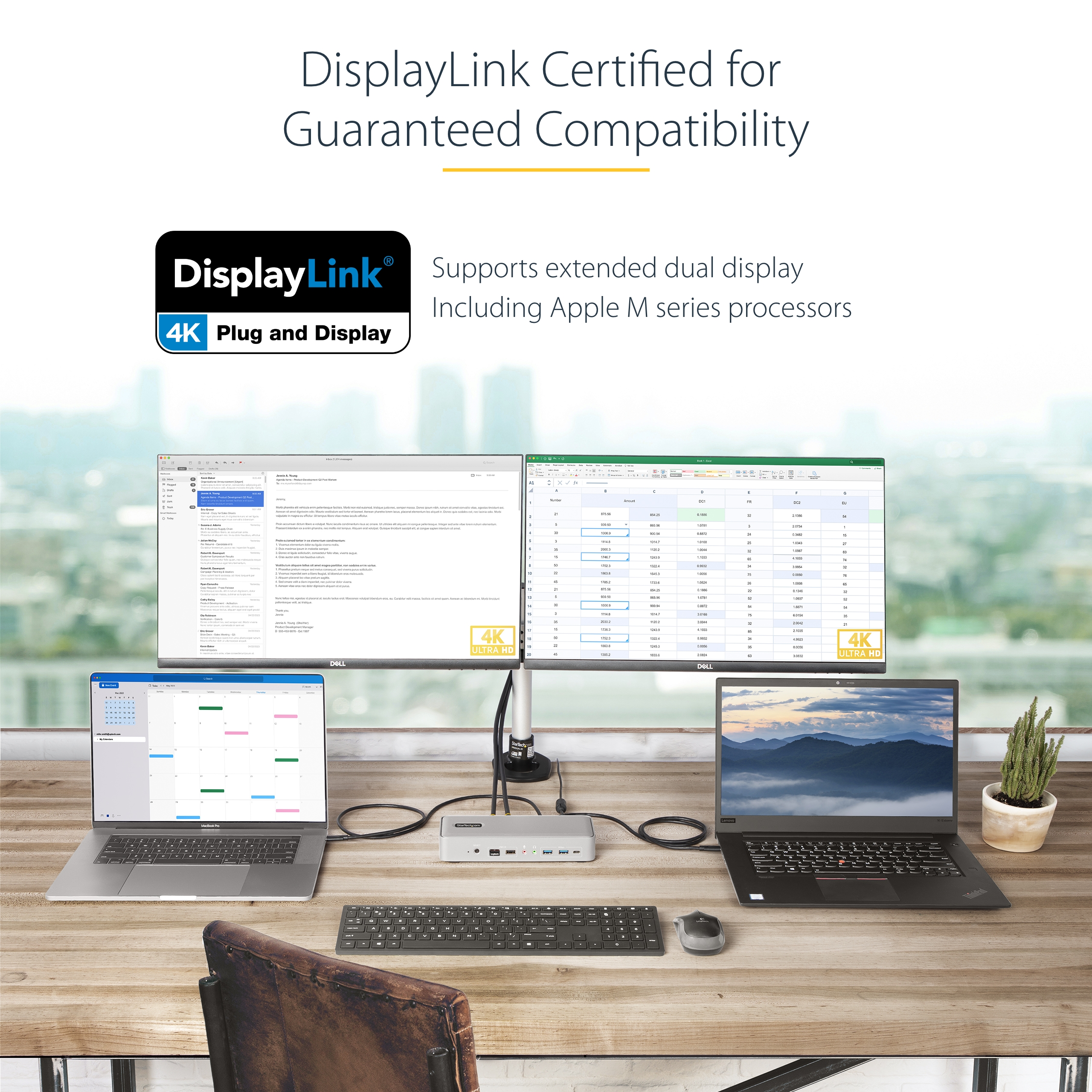

UASP Support Yes USB Type and Rate USB 10Gbps Video Output Port DisplayPort Video Transport Technology USB Graphics Wake-On-LAN (WOL) Yes Bus Type USB-C Chipset ID - DisplayLink - DL6950
- Genesys Logic - GL3590
- Genesys Logic - GL9510
- Parade - PS186
- Realtek - RTL8211F

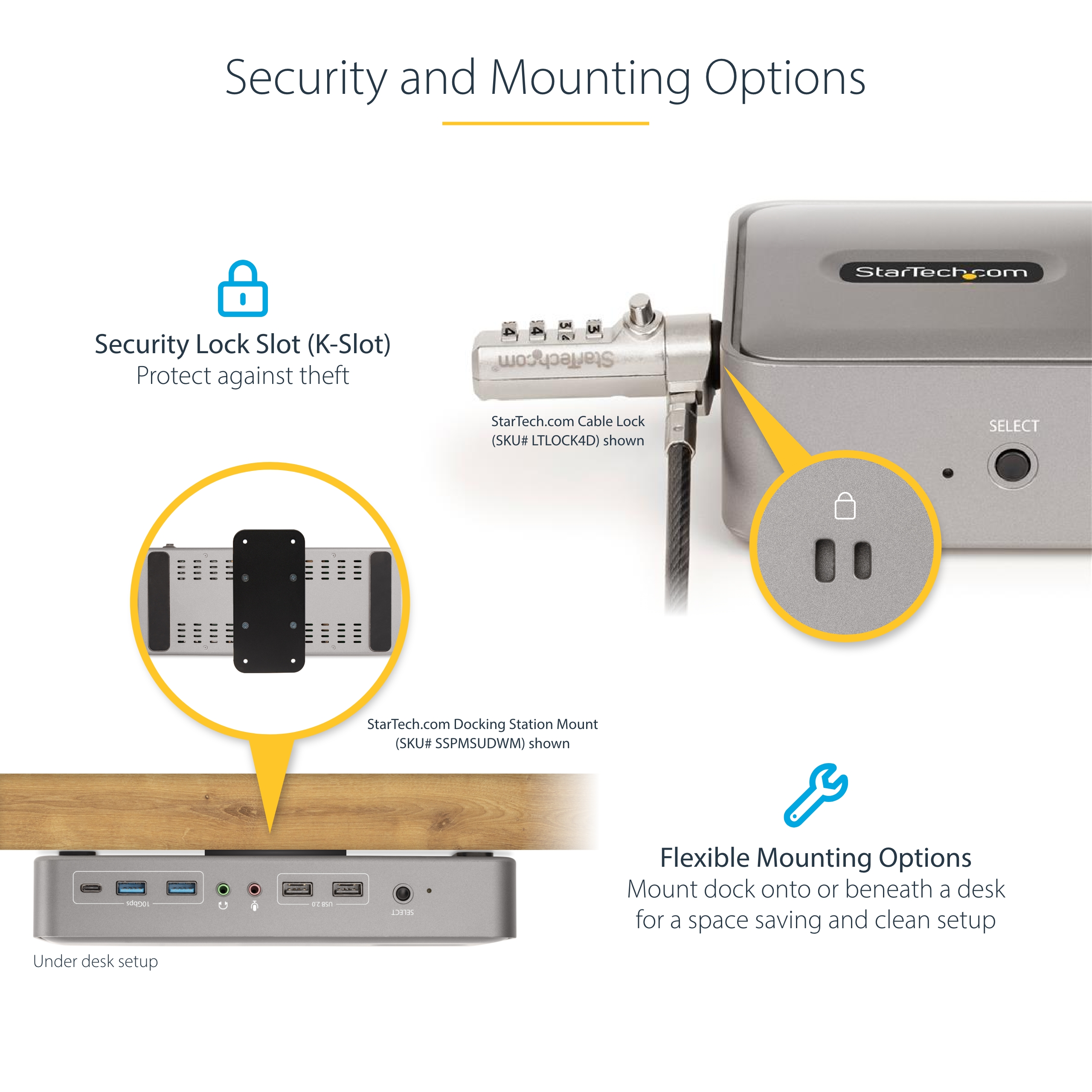

Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
Host Connection Port USB-C Industry Standards - DisplayPort 1.4
- USB 3.2 Gen 2 (10 Gbps)
- USB 2.0 (480Mbps)
- USB Power Delivery Specification Rev. 3.0
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface/Bridge USB 3.2 Gen 2 (10 Gbps) Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Power LED (White): Illuminates When the Dock is Connected to a Power Source and Powered On
- 1 - LAN Port - Network Status LED (Green): Illuminates to Indicate an Ethernet Link is Active
- 1 - LAN Port - Network Activity LED (Amber): Blinks to Indicate Network Traffic
Number of Displays 2 Other Ports - Gigabit Ethernet
- 3.5mm TRRS Speaker Audio Jack
- 3.5mm TRRS Mic Audio Jack

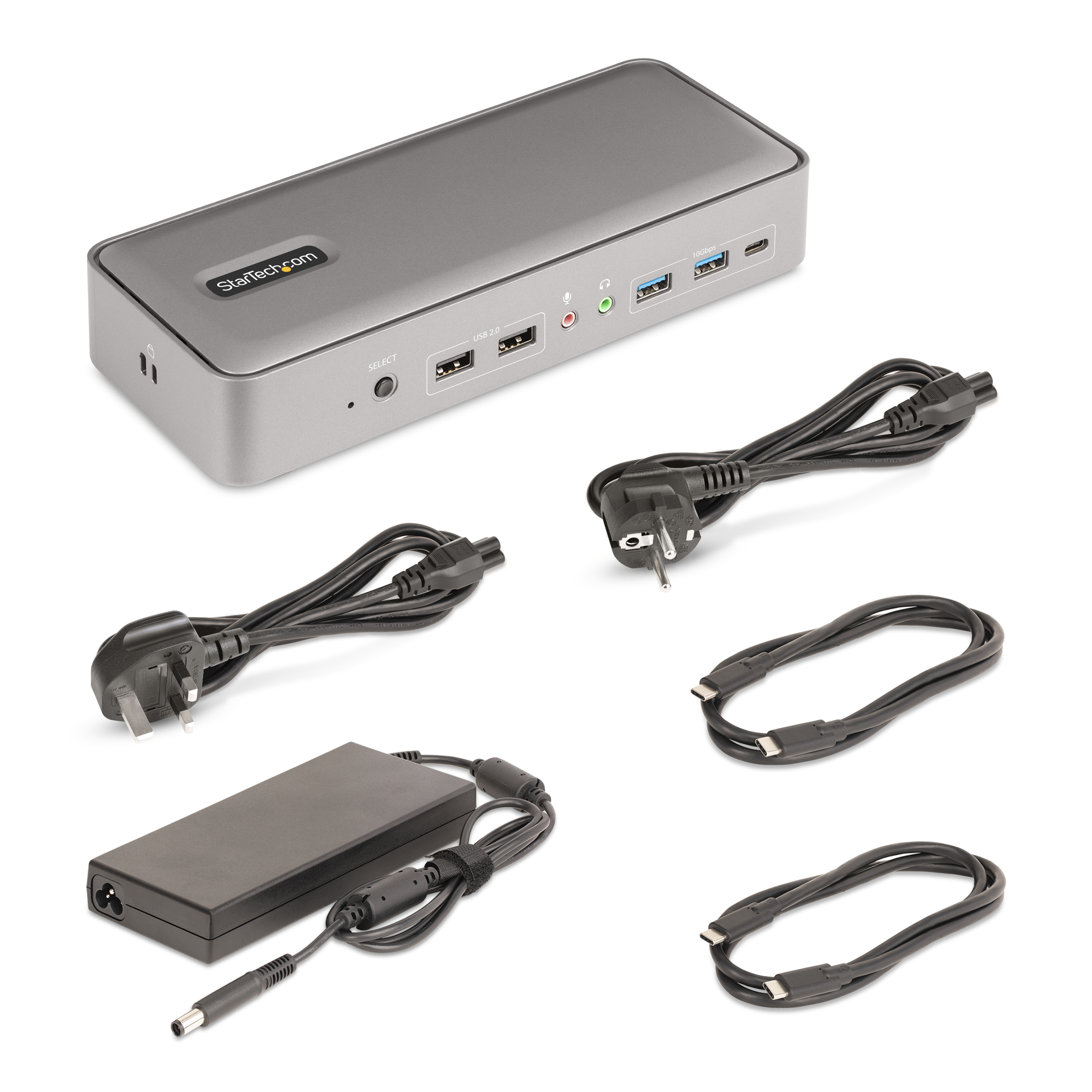

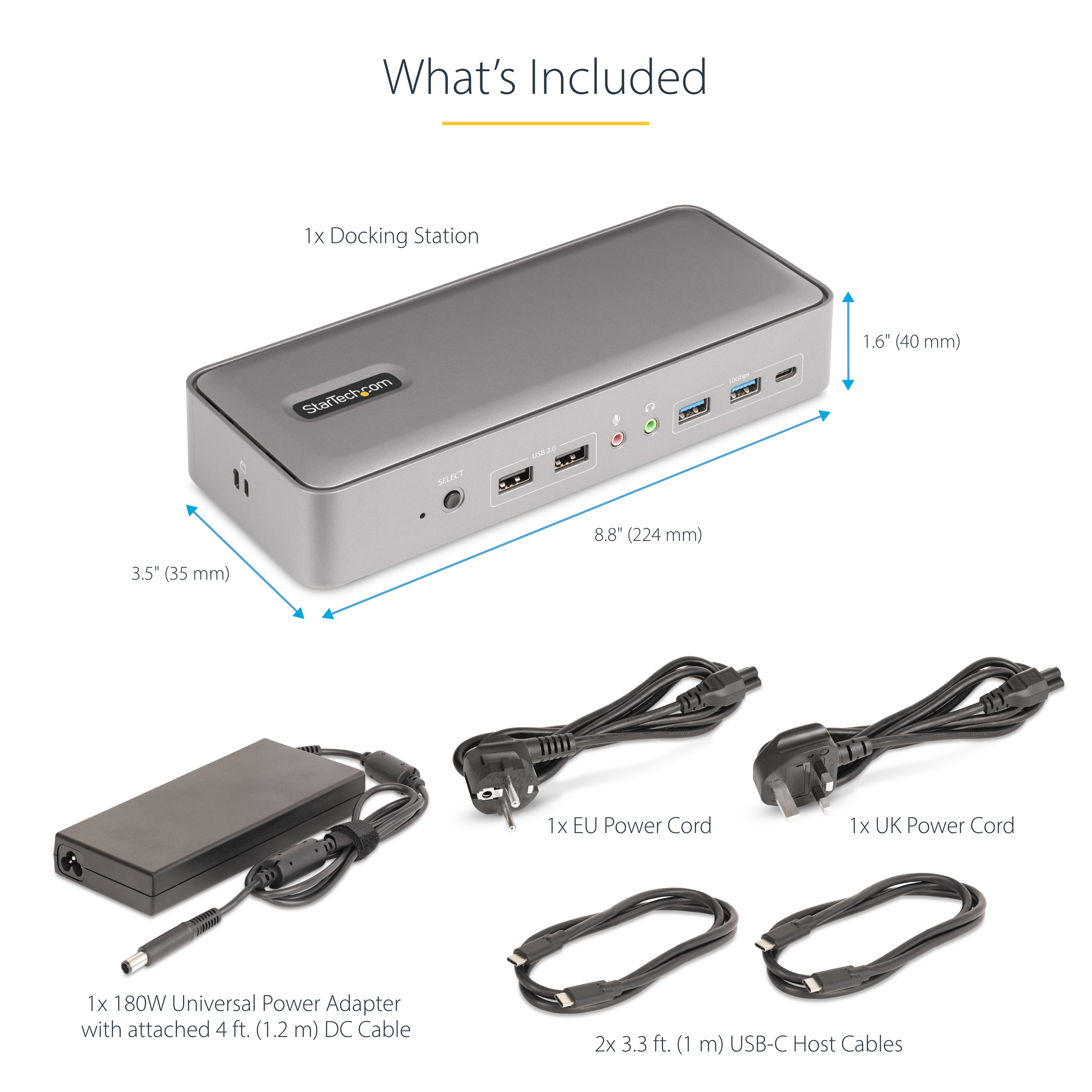

Carton Depth (mm) 395 Carton Height (mm) 340 Carton Quantity 6 Carton Weight Gross (g) 16500 Included in Package - 1 - USB-C Docking Station
- 2 - 3.3 ft [1 m] USB-C Host Cables
- 1 - Universal Power Adapter with Attached 5 ft [1.6 m] DC Cable
- 1 - Quick-Start Guide
- 2 - 6 ft [1.8 m] Regional Power Cables (EU, UK)

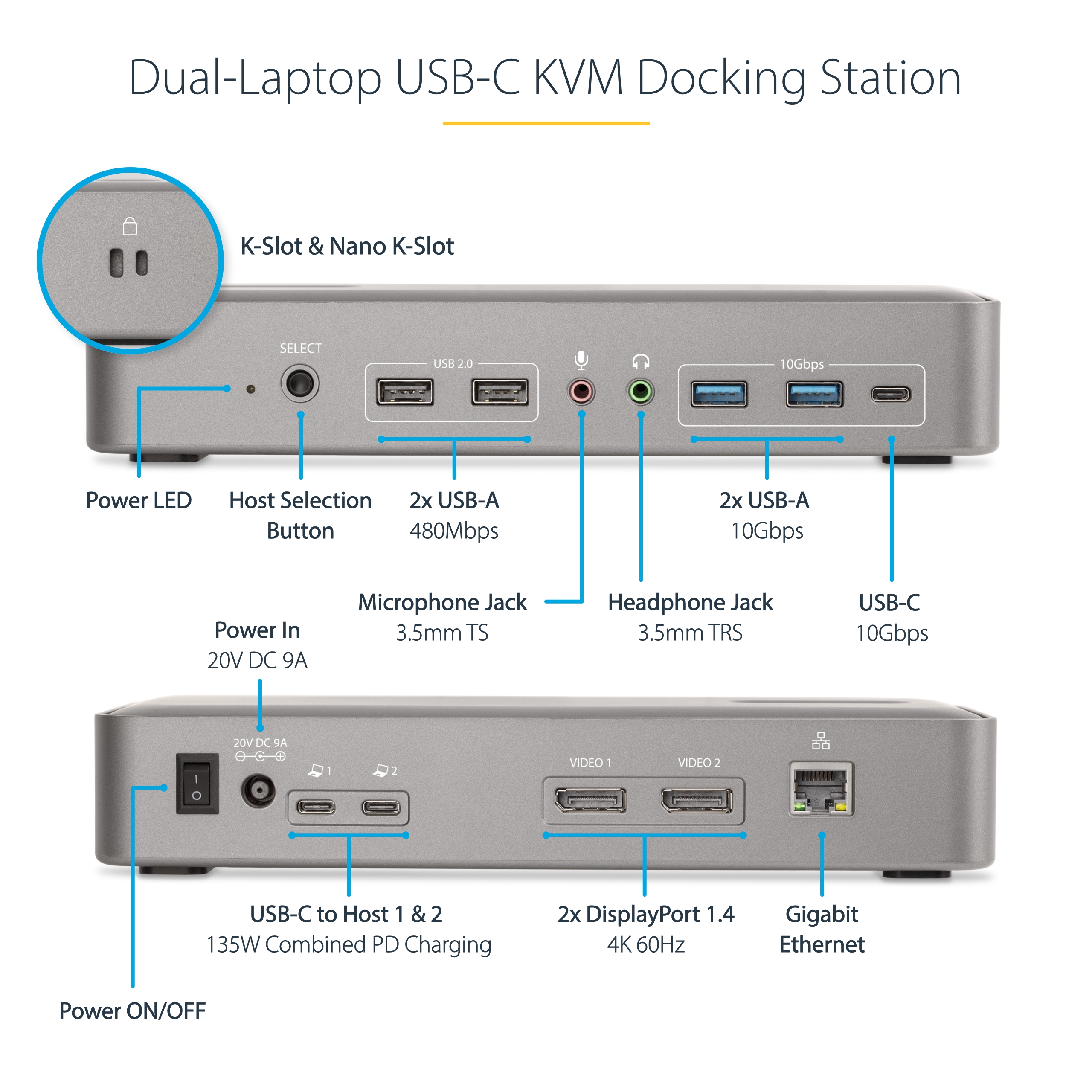

Package Depth (mm) 160 Package Height (mm) 90 Package Width (mm) 285 Package Quantity 1 Package Weight (g) 1835 Packaging Description USB-C Dual Monitor KVM Dock - 4x USB-A /1x USB-C (10Gbps) - GbE - 90W PD Sub-Carton Depth (mm) 380 Sub-Carton Height (mm) 310 Sub-Carton Width (mm) 180 Sub-Carton Weight (g) 7710 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 USB-C (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Connector 5 3.5mm (2 Conductor, TS) Connector 5 (Quantity) 1 Connector 6 DisplayPort Connector 6 (Quantity) 2 Connector 7 RJ-45 Connector 7 (Quantity) 1 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 2 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USB-A host support only / No PD Enhanced Gallery Not Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK Primary Technology - USB 3.2 Gen 2 / 10Gbps
