1315B8H-RACK-PDU
Basic 13 Port PDU 120V 15 A 5-15P Plug

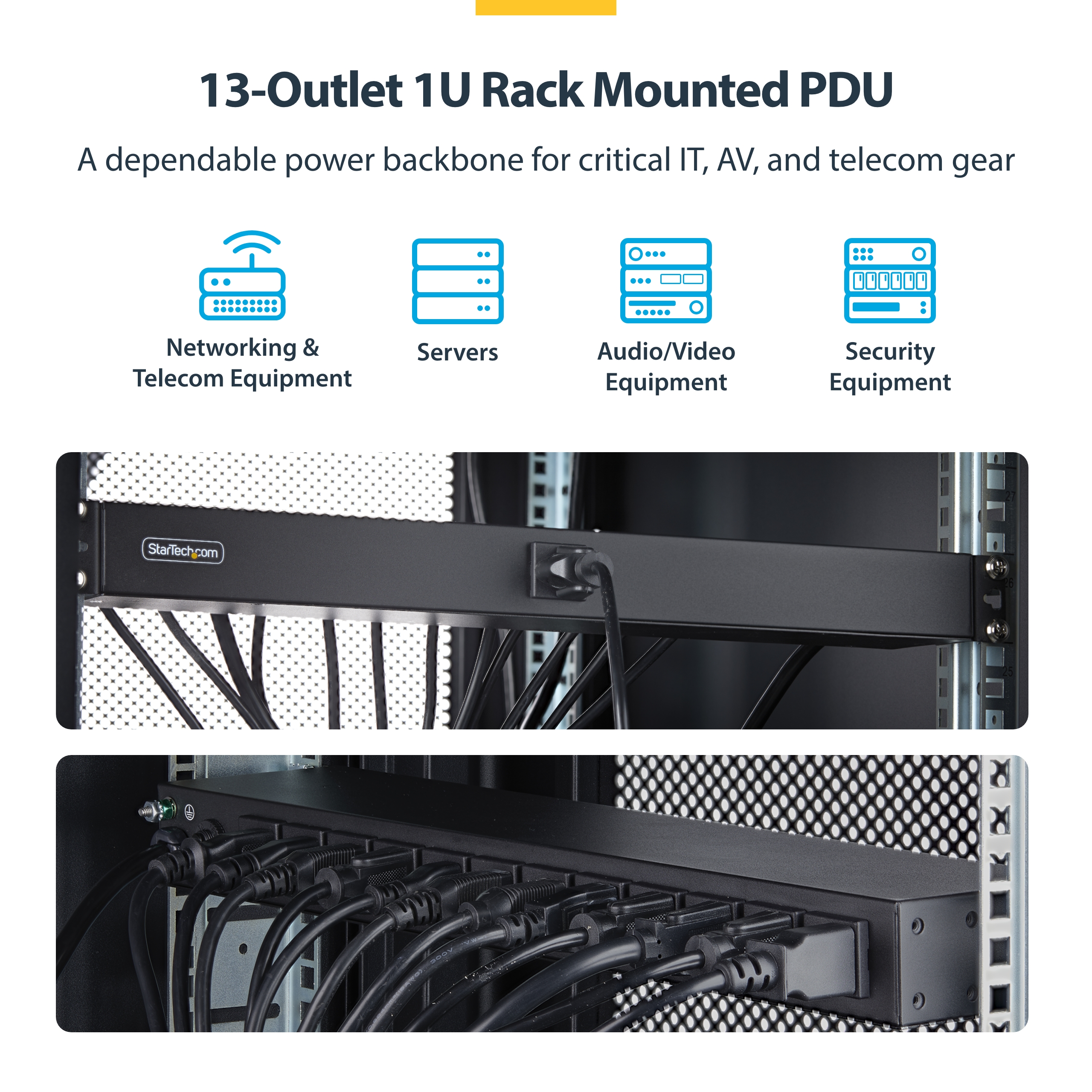

Add thirteen power outlets to a 19in server rack or cabinet
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
BOM Image
Quick-Start Guide
Product Name Basic 13 Port PDU 120V 15 A 5-15P Plug Product Number 1315B8H-RACK-PDU UPC 065030920957 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Power > PDUs Category Level 1 Racks and Enclosures Category Level 2 Rack Power Category Level 3 Rackmount PDUs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX007X Product Title (Ultra-Short) 13-Outlet Rack PDU Product Title (Short) 13-Outlet Rackmount PDU, 1U Power Strip Product Title (Medium) 13-Outlet Rackmount PDU, 1U Server Power Strip/Supply, 1x Front & 12x Rear Ports Product Title (Standard) 13-Outlet Rackmount PDU, 1U Server Power Strip, 1x Front and 12x Rear Ports, Mounted Power Distribution Unit for 19in Racks Product Title (Long) 13-Outlet Rackmount PDU, 1U Server Power Strip with 1x Front and 12x Rear Ports, Mounted Power Distribution Unit for 19-Inch Racks and Cabinets Product Title (AMZ) 13-Outlet Rackmount PDU, 1U Server Power Strip, 1x Front and 12x Rear Ports, Mounted Power Distribution Unit Title Ingram (Part 1) 13-Outlet Rackmount PDU - 1U Title Ingram (Part 2) Server Power Strip for 19in Rack Website Product Headline Add thirteen power outlets to a 19in server rack or cabinet Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) 1U rackmount PDU unit for 19in racks w/ 13x NEMA 5-15 electrical outlets - 1x Front and 12x rear - 125V 15A max; 8ft power cord - 4-way mounting brackets for various server/AV setups - Power distribution/supply unit is TAA-compliant Bullets (Consolidated) - 1U rack-mounted PDU unit with 13x NEMA 5-15R electrical outlets; 1x front and 12x rear ports - 125V max 15A; Built-in 8ft NEMA 5-15P power cord - Rackmount power distribution strip includes 4-way mounting brackets - User-resettable 15A circuit breaker - Power supply features a SPCC steel housing with powder-coated finish; TAA-compliant Marketing Copy Marketing Copy (No HTML) Applications - Allows IT professionals to safely distribute power to multiple servers, switches, and networking devices from a single organized unit within a server rack

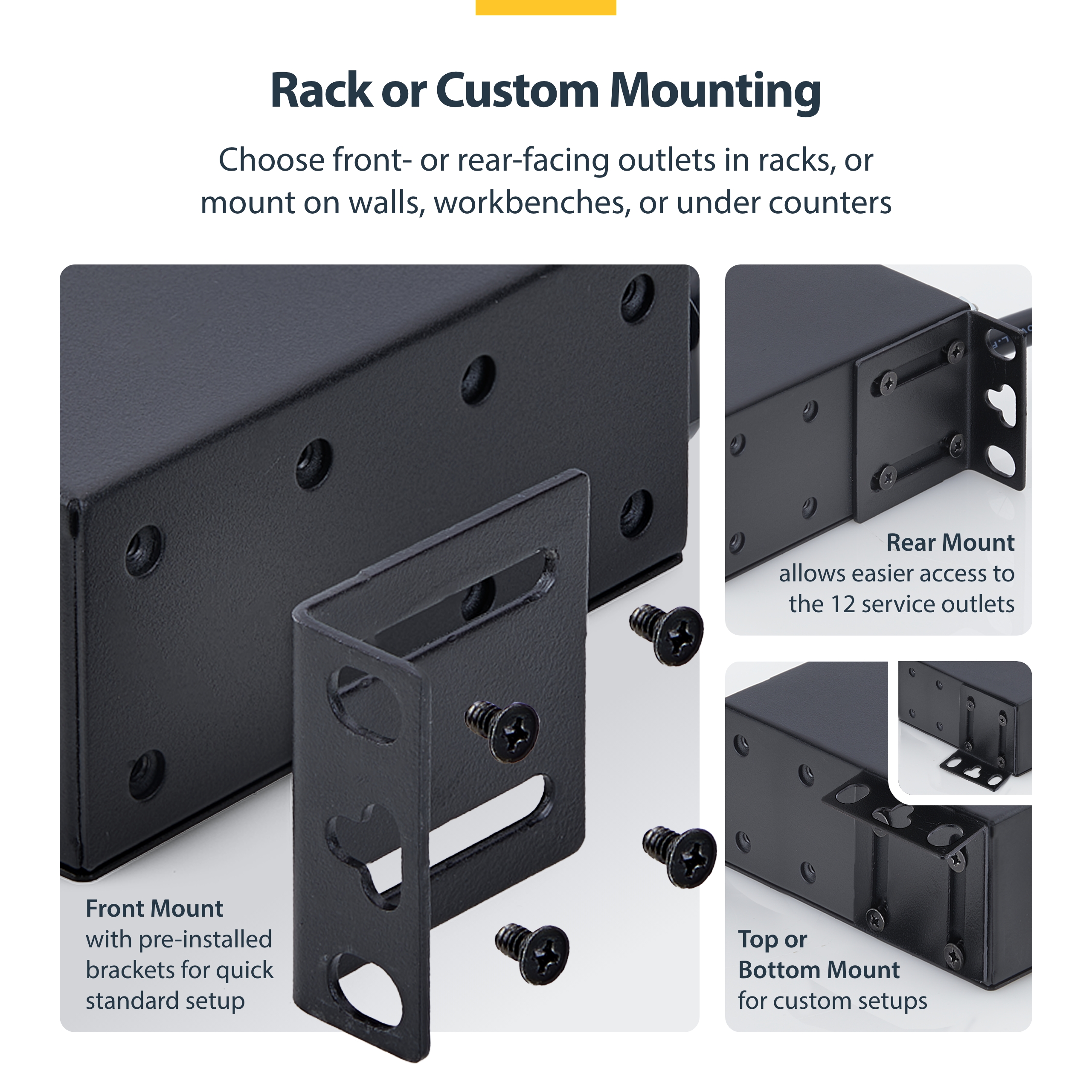

- Supports both horizontal and vertical installation, allowing flexible mounting to suit your deployment requirements
Required Regulatory Compliance Marks - UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - CABSCREWS
- CABCAGENUTS
- 271B-6800-POWER-CORD
- 27LC-4B00-POWER-CORD
- PXT101
- PXT1011010PK
- PXT101143
- PXT10112
Related Products - RKPW081915
- RKPW161915
- RKPW101920
- PDU08C13H
- 8NS8-RACK-MOUNT-PDU
- 12NM8-RACK-MOUNT-PDU
- 8N515S12-POWER-STRIP

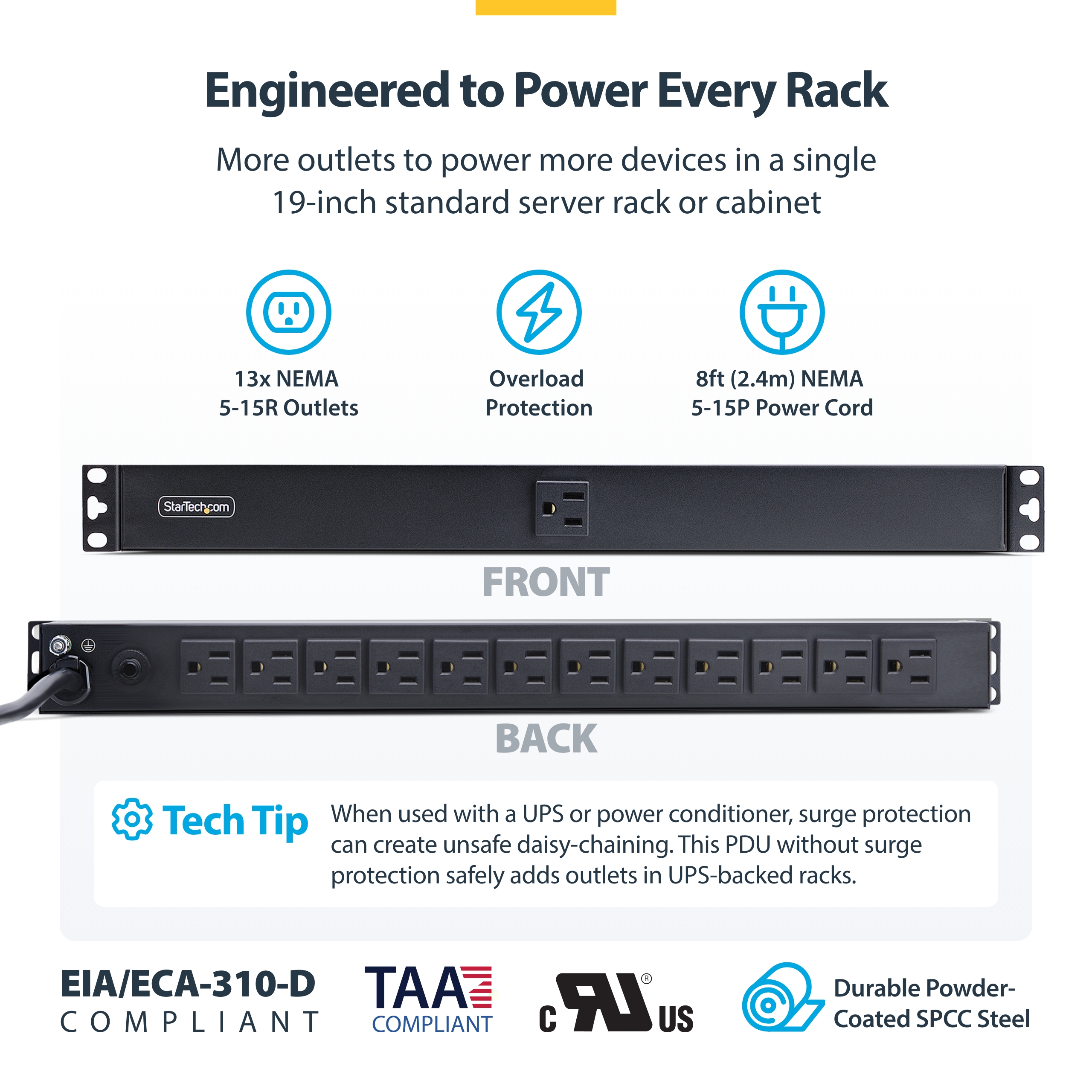

Input Voltage 120 AC Plug Type NEMA 5-15 Power (North America) Plug Cable Length (mm) 2400 Color Black Material Steel Product Length (mm) 477.2 Product Width (mm) 110 Product Height (mm) 43.29 Product Weight (g) 1690 TAA Compliant Yes Maximum Output Voltage (V) 125V Maximum Total Current 15A Maximum Total Current Draw per Phase 15A Nominal Input Voltage (V) 120V Nominal Output Voltage (V) 120V Regulatory Derated Input Current (North America) 12A Form Factor Horizontal Industry Standards - UL 1363
- EIA/ECA-310-E

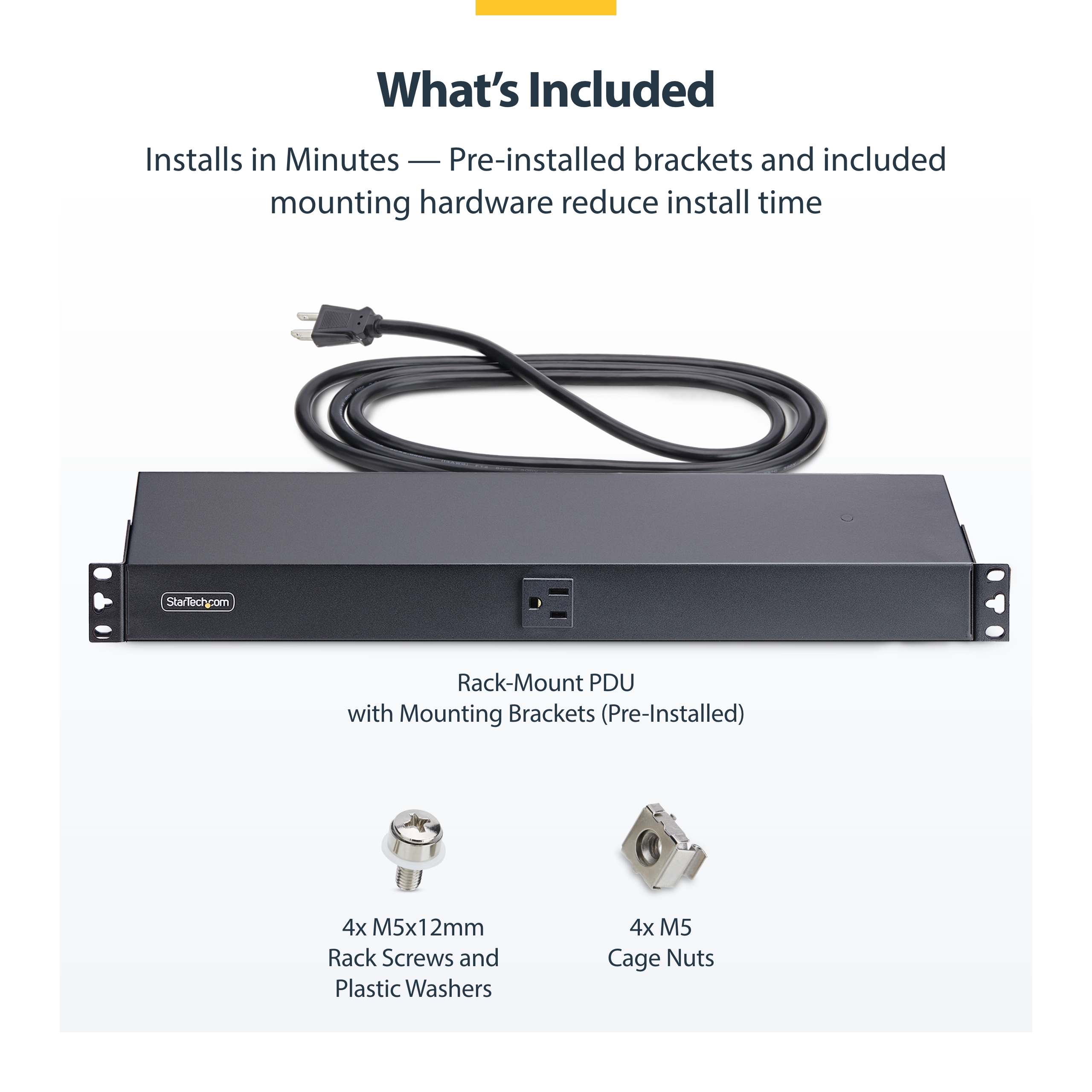

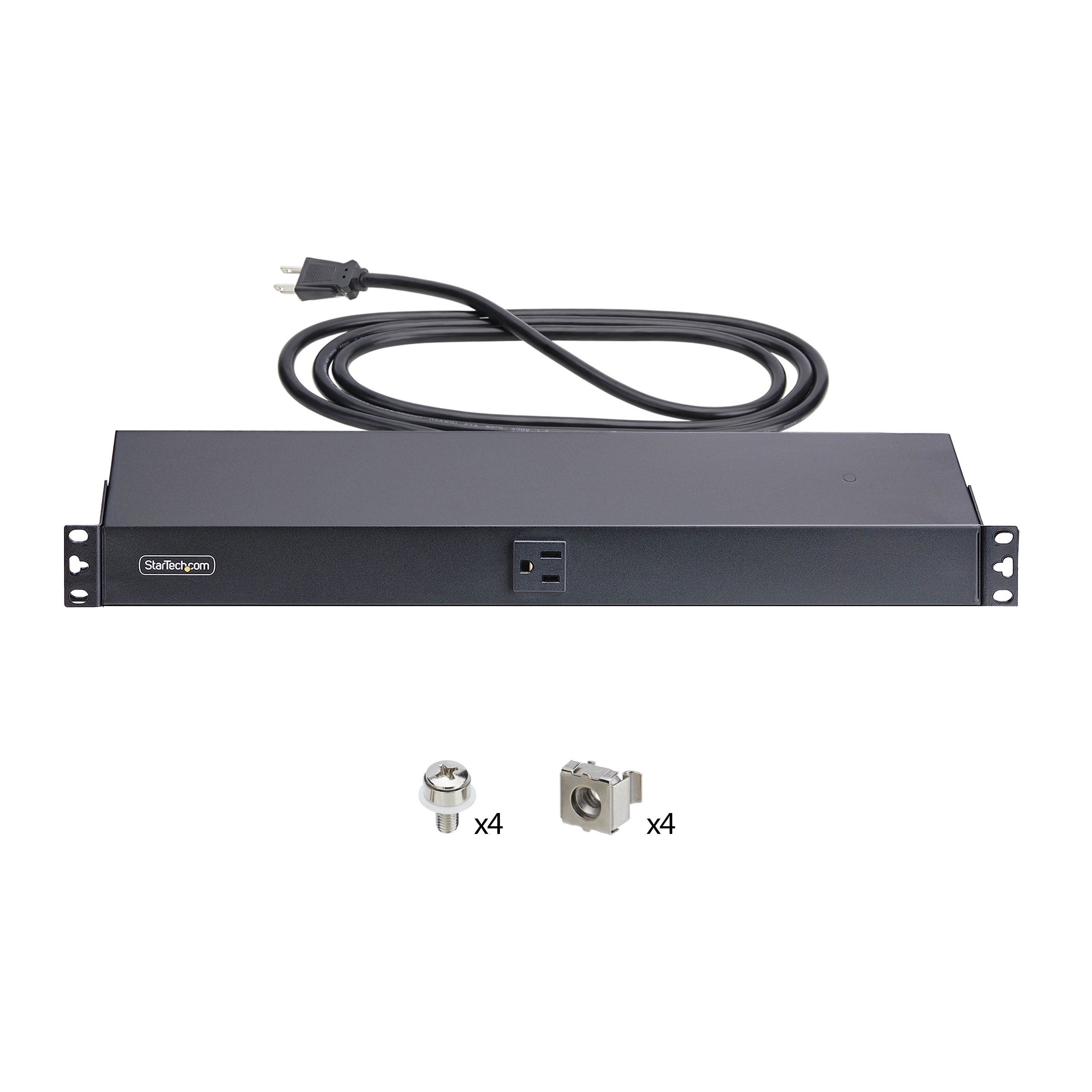

Rack-Mountable Yes U Height 1U Carton Depth (mm) 528 Carton Height (mm) 250 Carton Quantity 6 Carton Weight Gross (g) 13890 Included in Package - 1 - Rack-Mount PDU
- 1 - Product Documentation
- 2 - Mounting Brackets (Pre-Installed)
- 4 - M5x12mm Rack Screws
- 4 - M5 Cage Nuts
- 4 - Plastic Washers
- 4 - Metal Washers
Package Depth (mm) 516 Package Height (mm) 52 Package Width (mm) 235 Package Weight (g) 2190 Packaging Description 13-Outlet 1U Rack-Mount PDU - 8Ft (2.4m) Power Cable Packaging Description India 13-Outlet 1U Rack-Mount PDU - 8Ft (2.4m) Power Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 NEMA 5-15 (125V AC, 15A) Connector 1 (Quantity) 1 Connector 2 NEMA 5-15 (125V AC, 15A) Connector 2 (Quantity) 13 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN QSG Amazon Merchandising Manager Kathleen Marshall Amazon Only SKU No Amazon Visual Content Level Gold Application Photos Uploaded Artwork Due Date 2025-05-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment This is the nearest comparable available based on the specs. Like Amp/Vol/Wattage capacity and closet outlets. It comes with surge protector Comparable SKU 2 Comment This is the nearest comparable available based on the specs. 10 Outlets with 20A/2.5KW capacity+ 8ft Cord. No Surge protector. Digital Content Due Date 2025-12-08 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) CA,US Primary Technology None Priority New Product High Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2025-08-20 Target Production Release 2025-06-13 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Latest Vending Machine Not Compatible with Vending Machine Video Not Required
