132UE-TB4USB4DOCK
Thunderbolt 4 Dock HDMI DP
Universal Laptop Dock offering driverless compatibility with Windows and macOS
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 4 Dock HDMI DP Product Number 132UE-TB4USB4DOCK UPC 065030899680 Lifecycle status Active Warranty 3 Years Weighted Opportunity 1240200 Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 4 Docks Family No Family for TB4 Docks Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) Thunderbolt 4 Dock Product Title (Short) Universal USB4 & Thunderbolt 4 Dock 100W Product Title (Medium) USB4 Thunderbolt 4 Docking Station, Quad Dock on Windows, Dual on MacBook, 100W Product Title (Standard) Universal USB4 & Thunderbolt 4 Docking Station, Quad Display on Windows, Dual Display on MacBook, HDMI DP Dock, 100W Charging Product Title (Long) Universal USB4 & Thunderbolt 4 Docking Station, Quad Display on Windows, Dual Display on MacBook, HDMI DP Dock with 100W Laptop Charging Product Title (AMZ) Thunderbolt 4 Dock - Dual 4K Macbook Pro and M4 Air, Quad Monitor 4K Windows, 16 Port 40Gbps Laptop Docking Station with 100W Charging, 2 x HDMI, 2 x DisplayPort Title Ingram (Part 1) Universal USB4 & Thunderbolt 4 Title Ingram (Part 2) Docking Station, HDMI/DP, 100W Website Product Headline Universal Laptop Dock offering driverless compatibility with Windows and macOS Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Universal USB4 and Thunderbolt dock compatible w/ Windows and macOS; No drivers required; 4x 4K 60Hz on Windows with Intel 12th Gen (or up) and DP 1.4 with DSC; Dual extended 4K 60Hz on M3 M4 MacBook Air / Pro (M3 clamshell mode); 98W Power Delivery Bullets (Consolidated) Thunderbolt 4 Certified docking station; Driverless; Works with all TB 3/4 laptops - 2x HDMI and 2x DisplayPort supports up to quad 4K 60Hz w/Intel 12th Gen CPU supporting DP 1.4 w/DSC; Quad displays at lower resolutions or refresh rates without DSC or with earlier Intel revisions; Single display up to 8K 60Hz - Extended Dual Display on Apple M1 M2 M3 M4 M5 Max / Pro MacBooks; Single Display on base M-series MacBooks and iPad Pro M1 & later - 98W PD; 7-Port USB Hub; 2.5GbE - TB4 host Cable incl Marketing Copy Marketing Copy (No HTML) Applications - Use in hot-desk workstations for user laptop hoteling
- Charge your tablets and smartphones from the B.C 1.2 USB-A port
- Externally access SD/mSD, SDHC and SDXC memory cards
Website Search Keyword - Thunderbolt 4 Multi Display Docking Station
- thunderbolt 3 dock multiple monitors
- thunderbolt 3 docking station dual monitor
- dual display thunderbolt 3 dock
- tb4 dock
- thunderbolt 3 usb c docking station
- thunderbolt 4 docking station
- usb 4 dock
- usb c dock dual monitor 4k 60Hz
- usb c docking station with power delivery
- usb4 dock
- usb4 docking station
- usb c dock with power delivery
- usb c docking station
- usb c dock
- usb c dock dual 4k
- tb4 docking station
- thunderbolt 3 dock 2 monitors
- thunderbolt 3 dock dual 4k 60hz
- thunderbolt 3 dock dual monitor
- dual monitor thunderbolt 3 dock
- dual 4k display docking station
- dual 4k monitor docking station
- dual 4k thunderbolt 3 dock
- thunderbolt 3 docking station with power delivery
- thunderbolt 3 dock with power delivery
- thunderbolt 3 docking station
- thunderbolt dock dual monitor
- thunderbolt dock multiple monitors
- thunderbolt docking station dual monitor
- thunderbolt usb 4 dock
- Docking Stations
- Intel Core Ultra 200H Series
- Dell Pro Max 14
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - - Jumbo Frames are no longer supported in macOS

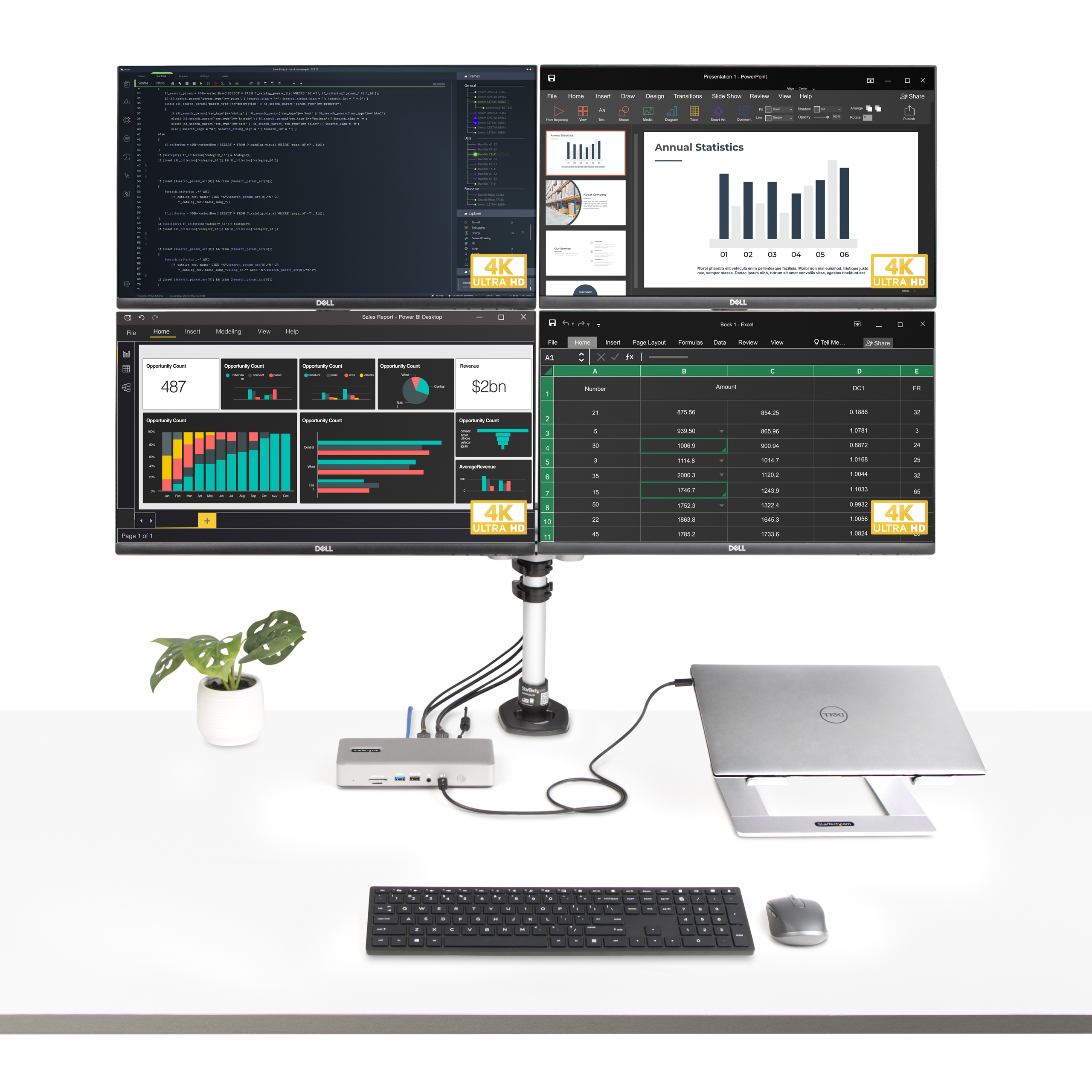

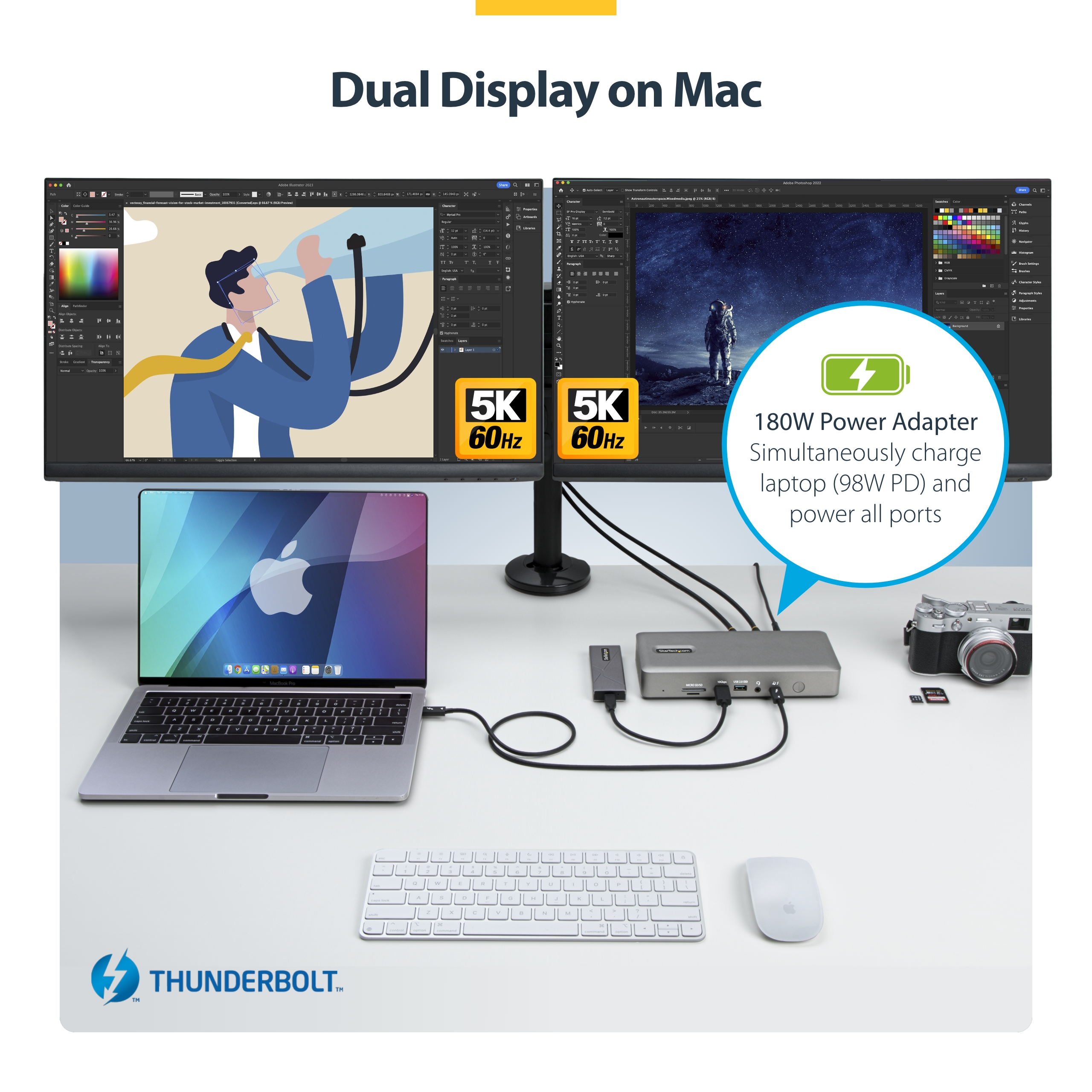

- - This dock uses MST (Multi-Stream Transport) to support four displays; macOS devices are limited to two external displays.
System and Cable Requirements - - This Dock can function with Thunderbolt 4, USB4 or USB-C host ports. For maximum performance a Thunderbolt 4 or USB4 port is recommended
- - DisplayPort Video Output ports do not support the use of passive DisplayPort Adapters
Related Products - TB4CDOCK
- TB2DOCK4K2DP
- TB3DK2DPM2
- TB3DK2DPPD
- TB3DK2DPW
- TB3DKDPMAW
- TB3DOCK2DPPD

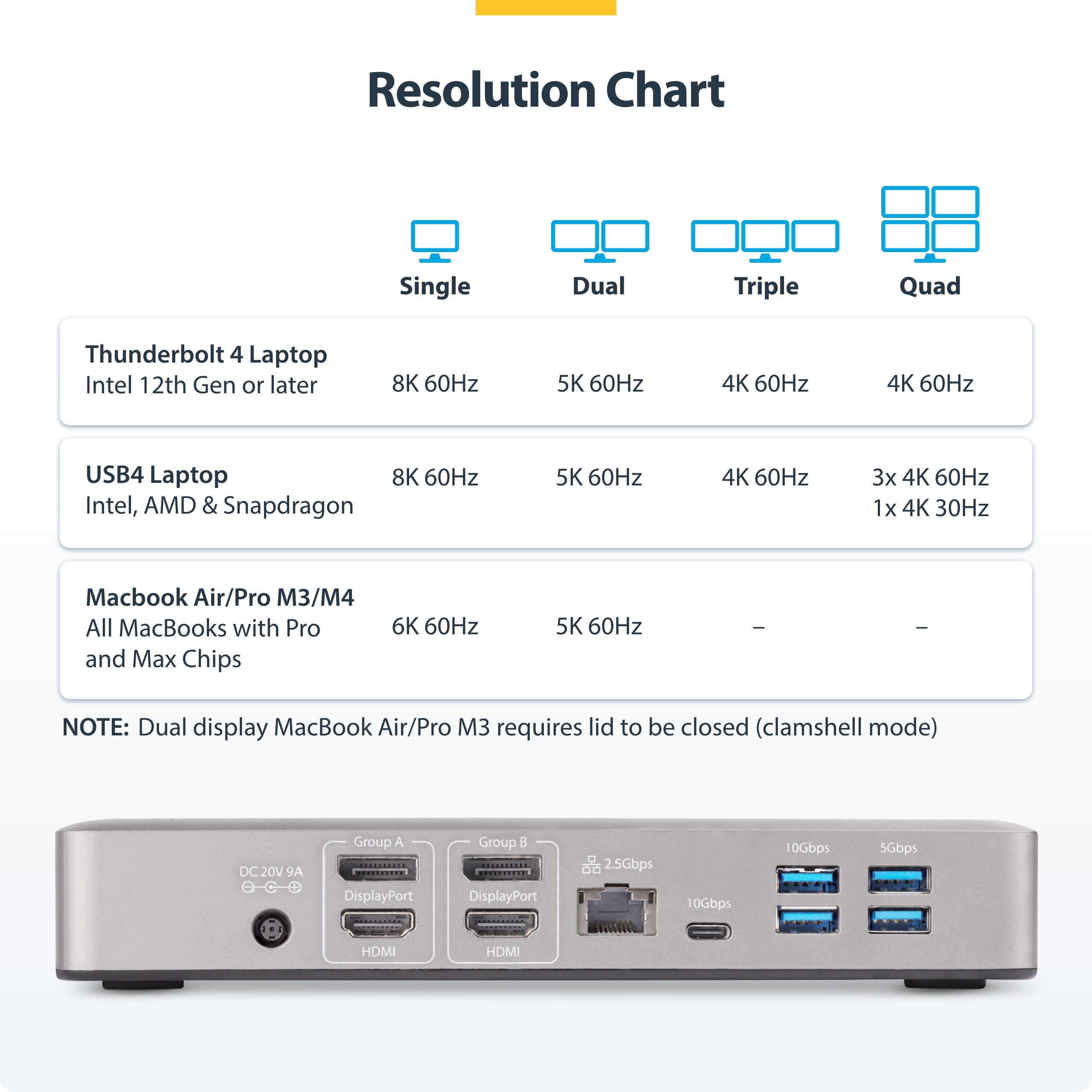

Input Current 2.5 A Input Voltage 110V-240V AC Output Current 9 Output Voltage (V) 20V DC Power Consumption (In Watts) 180W Power Delivery 98W Power Source AC Adapter Included Plug Type CP (OD:7.4/ID:5.1/CPD:0.6) Center Tip Polarity Positive Color Space Gray Humidity 0% to 95% (non-condensing) at 25°C Material Aluminum Operating Temperature 0 to 40°C Product Length (mm) 95.800 Product Width (mm) 210.000 Product Height (mm) 34.500 Product Weight (g) 200.000 Storage Temperature -20 to 70°C TAA Compliant No Compatible Networks 2.5G/1G/100Mbps/10Mbps Downstream Maximum Data Transfer Rate Thunderbolt 4 (40Gbps) Full Duplex Support Yes Maximum Data Transfer Rate 40Gbps Maximum Digital Resolutions Maximum Supported Resolution 8K 60Hz (DSC) MTBF (hours) 10,000 Hours OS Compatibility - Windows 11
- Windows 10
- macOS Sonoma (14.0)
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Supported Charging Outputs BC 1.2 (1.5A) UASP Support Yes USB Type and Rate Thunderbolt 4 (40Gbps) Video Output Port - DisplayPort
- HDMI
Video Transport Technology Thunderbolt Wake-On-LAN (WOL) Yes Audio Yes Bus Type Thunderbolt 4 Chipset ID - Intel - JHL8440
- Cypress - HX3PD
- Parade - FL5801
- Realtek - RTL8156BG
- Genesys Logic - GL3231S
- Realtek - ALC4030U
- Realtek - RTD2188
- Cypress - CCG5
- TI - TPS2546
Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
Host Connection Port Thunderbolt Industry Standards - Thunderbolt 4
- USB 3.2 Gen 2 10Gbps
- HDMI 2.1
- DisplayPort 1.4
- Secure Digital (SD) 4.0 UHS-II
- 2.5GBASE-T / 1000BASE-T / 100BASE-T / 10BASE-T
- USB Power Delivery 3.0
Interface/Bridge Thunderbolt 4 Laptop Dock 4K Support Yes Laptop Dock Number of Displays 4 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power Button LED (Green): Illuminates When the Dock is Connected to a Power Source and Powered On
- 1 - LAN Port - Network Status LED (Green): Illuminates to Indicate an Ethernet Link is Active
- 1 - LAN Port - Network Activity LED (Amber): Blinks to Indicate Network Traffic
Number of Battery Charge 1.2 Ports 1 Number of Displays 4 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- SD Card Reader
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

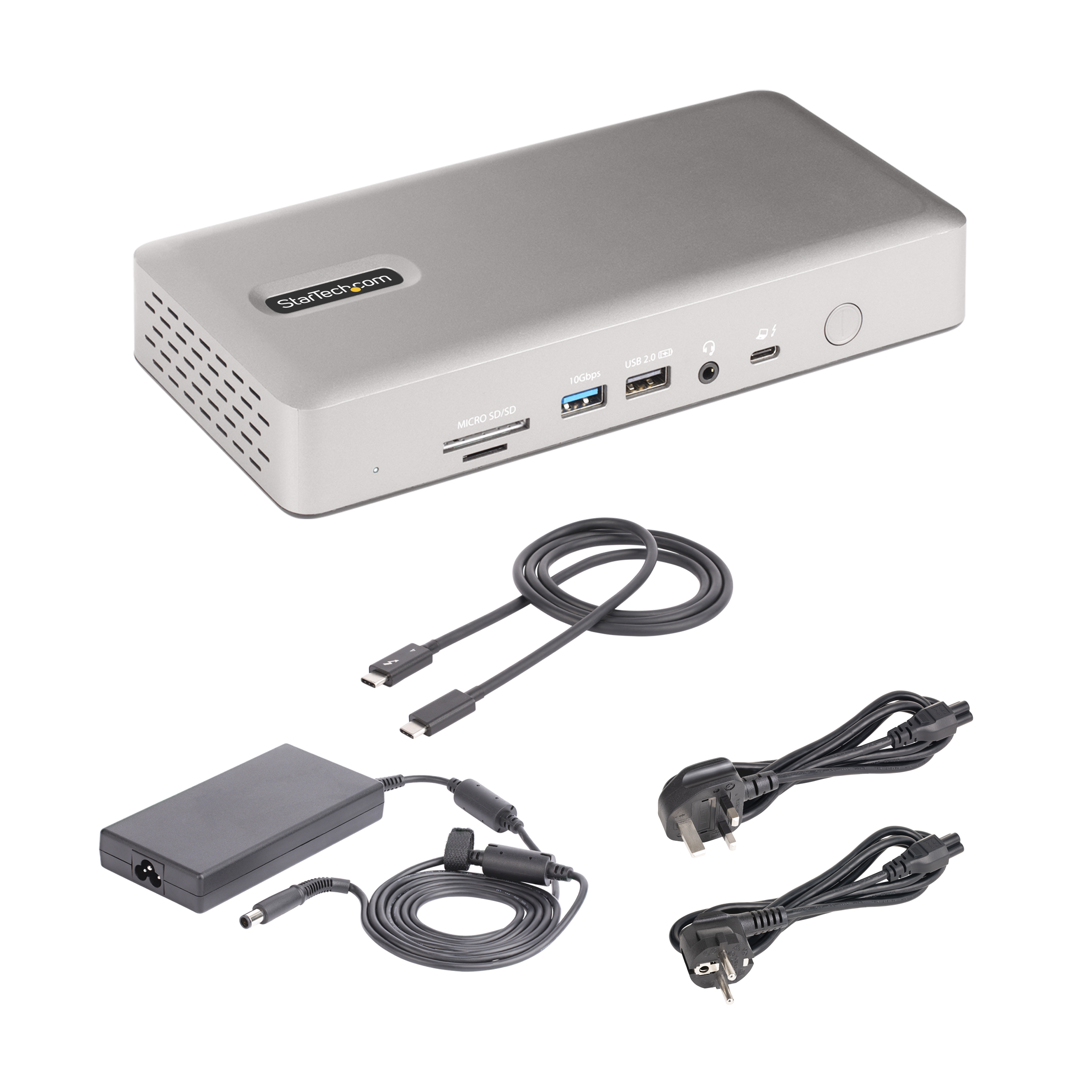

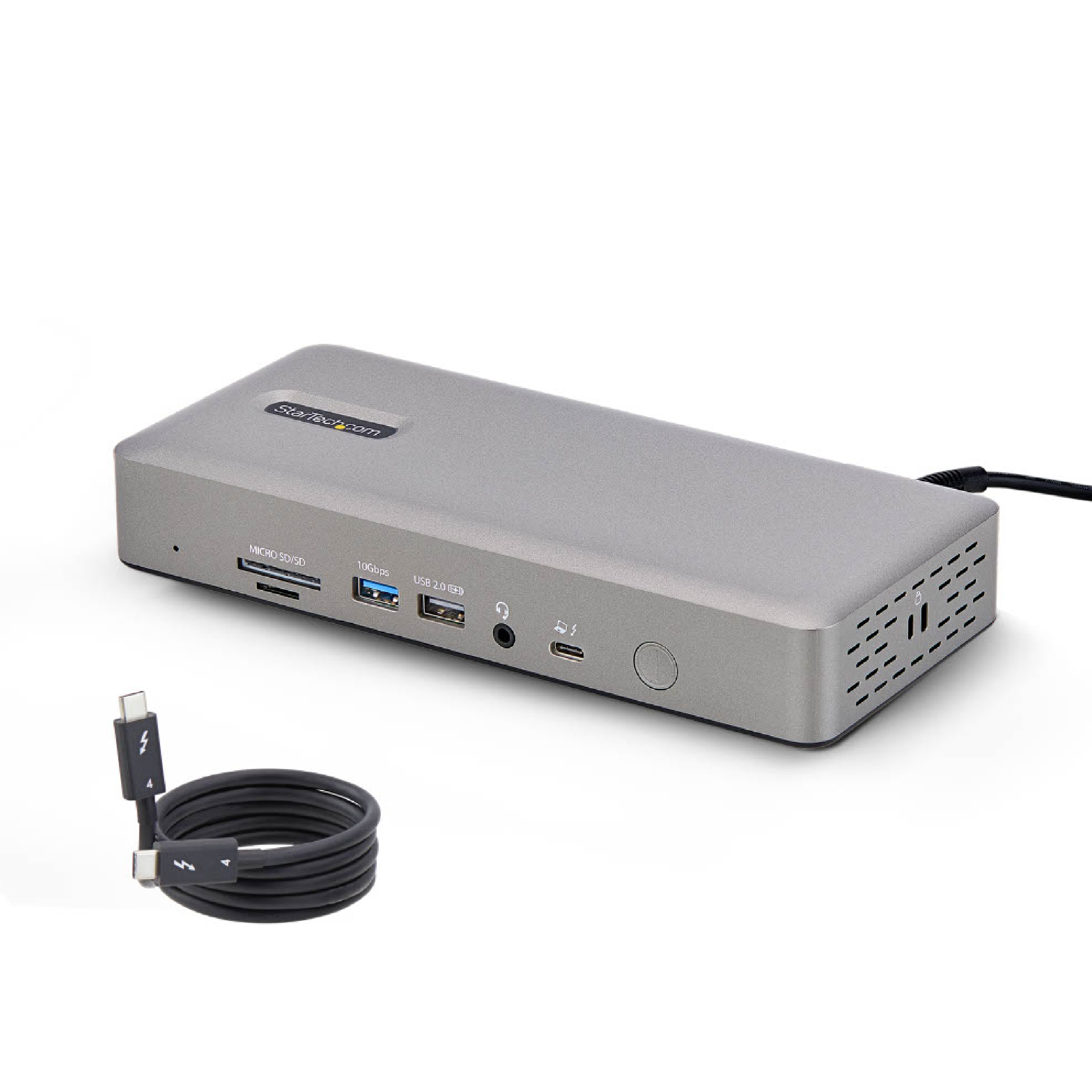

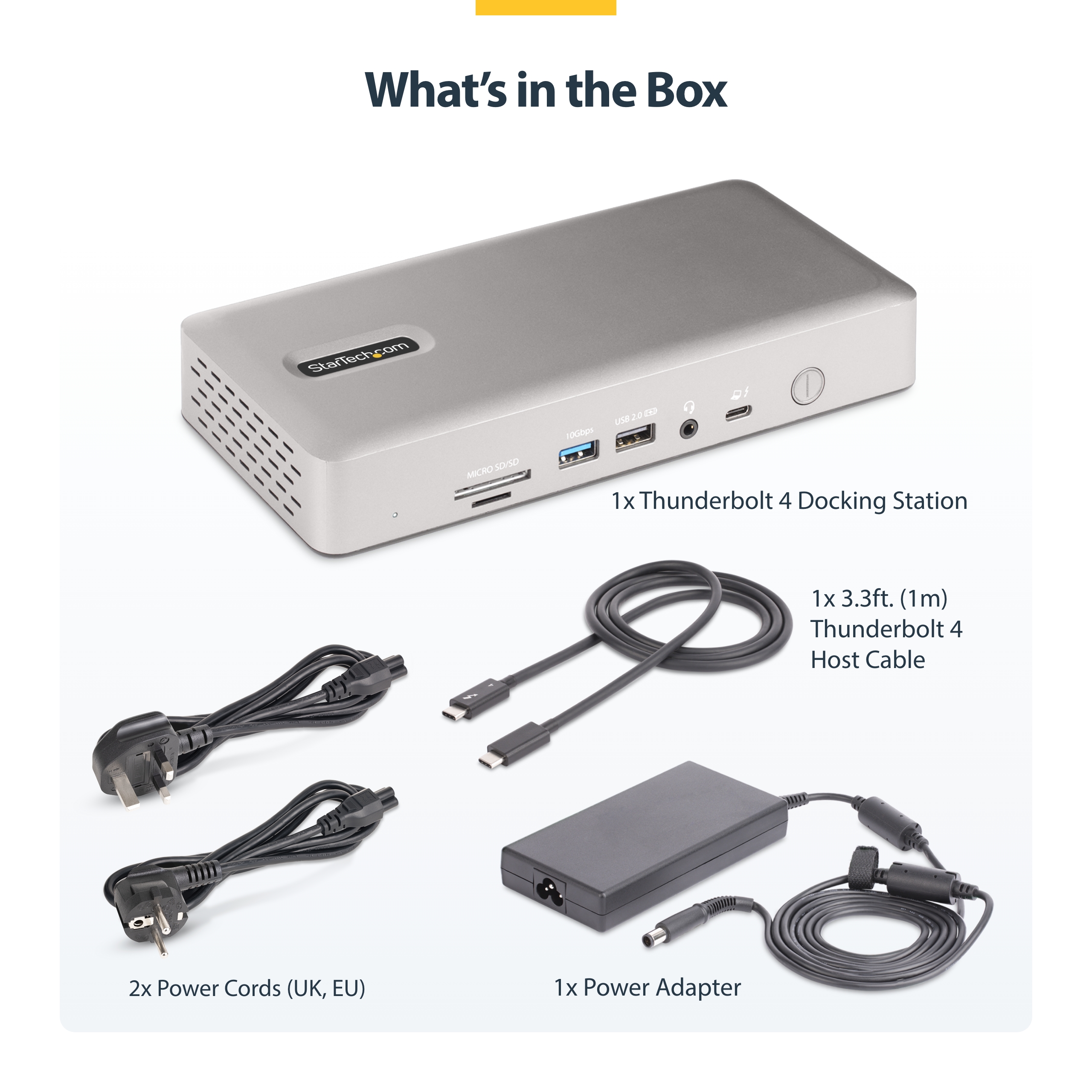

Carton Depth (mm) 380 Carton Height (mm) 270 Carton Quantity 8 Carton Weight Gross (g) 11880 Included in Package - 1 - Thunderbolt 4/USB4 Docking Station
- 1 - 3ft (1m) Thunderbolt 4 Host Cable
- 1 - Universal Power Adapter (EU, UK)
- 1 - Quick-Start Guide

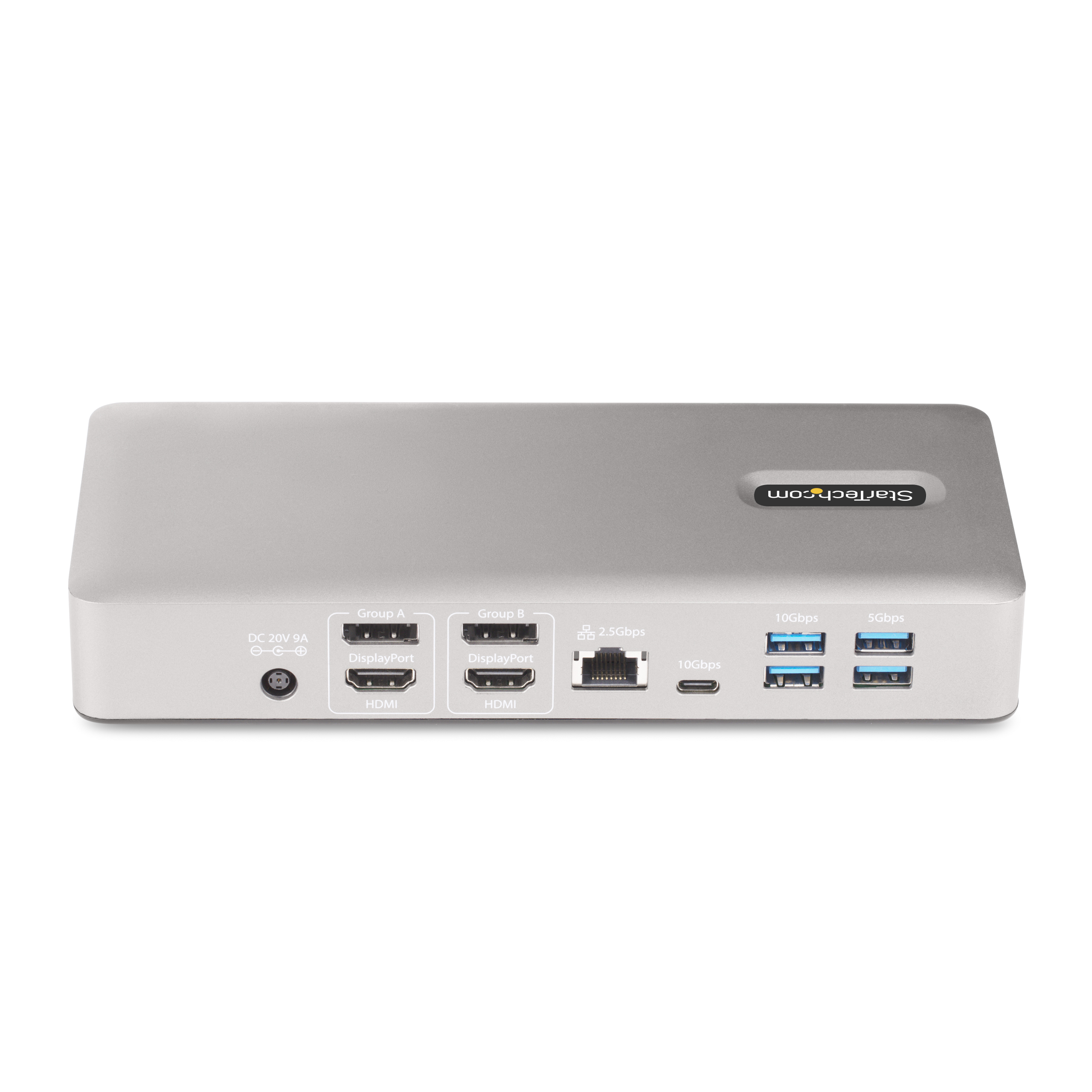

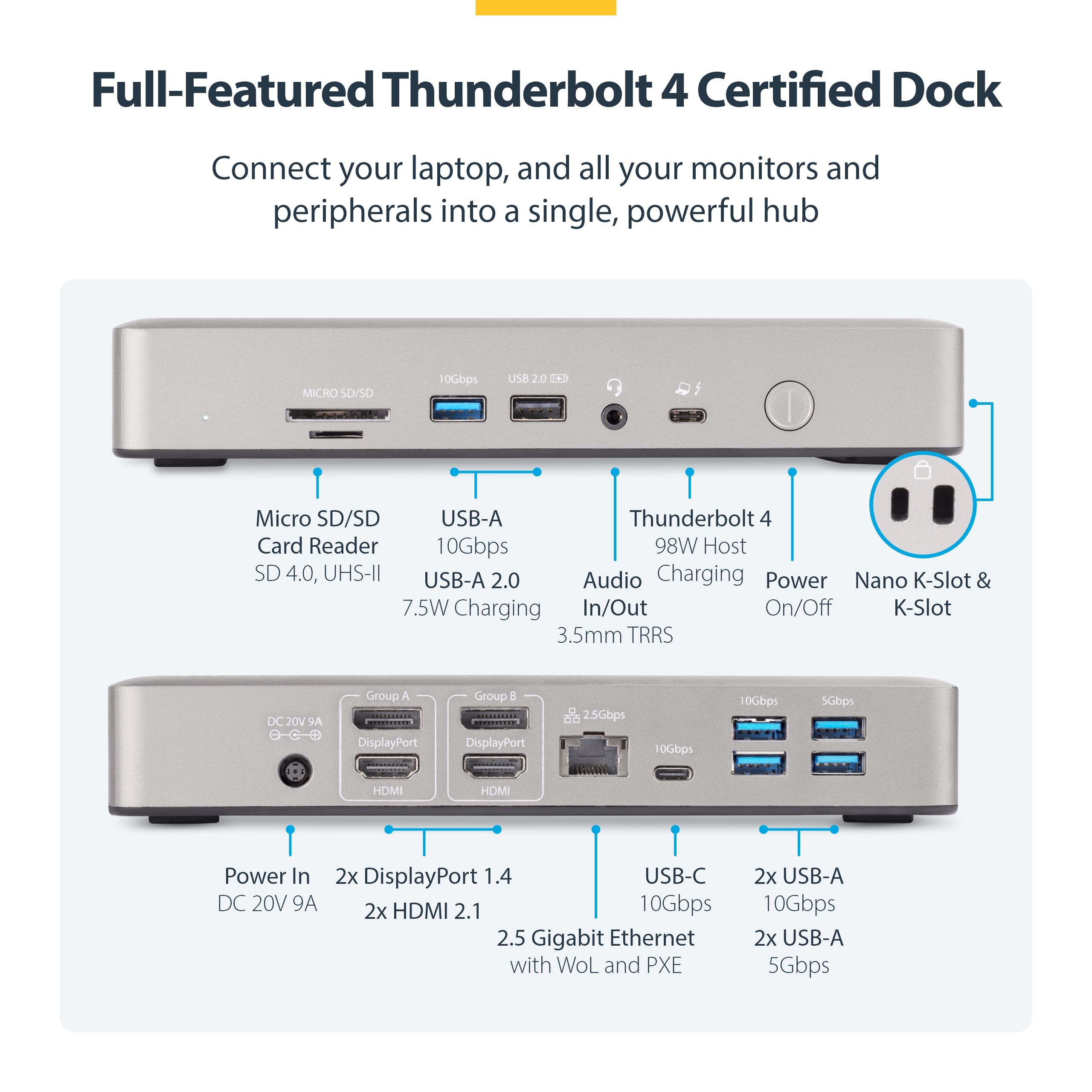

Package Depth (mm) 235 Package Height (mm) 90 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 1393 Packaging Description Thunderbolt 4/USB4 Dock, Quad Display, 7x USB, 2.5GbE, 98W Power Delivery Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 2 Connector 3 USB-A (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 7.5W) Connector 4 (Quantity) 1 Connector 5 USB-C (10Gbps, 4.5W) Connector 5 (Quantity) 1 Connector 6 USB-A (10Gbps, 4.5W) Connector 6 (Quantity) 2 Connector 7 USB-A (5Gbps, 4.5W) Connector 7 (Quantity) 2 Connector 8 3.5mm (4 Conductors, TRRS) Connector 8 (Quantity) 1 Connector 9 Micro SD Card Slot Connector 9 (Quantity) 1 Connector 10 SD Card Slot Connector 10 (Quantity) 1 Host Connector 1 USB-C (Thunderbolt 40Gbps) Host Connector 1 (Quantity) 1 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-09-22 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment TB4 dock / No dedicated video outputs; use up to two of 3 downstream TB4 ports with not included USB-C video adapters for displays; Compatible w/Windows Thunderbolt 4/USB4 laptops or M1 Max/M1 Pro & Intel Thunderbolt 3 MacBooks4 x USB-A port hub; SD slot, GbE, 96W PD, 0.8m cable Comparable SKU 2 Comment TB3 dock; Video switching with 2 x HDMI and 2 x DP dedicated video outputs; Compatible with Thunderbolt 3 (Mac & Windows) laptiops and USB-C (non-Thunderbolt) laptops; 96W PD; 5 port usb hub (3 x USB-A; 2 x USB-C), GbE, 0.8m cable Digital Content Due Date 2024-02-08 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK Primary Technology - Thunderbolt 4
- DisplayPort 1.4
- Power Delivery
- HDMI 2.1 / 8K 60Hz +
Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2023-10-20 Target Production Release 2023-10-27 Tech Lead Sam Raskas Technical Writer Alex Garcia Technology Lifecycle Mainstream Video Not Required
