Main Image
134B-USBC-HDMI211M

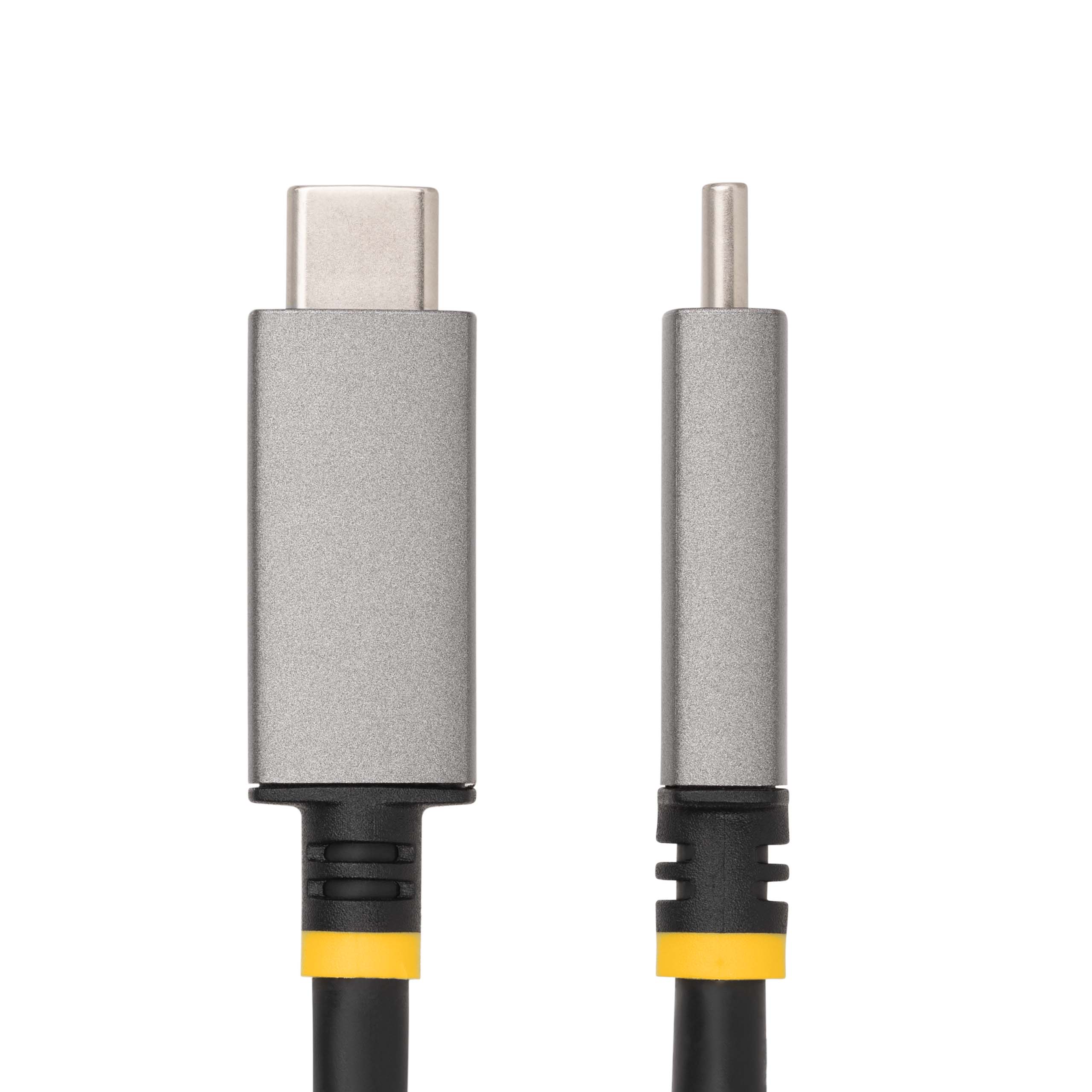

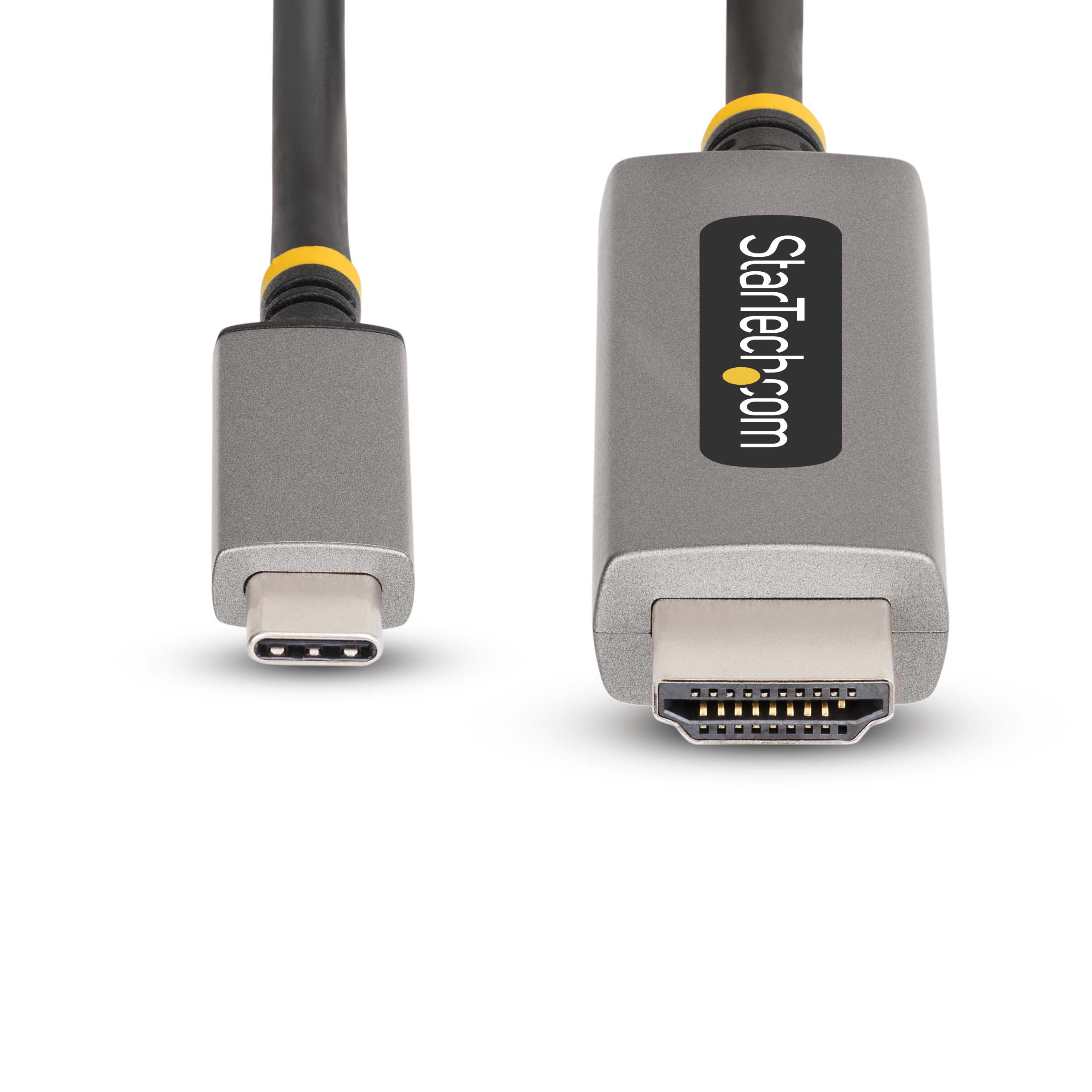

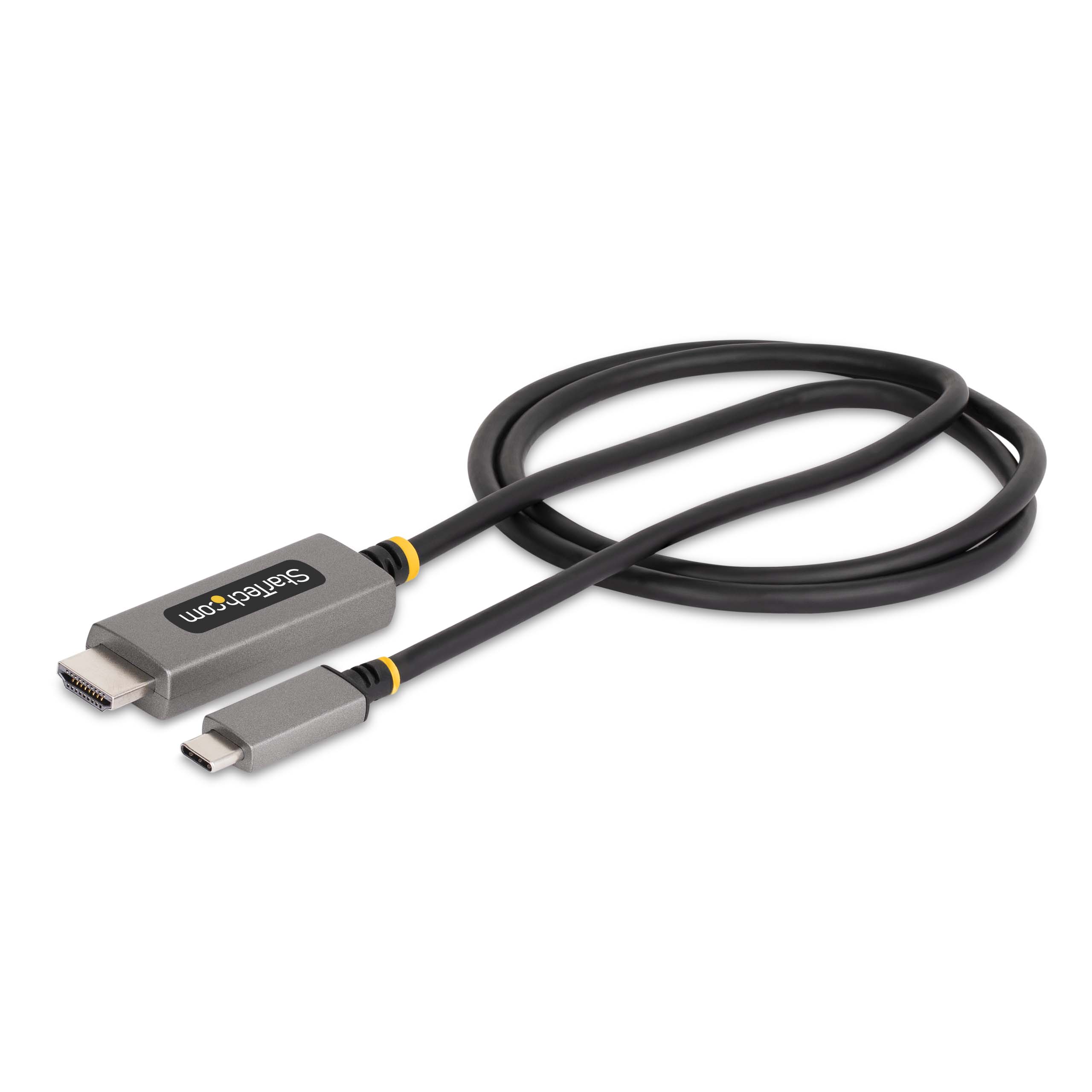

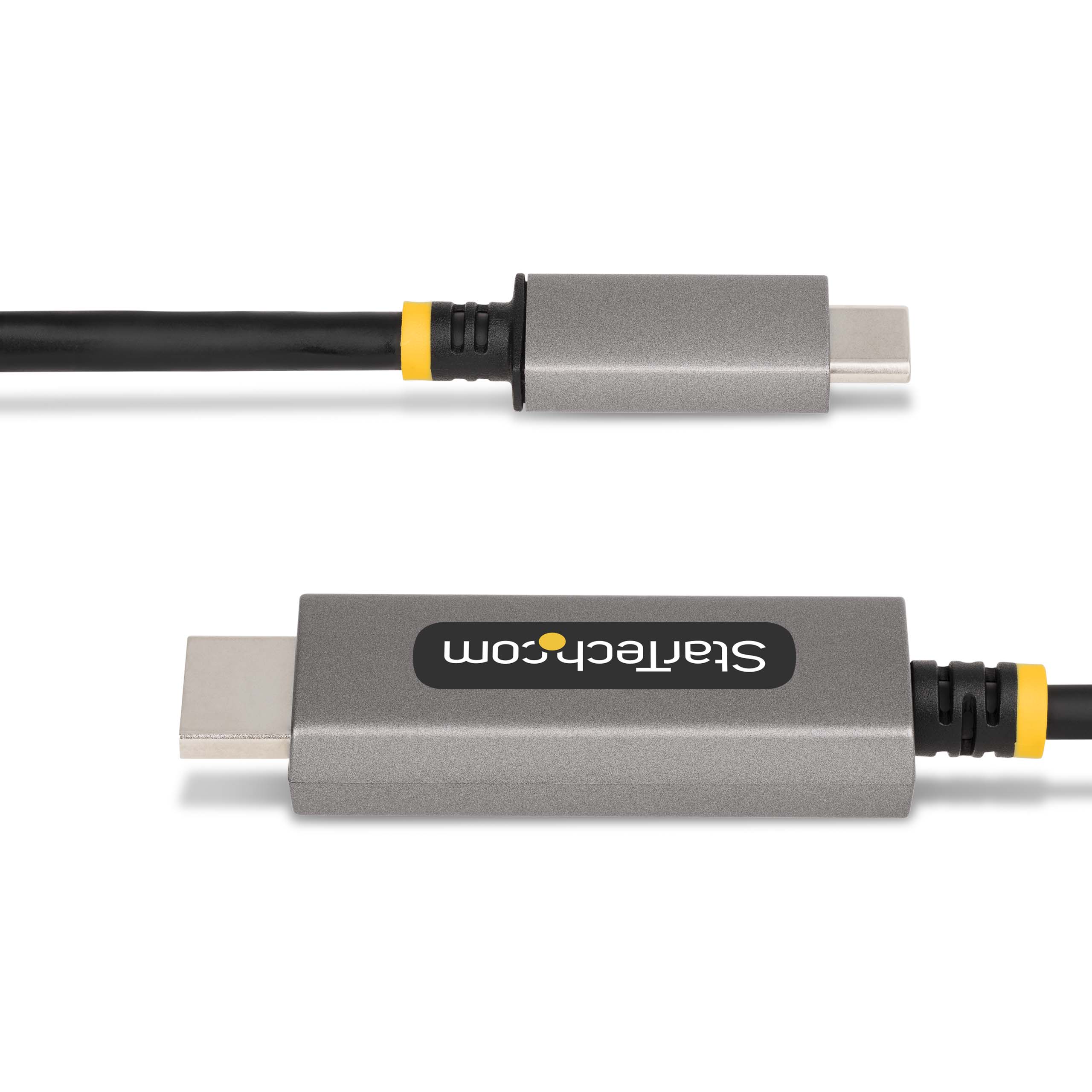

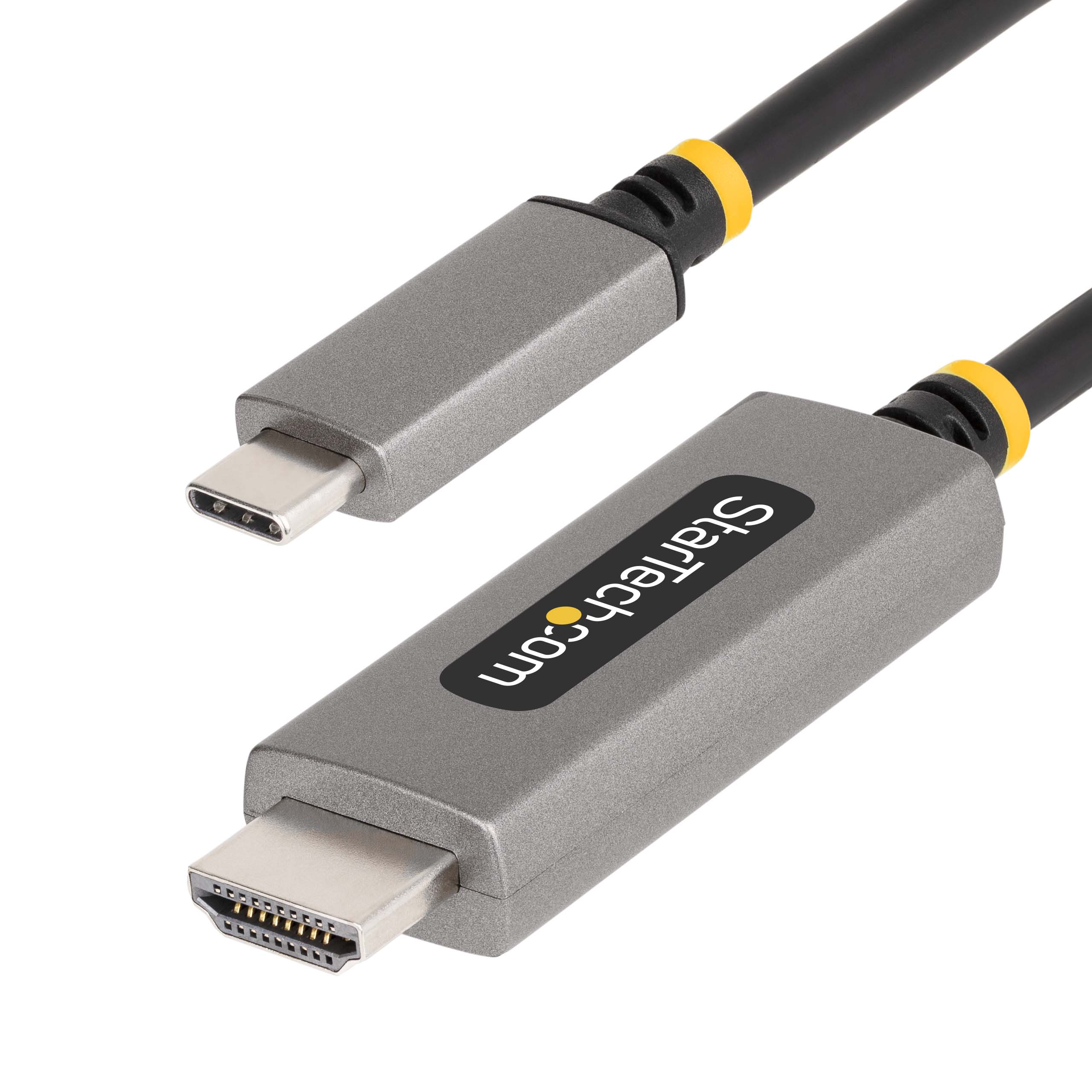

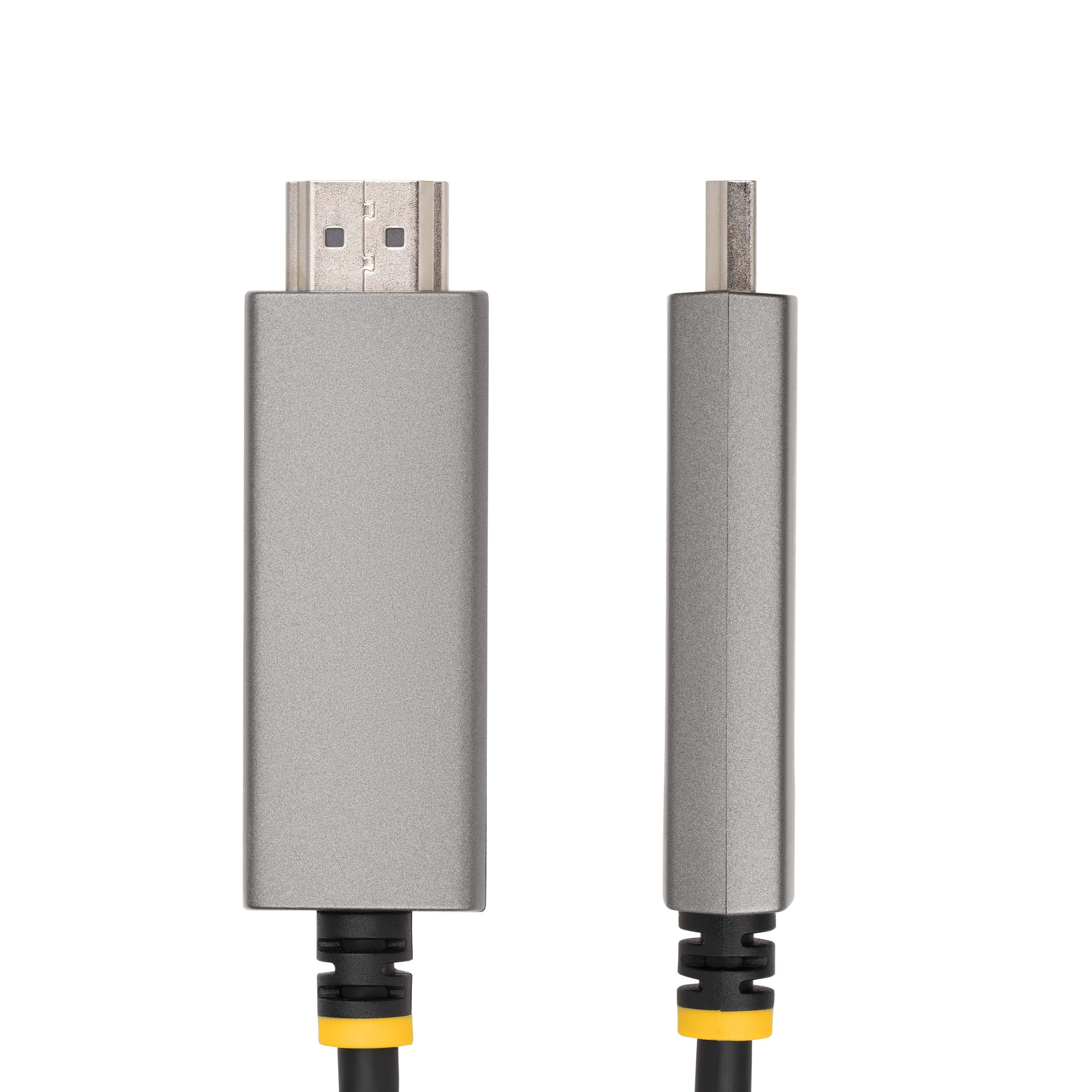

USB C DisplayPort 1 4 to HDMI 2 1 Cable 1m
Connect a DP Alt Mode enabled USB-C source to an HDMI monitor, located up to 3.3ft (1m) away, with support for HDR video and resolutions up to 8K 60Hz
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB C DisplayPort 1 4 to HDMI 2 1 Cable 1m Product Number 134B-USBC-HDMI211M UPC 065030897426 Lifecycle status Active Warranty 3 Years Weighted Opportunity 42000 Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C to HDMI - 8K HDR Family USBC to HDMI 2.1 Adapter Cables, DP Alt Mode, Partial VBL, 8K60 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) USB-C to HDMI Cable Product Title (Short) 3ft (1m) USB-C to HDMI Adapter Cable, 8K Product Title (Medium) 3ft (1m) USB-C to HDMI Adapter Cable, 8K 60Hz, HDR10, USB-C to HDMI Converter Product Title (Standard) 3ft (1m) USB-C to HDMI Adapter Cable, 8K 60Hz, 4K 144Hz, HDR10, USB Type-C to HDMI 2.1 Converter, USB-C/USB4/TB3/4 Compatible Product Title (Long) 3.3ft (1m) USB-C to HDMI Adapter Cable, 8K 60Hz, 4K 144Hz, HDR10, USB Type-C to HDMI 2.1 Video Converter Cable, USB-C DP Alt Mode/USB4/Thunderbolt Compatible - USB-C Laptop to HDMI Product Title (AMZ) 3ft (1m) USB-C to HDMI Adapter Cable, 8K 60Hz, 4K 144Hz, HDR10, USB Type-C to HDMI 2.1 Video Converter Cable, USB-C DP Alt Mode/USB4/Thunderbolt 3/4 Compatible (134B-USBC-HDMI211M) Title Ingram (Part 1) 1m USB-C to HDMI Adapter - Title Ingram (Part 2) USB Type-C to HDMI Converter Cable Website Product Headline Connect a DP Alt Mode enabled USB-C source to an HDMI monitor, located up to 3.3ft (1m) away, with support for HDR video and resolutions up to 8K 60Hz Bullet 1 HIGH PERFORMANCE: 3.3ft (1m) USB-C to HDMI Adapter Cable connects a USB-C DP Alt-mode source to an 8K 60Hz/4K 144Hz HDMI Display; Intel 11th Gen Processor & later or a discrete graphics card with DP 1.4 & DSC is required for maximum performance capability Bullet 2 HOST COMPATIBILITY: USB-C to HDMI Converter Cable works with laptops and devices from Dell, HP, Lenovo, Microsoft, and more; Apple M1/M2/M3 Pro/Max MacBooks only support up to 4K 60Hz over USB-C DP Alt Mode and will not be able to achieve 8K 60Hz Bullet 3 NO DRIVERS OR SOFTWARE: Universal Adapter Cable is compatible with all hardware platforms and any operating system; USB Type-C to HDMI Cable works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices Bullet 4 BUILD QUALITY & DESIGN: Integrated video adapter and cable minimizes failure points and signal loss; Built with adaptive receiver equalization to optimize input signal & amplify output signal ensuring display compatibility; Cage shielding prevents EMI Bullet 5 TECHNICAL SPECIFICATIONS: 3.3ft (1m) USBC to HDMI Cable is HDMI 2.1 FRL compliant, supporting HDR10, HDCP 1.x/2.2/2.3 and DSC 1.1/1.2a; Supports 7.1ch HDMI audio with Dolby Atmos and DTS:X; Outside Cable Diameter: 4.8mm Bullets (Compact) 3.3ft (1m) USB-C to HDMI Adapter Cable connects a USB-C DP Alt-mode laptop to an 8K 60Hz/4K 144Hz HDMI Display; Universal Adapter Cable requires no drivers or software; USB-C/USB4/Thunderbolt 3/4 compatible; HDMI 2.1 FRL; HDR10; HDCP 2.3; 7.1ch Audio Bullets (Consolidated) - 3.3ft (1m) USB-C to HDMI Adapter Cable connects a USB-C source to an 8K 60Hz or 4K 144Hz HDMI Display - Intel 11th Gen Processor & later or discrete graphics card with DP 1.4 & DSC is required for maximum performance - Universal USB Type-C to HDMI Converter Cable requires no drivers; Works with USBC DP Alt Mode/USB4/Thunderbolt 3/4 laptops and devices; HDMI 2.1 FRL; HDR10; DSC 1.2a - Integrated video adapter and cable minimizes failure points and signal loss ensuring display compatibility Marketing Copy Marketing Copy (No HTML) Applications - Connect a USB-C device to an 8K Display without installing drivers or software
- Ideal for creative professionals who work with high-resolution graphics or video
Website Search Keyword - thunderbolt 3 to hdmi cable
- usb type-c to hdmi cable
- usb-c display cable
- usb-c male to hdmi male cable
- usb-c to hdmi 2.1 cable
- usb-c to hdmi adapter cable
- usb-c to hdmi cable
- usb-c to hdmi cable 8k 60hz
- usb-c to hdmi converter cable
- usb-c to hdmi cord
- usb-c to hdmi dp alt mode
- usb-c to hdmi hdr
- usb-c to hdmi monitor cable
- usb-c video cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Polyethylene Terephthalate
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements - The host USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
- In order to achieve maximum performance of this product, both the source and destination devices must support the appropriate specifications.
Related Products - CDP2HDMM1MH
- CDP2HDMM2MH
- 135B-USBC-HDMI212M
Power Delivery No PD Pass-Through Cable Length (mm) 1000 Color Space Gray Humidity 80% RH Material - Plastic
- PVC
Operating Temperature 0°C to 40°C (32F° to 104F°) Product Length (mm) 1000.000 Product Width (mm) 21.000 Product Height (mm) 11.000 Product Weight (g) 50.300 Storage Temperature 0°C to 75°C (32F° to 167F°) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support Yes Maximum Digital Resolutions 8K 60Hz Maximum Supported Resolution 8K 60Hz (DSC) OS Compatibility OS Independent Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input USB-C AV Output HDMI Cable Jacket Material PVC Chipset ID VMM7100 Converter Type Cable Adapters Host Connection Port USB-C Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 420 Carton Height (mm) 425 Carton Quantity 160 Carton Weight Gross (g) 12209 Included in Package 1 - USB-C to HDMI Adapter Cable Included In Package for Label 1 - USB-C To HDMI Converter Cable Number of Sub-Cartons 16 Package Depth (mm) 215 Package Height (mm) 12 Package Width (mm) 200 Package Quantity 1 Package Weight (g) 62 Packaging Description USB-C to HDMI 2.1 Adapter Cable - HDR - 8K 60Hz - 3.3ft (1m) Packaging Description India USB-C to HDMI 2.1 Converter Cable - HDR - 8K 60Hz - 3.3ft (1m) Sub-Carton Depth (mm) 258 Sub-Carton Height (mm) 82 Sub-Carton Width (mm) 208 Sub-Carton Quantity 10 Sub-Carton Weight (g) 652 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 A+ Not Required Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2022-08-12 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2023-08-11 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2022-11-02 Target Production Release 2023-05-15 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Latest Video Not Required
