Main Image
1394FIBEXT
Main Image

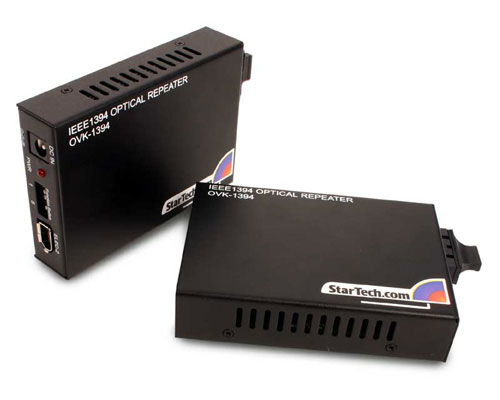

Product Name 3300 foot (1000 meter) Fiber Optic IEEE-1394 FireWire Extender Product Number 1394FIBEXT UPC 065030806220 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) 3300 foot (1000 meter) Fiber Optic IEEE-1394 FireWire Extender Bullet 1 Compliant with IEEE-1394a specifications Bullet 2 Fast data transfer rate of up to 400 Mbits/sec Bullet 3 Uses either 62.5um or 50um multimode fiber cable Marketing Copy Applications - Ideal for use with remote digital recorders, security and surveillance equipment, POS devices, printers, scanners and other FireWire applications
- A/V Broadcasting and Editing (printers, scanners, digital cameras/camcorders, digital audio recorders)
- Security (surveillance cameras, webcams, mass storage)
- Long range IEEE-1394 FireWire networking
System and Cable Requirements Computer with existing USB support Accessory Products - FIBSCSC50
- FIBSCSC40
- FIBSCSC30
Color Black Product Length (mm) 100 Product Width (mm) 72 Product Height (mm) 23 TAA Compliant No General Specifications - Extension Distance: Up to 3300 feet (1000 meters)
- Data Transfer Rate: Up to 400 Mbits/sec
- Industry Standards: 1394a
- Unit 1 Connectors: Upstream - 1 x 6 pin 1394a (female)
- : Downstream - 1 x SC Fiber (female)
- Unit 2 Connectors: Upstream - 1 x SC Fiber (female)
- : Downstream - 1 x 6 pin 1394a (female)
- Safety Standards: FCC & CE
- Dimensions: 4.0 x 2.8 x 0.9 Inches (100 x 72 x 23 mm)
Maximum Cable Length (mm) 1000000 Maximum Data Transfer Rate 400000000 Mbits/Sec LED Indicators 1 - Power Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 1 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Host Connector 2 (Quantity) 1 en-US Content Approved Yes
