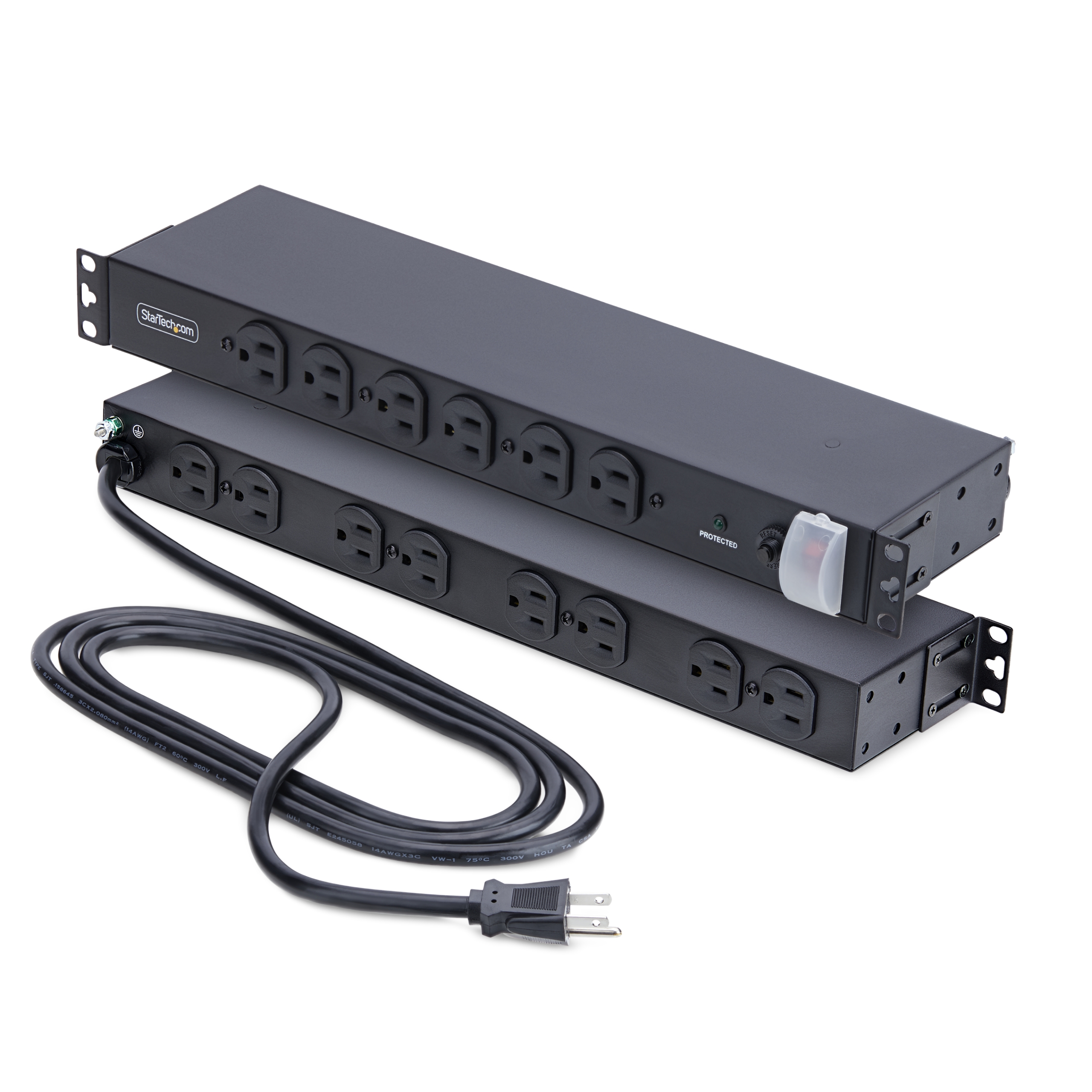

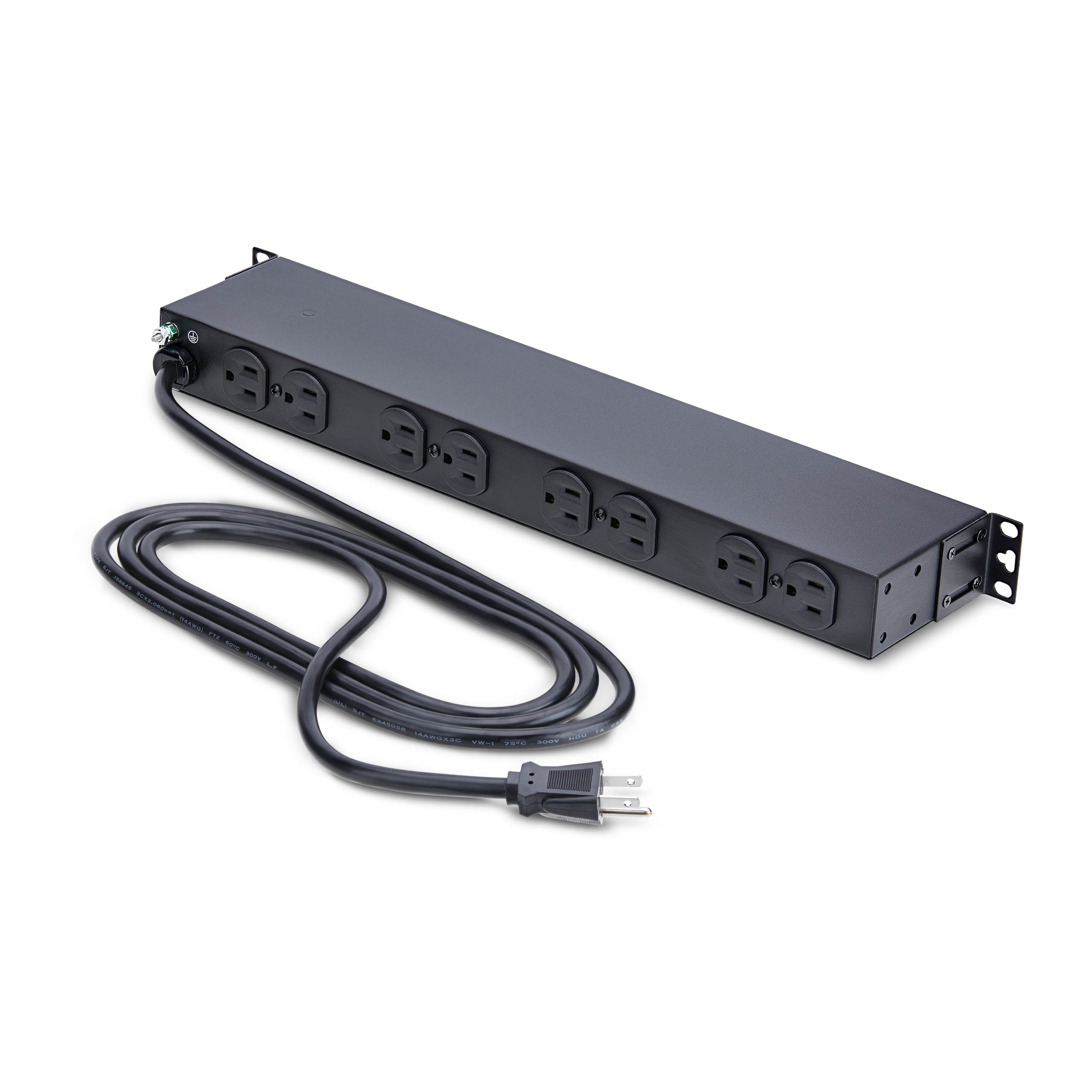

1415B8H-RACK-PDU-SP

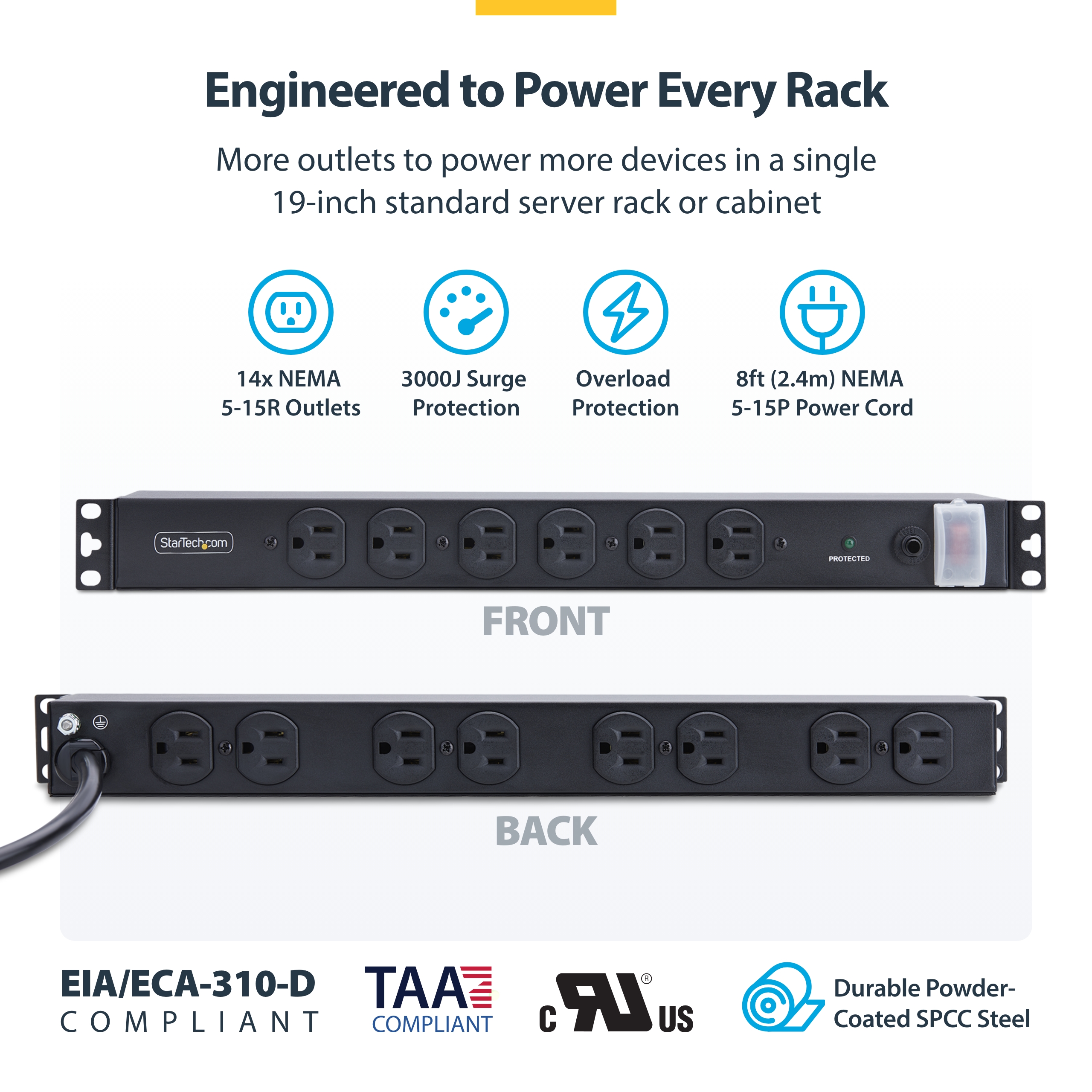

Basic 14 Port PDU 120V 15A 5-15 Plug

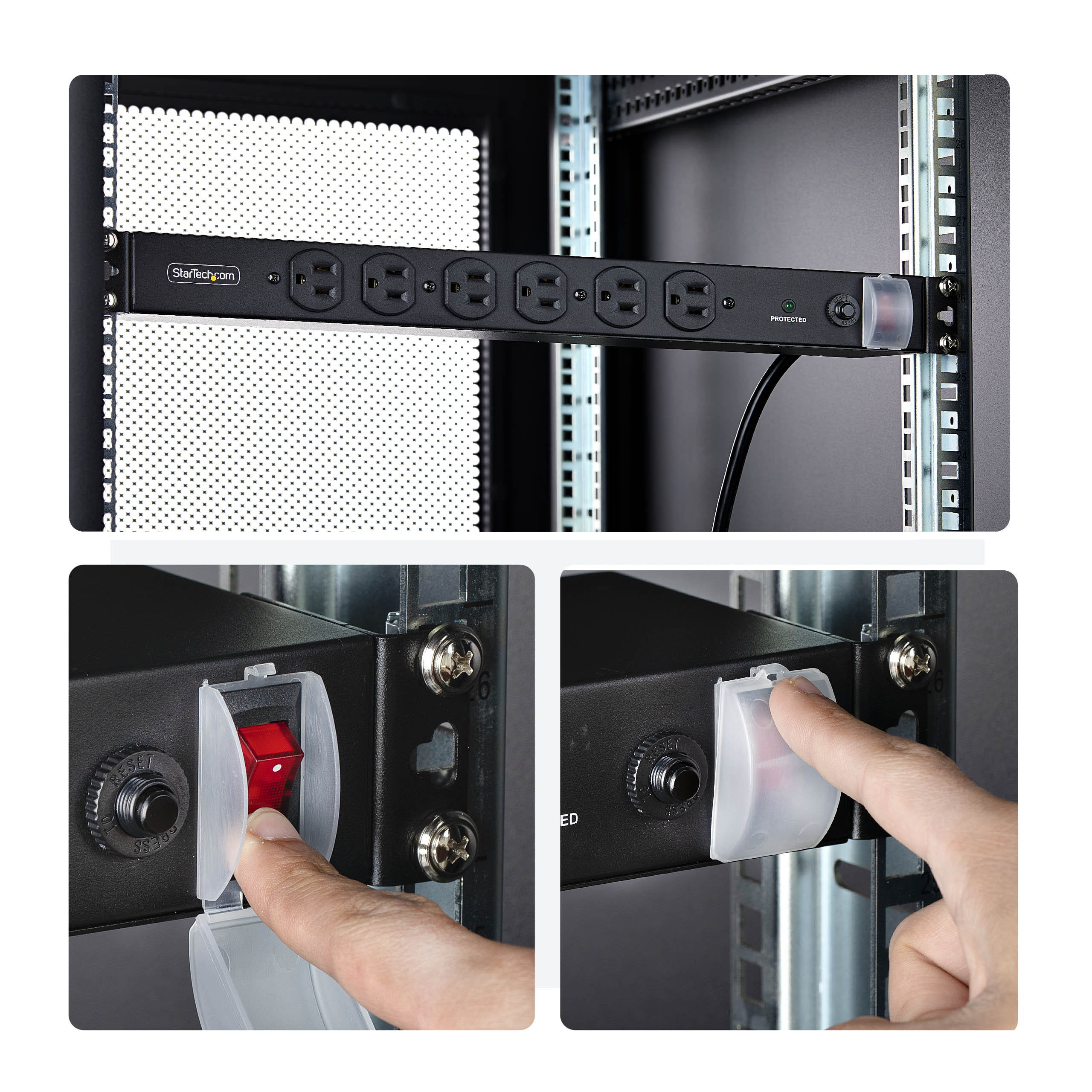

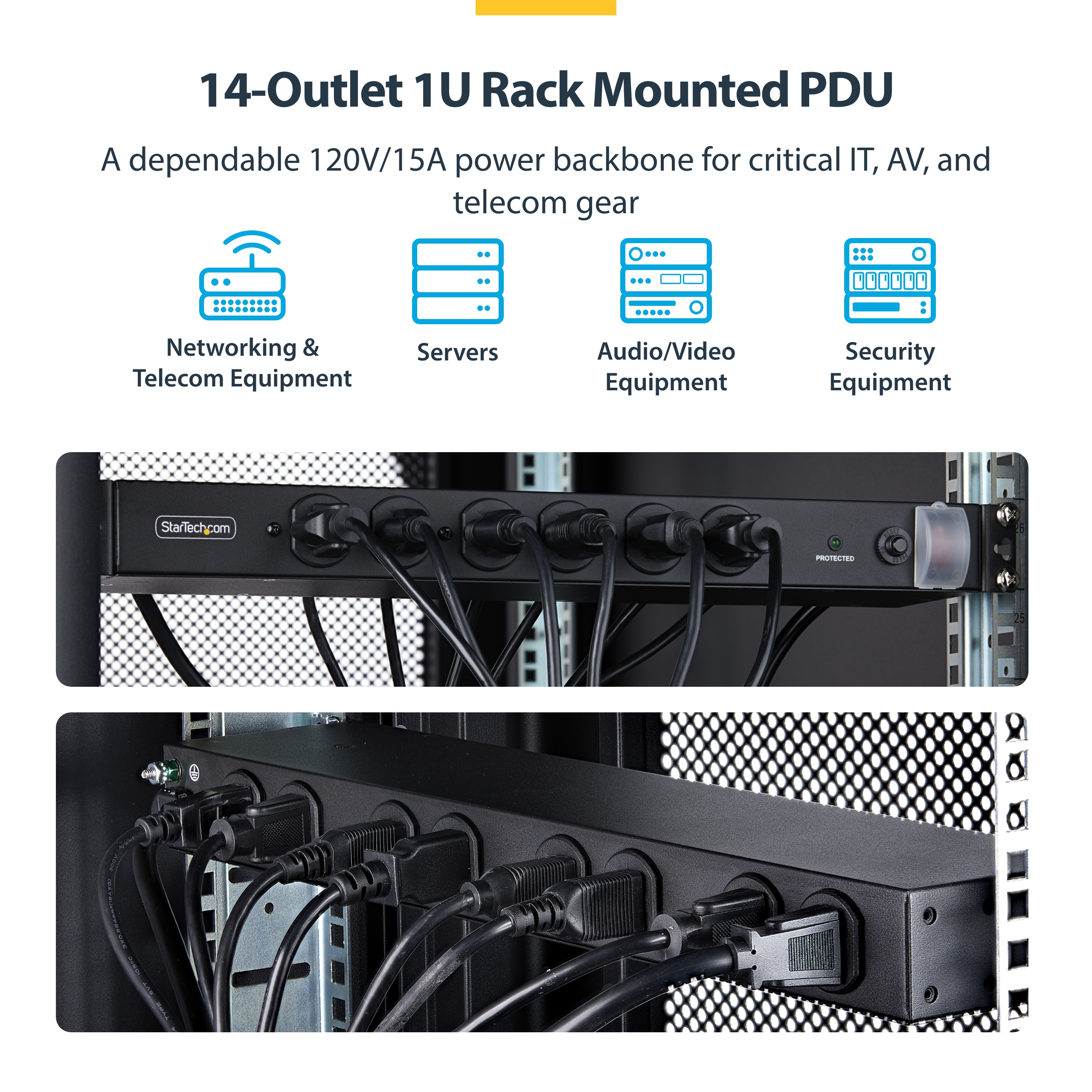

Add fourteen power outlets to a 19in server rack or cabinet
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Basic 14 Port PDU 120V 15A 5-15 Plug Product Number 1415B8H-RACK-PDU-SP UPC 065030920964 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Power > PDUs Category Level 1 Racks and Enclosures Category Level 2 Rack Power Category Level 3 Rackmount PDUs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX007X Product Title (Ultra-Short) 14-Outlet Rack PDU Product Title (Short) 14-Outlet Rackmount PDU, 1U Power Strip Product Title (Medium) 14-Outlet Rackmount PDU, 1U Server Power Strip/Supply, 6x Front & 8x Rear Ports Product Title (Standard) 14-Outlet Rackmount PDU, 1U Server Power Strip, 6x Front and 8x Rear Ports, Mounted Power Distribution Unit for 19in Racks Product Title (Long) 14-Outlet Rackmount PDU, 1U Server Power Strip with 6x Front and 8x Rear Ports, Mounted Power Distribution Unit for 19-Inch Racks and Cabinets Product Title (AMZ) 14-Outlet Rackmount PDU, 1U Server Power Strip, 6x Front and 8x Rear Ports, Mounted Power Distribution Unit Title Ingram (Part 1) 14-Outlet Rackmount PDU - 1U Title Ingram (Part 2) Server Power Strip for 19in Rack Website Product Headline Add fourteen power outlets to a 19in server rack or cabinet Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) 1U rackmount PDU unit for 19in racks w/ 12x NEMA 5-15R right-angle electrical outlets - 125V 15A supply; 8ft power cord - 2in outlet spacing fits bulky plugs in server/AV setups - Power distribution unit w/ safety cover switch - TAA power strip Bullets (Consolidated) - 1U rack-mounted PDU unit w/ 12x NEMA 5-15R right-angle electrical outlets; 6x front 6x rear - 125V max 15A; Built-in 8ft NEMA 5-15P power cord - 2in between outlets prevents blocked ports; Power supply for bulky plugs in high-density IT server/AV setups - Rackmount power distribution strip includes 4-way mounting brackets - User-resettable 15A circuit breaker; Illuminated power switch w/ safety cover prevents accidental shutoff - SPCC steel housing w/ powder-coated finish; TAA-compliant Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
Accessory Products - CABSCREWS
- CABCAGENUTS
- 271B-6800-POWER-CORD
- 27LC-4B00-POWER-CORD
- PXT101
- PXT1011010PK
- PXT101143
- PXT10112
Related Products - RKPW081915
- RKPW101920
- PDU08C13H
- 16NM8-RACK-MOUNT-PDU
- RKPW161915
- 1215B8H-RACK-PDU-RA
Input Voltage 120 AC Plug Type NEMA 5-15 Power (North America) Plug Cable Length (mm) 2400 Color Black Material Steel Product Length (mm) 462.48 Product Width (mm) 95.25 Product Height (mm) 43.29 Product Weight (g) 1618 TAA Compliant Yes Maximum Output Voltage (V) 125V Maximum Total Current 15A Maximum Total Current Draw per Phase 15A Nominal Input Voltage (V) 120V Nominal Output Voltage (V) 120V Regulatory Derated Input Current (North America) 12A Form Factor Horizontal Industry Standards - UL 1363
- EIA/ECA-310-E

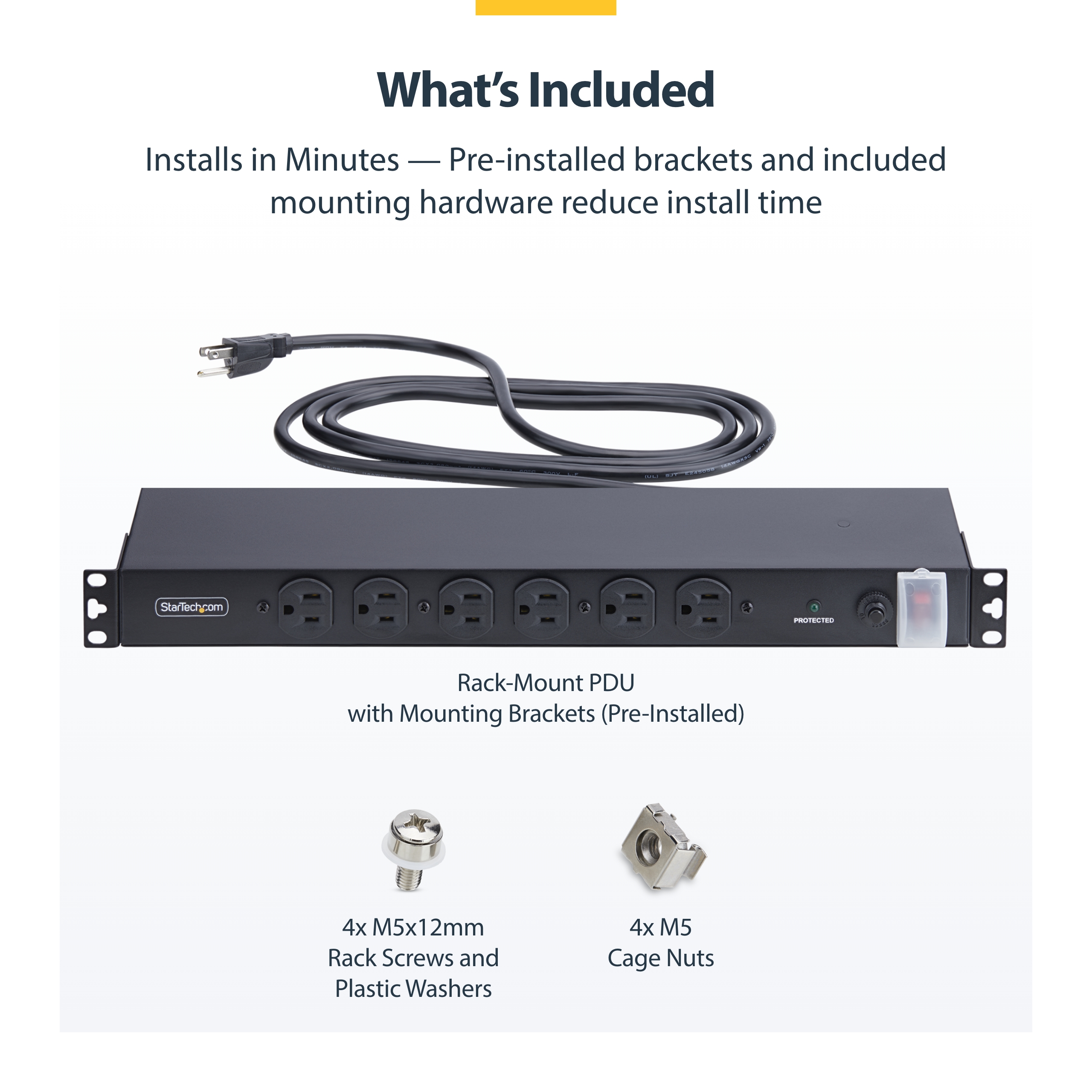

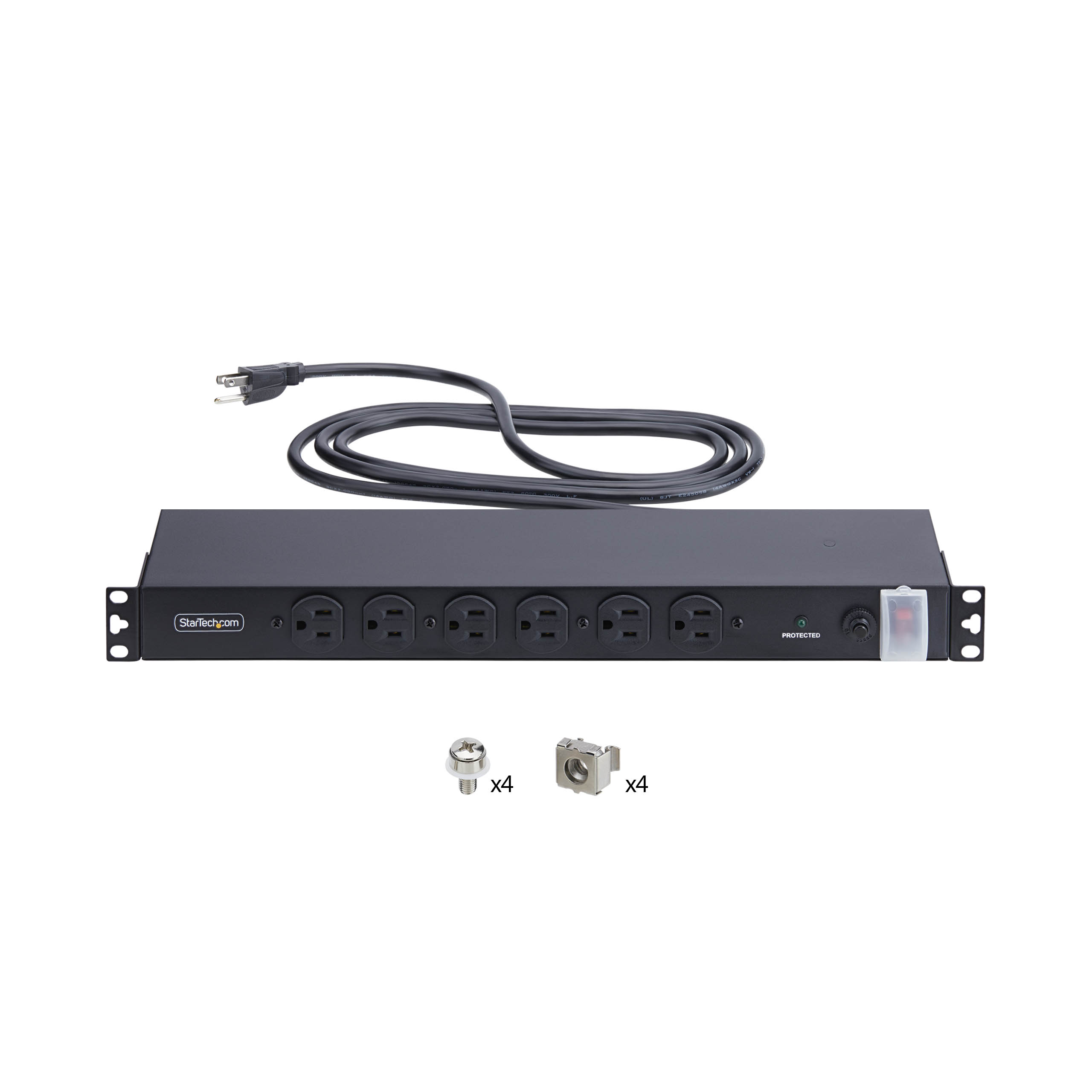

Rack-Mountable Yes U Height 1U Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - Rack-Mount PDU

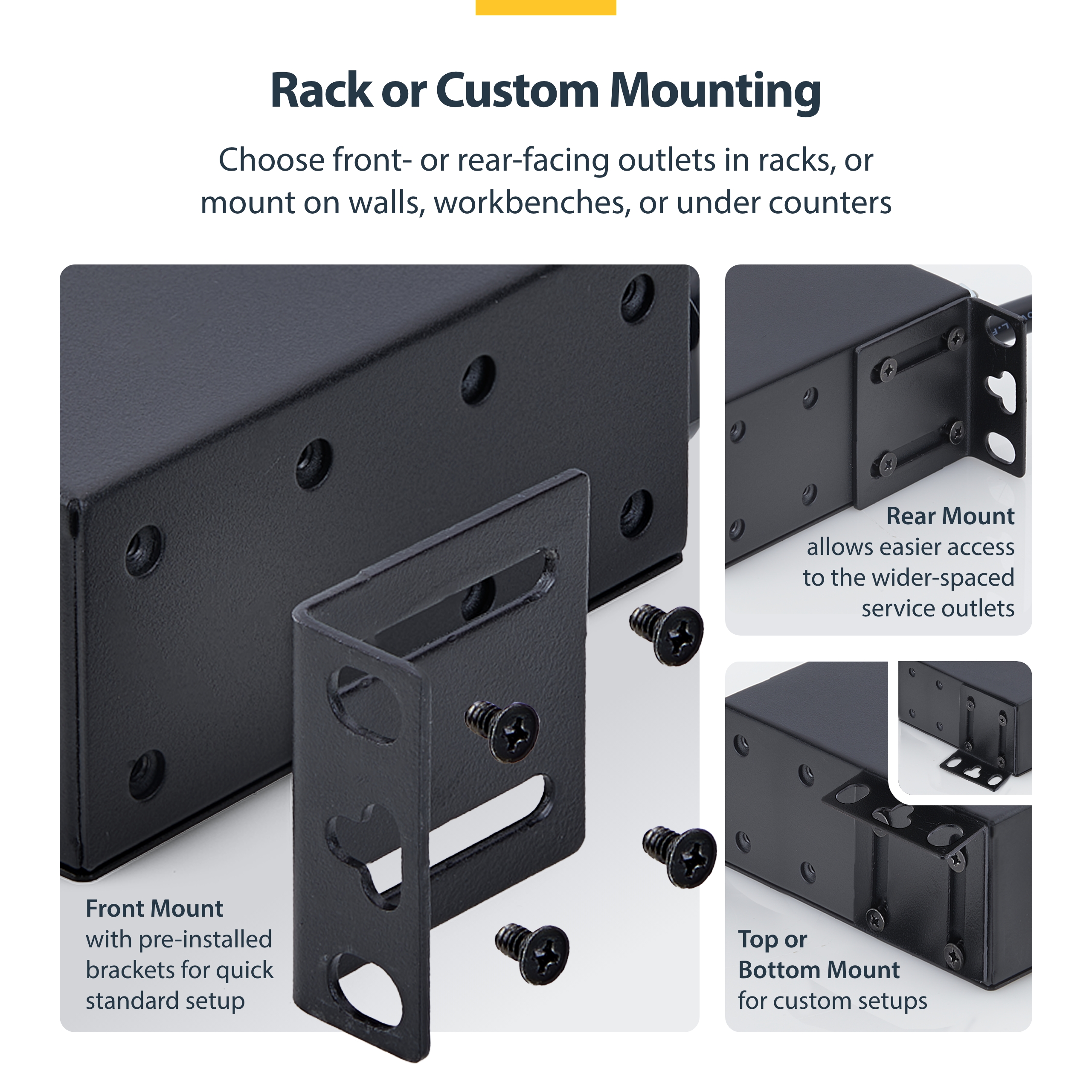

- 2 - Mounting Brackets (Pre-Installed)
- 4 - M5 Cage Nuts
- 4 - M5x12mm Rack Screws
- 1 - Product Documentation
Package Depth (mm) 0 Package Height (mm) 0 Package Width (mm) 0 Package Weight (g) 0 Packaging Description 14-Outlet 1U Rack-Mount PDU with Surge Protector - 8Ft (2.4m) Power Cable Packaging Description India 14-Outlet 1U Rack-Mount PDU with Surge Protector - 8Ft (2.4m) Power Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 NEMA 5-15 (125V AC, 15A) Connector 1 (Quantity) 1 Connector 2 NEMA 5-15 (125V AC, 15A) Connector 2 (Quantity) 14 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN QSG Amazon Merchandising Manager Kathleen Marshall Amazon Only SKU No Amazon Visual Content Level Gold Application Photos Uploaded Artwork Due Date 2025-05-29 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment This is the nearest comparable available based on the specs. Like Amp/Vol/Wattage capacity and closet outlets count. It comes with surge protector as well ( 1800 J) Comparable SKU 2 Comment NA Digital Content Due Date 2025-10-08 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) CA,US Primary Technology None Priority New Product High Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2025-06-06 Target Production Release 2025-07-18 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
