145B-USBC-HDMI4K-AOC

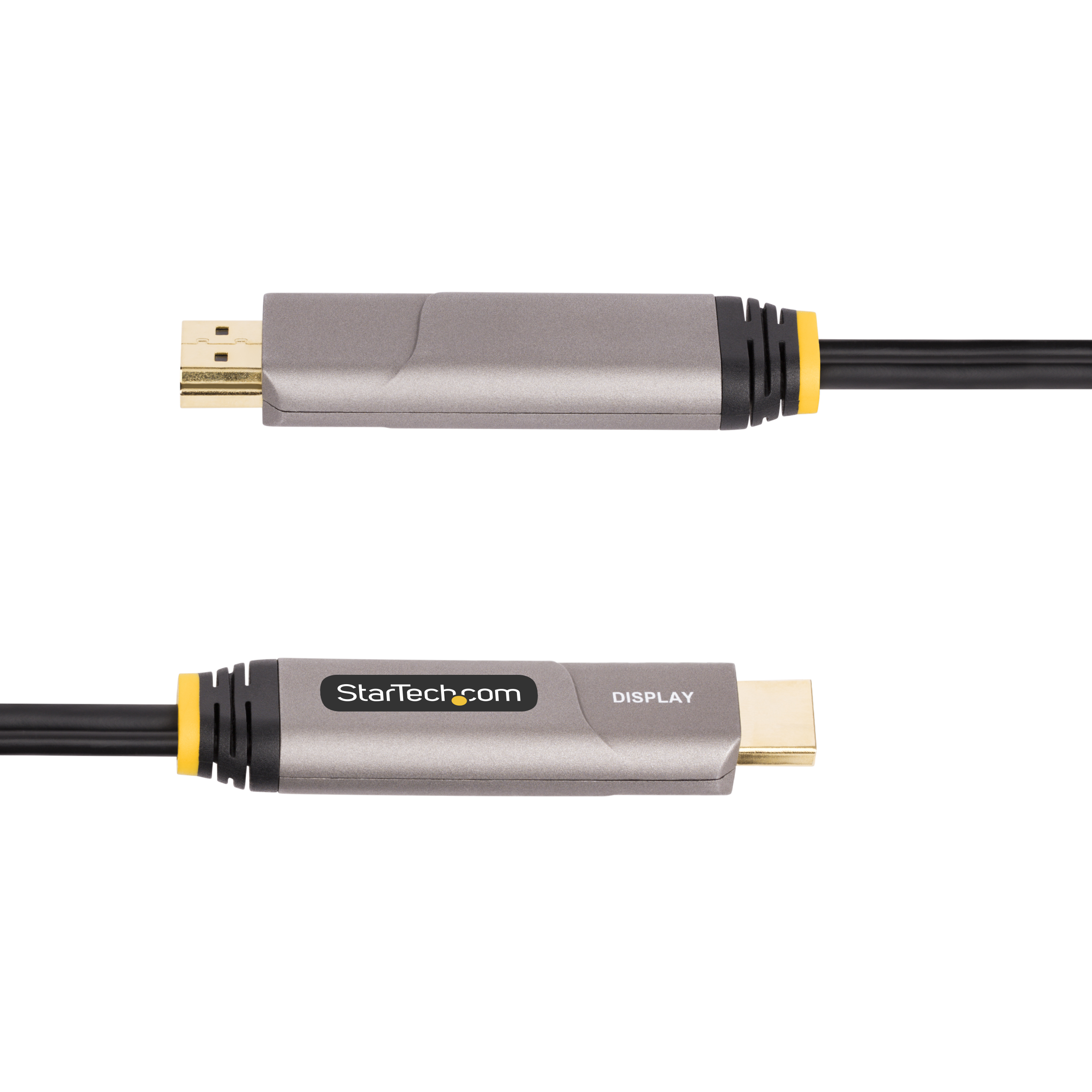

USB C to HDMI Optical Cable Adapter 30 feet 9 1m 4K 60
Connect a USB-C video source to an HDMI display, with support for HDR video
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name USB C to HDMI Optical Cable Adapter 30 feet 9 1m 4K 60 Product Number 145B-USBC-HDMI4K-AOC UPC 065030898201 Lifecycle status Active Warranty 3 Years Weighted Opportunity 45741 Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C to HDMI - 4K HDR Family USBC to HDMI 2.0 AOC Cables, DP Alt Mode, Full VBL, 4K60 Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX170X Product Title (Ultra-Short) USB-C to HDMI Cable Product Title (Short) 30ft USB-C to HDMI Cable (AOC), 4K 60Hz Product Title (Medium) 30ft (9.15m) USB-C to HDMI 2.0 Active Optical Cable (AOC), 4K 60Hz, CL3 Rated Product Title (Standard) 30ft (9.15m) USB-C to HDMI 2.0 Active Optical Cable (AOC), 4K 60Hz, USB Type-C to HDMI Adapter Cable, CL3 Rated Product Title (Long) 30ft (9.1m) USB-C to HDMI 2.0 Active Optical Cable (AOC), 4K 60Hz, CL3 Rated, Unidirectional USB Type-C to HDMI Adapter Cable Product Title (AMZ) 30ft (9.15m) USB-C to HDMI 2.0 Active Optical Cable (AOC), 4K 60Hz, USB Type-C to HDMI Adapter Cable, CL3 Rated Title Ingram (Part 1) 9.15m USB-C to HDMI Cable - Title Ingram (Part 2) Active Optical Cable, 4K 60Hz Website Product Headline Connect a USB-C video source to an HDMI display, with support for HDR video Bullet 1 DESIGNED FOR LONG RANGE: 30ft/9.15m USB-C to HDMI Active Optical Cable supports 4K 60Hz beyond the length of standard copper cables; Fiber optic inner cores reduce EMI ensuring optimal signal quality with minimal degradation; NOTE: Cable is unidirectional Bullet 2 INTEGRATED ADAPTER CABLE WITH HDR: Integrated adapter and cable minimizes failure points/signal loss; Supports HDR for accurate color reproduction; HDMI Connector w/1.4ft (43.5cm) USB-A power cable (required) for connection to USB-A port or wall charger Bullet 3 NO DRIVERS OR SOFTWARE: Universal Adapter Cable is compatible with all hardware platforms and any operating system (i.e., Windows, macOS, Linux); USB Type-C to HDMI Cable works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops/devices Bullet 4 DURABLE OPTICAL CABLE: OM3 Multi-Mode HDMI fiber optic cable features a PVC jacket, strain relief, and an active booster for reliable long-distance transmission; EMI shielding for noise reduction; Lightweight, easy to route, store, and transport Bullet 5 TECH SPECS: Color: Black; Length: 30 foot (9.15 meters); Unidirectional USB-C source to HDMI display; Cable Outer Diameter: 4.5mm; HDMI 2.0 supporting HDCP 1.4/2.2, HDR10, CEC, ARC, and 7.1ch audio; Supports 8/10bit RGB and YCbCr 4:4:4; Fire Rating: CL3 Bullets (Compact) 30ft (9.15m) USB-C to HDMI Active Optical Cable supports 4K 60Hz and 8/10bit RGB/YCbCr 4:4:4; Universal Adapter Cable requires no drivers/software; Works with DP Alt Mode/USB4/Thunderbolt 3/4 devices; Unidirectional, USB Type-C source to HDMI display Bullets (Consolidated) - 30ft (9.15m) USB-C to HDMI Active Optical Cable supports 4K 60Hz and 8/10bit RGB/YCbCr 4:4:4 - Integrated video adapter and cable minimizes failure points/signal loss; HDMI Connector w/Xft (X.Xm) USB-A power cable (required) - Universal Adapter Cable requires no drivers/software; Works any OS (Windows/macOS/Linux) and DP Alt Mode/USB4/Thunderbolt 3/4 devices - Supports HDR10/CEC/ARC/7.1ch audio/HDCP 1.4/2.2; Fire Rating: CL3 - Unidirectional (USB Type-C source to HDMI display) Marketing Copy Marketing Copy (No HTML) Applications - Connect a USB Type-C device to a 4K display without installing drivers or software
- Deliver 4K 60Hz video over longer distances with minimal signal degradation
- CL3 Rated for in-wall installations
Website Search Keyword - thunderbolt 3 to hdmi cable
- usb type-c to hdmi cable
- usb-c display cable
- usb-c to hdmi adapter cable
- usb-c to hdmi cable
- active hdmi cable
- active optical HDMI cable
- fiber optic hdmi cable
- Hybrid AoC HDMI Cable
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
Special Notes This USB Type-C to HDMI Adapter Cable is unidirectional and only operates from a USB-C source to an HDMI display. Accessory Products - USBEXTAA6BK
- USB2PACUBK
Related Products - 146B-USBC-HDMI4K-AOC
- 135B-USBC-HDMI212M
- 134B-USBC-HDMI211M
Power Delivery No PD Pass-Through Cable Length (mm) 9150 Color Space Gray Humidity 20% ~ 75% RH Operating Temperature 0°C to 45°C (32F° to 113F°) Product Length (mm) 9150.000 Product Width (mm) 20.000 Product Height (mm) 10.000 Product Weight (g) 427.000 Storage Temperature -10°C to 75°C (14F° to 167F°) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support Yes Maximum Digital Resolutions 3840 x 2160 60Hz Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility OS Independent Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input USB-C AV Output HDMI Cable Jacket Material PVC Chipset ID REALTEK2172 Converter Type Cable Adapters Fire Rating CL3 Rated Host Connection Port USB-C Number of Displays 1 Carton Depth (mm) 480 Carton Height (mm) 272 Carton Quantity 20 Carton Weight Gross (g) 8650 Included in Package - 1 - USB-C to HDMI Cable
- 1 - Quick-Start Guide

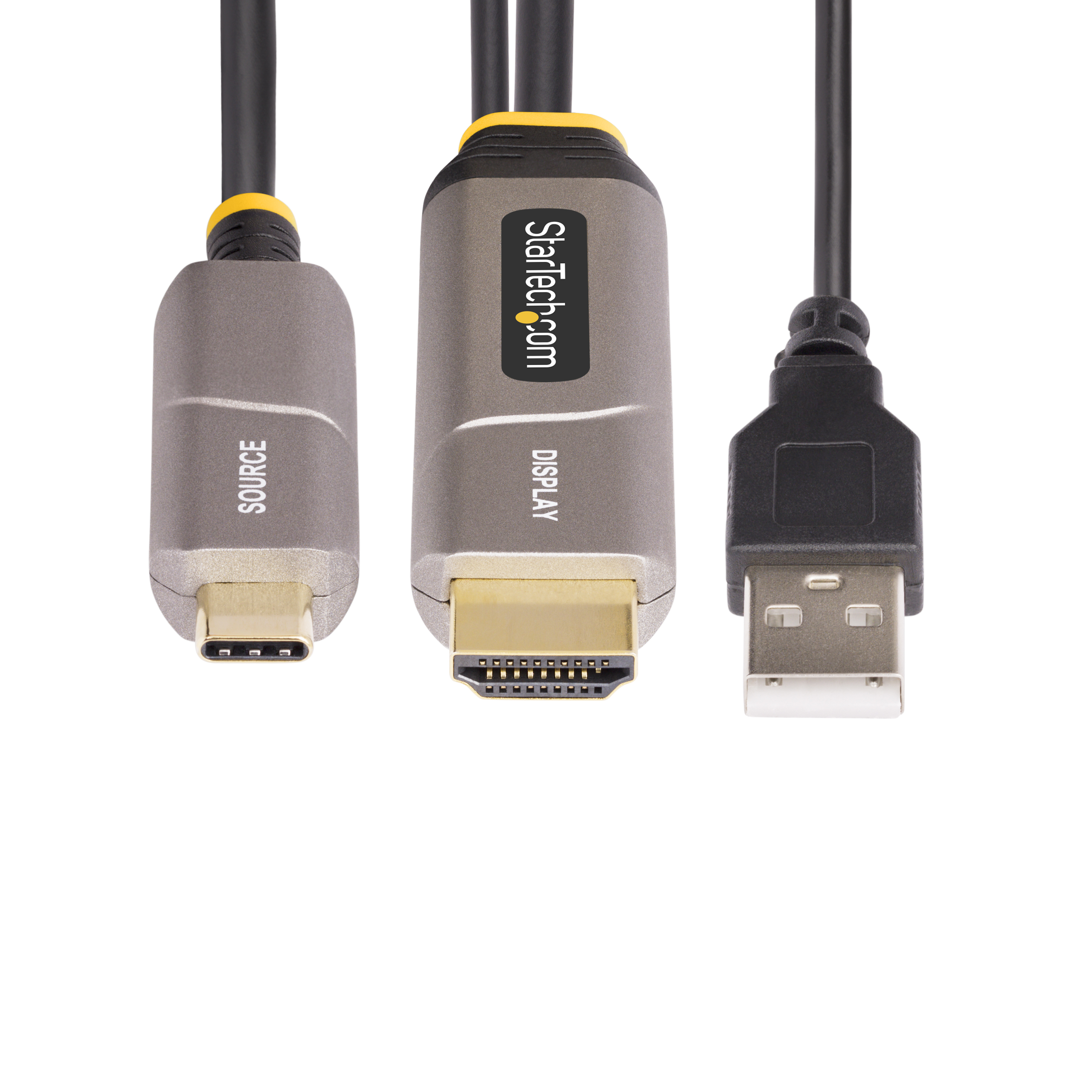

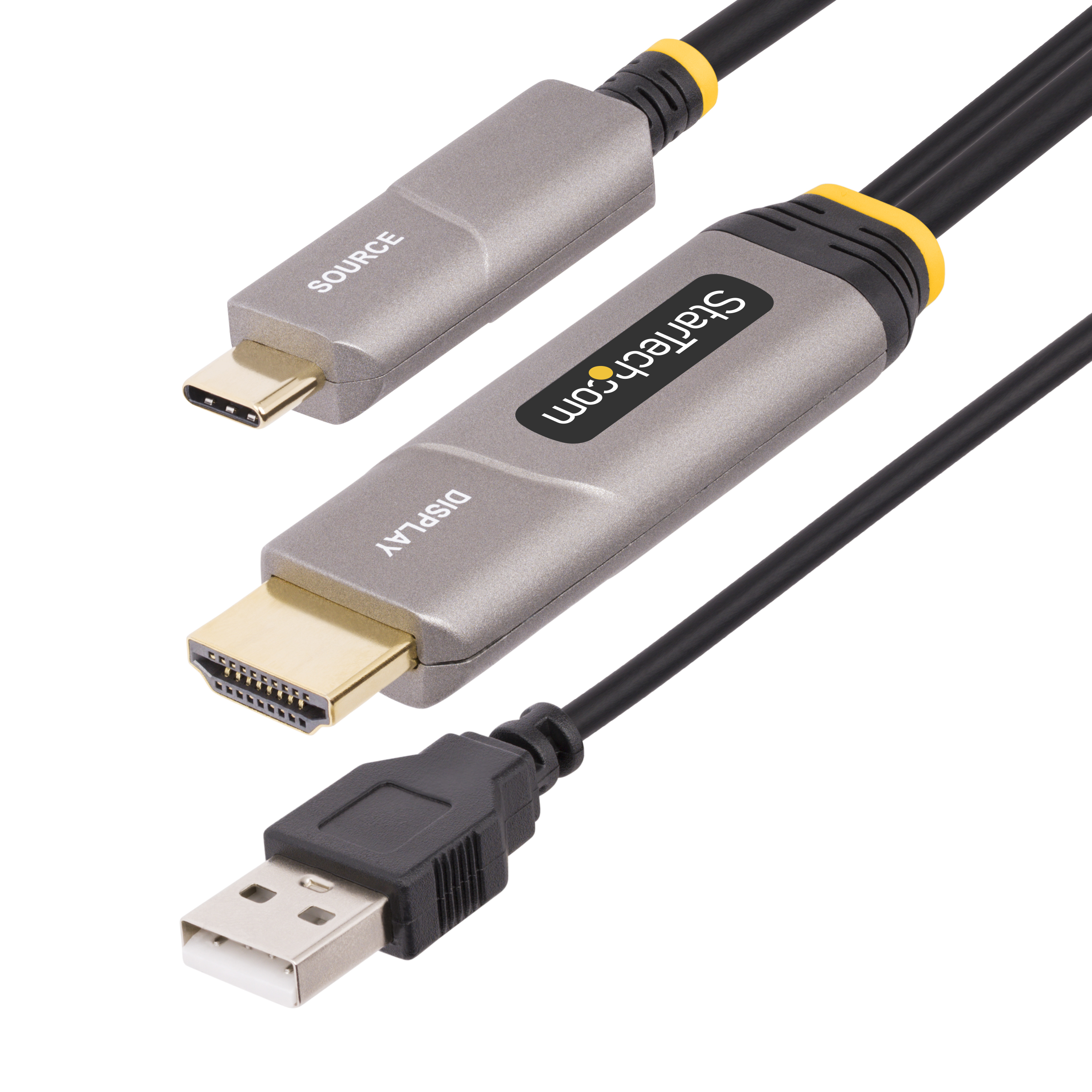

Package Depth (mm) 238 Package Height (mm) 43 Package Width (mm) 228 Package Quantity 1 Package Weight (g) 396 Packaging Description USB-C to HDMI 2.0b Optical Adapter Cable - 30ft (9m) - HDR - 4K 60Hz Packaging Description India USB-C to HDMI 2.0b Optical Converter Cable - 30ft (9m) - HDR - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-12-01 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Length 16.5 ft(5m) vs 30 ft/ HDMI 2.0b (HDR) vs HDMI 2.1 / Copper cable vs Optical fibre Digital Content Due Date 2024-05-20 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology - USB-C
- HDMI 2.0 / 4K 60 Hz and HDR
Priority New Product N/A Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2023-11-24 Target Production Release 2023-12-01 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Not Required
